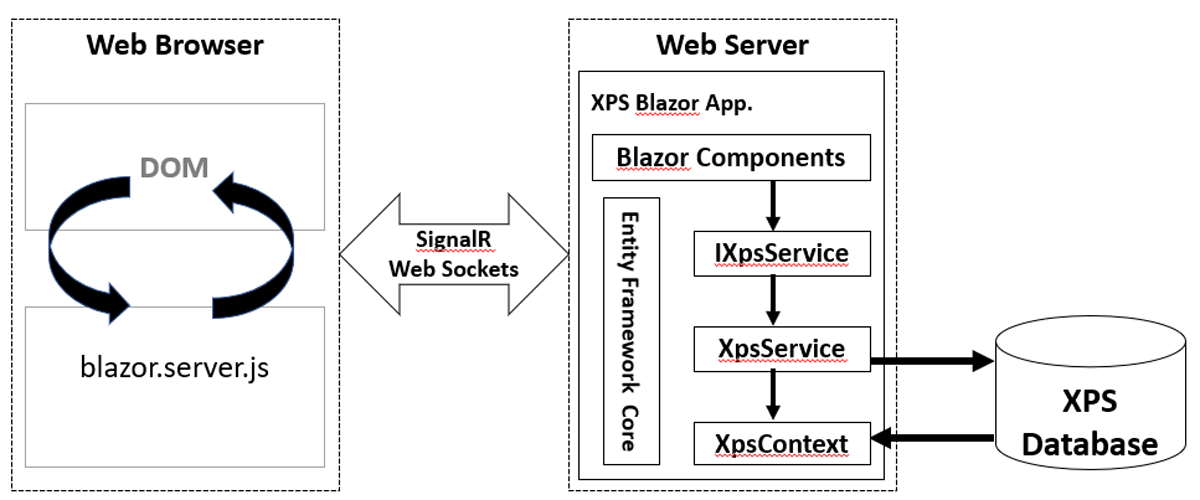

Figure 1
Overview of the Blazor server architecture.

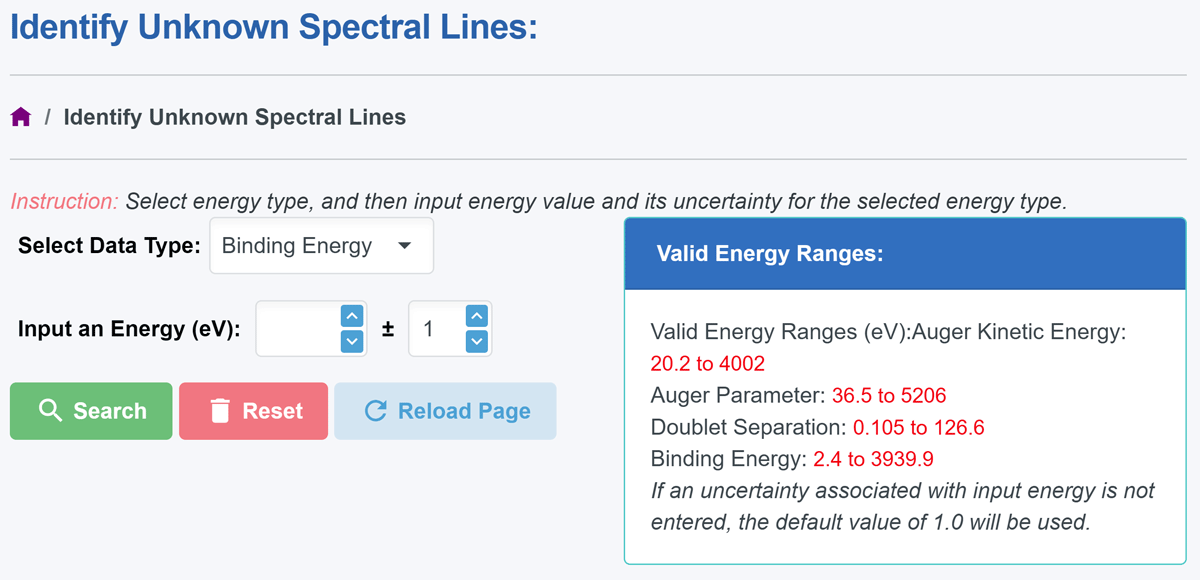

Figure 2
User interface for identification of an unknown spectral line.

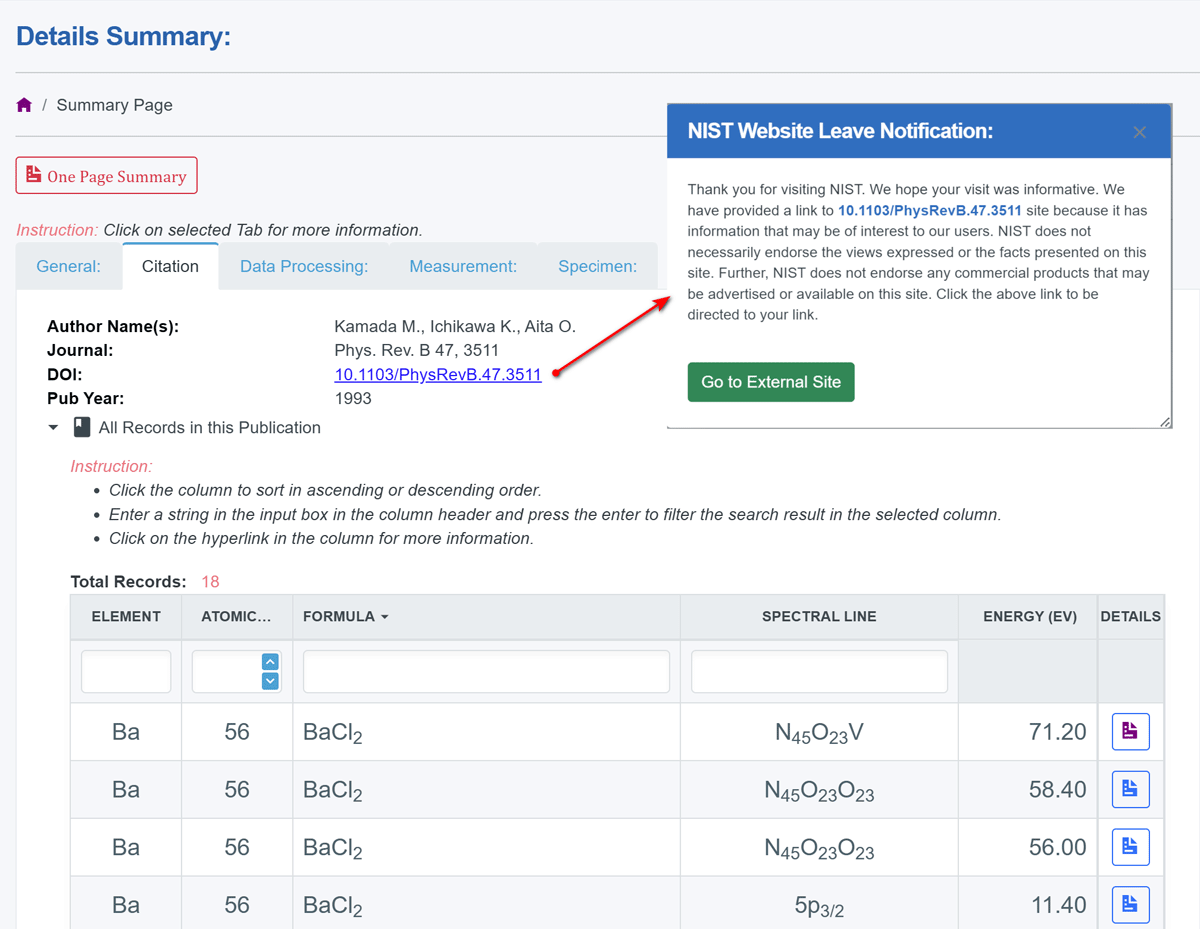

Figure 3
Details summary screen for a specific entry from a publication. Additionally, ‘All Records in this Publication’ had been selected on a previous screen to provide all data from the selected publication. The DOI may be clicked which will direct the user to the journal homepage for the article.

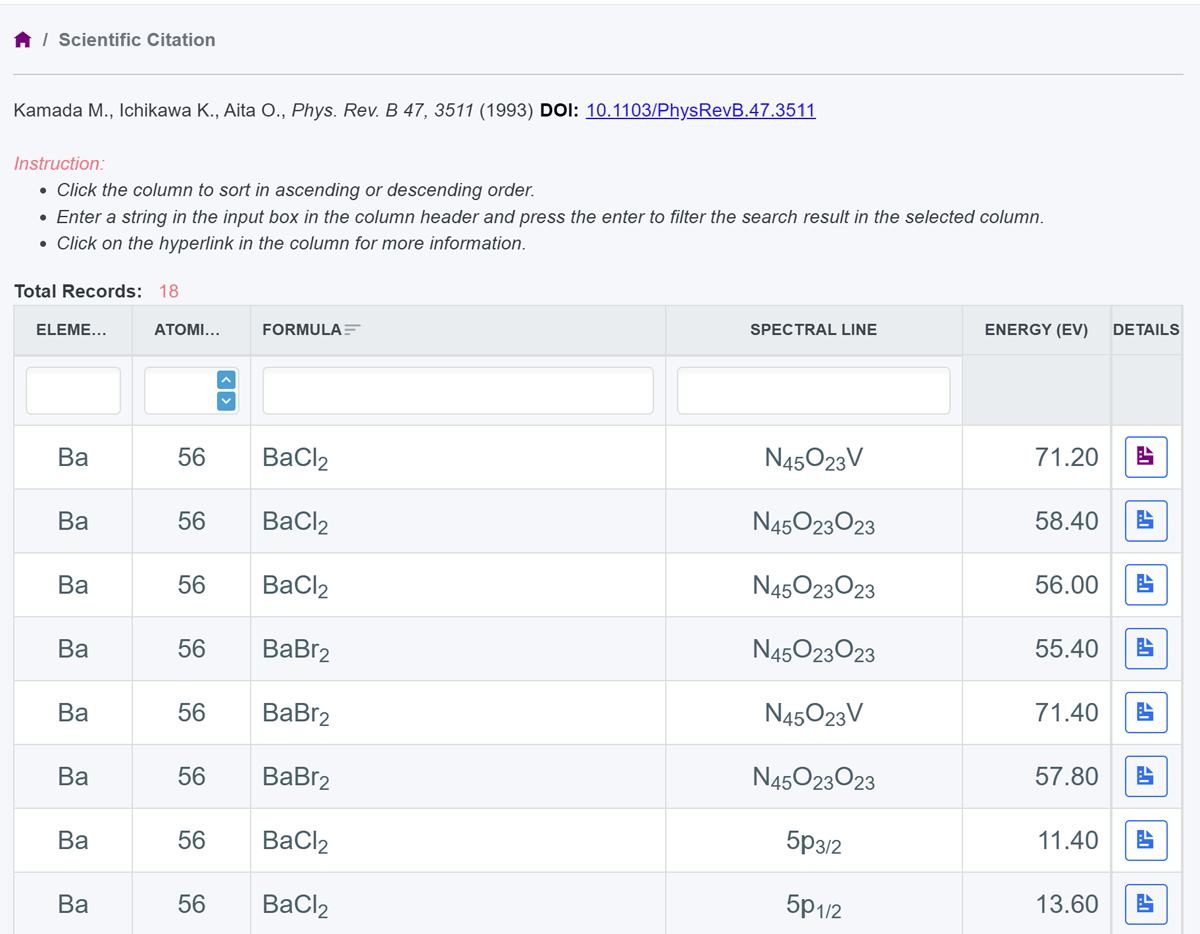

Figure 4
Matches from a search for additional data from a selected citation.

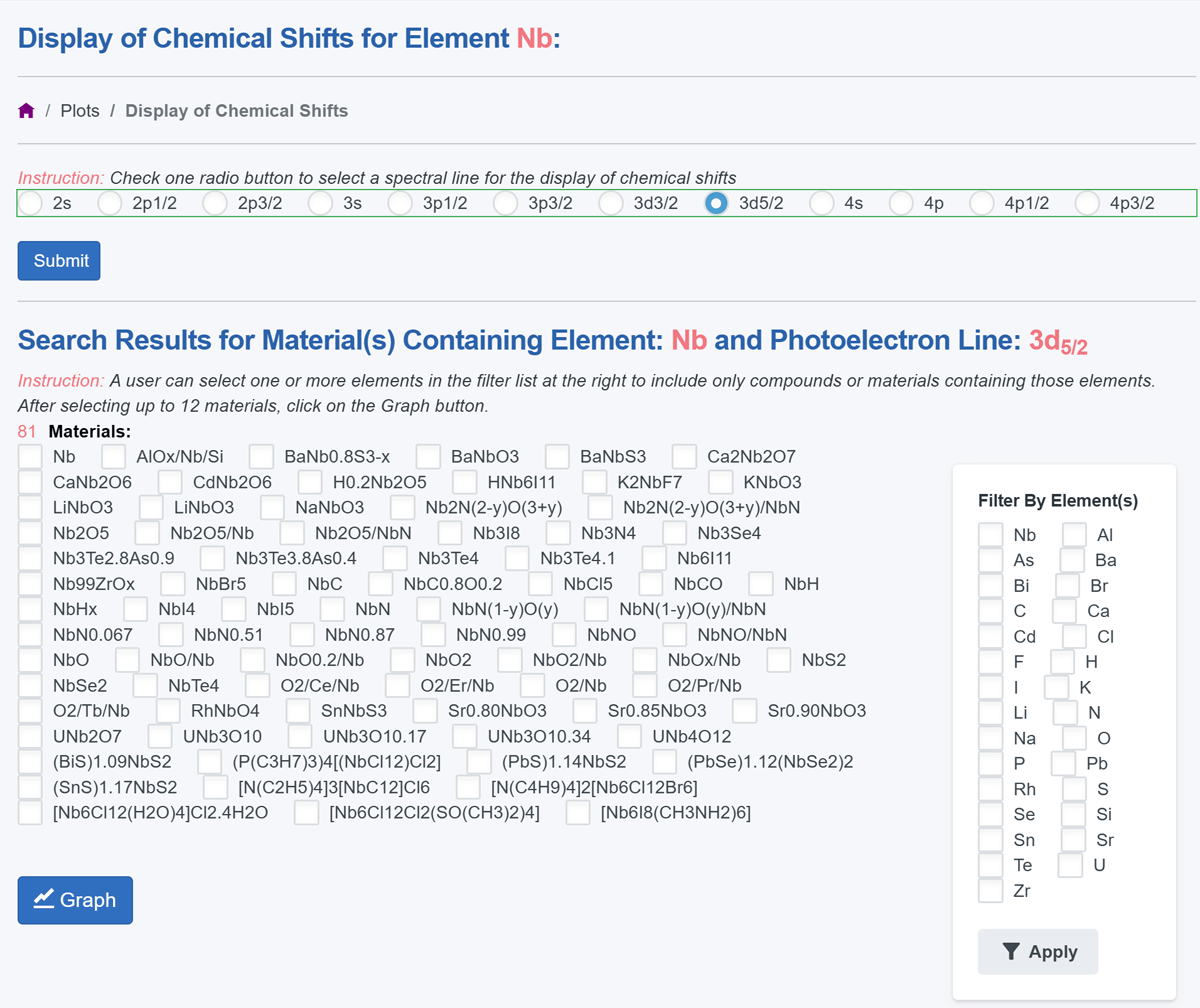

Figure 5
List of Nb-containing materials and compounds from the database with data for the Nb 3d5/2 orbital.

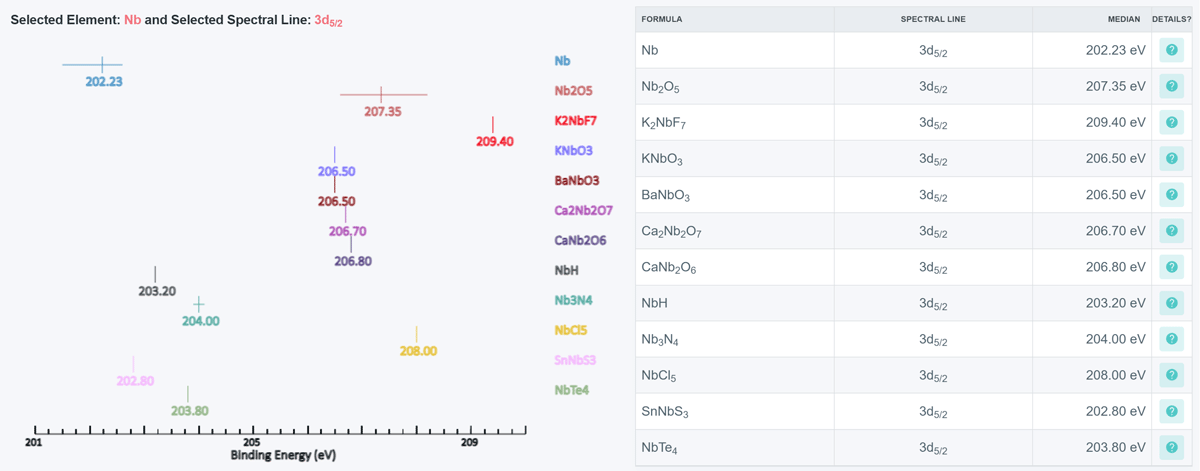

Figure 6
(left) Display of a binding-energy chemical-shift plot for Nb and selected Nb compounds for the Nb 3d5/2 photoelectron line. (right) Summary table for Nb and 11 Nb compounds used for the chemical-shift plot in Figure 5 (left).
Table 1
New processes and tools developed for creating new features in the NIST XPS Database Version 5.0.
| NEW TO SRD 20 V 5.0 | ||
|---|---|---|
| FEATURE | DESCRIPTION | LOCATION DESCRIBED |
| Web Architecture | Cross-platform, open-source .NET framework, EF Core framework, Blazor Server frame | Section 2.2 |
| Data Validator | Custom validators for checking users’ input | Section 2.3, SI Section 1 |
| Chemical Shift Plots | New algorithm was designed to draw the chemical shift plot in the HTML5 Canvas | Section 2.4, SI Section 6 |
| Molecular Formatter | Converts a molecular formula from plain text into a standard chemical formula | Section 2.4, SI Section 3 |
| Orbital Formatter | Converts orbital text into a physically meaningful format | Section 2.4, SI Section 4 |
