The Joint Calibration Method of Multi-line Laser and Tracking System based on Conjugate Gradient Iteration

Huiming Huang; Guihua Liu; Jiajia Liu; Xueyin Liu; Lei Deng; Tao Song; Fuping Qin

doi:10.2478/msr-2025-0027

Full Article

1.

Introduction

Accurate and visual measurement of objects at large scales is challenging due to factors such as limited equipment, object occlusion, and ambient lighting fluctuations. Obtaining dense and accurate point cloud data through a single measurement is often difficult [1], [2]. The global stitching technique, which uses a multi-view measurement with an optical tracking algorithm, has proven successful in various scanning applications [3], [4]. This method is useful for reconstructing three-dimensional objects within a vast field of view that lack distinct markers. Precise measurements are crucial for the tracking and stitching process to transform individual measurement data into a global coordinate system and to optimize the measurement parameters by matrix correlation transformations [5], [6]. The core of optical tracking lies in the alignment of point clouds, which enables the synchronization of coordinate systems across different test angles [7], [8], [9], regardless of whether it is based on shape [10], [11] or tracking. However, as the measurement range increases and the field of view changes, both marker-based and shape-based techniques are susceptible to cumulative measurement errors. The optical tracking-based measurement approach combines global positioning with a local scanning system. The global tracking system can be achieved by stereo vision technology for a large field of view [12], [13], while the local scanning system can use laser triangulation or grating-structured light systems. The data obtained with the local scanning system can be converted into a unified coordinate system using a global tracking system. Despite the error-free accumulation and flexible measurements, calibration errors occur in the results due to the transformation of the position matrix between the measurement and tracking systems. Barone [14], [15] used a standardized conversion calibration board for the calibration. In this method, the coordinates are converted from the calibration board to the measurement system and then to the tracking system, followed by registration to calculate the transformation matrix. Other researchers have further developed this calibration method to construct various combined measurement systems. J. Shi [16], [17], [19], S. Bai [18], T. Jiang et al. [20] and Y. Zhang [21] have proposed a new approach to reconstruct large objects, which includes an elementary method. In this approach, a structured light measurement system is used as a local scanning system to reconstruct regional surfaces, while a stereo tracker is used for global registration. However, this calibration process is limited by the restriction of the common field of view, as both the tracking system and the measurement system are unable to simultaneously acquire information from the same calibration plate. This limitation renders it unsuitable for calibrations that require shared information from both systems. Furthermore, if the 3D data is distributed on a plane, the registration process becomes invalid due to insufficient dimensional information. The perspective-n-point (PnP) algorithm was developed by QY. Zhou et al. [22] to calculate the transformation matrix between the calibration board and the tracking system, taking into account the monocular visual call in the global system. The calibration process primarily involved changes in the position and pose of the calibration board. However, apart from computational instability, the PnP method is sensitive to variations in pixel intensity and measurement depth during attitude estimation and registration. Since the scale information between the local and global coordinate systems is not considered, the calibration accuracy is affected, leading to unstable calibration results. G. Xu et al. [23], [24], proposed a laser sensor with unrestricted installation positions and local attitudes, so that calibration of both the sensor and the global version system is not required. However, this approach still requires a pre-calibration of the laser plane, i.e. it only replaces the camera-to-laser coordinate system with the camera-to-plane plate transformation. In addition, a wide field of view is required to capture both flat plates and laser strips within the range of the global camera. Zhao et al. [25] have presented a simple method for calibrating non-overlapping cameras that allows specific camera position recognition. Although the conversion relationship can be established with already calibrated cameras, the accuracy varies across different positions within the field of view despite uniform distribution of these markers during use. Therefore, in cases where the calibration plates are not distributed within the high-precision field of view area, the accuracy cannot be guaranteed. In the study by Sarmadi et al. [26], two-dimensional calibration plates and three-dimensional marker points were used to estimate the three-dimensional structure and relative posture of planar markers. However, these traditional calibration methods pose a number of challenges in practice, mainly due to their inconvenient operation and the inability to guarantee the accuracy of the final calibration.

The main purpose of the tracking system is to integrate the binocular system with the multi-line laser system. This is convenient for real-time tracking and stitching of the three-dimensional data reconstructed by the laser system, which is achieved by determining the spatial position of the multi-line laser system in real time. Therefore, the calibration of the whole system includes the calibration of the binocular tracking system and the joint calibration of the multi-line laser system and the tracking ball cage. The conventional joint calibration of the multi-line laser system and the tracking ball cage is based on the plane calibration plate method, as shown in Fig. 1. It realizes the calibration between the tracking ball and the multi-line laser system by calculating the conversion relationship between the plane calibration plate and the camera. However, the use of these plane calibration plates poses great challenges, such as their size, high production cost, and inability to guarantee the plane accuracy. These limitations can lead to a large number of calibration errors and to a complex calibration process. To solve this problem, a multi-position orientations and conjugate gradient iteration method based on the cross pole is proposed to complete the joint calibration between the multi-line laser system and the tracking ball cage. The cross pole is easy to make, and the 3D coordinates of the coding points can be determined in advance using a coordinate measuring machine. The calibration of the binocular tracking system and the joint calibration between the multi-line laser system and the tracking ball cage can be completed by the precise 3D coordinates on the cross pole. The method proposed in this paper, which is based on multi-position orientations and conjugate gradient iteration, can improve the convenience of calibration and achieve higher precision of calibration to improve the final stitching accuracy.

2.

Hardware composition and calibration of the tracking system

A.

The hardware composition of the tracking system

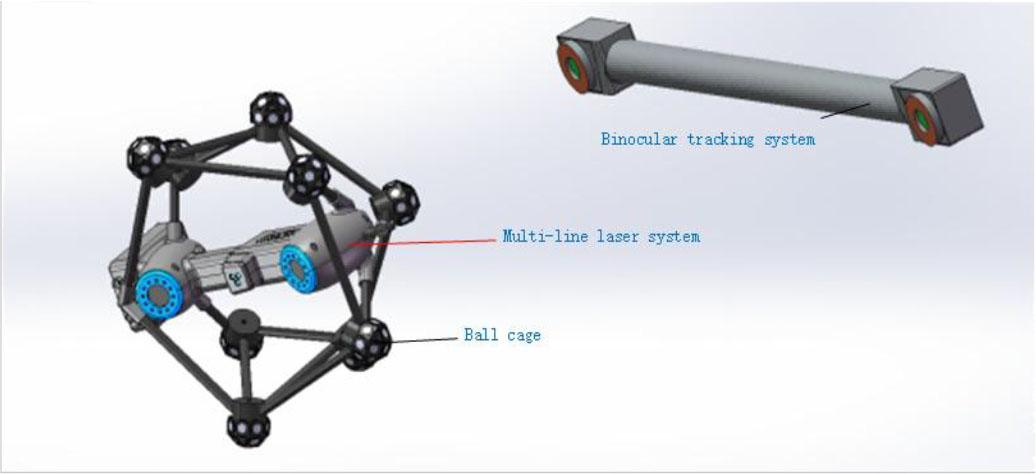

The tracking system hardware essentially consists of three main components: the binocular tracking system, the multi-wire laser system, and the tracking ball cage, which is seamlessly integrated into the multi-wire laser system hardware, as shown in Fig. 2. The binocular tracking system is equipped with two industrial cameras that are mainly responsible for the real-time tracking of the ball cage within a given field of view. In contrast, the multi-wire laser system includes a binocular camera and a multi-line laser, which are primarily intended for the reconstruction of the object. The tracking ball cage, which primarily consists of several polyhedra, is able to determine the spatial and positional relationships of the multi-line laser system.

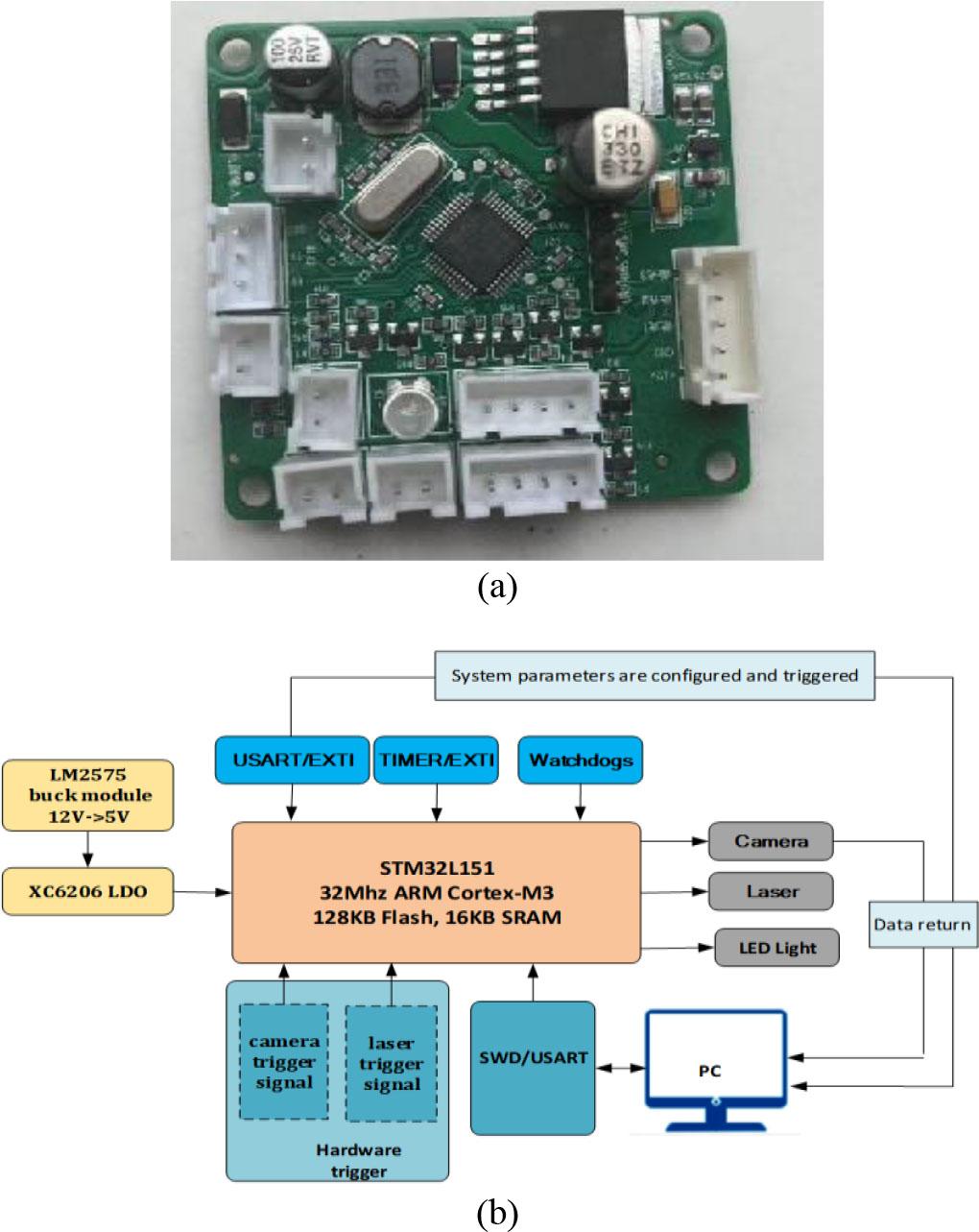

The STM32L151 microcontroller, as shown in Fig. 3(a), is responsible for managing the entire system. This ultra-low power device is based on the high-performance ARM® Cortex®-M4 32-bit RISC core, which can operate at frequencies of up to 80 MHz. The Cortex-M4 core features a single floating point unit (SFPU) with precision and supports all ARM single-precision data processing instructions and types. It also includes a comprehensive set of digital signal processing (DSP) instructions and a memory protection unit (MPU) to increase application security. The hardware control aspect of the system includes synchronization trigger control for the binocular tracking system camera, laser projection, and camera acquisition, and manages the multi-line laser system. In the context of multi-line laser 3D reconstruction, the main task of the controller is to initiate the laser projection and simultaneously trigger the camera to capture the laser image. It then monitors the binocular tracking system and synchronizes the camera triggers to capture the white light image. Trigger acquisition and laser projection can be performed by sending control commands through the serial port. The architecture of the controller’s motherboard is shown in Fig. 3(b), and the timing is shown in Fig. 4.

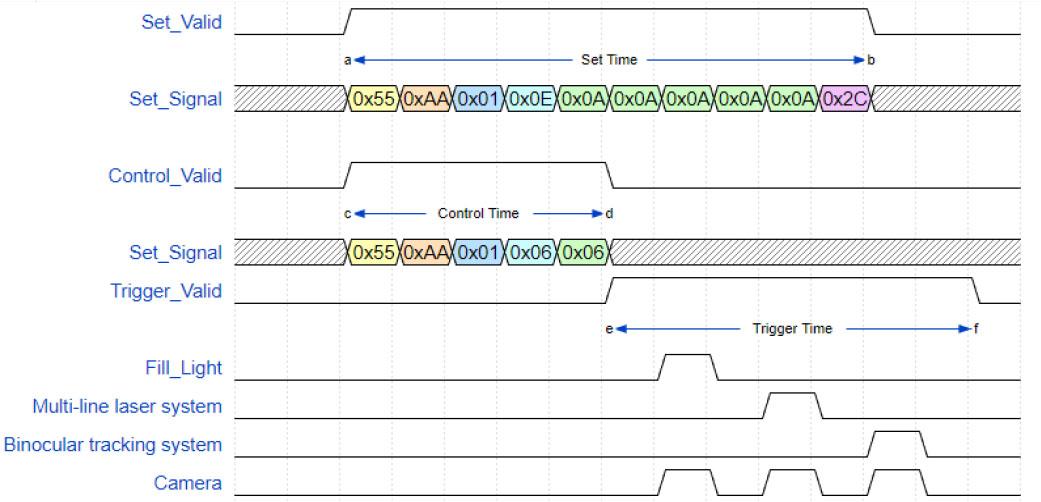

The primary circuitry of the tracking system control mechanism is divided into two main components: system timing configuration and image acquisition management. Fig. 4 illustrates the control protocol using a multi-line laser to capture three images. During the configuration of the system’s timing interval, the Set_Valid signal is activated and the sequence 0x55AA, 0x01, 0x0E, 0x0A, 0x0A, 0x0A, 0x0A, 0x2C is inscribed. This sequence includes the header, the status code, the configuration mode, the duration of the high level for seven-wire laser A, the duration of the low level for seven-wire laser A, the duration of the high level for fill light, the duration of the low level for fill light, the duration of the high level for seven-wire laser B, the duration of the low level for seven-wire laser B, and the checksum of the sequence. The successful configuration of the system timing is confirmed if the sum of the initial nine sequences matches the lower octet of the checksum. When the camera image acquisition control is performed, the Control_Valid control signal is activated and the sequence 0x55AA, 0x01, 0x06, 0x06 is inscribed to identify the frame header of the control signal, the status code, the camera image acquisition trigger mode, and the mode check bit. After checking the correct check bit, the Trigger_Valid trigger signal for image acquisition is activated and triggers the fill light, the seven-wire laser A, and the seven-wire laser B in sequence. The camera acquisition signal then triggers the capture of a white light image, a seven-wire laser A image, and a seven-wire laser B image. After these three images have been captured, the Trigger_Valid signal switches to a low level and thus leads to the reconstruction of the input image collection.

B.

Calibration of the binocular tracking system

The main purpose of the tracking system is to construct a binocular system in conjunction with a multi-line laser system, for real-time tracking and alignment of the multi-line laser system to determine its spatial positional relationship. When calibrating the binocular tracking system, it is therefore essential to consider the factor of a broad field of view. Calibrating a tracking system using the traditional flat plate method can present many challenges. The main difficulty is to create a calibration board that is sufficiently precise to account for such an extensive field of view. This article therefore proposes the adoption of a cross pole-based calibration method, which is easy to make and place within the field of view. The cross pole is equipped with marked points that possess unique codes (see Fig. 5) to ensure the uniqueness of the coding across different positions and angles. By obtaining the three-dimensional coordinates of all coded points on the cross pole in advance using the third-party tools, you can position the pole at multiple locations within the field of view and initiate camera data collection. Then, the central coordinates and code values of all designated points on the cross pole are identified, taking into account their recognized central coordinates from different positions and the corresponding three-dimensional point coordinates on the cross pole. By applying bundle adjustment techniques, the internal and external parameters of the binocular tracking system can be accurately calibrated.

Based on the pinhole imaging principle of cameras, when using an ideal optical camera for photography, the three-dimensional point of the object, the center of the lens and the image point align in a straight line. This alignment represents the ideal linear imaging model of the cameras, which can be formally represented with a homogeneous coordinate matrix. (1) $\begin{matrix} u \\ v \\ 1 \end{matrix}] = \begin{matrix} f_{u} & 0 & u_{0} & 0 \\ 0 & f_{v} & v_{0} & 0 \\ 0 & 0 & 1 & 0 \end{matrix}] \begin{matrix} R & T \\ 0^{T} & 1 \end{matrix}] \begin{matrix} X \\ Y \\ Z \\ 1 \end{matrix}]$ \left[ {\matrix{ u \cr v \cr 1 \cr } } \right] = \left[ {\matrix{ {{f_u}} & 0 & {{u_0}} & 0 \cr 0 & {{f_v}} & {{v_0}} & 0 \cr 0 & 0 & 1 & 0 \cr } } \right]\left[ {\matrix{ R & T \cr {{0^T}} & 1 \cr } } \right]\left[ {\matrix{ X \cr Y \cr Z \cr 1 \cr } } \right] where (u, v) is the pixel coordinate of the image point, f_u and f_v are the scale factors of the image axis and axis, respectively, (u₀, v₀) represents the principal point coordinate of the image, the third-order square matrix R and the three-dimensional vector T represent the rotation matrix and the translation vector of the camera coordinate system relative to the world coordinate system, respectively, and (X, Y, Z) is the world coordinate of the three-dimensional point of the object side. At this time, the object point, the center of the lens and the image point satisfy the three-point collinear equation, and (1) can also be rewritten into the following form: (2) $\begin{array}{l} u = f_{u} \frac{r_{1} X + r_{2} Y + r_{3} Z + t_{x}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} + u_{0} \\ v = f_{v} \frac{r_{4} X + r_{5} Y + r_{6} Z + t_{y}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} + v_{0} \end{array}$ \left\{ {\matrix{ {u = {f_u}{{{r_1}X + {r_2}Y + {r_3}Z + {t_x}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}} + {u_0}} \hfill \cr {v = {f_v}{{{r_4}X + {r_5}Y + {r_6}Z + {t_y}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}} + {v_0}} \hfill \cr } } \right.

Here (r₁,⋯,r₉) are 9 components representing the third-order rotation matrix R and (t_x, t_y, t_z) represents the three components of the translation vector.

In the practical application of the imaging system, the deviation of the image point caused by the lens optical distortion of the lens must be considered to satisfy the three-point collinear equation, which includes the square object point, the lens center, and the image point. (3) $\begin{array}{l} \begin{array}{l} u - u_{0} + Δ u = f_{u} \frac{r_{1} X + r_{2} Y + r_{3} Z + t_{x}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} \\ v - v_{0} + Δ v = f_{v} \frac{r_{4} X + r_{5} Y + r_{6} Z + t_{y}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} \end{array} \\ \Rightarrow \begin{array}{l} u = f_{u} \frac{r_{1} X + r_{2} Y + r_{3} Z + t_{x}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} + u_{0} - f_{u} Δ x \\ v = f_{v} \frac{r_{4} X + r_{5} Y + r_{6} Z + t_{y}}{r_{7} X + r_{8} Y + r_{9} Z + t_{z}} + v_{0} - f_{v} Δ y \end{array} \end{array}$ \matrix{ {\left\{ {\matrix{ {u - {u_0} + \Delta u = {f_u}{{{r_1}X + {r_2}Y + {r_3}Z + {t_x}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}}} \hfill \cr {v - {v_0} + \Delta v = {f_v }{{{r_4}X + {r_5}Y + {r_6}Z + {t_y}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}}} \hfill \cr } } \right.} \hfill \cr { \Rightarrow \left\{ {\matrix{ {u = {f_u}{{{r_1}X + {r_2}Y + {r_3}Z + {t_x}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}} + {u_0} - {f_u}\Delta x} \hfill \cr {v = {f_v}{{{r_4}X + {r_5}Y + {r_6}Z + {t_y}} \over {{r_7}X + {r_8}Y + {r_9}Z + {t_z}}} + {v_0} - {f_v}\Delta y} \hfill \cr } } \right.} \hfill \cr }

Here (u, v) and (u₀, v₀) are respectively the coordinates of the image point and the main point in the image pixel coordinate system, (x, y) are the coordinates of the image point in the physical coordinate system of the image, and (Δx, Δy) is the image point deviation caused by the optical distortion of the camera. (4) $\begin{array}{l} Δ x = k_{1} x r^{2} + k_{2} x r^{4} + k_{3} x r^{6} + p_{1} (r^{2} + 2 x^{2}) + 2 p_{2} xy \\ Δ y = k_{1} y r^{2} + k_{2} y r^{4} + k_{3} y r^{6} + p_{2} (r^{2} + 2 y^{2}) + 2 p_{1} xy \end{array}$ \left\{ {\matrix{ {\Delta x = {k_1}x{r^2} + {k_2}x{r^4} + {k_3}x{r^6} + {p_1}\left( {{r^2} + 2{x^2}} \right) + 2{p_2}xy} \hfill \cr {\Delta y = {k_1}y{r^2} + {k_2}y{r^4} + {k_3}y{r^6} + {p_2}\left( {{r^2} + 2{y^2}} \right) + 2{p_1}xy} \hfill \cr } } \right.

Here : r² = x² + y².

The camera parameters, which are determined on the basis of the sequence image orientation and the three-dimensional spatial points obtained by reconstruction, deviate from their true values due to the influence of noise on the acquired image. To minimize these errors, a self-checking correction beam adjustment method was used for the non-linear optimization of the camera parameters and the three-dimensional point coordinates in space. The objective function of this optimization, which is based on the principle of non-linear least squares, can be expressed as follows. (5) $min \sum_{i = 1}^{n} \sum_{j = 1}^{m} {(u_{ij}, v_{ij}) - ({\tilde{u}}_{ij}, {\tilde{v}}_{ij})‖}^{2}$ {\rm{min}}\sum\limits_{i = 1}^n {\sum\limits_{j = 1}^m {} {{\left\| {\left( {{u_{ij}},{v_{ij}}} \right) - \left( {{{\tilde u}_{ij}},{{\tilde v}_{ij}}} \right)} \right\|}^2}} where n is the number of three-dimensional points in space, m is the number of images, (u_ij, v_ij) represents the actual imaging point coordinate of the i^th 3D point on the j^th image. $({\tilde{u}}_{ij}, {\tilde{v}}_{ij})$ \left( {{{\tilde u}_{ij}},{{\tilde v}_{ij}}} \right) denotes the coordinates of the image point corresponding to the i^th 3D point in the j^th image, derived by solving (5). Furthermore, this objective function can be interpreted as minimizing the reprojection residual of the image points and thus has a clear physical meaning.

C.

The joint calibration of the tracking system

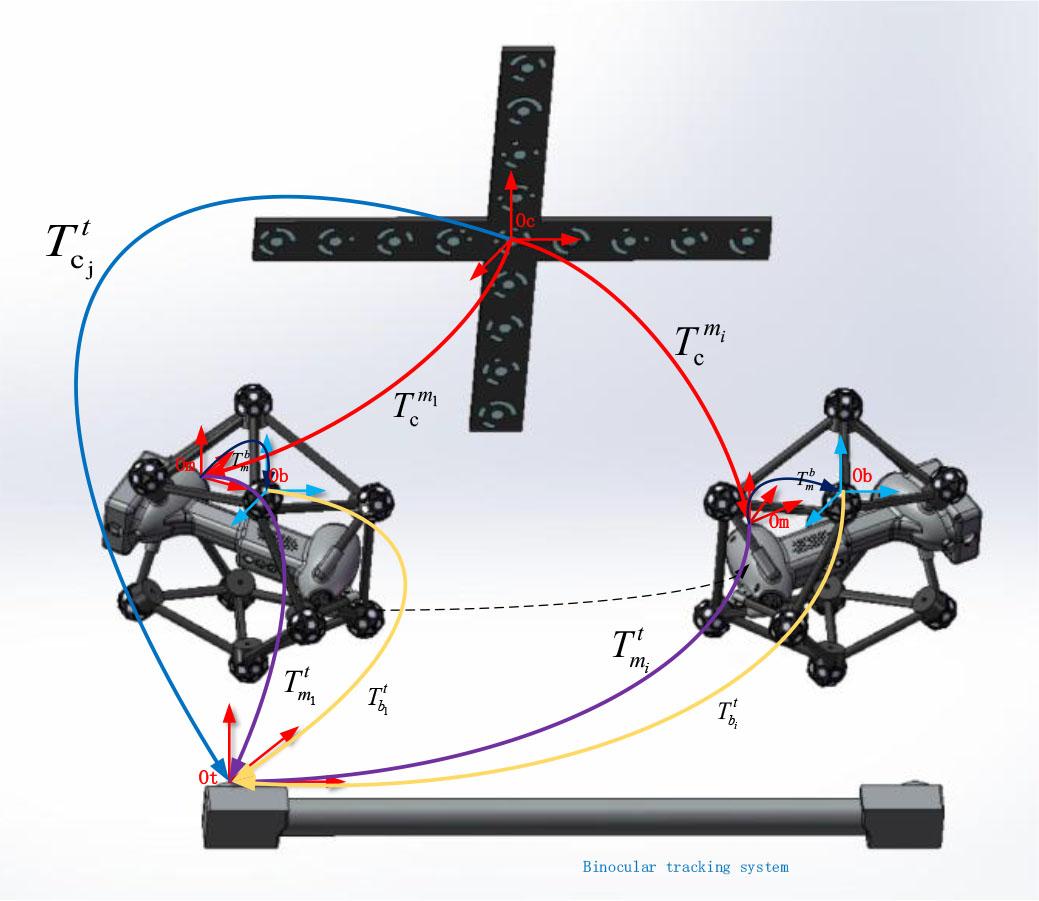

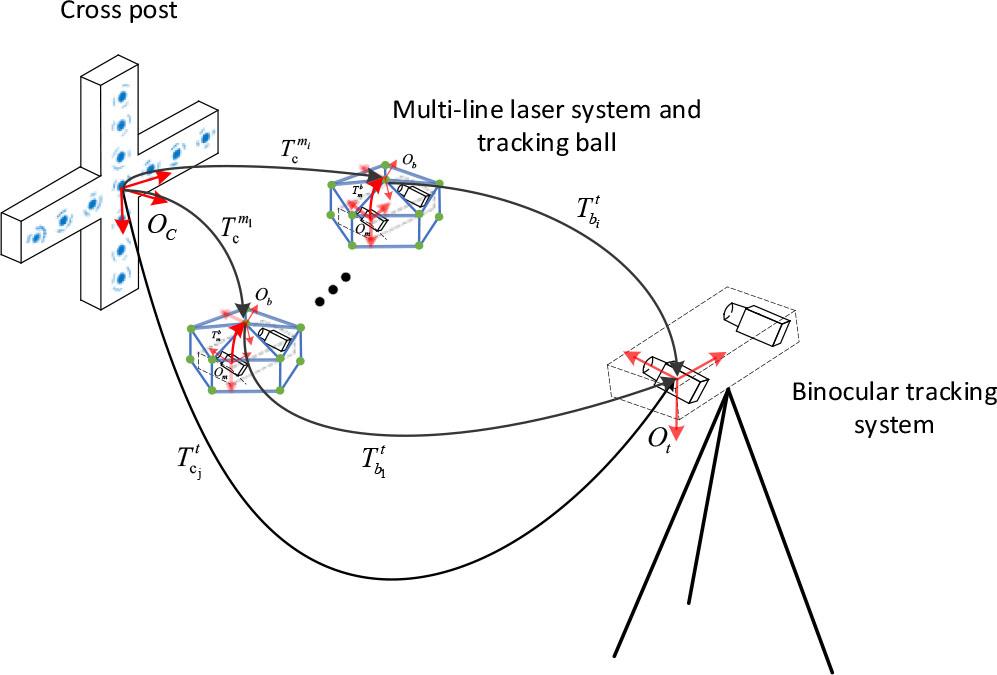

Once the binocular tracking system has been successfully calibrated, the next step towards multi-line laser unmarked point stitching is to complete the joint calibration between the tracking ball and the multi-line laser system. This joint calibration is essentially about establishing a conversion relationship between the two coordinate systems, which ultimately facilitates the translation of the three-dimensional coordinates of the reflective mark points from the tracking ball coordinate system to the multi-line laser coordinate system. To facilitate this, a set of tracking ball hardware is integrated into the hardware of the multi-line laser system, as shown in Fig. 6. This tracking ball hardware consists primarily of several polyhedra, each face adorned with circular marking points made of a special reflective material. Using a photogrammetry method based on multiple views, the three-dimensional coordinates of each circular marking point can be determined relative to a reference cage in which the tracking ball is located. These coordinates were then transformed in relation to the coordinate system of the cage. It is essential that the joint calibration of the tracking ball and the multi-line laser system is performed with an already-calibrated binocular tracking system. Both systems must be positioned in the same field of view to allow simultaneous observation of cross pole, as shown in Fig. 6. The established coordinate system includes the following:

O_t is the binocular tracking coordinate system,
O_m is the multi-line laser coordinate system,
O_b is the tracking ball cage coordinate system, and
O_c is the cross pole coordinate system.

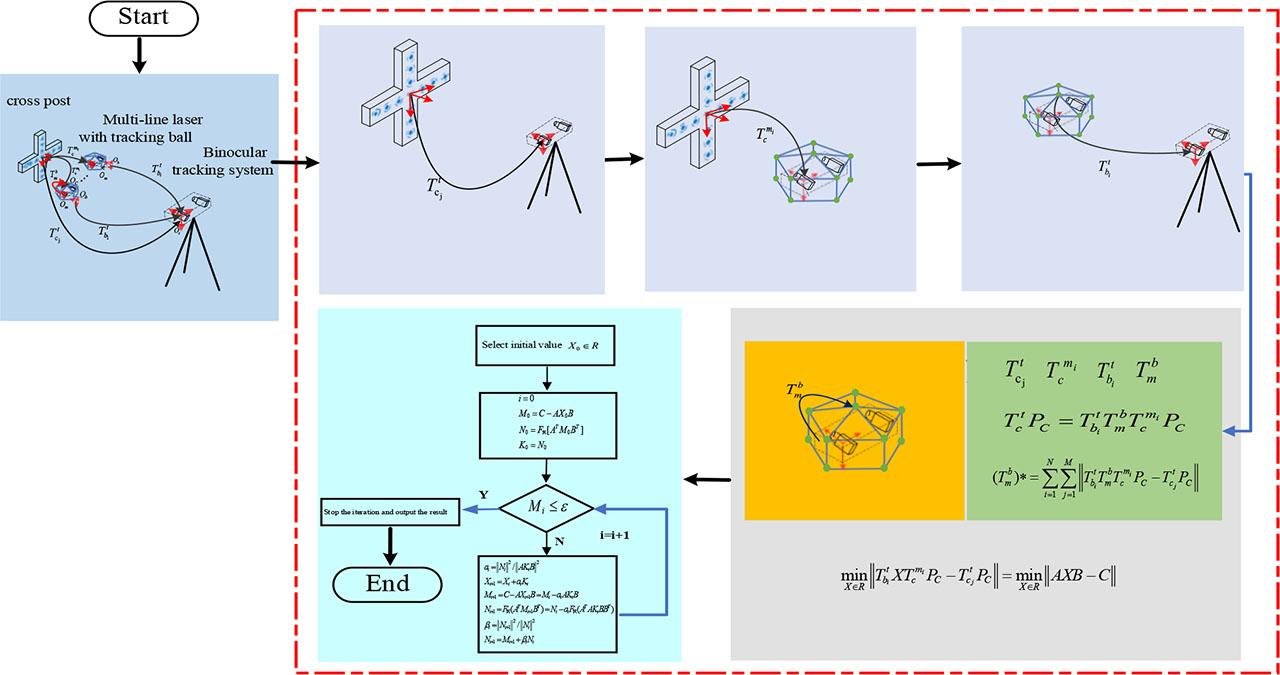

The joint calibration process requires the calculation of the transformation relationship between several coordinate systems, which is referred to as P = R ∗ Q + T. Essentially, this involves determining the rotation matrix R and the translation matrix T that exist between two distinct coordinate systems. Let us denote P^′ = {p₁ p₂ . . . p_n} and Q^′ = {q₁ q₂ . . . q_n} as the sets of points located in these two coordinate systems. By formulating a least squares objective function, we can obtain [R, T] with the ultimate objective of seamlessly translating a three-dimensional point set from one coordinate system to another. Specifically, the error equation based on the points in p can be expressed as follows: (6) $error = \sum_{i = 1}^{n} {p_{i} - (R q_{i} + T)‖}^{2}$ {\rm{error}} = \sum\limits_{i = 1}^n {{{\left\| {{p_i} - \left( {R{q_i} + T} \right)} \right\|}^2}}

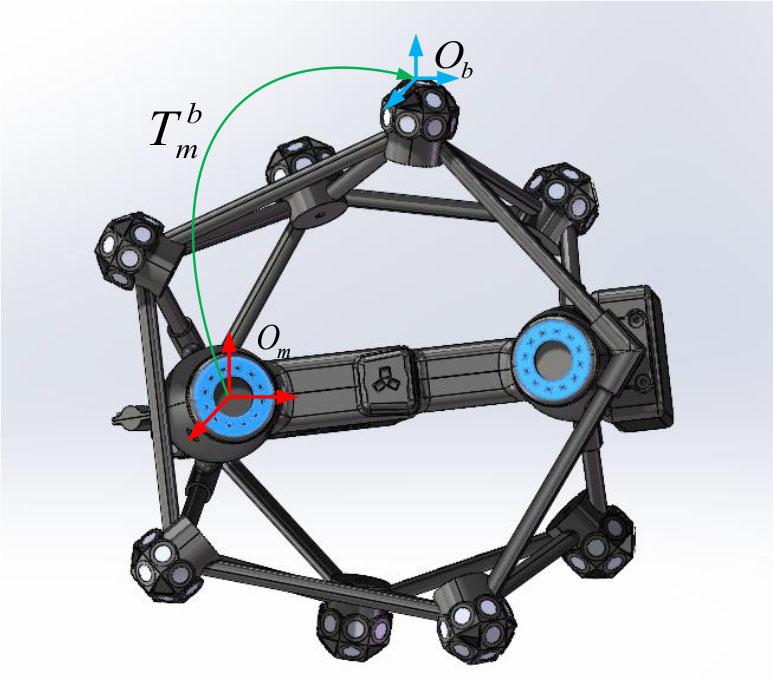

The aim of the joint calibration is to establish the transformation relation $T_{m}^{b}$ T_m^b between the coordinate system O_m of the multi-line laser system and the coordinate system O_b of the tracking ball cage, as shown in Fig. 7 and Fig. 8. To enable fast and precise calibration, a cross pole based calibration approach is introduced in this paper, as shown in Fig. 7. The cross pole adorned with multiple coding markers, is located within the calibration space, with a unique identifier assigned to each coding point. This ensures that each code point is unique regardless of its angle or position during cross pole placement. In the cross pole coordinate system O_c, the three-dimensional coordinates of all coding points are designated as P_c (x_i, y_i, z_i), i = 0. . . n. In the ball-cage coordinate system O_b, on the other hand, the three-dimensional coordinates of the reconstructed marked points, denoted as Q_b (x_i, y_i, z_i), i = 0. . . n, are represented based on multiple views.

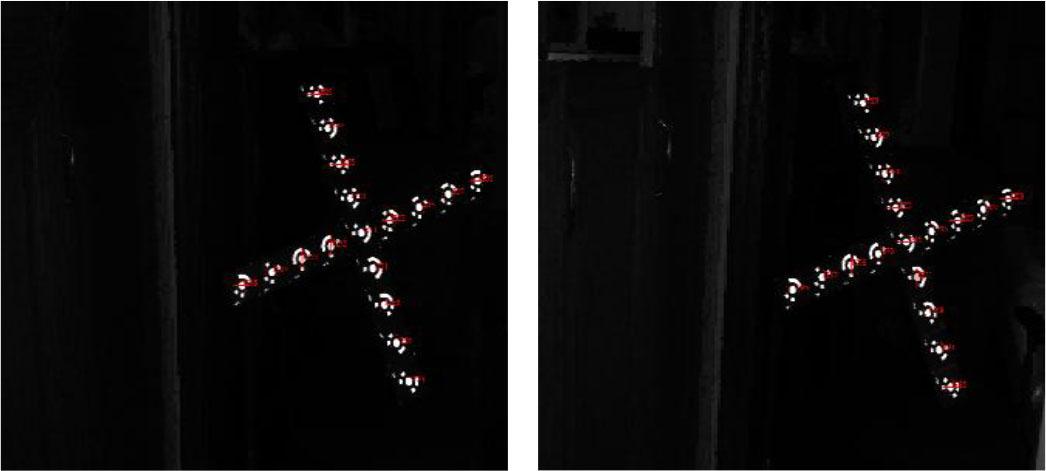

The cross pole was positioned in the calibration field of view and the binocular tracking system was used to capture the image of the cross pole and reconstruct all coding marks. The 3D points P_t representing the encoded point in the binocular tracking coordinate system O_t were then acquired. The transformation relationship $T_{c}^{t}$ T_c^t between the benchmark coordinate system O_c and the binocular tracking coordinate system O_t was established by calculations using the 3D coordinates of the coded points on the cross pole. The 3D points of the cross pole in the binocular tracking coordinate system can be represented as follows: (7) $P_{t} = T_{c}^{t} P_{C} = R_{c}^{t}, T_{c}^{t}] P_{C}$ {P_t} = T_c^t{P_C} = \left[ {R_c^t,T_c^t} \right]{P_C}

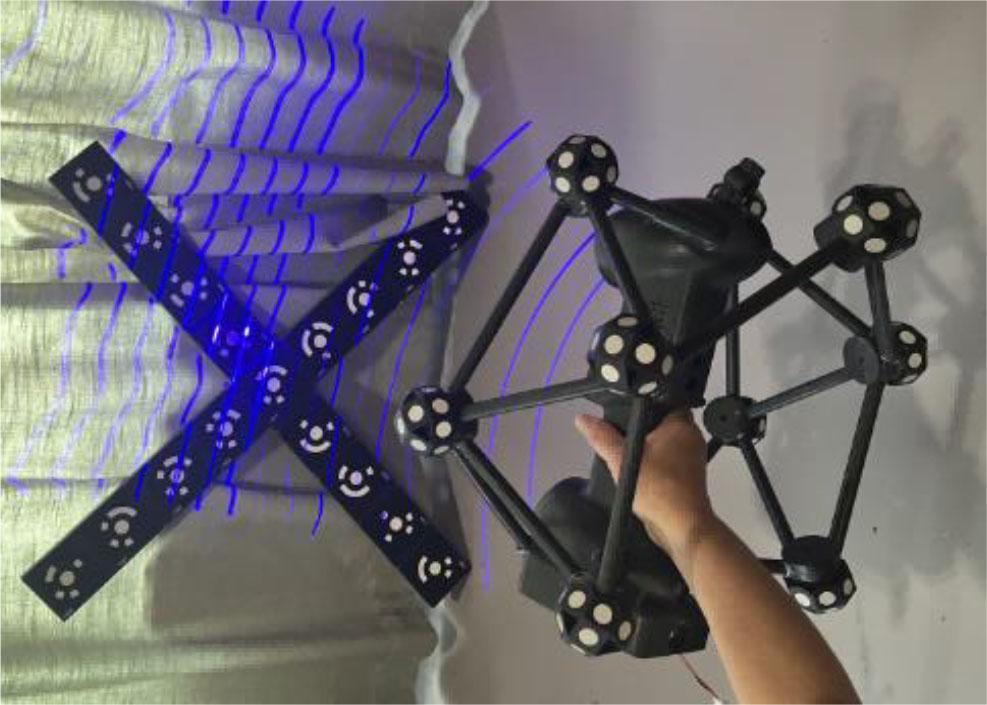

To capture an image of the cross pole, reinforce its positioning on the multi-line laser system within its field of view. Use the multi-line laser system to reconstruct the encoded marker points on the cross pole to obtain the 3D data P_m of the cross pole relative to the laser system O_m. Then, calculate the transformation relationship $T_{c}^{m_{1}}$ T_c^{{m_1}} between the cross pole coordinate system O_c and the multi-line laser system O_m by using the captured encoded marker points as reference. (8) $P_{m} = T_{c}^{m_{1}} P_{c} = R_{c}^{m_{1}}, T_{c}^{m_{1}}] P_{c}$ {P_m} = T_c^{{m_1}}{P_c} = \left[ {R_c^{{m_1}},T_c^{{m_1}}} \right]{P_c}

After completing the second step, keep the stationary position of the multi-line laser system. Then use the binocular tracking system to capture an image of the tracking ball cage. Then calculate the 3D coordinates Q_t(x_i, y_i, z_i), i = 0...n of the ball cage within the binocular tracking coordinate system O_t by using the parameters obtained from the binocular tracking system. Finally, determine the transformation relationship $T_{b_{1}}^{t}$ T_{{b_1}}^t between the ball cage coordinate system O_b and the binocular tracking system O_t by using the 3D coordinates of all marked points on the ball cage. (9) $Q_{t} = T_{b_{1}}^{t} Q_{b} = R_{b_{1}}^{t}, T_{b_{1}}^{t}] Q_{b}$ {Q_t} = T_{{b_1}}^t{Q_b} = \left[ {R_{{b_1}}^t,T_{{b_1}}^t} \right]{Q_b}

The 3D points located on the cross pole can be converted to the binocular tracking coordinate system by using two conversion matrices that depend on the values $T_{c}^{m_{1}}$ T_c^{{m_1}} and $T_{b}^{t_{1}}$ T_b^{{t_1}} , respectively, as well as the value $T_{m}^{b}$ T_m^b that is yet to be acquired. In this way, the value of P_t^′ can be determined. (10) $P_{t}^{'} = T_{b}^{t_{1}} T_{m}^{b} T_{c}^{m_{1}} P_{C} = R_{b}^{t_{1}}, T_{b}^{t_{1}}] R_{m}^{b}, T_{m}^{b}] R_{c}^{m_{1}}, T_{c}^{m_{1}}] P_{C}$ {P_t^\prime } = T_b^{{t_1}}T_m^bT_c^{{m_1}}{P_C} = \left[ {R_b^{{t_1}},T_b^{{t_1}}} \right]\left[ {R_m^b,T_m^b} \right]\left[ {R_c^{{m_1}},T_c^{{m_1}}} \right]{P_C}

The positioning adjustment of the multi-line laser system is performed using the aforementioned calibration procedures. The transformation relation $T_{c}^{m_{i}}$ T_c^{{m_i}} between the cross pole coordinate and the multi-line laser coordinate can be determined at each corresponding position. In addition, the transformation relation $T_{b}^{t_{i}}$ T_b^{{t_i}} between the ball-cage coordinate system and the binocular tracking coordinate system can be derived. (11) $\begin{matrix} P_{t}^{'} = T_{b}^{t_{1}} T_{m}^{b} T_{c}^{m_{1}} P_{C} = R_{b}^{t_{1}}, T_{b}^{t_{1}}] R_{m}^{b}, T_{m}^{b}] R_{c}^{m_{1}}, T_{c}^{m_{1}}] P_{C} \\ P_{t}^{'} = T_{b}^{t_{2}} T_{m}^{b} T_{c}^{m_{2}} P_{C} = R_{b}^{t_{2}}, T_{b}^{t_{2}}] R_{m}^{b}, T_{m}^{b}] R_{c}^{m_{2}}, T_{c}^{m_{2}}] P_{C} \\ ⋮ \\ P_{t}^{'} = T_{b}^{t_{i}} T_{m}^{b} T_{c}^{m_{i}} P_{C} = R_{b}^{t_{i}}, T_{b}^{t_{i}}] R_{m}^{b}, T_{m}^{b}] R_{c}^{m_{i}}, T_{c}^{m_{i}}] P_{C} \end{matrix}$ \left\{ {\matrix{ {P_t^\prime = T_b^{{t_1}}T_m^bT_c^{{m_1}}{P_C} = \left[ {R_b^{{t_1}},T_b^{{t_1}}} \right]\left[ {R_m^b,T_m^b} \right]\left[ {R_c^{{m_1}},T_c^{{m_1}}} \right]{P_C}} \cr {P_t^\prime = T_b^{{t_2}}T_m^bT_c^{{m_2}}{P_C} = \left[ {R_b^{{t_2}},T_b^{{t_2}}} \right]\left[ {R_m^b,T_m^b} \right]\left[ {R_c^{{m_2}},T_c^{{m_2}}} \right]{P_C}} \cr \vdots \cr {P_t^\prime = T_b^{{t_i}}T_m^bT_c^{{m_i}}{P_C} = \left[ {R_b^{{t_i}},T_b^{{t_i}}} \right]\left[ {R_m^b,T_m^b} \right]\left[ {R_c^{{m_i}},T_c^{{m_i}}} \right]{P_C}} \cr } } \right.

Using (11), the 3D coordinates P_c on the cross pole can be transformed into P_t by the binocular tracking system or into P_t^′ by the multi-line laser system. Since P_t and P_t^′ both represent 3D points on the cross pole that have been converted to a unified coordinate system, it follows that P_t = P_t^′. Substituting (11) yields the following equation: (12) $T_{c}^{t} P_{C} = T_{b_{i}}^{t} T_{m}^{b} T_{c}^{m_{i}} P_{C}$ T_c^t\;{P_C} = T_{{b_i}}^t\;T_m^b\;T_c^{{m_i}}\;{P_C}

The parameter $T_{m}^{b} = \begin{matrix} R_{m}^{b} & T_{m}^{b} \\ 0 & 1 \end{matrix}]$ T_m^b = \left[ {\matrix{ {R_m^b} & {T_m^b} \cr 0 & 1 \cr } } \right] in (12) can be determined and then multiple values can be derived for both $T_{c}^{m_{1}}$ T_c^{{m_1}} and $T_{b}^{t_{1}}$ T_b^{{t_1}} based on the different placements of the multi-line laser within the field of view. (13) $(T_{m}^{b}) * = \sum_{i = 1}^{N} \sum_{j = 1}^{M} {T_{b_{i}}^{t} T_{c}^{t} T_{c}^{m_{i}} P_{C} - T_{c_{j}}^{t} P_{C}‖}^{2}$ \left( {T_m^b} \right)* = \sum\limits_{i = 1}^N {\sum\limits_{j = 1}^M {{{\left\| {T_{{b_i}}^tT_c^tT_c^{{m_i}}{P_C} - T_{{c_j}}^t{P_C}} \right\|}^2}} }

The corresponding conversion matrices for each position $T_{c_{j}}^{t}$ T_{{c_j}}^t , $T_{c}^{m_{i}}$ T_c^{{m_i}} and $T_{b}^{t_{i}}$ T_b^{{t_i}} can be determined by strategically positioning the cross pole within the field of view. Using the 3D points on the cross pole, in conjunction with the pose transformation matrix $T_{m}^{b}$ T_m^b for each position allows the transformation matrix to be calculated from the coordinate system of the multi-line laser system to that of the tracking ball coordinate system. The solution of (12) is the key to the problem. Rewrite (14) into the general formula as follows: (14) $min_{X \in R} AXB - C‖$ \mathop {\min }\limits_{X \in R} {\rm{\;}}\left\| {AXB - C} \right\| where $A = T_{b_{i}}^{t}$ A = T_{{b_i}}^t , $B = T_{c}^{m_{i}} P_{C}$ B = T_c^{{m_i}}{P_C} , $C = T_{c_{j}}^{t} P_{C}$ C = T_{{c_j}}^t{P_C} , X is the parameter to be found.

Let ℜ ∈ R^N^×^M be a linear subspace with unique orthogonal complements ℜ^⊥ and R^N^×^M = ℜ ⊕ ℜ^⊥, which defines a linear projection operator F_ℜ:R^N^×^M → ℜ on R^N^×^M for any R^N^×^M and S ∈ R^N^×^M: (15) $〈 X, S 〉 = F_{ℜ} (X) + F_{ℜ^{⊥}} (X), S〉 = 〈 F_{ℜ} (X), S 〉$ \langle X,S\rangle = \left\langle {{F_\Re }\left( X \right) + {F_{{\Re ^ \bot }}}(X),S} \right\rangle = \langle {F_\Re }(X),S\rangle

The function f(X) = ‖AXB − C‖²/2, which is defined in any linear space, is continuously differentiable. The following iterative procedure was formulated using the conjugate gradient method for computational purposes. The flowchart illustrating the conjugate gradient iteration method is shown in Fig. 9.

Input matrix A ∈ R^N^1×^M¹, B ∈ R^N^2×^M², C ∈ R^N^3×^M³, select initial value X₀ ∈ R;
Calculated by the initial value X₀:
- i = 0
- M₀ = C − AX₀B
- N₀ = F_ℜ[A^TM₀B^T]
- K₀ = N₀
The operation should be terminated if M_i = 0, otherwise proceed to the next step.
The following values are to be calculated:
- a_i = ‖N_i‖²/‖AK_iB‖²
- X_i+1 = X_i + a_iK_i
- M_i+1 = C − AX_i+1B = M_i − a_iAK_iB
- N_i+1 = F_ℜ(A^TM_i+1B^T) = N_i − a_iF_ℜ(A^TAK_iBB^T)
- β_i = ‖N_i+1‖²/‖N_i‖²
- N_i+1 = M_i+1 + β_iN_i
- i = i + 1
Proceed to step 3 for evaluation in the next step.

The negative gradient vector can be projected onto the linear subspace by using the conjugate gradient iteration method in conjunction with the linear projection operator, which serves as the basis for updating the matrix in each iterative process. This approach effectively facilitates the solution process of iterative algorithms and allows a least squares approximation of the equations to any linear subspace. The conjugate gradient method is an iterative optimization algorithm that is primarily used to solve linear equations, where AXB = C represents a positive definite matrix. The method progressively approximates the solutions of these equations through iterations, generating a conjugate direction at each step that minimizes the objective function value along this direction during the search operations. In each iteration, we first calculate the negative gradient vector of the current iteration point and then project it onto the solved linear subspace using a linear projection operator to obtain a projection matrix. This projection matrix then serves as an update matrix for the subsequent iterations, allowing us to gradually approach a solution to our system’s problem. With this method we can therefore approximate our system to the least squares in any linear subspace and at the same time minimize the sum of the residual squares in this solution.

3.

Multi-line laser data stitching based on the tracking system

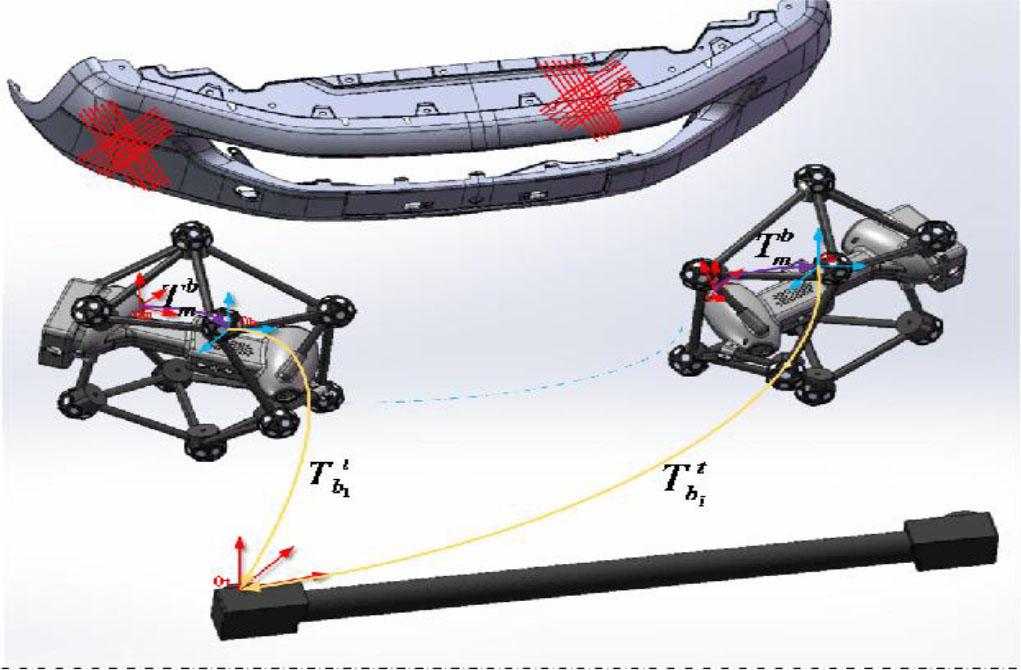

After the joint calibration of the multi-line laser system and the tracking ball, the 3D point P_{m_i} reconstructed by the multi-line laser system can be transformed to the coordinate system of binocular tracking. The binocular tracking system, in conjunction with the multi-line laser system, serves as a comprehensive tool for object reconstruction by using the transformation matrix $T_{m}^{b}$ T_m^b obtained from the joint calibration. The binocular tracking system is fixed in a specific area of interest on the target object and can be seamlessly integrated into the multi-line laser system. While the multi-line laser system collects data, the binocular tracking system simultaneously performs a synchronized acquisition of the tracking ball cage image. The transformation matrix $T_{b_{i}}^{t} = R_{b_{i}}^{t}, t_{b_{i}}^{t}]$ T_{{b_i}}^t = \left[ {R_{{b_i}}^t,t_{{b_i}}^t} \right] connecting the tracking ball cage and the binocular tracking system can be calculated by the 3D coordinates Q_b (x_i, y_i, z_i), i = 0. . . n (the 3D points on the ball cage) relative to the coordinate frame O_b and the corresponding 3D coordinates Q_{t_i}(x_i, y_i, z_i), i = 0. . . m (the 3D points reconstructed by the binocular tracking) for the same marking points. (16) $\begin{array}{l} Q_{t_{i}} = T_{b_{i}}^{t} O_{b} \\ Q_{t_{k}} = R_{b_{k}}^{t} * O_{b} + t_{b_{k}}^{t}, & (k = 0 \dots n) \end{array}$ \left\{ {\matrix{ {{Q_{{t_i}}} = T_{{b_i}}^t{O_b}} \hfill & {} \hfill \cr {{Q_{{t_k}}} = R_{{b_k}}^t*{O_b} + t_{{b_k}}^t,} \hfill & {\left( {k = 0 \ldots n} \right)} \hfill \cr } } \right. (17) ${min}_{R_{b_{k}}^{t}, t_{b_{k}}^{t}} \sum_{i = 1}^{m} {R_{b_{k}}^{t} Q_{b}^{i} + t_{b_{k}}^{t} - Q_{b}^{i}‖}^{2}$ {\rm{mi}}{{\rm{n}}_{R_{{b_k}}^t,t_{{b_k}}^t}}\sum\limits_{i = 1}^m {{{\left\| {R_{{b_k}}^tQ_b^i + t_{{b_k}}^t - Q_b^i} \right\|}^2}}

The 3D data reconstructed by the multi-line laser system can be transformed to the binocular tracking coordinate system based on the joint calibration result $T_{m}^{b}$ T_m^b and the $T_{b_{k}}^{t} = R_{b_{k}}^{t}, t_{b_{k}}^{t}]$ T_{{b_k}}^t = \left[ {R_{{b_k}}^t,t_{{b_k}}^t} \right] calculated at position k using (17).

In 3D reconstruction with structured multi-line light, the object to be measured is illuminated by a criss-cross laser pattern consisting of seven lines. This method uses the principles of multi-line laser reconstruction and enables the simultaneous acquisition of 3D data for all fourteen laser lines. For larger objects, as shown in Fig 10, it is essential to merge the 3D data reconstructed from different positions in order to attain a holistic understanding of the entire object. For this purpose, a binocular tracking system is used in front of the object to determine the position and orientation of the multi-line laser at each location within its field of view.

In order to seamlessly stitch together the final multi-line laser reconstruction data, the transformation relationships between multiple positions of the tracking ball cage within the binocular tracking system must be calculated. Starting from an initial reference position of the tracking ball, the reconstructed data of the subsequent positions are trans-formed and aligned to the coordinate system of the initial tracking ball position. Specifically, the 3D data of the tracking ball at the first position (k = 0) in the binocular tracking coordinate system serves as a reference frame. (18) $Q_{t_{0}}^{i} = R_{b_{0}}^{t} Q_{b}^{i} + T_{b_{0}}^{t}, (i = 0 \dots n)$ Q_{{t_0}}^i = R_{{b_0}}^tQ_b^i + T_{{b_0}}^t,\left( {i = 0 \ldots n} \right)

The subsequently calculated $Q_{t_{k}}^{i}$ Q_{{t_k}}^i is converted to $Q_{t_{0}}^{i}$ Q_{{t_0}}^i , with $Q_{t_{0}}^{i}$ Q_{{t_0}}^i as the base, resulting in $R_{b_{k}}^{b_{0}}, t_{b_{k}}^{b_{0}}]$ \left[ {R_{{b_k}}^{{b_0}},t_{{b_k}}^{{b_0}}} \right] . (19) ${min}_{R_{b_{k}}^{b_{0}}, t_{b_{k}}^{b_{0}}} \sum_{i = 1}^{m} {R_{b_{k}}^{b_{0}} Q_{b_{k}}^{i} + t_{b_{k}}^{b_{0}} - Q_{b_{k}}^{i}‖}^{2}$ {\rm{mi}}{{\rm{n}}_{R_{{b_k}}^{{b_0}},t_{{b_k}}^{{b_0}}}}\sum\limits_{i = 1}^m {{{\left\| {R_{{b_k}}^{{b_0}}Q_{{b_k}}^i + t_{{b_k}}^{{b_0}} - Q_{{b_k}}^i} \right\|}^2}}

The conversion relationship $T_{b_{k}}^{t} = R_{b_{k}}^{t}, t_{b_{k}}^{t}]$ T_{{b_k}}^t = \left[ {R_{{b_k}}^t,t_{{b_k}}^t} \right] between the tracking ball and the binocular tracking system can be calculated using (18). Similarly, (19) can be used to calculate the conversion relationship $R_{b_{k}}^{b_{0}}, t_{b_{k}}^{b_{0}}]$ \left[ {R_{{b_k}}^{{b_0}},t_{{b_k}}^{{b_0}}} \right] between the k position and the first position of the tracking ball in the tracking coordinate system. Furthermore, by using the results of the joint calibration $T_{m}^{b}$ T_m^b , it is possible to integrate the data reconstructed by the 3D multi-line laser into a unified coordinate system. (20) $\begin{array}{l} P_{m_{i}}^{b_{i}} = T_{m}^{b} P_{m} = R_{m}^{b} P_{m_{i}} + t_{m}^{b} \\ P_{b_{i}}^{t_{i}} = R_{b_{k}}^{t} P_{m_{i}}^{b_{i}} + t_{b_{k}}^{t} \\ P_{t_{i}}^{t_{0}} = R_{b_{k}}^{b_{0}} P_{b_{i}}^{t_{i}} + t_{b_{k}}^{b_{0}} \end{array}$ \left\{ {\matrix{ {P_{{m_i}}^{{b_i}} = T_m^b{P_m} = R_m^b{P_{{m_i}}} + t_m^b} \hfill \cr {P_{{b_i}}^{{t_i}} = R_{{b_k}}^tP_{{m_i}}^{{b_i}} + t_{{b_k}}^t} \hfill \cr {P_{{t_i}}^{{t_0}} = R_{{b_k}}^{{b_0}}P_{{b_i}}^{{t_i}} + t_{{b_k}}^{{b_0}}} \hfill \cr } } \right. (21) $P_{t_{k}}^{t_{0}} = R_{b_{k}}^{b_{0}} R_{b_{k}}^{t}[R_{m}^{b} P_{m_{i}} + t_{m}^{b} + t_{b_{k}}^{t}] + t_{b_{k}}^{b_{0}}, (k = 0 \dots n)$ P_{{t_k}}^{{t_0}} = R_{{b_k}}^{{b_0}}\left[ {R_{{b_k}}^t} \right[R_m^b{P_{{m_i}}} + t_m^b\left] { + t_{{b_k}}^t} \right] + t_{{b_k}}^{{b_0}},\;\;\;\;\;\left( {k = 0 \ldots n} \right)

The three-dimensional data acquired from different locations are consistently transformed into the coordinate system of the initial position of the ball cage using the aforementioned method, the joint calibration results, and the conversion parameters of the ball cage within the binocular tracking system. This facilitates the merging of three-dimensional multi-line laser data from multiple positions.

4.

Joint calibration accuracy verification

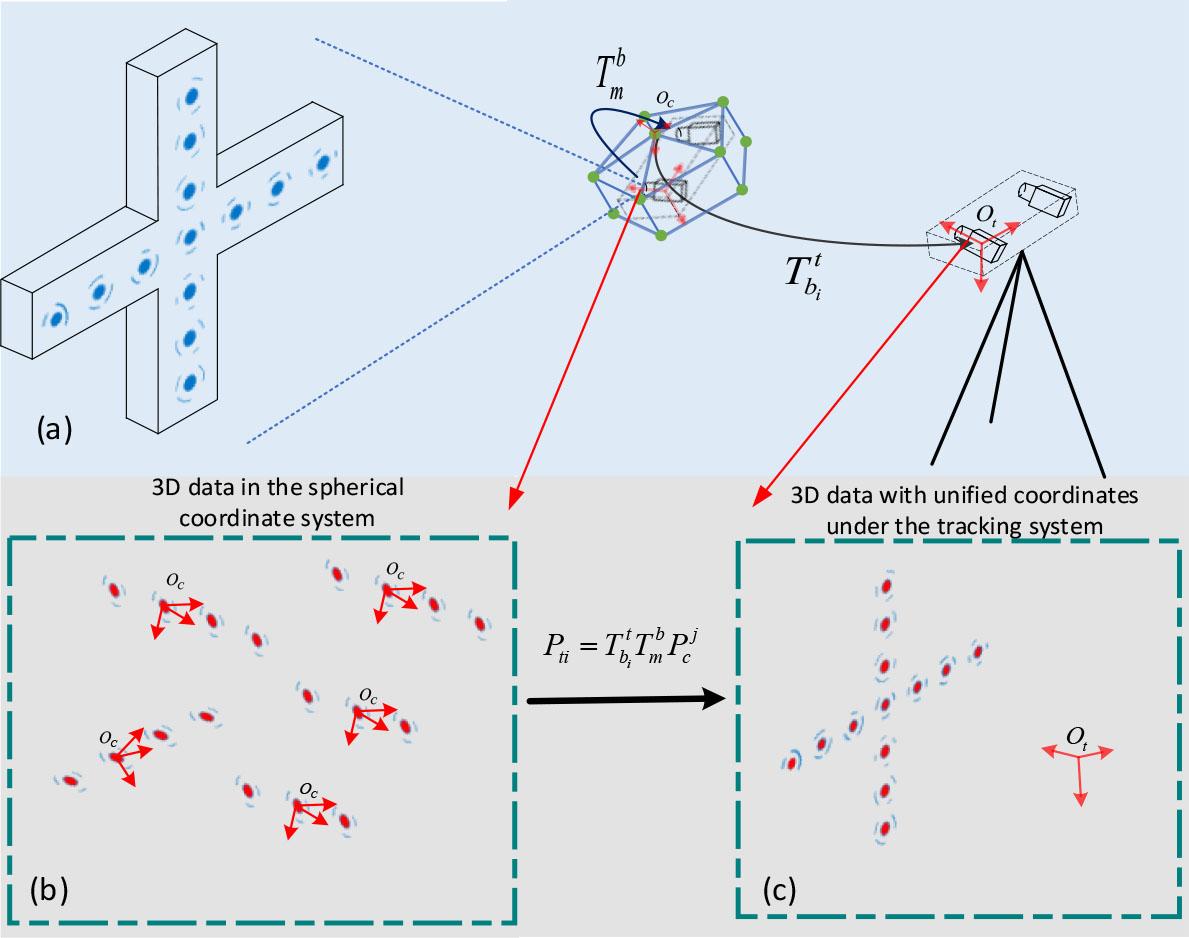

After performing a joint calibration, the data from the 3D reconstruction of the multi-line laser system can be translated into the coordinate system of the tracking ball. Finally, the 3D reconstruction data of the multi-line laser can be aligned with the binocular tracking system, provided that the binocular tracking system recognizes and localizes the tracking ball. To determine the accuracy of the joint calibration, a standard object was captured with the multi-line laser system, and the resulting accuracy was evaluated, as shown in Fig. 11.

This is because the 3D data Q_j (x, y, z) (j = 0. . . n) of each coding point on the cross pole was determined in advance using a coordinate measuring machine. The 3D data $P_{c}^{j} (x, y, z) (j = 0 \dots n)$ P_c^j\left( {x,y,z} \right)\left( {j = 0 \ldots n} \right) of the cross pole was reconstructed from several angles using a multi-line laser system. The 3D data from multiple angles are shown in Fig. 11(b). At this time, the 3D coordinate system is established on the multi-line laser system. According to the results of the joint calibration, the 3D data of the encoded points reconstructed by the multi-line laser system are transferred to the coordinate system of the binocular tracking system using (22), as shown in Fig. 11(c). (22) $P_{i}^{t} = T_{b_{i}}^{t} T_{m}^{b} P_{c}^{j}, (i = 0 \dots n, j = 0 \dots m)$ P_i^t = T_{{b_i}}^t\;T_m^b\;P_c^j,\;\;\;\;\;\left( {i = 0 \ldots n,j = 0 \ldots m} \right) where i is the position reconstructed by the multi-line laser system and j is the number of reconstructed 3D points $P_{i}^{t} (x, y, z)$ P_i^t\left( {x,\;y,z} \right) . Based on the benchmark 3D points are converted to the binocular tracking coordinate system.

(23)

\begin{array}{l} D_{i}^{t} = \sqrt{{(P_{i, x}^{t} - P_{i + 1, x}^{t})}^{2} + {(P_{i, y}^{t} - P_{i + 1, y}^{t})}^{2} + {(P_{i, y}^{t} - P_{i + 1, y}^{t})}^{2}} \\ D_{j} = \sqrt{{(Q_{j, x} - Q_{j + 1, x})}^{2} + {(Q_{j, y} - Q_{j + 1, y})}^{2} + {(Q_{j, z} - Q_{j + 1, z})}^{2}} \end{array}

\left\{ {\matrix{ {D_i^t = \sqrt {{{\left( {P_{i,x}^t - P_{i + 1,x}^t} \right)}^2} + {{\left( {P_{i,y}^t - P_{i + 1,y}^t} \right)}^2} + {{\left( {P_{i,y}^t - P_{i + 1,y}^t} \right)}^2}} } \hfill \cr {{D_j} = \sqrt {{{\left( {{Q_{j,x}} - {Q_{j + 1,x}}} \right)}^2} + {{\left( {{Q_{j,y}} - {Q_{j + 1,y}}} \right)}^2} + {{\left( {{Q_{j,z}} - {Q_{j + 1,z}}} \right)}^2}} } \hfill \cr } } \right.

(24)

Mean (E_{ij}) = \frac{1}{n * m} \sum_{i = 0, j = 0}^{i = n, j = m} D_{i}^{t} - D_{j}|

Mean\left( {{E_{ij}}} \right) = {1 \over {n*m}}\sum\limits_{i = 0,j = 0}^{i = n,j = m} {\left| {D_i^t - {D_j}} \right|}

Finally, the distance difference between the 3D points is calculated in accordance with (24) to serve as an accuracy metric for evaluating the joint calibration.

5.

Experiment

The experimental phase of the tracking system includes several key procedures, including the calibration of the binocular tracking system, the joint calibration of the multi-line laser system and the tracking ball, the three-dimensional reconstruction of the multi-line laser, and the integration of the three-dimensional data by the binocular tracking system. Calibration of the binocular tracking system primarily involves adjusting the internal and external camera parameters. This involves positioning a cross pole at various points in the camera’s field of view, capturing synchronized images of the pole and then using specialized image processing algorithms to precisely determine the center coordinates and coding values of multiple markers on the pole. An optimization method for multi-position adjustment is then implemented to complete the calibration of the binocular tracking system using the collected data.

The goal of the simultaneous calibration of the multi-line laser system and the tracking ball is to create a transformation matrix that facilitates the alignment of the laser system’s coordinates with a coordinate system delineated by the tracking ball’s cage. The final calibration precision is evaluated by using cross poles as verification objects. By reconstructing these cross poles using the data from all previous calibrations, their dimensions can be compared with empirical measurements. Ultimately, the goal is to seamlessly integrate the 3D data reconstructed by the multi-line laser system into a singular coordinate system by merging the 3D data splicing technique with the binocular tracking system. This integration enables a holistic 3D reconstruction of the entire object.

A.

Calibration of the binocular tracking system

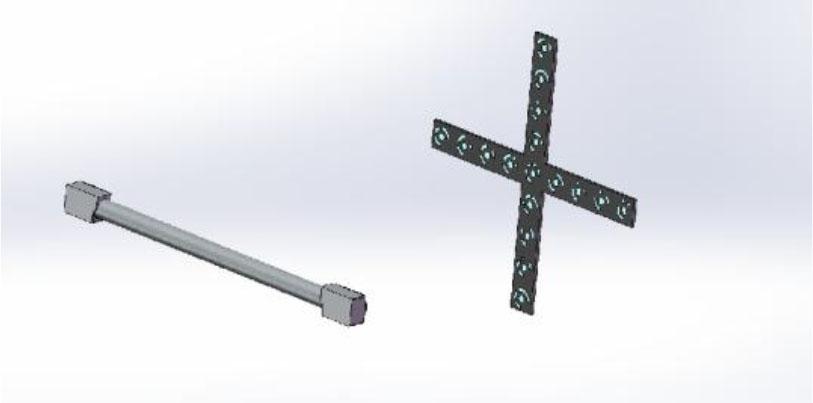

The hardware components of the binocular tracking system essentially consist of two industrial cameras, two industrial lenses, adjustable LED lights for brightness control, and a cross pole. The most important specifications are listed in Table 1. In terms of image data capture, the controller shown in Fig. 3 regulates the LED light emission and synchronizes the camera captures. By using reflective coding points, the synchronized control of LED light projection onto these points during image capture ensures the precise retrieval of coding point data.

Table 1.

Binocular hardware parameters.

Camera		Cross pole
Resolution [pixel²]	2248×2048	Size [mm²]	1200×1200
Focal length [mm]	8	Coded point number	16
Frame rate [s⁻¹]	90	Coded point size [mm²]	80×80
Field range [mm]	3000~4000
Distance [mm]	2000~3000

During the calibration process of a binocular tracking system, it is important to accurately obtain the 3D coordinates and corresponding encoded values of each point on the cross pole. The 3D coordinates of each center point on the cross pole target are pre-measured with high precision using a coordinate measuring machine (CMM). The 3D coordinates and encoded values of all encoded points on the cross pole are shown in Fig. 12(b). During the calibration process of the binocular tracking system, the cross pole is positioned in the cameras’ field of view. Then, the left and right cameras simultaneously capture images of the cross pole at different positions. Using a encoded point detection algorithm, we identify the two-dimensional coordinates of each encoded point’s center as well as their corresponding encoded values. The results of this detection on the cross pole are shown in Fig. 13. After obtaining images of all cross poles, we calculate the internal and external parameters of the binocular camera, the distortion parameters, and the transformation matrix [R, T] from the right camera’s perspective to that of the left camera using a binocular calibration algorithm described in Chapter 2. The calibration results of the binocular tracking system are shown in Table 2. When the binocular tracking system calibration is completed, it is essential to perform accuracy tests to assess its performance quality. As shown in Fig. 12(a), the exact distances between L1 and L2 on the cross pole target were pre-measured prior to calibration. Then, the cross pole was positioned at different locations within the test field of view and the images of the target were captured accordingly. Using the results of the binocular camera calibration and a binocular stereo vision reconstruction algorithm, the 3D coordinates were reconstructed for all encoded points. The reconstructed distance values for these points were then compared to their actual counterparts, revealing the error metrics associated with these distance reconstructions. For verification, 16 sets of images were acquired. The resulting error graph is shown in Fig. 14, indicating an average error of 0.0214 mm for the L1 distance and an average error of 0.0233 mm for the L2 distance.

Table 2.

Calibration parameters results.

Intrinsic and distortion parameter	External parameter
$C_{left} = \begin{matrix} 3667.05796 & 0.0000594 & 1315.3227 \\ 0 & 3667.57804 & 910.788437 \\ 0 & 0 & 1 \end{matrix}]$ {C_{left}} = \left[ {\matrix{ {3667.05796} & {0.0000594} & {1315.3227} \cr 0 & {3667.57804} & {910.788437} \cr 0 & 0 & 1 \cr } } \right]
$C_{right} = \begin{matrix} 3672.2510 & - 0.0001125 & 1335.044848 \\ 0 & 3672.77186 & 908.559738 \\ 0 & 0 & 1 \end{matrix}]$ {C_{right}} = \left[ {\matrix{ {3672.2510} & { - 0.0001125} & {1335.044848} \cr 0 & {3672.77186} & {908.559738} \cr 0 & 0 & 1 \cr } } \right]	$R = \begin{matrix} 0.9685 & - 0.0441 & - 0.24486 \\ 0.0456 & 0.99895 & 0.000594 \\ 0.2445 & - 0.01176 & 0.96955 \end{matrix}]$ R = \left[ {\matrix{ {0.9685} & { - 0.0441} & { - 0.24486} \cr {0.0456} & {0.99895} & {0.000594} \cr {0.2445} & { - 0.01176} & {0.96955} \cr } } \right]
$D_{left} = \begin{matrix} - 0.0837 & 0.37011 & 0.002683 & 0.000038 & 0.0025 \end{matrix}]$ {D_{left}} = \left[ {\matrix{ { - 0.0837} & {0.37011} & {0.002683} & {0.000038} & {0.0025} \cr } } \right]	$T = \begin{matrix} 526.39 & 9.781 & 46.10 \end{matrix}]$ T = \left[ {\matrix{ {526.39} & {9.781} & {46.10} \cr } } \right]
$D_{right} = \begin{matrix} 0.0752 & - 0.21367 & 0.001970 & 0.000041 & 0.000361 \end{matrix}]$ {D_{right}} = \left[ {\matrix{ {0.0752} & { - 0.21367} & {0.001970} & {0.000041} & {0.000361} \cr } } \right]

B.

Joint calibration of the multi-line laser and the tracking ball

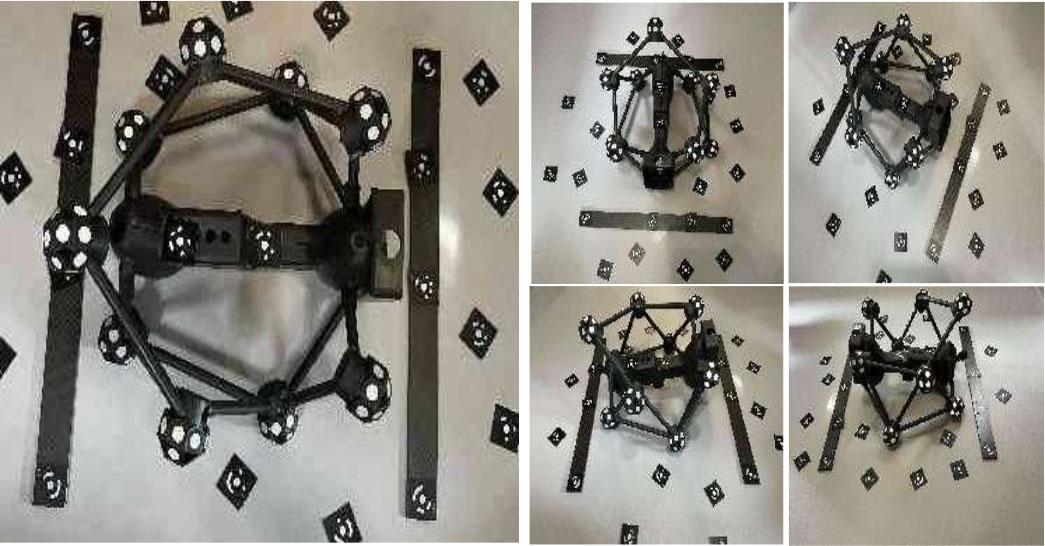

The calibration procedure for the multi-line laser system and the tracking ball requires the establishment of a transformation relationship between their coordinate systems. Before starting the joint calibration, it is essential to determine the three-dimensional coordinates of all reflective markers adorning the tracking ball cage and to mark these points on its surface. The tracking ball cage is located on a planar surface encircled by coded marking points, as shown in Fig. 15. A single lens reflex camera is used to capture multi-faceted images from different angles surrounding the tracking ball, and photogrammetry algorithms are used to derive three-dimensional coordinates for each marker point. Fig. 16(b) shows the reconstructed three-dimensional coordinates obtained by tracing all reflected markers on the ball cage.

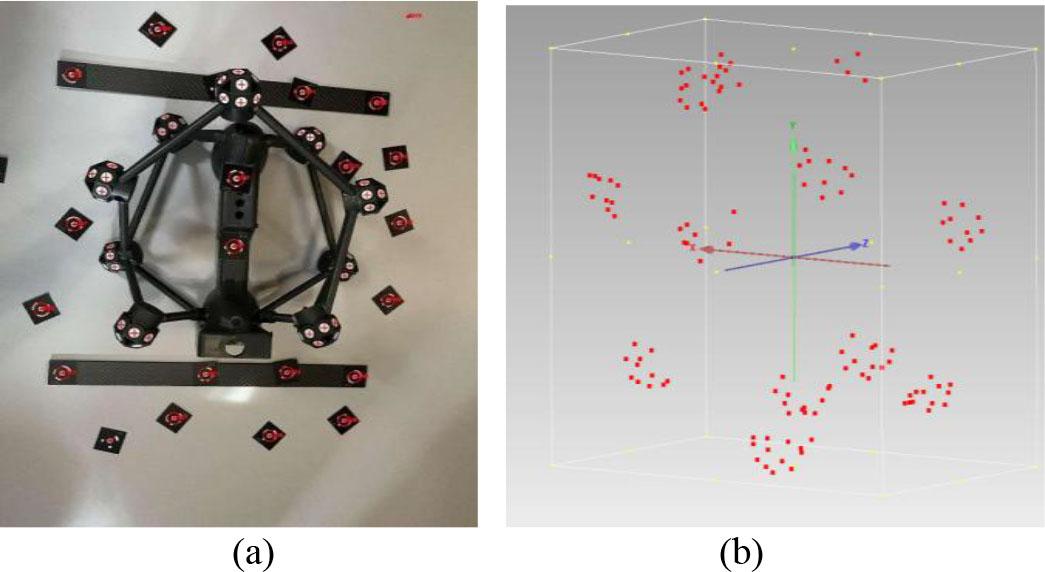

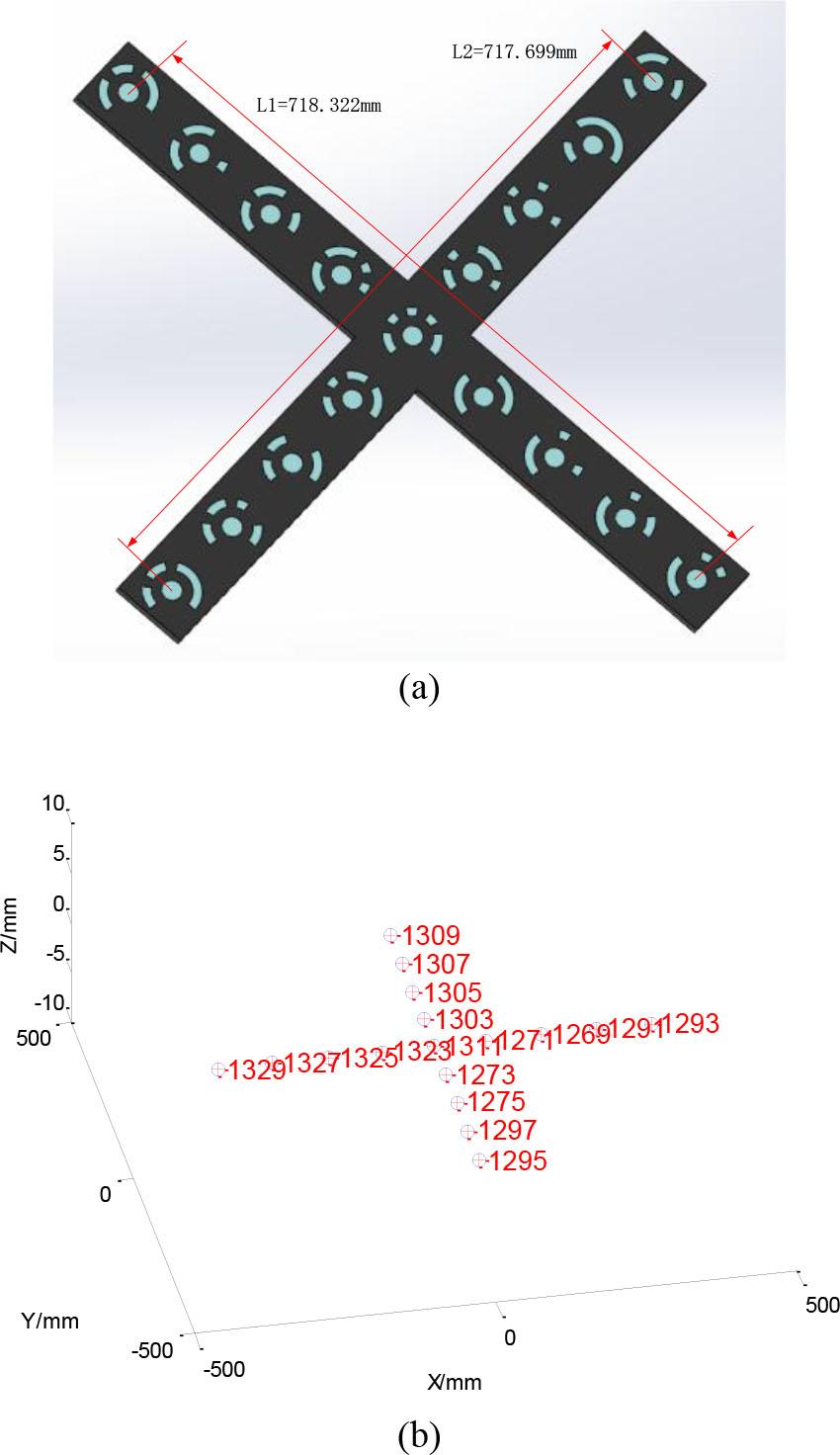

After acquiring the 3D coordinates of all reflective points on the tracking ball cage, the coordinate origin is set to a reflective marker point. The alignment of the binocular tracking system, the multi-line laser system and the cross pole within the same field of view is of utmost importance during the joint calibration process of the multi-line laser system and the tracking ball cage, as shown in Fig. 17. First, the multi-line laser system captures an image of the cross pole to determine its three-dimensional coordinates. A transformation matrix is then calculated from the cross pole coordinate system to the multi-line laser system. The binocular tracking system then captures an image of the cross pole and calculates its corresponding three-dimensional coordinates in its own coordinate system, establishing a conversion relationship between them. At the same time, the images captured by the binocular tracking systems can be sued to establish a correlation between the ball cage and the tracking systems.

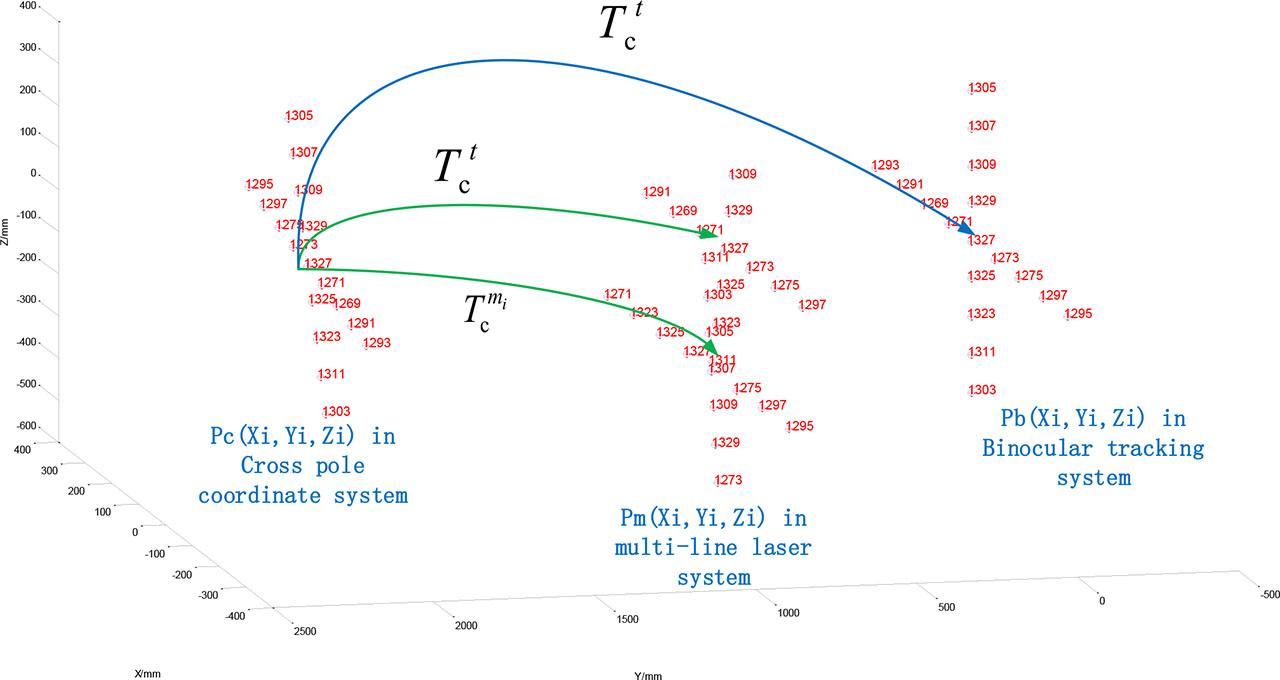

The 3D points P_c(X_i, Y_i, Z_i) of the cross pole in its own coordinate system as well as the reconstructed points P_m(X_i, Y_i, Z_i), P_b(X_i, Y_i, Z_i), are shown in Fig. 18 with both the multi-line laser system and the binocular tracking system. The conversion matrix $T_{c}^{m_{1}}$ T_c^{{m_1}} rom the cross pole to the multi-line laser system is calculated using (14), which also determines the matrix $T_{c}^{m_{i}}$ T_c^{{m_i}} at the i^th position after the trans-formation of the multi-line laser position. At the same time, the conversion matrix $T_{c}^{t}$ T_c^t from the cross pole to the binocular tracking system is determined. When establishing the conversion relationship between the cross pole and the multi-line laser system, the binocular tracking system is used to reconstruct the three-dimensional coordinates of the tracking ball cage at the same time. This enables the calculation of the conversion relationship between the tracking ball cage and the binocular tracking system. As shown in Fig. 19, one can determine the value of $T_{b}^{t_{1}}$ T_b^{{t_1}} at the initial position and $T_{b}^{t_{i}}$ T_b^{{t_i}} at the i^th position. Then, using (15), (16), and (17) and the conjugate gradient method, the transformation matrix $T_{m}^{b}$ T_m^b that converts the coordinate system of the multi-line laser system to the tracking ball coordinate system is calculated. The inter-mediate results of the joint calibration process and the final transformation relationship matrix $T_{m}^{b}$ T_m^b are shown in Table 3. After the aforementioned steps, a total of 10 data positions for the multi-line laser system can be changed to complete a joint calibration. The entire calibration process can be completed in a time frame of 2 minutes.

Table 3.

The intermediate and final results of joint calibration.

$T_{c}^{t} = \begin{matrix} 0.915432 & 0.068235 & 0.396645 & - 238.572 \\ - 0.134755 & 0.980606 & 0.142311 & - 313.702 \\ 0.379242 & 0.183726 & - 0.906874 & 2354.21 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_c^t = \left[ {\matrix{ {0.915432} & {0.068235} & {0.396645} & { - 238.572} \cr { - 0.134755} & {0.980606} & {0.142311} & { - 313.702} \cr {0.379242} & {0.183726} & { - 0.906874} & {2354.21} \cr 0 & 0 & 0 & 1 \cr } } \right]
$T_{c}^{m_{1}} = \begin{matrix} 0.913486 & - 0.134567 & - 0.234568 & - 137.654 \\ 0.167536 & 0.936780 & 0.223134 & - 151.456 \\ 0.23786 & - 0.34278 & 0.945893 & 795.234 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_c^{{m_1}} = \left[ {\matrix{ {0.913486} & { - 0.134567} & { - 0.234568} & { - 137.654} \cr {0.167536} & {0.936780} & {0.223134} & { - 151.456} \cr {0.23786} & { - 0.34278} & {0.945893} & {795.234} \cr 0 & 0 & 0 & 1 \cr } } \right]	$T_{b}^{t_{1}} = \begin{matrix} 0.871258 & - 0.18524 & 0.16452 & - 782.452 \\ 0.245785 & 0.752896 & 0.32587 & - 875.745 \\ - 0.35287 & - 0.357482 & 0.924752 & - 1514.457 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_b^{{t_1}} = \left[ {\matrix{ {0.871258} & { - 0.18524} & {0.16452} & { - 782.452} \cr {0.245785} & {0.752896} & {0.32587} & { - 875.745} \cr { - 0.35287} & { - 0.357482} & {0.924752} & { - 1514.457} \cr 0 & 0 & 0 & 1 \cr } } \right]
⋯	⋯
$T_{c}^{m_{1}} = \begin{matrix} 0.92584 & - 0.14025 & - 0.22547 & - 129.145 \\ 0.17258 & 0.94253 & 0.202452 & - 171.528 \\ 0.22578 & - 0.362584 & 0.92458 & 810.452 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_c^{{m_1}} = \left[ {\matrix{ {0.92584} & { - 0.14025} & { - 0.22547} & { - 129.145} \cr {0.17258} & {0.94253} & {0.202452} & { - 171.528} \cr {0.22578} & { - 0.362584} & {0.92458} & {810.452} \cr 0 & 0 & 0 & 1 \cr } } \right]	$T_{b}^{t_{1}} = \begin{matrix} 0.972245 & - 0.132809 & 0.192618 & - 415.108 \\ 0.0291214 & 0.885565 & 0.463602 & - 921.649 \\ - 0.232146 & - 0.445125 & 0.864854 & - 1421.11 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_b^{{t_1}} = \left[ {\matrix{ {0.972245} & { - 0.132809} & {0.192618} & { - 415.108} \cr {0.0291214} & {0.885565} & {0.463602} & { - 921.649} \cr { - 0.232146} & { - 0.445125} & {0.864854} & { - 1421.11} \cr 0 & 0 & 0 & 1 \cr } } \right]
$T_{b}^{m} = \begin{matrix} 0.986325 & - 0.11425 & 0.11475 & 120.1425 \\ 0.24758 & 0.975425 & 0.45728 & 35.1425 \\ - 0.15368 & - 0.24758 & 0.99442 & 150.140 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_b^m = \left[ {\matrix{ {0.986325} & { - 0.11425} & {0.11475} & {120.1425} \cr {0.24758} & {0.975425} & {0.45728} & {35.1425} \cr { - 0.15368} & { - 0.24758} & {0.99442} & {150.140} \cr 0 & 0 & 0 & 1 \cr } } \right]

C.

Comparison of joint calibration accuracy

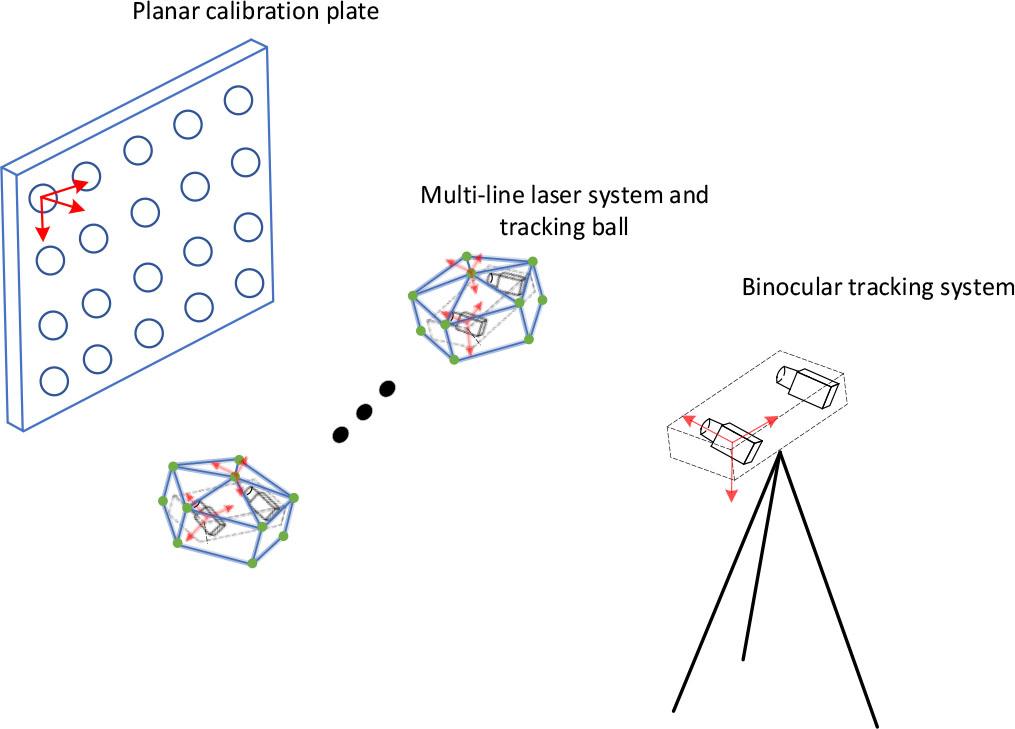

The iterative conjugate matrix optimization method proposed in this paper, in combination with traditional planar target calibration methods, enables a comparative analysis of calibration accuracy and 3D reconstruction accuracy after joint calibration. The calibration accuracy comparison is achieved by reconstructing the same reference target and evaluating the errors. The 3D reconstruction accuracy comparison is achieved by reconstructing standard ball and analyzing the ball center distance and diameter errors.

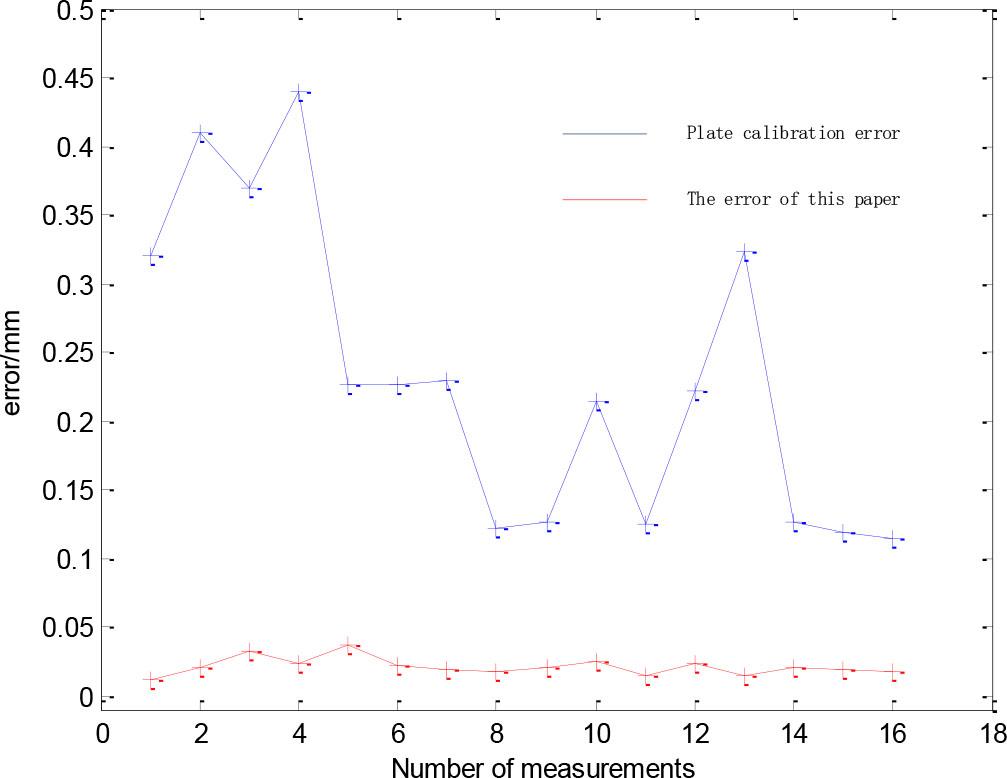

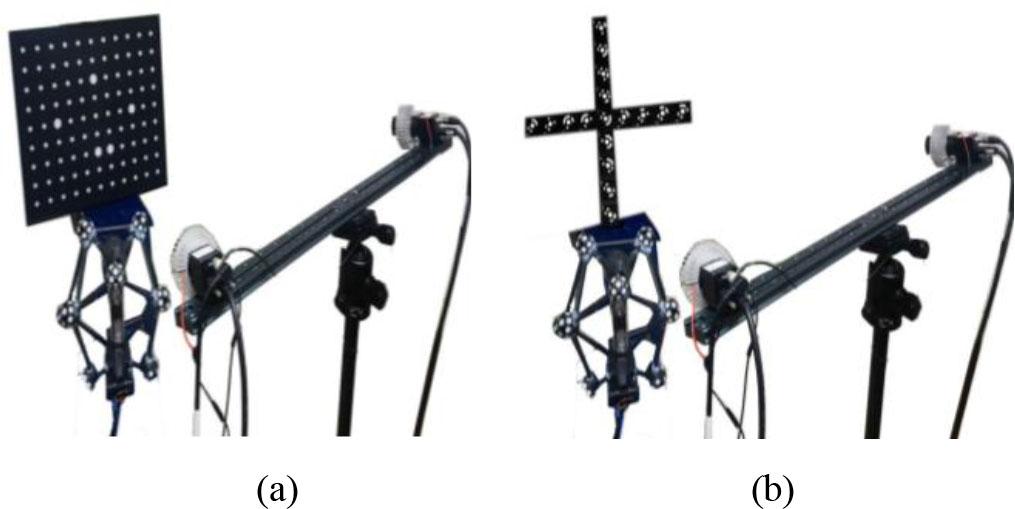

As shown in Fig. 20, two different joint calibration methods were used to complete the calibration of multi-line lasers to the tracking ball cage. Then, based on the calibration results, a binocular stereo reconstruction method was used to perform 3D reconstruction of the circle centers on the cross pole. The hardware parameters and environmental parameters for calibration and reconstruction are listed in Table 4. The cross pole was placed at different positions within the field of view, and the encoded circle centers were extracted to reconstruct their 3D coordinates. Finally, the coordinates were transformed into the binocular tracking coordinate system using the joint calibration results according to (33) and the post-transformation errors were calculated using (35). A total of 16 datasets were collected, as shown in Fig. 21. The average error of the proposed method for these 16 datasets was 0.0214 and the standard deviation was 0.0064, while the traditional plate-based calibration error was 0.2324 and the standard deviation was 0.1104. This shows that the proposed algorithm significantly improves calibration accuracy.

Table 4.

Comparison test parameters for joint calibration.

	The method in this paper	Traditional methods

Calibrated object	Cross pole	Planar calibration board
Field of view	3000 mm × 4000 mm
Depth of field range	800 mm × 1000 mm
Object test	Cross pole
Camera – resolution	2448 × 2048
Camera – focal length	8 mm
Calibration results	$T_{b}^{m} = \begin{matrix} 0.97234 & - 0.08187 & 0.14523 & 121.0832 \\ 0.30983 & 0.985320 & 0.40284 & 34.8239 \\ - 0.14239 & - 0.26812 & 0.988123 & 149.8234 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_b^m = \left[ {\matrix{ {0.97234} & { - 0.08187} & {0.14523} & {121.0832} \cr {0.30983} & {0.985320} & {0.40284} & {34.8239} \cr { - 0.14239} & { - 0.26812} & {0.988123} & {149.8234} \cr 0 & 0 & 0 & 1 \cr } } \right]	$T_{b}^{m} = \begin{matrix} 0.97234 & - 0.08187 & 0.14523 & 121.0832 \\ 0.30983 & 0.985320 & 0.40284 & 34.8239 \\ - 0.14239 & - 0.26812 & 0.988123 & 149.8234 \\ 0 & 0 & 0 & 1 \end{matrix}]$ T_b^m = \left[ {\matrix{ {0.97234} & { - 0.08187} & {0.14523} & {121.0832} \cr {0.30983} & {0.985320} & {0.40284} & {34.8239} \cr { - 0.14239} & { - 0.26812} & {0.988123} & {149.8234} \cr 0 & 0 & 0 & 1 \cr } } \right]

D.

Comparison of the reconstruction accuracy of joint calibration

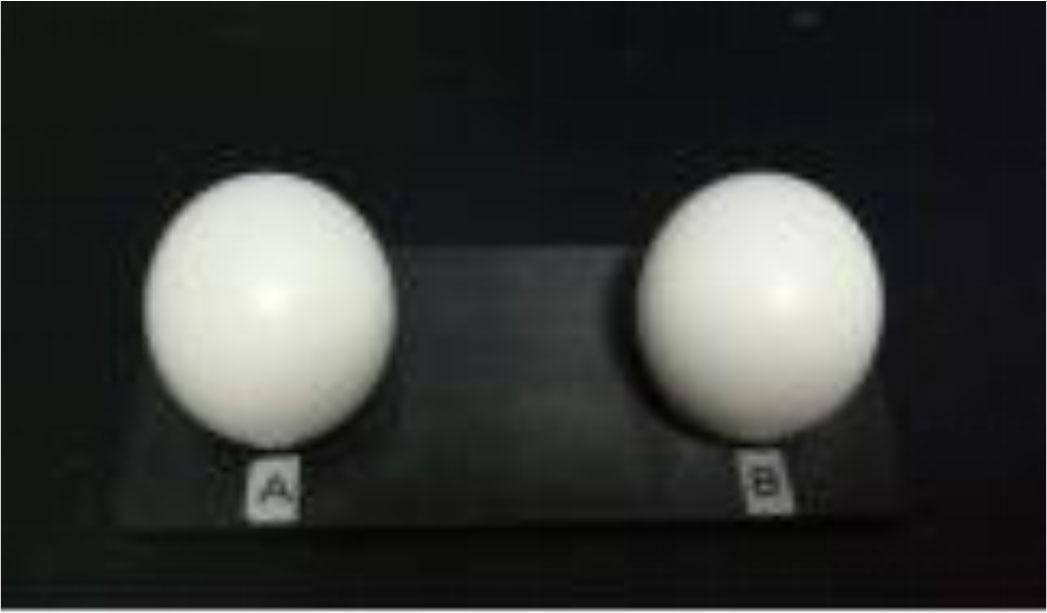

The accurate conversion of the 3D data generated by the multi-line laser system into the binocular tracking system is a crucial step in successfully stitching multi-view 3D data from the laser system. Throughout this process, we adhere to scientific and precise operating principles to ensure the accuracy and effectiveness of the data conversion. To ensure the overall system’s precision, a reconstructed standard ball is used as a verification tool in this article. By comparing the multi-position joint optimization method using cross-posts with traditional plane target-based methods, we aim to demonstrate the superiority of our proposed algorithm in a rigorous and robust analytical framework. As shown in Fig. 22, the exact distance between the two ball centers is D_i = 300.0015 mm, while the diameters of balls A and B are D_A = 60.0024 mm and D_B = 60.0031 mm, respectively. Positioned within the test field of view is the three-dimensional reconstruction created through a multi-line laser tracking system, as shown in Fig. 23. By using the calibration method presented in this article and then comparing the reconstructed results with those obtained using conventional planar target calibration methods, the performance of both methods is evaluated during the reconstruction process. After performing numerous precise scans, the point cloud data for the standard ball was obtained. Based on this data, we apply a scientific approach to three-dimensional coordinate fitting to determine the precise location of the spherical center. We then calculate the distance between the centers of the two balls and their diameters. We then compare these measurements with the preset standard values to determine the final accuracy. Table 5 and Fig. 24 provide a detailed breakdown of the final accuracy statistics.

Table 5.

Comparison of precision between the calibration algorithm proposed in this article and the traditional flat-plate calibration algorithm.

Number	Calibration algorithm of this paper (Method 1)			Calibration algorithm of traditional plate calibration (Method 2)

	D_i	D_A	D_B	D_i	D_A	D_B
1	300.0456	60.0247	60.0182	300.1547	60.0628	60.0978
2	300.0578	60.0341	60.0138	300.1236	60.1174	60.1147
3	300.0372	60.0297	60.0142	300.0412	60.1524	60.1340
4	300.0424	60.0225	60.0150	300.0824	60.0925	60.0941
5	300.0447	60.0279	60.0118	300.1471	60.0817	60.1119
6	300.0481	60.0248	60.0171	300.0758	60.1247	60.1477
7	300.0525	60.0121	60.0121	300.110	60.0852	60.0701
8	300.0473	60.0195	60.0177	300.0914	60.1264	60.1517

Mean error	0.0454	0.0220	0.0306	0.1593	0.1030	0.1121

Note: (Distance of ball center D_i = 300.0015 mm, Diameter of D_A = 60.0024, Diameter of D_B = 60.0031), ±0.0002 mm

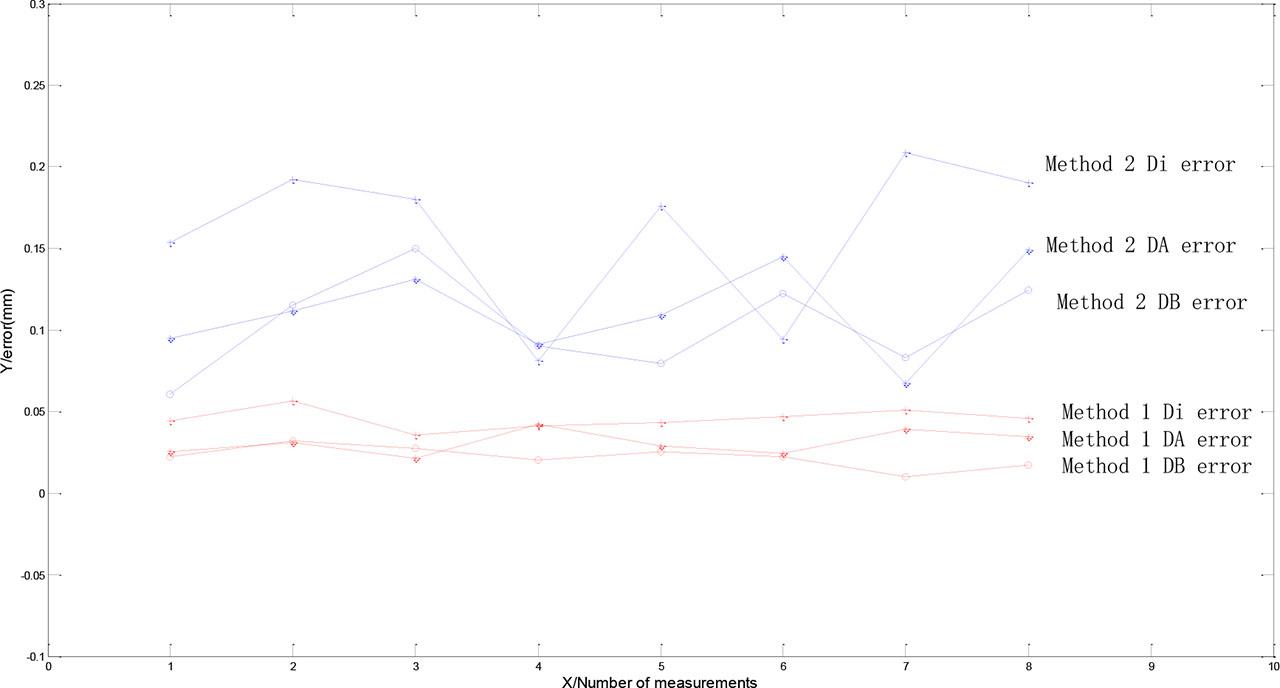

A detailed examination of the test data presented in Table 5, which shows the center distance of the standard ball and the diameters of the two balls, reveals that the calibration method described in this article has considerable precision. The statistical results show that the average accuracy of the center distance and diameters obtained with this method is 0.045 mm, 0.022 mm, and 0.0306 mm, respectively. The standard deviations are 0.0062, 0.0067 and 0.0074, respectively. These figures compare well with the traditional plate calibration method, which achieves a final precision of 0.1593 mm, 0.1030 mm, and 0.1121 mm. The standard deviations are 0.0471, 0.0296, and 0.0281, respectively. The proposed calibration method significantly improves the precision of the 3D reconstruction. To achieve this high level of precision, a user-friendly calibration image acquisition procedure was developed. By using a cross pole, calibration images can be captured efficiently at different positions. This method not only streamlines the calibration process, but also significantly increases its precision. Using the accurate calibration results, a binocular tracking system is used to perform 3D reconstruction of multiple objects. Throughout the comprehensive 3D reconstruction process, the calibration results are used to ensure the precision of the reconstructed data. Through the binocular tracking system, every little detail of the objects is successfully captured, resulting in high-precision 3D reconstructions.

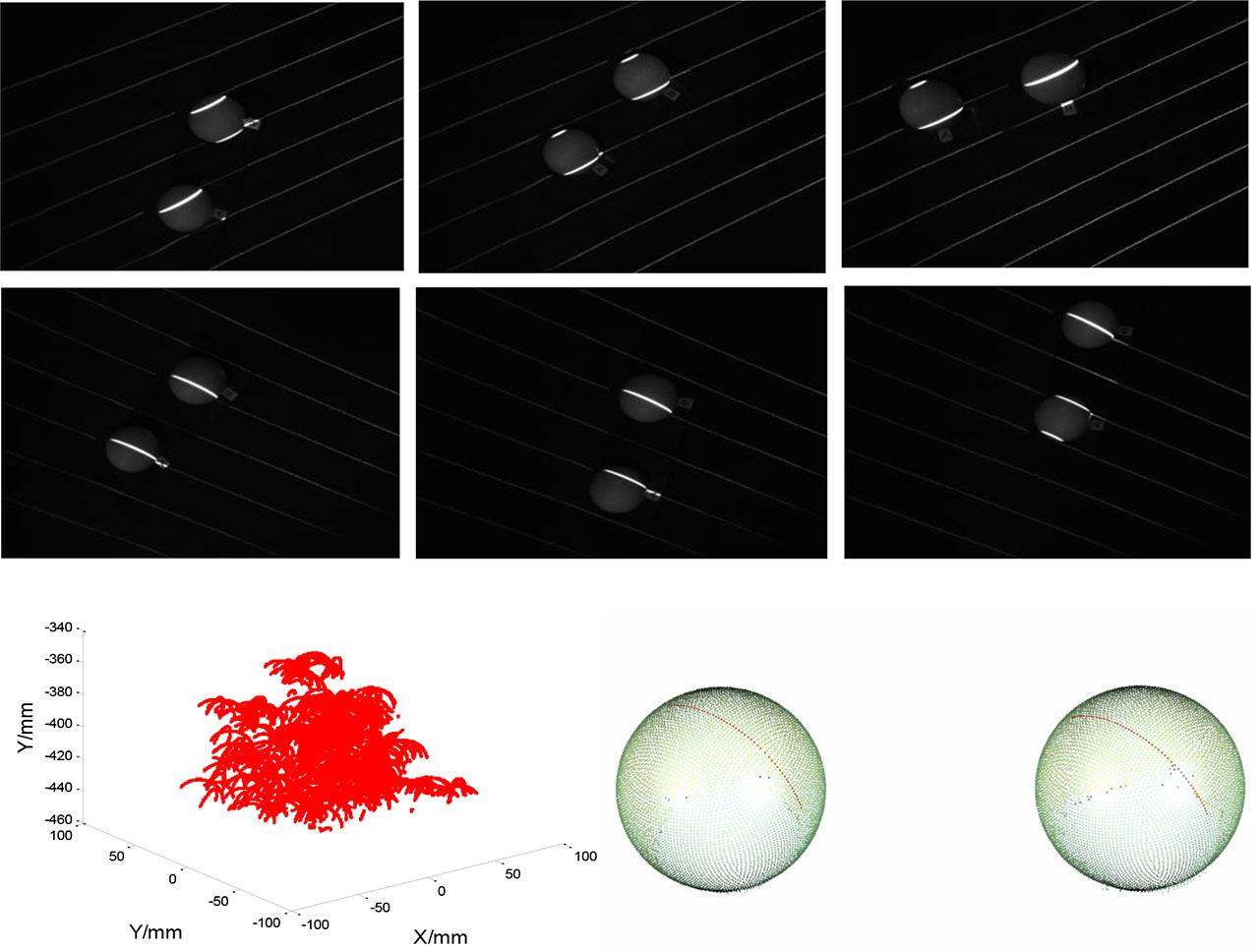

Based on the joint calibration results, the tracking system was used to perform 3D reconstruction of objects in a test field of 1.5 m×2 m. Two automotive components and a high-voltage cable were separately subjected to 3D reconstruction, which provided corresponding reconstructed point cloud data. A segment of the reconstruction results can be seen in Fig. 25. It can be seen from the figure that the reconstructed objects have a realistic shape and high level of detail, which underlines the superiority of the proposed calibration method and 3D reconstruction technology.

6.

Conclusion

In this paper, a 3D reconstruction method based on binocular tracking is presented to facilitate the stitching of unmarked points in multi-line laser technology. The proposed methodology integrates the binocular tracking system with the multi-line laser system to achieve three-dimensional reconstruction. To ensure accurate and efficient joint calibration of the multi-line laser system and the tracking ball cage, a calibration methodology based on the iterative optimization of the conjugate gradient is presented in this study. First, a precise calibration of the internal and external parameters of the binocular tracking system is performed, followed by the calculation of the positional and pose conversion relationship between the binocular tracking system and the cross pole, as well as between the multi-line laser system and the cross pole. The transformation matrix between the multi-line laser system and the tracking ball cage is determined based on positional and pose data acquired at different positions. Thus, high-precision joint calibration is achieved by an iterative optimization approach based on the conjugate gradient method. Compared to the traditional planar calibration plate technology, the proposed method significantly improves the calibration accuracy while effectively optimizing the overall reconstruction accuracy. Experimental results indicate that the reconstruction accuracy of conventional joint calibration methods is about 0.1 mm, while the method proposed here can increase it to about 0.02 mm. The approach described in this paper provides robust technical support for the splicing of unmarked points while accurately reconstructing objects in three dimensions. Moreover, the proposed joint calibration technique not only improves the calibration accuracy but also streamlines the process, thus increasing the overall usability of the system. The aforementioned advantages make the method highly promising for widespread application in the fields of industrial automation and machine vision.
