Application of Ultrasonic or Microwave Radiation to Delay Crystallization and Liquefy Solid Honey Cover

Application of Ultrasonic or Microwave Radiation to Delay Crystallization and Liquefy Solid Honey

Open Access
|Dec 2021

Figures & Tables

Table 1

Impact of 1st treatment on the crystallization rate of honey during twelve months of storage

VarietyControl (C)Microwave (M)Ultrasounds 5 min (U5)Ultrasounds 20 min (U20)
AcaciaSemisolid, crystals throughout the sampleLiquid with crystallization process startedLiquid, fine crystalsLiquid with crystallization process started
MultifloralTotal crystallization with clusters of coarse crystalsVisible few clusters of coarse crystalsAll liquid volumeAdvanced crystallization process, coarse crystals
LimeSolid, thick crystalsLiquid with thick crystalsSolid with thick crystals suspended in the whole sampleCompletely crystallized, fine-grained crystals

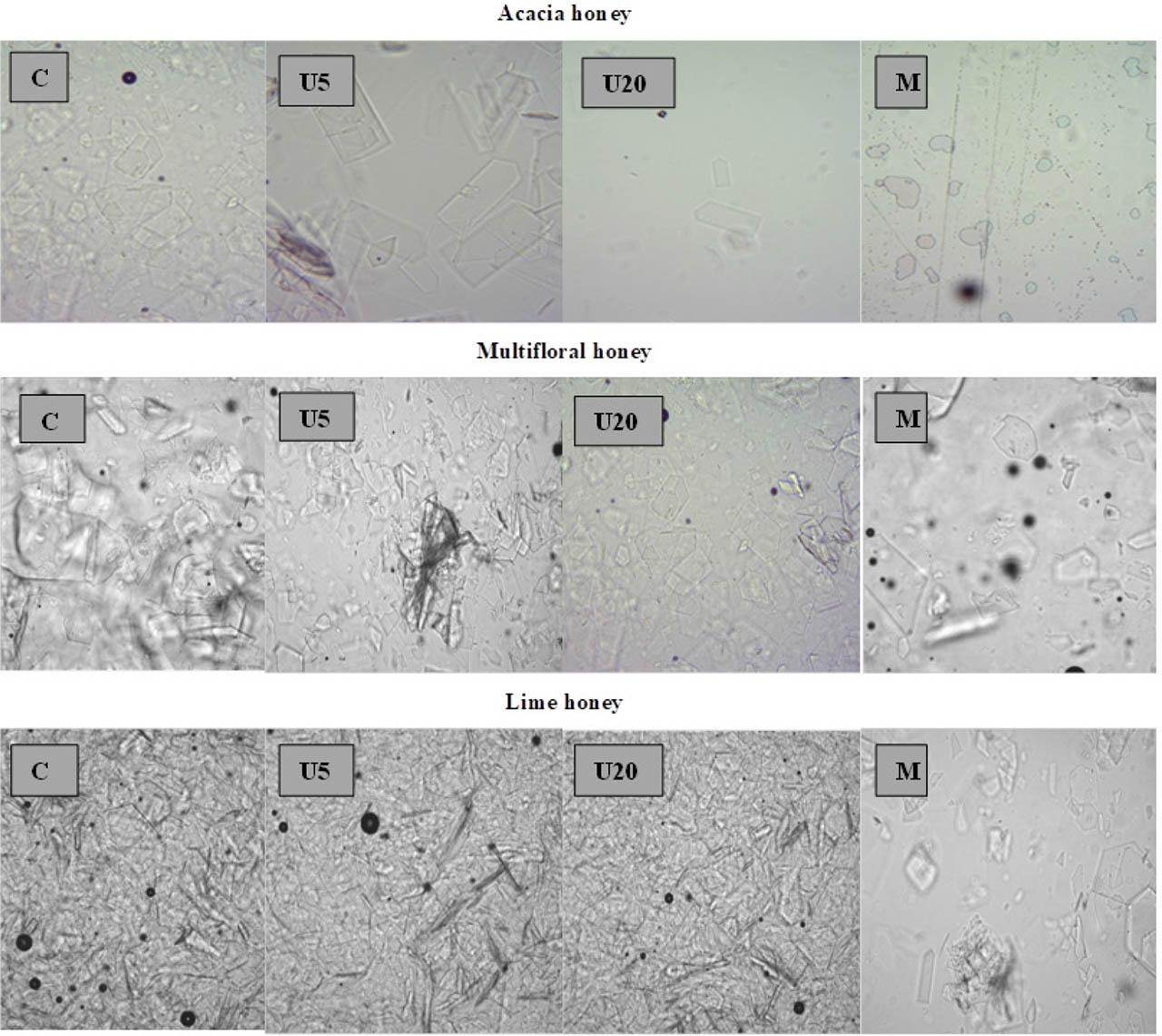

Fig. 1

Crystal structure of acacia, multifloral and lime honey stored for 12 months: naturally crystallized (control-C), after 1st treatment (fixation) with ultrasounds in shorter (U5) or longer (U20) time and with microwaves (M).

Table 2

Physicochemical analysis of fresh acacia honey, after fixation (1st treatment) with ultrasounds (U5 and U20) and microwaves (M) in order to delay crystallization and liquefaction (2nd treatment) with the same methods (U5*, U20* and M*) after 12 months of storage in laboratory conditions at room temperature in the dark. The results were presented as mean value ± S D (n=3)

Acacia honeyMoisture content (%)pHEnzyme activityAntioxidant activityHMF (mg/kg)
Diastase number (DN)α-GLU (U/g)β-GAL (U/g)α-MAN (U/g)DPPH (%)TPC (mg GAE/kg)
Control (Raw)18.1±0.05a3.3±0.01a23.28±1.12a0.20±0.008a0.39±0.003a0.13±0.002a10.52±1.56a225.86±125a0.57±0.026a
1st treatment: fixation of fresh liquid honey
U518.0±0.05a3.3±0.01a21.68±1.01b0.08±0.004b0.36±0.006b0.13±0.004a13.82±1.92b225.82±10.2a1.35±0.039b
U2018.4±0.03b3.3±0.02a23.18±1.32c0.20±0.006a0.39±0.004a0.14±0.013a15.50±1.06c228.25±11.9b1.76±0.057b
M18.2±0.02c3.3±0.01a16.47±1.38d0.20±0.007a0.37±0.003ab0.15±0.042a13.22±1.46b227.02±9.2b1.10±0.009d
Control (Stored)18.1±0.05ac3.3±0.01a23.36±2.21a0.20±0.003a0.35±0.007b0.14±0.030a10.69±1.70a225.86±13.6a0.57±0.015a
2nd treatment: liquefaction of crystallized honey
U5*18.0±0.03a3.3±0.01a18.79±1.45e0.07±0.001b0.34±0.006b0.12±0.016a15.22±1.03c368.00±12.2c1.48±0.015e
U20*18.2±0.02c3.3±0.02a16.31±1.06f0.15±0.004c0.37±0.003ab0.15±0.014a15.72±1.12c369.36±12.3c1.79±0.025c
M*18.2±0.05c3.3±0.01a14.14±1.56g0.16±0.006d0.31±0.009c0.16±0.013a14.76±1.16c362.16±12.c1.12±0.010d

a,b,c,d,e,f,g - means marked with different letters within the column differ statistically (P < 0.05)

Table 3

Physicochemical analysis of fresh multifloral honey, after fixation (1st treatment) with ultrasounds (U5 and U20) and microwaves (M) in order to delay crystallization and liquefaction (2nd treatment) with the same methods (U5*, U20* and M*) after 12 months of storage in laboratory conditions at room temperature in the dark. The results were presented as mean value ± SD (n=3)

Multifloral honeyMoisture content (%)pHEnzyme activityAntioxidant activityHMF (mg/kg)
Diastase number (DN)α-GLU (U/g)β-GAL (U/g)α-MAN (U/g)DPPH (%)TPC (mg GAE/kg)
Control (Raw)18.8±0.06a3.5±0.05a26.04±1.46a0.29±0.002a0.82±0.017a0.38±0.023a21.19±2.16a288.28±14.4a0.67±0.052a
1st treatment: fixation of fresh liquid honey
U518.8±0.05a3.6±0.06b19.16±2.03b0.09±0.001b0.72±0.016b0.25±0.030b21.98±2.16b277.47±10.0b1.31±0.023b
U2018.7±0.02b3.7±0.05c19.39±1.04b0.23±0.006c0.70±0.002b0.36±0.014c21.98±1.89b268.46±13.0c2.22±0.045c
M18.7±0.05b3.6±0.08b23.86±1.47c0.24±0.005c0.71±0.010b0.34±0.026d22.54±2.23c264.82±10.10d0.99±0.056d
Control (Stored)18.8±0.05a3.5±0.02a26.04±2.12a0.24±0.007c0.76±0.006c0.35±0.016d21.59±1.46b288.28±11.30a0.67±0.022a
2nd treatment: liquefaction of crystallized honey
U5*18.0±0.06a3.5±0.01a17.24±1.13d0.07±0.003b0.34±0.006d0.12±0.014e22.75±1.47c500.90±17.60e1.49±0.016e
U20*18.2±0.05b3.5±0.01a19.16±1.05b0.15±0.007d0.37±0.005e0.15±0.012e24.35±2.16d469.46±16.45f2.24±0.022f
M*18.2±0.05b3.5±0.01a8.5±1.01e0.16±0.009d0.31±0.009d,e0.16±0.016e25.91±1.89e450.45±13.30g1.04±0.030d

a,b,c,d,e,f,g - means marked with different letters within the column differ statistically (P < 0.05)

Table 4

Physicochemical analysis of fresh lime honey, after fixation (1st treatment) with ultrasounds (U5 and U20) and microwaves (M) in order to delay crystallization and liquefaction (2nd treatment) with the same methods (U5*, U20* and M*) after 12 months of storage in laboratory conditions at room temperature in the dark. The results were presented as mean value ± SD (n=3)

Lime honeyMoisture content (%)pHEnzyme activityAntioxidant activityHMF (mg/kg)
Diastase number (DN)α-GLU (U/g)β-GAL (U/g)α-MAN (U/g)DPPH (%)TPC (mg GAE/kg)
Control (Raw)17.6±0.04a3.8±0.03a25.69±2.16a0.36±0.006a1.81±0.09a0.35±0.013a31.79±1.96a411.64±14.10a0.08±0.032a
1st treatment: fixation of fresh liquid honey
U517.6±0.03a3.8±0.02a23.22±2.20b0.14±0.007b1.57±0.04b0.29±0.018b30.62±1.52b432.43±14.56b1.07±0.020b
U2017.8±0.02b3.8±0.01a25.31±1.56a0.35±0.008a1.82±0.07a0.34±0.022a32.91±1.14a409.00±12.10a1.75±0.025c
M17.8±0.02b3.8±0.01a22.78±1.30b0.36±0.009a1.86±0.23a0.33±0.031c27.20±1.06c410.81±14.20a0.91±0.010b
Control (Stored)17.4±0.05a3.8±0.01a25.22±2.15a0.36±0.006a1.79±0.08ab0.34±0.020a31.62±1.23a410.81±12.50a0.08±0.032a
2nd treatment: liquefaction of crystallized honey
U5*18.1±0.01c3.6±0.02b16.90±1.45c0.10±0.001c1.38±0.09c0.11±0.010d29.81±1.46d605.40±19.45c1.85±0.017d
U20*17.8±0.06b3.6±0.02b23.02±3.14b0.29±0.004d1.74±0.13ab0.29±0.019b33.67±1.89e659.45±28.70e2.76±0.092e
M*18.0±0.08b3.7±0.03c22.97±3.19b0.29±0.006d0.98±0.08d0.33±0.015c31.69±2.13a621.62±26.45d1.01±0.063b

a,b,c,d,e,f,g - means marked with different letters within the column differ statistically (P < 0.05)
