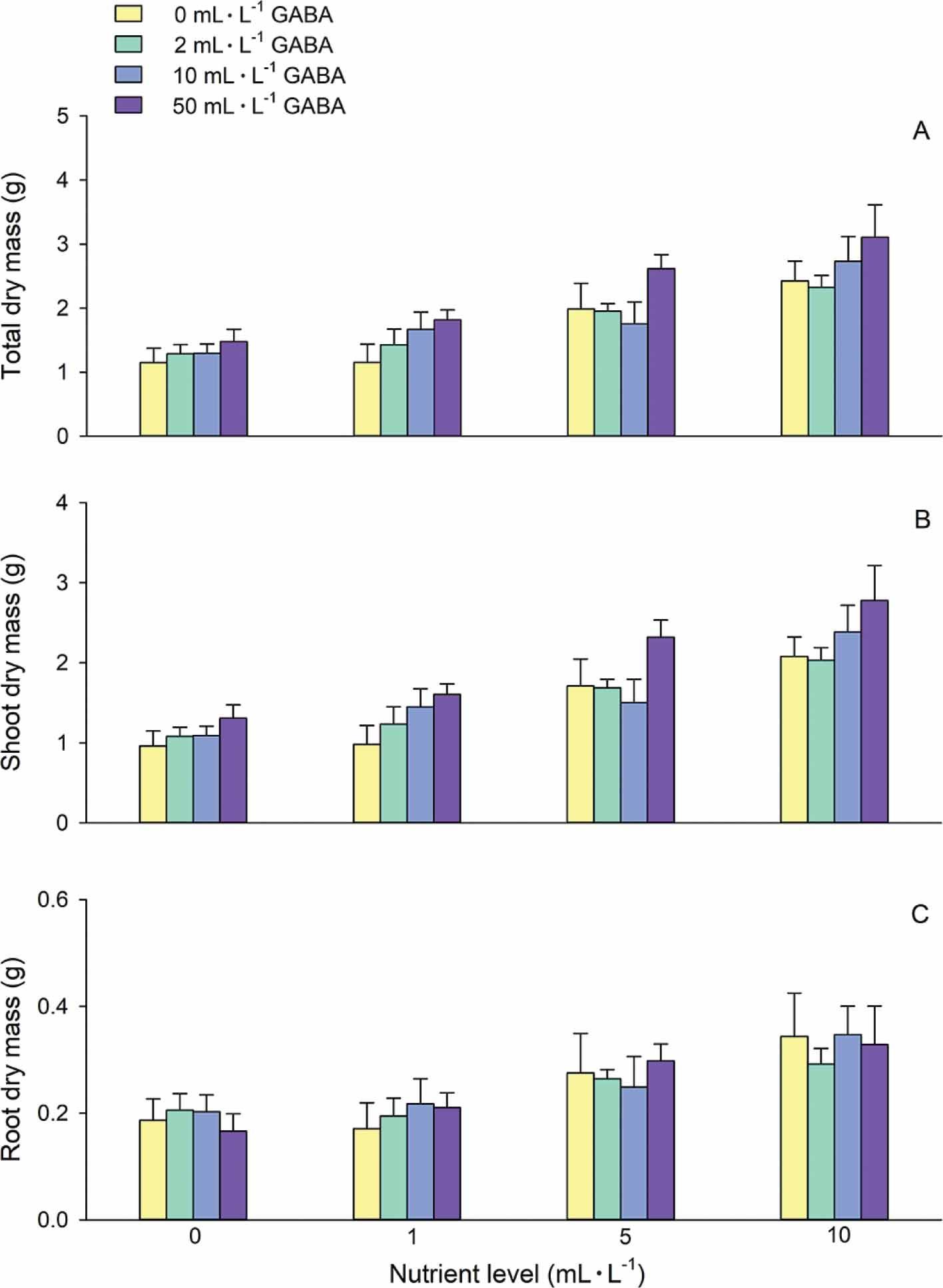

Figure 1.
Effects of GABA and nutrients on total dry mass (A), shoot dry mass (B) and root dry mass (C) of Glechoma longituba. Bars and vertical lines are means and standard error.

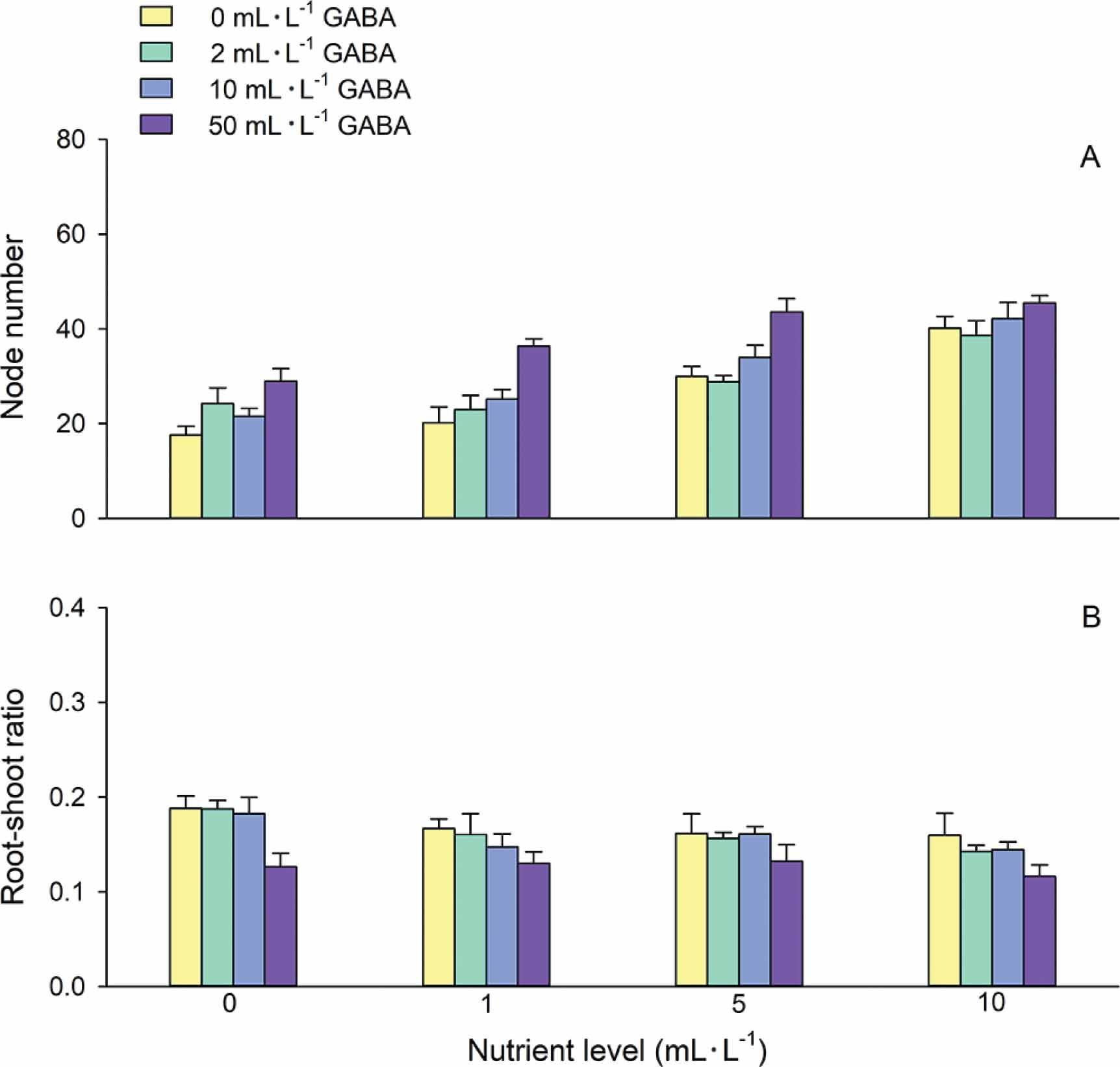

Figure 2.
Effects of GABA and nutrients on node number (A) and root-shoot ratio (B) of Glechoma longituba. Bars and vertical lines are means and standard error.
Table 1.
ANOVA results for the effects of GABA and nutrients on total dry mass, shoot dry mass, root dry mass, node number and root-shoot ratio of Glechoma longituba in all treatments.

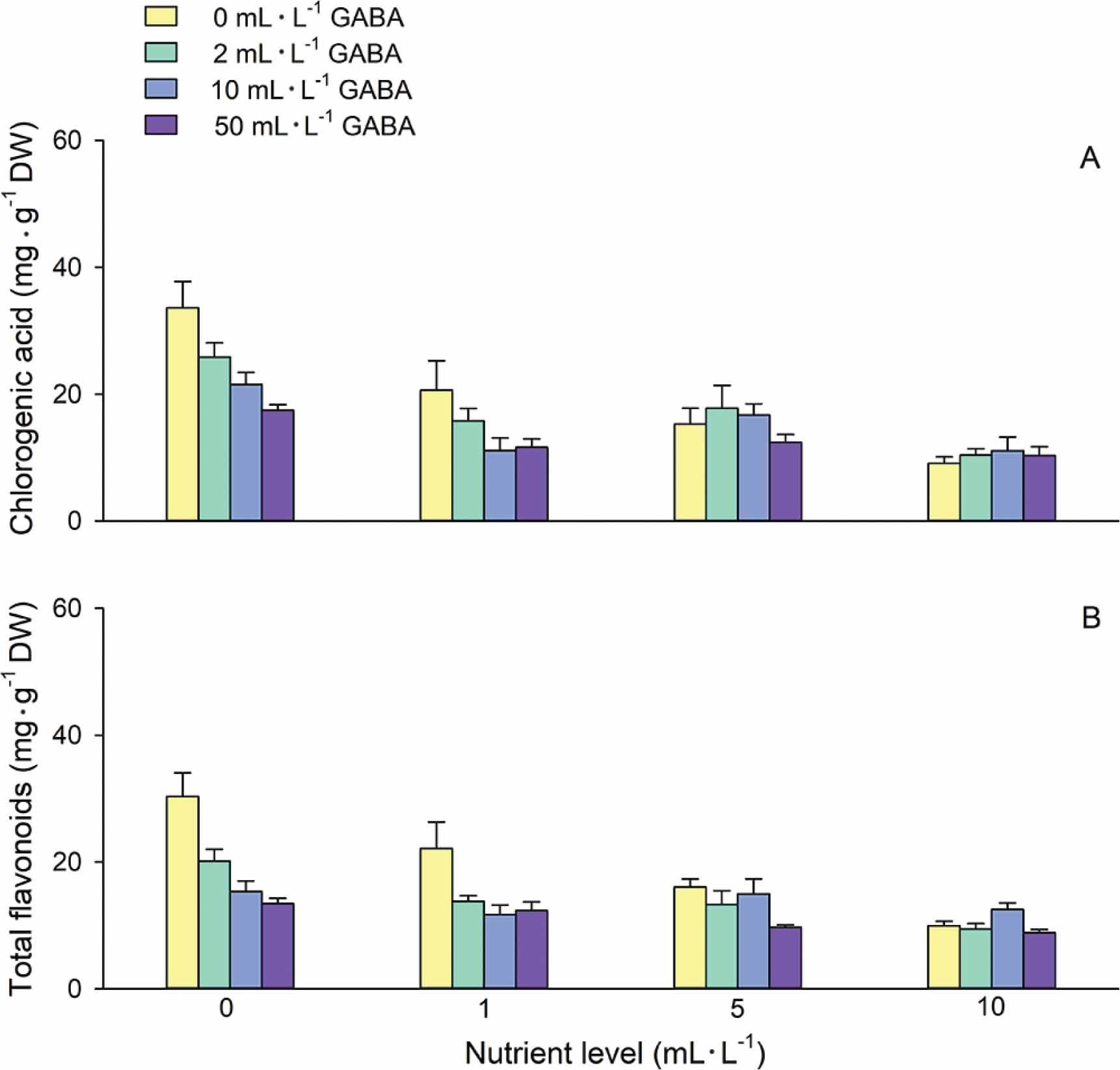

Figure 3.
Effects of GABA and nutrients on the content of chlorogenic acid (A) and total flavonoids (B) in the shoots of Glechoma longituba. Bars and vertical lines are means and standard error.
Table 2.
ANOVA results for the effects of GABA and nutrients on contents of chlorogenic acid and total flavonoids in the shoots of Glechoma longituba in all treatments.
| Variable | GABA (G) | Nutrient (N) | G × N | |||
|---|---|---|---|---|---|---|
| F3,61 | p | F3,61 | p | F9,61 | p | |
| Chlorogenic acid | 25.724 | <0.001 | 3.667 | 0.017 | 1.694 | 0.110 |
| Total flavonoids | 20.302 | <0.001 | 12.917 | <0.001 | 2.964 | 0.005 |

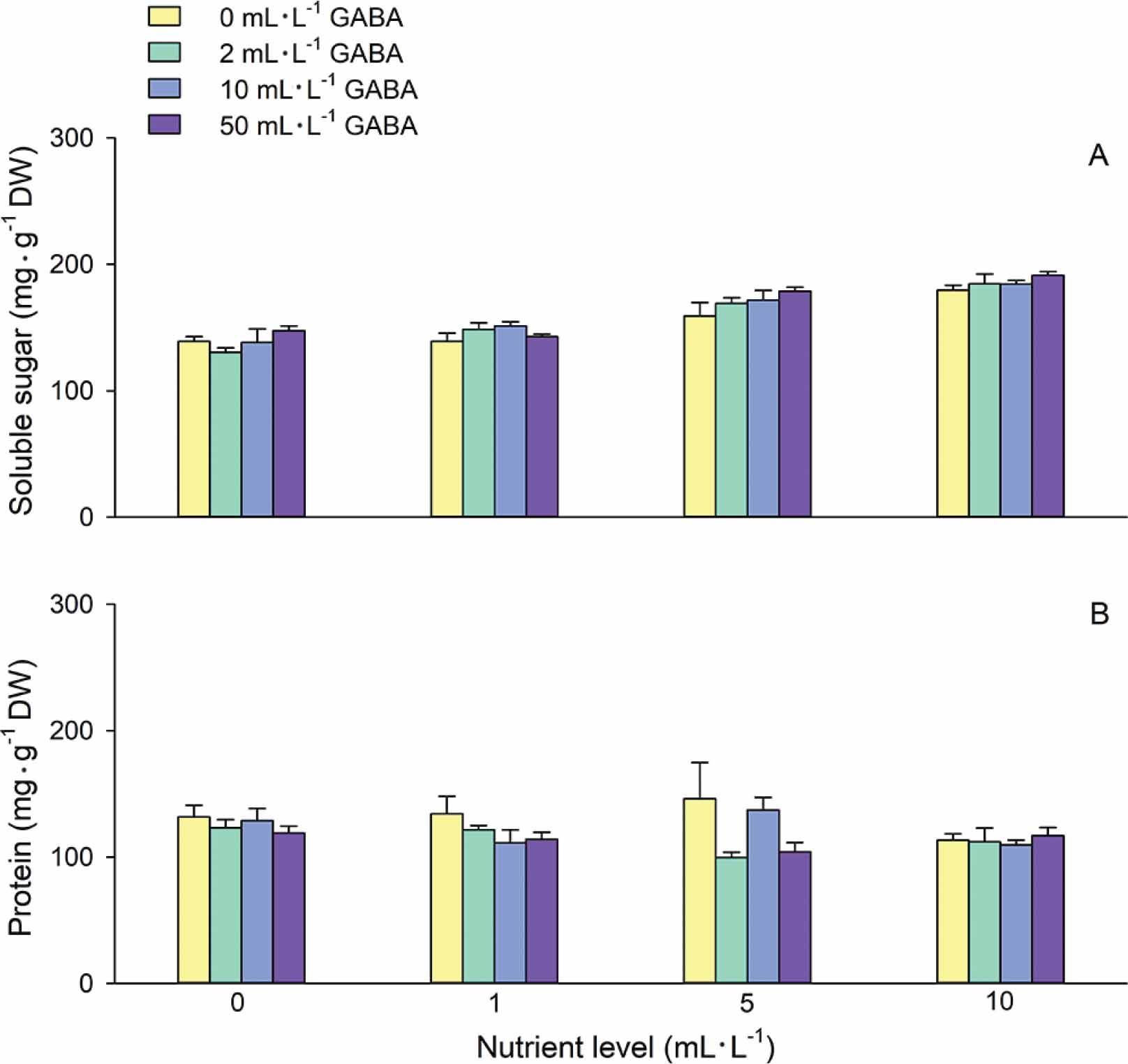

Figure 4.
Effects of GABA and nutrients on the content of soluble sugar (A) and protein (B) in the shoots of Glechoma longituba. Bars and vertical lines are means and standard error.
Table 3.
ANOVA results for the effects of GABA and nutrients on contents of soluble sugar and protein in the shoots of Glechoma longituba in all treatments.
| Variable | GABA (G) | Nutrient (N) | G × N | |||
|---|---|---|---|---|---|---|
| F3,60 | p | F3,60 | p | F9,60 | p | |
| Soluble sugar | 2.362 | 0.080 | 50.749 | <0.001 | 0.779 | 0.636 |
| F3,61 | P | F3,61 | P | F9,61 | P | |
| Protein | 2.352 | 0.081 | 0.922 | 0.436 | 1.197 | 0.313 |
