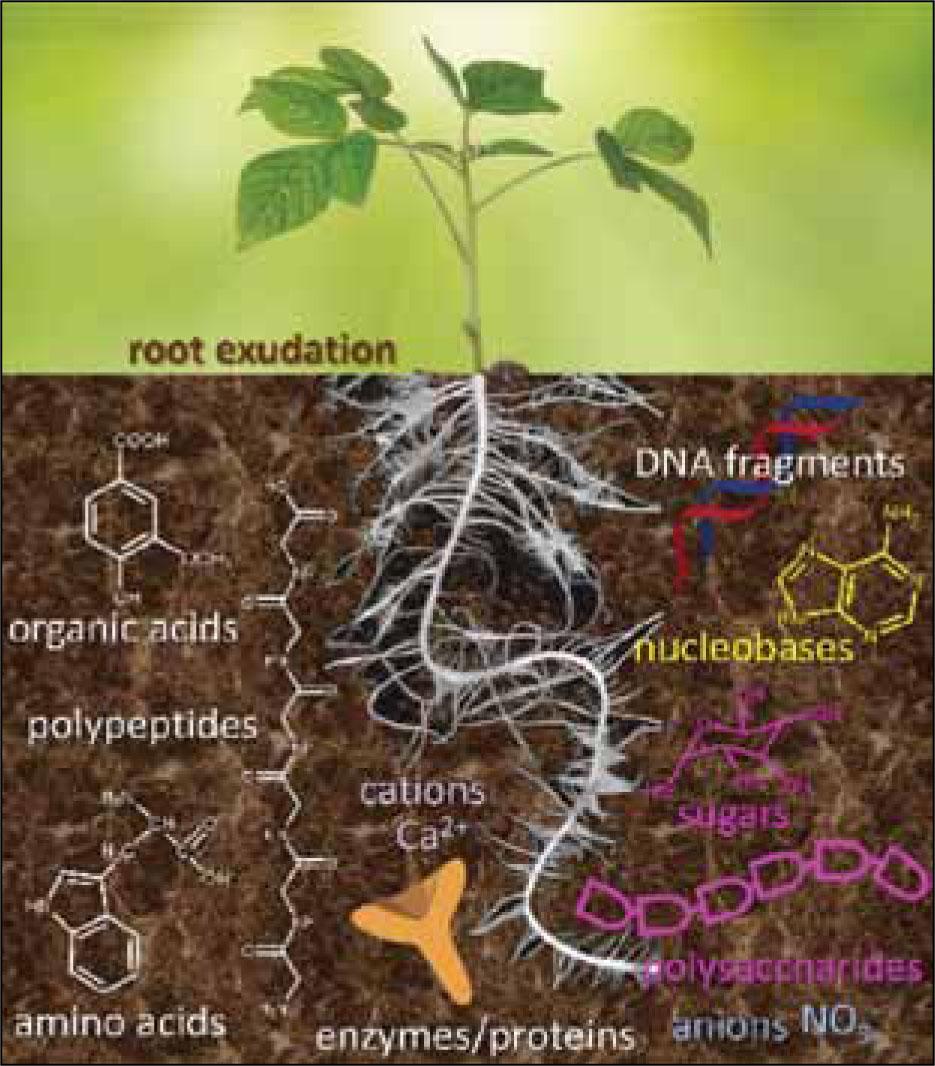

Figure 1.
Overview of the most important chemical groups of root exudates (not scaled)

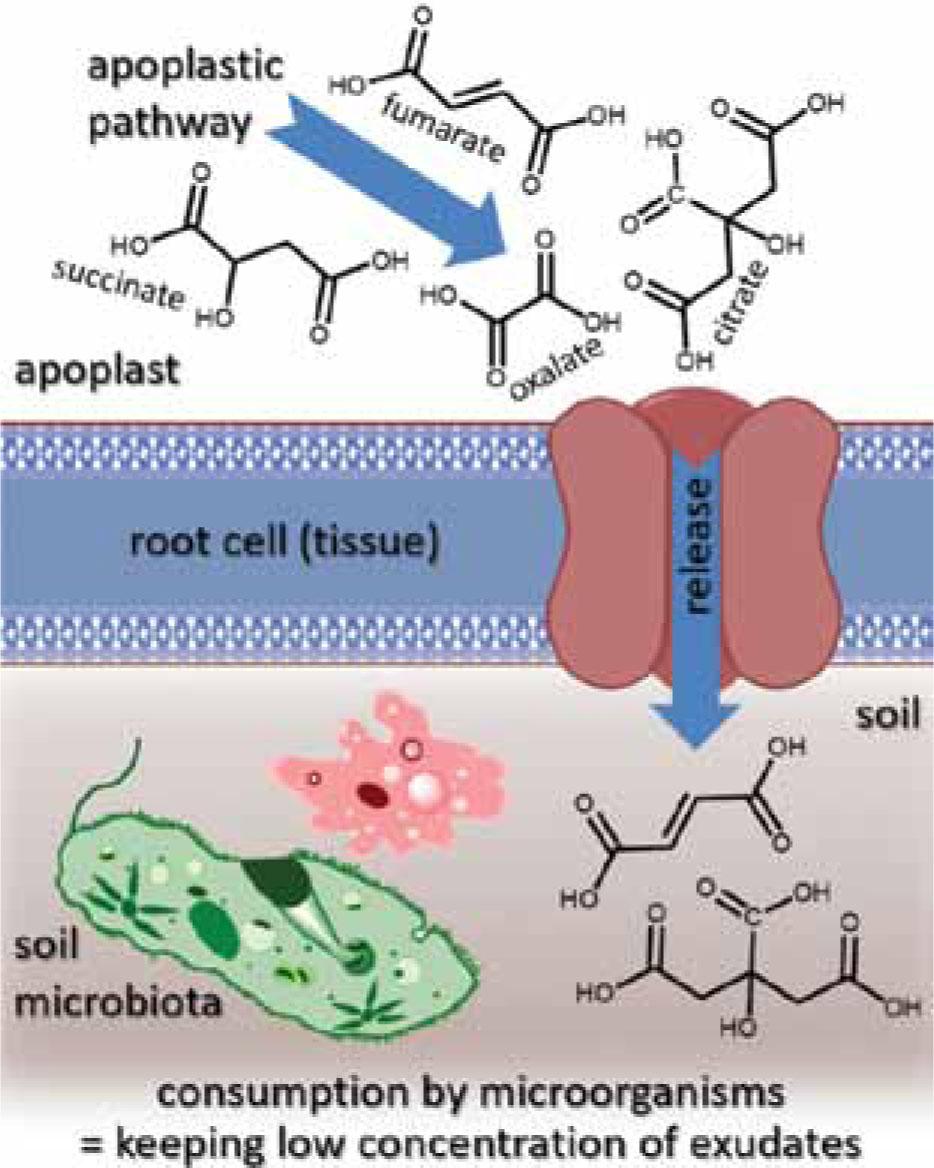

Figure 2.
Illustration of the transport of organic acids through the last plasma membrane (the apoplastic transport) and its control by the concentration gradient

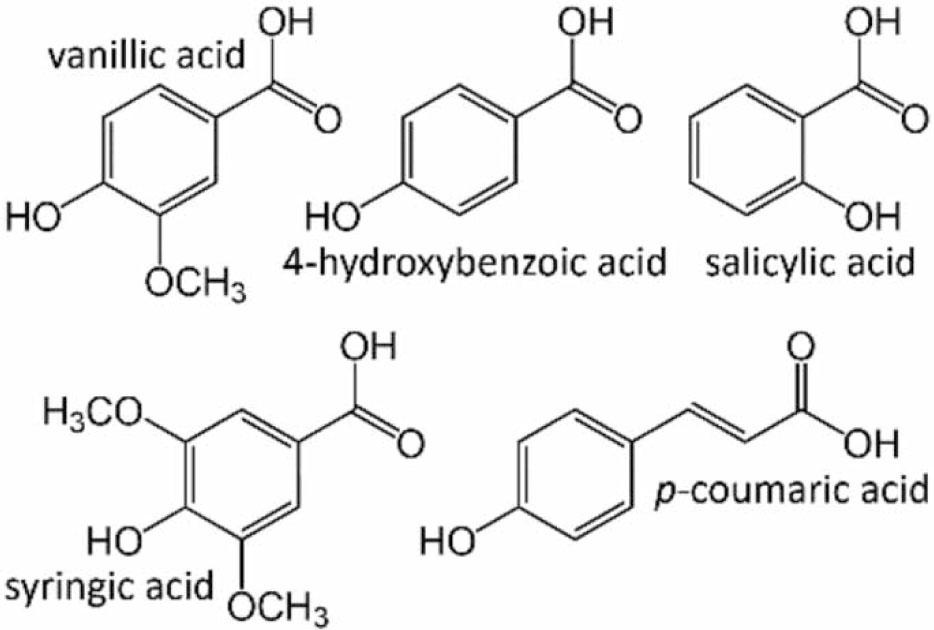

Figure 3.
Chemical structures of phenolic acids detected and analysed in our study

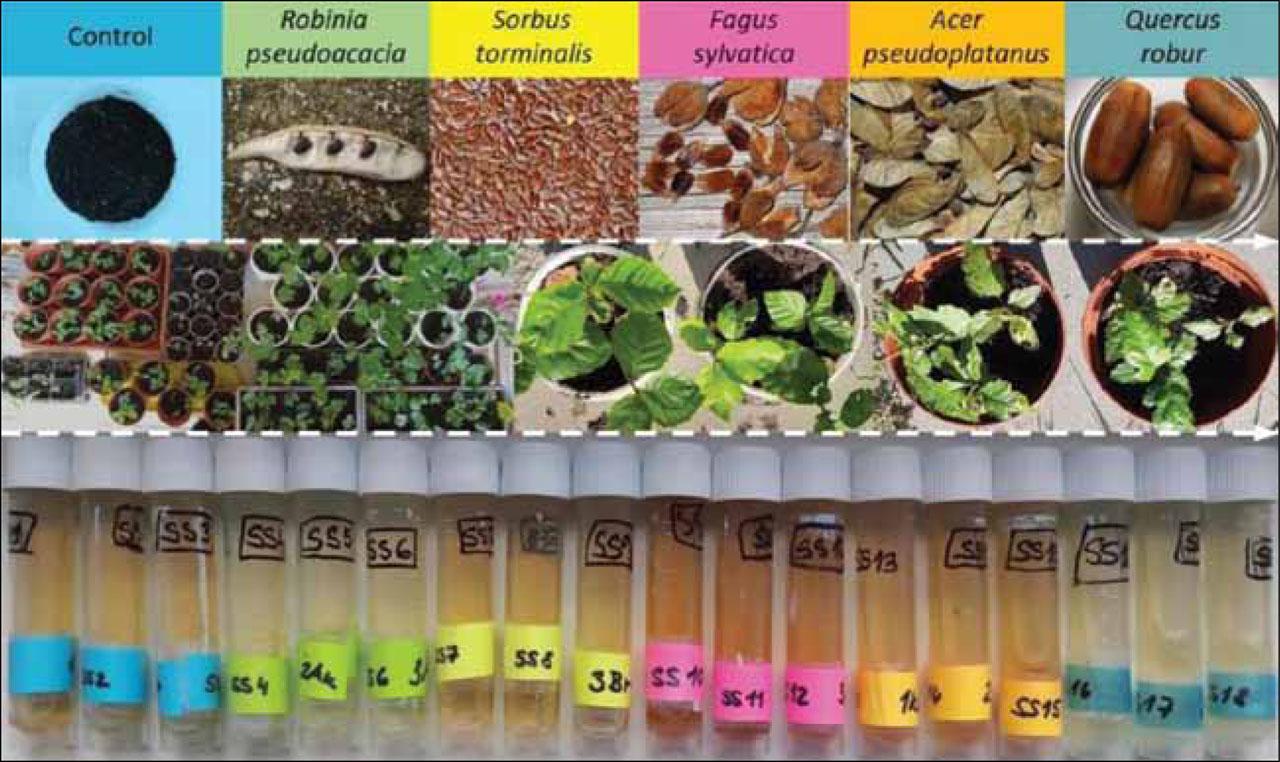

Figure 4.
Basic scheme of the experiment from each seed through all seedlings in small and experimental pots (chronologically in the central row) to the soil solution
Table 1.
Active and exchangeable pH and electrical conductance (κ) of the substrate (1:10 (w/v); mean ± st. dev., n = 3)
| pH(H2O) | pH(KCl) | κ (mS/cm) |
|---|---|---|
| 5.17±0.00 | 4.65±0.00 | 0.955±0.005 |
Table 2.
Total, bioavailable (CAT) and water-soluble fractions of selected elements in the substrate (mg/kg dry wt.; mean ± st. dev., n = 3)
| Fraction | K | Ca | Mg | P | Zn | Fe | Mn | Cu |
|---|---|---|---|---|---|---|---|---|
| Total | 2321±48 | 9655±103 | 1748±42 | 872±11 | 74.1±2.8 | 2089±25 | 462.5±8.6 | 6.03±0.21 |
| CAT | 1272±4 | – | 717±6 | 585±19 | 82.5±3.7 | 508±14 | 407.4±6.7 | 2.02±0.42 |
| H2O | 808±8 | 225±6 | 93±3 | 572±5 | 0.952±0.007 | 6.14±0.00 | 7.15±0.04 | 0.188±0.026 |
Table 3.
Content of mineral nitrogen forms, total organic carbon (TOC) and humic substances (HS), the degree of polymerisation (DP) and the humification index (HI) of the dry substrate (mean ± st. dev.; n = 3)
| N-NH4 (mg/kg) | N-NO3 (mg/kg) | TOC (% C) | HS (% C) | DP (HA : FA) | HI (HA : TOC) |
|---|---|---|---|---|---|
| 1421.5±2.6 | 36.6±5.2 | 13.4±0.3 | 6.14±0.03 | 1.80±0.06 | 0.231 |

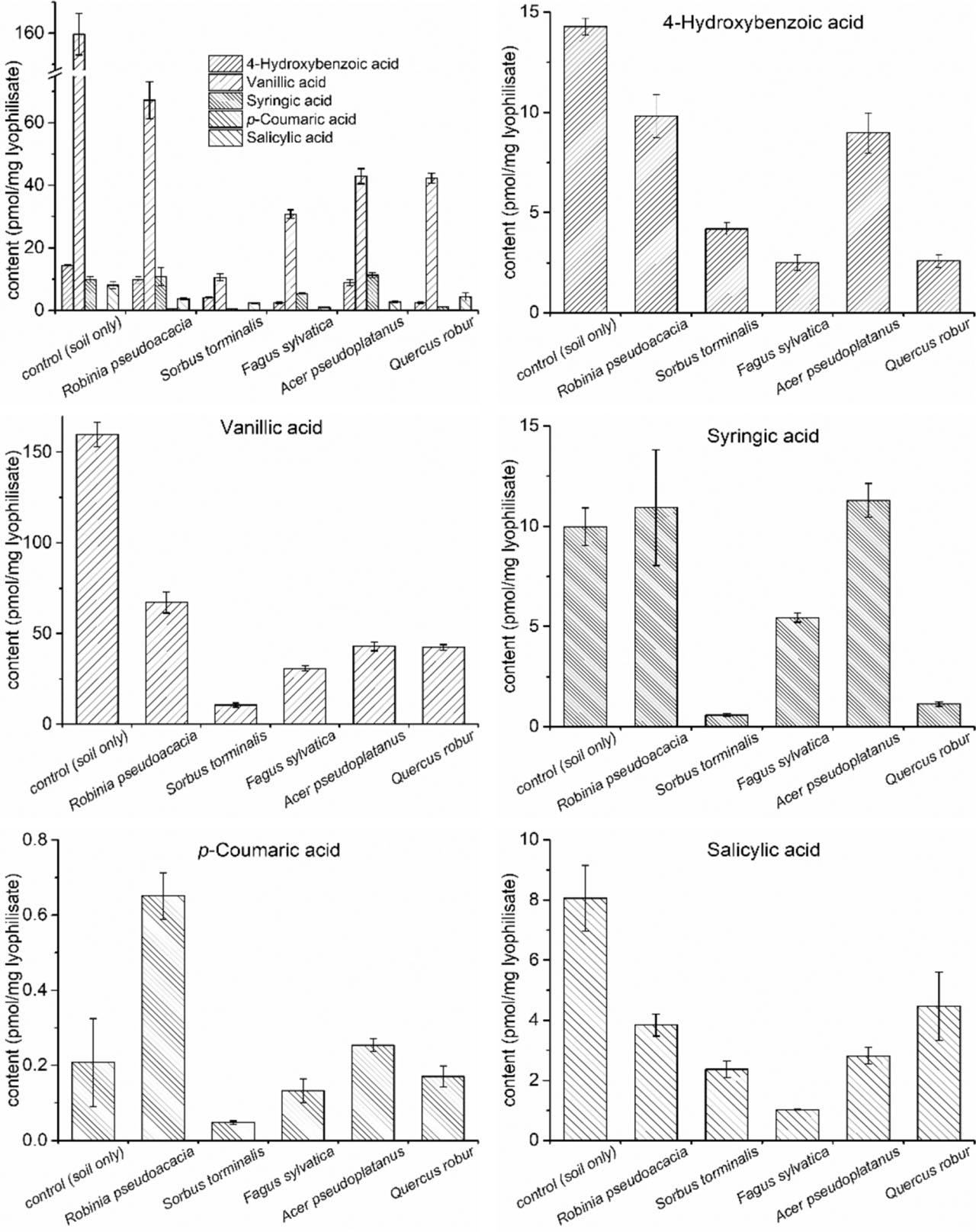

Figure 5.
Content of selected phenolic acids in the soil solution of focused trees (n = 3, mean ± st. dev.)

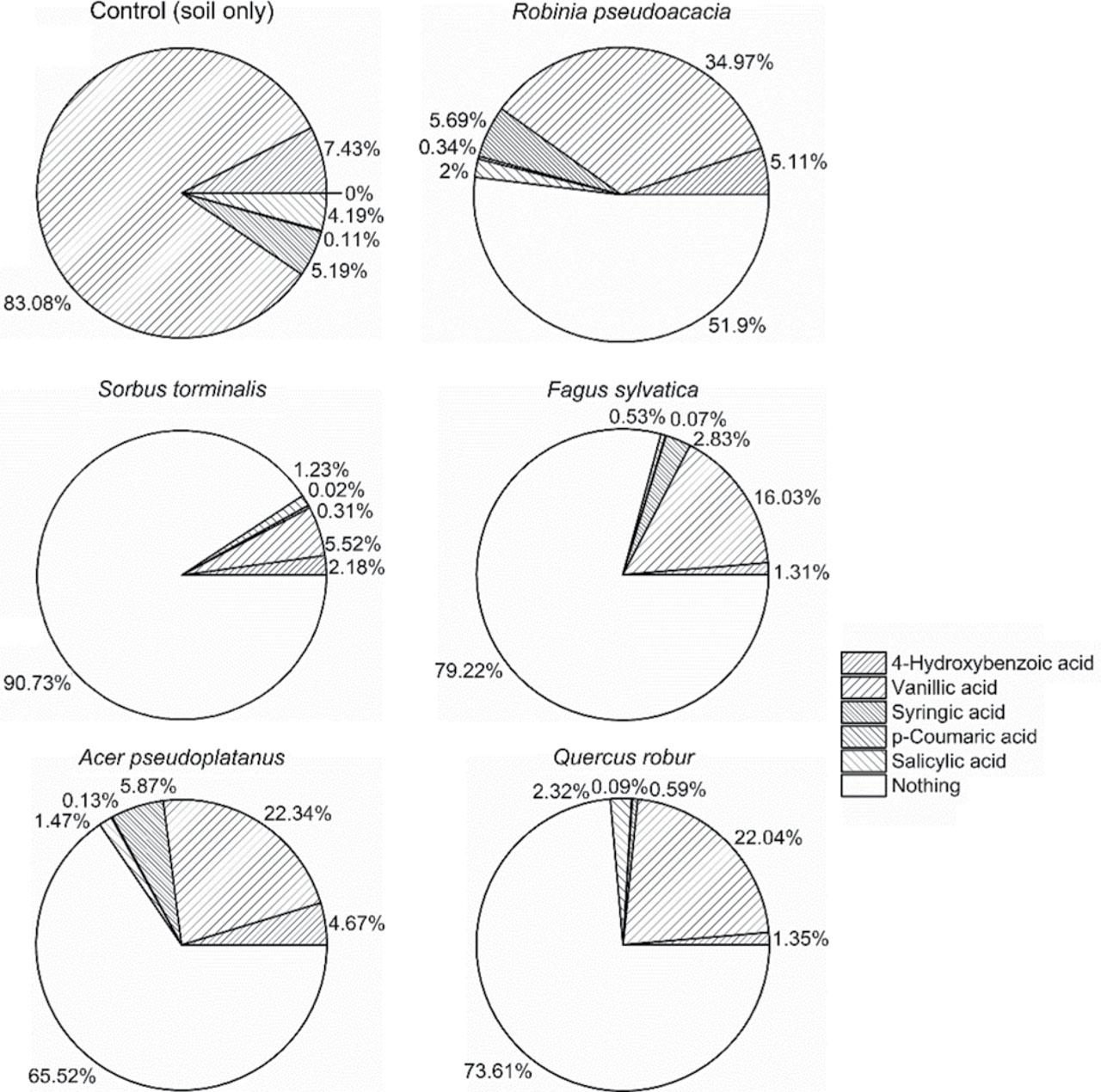

Figure 6.
Relative content of phenolic acids detected in the soil solution of each tree compared to their sum in the control (100%)
Table SI.1.
Tukey’s HSD test for 4-hydroxybenzoic acid among tree species indicating whether the values are statistically different at the significance level of α ≤ 0.05
| Group 1 | Group 2 | p-value | Reject | Group 1 | Group 2 | p-value | Reject |
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| s4-hydroxybenzoic acid | p-coumaric acid | ||||||
| AP | FS | 0.0000 | true | AP | FS | 0.3396 | false |
| aP | QR | 0.0000 | true | AP | QR | 0.6966 | false |
| aP | RP | 0.7967 | false | AP | RP | 0.0002 | true |
| aP | ST | 0.0001 | true | AP | ST | 0.0331 | true |
| aP | control | 0.0000 | true | AP | control | 0.9609 | false |
| fS | QR | 1.0000 | false | FS | QR | 0.9827 | false |
| fS | RP | 0.0000 | true | FS | RP | 0.0000 | true |
| fS | ST | 0.1973 | false | FS | ST | 0.6792 | false |
| fS | control | 0.0000 | true | FS | control | 0.7731 | false |
| qR | RP | 0.0000 | true | QR | RP | 0.0000 | true |
| qR | ST | 0.2274 | false | QR | ST | 0.3260 | false |
| qR | control | 0.0000 | true | QR | control | 0.9845 | false |
| rP | ST | 0.0000 | true | RP | ST | 0.0000 | true |
| rP | control | 0.0003 | true | RP | control | 0.0001 | true |
| sT | control | 0.0000 | true | ST | control | 0.1253 | false |
| vanillic acid | Salicylic acid | ||||||
| AP | FS | 0.0749 | false | AP | FS | 0.1614 | false |
| aP | QR | 1.0000 | false | AP | QR | 0.2248 | false |
| aP | RP | 0.0005 | true | AP | RP | 0.6738 | false |
| aP | ST | 0.0000 | true | AP | ST | 0.9833 | false |
| aP | control | 0.0000 | true | AP | control | 0.0001 | true |
| fS | QR | 0.0951 | false | FS | QR | 0.0030 | true |
| fS | RP | 0.0000 | true | FS | RP | 0.0136 | true |
| fS | ST | 0.0024 | true | FS | ST | 0.4073 | false |
| fS | control | 0.0000 | true | FS | control | 0.0000 | true |
| qR | RP | 0.0004 | true | QR | RP | 0.9335 | false |
| qR | ST | 0.0000 | true | QR | ST | 0.0800 | false |
| qR | control | 0.0000 | true | QR | control | 0.0021 | true |
| rP | ST | 0.0000 | true | RP | ST | 0.3240 | false |
| rP | control | 0.0000 | true | RP | control | 0.0005 | true |
| sT | control | 0.0000 | true | ST | control | 0.0000 | true |
| Syringic acid | |||||||
| AP | FS | 0.0069 | true | ||||
| AP | QR | 0.0001 | true | ||||
| AP | RP | 0.9997 | false | ||||
| AP | ST | 0.0000 | true | ||||
| AP | control | 0.9031 | false | ||||
| FS | QR | 0.0509 | false | ||||
| FS | RP | 0.0110 | true | ||||
| FS | ST | 0.0251 | true | ||||
| FS | control | 0.0384 | true | ||||
| QR | RP | 0.0001 | true | ||||
| QR | ST | 0.9979 | false | ||||
| QR | control | 0.0002 | true | ||||
| RP | ST | 0.0000 | true | ||||
| RP | control | 0.9727 | false | ||||
| ST | control | 0.0001 | true | ||||
