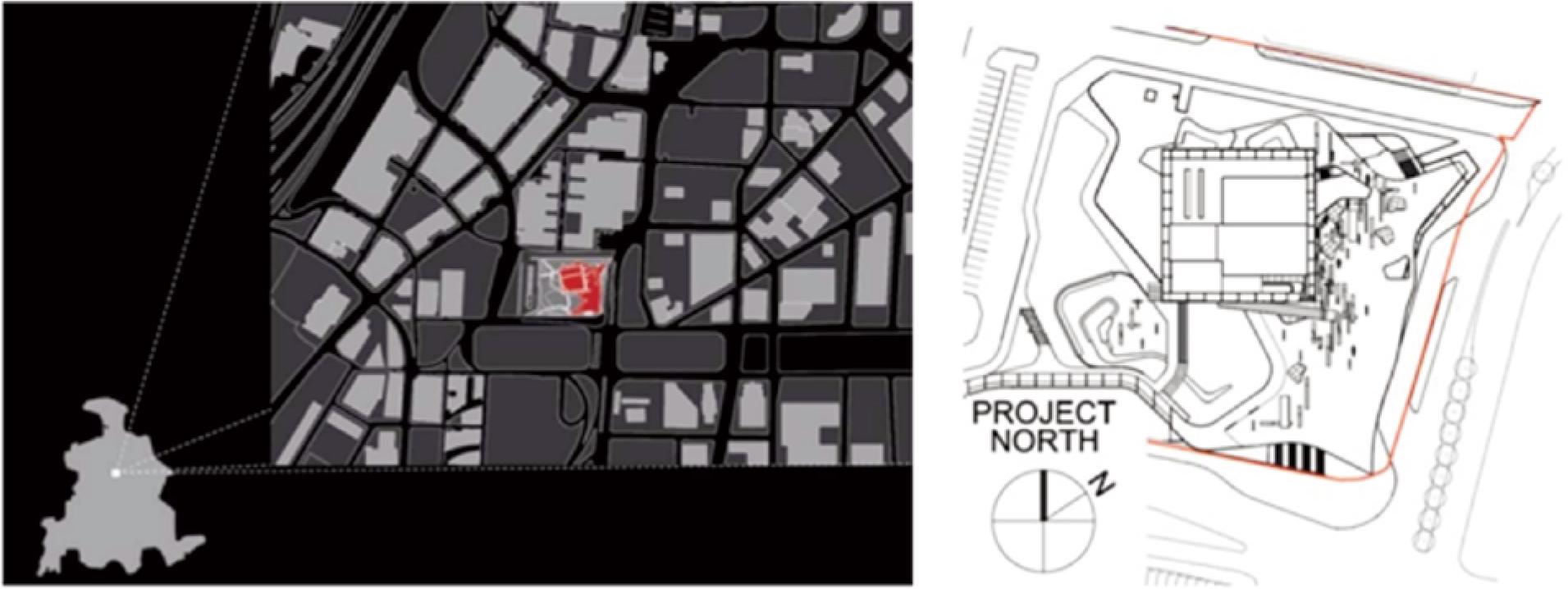

Figure 1:
Location Plan (Left) and Site Plan (Right) of Perot Museum of Nature and Science (Source: [36]

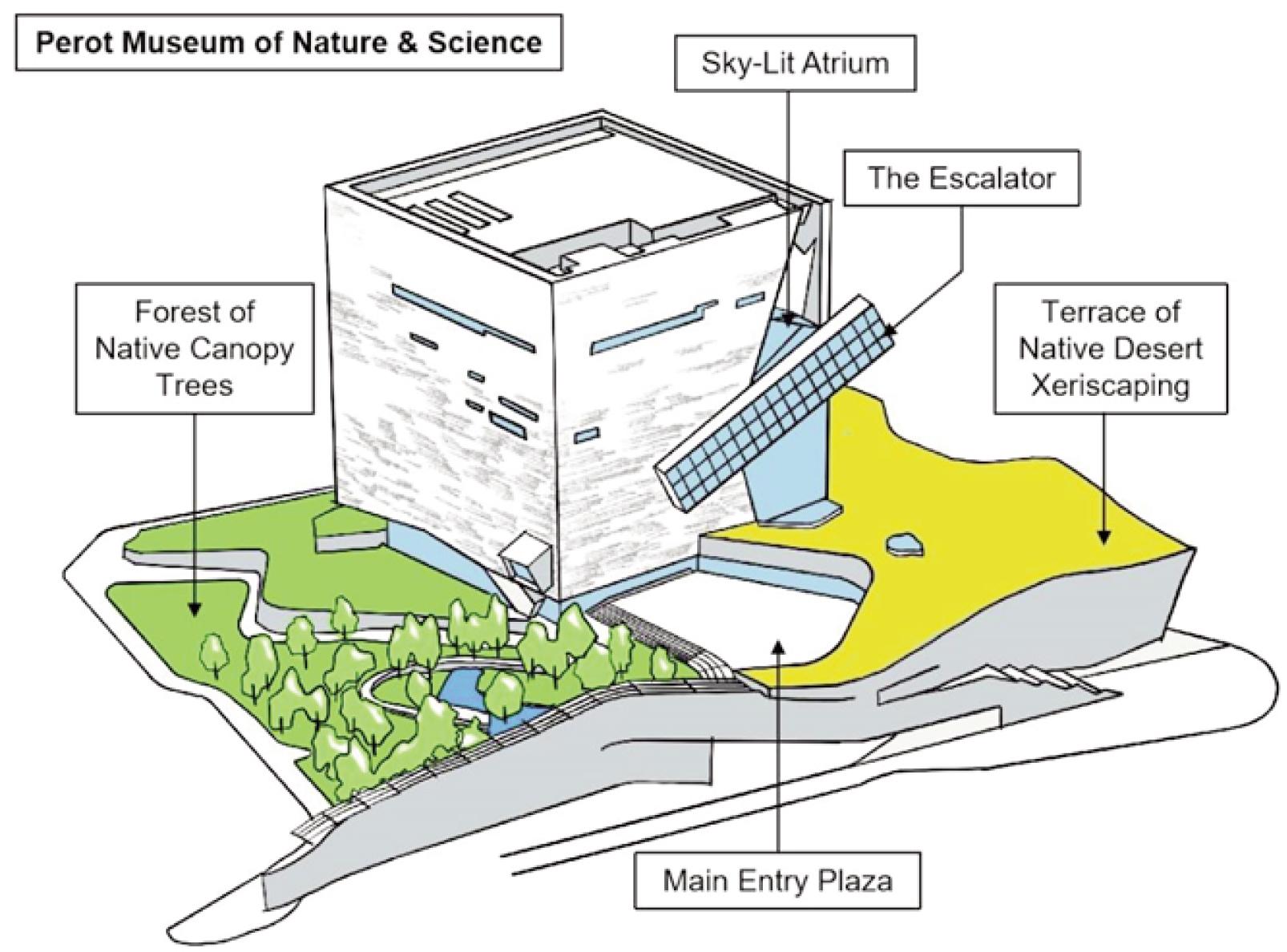

Figure 2:
Perot Museum of Nature & Science (Redrawn from source [40])

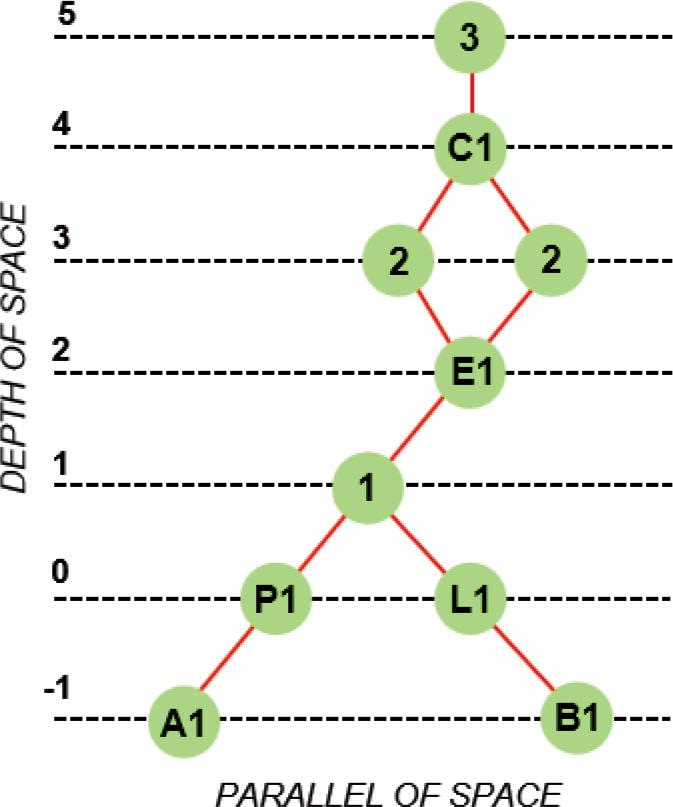

Figure 3:
Example of Justified Graph (Source: Author)
Table 1.
Scale of Visibility Graph & Justified Graph, Level of Permeability & Wayfinding (Source: Author)
| Colour Scale | Visual Connectivity | Visual Integration | Level of Permeability | Level of Wayfinding | Scale of Justified Graph |
|---|---|---|---|---|---|
| Very High | Very High (Most integrated) | Extremely Public | Very Easy/Straightforward | 0 | |
| High | High (Integrated) | Public | Easy/Straightforward | 1 | |
| Medium | Medium | Semi Public | Moderate | 2 | |
| Low | Low (Segregated) | Semi Private | Difficult | 3 | |
| Very Low | Very Low (Most Segregated) | Private | Very Difficult | 4 |

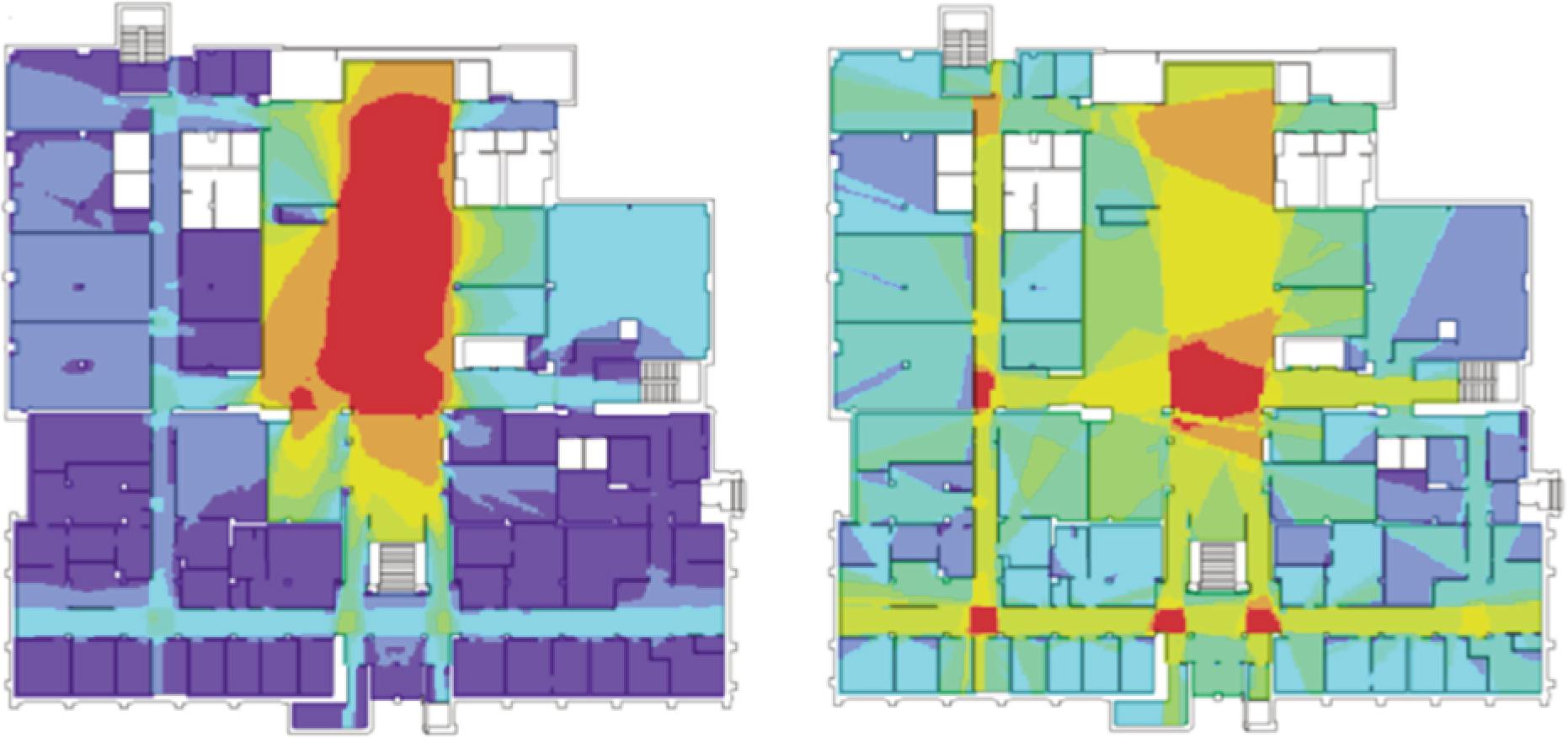

Figure 4.
Example of Visual Connectivity Graph (Left) and Visual Integration Graph (Right) of William Johnston Building (WJB) (Source: [25])

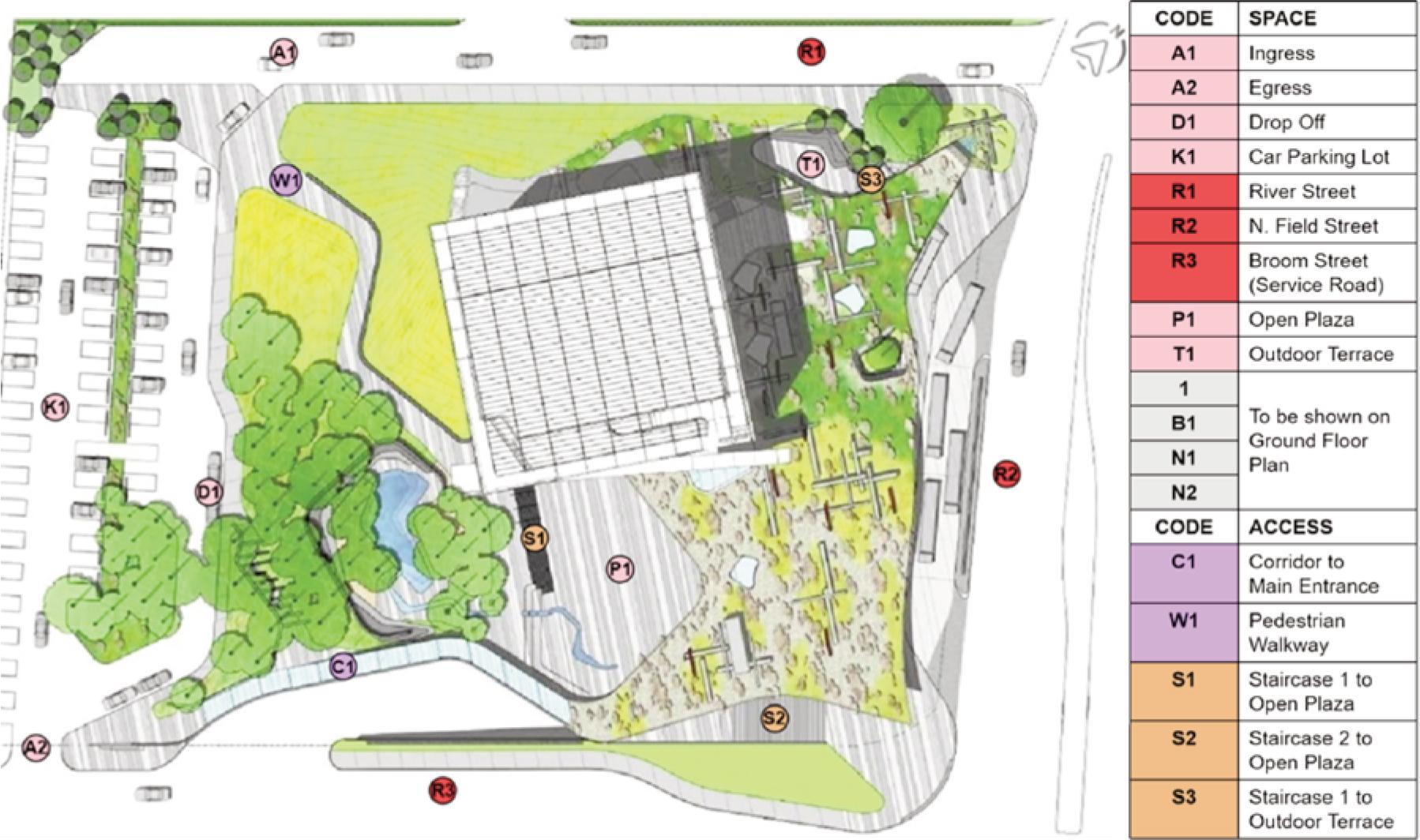

Figure 5.
Site Plan with SOA (Source: Morphosis)

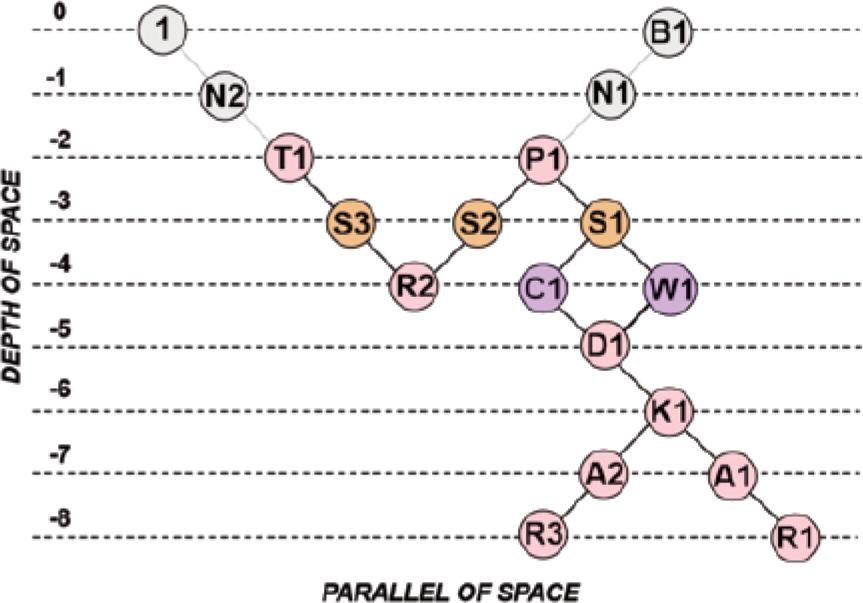

Figure 6.
Justified Graph of Site Plan (Source: Author)

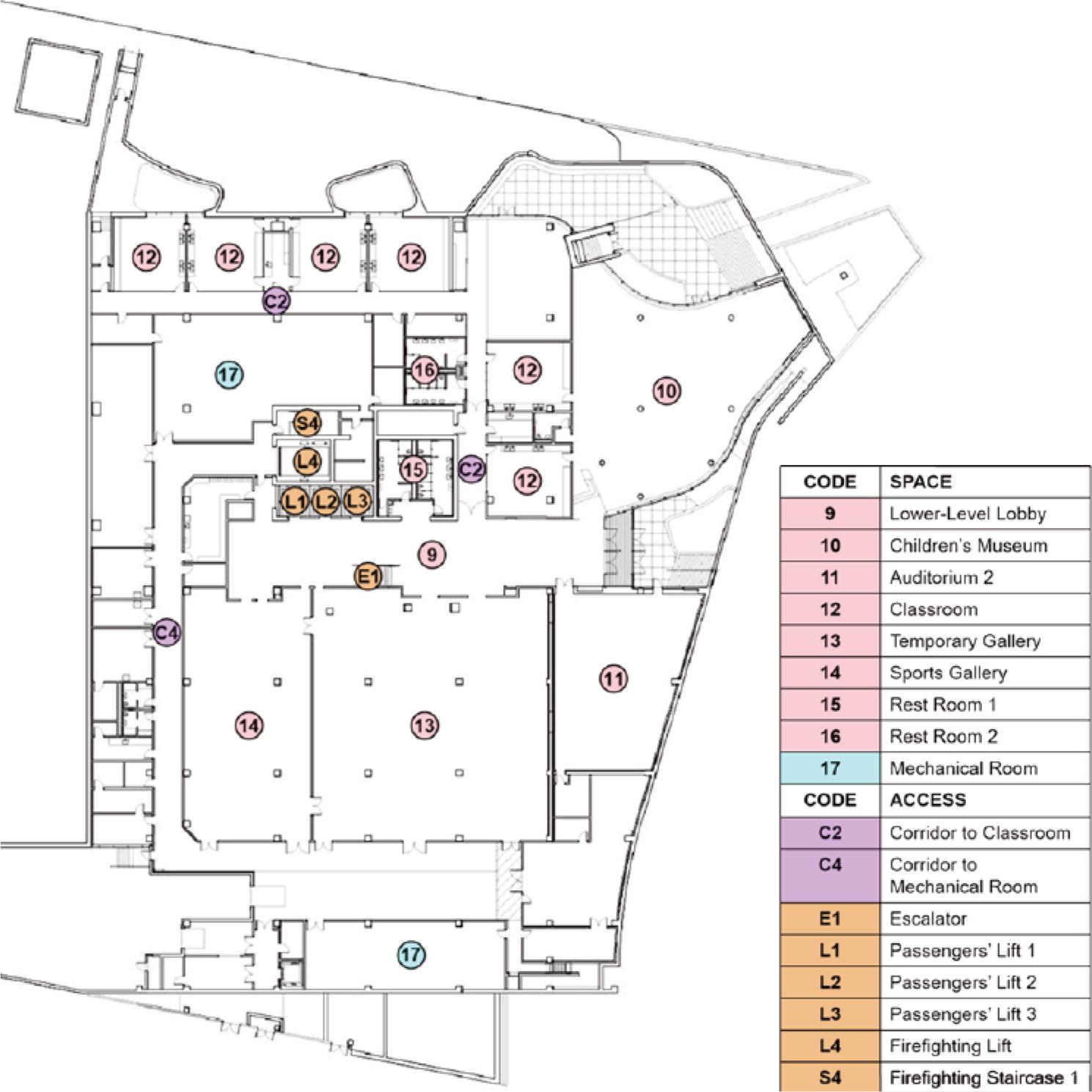

Figure 7.
Lower Floor Plan with SOA (Source: Morphosis)
Figure 8.
Justified Graph of Lower Floor Plan (Source: Author)
Figure 9.
Visual Connectivity Graph (Left) & Visual Integration Graph (Right)

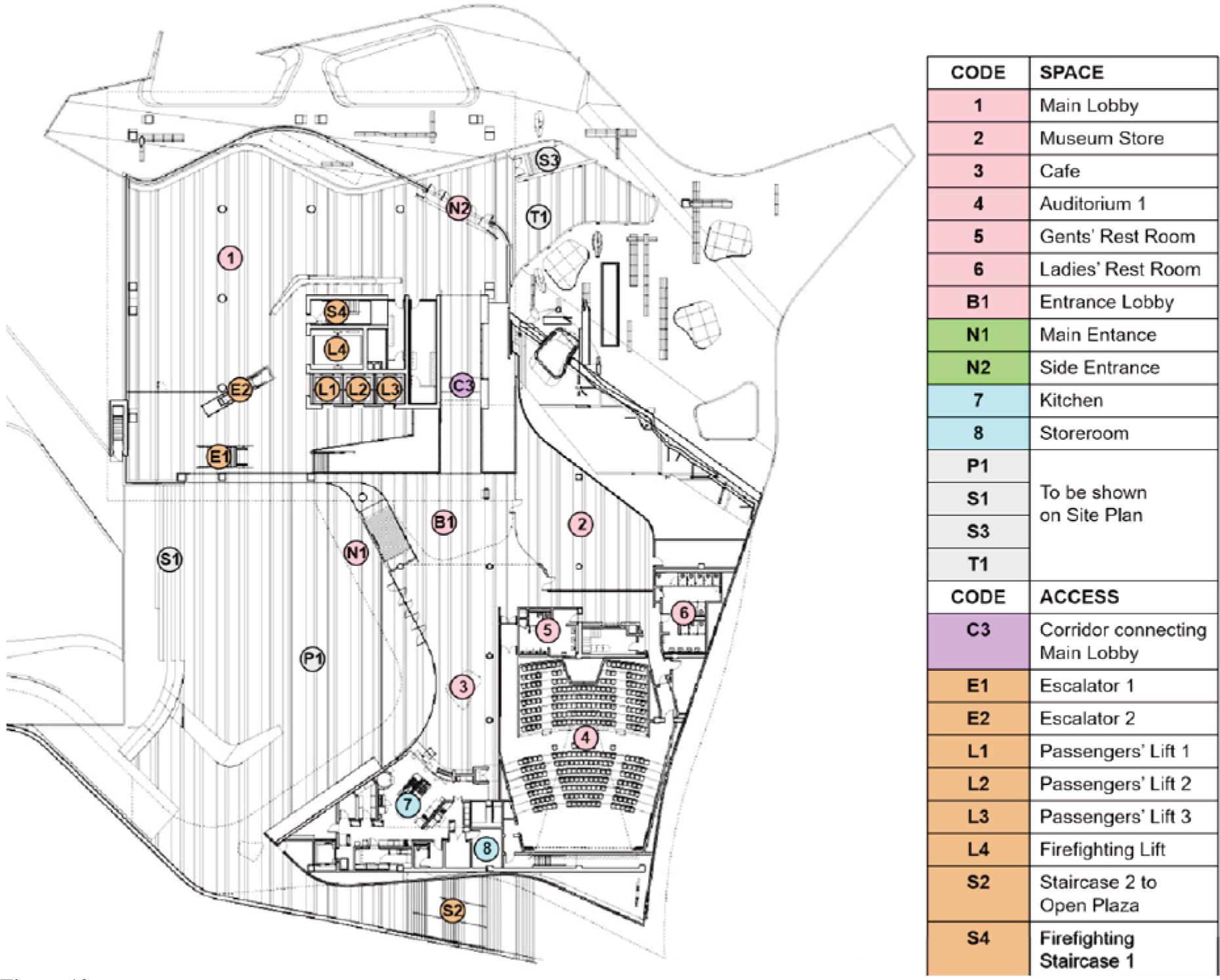

Figure 10.
Ground Floor Plan with SOA (Source: Morphosis)

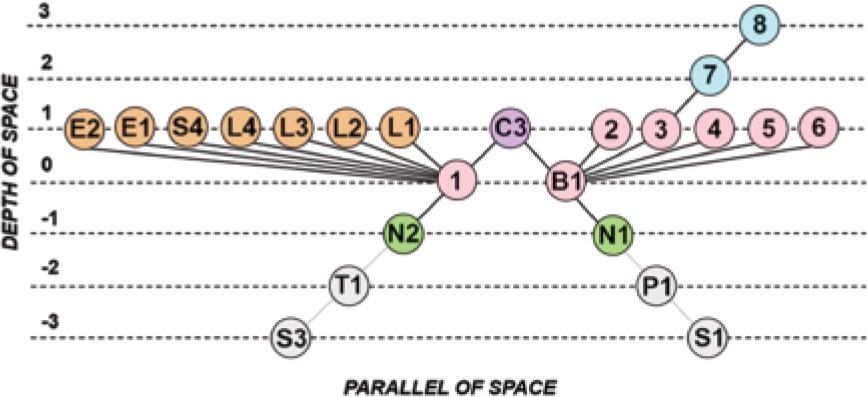

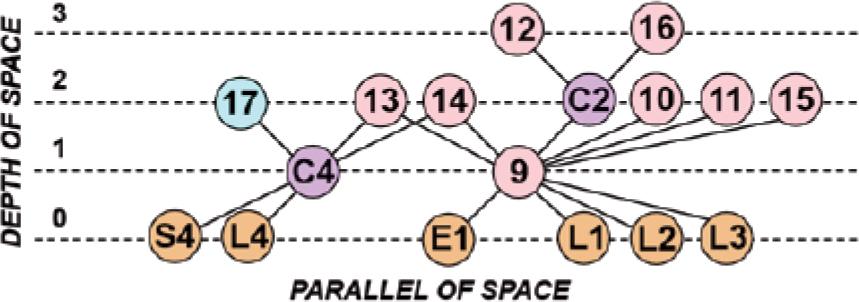

Figure 11.
Justified Graph of Ground Floor Plan (Source: Author)

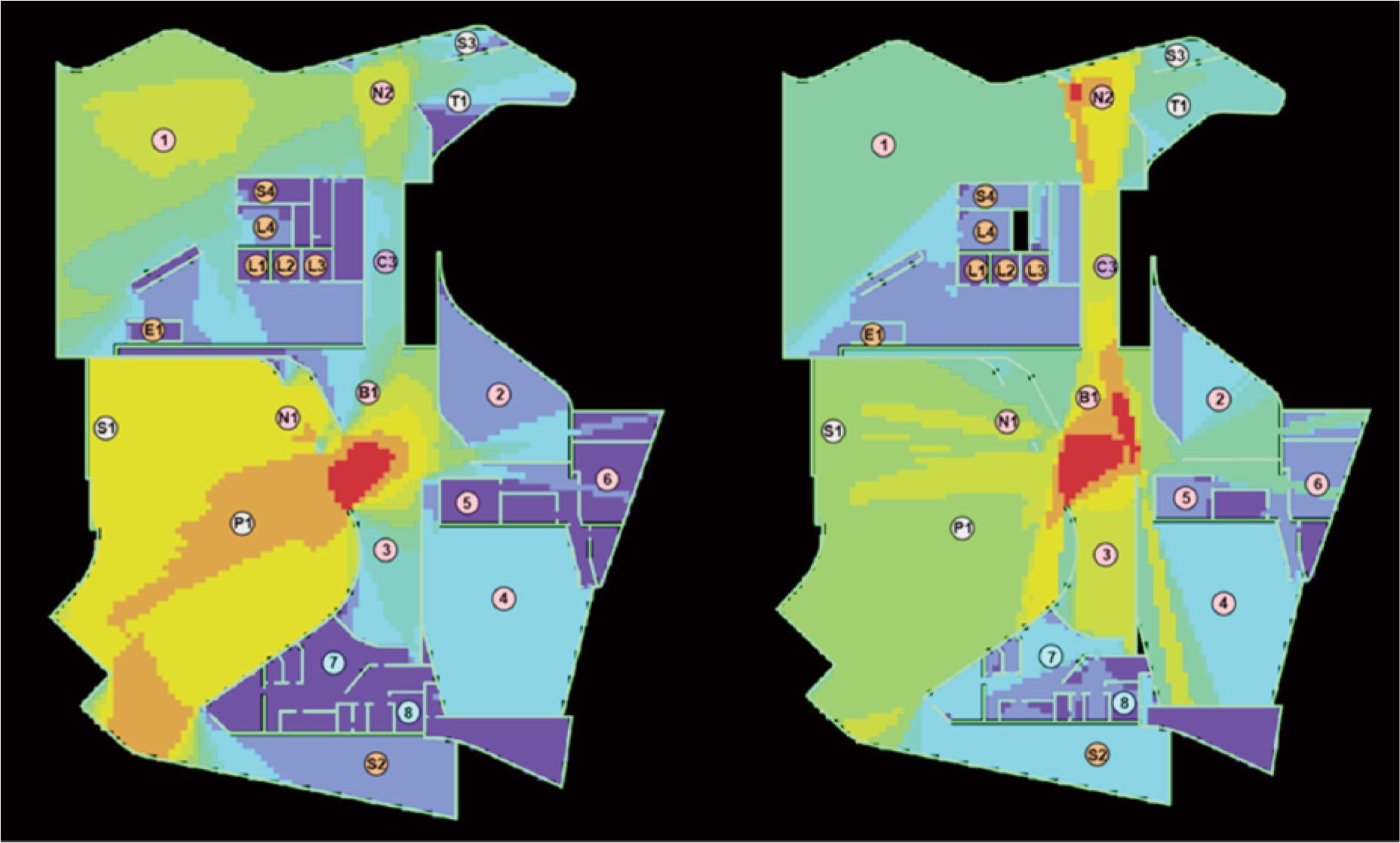

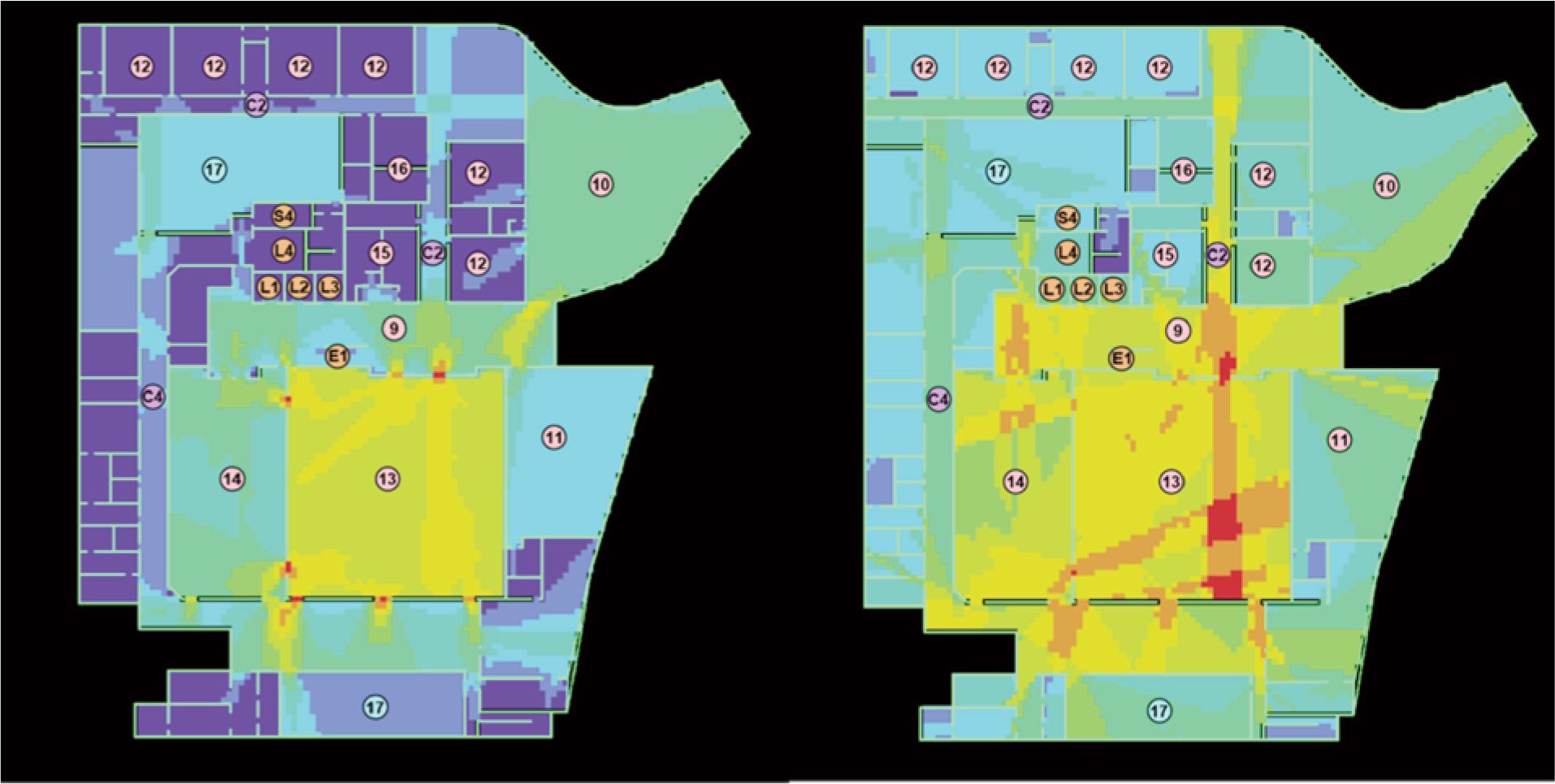

Figure 12.
Visual Connectivity Graph (Left) & Visual Integration Graph (Right)

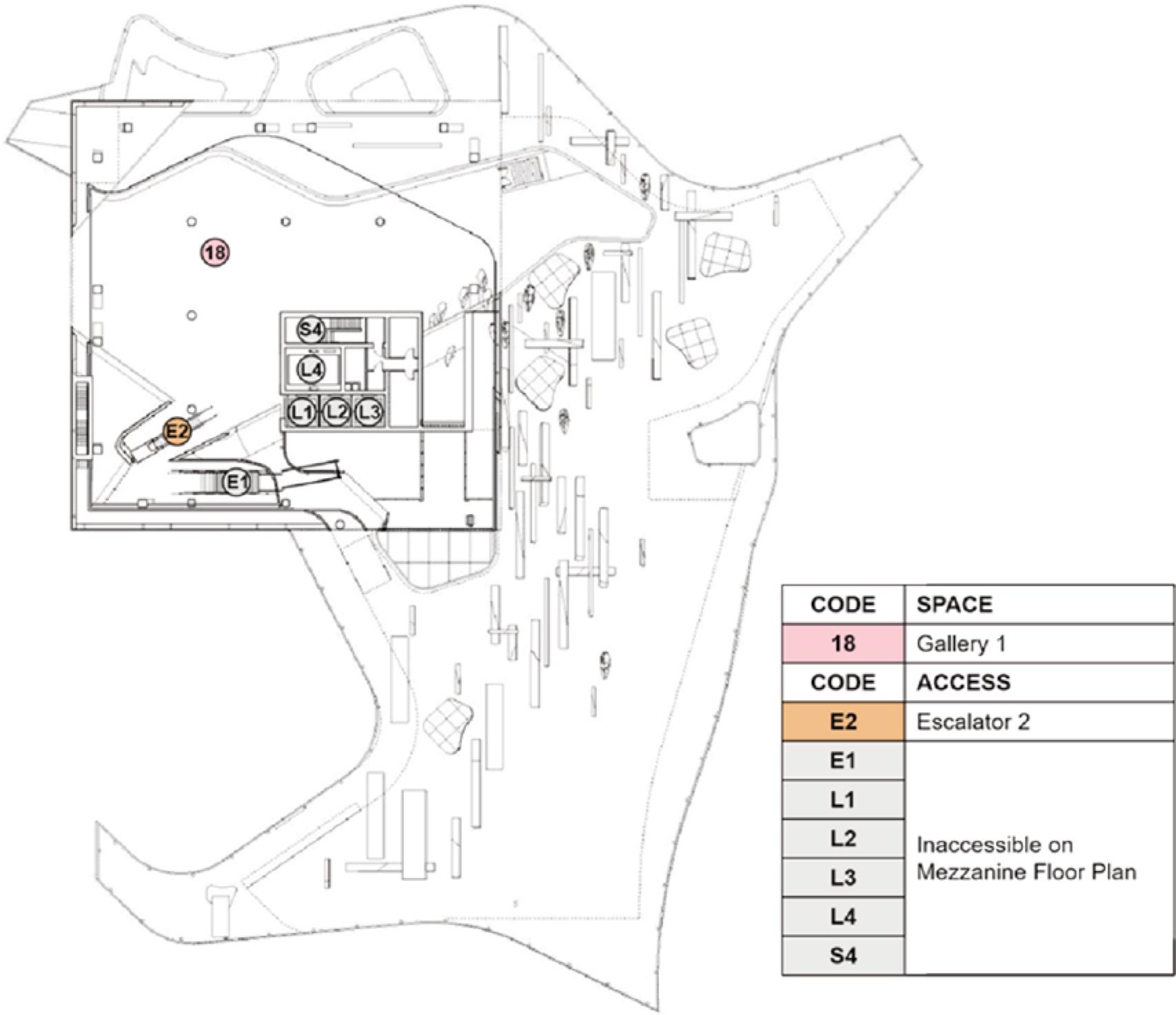

Figure 13.
Mezzanine Floor Plan with SOA (Source: Morphosis)

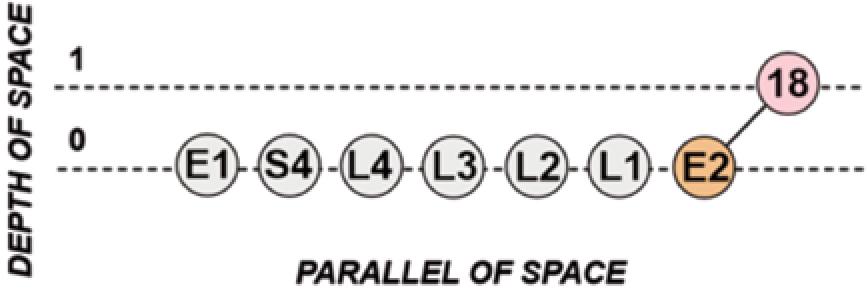

Figure 14.
Justified Graph of Mezzanine Floor Plan (Source: Author)

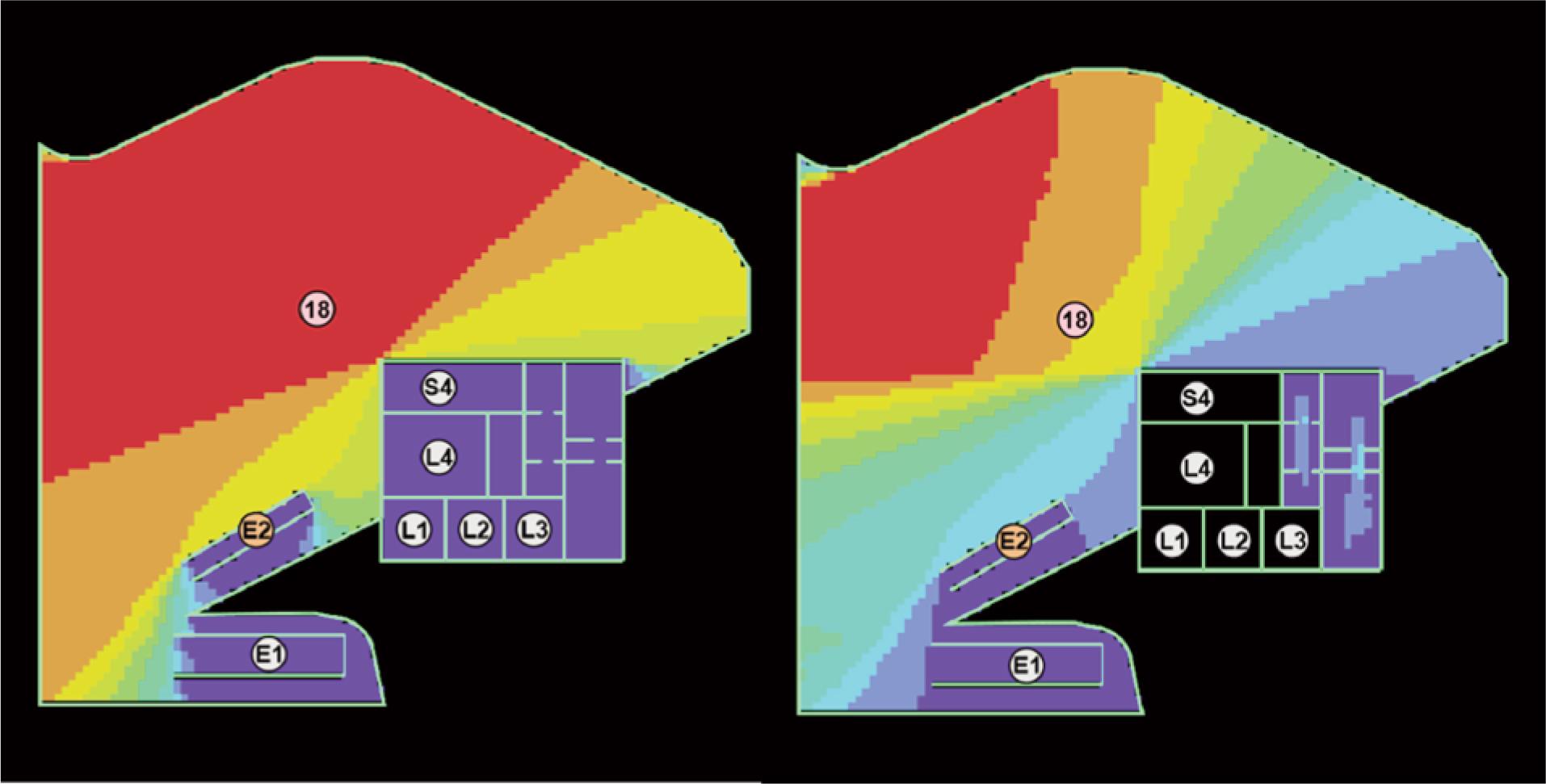

Figure 15.
Visual Connectivity Graph (Left) & Visual Integration Graph (Right) (Source: Author)

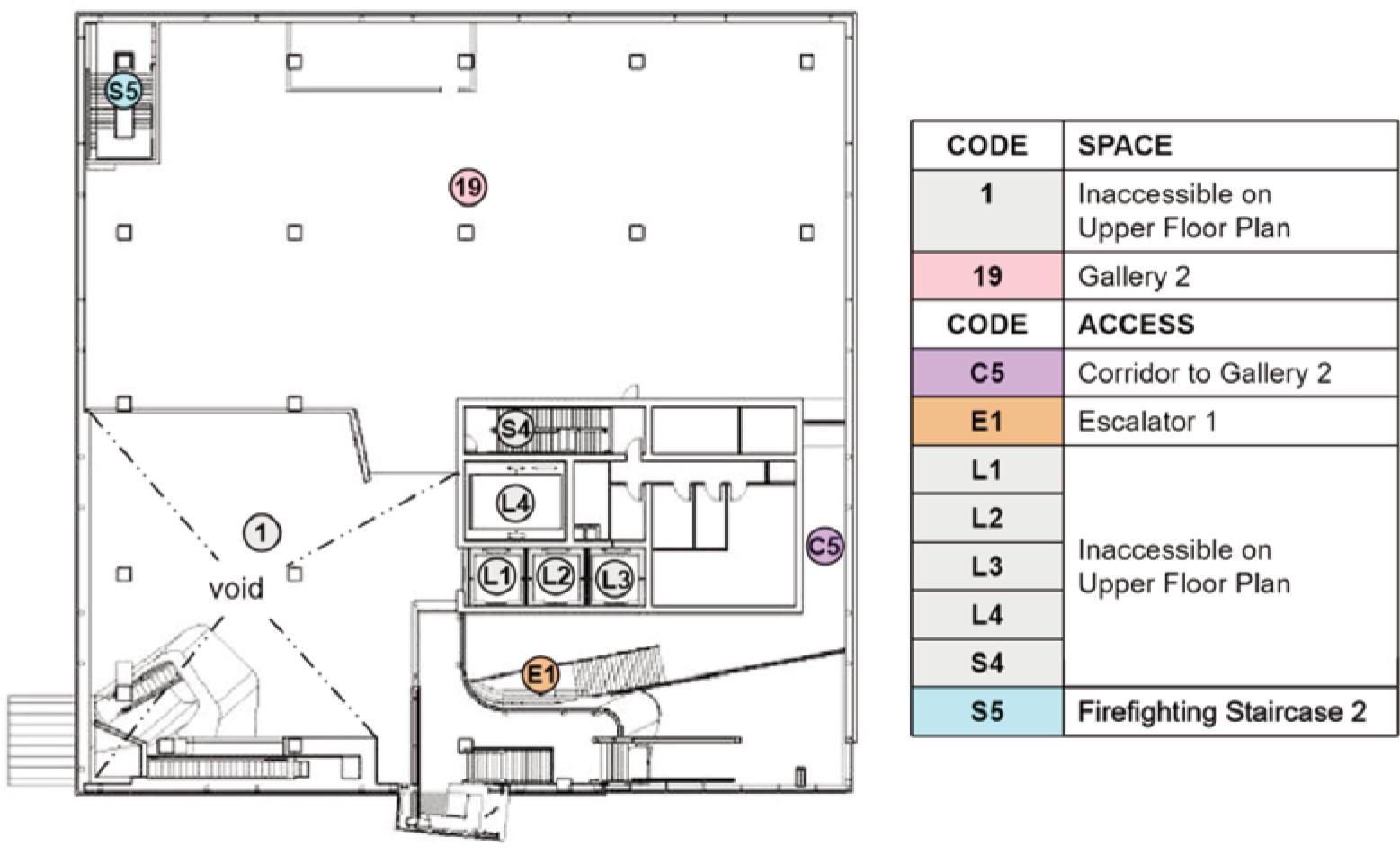

Figure 16.
Upper Floor Plan with SOA (Source: Morphosis)

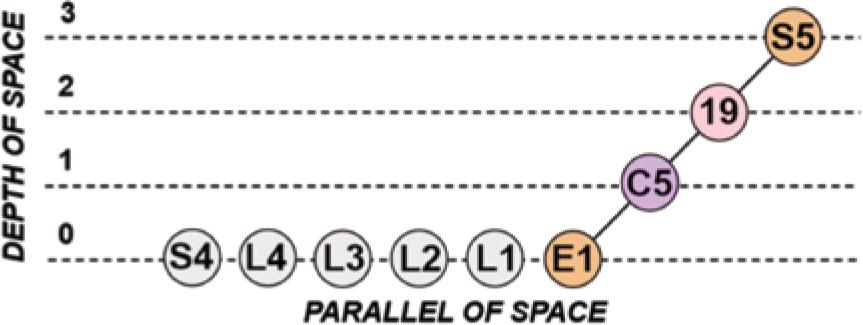

Figure 17.
Justified Graph of Upper Floor Plan (Source: Author)
Figure 18.
Visual Connectivity Graph (Left) & Visual Integration Graph (Right)

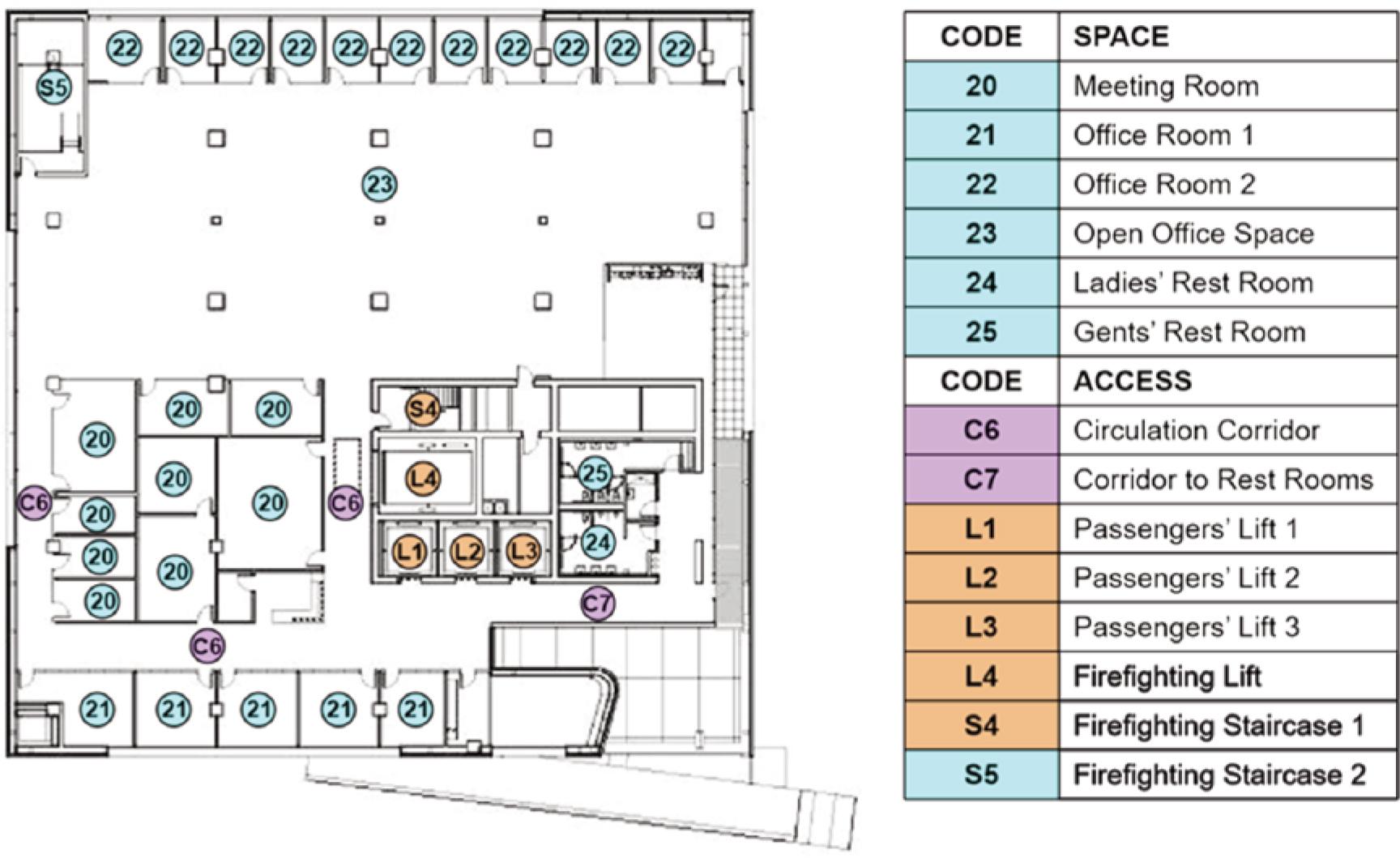

Figure 19:
Top Floor Plan with SOA (Source: Morphosis)

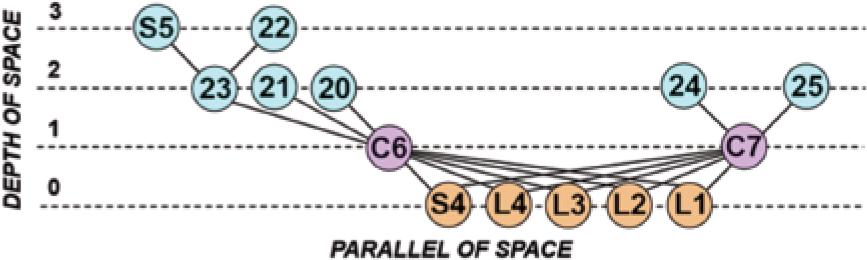

Figure 20:
Justified Graph of Top Floor Plan (Source: Author)

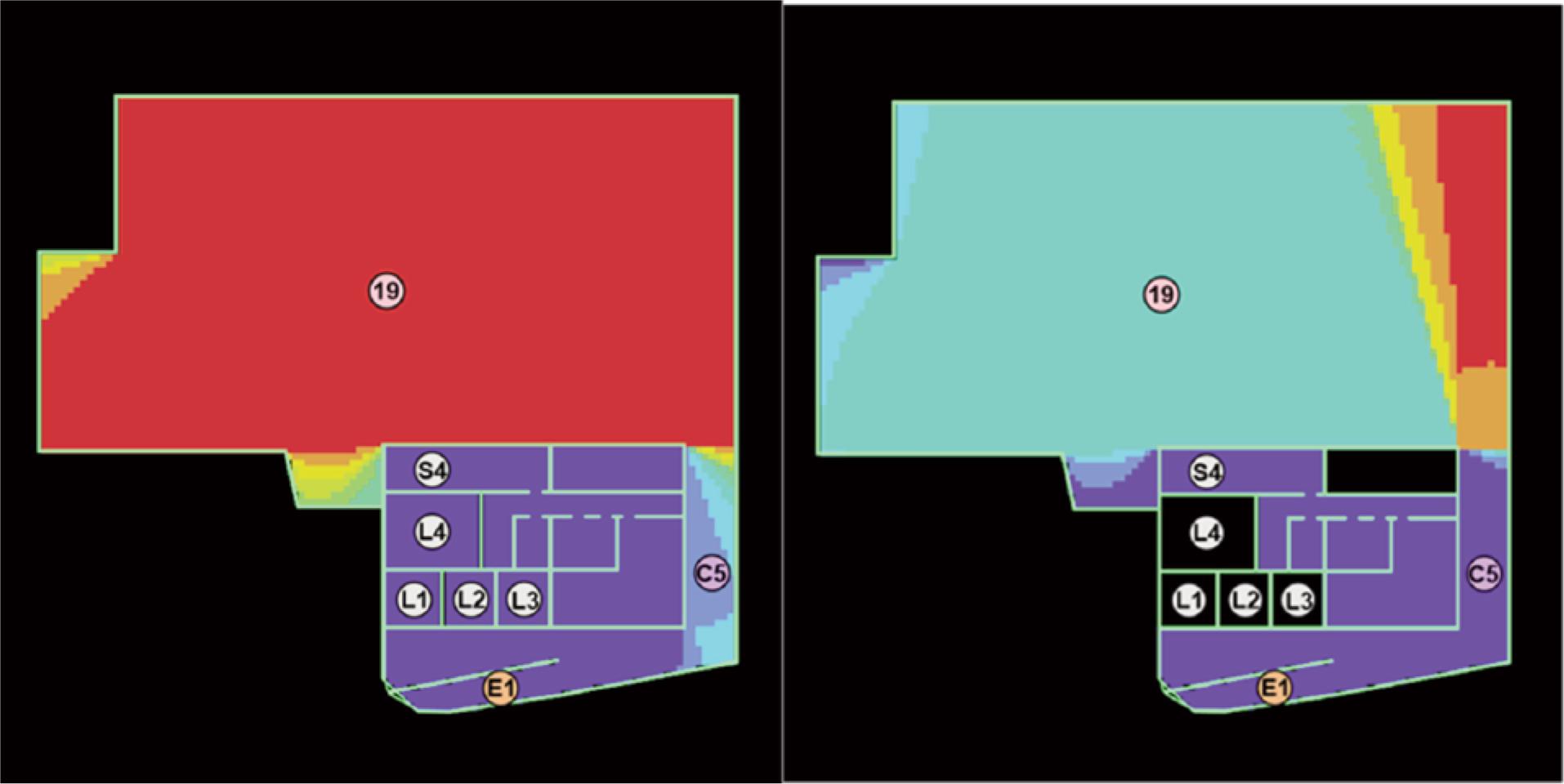

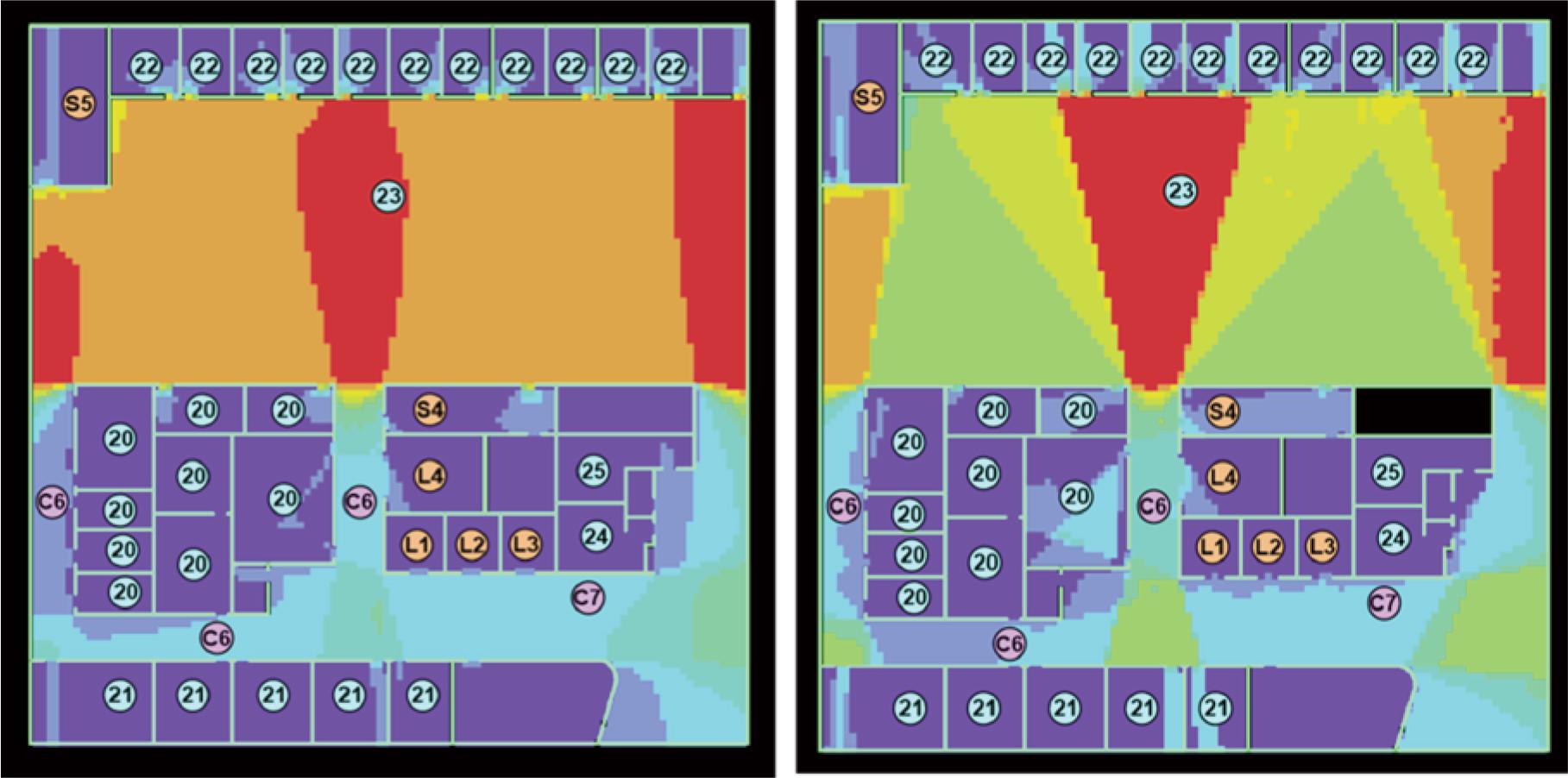

Figure 21.
Visual Connectivity Graph (Left) & Visual Integration Graph (Right) (Source: Author)

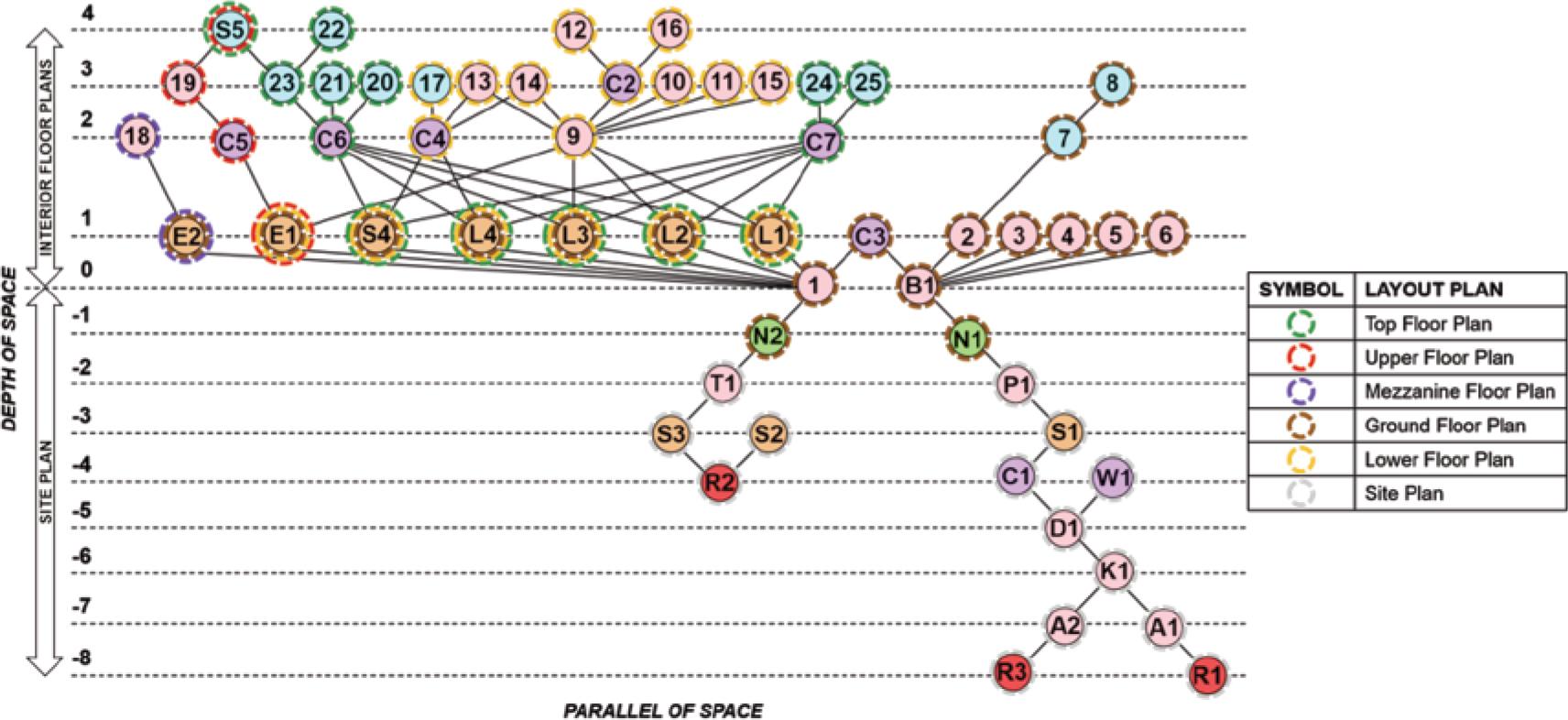

Figure 22.
Overall Justified Graph (Source: Author)
Table 2.
Level of Permeability (Source: Author)
| Hierarchical Order | Level of Permeability | Visual Integration | Corresponding Justified Graph Depth Level | No. of Spaces in building | Overall Percentage (%) |
|---|---|---|---|---|---|
| Primary level | Extremely public | 0 | 2 | 5.0 | |
| Secondary level | Public | 1 | 20 | 50.0 | |
| Tertiary level | Semi-public | 2 | 9 | 22.5 | |
| Quaternary level | Semi-private | 3 | 7 | 17.5 | |
| Quinary level | Private | 4 | 2 | 5.0 |
Table 3.
Level of Wayfinding (Source: Author)
| Hierarchical Order | Level of Wayfinding | Visual Integration | Corresponding Justified Graph Depth Level | No. of Spaces in building | Overall Percentage (%) |
|---|---|---|---|---|---|
| Primary level | Very easy/straightfor | 0 | 7 | 17.5 | |
| Secondary level | Easy/straightforward | 1 | 12 | 30.0 | |
| Tertiary level | Moderate | 2 | 12 | 30.0 | |
| Quaternary level | Difficult | 3 | 7 | 17.5 | |
| Quinary level | Very Difficult | 4 | 2 | 5.0 |
Table 4.
Types of Spatial Configuration (Source: Author)
| Types of spaces in building | Justified Graph Depth Level | Percentage (%) | ||||
|---|---|---|---|---|---|---|
| 0 | 1 | 2 | 3 | 4 | ||
| End room | - | 10 | - | - | - | 2.7% |
| 0% | 2.7% | 0% | 0% | 0% | ||
| Single connecting space | - | 18 | 11,19 | 5,6,12,15,16 | 8 | 24.3% |
| 0% | 2.7% | 5.4% | 13.5% | 2.7% | ||
| Double connecting space | - | - | - | - | 17 | 2.7% |
| 0% | 0% | 0% | 0% | 2.7% | ||
| Triple connecting space | - | 2,4 | - | - | - | 5.4% |
| 0% | 5.4% | 0% | 0% | 0% | ||
| Multi-connecting space | - | 9,3 | 13,14 | - | 7 | 13.5% |
| 0% | 5.4% | 5.4% | 0% | 2.7% | ||
| Entrance & lobby | N1,N2 | 1,B1 | - | - | - | 10.8% |
| 5.4% | 5.4% | 0% | 0% | 0% | ||
| Corridor | - | C3,C5 | C2,C6 | C4,C7 | - | 16.2% |
| 0% | 5.4% | 5.4% | 5.4% | 0% | ||
| Staircase & escalator | - | E1,E2 | S2,S4 | - | S5 | 13.5% |
| 0% | 5.4% | 5.4% | 0% | 2.7% | ||
| Lift | - | L1,L2,L3,L4 | - | - | - | 10.8% |
| 0% | 10.8% | 0% | 0% | 0% | ||
