Fig. 1

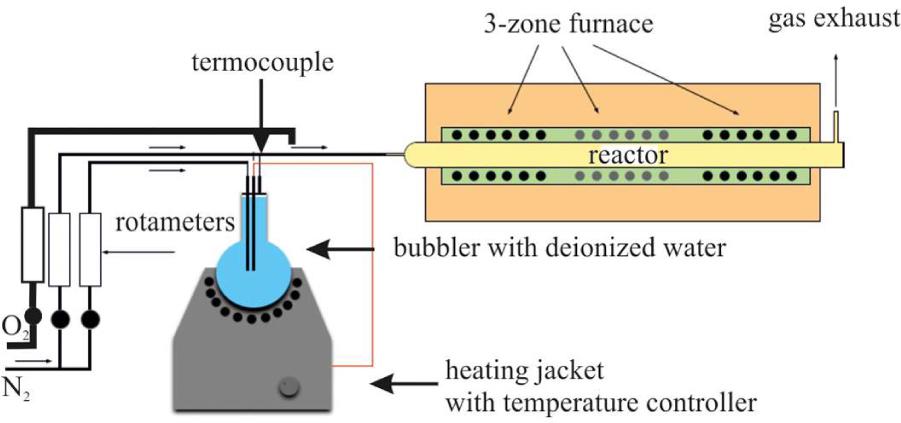

Schematic diagram of the used thermal oxidation system.

Fig. 2

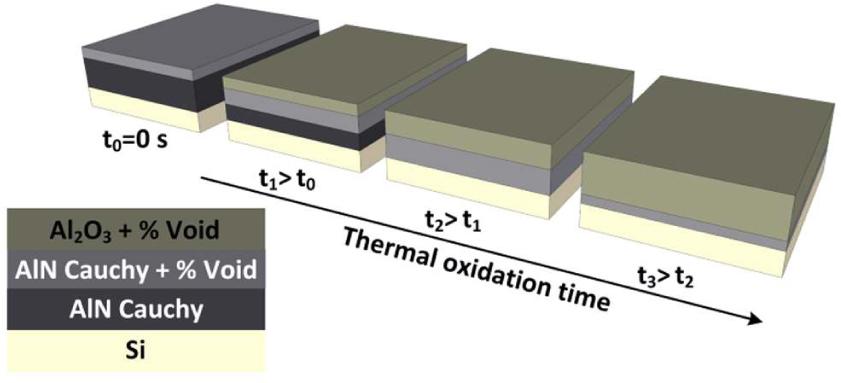

Schematic view of the mathematical model system.

Fig. 3
Morphology of the oxidized AlN/Si surfaces.

Fig. 4

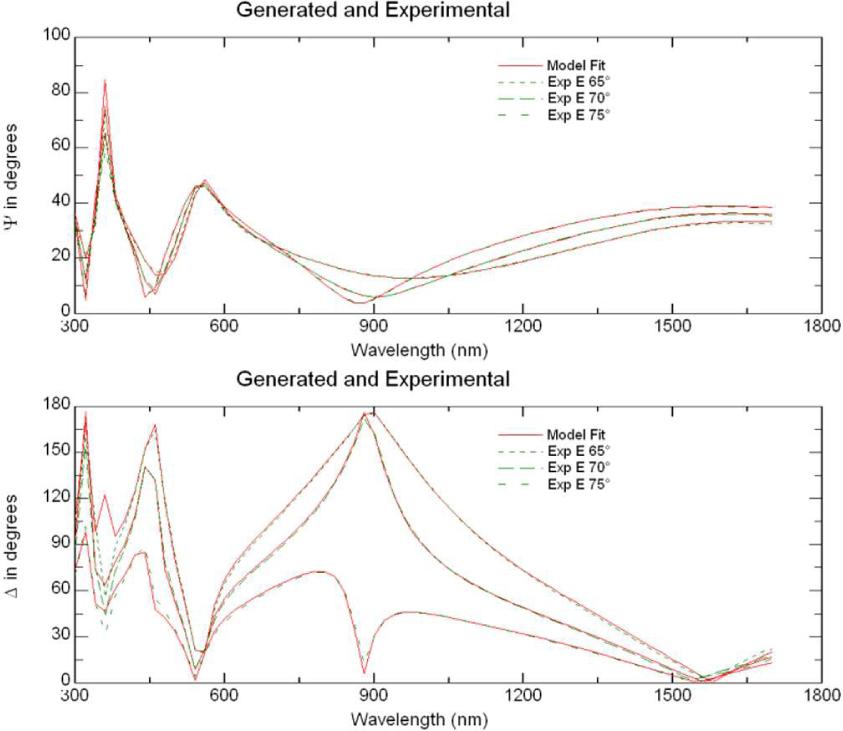

Mathematical model fit to the results obtained by ellipsometry measurements: (a) amplitude ratio Y and (b) phase difference D for sample X (not oxidized AlN/Si).

Fig. 5

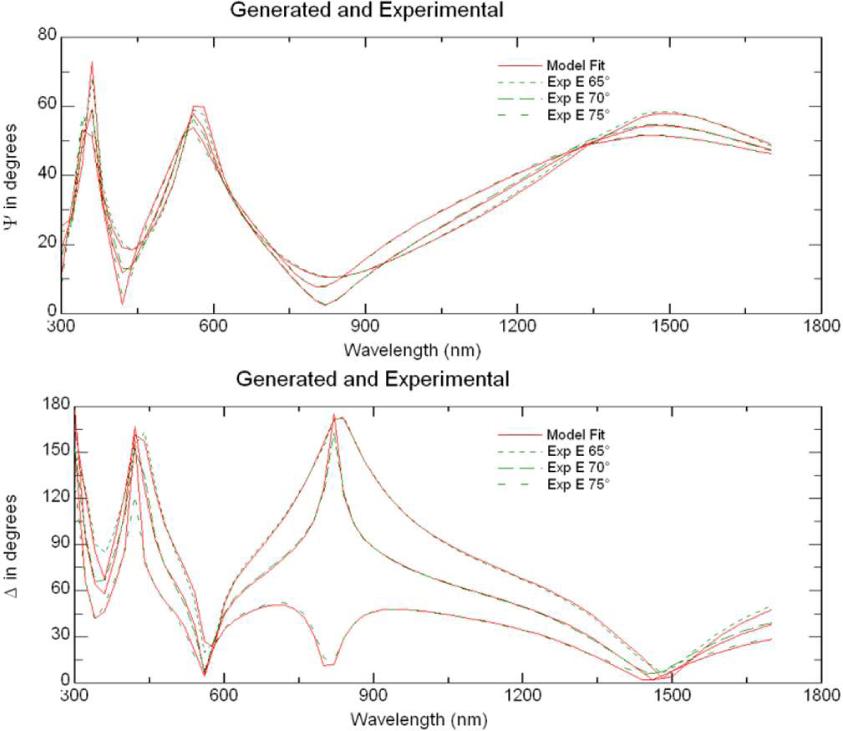

Mathematical model fits to the results obtained by ellipsometry measurements: (a) amplitude ratio Ψ and (b) phase difference ∆ for sample As19.
Table 1
Results obtained from SE for the oxidized structures (dry type).
| Sample | Thermal oxidation | AlN Cauchy | AlN Cauchy + Void | Al2O3 + Void | MSE | ||
|---|---|---|---|---|---|---|---|
| time [min] | Thickness [nm] | Thickness [nm] | Void [%] | Thickness [nm] | Void[%] | ||
| test_ aln | 0 | 181 | 44 | 51 | 0 | 100 | 18.34 |
| As33 | 10 | 154 | 45 | 12 | 38 | 44 | 16.13 |
| As34 | 30 | 140 | 47 | 10 | 44 | 43 | 19.02 |
| As35 | 50 | 134 | 48 | 11 | 45 | 44 | 19.17 |
| As36 | 100 | 105 | 68 | 8 | 51 | 38 | 23.91 |
Table 2
Results obtained from SE for the oxidized structures (wet type).
| Sample | Thermal oxidation | AlN Cauchy | AlN Cauchy + Void | Al2O3 + Void | MSE | ||
|---|---|---|---|---|---|---|---|
| time [min] | Thickness [nm] | Thickness [nm] | Void [%] | Thickness [nm] | Void[%] | ||
| test_ aln | 0 | 181 | 44 | 51 | 0 | 100 | 18.34 |
| As37 | 10 | 45 | 41 | 10 | 40 | 41 | 16.39 |
| As39 | 30 | 116 | 62 | 11 | 49 | 27 | 21.32 |
| As38 | 50 | 78 | 87 | 9 | 58 | 19 | 23.93 |
| As40 | 100 | 40 | 114 | 12 | 82 | 10 | 21.24 |
Table 3
Results obtained from SE for the oxidized structures (mixed type).
| Sample | Thermal oxidation | AlN Cauchy | AlN Cauchy + Void | Al2O3 + Void | MSE | ||
|---|---|---|---|---|---|---|---|
| time [min] | Thickness [nm] | Thickness [nm] | Void [%] | Thickness [nm] | Void [%] | ||
| X | 0 | 213 | 62 | 53.1 | 0 | 100 | 8.62 |
| As19 | 10 | 140 | 72 | 13.2 | 59 | 29.2 | 7.349 |
| As21 | 20 | 98 | 93 | 11.2 | 76 | 19.7 | 13.9 |
| As2 | 30 | 48 | 107 | 8.7 | 124 | 17.6 | 12.69 |
| As22 | 40 | 0 | 131 | 7.9 | 165 | 15.8 | 17.1 |
| As20 | 50 | 0 | 105 | 7.2 | 187 | 15.3 | 12.23 |

Fig. 6

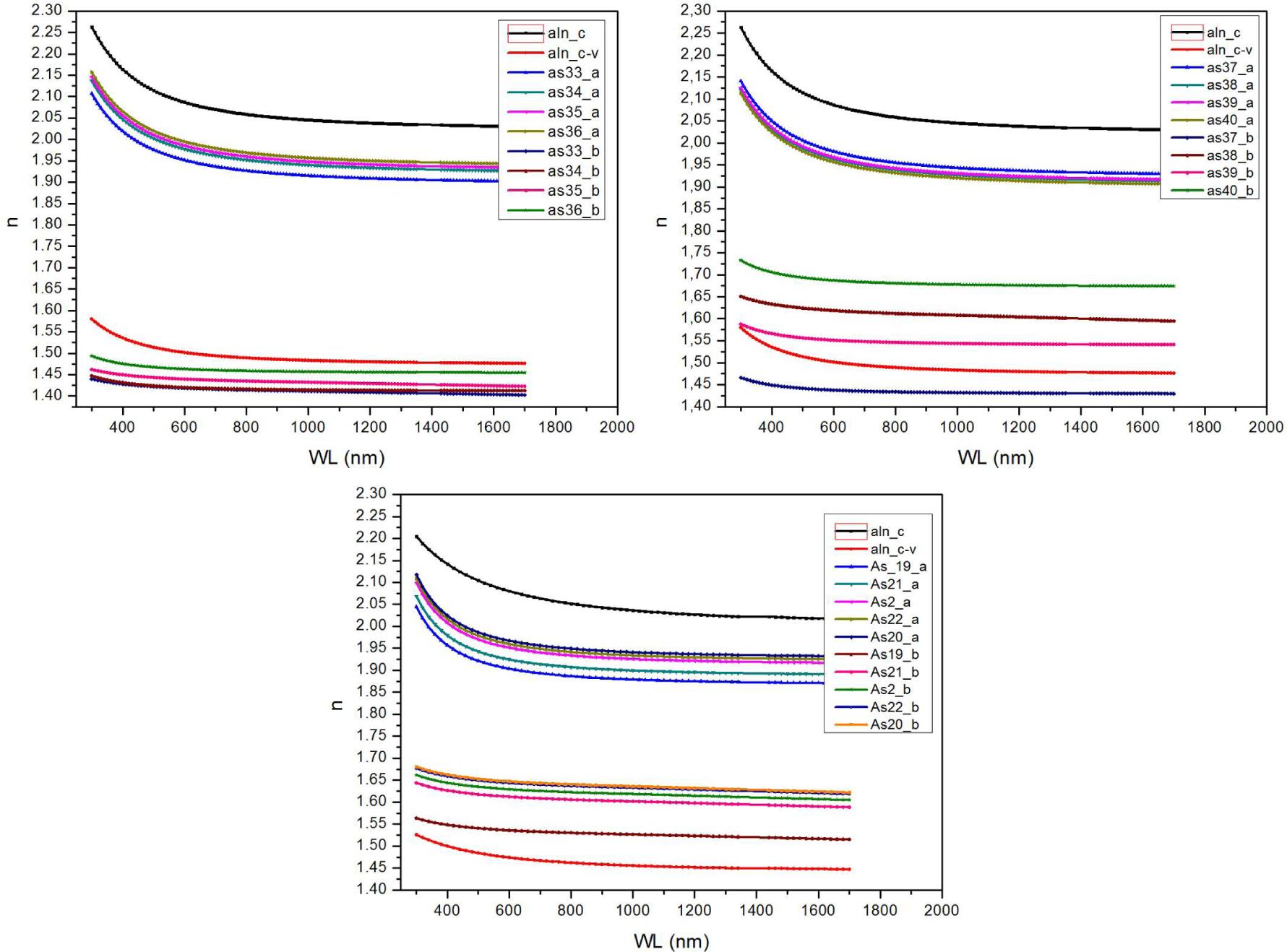

Relationship between wavelength and refractive indices for all series of oxidation: (a) dry, (b) wet, (c) mixed.

Fig. 7

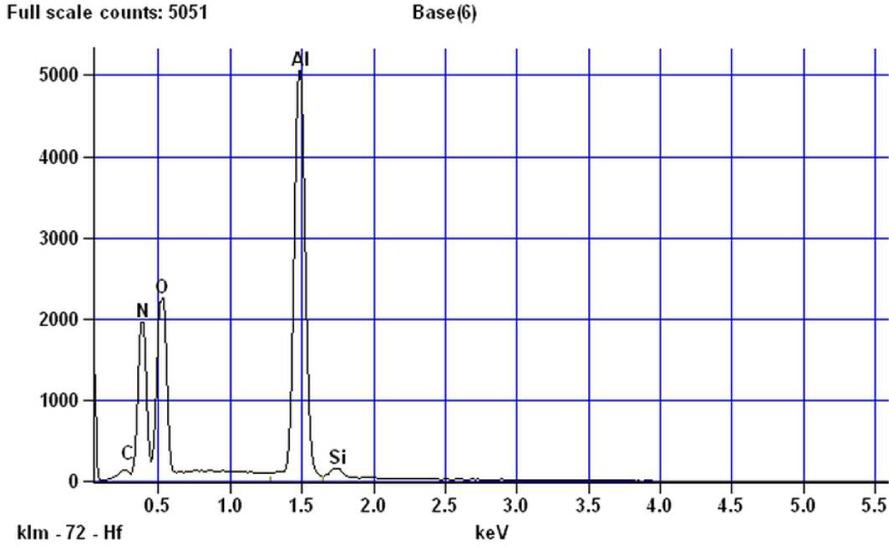

EDS counts for sample As19 (oxidation time: 10 min, 5 kV).

Fig. 8

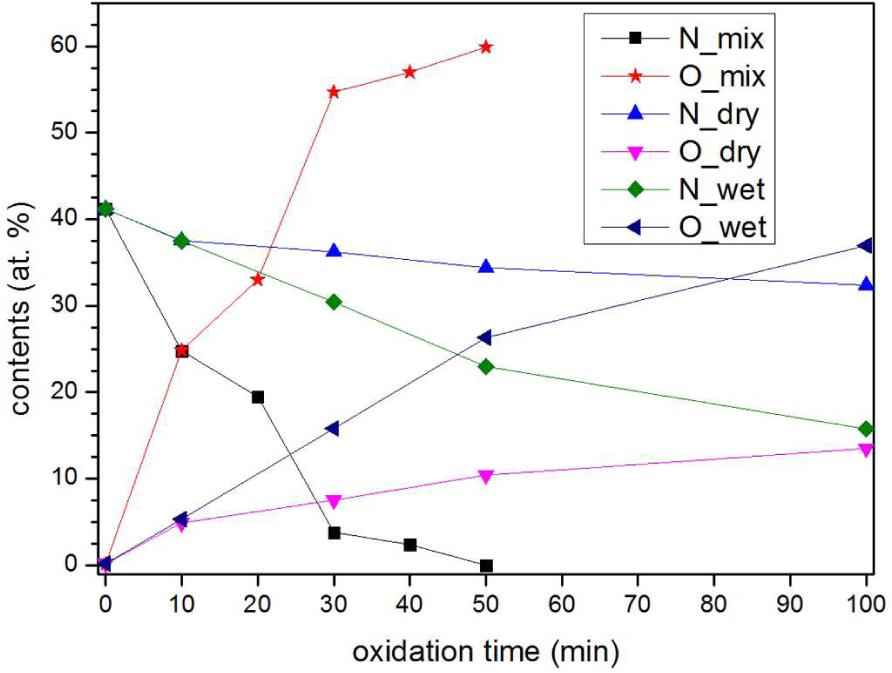

Diagram of oxidation time vs. atomic contents of nitrogen and oxygen.
