Digital Transformation in Materials Science: A User Journey of Nanoindentation, Image Analysis and Simulations

2.1 Approach

The general modeling approach for the user journey focuses on representing how materials scientists interact with software tools to generate FAIR data. This approach emphasizes realistic research practices and working conditions, covering the main stages of a scientific project, including the end-to-end pipeline of data handling throughout the project life cycle. This life cycle encompasses data collection, data processing, data analysis, data storage, and data sharing. By following these steps, the research project additionally follows the FAIR principles, as detailed in the Appendix. Certain steps, such as the reuse of published data, were intentionally excluded, as they would initiate a new iteration of the research cycle with a different set of agents, thereby extending the user journey beyond its original scope. A crucial aspect of recreating authentic research conditions is to frame a problem suitable for a highly collaborative environment. For instance, a comparative study requires multiple scientific methods, engagement from several research groups, and extensive data exchange. Moreover, integrating experimental and computational methods to compare and validate results aligns with the project’s interdisciplinary nature. This report provides only a brief description of the individual software tools, as they are expected to evolve significantly in the future. The primary focus is on the scientists’ workflow rather than the tools themselves. Additionally, these tools lack dedicated interoperability features. Therefore, this study examines the inherent interoperability of structured data and explores how the absence of purpose-built software interoperability impacts research.

The research question follows the state of the art of experimental and computational materials science. It focuses on comparing the elastic properties of an aluminum alloy (EN AW-1050A, 99.5 wt.% Al), a standard alloy grade used for sheet metal work. The elastic modulus is determined through three different methods corresponding to three distinct workflow components:

1. Experimental workflow: Indentation-based measurements of a metal sample and the evaluation of Young’s modulus by the Oliver-Pharr method.

2. Data analytic workflow: Image processing of confocal images and determining the contact area from the height profiles using the Sneddeon equation.

3. Computational workflow: Molecular statics simulations to determine the energy of different atomistic configurations and evaluate the elastic moduli.

4. Data management workflow: Handling external data to demonstrate effective collaboration, data storage, and metadata harmonization.

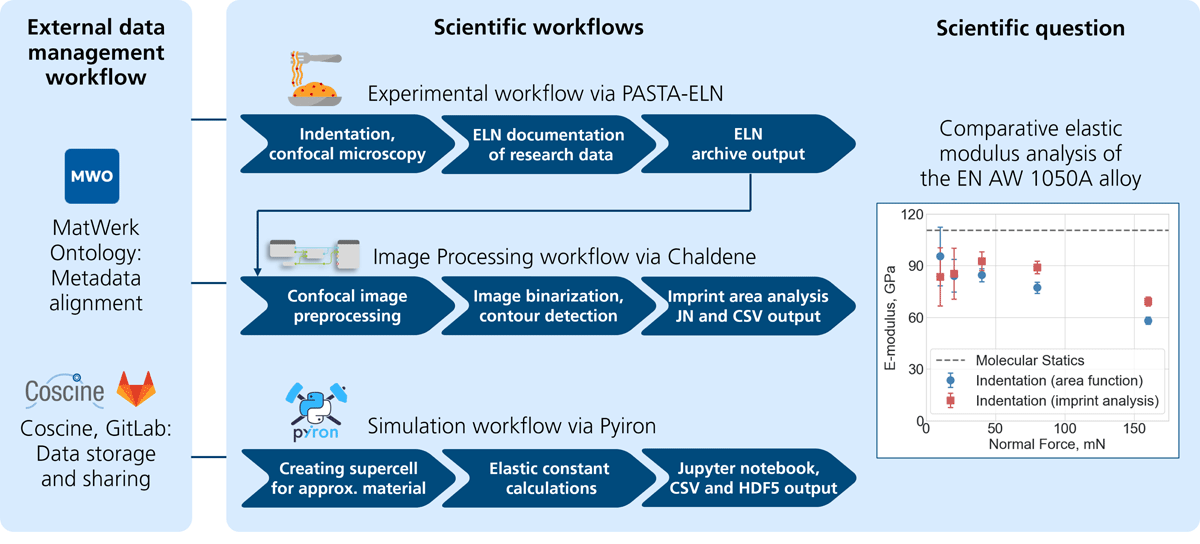

This third workflow component underscores the importance of efficient data management among collaborators. Figure 1 provides an overview of the main user journey components.

Figure 1

2.2 Solutions for data management

To achieve the objective of quantifying the elastic properties of an aluminum alloy, three classes of software tools are required. First, experimental data must be curated and organized; ELNs provide structured data capture and provenance. Second, quantitative image analysis performed by domain scientists requires advanced data-processing environments—Jupyter Notebooks support flexible analyses but present a usability barrier for researchers without Python experience. Third, determination of elastic constants from many energy-minimization simulations requires scalable workflow engines to orchestrate and parallelize large simulation ensembles. To promote accessibility and reuse, we use an ontology to define a shared, machine-readable vocabulary (classes, properties, and constraints) and a knowledge graph to store and link instance-level data across workflows. The ontology ensures semantic interoperability, while the knowledge graph enables integrated queries, discovery, reasoning, and provenance tracing across experimental, image-analysis, and simulation datasets—directly advancing the FAIR principles. We selected the specific software tools to reflect the expertise and development priorities of the contributing teams, allowing evaluation and improvement of real-world implementations; this emphasizes that the architecture is tool-agnostic and can be realized with different toolchains.

PASTA-ELN (2024) is an open-source ELN software designed to provide a centralized framework for research data management during experimental workflows. It focuses on organizing and analyzing raw experimental data stored on the researcher’s hard drive. Two key features are the automated (meta)data capture by extractor add-ons during data file integration into ELN projects. These metadata entries can be fully annotated according to the scientific domain as well as the FAIR principles. Additionally, PASTA-ELN automatically generates digital representations of traditional laboratory notebooks. The adaptable structure allows the software to be used in a wide range of scientific domains.

Chaldene (Chen et al., 2022) is a visual programming language for data analysis and scientific image processing workflows, built upon Jupyter Notebook features for interactive development and the scikit library for image processing. In Chaldene, the code blocks are represented as visual programming cells that can be assembled into directed acyclic graphs using nodes and connectors. This approach facilitates the creation and automatic execution of computational workflows that use a PNG or JPEG file for input.

pyiron (2024) and Janssen et al. (2019) is an open-source, Python-based framework for computational workflows, providing functionalities for developing and executing various simulation tasks. Interactive development is facilitated through the Jupyter Notebook interface. The software includes a large number of simulation tools for materials scientists out of the box. pyiron employs “jobs”, objects of an abstract class, to standardize the steps and elements of simulation protocols.

GitLab (2024) is a platform for collaborative development, code management, and data version control, enabling users to track changes to workflow outputs. However, GitLab does not guarantee their long-term data preservation (GitLab, 2024). To address this, workflow outputs were also stored in the Coscine (2024) repository developed at RWTH Aachen University. Coscine can store files of any type with a file size limit of 4TB. Each project and resource is assigned a Persistent Identifier (PID) and can be archived for 10 years, ensuring long-term data findability and accessibility in accordance with the principles of good scientific practice set by the German Research Foundation (2022).

The MatWerk Ontology (2024) provides a standardized vocabulary and structure for metadata originating from diverse sources. It enables the harmonization of resource descriptions at the mid-level by offering terms such as projects, authors, repositories, software, instruments, and methods. Additionally, it includes material-specific metadata, such as material type, property, and condition. These standardized descriptions can populate the Materials Science and Engineering (MSE) Knowledge Graph, which is exemplified as a demonstrator and can be queried using the conventional SPARQL format. The Knowledge Graph represents the entire collected knowledge in an interconnected manner and facilitating enhanced discovery.

2.3 Personas

To explore user interactions with the software tools during workflow execution, we define characteristic portraits of users representing the target groups, that is to say, personas. Modeling personas helps us better understand users’ motivations, needs, and behaviors in relation to studied products or services.

The primary target group consists of Researcher personas, who fulfill multiple roles:

1. Project planning and execution: Researchers contribute to project planning and ensure timely completion of tasks.

2. Data production and analysis: They generate, collect, and analyze (meta)data, which is crucial for deriving research findings.

3. Data management and FAIRification: Researchers share responsibility for managing datasets and ensuring their compliance with FAIR principles to enable future reuse.

In these tasks, Researchers rely heavily on software solutions and the support from Research Data Management (RDM) Agents while adhering to community standards and institutional or funding agency requirements. Their main concerns regarding software tools include seamless integration into scientific workflows, ease of use, and efficient data exchange across research groups. Collaborative projects are typically cross-group or cross-institutional, with each group comprising one or more Researchers. To capture the diversity in expertise and domain knowledge, we introduce three Researcher personas reflecting different scientific disciplines and levels of data management proficiency. This approach allows us to examine (i) software workflows (e.g., a single Researcher using a single tool) and (ii) interactions of workflows at intersections (e.g., collaboration among multiple Researchers). The interaction of the Researcher personas is evaluated based on user feedback from the three individuals.

The second key user group comprises RDM Agents, who specialize in providing technical support for software solutions and act as a bridge between FAIR technology and Researchers. While Researchers drive the three scientific workflows, RDM Agents play a pivotal role in the external data management workflow. The RDM Agent persona typically comes from software development teams or has expertise in data stewardship. Their main objectives include:

1. Understanding Researchers’ specific requirements and workflows

2. Tailoring software solutions according to these needs

3. Handling registration services, metadata structuring, and unification

Since Researchers often actively contribute to software development or are among its core users, they may also take on RDM Agent roles. Thus, personas can be assigned to both roles simultaneously. However, since different RDM Agents do not interact with one another, a single RDM Agent persona is sufficient to represent this user journey.

3.1 Experimental workflow

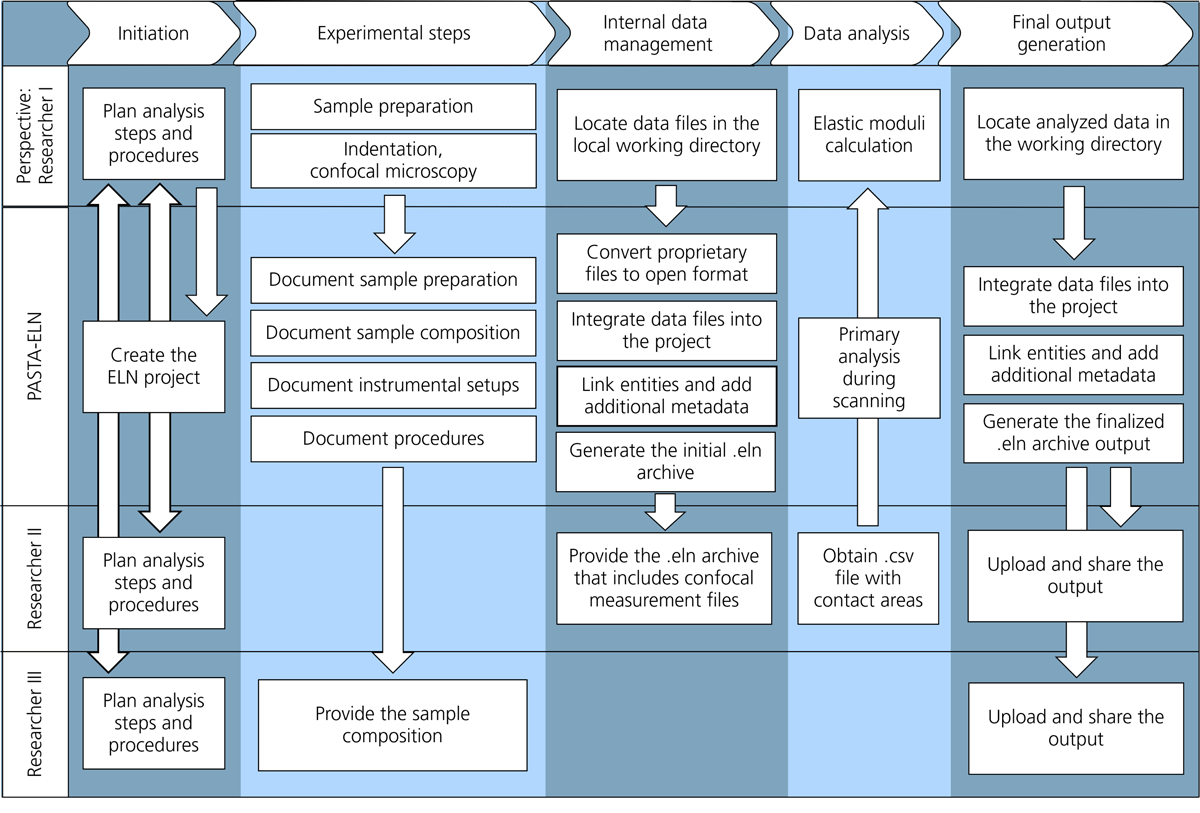

The experimental workflow is represented from the perspective of Researcher I (Figure 2). Instead of detailing the experimental methods, we focus on Researcher I’s interactions with PASTA-ELN and other Researcher personas.

Figure 2

PASTA-ELN serves as a centralized platform for data management, documentation, preliminary analysis, and packaging of research outputs for publication as digital objects. Each manual activity performed by Researcher I is digitally recorded, with corresponding metadata linked to the relevant data files. At the planning stage, Researcher I initializes an ELN project, which automatically creates a corresponding working directory in the file system. This directory functions as a drop-box for data files.

After each step, a corresponding digital instance is manually created in the ELN project. PASTA-ELN enables users to generate instances and integrate files related to Samples, Procedures, Instruments, and Measurements. In this case, Researcher I creates instances for:

• Specimen body (EN AW-1050A)

• Measurement procedures (indentation, confocal microscopy)

• Instruments (Fischerscope H100 C, LEXT OLS4000)

Metadata is recorded in two formats:

• Structured format (machine-readable)

• Unstructured format (freehand comments)

Upon completion of this stage, Researcher I shares the specimen composition with Researcher III, initiating the simulation workflow.

At this stage, Researcher I integrates the collected data files into the ELN project by seamlessly creating digital instances of experimental objects or procedures and efficiently linking them. Since indentation and confocal microscopy data files are in proprietary formats (HAP and LEXT), they must be converted into open formats—HDF5 (Hierarchical Data Format version 5) and GWY—for further analysis. This conversion is performed using converter add-ons and Nečas and Klapetek (2012)’s work. Deciphering proprietary file formats is the biggest challenge in experimental workflows that use ELNs. To maintain data integrity, both proprietary and converted open-format files are stored within the ELN project directory. Researcher I then scans the working directory, which triggers the following processes:

1. Files are integrated into the ELN project as digital instances.

2. Hierarchical and descriptive metadata is saved to the Apache CouchDB (2024).

3. File extractors identify compatible formats and automatically extract data and metadata into the project.

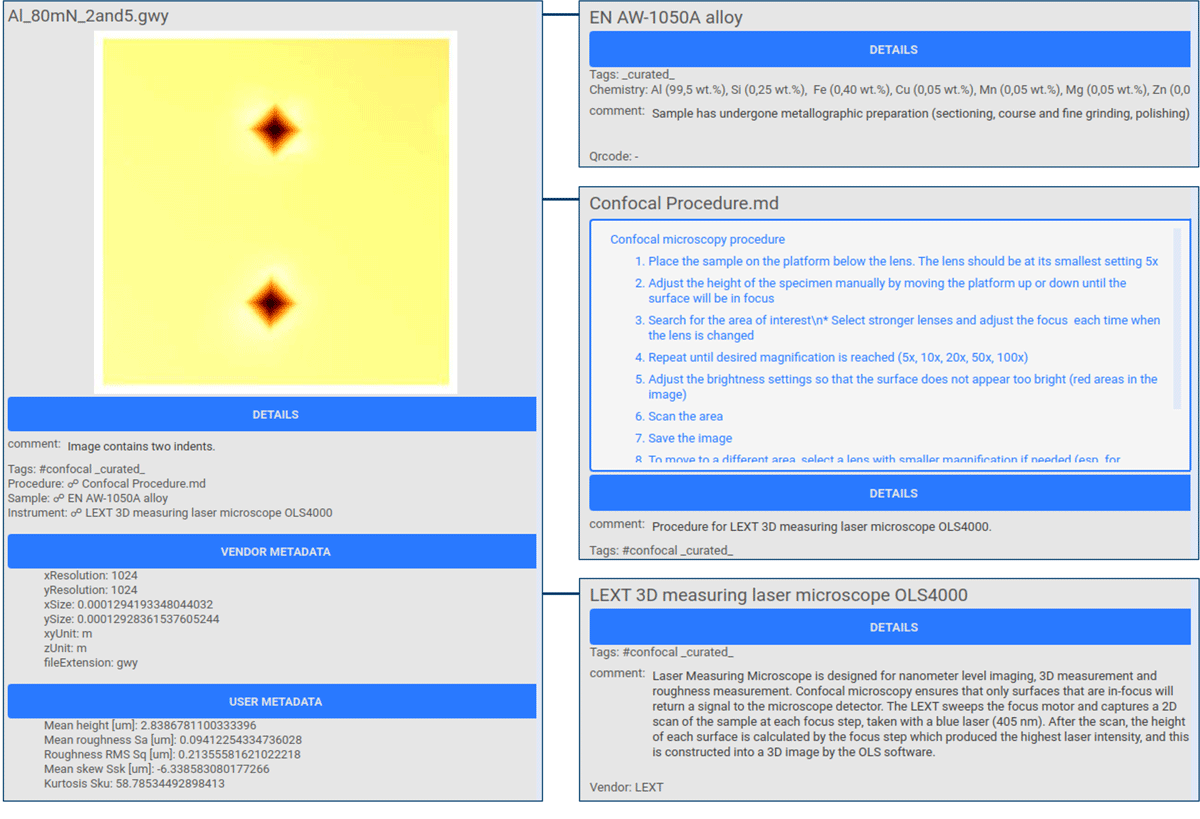

Researcher I links the Measurement instances with their corresponding Sample and Procedure instances and manually adds additional metadata (Figure 3).

Figure 3

To initiate the image processing workflow, Researcher I exports the confocal microscopy images from the ELN project and shares them with Researcher II. The exported ELN file is a ZIP archive-like bundle containing all project metadata and data, designed for interoperability across all different ELN platforms. The underlying file structure adheres to the RO-Crate 1.1 standard (Soiland-Reyes et al., 2022), which supports FAIR data publication and can be included into repositories. The export contains (i) the collected data and (ii) the metadata file (ro-crate-metadata.json), which follows the Schema.org (2024) in machine-readable JSON-LD format (Sefton et al., 2023) and is linked to the files in the data collection, thus acting as a table of contents.

After receiving the estimated contact areas from the image processing workflow, Researcher I proceeds with elastic modulus analysis using the Oliver-Pharr Method (Oliver and Pharr, 1992, 2004). This method involves using projected contact areas to calculate the effective elastic modulus, from which the elastic modulus of the sample is determined. For this analysis step, two data sets of projected contact areas are used: one based on the indenter tip area function and the other one determined via confocal microscopy image analysis. Researcher I incorporates the results into the ELN project, adding annotations and linking them to relevant data files. The experimental workflow concludes with the ELN file being uploaded to repositories for data sharing (section 3.4).

3.2 Data analytical workflow in Chaldene

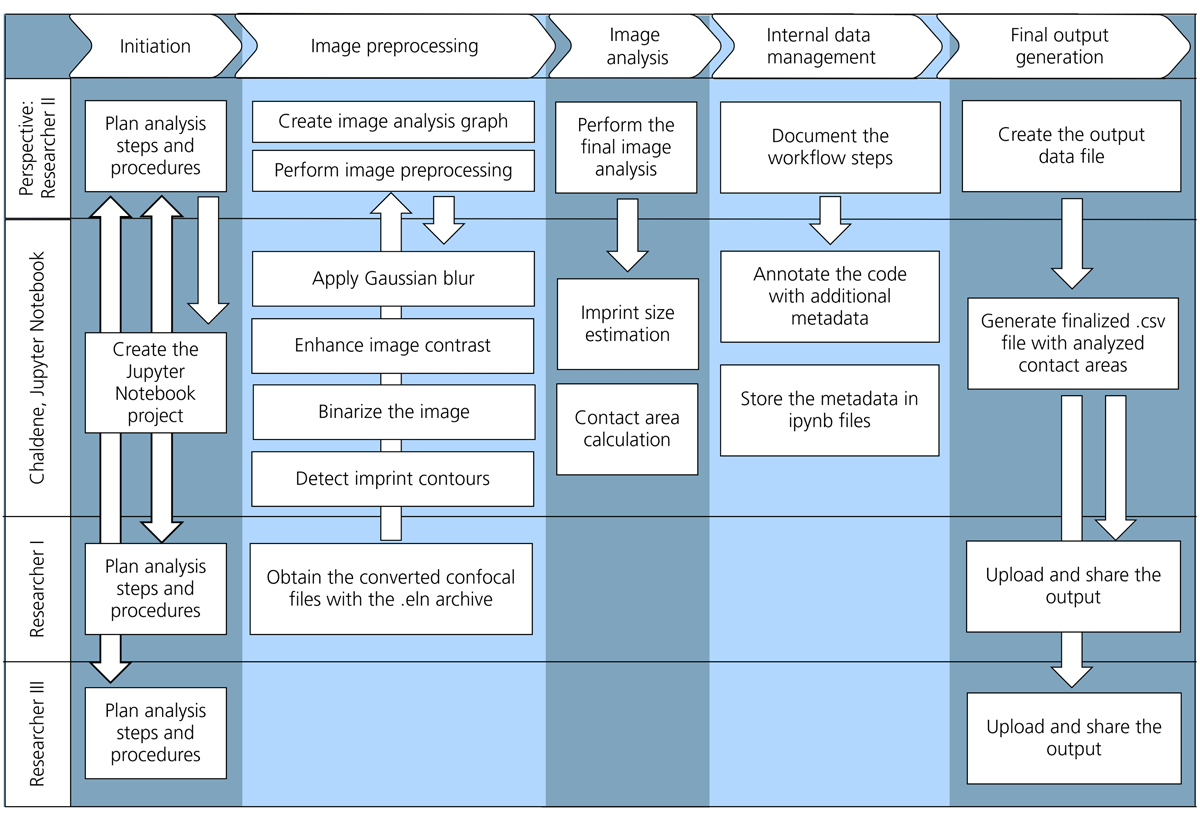

The second scientific workflow in this user journey involves Researcher II, who executes an image processing workflow (Figure 4). This workflow is developed interactively in Jupyter Notebook using the Chaldene visual programming language. Its objective is to compute the projected contact areas of indentation imprints based on the confocal microscopy data obtained from Researcher I.

Figure 4

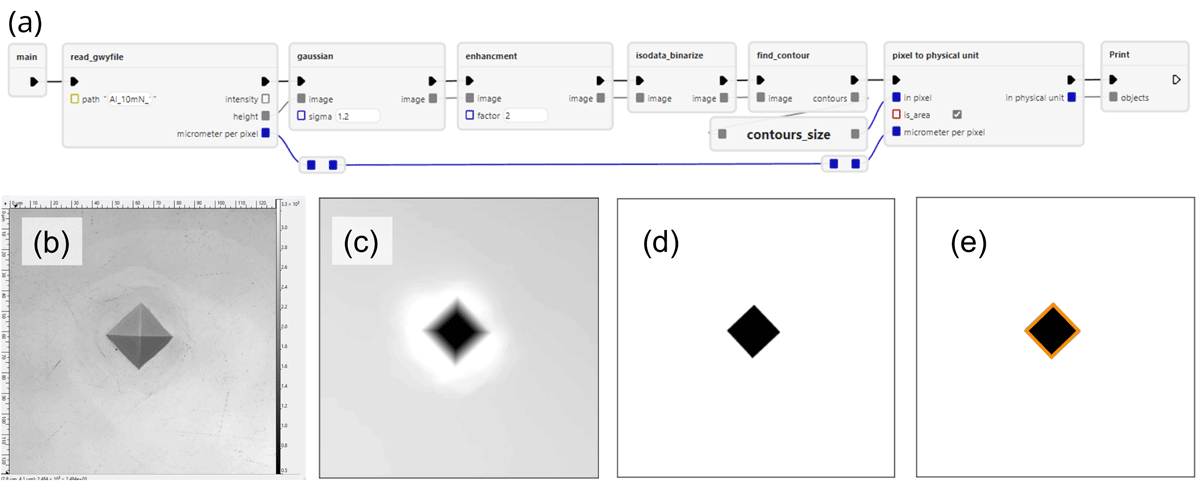

In Chaldene, each workflow step is represented as a cell, equivalent to a code block in Jupyter Notebook. The cell nodes correspond to data states before and after processing and are linked through connectors, forming a graph representation of the workflow (Figure 5a). This approach ensures correct execution order and enables traceability of processing steps.

Figure 5

The first part of preprocessing enhances image quality to improve contour detection for projected contact area analysis. Researcher II performs the following steps: (i) Data acquisition and format conversion to extract confocal height data (Figure 5b) from the ELN file and convert proprietary formats into open formats, (ii) Noise reduction and contrast enhancement by applying Gaussian blur filtering for general noise removal and enhancing image contrast (Figure 5c), and (iii) Binarization for contour detection using the Isodata algorithm (van der Walt et al., 2014) to automatically determine a threshold value that separates the imprint from the background pixels (Figure 5d).

The analysis stage includes two steps: (i) Contour extraction using a ‘marching squares’ algorithm implementation from the scikit-image library (van der Walt et al., 2014) to trace imprint boundaries (Figure 5e). (ii) Area calculation by estimating the size of each contour by counting enclosed pixels and converting pixel-based areas into physical units using the pixel size obtained during file reading. Researcher II repeats this workflow for each confocal micrograph.

At the final stage, Researcher II annotates the Jupyter Notebook with metadata describing the workflow steps, saves the computed projected contact areas as comma-separated value (CSV) files for further analysis (see section 3.1), and uploads data files to GitLab and Coscine repositories for sharing with other Researchers (section 3.4).

3.3 Computational workflow in pyiron

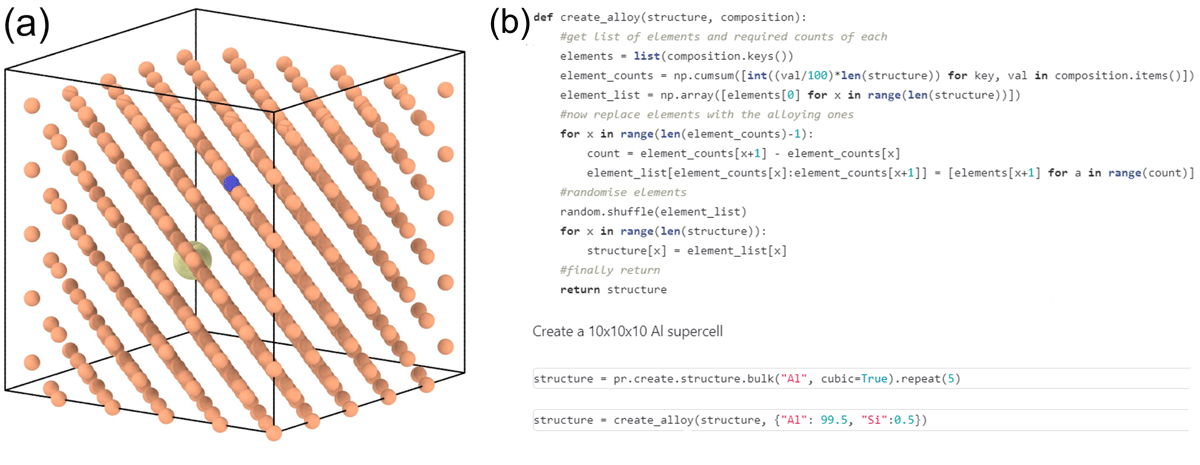

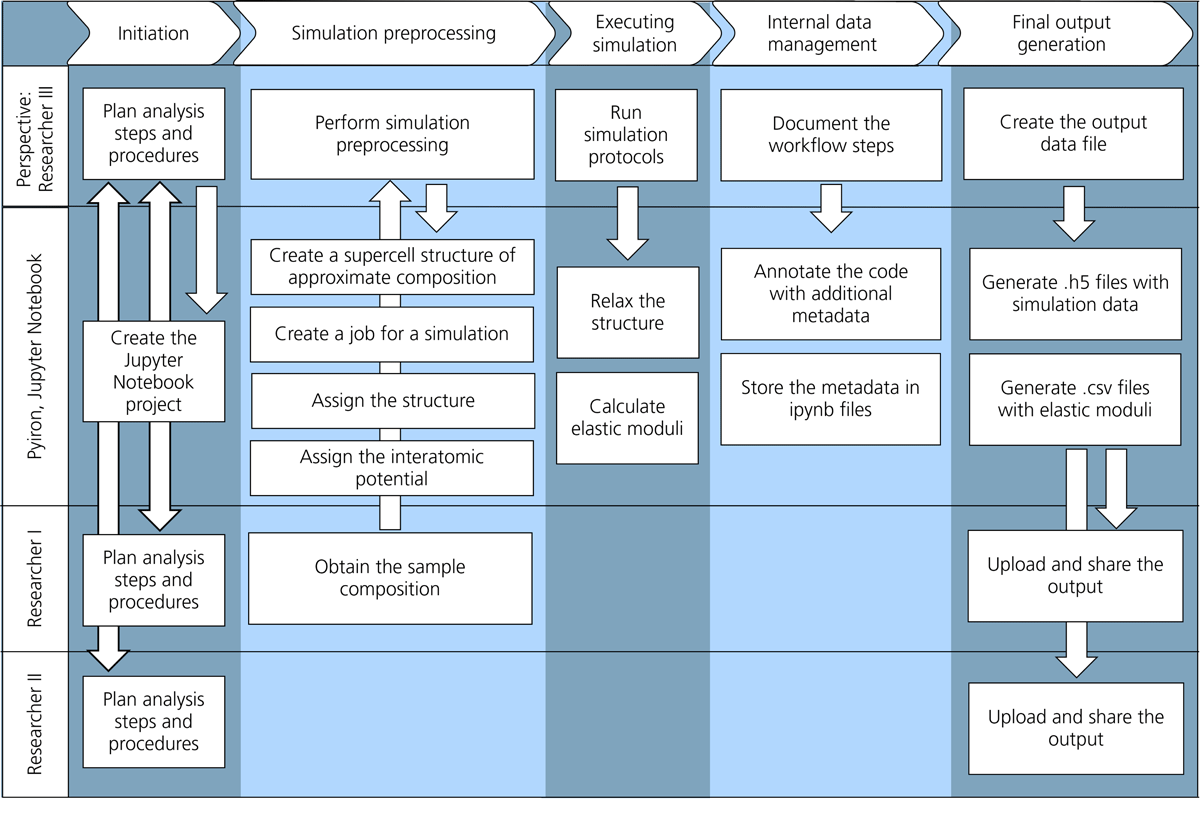

The simulation workflow, carried out from the perspective of Researcher III, is illustrated in Figure 6. At the preprocessing stage, Researcher III selects parameters for rapid prototyping of the simulation workflow using Jupyter Notebooks as an interactive environment in pyiron. The composed workflow can later be scaled up for execution on multi-core processors or high-performance computing (HPC) clusters. During the next stage, Researcher III performs molecular statics simulations using the Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) to estimate the elastic constants. This stage consists of three steps: (i) Supercell creation to construct an Al face-centered cubic (FCC) supercell with 5324 atoms (Figure 7) substitutional impurities added to match the composition of EN AW-1050A (0.2 wt.% Si, 0.2 wt.% Fe, 0.05 wt.% Cu, and 0.05 wt.% Mg), (ii) Interatomic Potential Selection, here using a modified Embedded Atom Method (EAM) potential (Jelinek et al., 2012), optimized for this alloy system and ensuring alignment with density functional theory (DFT) calculations for elastic constants of the pure elements and their binary combinations, and (iii) Elastic Tensor Calculation by optimizing the structure with respect to cell parameters and atomic positions, applying small deformations (maximum Lagrangian strain of 0.001) considering the structure’s space group. Forces and stresses are recorded to calculate elastic constants. All the workflow steps are annotated with metadata to ensure reproducibility and stored in a Jupyter Notebook.

Figure 6

Figure 7

At the final stage, Researcher III saves workflow inputs, outputs, and results in HDF5 files, extracts key results into CSV files for sharing with other Researchers, and uploads the workflow, software versions, and HDF5 data files to repositories (section 3.4).

3.4 Metadata and storage (external RDM workflow)

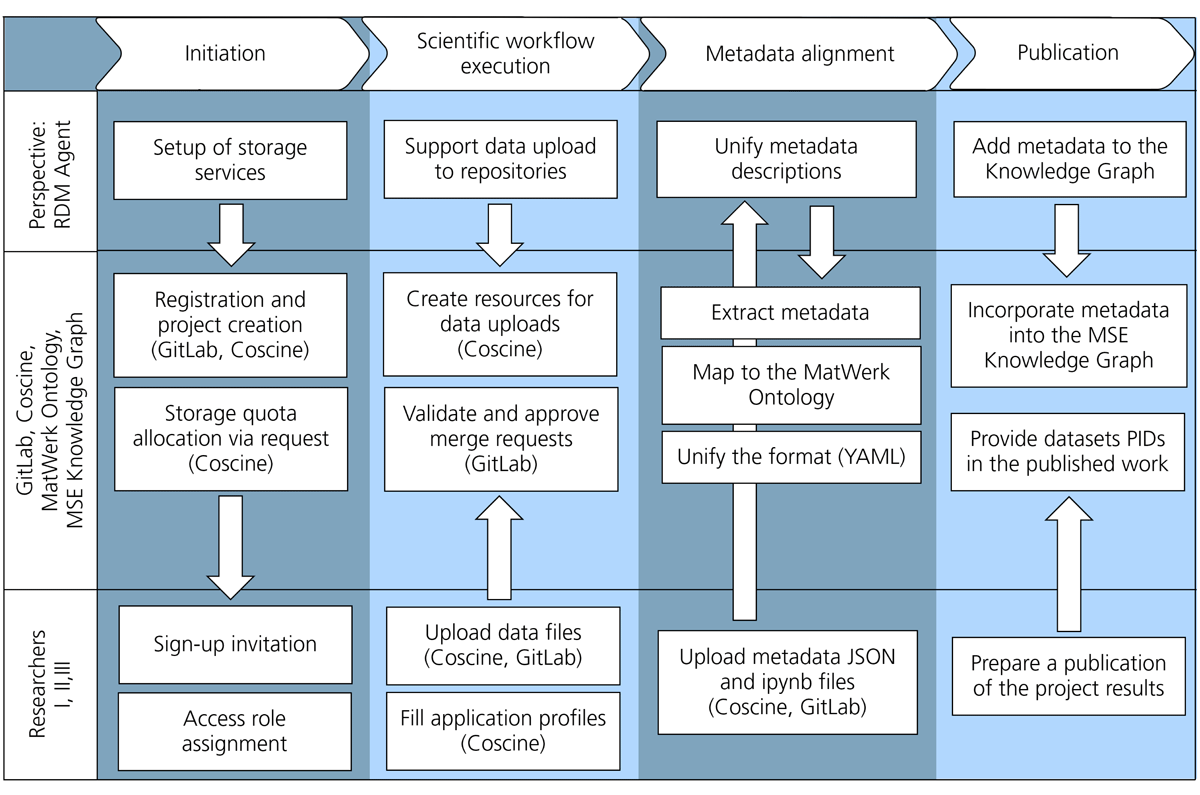

The external data management workflow encompasses the handling of (meta)data beyond the scientific workflows (Figure 8). It primarily focuses on the RDM Agent’s role in enabling Researcher personas to use storage services, aligned metadata descriptions, and populate a knowledge graph.

Figure 8

In the project planning phase, the RDM Agent sets up project instances in Coscine and GitLab repositories. Once the repositories are established, the RDM Agent sends sign-up invitations to Researchers and assigns roles based on their respective tasks. For Coscine projects, the RDM Agent also submits an application to request a specific storage quota.

During scientific workflow execution, Researchers upload data and metadata files either via a GitLab merge request, approved by the RDM Agent, or directly into pre-created Coscine resources. Each project is assigned a PID, and a corresponding resource is created in Coscine. Additionally, every Coscine resource requires an appropriate application profile, serving a metadata schema in a tabular form, which Researchers must manually complete upon data upload. By default, the base application profile—derived from the DataCite metadata schema Kernel 4.0 (DataCite Metadata Working Group, 2016)—is used, containing fundamental metadata fields: Title, Creator, Creation Date, Subject Area, and Type.

The outputs from all three workflows are uploaded to RDS-S3 object-based resources (Tsybenko et al., 2023a), while simulation workflow data is imported directly from Tsybenko et al. (2023b). This ensures that all data receives a PID and is annotated with additional metadata.

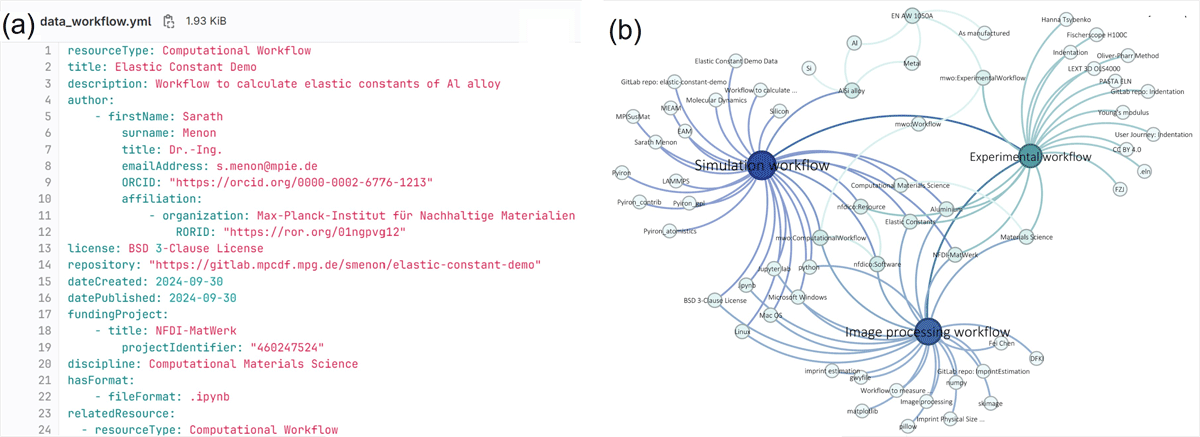

To ensure semantic consistency across the three scientific workflows and support the FAIR principles, the RDM Agent unifies metadata annotations and formats (Appendix). Experimental workflow metadata is automatically exported as a structured JSON-LD and bundled with data files in a single RO-Crate archive. Computational workflow metadata is combined with analysis code in two Jupyter Notebooks, requiring manual extraction into a structured format. Metadata from domain-specific file formats is then converted into the standard machine- and human-readable YAML Ain’t Markup Language (YAML) format using a template (MatWerk Ontology templates, 2024) provided by the RDM Agent (Figure 9a). At the same time, extracted descriptions from the YAML format are aligned with the MatWerk 2.0 Ontology, ensuring semantic harmonization and hierarchical organization of metadata. This alignment enhances interoperability across various materials science domains.

Figure 9

In the final stage, the RDM Agent facilitates the publication of (meta)data, ensuring findability, accessibility, and reusability. Each published work includes the PID (Tsybenko et al., 2023a), improving traceability. Metadata is integrated into the MSE Knowledge Graph (Figure 9b), allowing instances, agents, and activities to be interconnected and discoverable via SPARQL queries. Published metadata includes licensing information, defining usage permissions.

4.1 General outcomes

Implementing the user journey provided valuable insights into the dynamics of collaborative research project and the impact of RDM software. This approach has proven highly effective for analyzing Researchers’ interactions with software tools, RDM Agents, and one another. From a long-term perspective, the published user journey serves as a blueprint for streamlined FAIR data generation as it outlines the detailed steps necessary to integrate FAIR principles into research workflows. Additionally, the modular and accessible nature of the implemented workflows facilitates component reuse within the research community.

This study highlights the essential role of NFDI MatWerk Consortium tools (PASTA-ELN, Chaldene, pyiron, Coscine, MatWerk Ontology, and the MSE Knowledge Graph) in solving scientific problems and generating FAIR data (Appendix A). Each tool adheres to multiple FAIR principles, promoting holistic and transparent research data management. Consequently, these tools contribute significantly to enhancing research practices, improving data quality and reusability, and fostering collaboration in materials science.

Our analysis shows that Researchers rely heavily on RDM Agents, particularly for repository setup and metadata harmonization. In cases where no RDM Agent is available, Researchers often assume dual roles, leading to increased workloads and higher technical demands. Ideally, dedicated data stewards should fill these gaps. However, when unavailable, training programs on FAIR data concepts, available tools, and best practices could mitigate knowledge barriers. Overall, our findings indicate a strong commitment among Researchers to FAIR principles, ensuring the publication of FAIR data.

The user journey examined advanced collaborative interactions between Researchers and various software solutions. The workflows reflected state-of-the-art scientific approaches, simulating a realistic research project. However, more complex workflows—involving iterative experiments or computation, modified approaches, or additional data requirements—could offer deeper insights into software scalability and adaptability. These scenarios should be explored in future implementations.

After executing the workflow, we interviewed the scientists about the advantages and limitations of the software tools, as well as their interactions within the workflow. We found that no essential software tools were missing for this specific scientific workflow. However, we identified shortcomings in interoperability and feature availability. The limitations identified can lead to enhancements in future versions of the software tools.

We identified limitations in interoperability and feature availability across the evaluated tools. In particular, the tools lack a common input/output file format that would enable non-programming users to export, read, and analyze data. For example, producing the final materials-science overview of elastic modulus versus normal force currently requires programming expertise because data from three distinct sources must be consolidated into a single figure. Future development should therefore enable the complete workflow to be executed without writing code. Achieving this objective will require adoption of a common data-exchange format and, potentially, a standardized workflow-execution framework. Semantic web formats such as RDF offer rich machine-readable semantics that facilitate content discovery and interpretation, but they are not well-suited to packaging very large volumes of instrument or computational data. Conversely, FAIR digital-object containers such as RO-Crate and the ELN file format support rich, machine-actionable semantic metadata, can accommodate multigigabyte datasets, and can explicitly encode inter-resource relationships. However, practical challenges remain—most notably cross-dataset linking and consistent semantic interpretation—which necessitate community conventions and interoperable tooling.

4.2 Experimental workflow outcomes

Modeling a realistic experimental workflow naturally highlighted several recurring challenges in materials science. A key issue is that experimentalists are often constrained by proprietary instrument software, which can become obsolete, lack technical documentation, and hinder data provenance tracking. Researcher I encountered this limitation during the experimental indentation setup. To address it, Researcher I exported only raw data from the instrument and meticulously documented its origin within the PASTA-ELN project.

Additionally, the collected data was stored in proprietary formats, preventing access by multiple software vendors and restricting parsing as raw text files. Consequently, experimental data analysis and metadata extraction depended on vendor-specific software. This issue was resolved by using the PASTA-ELN converter add-on, which converted the proprietary files into open formats, ensuring accessibility and interoperability. A potential improvement would be to include more metadata on file encoding formats during export.

Furthermore, automated metadata extraction upon file integration into the ELN project saved Researcher I considerable time compared to manual metadata entry. PASTA-ELN functionalities improved data structuring, retrieval, and sharing, allowing Researchers to focus on the scientific aspects. However, further workflow optimization could be achieved by introducing user-defined templates for experimental protocols. These templates should support efficient metadata input and automatically convert metadata into machine-readable formats.

Proprietary nanoindentation and confocal microscopy instruments commonly produce data in vendor-specific file formats (e.g., HAP, LEXT), which introduces two principal problems for downstream analysis and long-term preservation. First, exporting to open formats via vendor-supplied software can result in loss of metadata and a reduction in numeric precision (for example, some exports are limited to three significant digits), compromising data fidelity. Second, opaque proprietary files are frequently unreadable by standard analysis tools, impeding reuse and archival access. While LEXT files (a TIFF variant) can be interpreted by third-party readers such as Gwyddion, no public readers were available for HAP files; consequently, we developed a conversion utility to extract both primary data and associated metadata from HAP containers. Deciphering such closed formats, therefore, represents a substantial bottleneck in experimental workflows. To preserve provenance and support reproducibility, we retain both the original proprietary files and the converted open-format derivatives, and we validate conversions by comparing key numerical values and metadata fields between source and output. The conversion tool will be made available on request. Finally, we confirm that the datasets described contain no personal data; had personal data been present, appropriate anonymization and controlled-access procedures would have been implemented. These measures reduce risks to data integrity, privacy, and intellectual property while acknowledging the ongoing challenges posed by opaque proprietary formats.

4.3 Computational workflows

While molecular statics calculations are common in computational materials science, they remain challenging due to the need to select structures, apply strains, compute forces and stresses, and postprocess results. Researcher III faced these challenges when using different software tools. To simplify this process, pyiron provides built-in routines, allowing users to focus only on defining structure and strain ranges, significantly improving reproducibility. Additionally, directory structures are automatically created and managed, while metadata is stored alongside the workflow, enhancing reusability and transparency.

A major challenge in computational research is the lack of workflow standardization. While both pyiron and Chaldene use Jupyter Notebooks and Python, they are not inherently interoperable, making it difficult for Researchers to reuse code. Existing standards such as Common Workflow Language (CWL) and Nextflow provide some workflow standardization, but they do so at the expense of Python’s object-oriented flexibility and rapid prototyping capabilities.

Currently, pyiron allows exporting Python code as a pyiron workflow, but this requires extra effort from Researchers. A more efficient solution would be a generic Python-based workflow description that is semantically interoperable across pyiron, Chaldene, and potentially other platforms such as PASTA-ELN.

Another challenge is that workflow input/output keywords are often domain-specific, making them difficult to interpret outside specialized fields. A potential solution is to incorporate terminology services or ontologies that define key terms, improving workflow clarity and FAIR compliance. Additionally, metadata records should include details on authors, institutions, and software dependencies. While the manual metadata extraction and alignment with the MatWerk Ontology partially address this issue, further improvements are needed (see section 4.4).

4.4 Metadata and ontology

Human- and machine-readable metadata are essential for enhancing the findability, interoperability, and reusability of research data. However, data complexity and heterogeneity pose challenges for accurate metadata recording. In this study, ELN exported files from experiments and Jupyter Notebooks from computational studies contained research data, workflows, analysis results, and documentation. While manual metadata entry using a YAML template was feasible, it was also time-consuming and impractical for large datasets. Automated metadata extraction tools should be developed and integrated into user-facing software to address this issue.

The MSE Knowledge Graph serves as a centralized resource for querying domain knowledge, improving resource visibility and accessibility. However, populating the knowledge graph currently requires manual input. Implementing automated metadata harvesting from repositories and storage services would significantly enhance efficiency.

While the MatWerk Ontology helps harmonize metadata and improve findability and interoperability, it lacks domain-specific terminology, which is essential for precise concept definitions. A viable solution is to combine high-level ontology alignment with detailed, domain-specific metadata, ensuring that workflows are understandable beyond specific research domains. Recent efforts to develop materials science semantic artifacts could further support ontology integration (MatPortal: the ontology repository for materials science, 2024).
