Molecular Epidemiology of mcr-1-Positive Polymyxin B-Resistant Escherichia coli Producing Extended-Spectrum β-Lactamase (ESBL) in a Tertiary Hospital in Shandong, China

Liu, Yue; Wang, Qian; Qi, Ting; Zhang, Meng; Chen, Ran; Si, Zaifeng; Li, Jinmei; Jin, Yan; Xu, Qingbing; Li, Ping; Hao, Yingying

Molecular Epidemiology of mcr-1-Positive Polymyxin B-Resistant Escherichia coli Producing Extended-Spectrum β-Lactamase (ESBL) in a Tertiary Hospital in Shandong, China

Volume 73 (2024): Issue 3 (September 2024)

By:

Yue Liu, Qian Wang, Ting Qi, Meng Zhang, Ran Chen, Zaifeng Si, Jinmei Li, Yan Jin, Qingbing Xu, Ping Li and Yingying Hao

Open Access

|Sep 2024

Figures & Tables

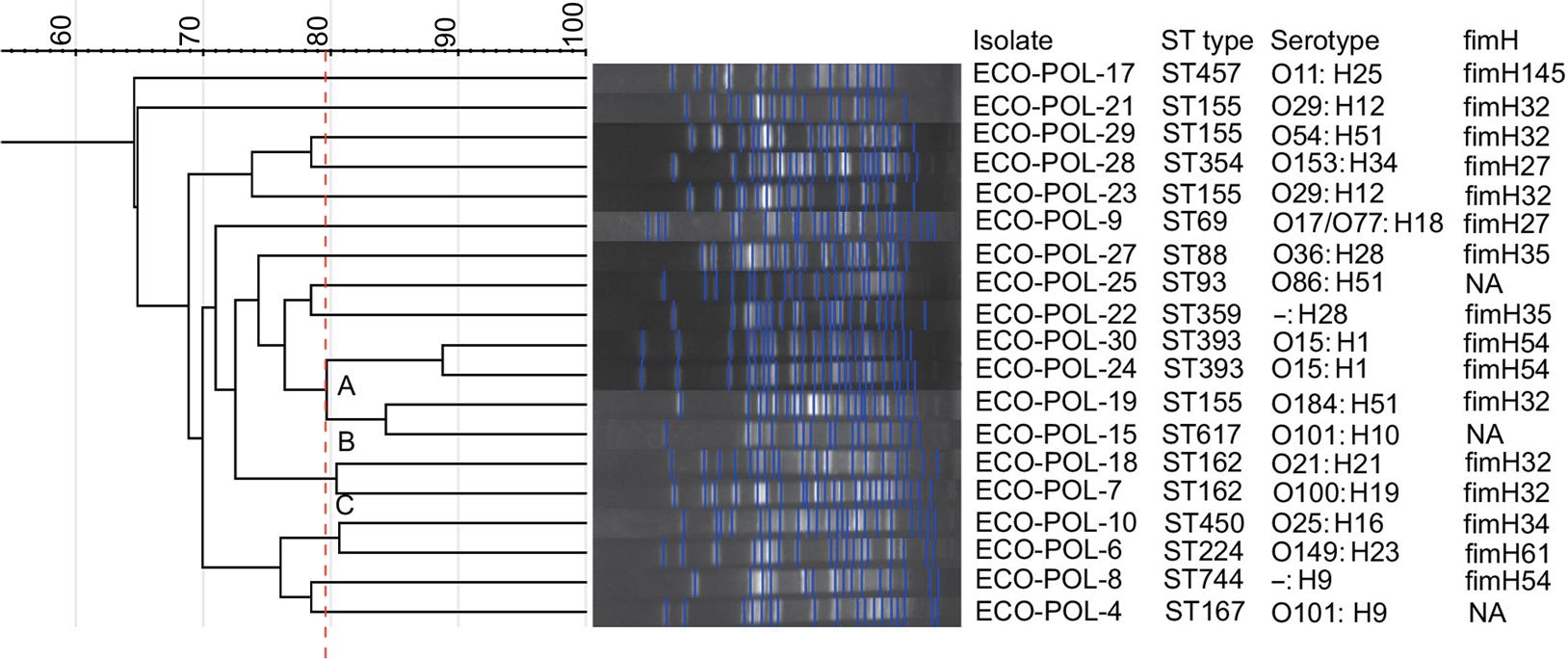

A dendrogram was constructed using the similarity of pulsed-field gel electrophoresis (PFGE) patterns across the 19 strains of mcr-1 -positive polymyxin-B-resistant extended-spectrum β-lactamase-producing Escherichia coli. Names of the isolates, sequence types, serotypes, and fimH types are displayed on the right side.

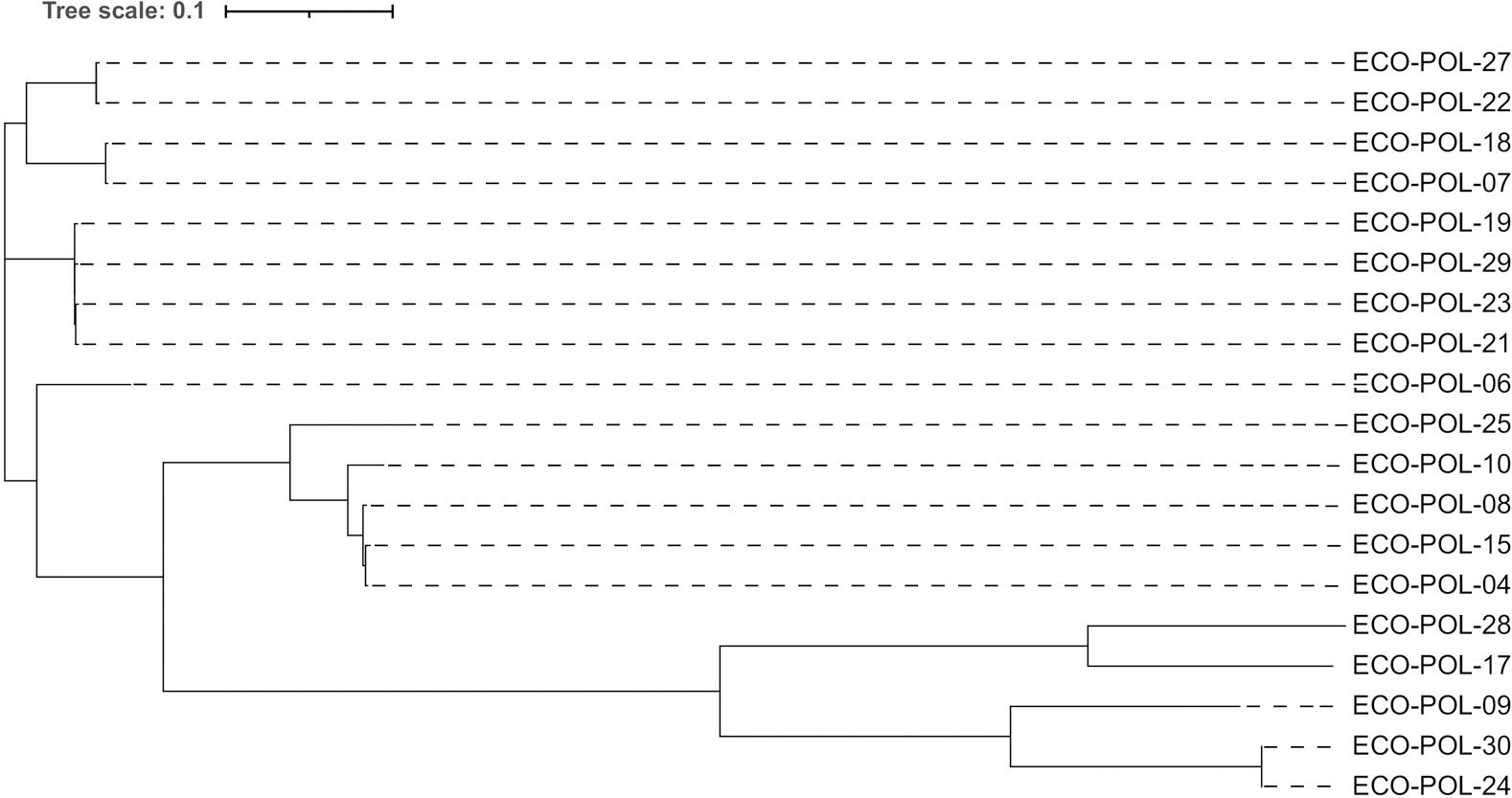

Phylogenetic tree distribution of 19 strains of mcr-1-positive polymyxin-B-resistant extended-spectrum β-lactamase-producing Escherichia coli.

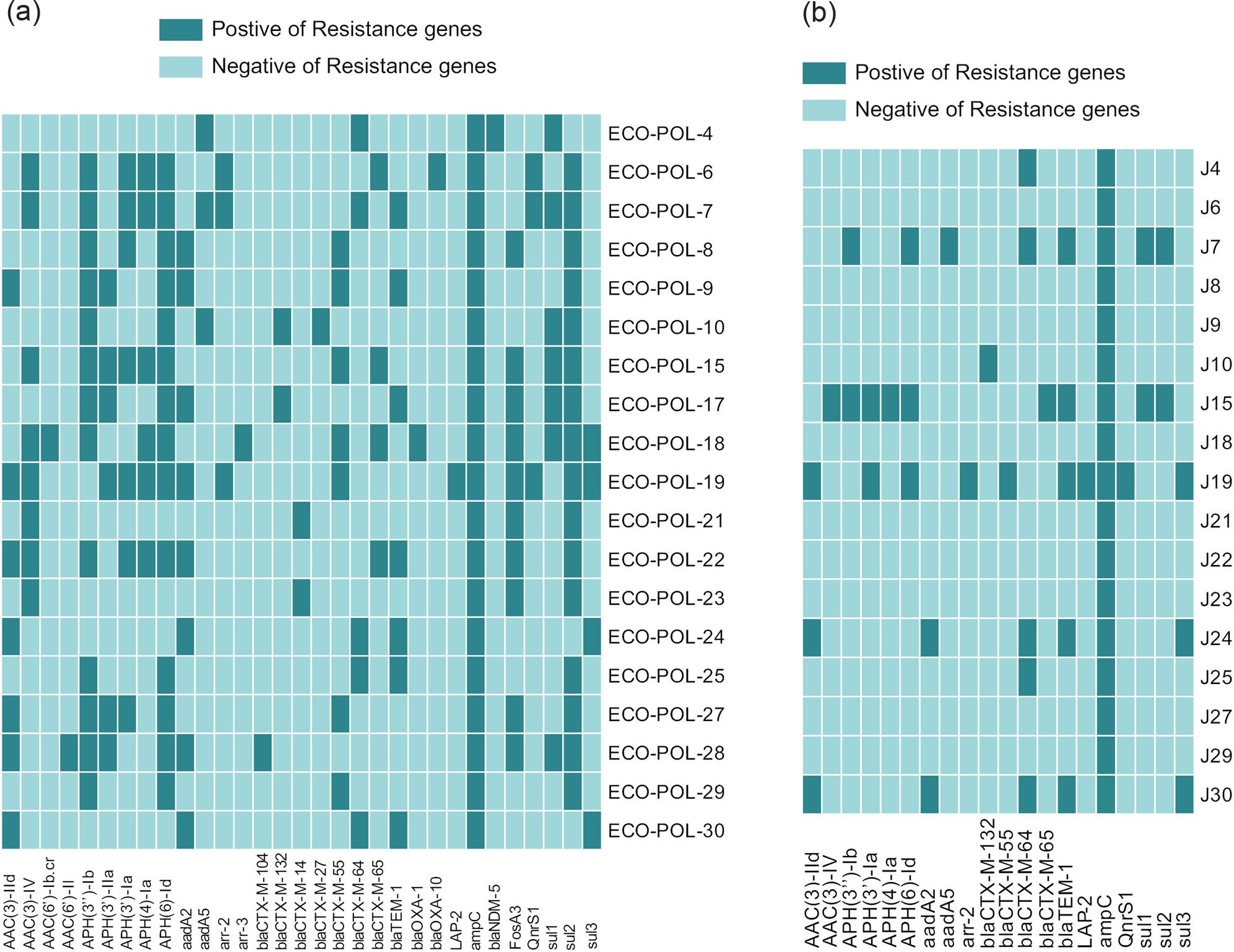

a) Detection of resistance genes in 19 mcr-1-positive clinical strains, b) detection of resistance genes in 17 transconjugants.

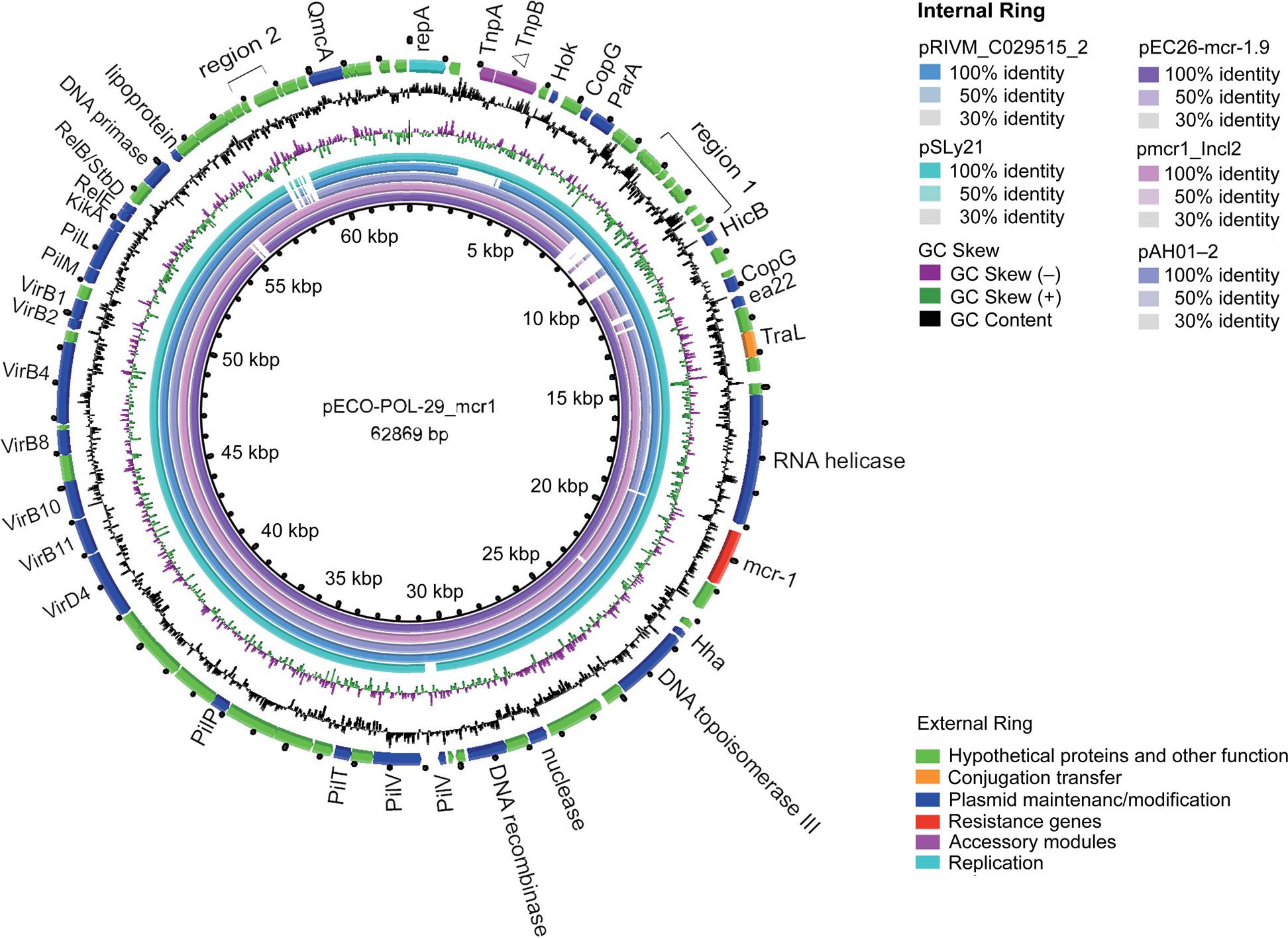

The external ring is the schematic representation of plasmid pECO-POL-29_mcr1 (GenBank accession number PP721192). Genes are marked with different colors based on their functional annotations. The internal five rings show a comparative analysis of mcr-1-harboring plasmids with pECO-POL-29_mcr1, including pSLy21 (sky blue), pAH01-2 (light purple), pRIVM_C029515_2 (light blue), pmcr1_IncI2 (light purple pink), and pEC26-mcr-1.9 (purple) (constructed using BRIG).

Antibiotic susceptibility testing of Escherichia coli clinical strains, transconjugants, and the recipient bacterium J53AziR_

Isolates	MIC (μg/ml)
Isolates	AMP	SAM	TZP	CZO	CTT	CRO	CAZ	FEP	ATM	ETP	IPM	AK	CN	TOB	CIP	LEV	NIT	STX	POL
ECO-POL-4	≥ 32	≥ 32	≥ 128	≥ 64	≥ 64	≥ 64	≥ 64	≥ 64	16	≥ 8	≥ 16	≤ 2	≤ 1	≤ 1	≥ 4	≥ 8	32	≥ 320	8
ECO-POL-6	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	32	≥ 64	≤ 1	16	≤ 0.5	≤ 1	≤ 2	≥ 16	≥ 16	≥ 4	≥ 8	64	40	4
ECO-POL-7	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	16	≤ 0.5	≤ 1	≤ 2	≥ 16	≥ 16	≥ 4	≥ 8	≤ 16	≥ 320	4
ECO-POL-8	≥ 32	8	≤ 4	≥ 64	≤ 4	≥ 64	16	2	16	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≥ 4	≥ 8	32	≥ 320	4
ECO-POL-9	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	4	2	16	≤ 0.5	≤ 1	≤ 2	≥ 16	8	≥ 4	≥ 8	≤ 16	≥ 320	4
ECO-POL-10	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	16	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≥ 4	4	32	≥ 320	4
ECO-POL-15	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	≥ 64	≤ 0.5	≤ 1	≥ 64	≥ 16	≥ 16	≥ 4	≥ 8	64	≤ 20	8
ECO-POL-17	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	≥ 64	≤ 0.5	≤ 1	≥ 64	≥ 16	≥ 16	≥ 4	≥ 8	32	≤ 20	4
ECO-POL-18	≥ 32	≥ 32	16	≥ 64	≤ 4	≥ 64	16	32	≥ 64	≤ 0.5	≤ 1	16	≥ 16	≥ 16	≥ 4	≥ 8	≤ 16	≥ 320	≥ 64
ECO-POL-19	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	32	32	≤ 0.5	≤ 1	≥ 64	≥ 16	≥ 16	≥ 4	≥ 8	64	≥ 320	4
ECO-POL-21	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≥ 16	≥ 16	≥ 4	≥ 8	64	≥ 320	4
ECO-POL-22	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	≤ 1	2	16	≤ 0.5	≤ 1	≥ 64	≥ 16	≥ 16	≥ 4	≥ 8	64	≥ 320	4
ECO-POL-23	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≥ 16	≥ 16	≥ 4	≥ 8	64	≥ 320	4
ECO-POL-24	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	32	16	≤ 0.5	≤ 1	≤ 2	≥ 16	8	≥ 4	≥ 8	≤ 16	≥ 320	4
ECO-POL-25	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	4	≥ 64	32	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≥ 4	≥ 8	128	≤ 20	4
ECO-POL-27	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	4	2	16	≤ 0.5	≤ 1	≤ 2	≥ 16	8	≥ 4	≥ 8	64	≤ 20	4
ECO-POL-28	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	≤ 1	2	4	≤ 0.5	≤ 1	≥ 64	≥ 16	≥ 16	≥ 4	≥ 8	64	≥ 320	4
ECO-POL-29	≥ 32	8	≤ 4	≥ 64	≤ 4	≥ 64	4	2	16	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≥ 4	≥ 8	32	≥ 320	4
ECO-POL-30	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	16	32	16	≤ 0.5	≤ 1	≤ 2	≥ 16	8	≥ 4	≥ 8	≤ 16	≥ 320	4
J4	≥ 32	≥ 32	64	≥ 64	≤ 4	≥ 64	16	≥ 64	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	8
J6	8	8	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J7	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	≥ 64	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≥ 320	4
J8	4	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J9	4	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	8
J10	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	≥ 64	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J15	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	4	2	16	≤ 0.5	≤ 1	≤ 2	8I	≥ 16	≤ 0.25	≤ 0.25	32	≤ 20	16
J18	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	8
J19	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J21	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J22	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J23	8	4	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J24	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	≥ 64	8	≥ 64	≤ 0.5	≤ 1	≤ 2	≥ 16	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≥ 320	8
J25	≥ 32	16	≤ 4	≥ 64	≤ 4	≥ 64	16	≥ 64	≥ 64	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	4
J27	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	8
J29	4	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	8
J30	≥ 32	≥ 32	≤ 4	≥ 64	≤ 4	≥ 64	≥ 64	8	≥ 64	≤ 0.5	≤ 1	≤ 2	≥ 16	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≥ 320	8
J53Azi^R	8	≤ 2	≤ 4	≤ 4	≤ 4	≤ 1	≤ 1	≤ 1	≤ 1	≤ 0.5	≤ 1	≤ 2	≤ 1	≤ 1	≤ 0.25	≤ 0.25	≤ 16	≤ 20	0.125

The number, approximate size and replicon types of plasmids in 19 strains of mcr-1-positive polymyxin B-resistant Escherichia coli producing extended-spectrum β-lactamase and 17 transconjugants_

Isolates	Plasmid numbers	Size (kbp)	Replicon types
ECO-POL-4	3	~ 110, ~ 65, ~ 45	ColRNAI, IncFIA, IncFIC, IncFIC, IncX3
ECO-POL-6	6	~ 210, ~ 140, ~ 110, ~ 104.5, ~ 78.2, ~ 65	Col, ColRNAI, ColpVC, IncFIB, IncFII, IncHI1B, IncHI2A,
			IncHI2, IncI1, IncI2, RepA, p0111
ECO-POL-7	5	~ 220, ~ 138, ~ 100, ~ 65, ~ 54	IncFIB, IncFIC, IncFII, IncHI2A, IncHI2, IncI2a,
			RepA_1_pKPC-CAV1321
ECO-POL-8	4	~ 140, ~ 100, ~ 33, ~ 21	IncFIB, IncFIC, IncX4
ECO-POL-9	3	~ 140, ~ 100, < 20	Col156, Col440II, ColRNAI, IncB/O/K/Z, IncFIA, IncFIB1,
			IncFIC, IncI2, IncX1, IncY
ECO-POL-10	4	~ 140, ~ 65, ~ 34, ~ 30	Col, Col156, Col8282, IncFIB, IncFII, IncI2, IncX4
ECO-POL-15	3	~ 265, ~ 65, ~ 45	Col, IncFII, IncHI2A, IncHI2, IncN, IncX1, RepA
ECO-POL-17	3	~ 104.5, ~ 65, ~ 48	Col440I, ColRNAI, IncI1, IncI2, IncN, IncR, IncX1
ECO-POL-18	3	~ 110, ~ 104.5, ~ 65	IncFIB, IncFIC, IncHI2A, IncHI2, IncI2, RepA
ECO-POL-19	3	~ 265, ~ 140, ~ 48	Col156, Col440I, IncFIB, IncFIC, IncFII, IncHI2A, IncHI2, RepA
ECO-POL-21	2	~ 140, ~ 65	Col156, IncFIB, IncFIC, IncI2
ECO-POL-22	3	~ 180, ~ 110, ~ 65	Col440II, ColRNAI, IncFIB, IncFIC, IncI2, IncI
ECO-POL-23	2	~ 140, ~ 65	Col156, IncFIB, IncFIC, IncI2
ECO-POL-24	2	~ 140, ~ 65	IncFIB, IncI2
ECO-POL-25	3	~ 140, ~ 95, ~ 65	IncB/O/K/Z, IncFIB, IncI2, p0111
ECO-POL-27	6	~ 140, ~ 130, ~ 95, ~ 70, ~ 65, ~ 43	Col(MG828), ColE10, ColRNAI, IncB/O/K/Z, IncFIB, IncFIC,
			IncFII, IncI2, IncX1, p0111
ECO-POL-28	2	~ 90, ~ 28	Col, Col156, Col440I, ColRNAI, IncFIA, IncFIB, IncI, IncX1
ECO-POL-29	4	128.293, 83.176, 62.869, 30.619	IncFIB/IncFIC, IncFIC, IncI2, IncX4
ECO-POL-30	2	~ 130, ~ 60	IncFIB, IncI2
J4	1	~ 65	IncI2
J6	1	~ 65	IncI2
J7	4	~ 103, ~ 100, ~ 65, ~ 60	IncI2, IncFIB, IncFII, IncFIC
J8	2	~ 100, ~ 33	IncFIB, IncX4
J9	1	~ 65	IncI2
J10	3	~ 65, ~ 33, ~ 30	IncI2, IncX4
J15	1	~ 255	IncHI2, RepA, IncHI2A, IncN
J18	1	~ 65	IncI2
J19	1	~ 255	IncHI2A, IncHI2, RepA
J21	1	~ 65	IncI2
J22	1	~ 65	IncI2, ColRNAI
J23	1	~ 65	IncI2
J24	2	~ 140, ~ 65	IncI2, IncFIB
J25	1	~ 65	IncI2
J27	1	~ 65	IncI2
J29	2	~ 65, ~ 33	IncI2, IncX4
J30	2	~ 140, ~ 65	IncI2, IncFIB

Clinical data of patients infected with mcr-1 -positive Escherichia coli isolates producing extended-spectrum β-lactamase_

Clinical isolates	Gender	Department	Specimen	Clinical diagnosis	Antimicrobial therapy
ECO-POL-4	male	Intensive Care Unit	urine	aspiration pneumonia, ARDS	cefoperazone sodium/sulbactam sodium
ECO-POL-6	female	Orthopedic Oncology and Joint Surgery Department	urine	recurrence of intradural teratoma	levofloxacin, levofloxacin sodium chloride, ceftazidime
ECO-POL-7	female	Gastroenterology Department	bile	postoperative recurrence of pancreatic cancer	piperacillin/tazobactam
ECO-POL-8	female	Emergency Department	secretion	acute purulent appendicitis	meropenem sodium/sulbactam sodium
ECO-POL-9	female	Urology Department	urine	ureteral stone	–
ECO-POL-10	female	Minimally Invasive Urology Department	urine	left renal abscess	cefotaxime
ECO-POL-15	male	Minimally Invasive Urology Department	urine	post-prostatectomy for prostate cancer	cefotaxime
ECO-POL-17	male	General Surgery Department	puncture fluid	post-pancreaticoduodenectomy	cefoperazone sodium/sulbactam sodium, imipenem/cilastatin
ECO-POL-18	female	Urology Department	urine	bilateral ureteral stones	meropenem
ECO-POL-19	female	Minimally Invasive Urology Department	urine	urinary retention	ceftriaxone sodium
ECO-POL-21	male	Respiratory Department	sputum	severe pneumonia	fluconazole, cefoperazone sodium/sulbactam sodium, carbapenem
ECO-POL-22	male	Intensive Care Unit	drainage fluid	open pelvic fracture with ARDS	imipenem/cilastatin
ECO-POL-23	male	Intensive Care Unit	bronchoalveolar lavage fluid	septic shock	carbapenem, imipenem/cilastatin, daptomycin, meropenem + polymyxin B, vancomycin + fluconazole
ECO-POL-24	male	Trauma and Orthopedics	secretion	traumatic hemorrhagic shock	cefotaxime, clindamycin hydrochloride
ECO-POL-25	female	Spinal Surgery Department	puncture fluid	postoperative infection following lumbar spine surgery	penicillin, cefepime + levofloxacin, imipenem/cilastatin
ECO-POL-27	male	Thoracic Surgery Department	sputum	post-chemotherapy for right upper lobe lung cancer	cefuroxime
ECO-POL-28	male	Intensive Care Unit	pus	gastrointestinal bleeding, gastric ulcer	cefoperazone sodium/sulbactam sodium, linezolid
ECO-POL-29	male	General Surgery Department	ascitic puncture fluid	post-appendectomy for appendiceal cancer, colonic lesion	imipenem/cilastatin
ECO-POL-30	male	Trauma and Orthopedics	secretion	hemorrhagic shock	cefotaxime
