Seismic bearing capacity of shallow strip footing embedded in slope resting on two-layered soil

Debnath, Litan

doi:10.2478/sgem-2021-0021

Figures & Tables

Figure 1

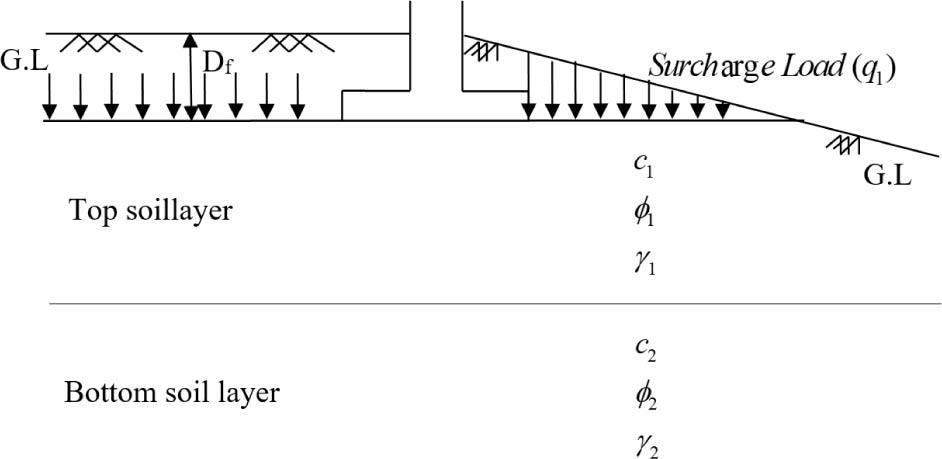

Geometry of footing on two-layered soil profile.

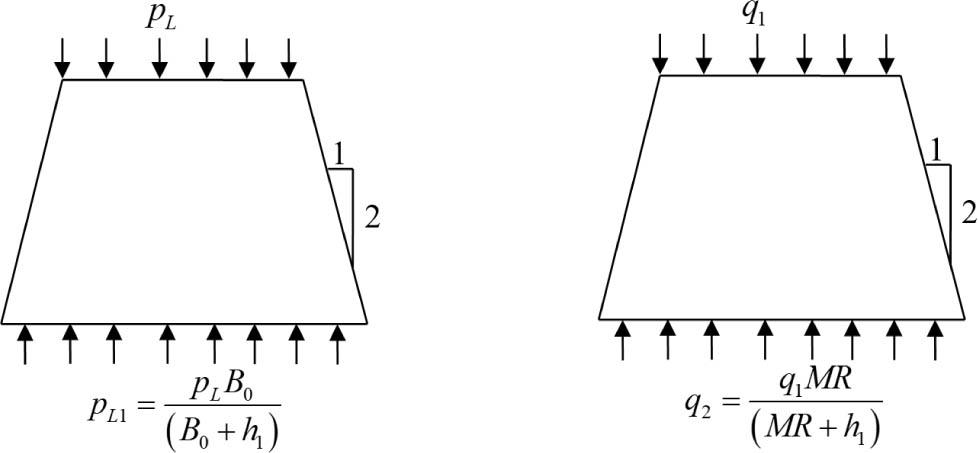

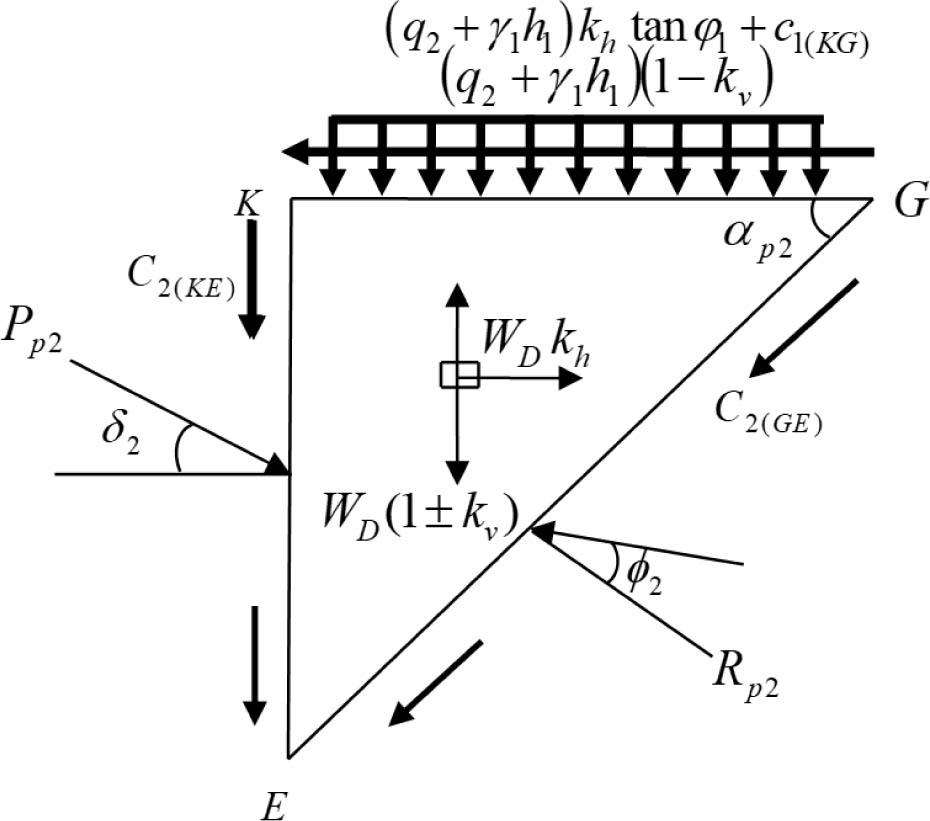

Failure mechanism and wedges assumed in present analysis.

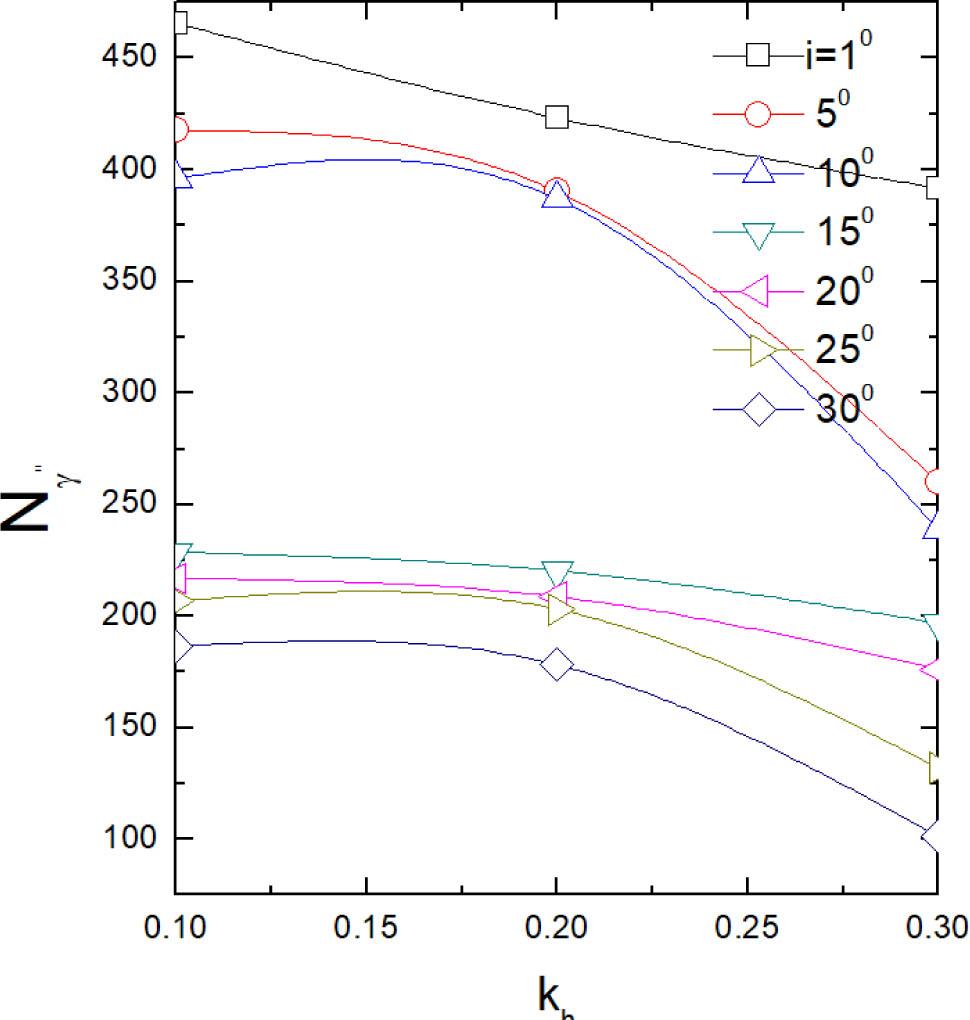

Design chart of Bearing capacity coefficient at φ2 = 30°, δ2 = φ2/2, i = 150, δ1/δ2 = 0.8, kv = kh/2, γ1/γ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, 2c2/B0γ2 = 0.2, c1/c2 = 0.8.

Design chart of Bearing capacity coefficient at φ2 = 40°, δ2 = φ2/2, i = 150, δ1/δ2 = 0.8, kv = kh/2, γ1/γ2 = 0.8, Df/B0 = 1, h1/B0 = 0.25, 2c2/B0γ2 = 0.2, c1/c2 = 0.8

Schematic structure of a particle in PSO (Kalatehjari 2013).

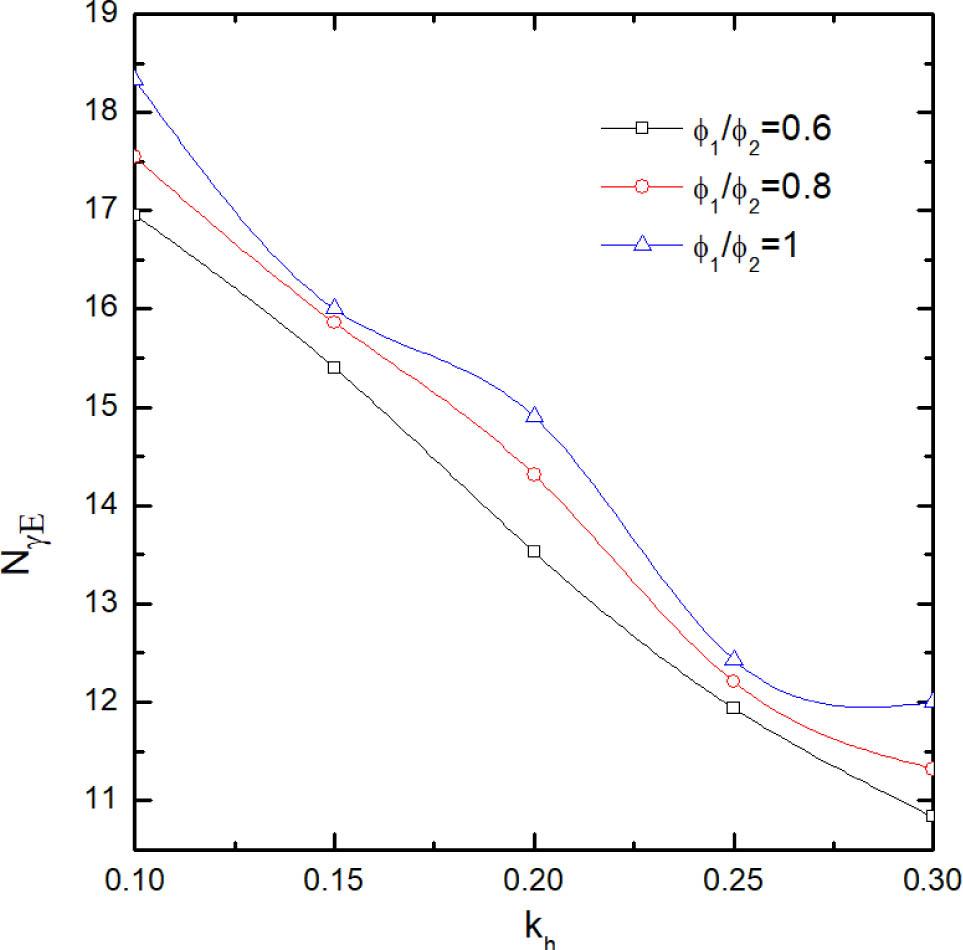

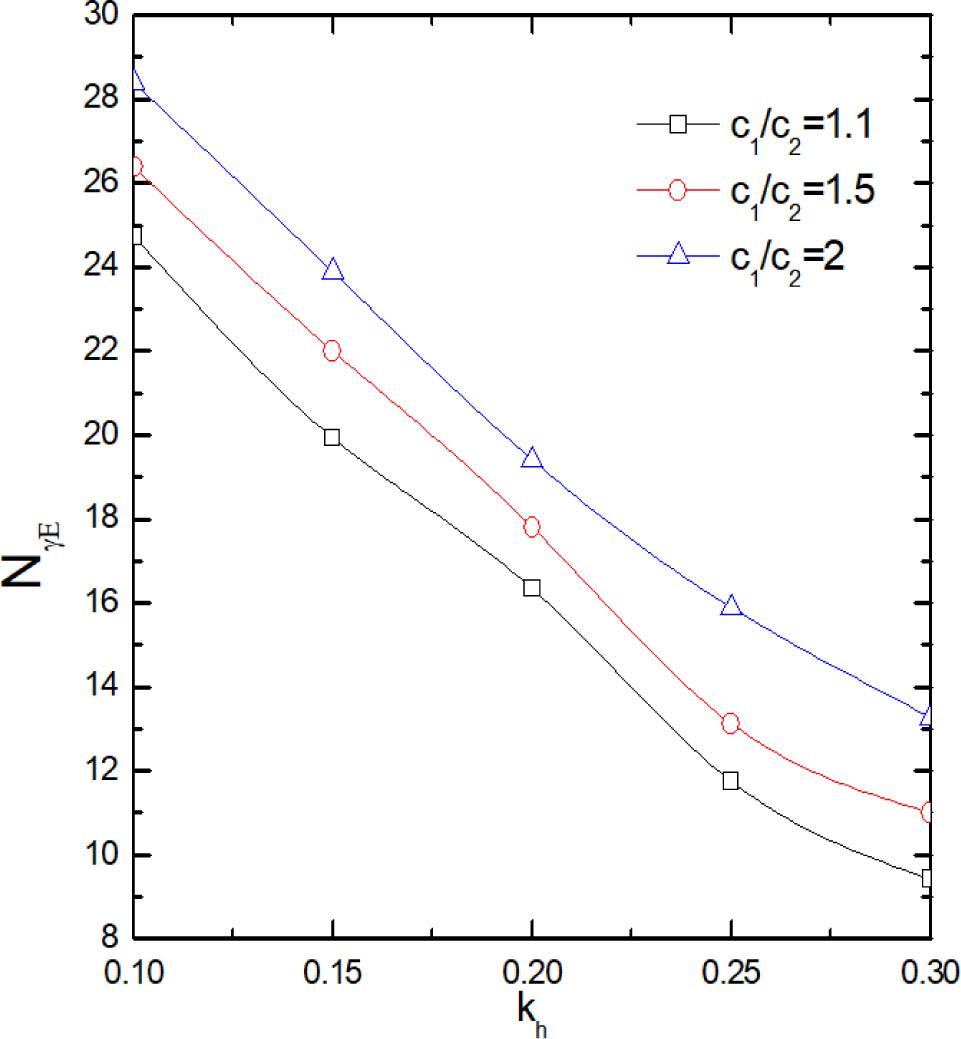

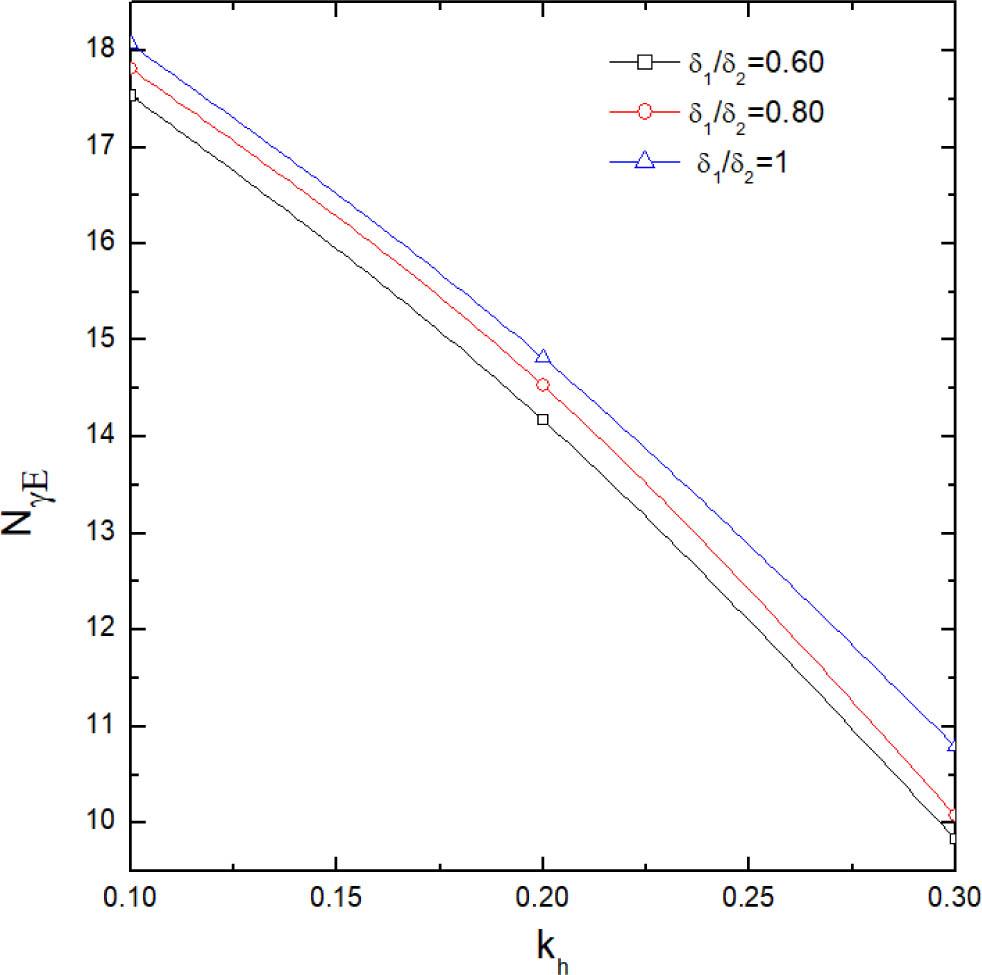

Variation of NγE with kh for φ2 = 30°, δ2 = φ2/2, φ1/φ2 = 0.8, δ1/δ2 = 0.8, kv = kh/2, γ1/γ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, 2c2/B0γ2 = 0.2, c1/c2 = 0.8.

Variation of NγE with kh for φ2 = 30°, δ2 = φ2/2, i = 150, δ1/δ2 = 0.8, kv = kh/2, γ1/γ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, 2c2/B0γ2 = 0.2, c1c2 = 0.8.

Variation of NγE with kh for φ2 = 300, δ2 = φ2/2, i = 150, δ1/δ2 = 0.8, kV = kh/2, φ1/φ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, 2c2/B0γ2 = 0.2, c1/c2 = 0.8.

Variation of NγE with kh for φ2 = 30°, δ2 = φ2/2, i = 15, δ1/δ2 = 0.8, kv = kh/2, φ1/φ2 = 0.8, Df/B0 = 0.5, γ1/γ2 = 0.80, 2c2/B0γ2 = 0.2, c1/c2 = 0.8.

Variation of NγE with kh for φ2 = 30°, δ2 = φ2/2 i = 150, c2/c2 = 0.8, kV = kh/2, φ1/φ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, γ1/γ2 = 0.8.

Variation of NγE with kh for φ2 = 30, δ2 = φ2/2, Df/B0 = 0.5 i = 20°, h1/B0 = 0.25, γ1/γ2 = 0.8, δ1/δ2 = 0.8, φ1/φ2 = 0.8, 2c2/B0γ2 = 0, c1/c2 = 0.

Variation of NγE with kh for φ2 = 30°, δ2 = φ2/2 i = 150, δ1/δ2 = 0.8, kV = kh/2, φ1/φ2 = 0.8, Df/B0 = 0.5, h1/B0 = 0.25, γ1/γ2 = 0.8.

Variation of NγE with kh for φ2 = 20°, δ2 = φ2/2, i = 20° δ1/δ2 = 1.1, kv = kh/2, γ1/γ2 = 1.1, Df/B0 = 0.50, 2c2/B0γ2, = 0, c1/c2 = 0.

Variation of NγE with kh for φ2 = 30°, i = 20°, δ2 = φ2/2, h1/B0 = 0.25, δ1/δ2 = 1.1, kv = kh/2, φ1/φ2 = 1.1, D/B0 = 0.50, 2c2/B0γ2 = 0, c1/c2 = 0.

Variation of NγE with kh for φ2 = 30°, i = 20°, δ2 = φ2/2, h1/B0 = 0.25, δ1/δ2 = 1.1, kv = kh/2, φ1/φ2 = 1.1, D/B0 = 0.50, γ1/γ2 = 1.1.

Comparison of variation in static bearing capacity coefficients (NCS) with c1/c2 for i = 300.

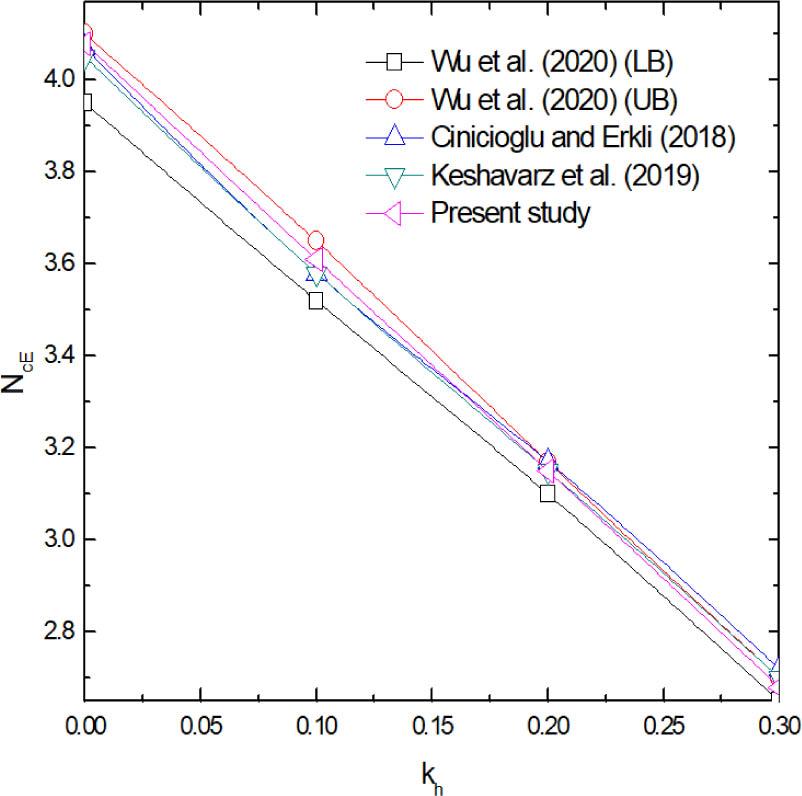

Comparison of seismic bearing capacity coefficients (NcE) with kh for Df/B0 = 0, i = 30°, c1/c2 = 1.

Undrained seismic bearing capacity Ncs for strip footing placed adjacent to two layered slope with i=15°_

k_h	D_f/B₀	c₁/c₂	c₁/γB₀				k_h	D_f/B₀	c₁/c₂	c₁/γB₀

			1	2	4	6				1	2	4	6
0	0.25	0.25	5.52	5.54	5.56	5.56	0	0.50	0.25	4.54	4.60	4.62	4.64
		0.5	5.52	5.54	5.56	5.56			0.5	4.52	4.60	4.61	4.63
		0.75	5.42	5.37	5.43	5.46			0.75	4.52	4.60	4.60	4.62
		1	4.74	4.40	4.41	4.42			1	4.36	4.42	4.44	4.47
		1.5	3.05	3.17	3.22	3.22			1.5	3.32	3.45	3.52	3.54
		2	2.4	2.52	2.58	2.6			2	1.55	2.82	2.90	2.92
		3	-	1.80	1.85	1.88			3	–	2.12	2.22	2.24
		4	-	0.6	1.51	1.53			4	–	0.91	1.84	1.90
		5	-	–	1.29	1.31			5	–	–	1.61	1.64
	0.75	0.25	4.50	4.46	4.25	4.49		1	0.25	4.40	4.49	4.52	4.53
		0.5	4.5	4.48	4.53	4.59			0.5	4.39	4.49	4.52	4.53
		0.75	4.4	4.4	4.54	4.58			0.75	4.38	4.49	4.52	4.53
		1	4.35	4.2	4.45	4.49			1	4.38	4.44	4.47	4.48
		1.5	4.05	3.84	3.93	3.96			1.5	3.88	4.2	4.3	4.33
		2	3.45	3.24	3.36	3.4			2	1.87	3.62	3.76	3.82
		3	-	2.44	2.62	2.68			3	–	2.7	3.07	3.13
		4	-	1.12	2.20	2.28			4	–	1.38	2.64	2.71
		5	-	–	1.92	2.0			5	–	–	2.27	2.42
	1.25	0.25	4.42	4.46	4.50	4.52		1.5	0.25	4.44	4.50	4.52	4.53
		0.5	4.41	4.43	4.48	4.51			0.5	4.41	4.49	4.52	4.53
		0.75	4.40	4.42	4.47	4.50			0.75	4.41	4.49	4.52	4.54
		1	4.39	4.41	4.45	4.48			1	4.38	4.44	4.47	4.48
		1.5	4.01	3.59	3.74	3.85			1.5	4.17	4.49	4.52	4.44
		2	3.67	3.2	3.42	3.45			2	2.34	4.18	4.31	4.37
		3	-	2.64	2.92	2.97			3	–	3.1	3.54	3.74
		4	-	1.67	2.59	2.67			4	–	1.92	3.3	3.43
		5	-	–	2.36	2.48			5	–	–	2.87	3.12
0.1	0.25	0.25	4.84	4.79	4.8	4.81	0.1	0.5	0.25	4.12	4.2	4.23	4.24
		0.5	4.82	4.78	4.8	4.81			0.5	4.13	4.2	4.24	4.24
		0.75	4.64	4.79	4.8	4.81			0.75	4.13	4.2	4.24	4.24
		1	4.12	4.15	4.2	4.21			1	4.06	4.15	4.19	4.21
		1.5	-	3.03	3.09	3.11			1.5	–	3.37	3.46	3.5
		2	-	2.42	2.49	2.51			2	–	2.76	2.87	2.91
		3	-	–	1.82	1.87			3	–	–	2.21	2.25
		4	-	–	1.47	1.51			4	–	–	1.85	1.89
		5	-	–	–	1.28			5	–	–	–	1.65
	0.75	0.25	4.11	4.14	4.18	4.2		1	0.25	4.06	4.15	4.18	4.19
		0.5	4.08	4.13	4.18	4.19			0.5	4.05	4.14	4.19	4.19
		0.75	4.06	4.14	4.18	4.19			0.75	4.04	4.13	4.18	4.19
		1	4.04	4.15	4.2	4.21			1	4.02	4.11	4.14	4.17
		1.5	-	3.74	3.85	3.89			1.5	–	4.07	4.18	4.2
		2	-	3.13	3.31	3.36			2	–	3.48	3.71	3.79
		3	-	–	2.61	2.68			3	–	–	3.01	3.1
		4	-	–	2.14	2.28			4	–	–	2.34	2.67
		5	-	–	–	2.02			5	–	–	–	2.38
	1.25	0.25	4.08	4.14	4.18	4.19		1.5	0.25	4.05	4.14	4.18	4.19
		0.5	4.06	4.14	4.18	4.2			0.5	4.04	4.14	4.18	4.19
		0.75	4.05	4.13	4.18	4.19			0.75	4.05	4.14	4.18	4.19
		1	4.04	4.15	4.2	4.21			1	4.06	4.14	4.19	4.2
		1.5	-	4.14	4.19	4.2			1.5	–	4.14	4.19	4.2
		2	-	3.84	4.07	4.16			2	–	3.95	4.18	4.2
		3	-	–	3.37	3.48			3	–	–	3.67	3.82
		4	-	–	2.54	3.05			4	–	–	2.72	3.38
		5	-	–	–	2.68			5	–	–	–	2.98

Comparison of the variation in Ncs for i=15°_

h₁/B₀	D_f/B₀	c₁/c₂	Xiao et al. (2019)				Present study

			c₁/γB₀				c₁/γB₀

			1	2	4	6	1	2	4	6
0.5	0.25	0.25	5.71	5.73	5.74	5.74	5.68	5.70	5.71	5.72
		0.5	5.71	5.73	5.74	5.74	5.68	5.70	5.71	5.72
		0.75	5.53	5.57	5.58	5.59	5.49	5.55	5.56	5.57
		1	4.51	4.58	4.61	4.63	4.49	4.53	4.58	4.60
	0.50	0.25	4.70	4.75	4.77	4.77	4.68	4.71	4.74	4.74
		0.5	4.70	4.75	4.77	4.77	4.68	4.72	4.75	4.75
		0.75	4.70	4.74	4.77	4.77	4.68	4.71	4.75	4.75
		1	4.51	4.57	4.61	4.62	4.45	4.51	4.59	4.59
1	0.25	0.25	5.71	5.73	5.73	5.75	5.68	5.70	5.71	5.72
		0.5	5.71	5.73	5.73	5.74	5.68	5.70	5.70	5.71
		0.75	5.52	5.57	5.58	5.59	5.50	5.55	5.56	5.57
		1	4.51	4.58	4.61	4.63	4.48	4.55	4.59	4.61
	0.50	0.25	4.70	4.75	4.77	4.78	4.68	4.72	4.74	4.75
		0.5	4.71	4.75	4.77	4.78	4.67	4.74	4.75	4.76
		0.75	4.70	4.75	4.77	4.78	4.66	4.74	4.74	4.75
		1	4.51	4.58	4.62	4.62	4.49	4.55	4.60	4.61
2	0.25	0.25	5.71	5.73	5.74	5.73	5.69	5.72	5.72	5.73
		0.5	5.71	5.73	5.74	5.74	5.69	5.71	5.72	5.73
		0.75	5.52	5.57	5.58	5.59	5.50	5.55	5.56	5.57
		1	4.51	4.58	4.62	4.63	5.49	5.53	5.54	5.55
	0.50	0.25	4.70	4.74	4.77	4.79	4.69	4.72	4.75	4.77
		0.5	4.70	4.76	4.77	4.77	4.68	4.70	4.73	4.75
		0.75	4.70	4.74	4.76	4.78	4.67	4.68	4.70	4.72
		1	4.51	4.58	4.61	4.62	4.47	4.54	4.59	4.60
3	0.25	0.25	5.70	5.73	5.74	5.74	5.69	5.71	5.72	5.72
		0.5	5.70	5.73	5.74	5.74	5.69	5.71	5.72	5.72
		0.75	5.52	5.56	5.58	5.58	5.50	5.55	5.56	5.57
		1	4.51	4.58	4.61	4.62	4.48	4.55	4.58	4.60
	0.50	0.25	4.71	4.75	4.77	4.78	4.69	4.72	4.74	4.77
		0.5	4.70	4.75	4.77	4.78	4.68	4.72	4.74	4.77
		0.75	4.70	4.75	4.77	4.77	4.67	4.71	4.73	4.73
		1	4.51	4.58	4.61	4.63	4.49	4.55	4.59	4.60

Comparison of the variation in Ncs for i=30°_

h₁/B₀	D_f/B₀	c₁/c₂	Xiao et al. (2019)				Present study

			c₁/γB₀				c₁/γB₀

			1	2	4	6	1	2	4	6
0.5	0.25	0.25	5.15	5.20	5.23	5.23	5.11	5.16	5.21	5.21
		0.5	5.15	5.20	5.22	5.23	5.11	5.16	5.21	5.20
		0.75	4.86	4.95	5.00	5.01	4.81	4.88	4.91	4.96
		1	3.88	4.01	4.07	4.09	3.82	4.01	4.03	4.05
	0.50	0.25	4.09	4.18	4.23	4.24	4.05	4.16	4.20	4.21
		0.5	4.09	4.18	4.23	4.24	4.02	4.14	4.18	4.20
		0.75	4.09	4.18	4.23	4.24	4.01	4.12	4.16	4.18
		1	3.88	4.00	4.07	4.09	3.84	3.95	4.02	4.05
1	0.25	0.25	5.15	5.20	5.22	5.23	5.10	5.15	5.20	5.21
		0.5	5.15	5.20	5.22	5.23	5.09	5.13	5.19	5.20
		0.75	4.85	4.95	5.00	5.01	4.80	4.85	4.90	4.93
		1	3.83	3.99	4.06	4.08	3.80	3.92	3.99	4.01
	0.50	0.25	4.10	4.19	4.24	4.25	4.07	4.11	4.20	4.22
		0.5	4.10	4.19	4.23	4.25	4.05	4.10	4.19	4.20
		0.75	4.10	4.19	4.23	4.25	4.04	4.10	4.18	4.19
		1	3.83	3.99	4.06	4.08	3.80	3.95	4.04	4.06
2	0.25	0.25	5.15	5.20	5.22	5.23	5.11	5.17	5.20	5.21
		0.5	5.15	5.20	5.22	5.23	5.10	5.17	5.20	5.21
		0.75	4.85	4.95	5.00	5.01	4.82	4.90	4.96	4.99
		1	3.83	3.99	4.06	4.08	3.81	3.95	4.01	4.04
	0.50	0.25	4.09	4.19	4.23	4.25	4.07	4.15	4.20	4.22
		0.5	4.09	4.19	4.23	4.25	4.05	4.14	4.20	4.21
		0.75	4.09	4.19	4.23	4.25	4.05	4.14	4.20	4.21
		1	3.82	3.98	4.05	4.07	3.80	3.94	4.01	4.04
3	0.25	0.25	5.16	5.20	5.22	5.23	5.11	5.18	5.20	5.21
		0.5	5.16	5.20	5.22	5.23	5.11	5.17	5.20	5.21
		0.75	4.85	4.95	5.00	5.01	4.81	4.92	4.99	5.00
		1	3.83	3.99	4.06	4.08	3.80	3.96	4.03	4.06
	0.50	0.25	4.10	4.19	4.23	4.25	4.07	4.15	4.20	4.23
		0.5	4.09	4.19	4.23	4.24	4.06	4.14	4.20	4.22
		0.75	4.10	4.19	4.23	4.24	4.05	4.12	4.18	4.20
		1	3.83	3.99	4.06	4.08	3.80	3.93	4.03	4.06

Undrained seismic bearing capacity Ncs for strip footing placed adjacent to two layered slope with i=30°_

k_h	D_f/B₀	c₁/c₂	c₁/γB₀				k_h	D_f/B₀	c₁/c₂	c₁/γB₀

			1	2	4	6				1	2	4	6
0	0.25	0.25	5.12	5.16	5.18	5.19	0	0.5	0.25	4.06	4.14	4.21	4.23
		0.5	5.12	5.16	5.18	5.19			0.5	4.05	4.13	4.19	4.22
		0.75	4.82	4.91	4.96	4.97			0.75	4.03	4.11	4.17	4.20
		1	3.8	3.96	4.03	4.05			1	3.8	3.96	4.06	4.08
		1.5	2.23	2.81	2.9	2.93			1.5	2.32	3.01	3.10	3.12
		2	–	2.18	2.3	2.33			2	–	2.45	2.61	2.65
		3	–	1.25	1.68	1.72			3	–	1.44	2	2.06
		4	–	–	1.33	1.38			4	–	–	1.65	1.72
		5	–	–	1	1.17			5	–	–	1.24	1.5
	0.75	0.25	3.82	3.97	4.06	4.09		1	0.25	3.80	3.92	4.04	4.06
		0.5	3.83	3.97	4.06	4.09			0.5	3.80	3.92	4.04	4.06
		0.75	3.82	3.97	4.07	4.09			0.75	3.80	3.91	4.04	4.06
		1	3.8	3.96	4.06	4.09			1	3.82	3.96	4.03	4.05
		1.5	2.51	3.25	3.37	3.41			1.5	2.64	3.44	3.59	3.64
		2	–	2.73	2.9	2.95			2	–	2.96	3.17	3.23
		3	–	1.67	2.31	2.38			3	–	1.86	2.56	2.67
		4	–	–	1.92	2.05			4	–	–	2.17	2.34
		5	–	–	1.5	1.8			5	–	–	1.74	2.07
	1.25	0.25	3.83	3.96	4.03	4.06		1.5	0.25	3.8	3.96	4.03	4.05
		0.5	3.83	3.96	4.03	4.05			0.5	3.79	3.96	4.02	4.04
		0.75	3.83	3.96	4.03	4.05			0.75	3.8	3.96	4.03	4.05
		1	3.83	3.96	4.03	4.05			1	3.8	3.96	4.03	4.05
		1.5	2.74	3.65	3.84	3.9			1.5	2.8	3.84	4.01	4.04
		2	–	3.2	3.45	3.53			2	–	3.41	3.71	3.8
		3	–	2.1	2.9	3.02			3	–	2.33	3.18	3.32
		4	–	–	2.43	2.64			4	–	–	2.69	2.94
		5	–	–	2.02	2.35			5	–	–	2.28	2.64
0.1	0.25	0.25	4.25	4.31	4.34	4.34	0.1	0.5	0.25	3.57	3.68	3.74	3.76
		0.5	4.25	4.31	4.34	4.35			0.5	3.57	3.69	3.74	3.76
		0.75	4.25	4.31	4.33	4.33			0.75	3.57	3.69	3.74	3.76
		1	3.44	3.6	3.67	3.7			1	3.44	3.61	3.68	3.71
		1.5	–	2.6	2.7	2.73			1.5	–	2.82	2.94	2.97
		2	–	2.03	2.15	2.19			2	–	2.29	2.46	2.5
		3	–	–	1.57	1.61			3	–	–	1.89	1.95
		4	–	–	1.23	1.3			4	–	–	1.48	1.64
		5	–	–	–	1.1			5	–	–	–	1.4
	0.75	0.25	3.45	3.61	3.68	3.7		1	0.25	3.44	3.61	3.68	3.7
		0.5	3.45	3.61	3.68	3.7			0.5	3.44	3.61	3.68	3.7
		0.75	3.45	3.61	3.68	3.7			0.75	3.45	3.61	3.68	3.71
		1	3.45	3.61	3.68	3.7			1	3.45	3.61	3.68	3.7
		1.5	–	3.04	3.18	3.22			1.5	–	3.23	3.44	3.5
		2	–	2.55	2.75	2.81			2	–	2.78	3.04	3.12
		3	–	–	2.2	2.28			3	–	–	2.5	2.62
		4	–	–	1.74	1.96			4	–	–	2.03	2.27
		5	–	–	–	1.74			5	–	–	–	1.97
	1.25	0.25	3.45	3.61	3.68	3.67		1.5	0.25	3.44	3.61	3.68	3.7
		0.5	3.44	3.61	3.68	3.67			0.5	3.44	3.61	3.68	3.7
		0.75	3.44	3.61	3.68	3.67			0.75	3.44	3.61	3.68	3.7
		1	3.45	3.61	3.68	3.7			1	3.45	3.62	3.68	3.7
		1.5	–	3.47	3.68	3.71			1.5	–	3.61	3.68	3.7
		2	–	2.95	3.3	3.38			2	–	3.13	3.59	3.68
		3	–	–	2.76	2.91			3	–	–	3.06	3.24
		4	–	–	2.18	2.54			4	–	–	2.33	2.86
		5	–	–	–	2.22			5	–	–	–	2.53

Comparison of the variation in Ncs for i=45°_

h₁/B₀	D_f/B₀	c₁/c₂	Xiao et al. (2019)				Present study

			c₁/γB₀				c₁/γB₀

			1	2	4	6	1	2	4	6
0.5	0.25	0.25	4.57	4.63	4.66	4.67	4.54	4.60	4.62	4.64
		0.5	4.57	4.64	4.66	4.68	4.53	4.60	4.61	4.63
		0.75	4.23	4.34	4.40	4.41	4.21	4.31	4.37	4.40
		1	3.44	3.57	3.63	3.65	3.41	3.53	3.55	3.59
	0.50	0.25	3.49	3.62	3.67	3.70	3.45	3.58	3.62	3.67
		0.5	3.49	3.61	3.67	3.70	3.44	3.59	3.60	3.67
		0.75	3.49	3.61	3.68	3.70	3.43	3.56	3.59	3.66
		1	3.44	3.57	3.63	3.65	3.42	3.53	3.56	3.64
1	0.25	0.25	4.57	4.63	4.66	4.67	4.55	4.60	4.63	4.65
		0.5	4.57	4.63	4.66	4.68	4.54	4.58	4.62	4.64
		0.75	4.13	4.28	4.35	4.37	4.11	4.25	4.33	4.35
		1	3.16	3.41	3.51	3.54	3.11	3.38	3.50	3.52
	0.50	0.25	3.49	3.61	3.68	3.69	3.45	3.59	3.64	3.67
		0.5	3.49	3.61	3.68	3.69	3.44	3.58	3.63	3.67
		0.75	3.49	3.61	3.68	3.69	3.43	3.57	3.63	3.67
		1	3.16	3.41	3.51	3.54	3.12	3.38	3.50	3.52
2	0.25	0.25	4.58	4.64	4.66	4.68	4.54	4.60	4.62	4.66
		0.5	4.58	4.63	4.67	4.68	4.53	4.60	4.61	4.64
		0.75	4.11	4.28	4.35	4.38	4.10	4.25	4.32	4.32
		1	3.15	3.41	3.50	3.54	3.11	3.40	3.48	3.50
	0.50	0.25	3.49	3.61	3.67	3.69	3.44	3.58	3.62	3.64
		0.5	3.49	3.61	3.68	3.69	3.42	3.56	3.61	3.63
		0.75	3.49	3.61	3.67	3.69	3.41	3.54	3.58	3.61
		1	3.15	3.41	3.51	3.54	3.10	3.36	3.52	3.52
3	0.25	0.25	4.58	4.64	4.67	4.67	4.55	4.62	4.64	4.65
		0.5	4.58	4.63	4.67	4.68	4.54	4.60	4.62	4.64
		0.75	4.11	4.28	4.35	4.37	4.08	4.24	4.31	4.35
		1	3.15	3.40	3.51	3.54	3.12	3.36	3.41	3.48
	0.50	0.25	3.49	3.61	3.67	3.69	3.44	3.60	3.62	3.65
		0.5	3.48	3.61	3.67	3.69	3.43	3.60	3.61	3.63
		0.75	3.49	3.61	3.67	3.67	3.42	3.58	3.60	3.63
		1	3.15	3.40	3.51	3.54	3.13	3.38	3.49	3.51

Comparison of variation of seismic bearing capacity (quE) KN/m2 with γ (KN/m3) for the case of φ = 30°, c = 9_8KN/m2, i = 20°, B0 = 10m_

	Sawada et al. (1994)		Askari and Farzaneh (2003)		Yamamoto (2010)		Present Analysis
k_h	γ=9.8	γ=19.8	γ=9.8	γ=19.8	γ=9.8	γ=19.8	γ=9.8	γ=19.8
0.1	1798	3321	1066	1856	1013	1795	1614.14	3139.92
0.2	1770	3269	829	1307	755	1283	654	1167

Comparison of the variation in Ncs with different kh and c1/c2 for i=0° and Df/B0_

k_h	N_cs (Present study)			N_cs (Jahani et al. 2019)

	c₁/c₂=0.25	c₁/c₂=0.50	c₁/c₂=0.75	c₁/c₂=0.25	c₁/c₂=0.50	c₁/c₂=0.75
0	5.62	3.94	3.06	5.67	4	3.1
0.1	5.20	3.48	2.75	5.25	3.58	2.73
0.2	4.04	3.04	2.37	4.44	3.12	2.4
0.3	3.38	2.65	2.12	3.47	2.7	2.15

Comparison of the variation in Ncs with different cu/γB0, Df/B0, c1/c2 for i=30°_

c_u/γB₀	N_cs (Present study)				N_cs (Wu et al. 2020)

	D_f/B₀=0.5, c₁/c₂=0.5	D_f/B₀=1.5, c₁/c₂=0.5	D_f/B₀=1.5, c₁/c₂=1.5	D_f/B₀=0.5, c₁/c₂=1.5	D_f/B₀=0.5, c₁/c₂=0.5	D_f/B₀=1.5, c₁/c₂=0.5	D_f/B₀=1.5, c₁/c₂=1.5	D_f/B₀=0.5, c₁/c₂=1.5
1	4.06	3.78	2.78	2.34	4.05	3.79	2.8	2.34
2	4.15	3.92	3.05	2.95	4.16	3.96	3.01	3.01
4	4.20	4.02	3.11	3.04	4.19	4.02	3.12	3.12
6	4.22	4.04	3.22	3.10	4.2	4.04	3.15	3.15
8	4.24	4.06	3.23	3.14	4.21	4.05	3.17	3.17
10	4.25	4.08	3.24	3.16	4.22	4.6	3.17	3.17

Seismic bearing capacity of shallow strip footing embedded in slope resting on two-layered soil

Figures & Tables

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

Figure 21

Figure 22

Figure 23

Undrained seismic bearing capacity Ncs for strip footing placed adjacent to two layered slope with i=15°_

Comparison of the variation in Ncs for i=15°_

Comparison of the variation in Ncs for i=30°_

Undrained seismic bearing capacity Ncs for strip footing placed adjacent to two layered slope with i=30°_

Comparison of the variation in Ncs for i=45°_

Comparison of variation of seismic bearing capacity (quE) KN/m2 with γ (KN/m3) for the case of φ = 30°, c = 9_8KN/m2, i = 20°, B0 = 10m_

Comparison of the variation in Ncs with different kh and c1/c2 for i=0° and Df/B0_

Comparison of the variation in Ncs with different cu/γB0, Df/B0, c1/c2 for i=30°_

Paradigm

My account
