EM Design, Realization and Measurement of a Hexagonal SIW-Based Bandpass Filter for Wireless Communication Cover

EM Design, Realization and Measurement of a Hexagonal SIW-Based Bandpass Filter for Wireless Communication

Measurement Science Review
Volume 26 (2026): Issue 2 (April 2026)
By: Abdelhakim Boudkhil,  Mehdi Damou,  Mohammed Chetioui,  Keltouma Nouri,  Slimane Gouni and  Mustafa Secmen
Open Access
|Mar 2026

Figures & Tables

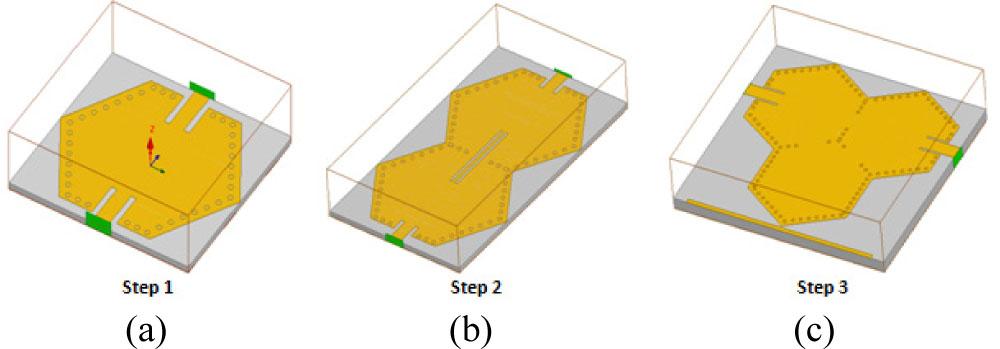

Fig. 1.

Different steps to design the third-order bandpass hexagonal SIW filter with cross-coupling.

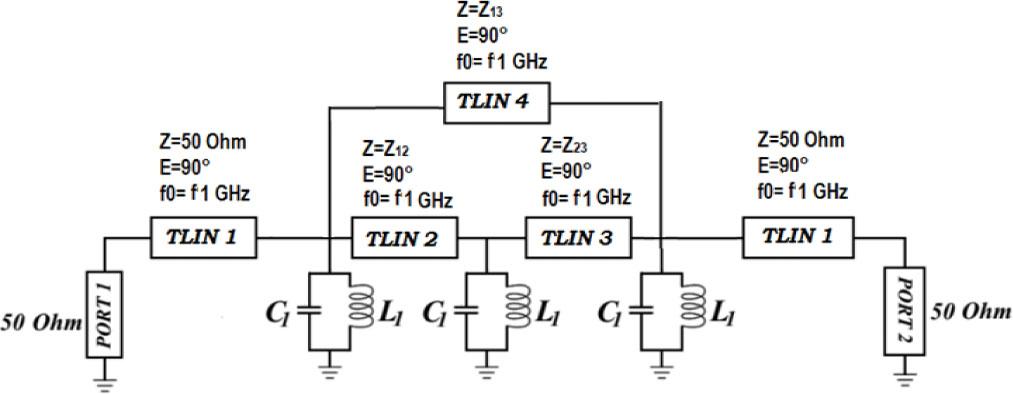

Fig. 2.

Total equivalent circuit of the third-order bandpass hexagonal SIW filter with cross-coupling.

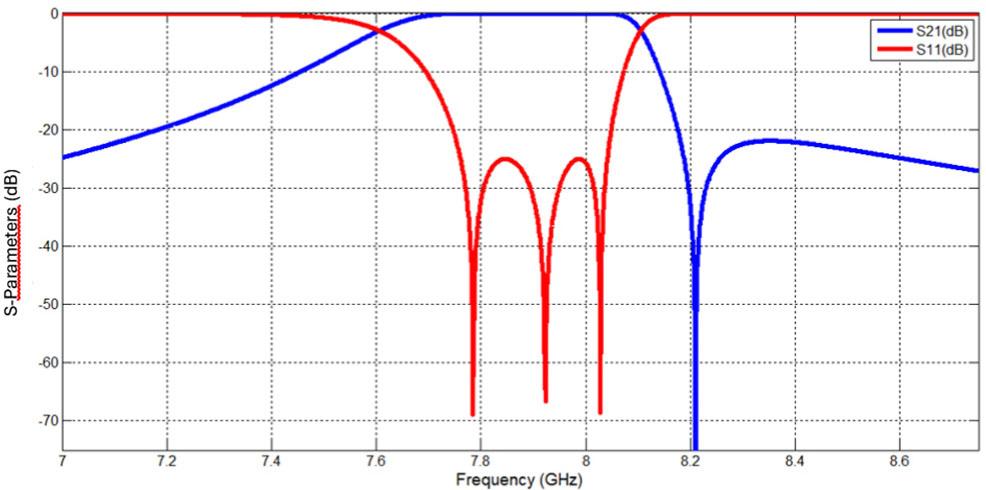

Fig. 3.

Optimal EM response for a single-band BPF with a single TZ in the upper stopband.

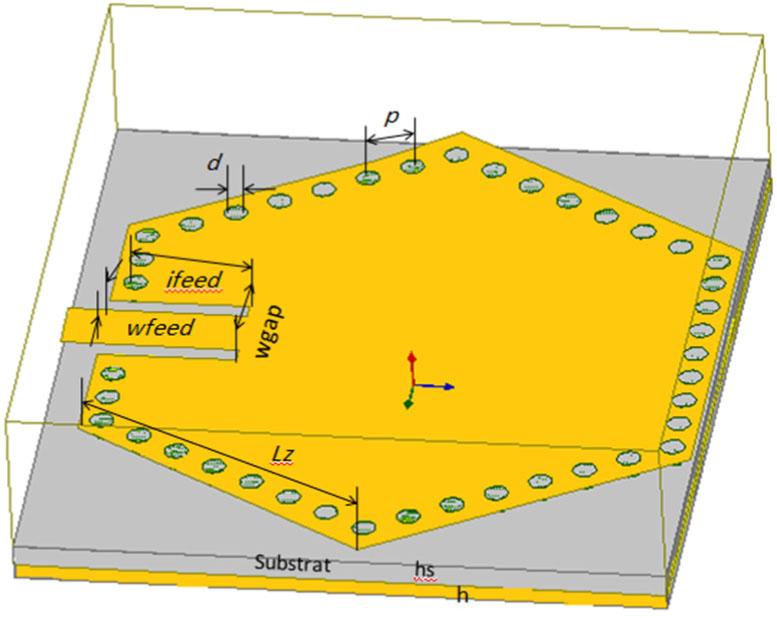

Fig. 4.

Initial configuration of a first-order hexagonal SIW filter.

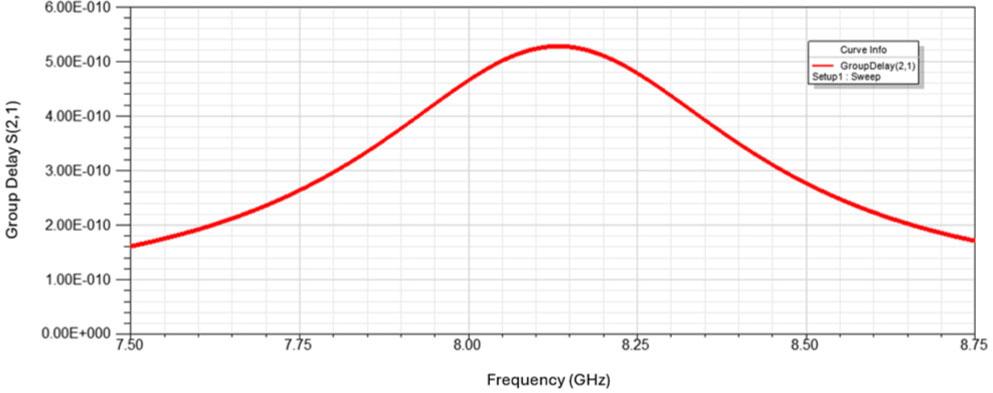

Fig. 5.

Group delay of the first hexagonal SIW resonator after optimization (p = 1.05 mm, d = 5 mm, wgap = 1.5 mm, Ifeed = 2.8 mm, Wfeed = 2.8 mm, Lz = 8.4 mm).

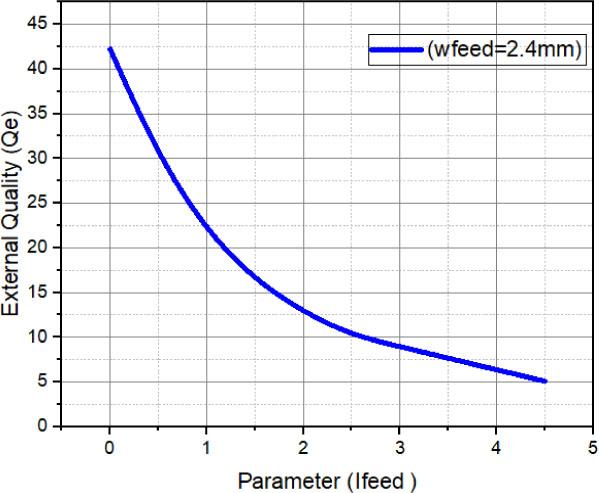

Fig. 6.

Quality factor of a resonator Qe versus wfeed of the first hexagonal SIW resonator.

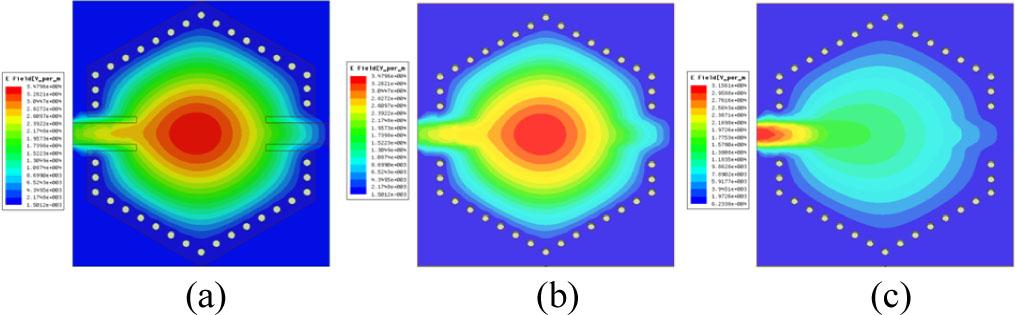

Fig. 7.

Representation of the electric field distribution of the fundamental modes in a hexagonal cavity resonator at f = 8 GHz, (a) φ = 90°, (b) φ = 65°, (c) φ = 45°.

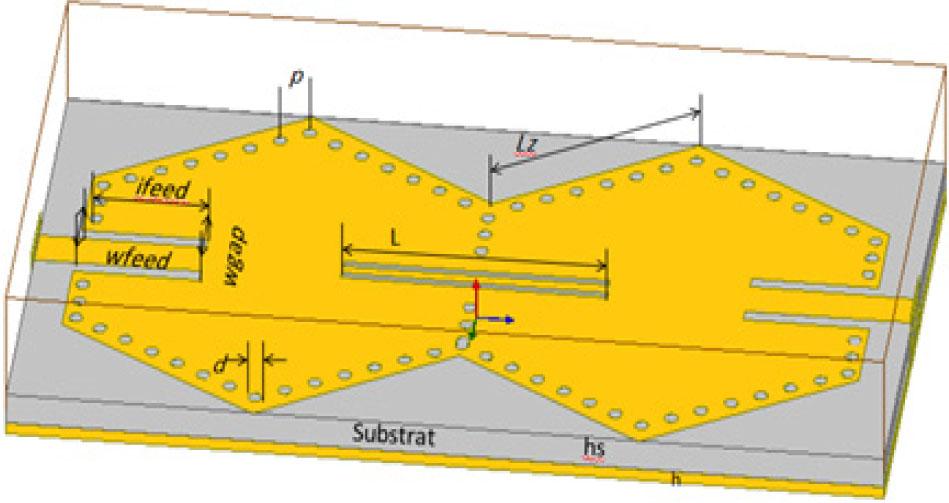

Fig. 8.

The second-order bandpass hexagonal SIW-DGS filter employing mixed coupling (Lz = 8.4 mm, Ifeed = 1.5 mm, wfeed = 2.8 mm, wgap = 1.5 mm, d = 0.6 mm, p = 1 mm, g13 = 5 mm, L = 10 mm, w = 0.5 mm, s = 0.45 mm).

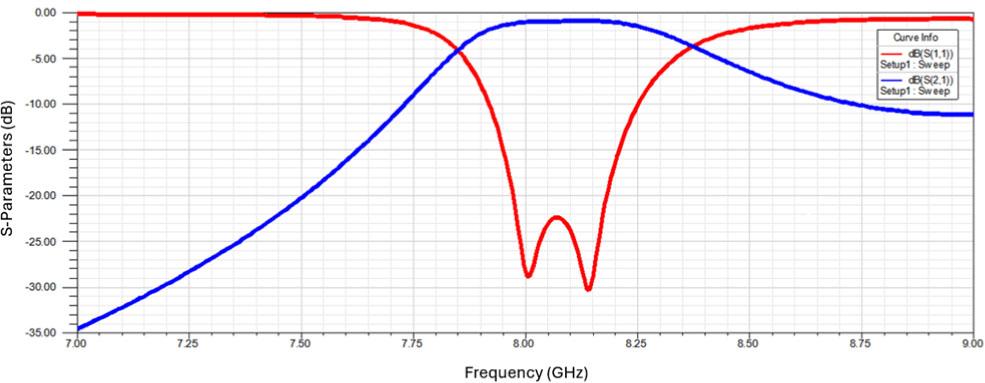

Fig. 9.

S-parameters of the proposed conventional SIW-DGS filter.

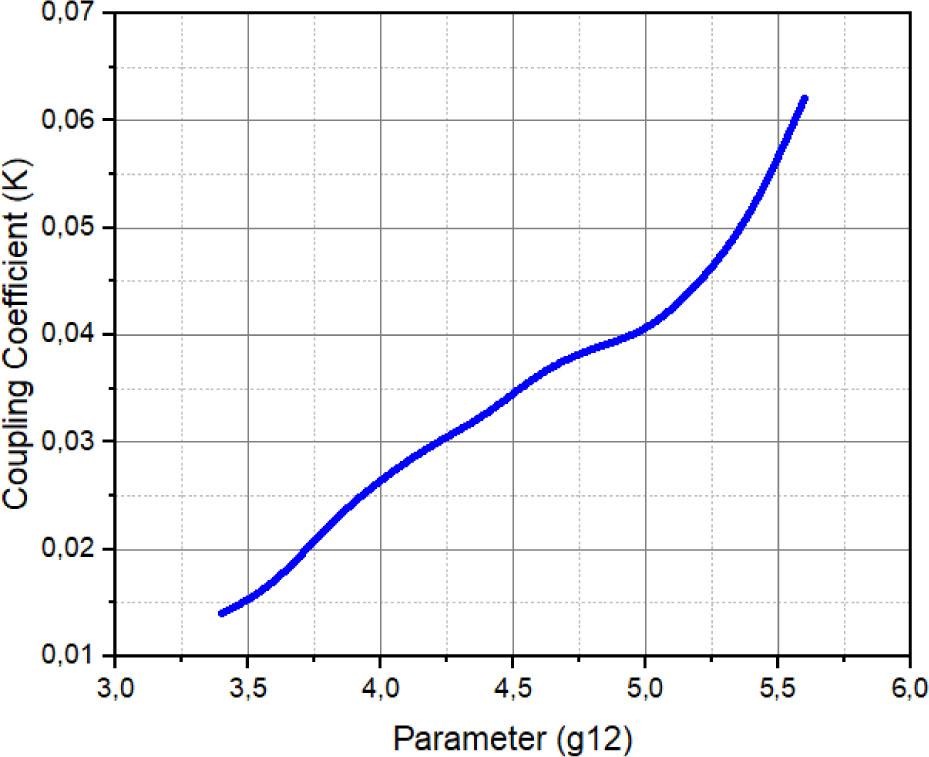

Fig. 10.

Extracted coupling coefficient K versus g12 for the second-order bandpass hexagonal SIW-DGS filter.

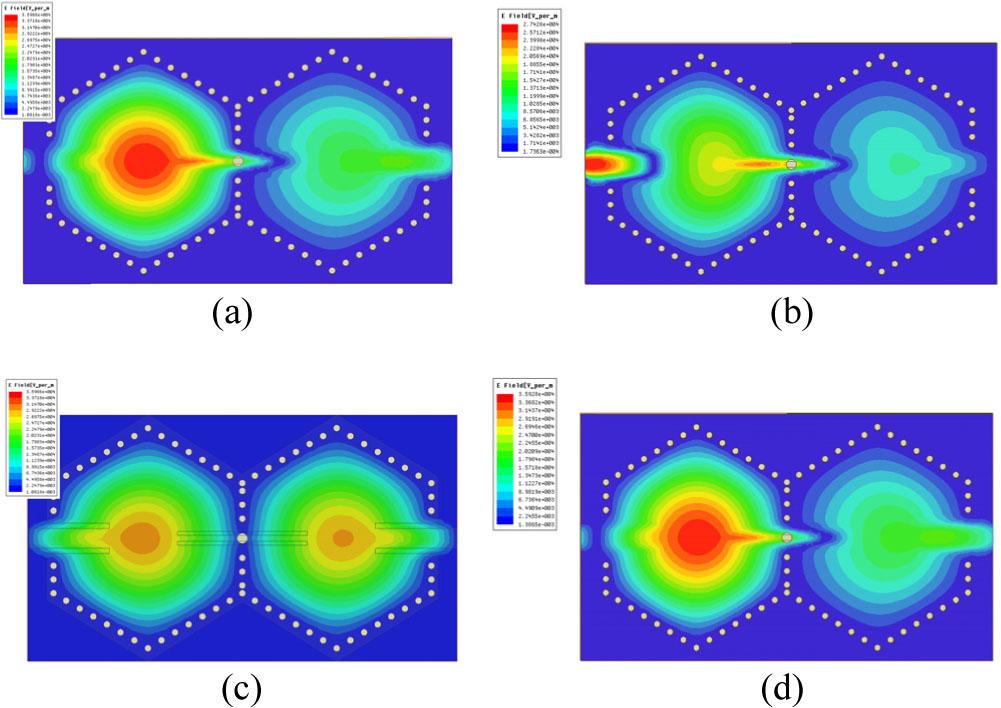

Fig. 11.

Representation of the electric field distribution of the second-order hexagonal SIW-DGS filter at f = 8 GHz, (a) φ = 0°, (b) φ = 45°, (c) φ = 90°, (d) φ = 180°.

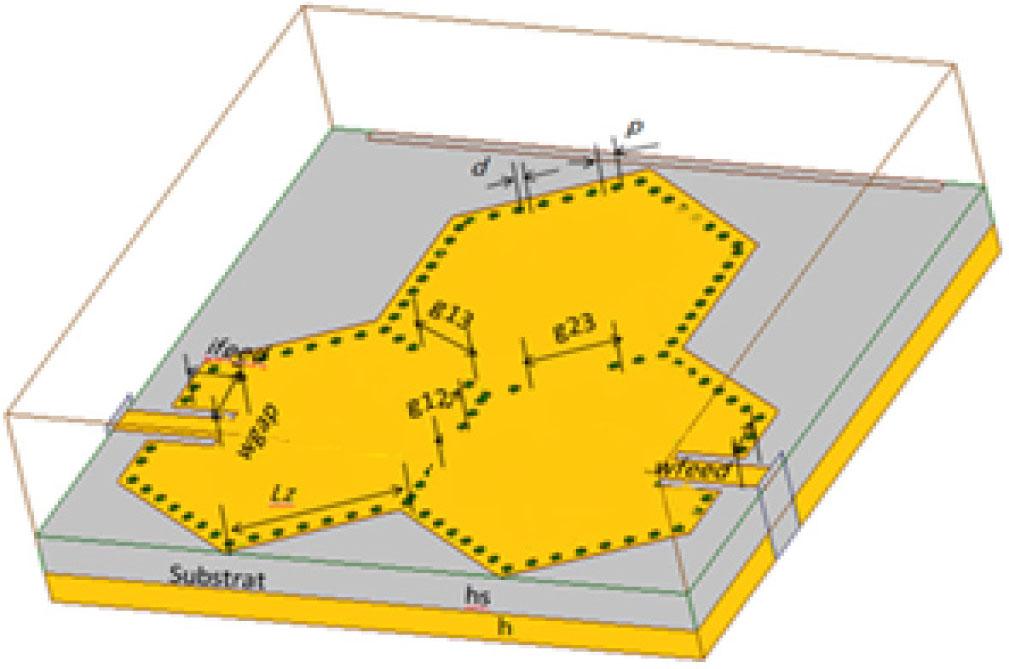

Fig. 12.

The third-order bandpass hexagonal SIW-DGS filter design with cross-coupling.

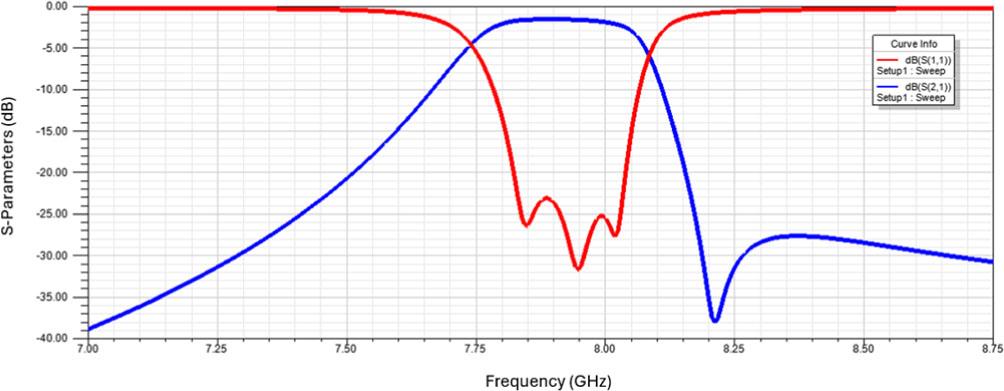

Fig. 13.

EM response for the third-order bandpass hexagonal SIW-DGS filter with cross-coupling.

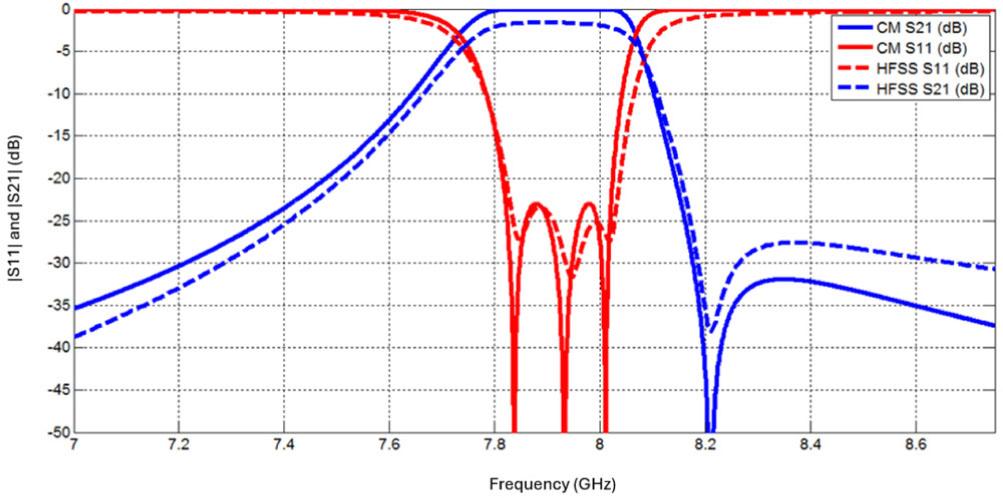

Fig. 14.

Comparison of the EM response of the third-order bandpass hexagonal SIW-DGS filter extracted using CM and HFSS.

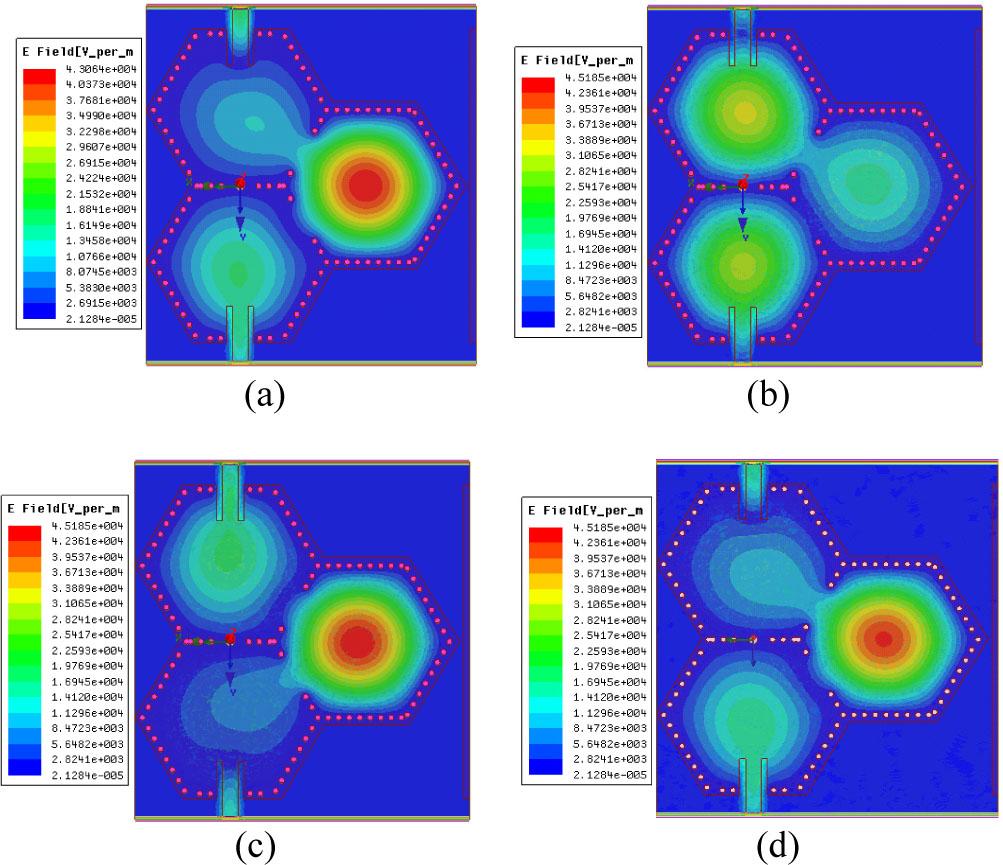

Fig. 15.

Simulated electric field distributions at the resonance frequency at f = 8 GHz, (a) φ = 0°, (b) φ = 45°, (c) φ = 90°, (d) φ = 180°.

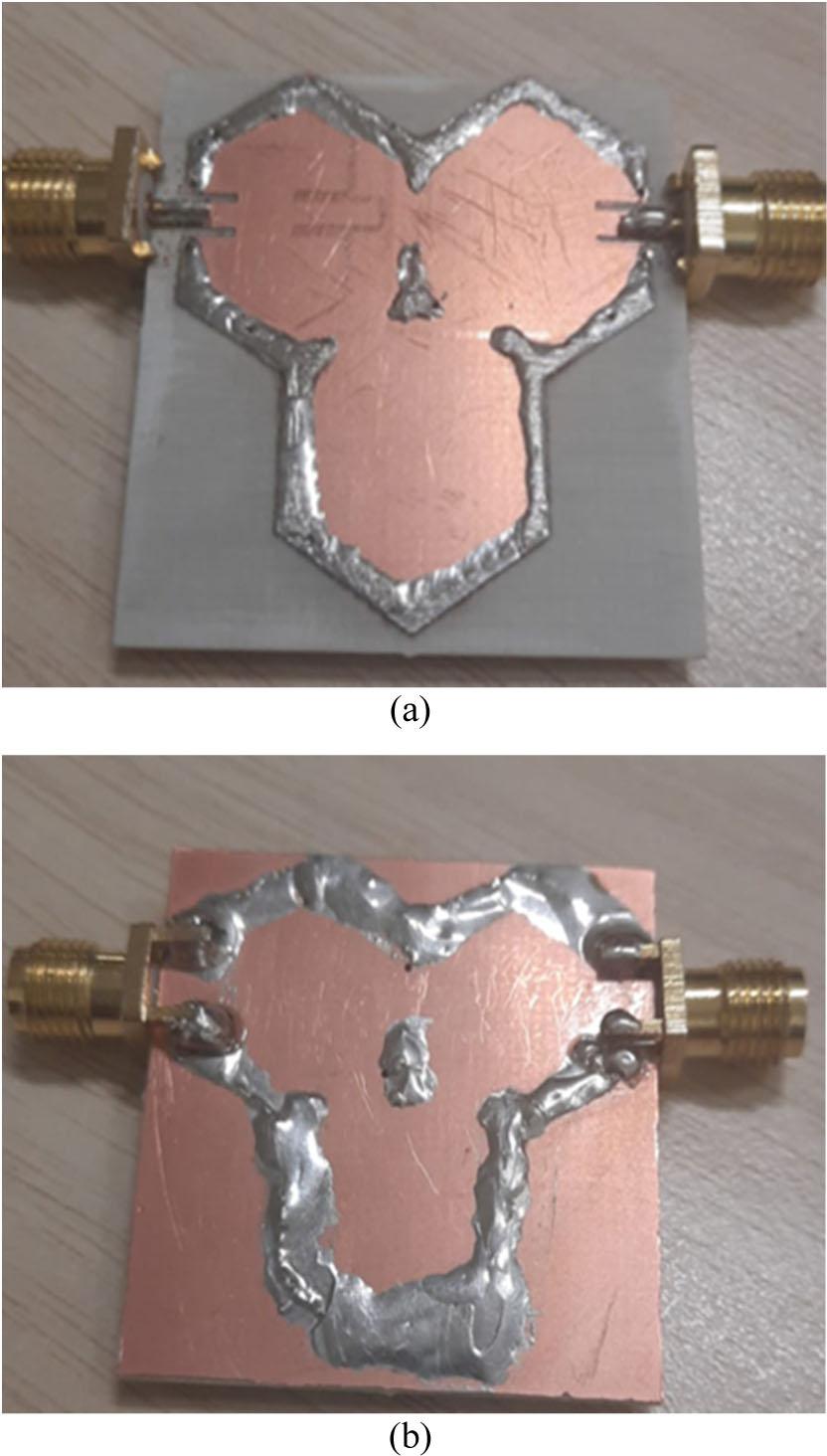

Fig. 16.

The photograph of the implemented third-order bandpass hexagonal SIW-DGS filter, (a) top view and (b) bottom view.

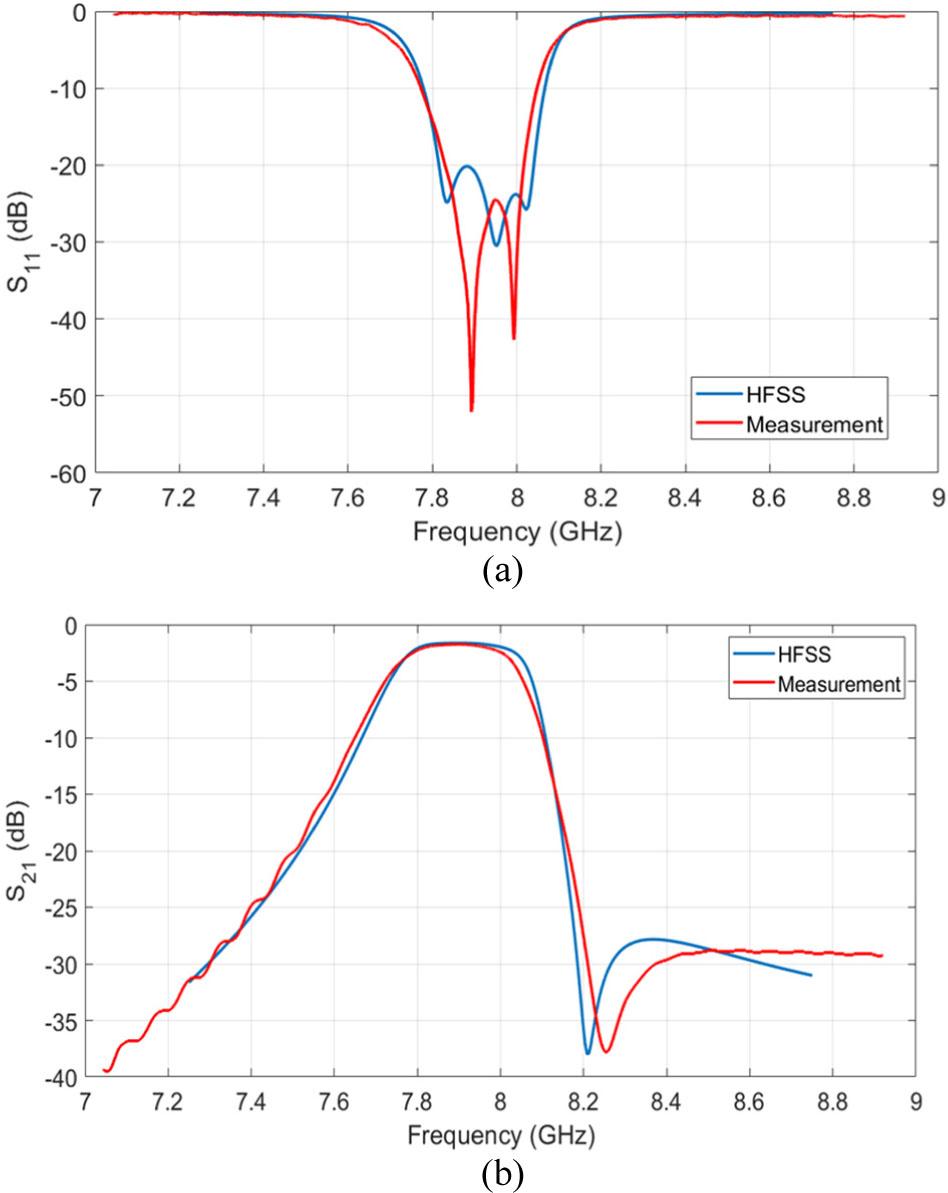

Fig. 17.

Measured vs simulated results of the third-order bandpass hexagonal SIW-DGS filter with (a) insertion loss and (b) return loss.

Hexagonal SIW filter's target specifications_

ParameterValue
Filter order03
Center frequency8.15 GHz
−3 dB bandwidth375 MHz
Insertion loss (IL)< 0.1 dB
Passband ripple0.0431
Passband return loss−20 dB
FZT (Frequency of zero transmission)8.241 GHz
Filter functionTchebychev

g0g1g2g3g4
11.03161.14741.03161

Dimensions of the first-order hexagonal SIW filter_

ParametersdpIfeedwfeedwgapLzWsiw
Values [mm]22.982.92.61.58.415.98

Comparison of the designed third-order hexagonal SIW-DGS filter to other reported filter designs_

Ref.f [GHz]FBW [%]Insertion loss [dB]Return loss [dB]Circuit size
[21]5.008.001.922045 × 25 × 0.542
[22]8.0013.751.202035 × 30 × 0.849
[23]9.822.100.742450 × 30 × 0.821
Proposed design7.903.541.852317 × 22.9 × 0.542

Comparison of calculated, simulated, and measured results for the developed third-order hexagonal SIW filter_

OperationCalculationSimulationMeasurement
Center frequency [GHz]7.97.9037.898
Lower −3dB Cut-off [GHz]0.11.581.62
Bandwidth [MHz]279.66270272

Values of capacitance C1, inductance L1, impedance Zi_

ZiL1, C1f
Z = 50 ΩL1 = 56.67 nH7.9 GHz
Z23 = 62.09 ΩC1 = 0.0071 pF
Z12 = 62.09 Ω

Coupling and iris widths gij of the third-order hexagonal SIW-DGS bandpass filter_

Mi,i+1Kgij [mm]
M12 = M23(0.0453)0.0465g12 = g23 = (5.22)
M13(0.0621)0.0623g13 = (5.6)

The initial dimensions of the third-order passband hexagonal SIW-DGS filter_

ParametersSymbolValue [mm]
Microstrip lineWidthW50 = 1.2
L50 = 5.6
SIW characteristicsWidthWsiw = 15.98
Pitch of viasp = 1
Diameterd = 0.5
Iris characteristicsDistanceg12 = 5.2
g13 = g23 = 5.6
