Experimental and first-principles investigation of high entropy superalloys produced by powder injection moulding method Cover

Experimental and first-principles investigation of high entropy superalloys produced by powder injection moulding method

Materials Science-Poland
Volume 43 (2025): Issue 4 (December 2025)
By: Emre Atakan Meric,  Berke Soy and  Ilven Mutlu
Open Access
|Dec 2025

Figures & Tables

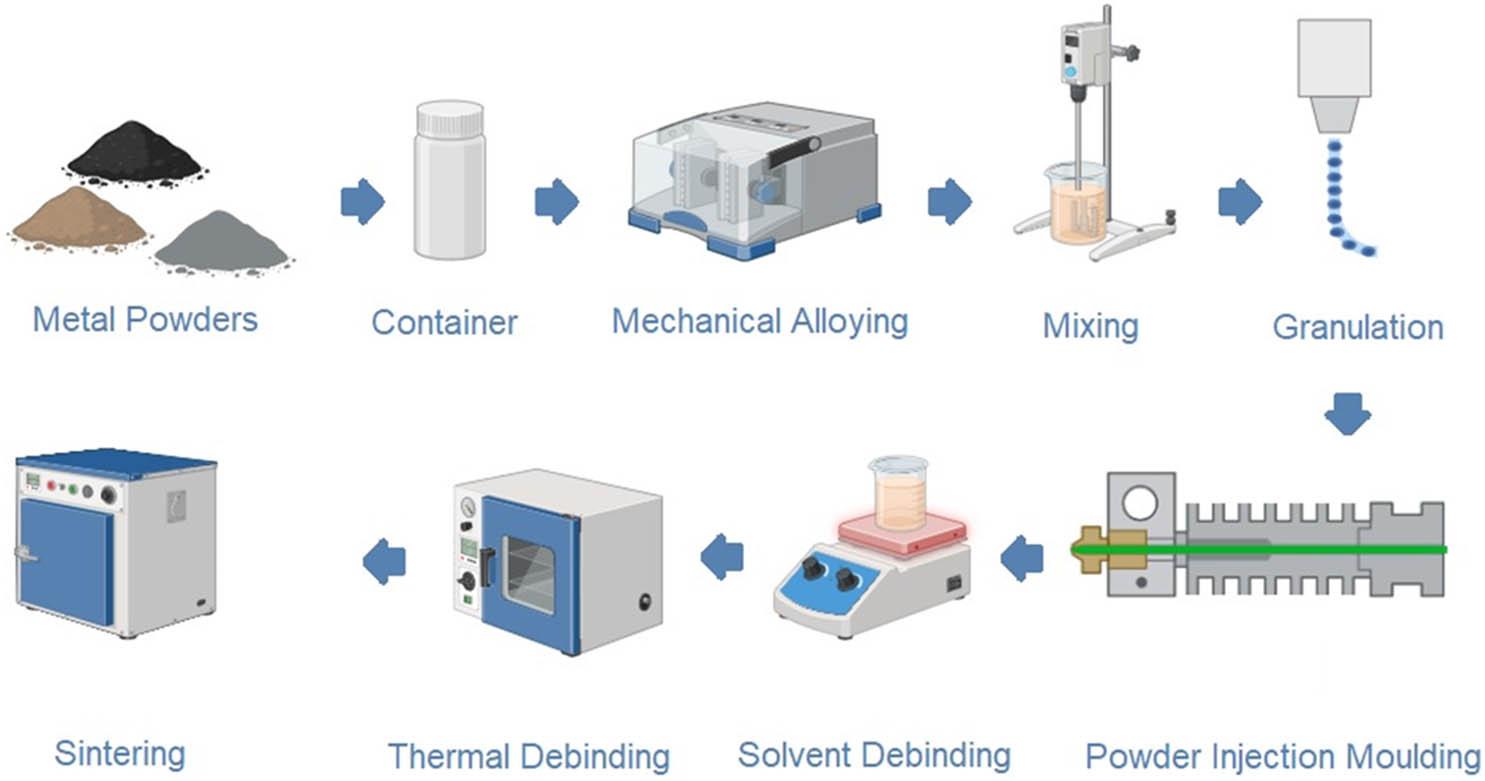

Figure 1

HESA production by PIM method.
HESA production by PIM method.

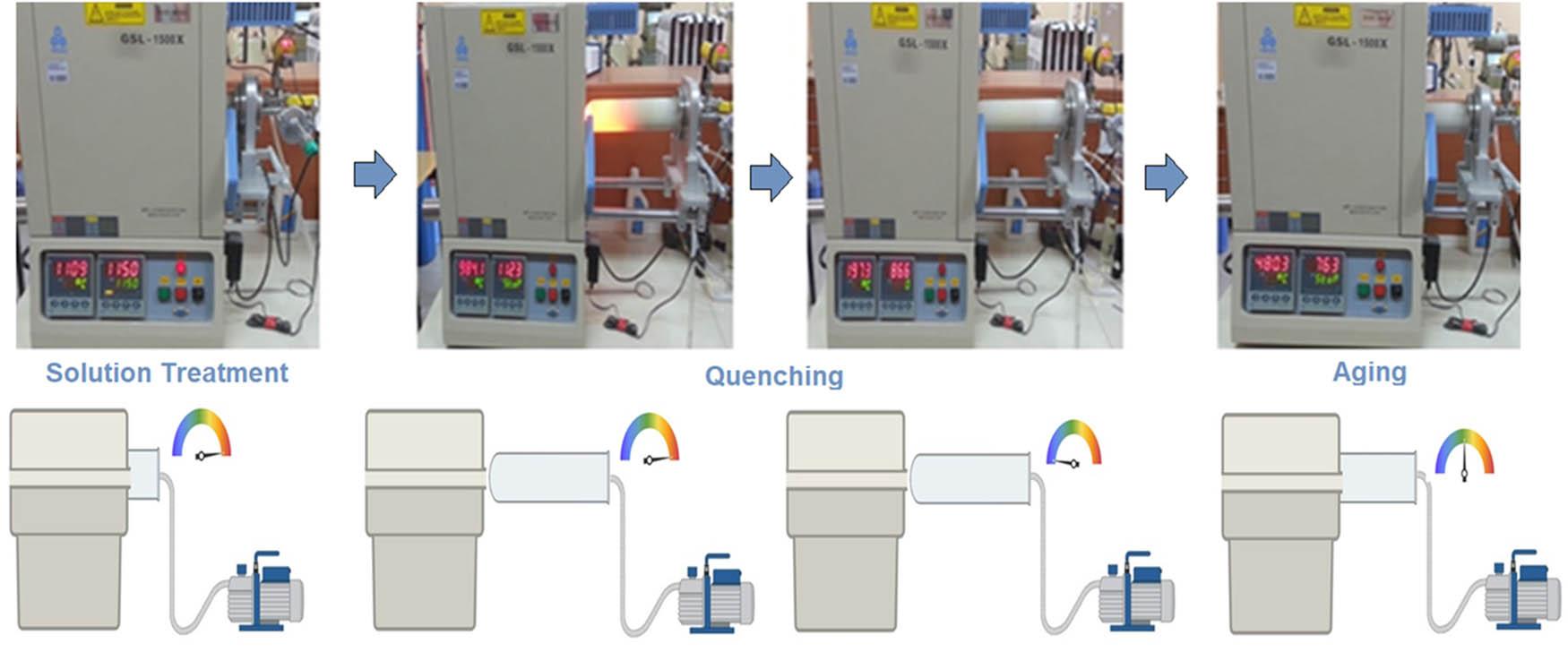

Figure 2

Aging heat treatment by using sliding-flange tube furnace.
Aging heat treatment by using sliding-flange tube furnace.

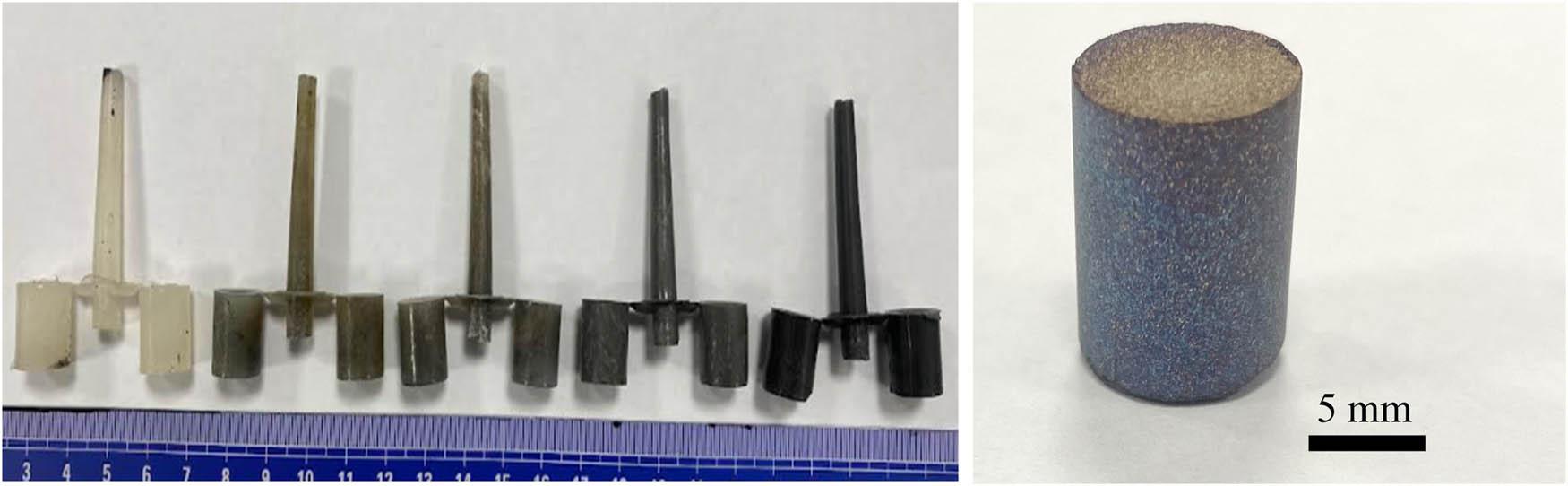

Figure 3

Photograph of injected specimens with varied metal contents (left), photograph of sintered specimen (right).
Photograph of injected specimens with varied metal contents (left), photograph of sintered specimen (right).

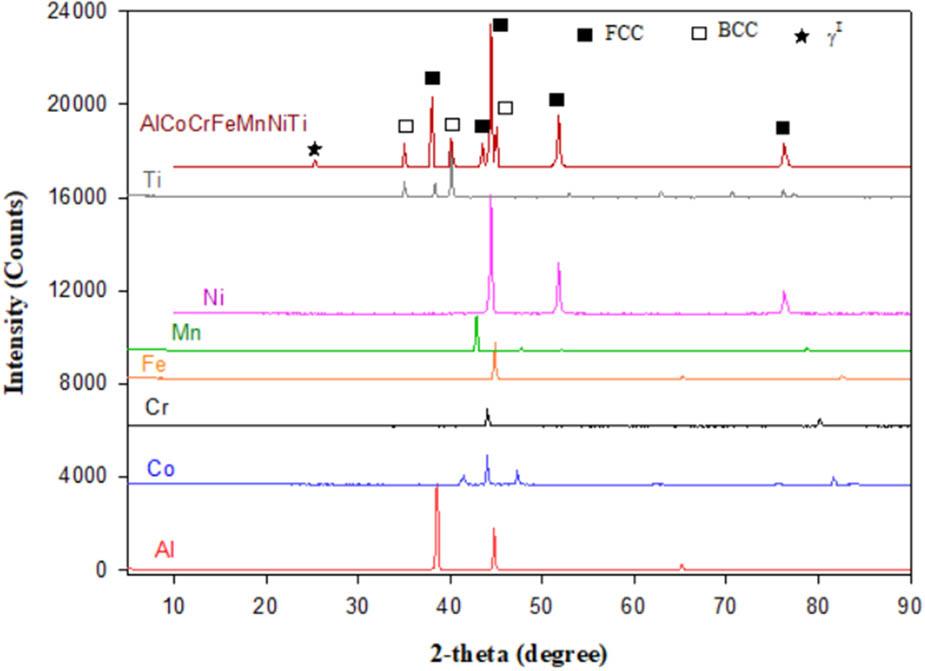

Figure 4

XRD patterns of the elemental powders and sintered HESA.
XRD patterns of the elemental powders and sintered HESA.

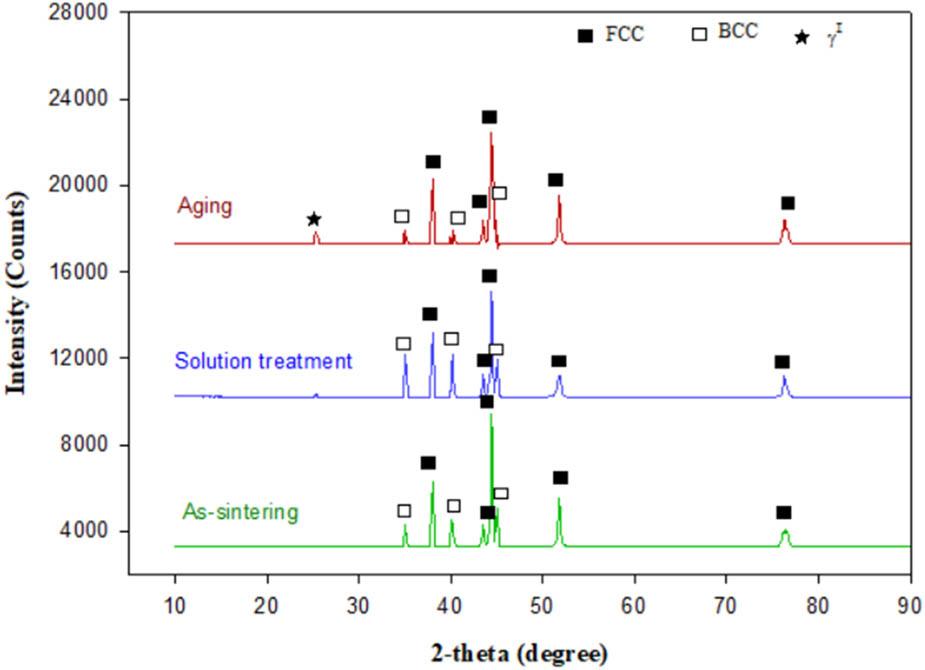

Figure 5

XRD patterns of the elemental powders and sintered HESA.
XRD patterns of the elemental powders and sintered HESA.

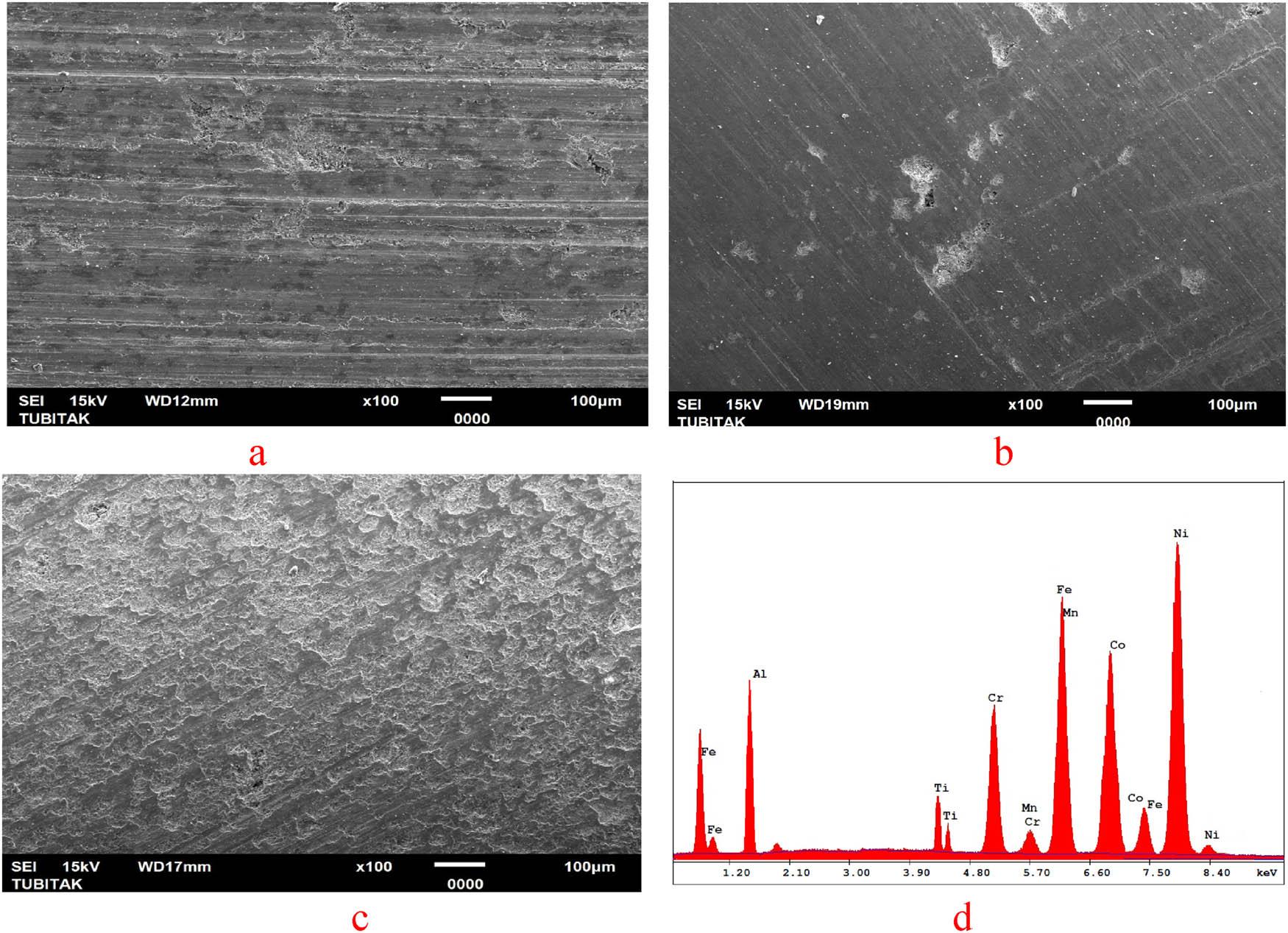

Figure 6

(a) SEM of as-sintered specimen, (b) SEM of solution treated specimen, (c) SEM of aged specimen, (d) EDS of aged specimen.
(a) SEM of as-sintered specimen, (b) SEM of solution treated specimen, (c) SEM of aged specimen, (d) EDS of aged specimen.

Figure 7

Optic microscope picture of the aged specimen.
Optic microscope picture of the aged specimen.

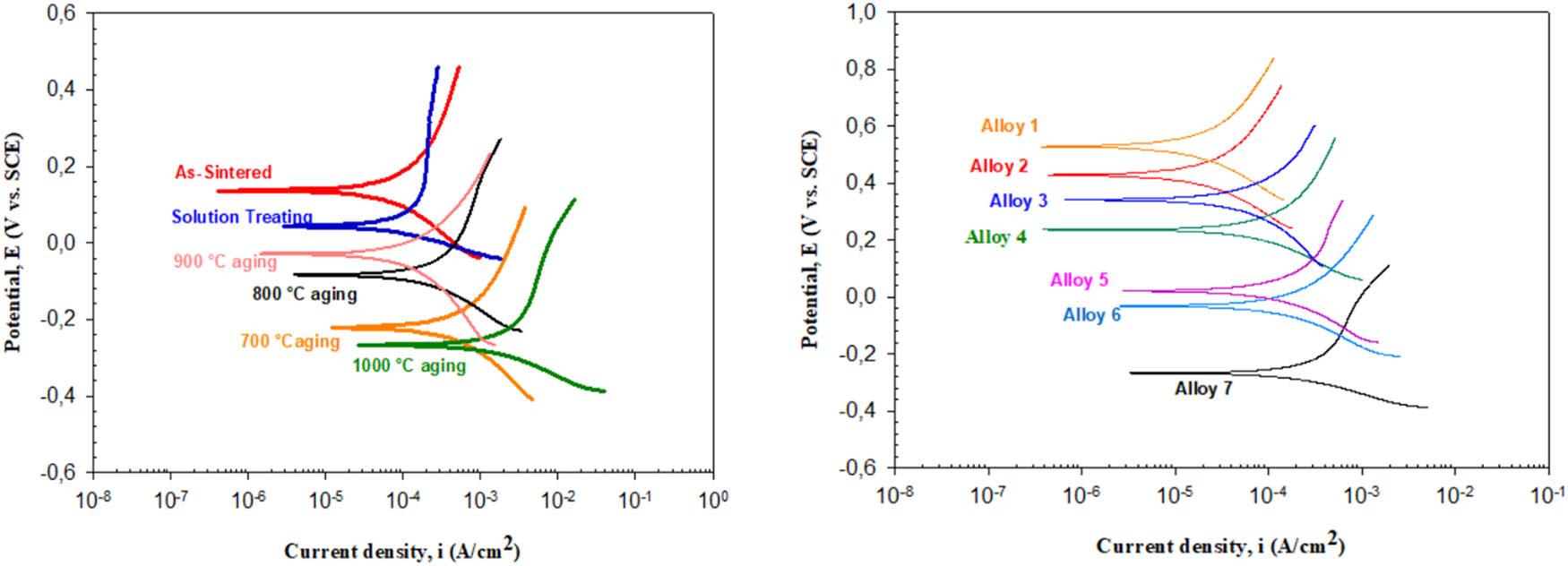

Figure 8

Effect of heat treatment (left), and composition on the Tafel curves (right).
Effect of heat treatment (left), and composition on the Tafel curves (right).

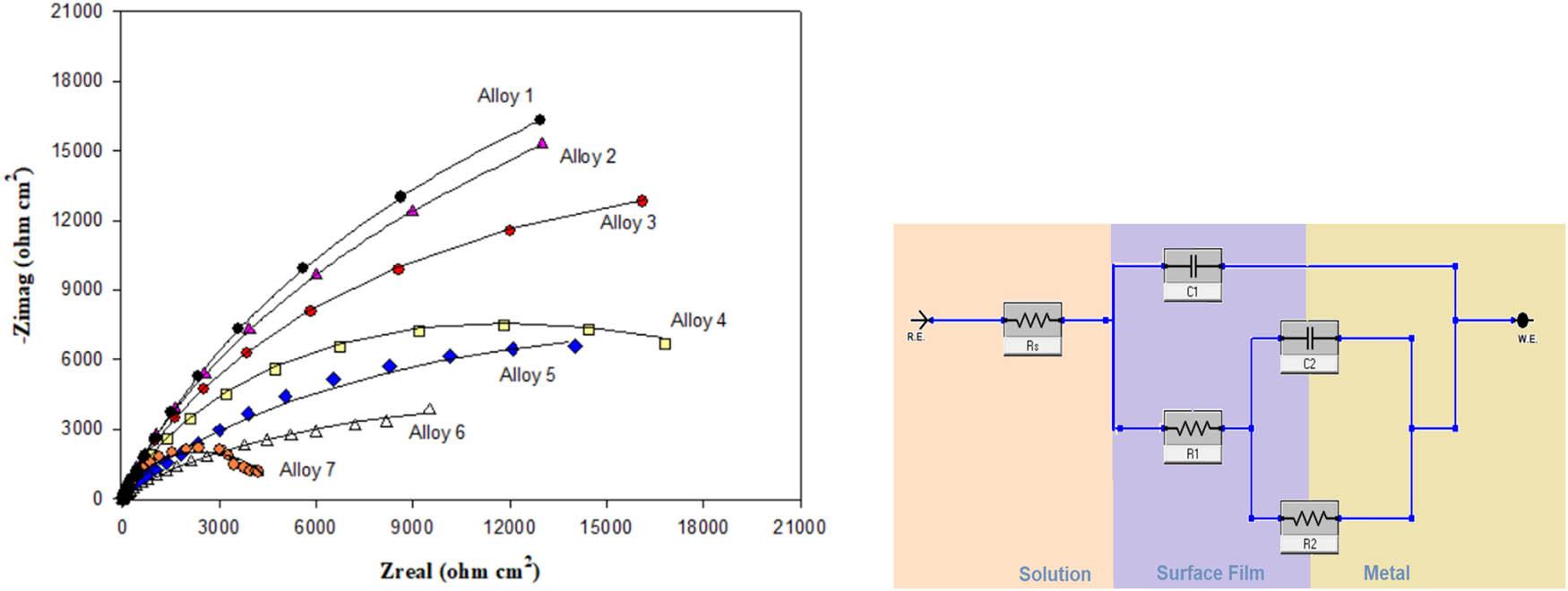

Figure 9

EIS test results of the HESA (left), electrical circuit model (right).
EIS test results of the HESA (left), electrical circuit model (right).

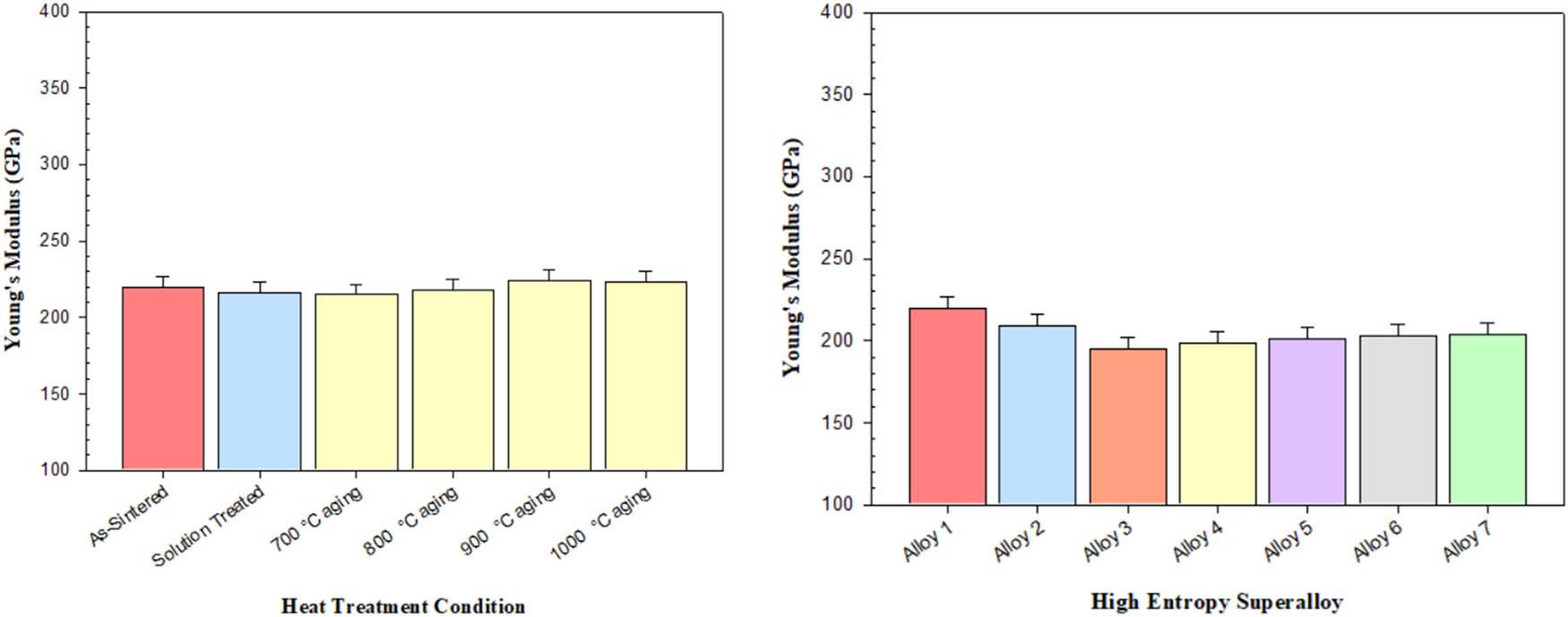

Figure 10

Effect of heat treatment (left), and composition on the Young’s modulus of the specimen (right).
Effect of heat treatment (left), and composition on the Young’s modulus of the specimen (right).

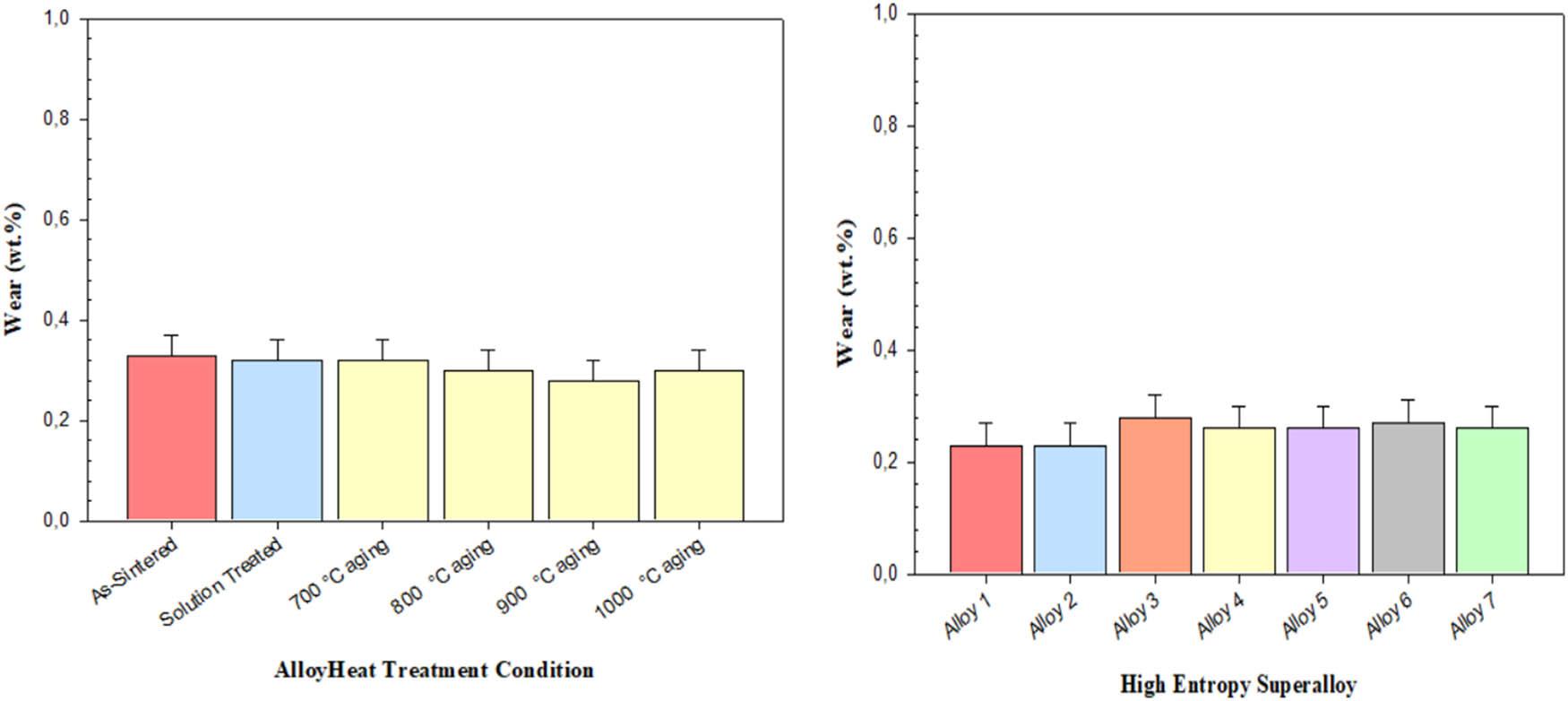

Figure 11

Effect of heat treatment (left), and composition on the wear of the specimens (right).
Effect of heat treatment (left), and composition on the wear of the specimens (right).

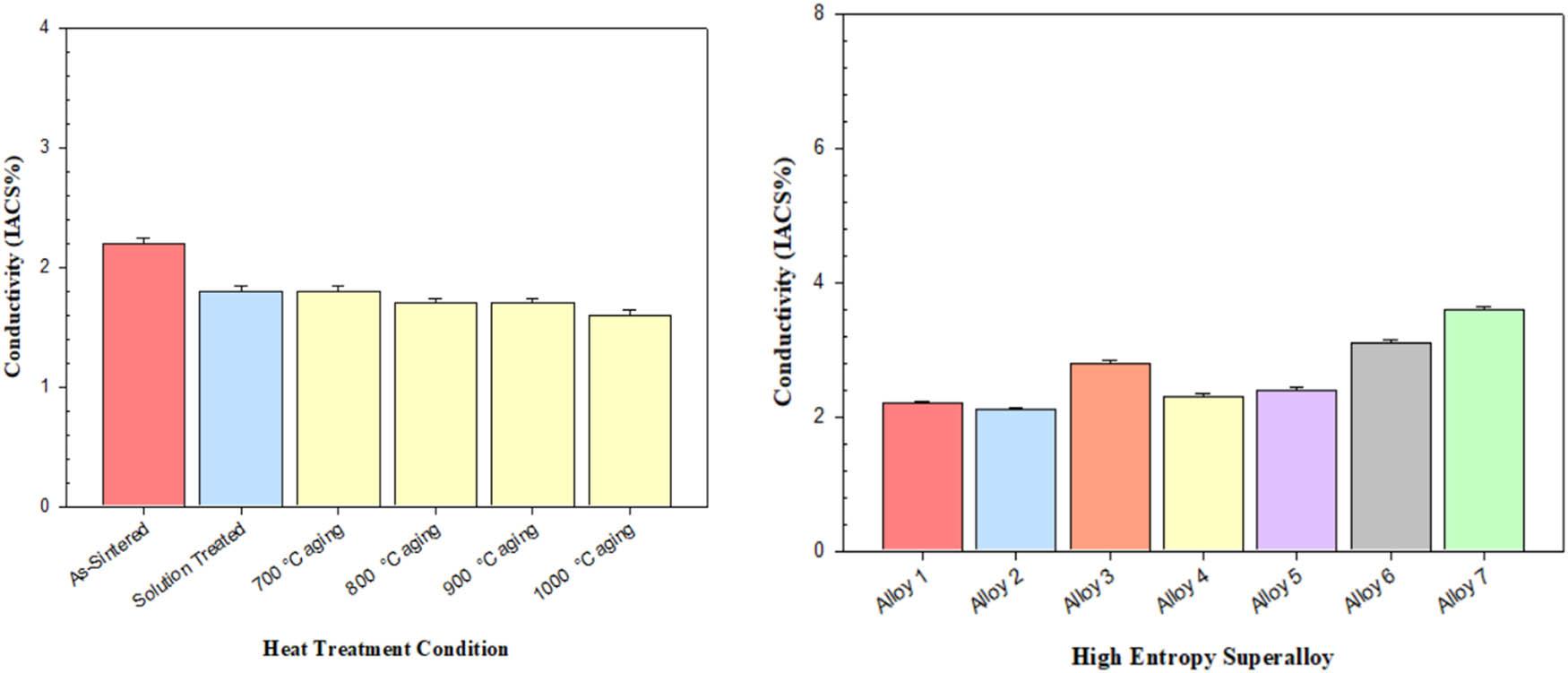

Figure 12

Effect of heat treatment (left), and composition on the conductivity of the specimens (right).
Effect of heat treatment (left), and composition on the conductivity of the specimens (right).

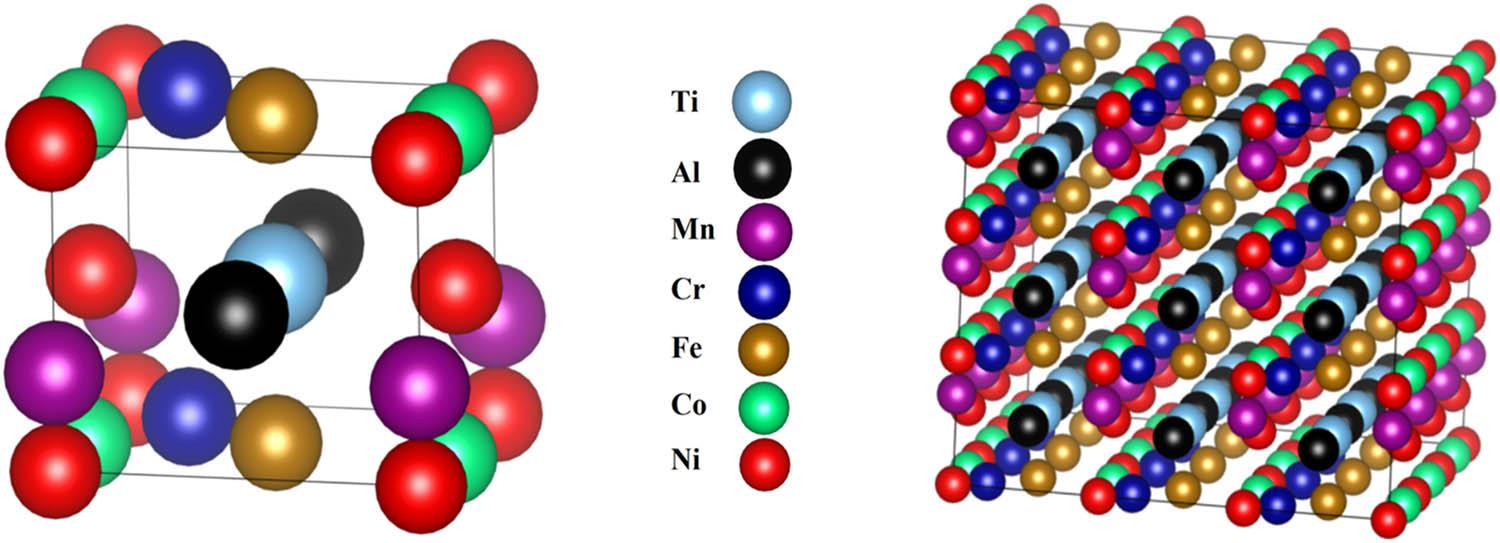

Figure 13

Unit cell (left), and superlattice (right).
Unit cell (left), and superlattice (right).

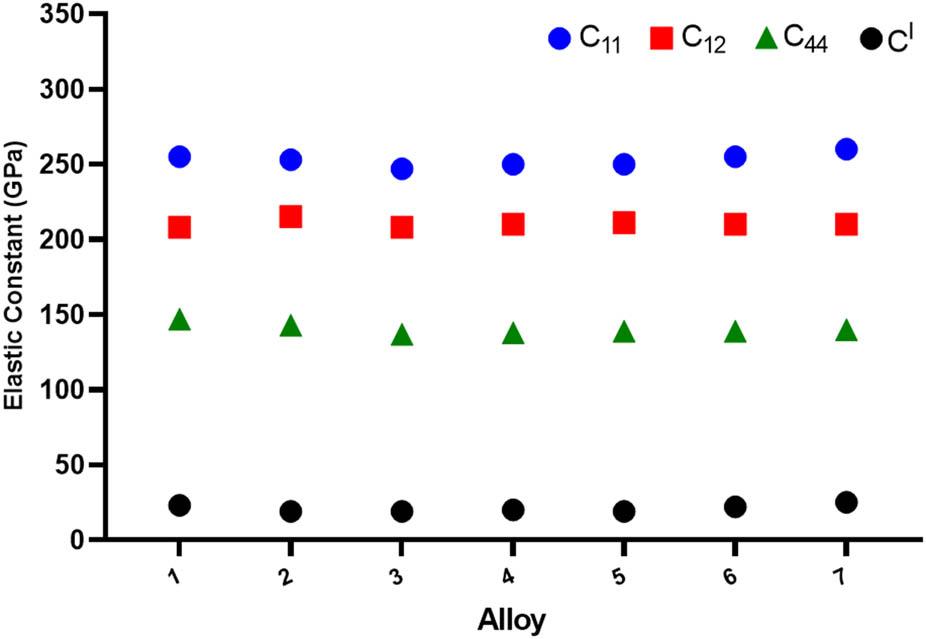

Figure 14

Elastic constants of the high entropy alloys.
Elastic constants of the high entropy alloys.

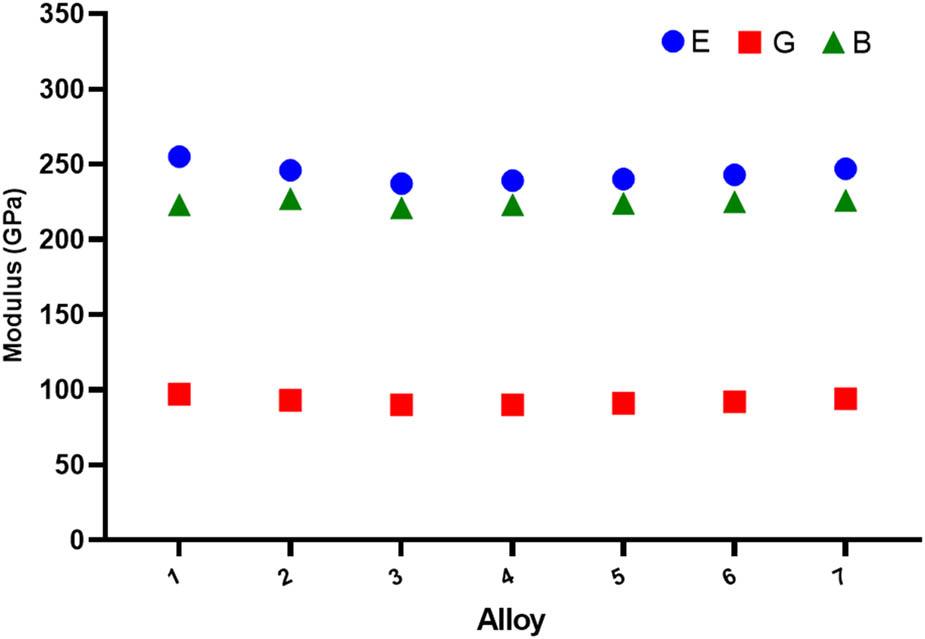

Figure 15

Young’s (E), shear (G) and bulk (B) modulus values of the alloys.
Young’s (E), shear (G) and bulk (B) modulus values of the alloys.

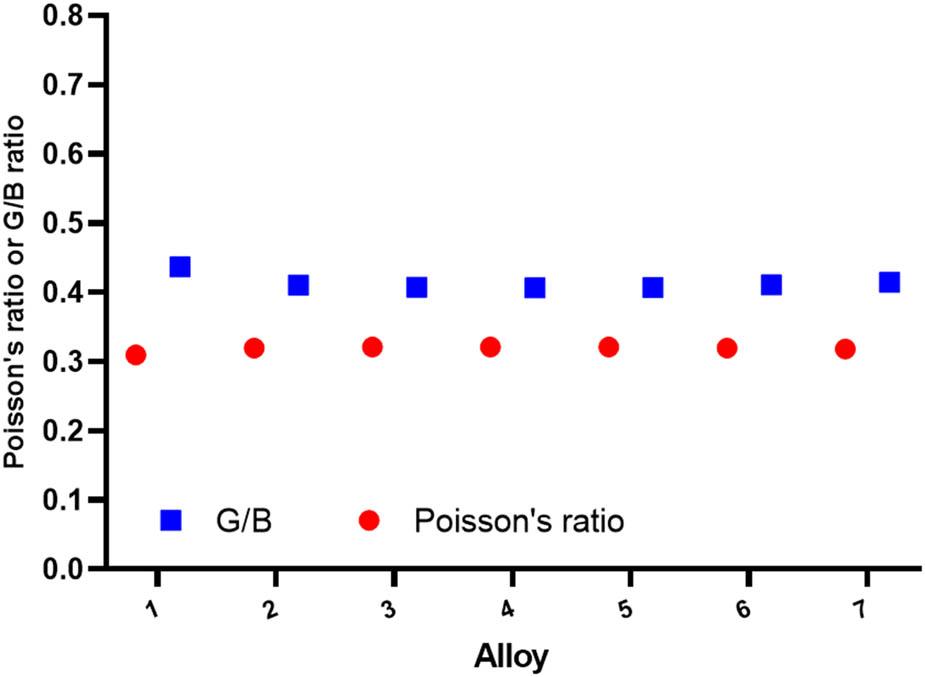

Figure 16

Poisson’s ratio and G/B ratio values of the alloys.
Poisson’s ratio and G/B ratio values of the alloys.

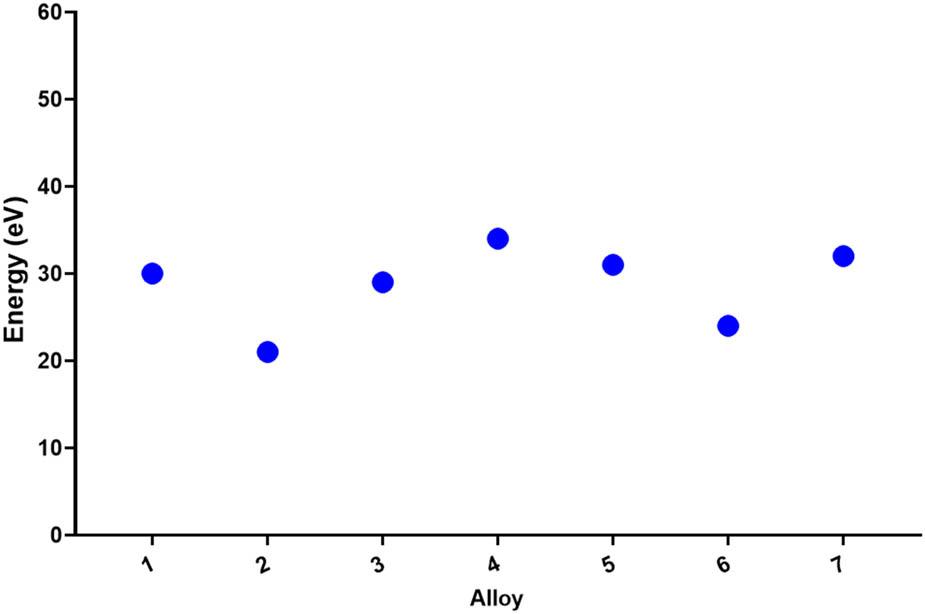

Figure 17

Energy values of the alloys at Fermi level.
Energy values of the alloys at Fermi level.

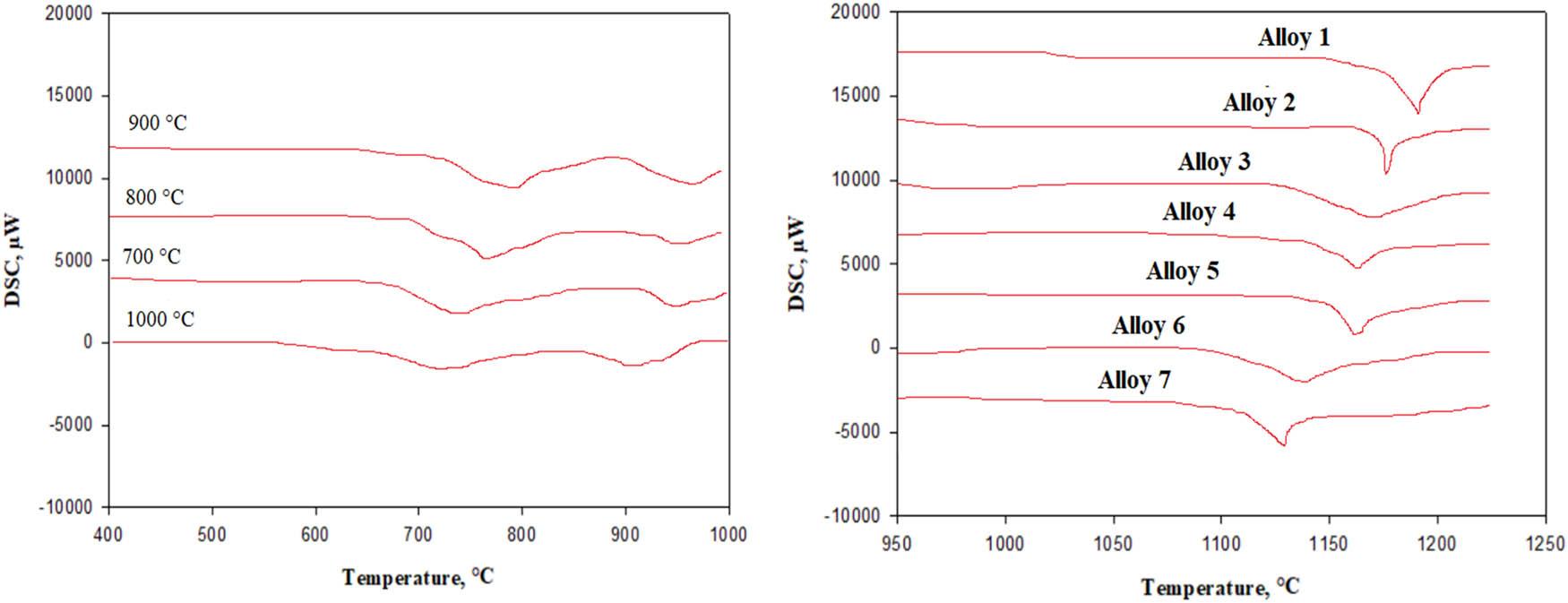

Figure 18

Effect of heat treatment (left), and composition on the DSC curves of the specimens (right).
Effect of heat treatment (left), and composition on the DSC curves of the specimens (right).

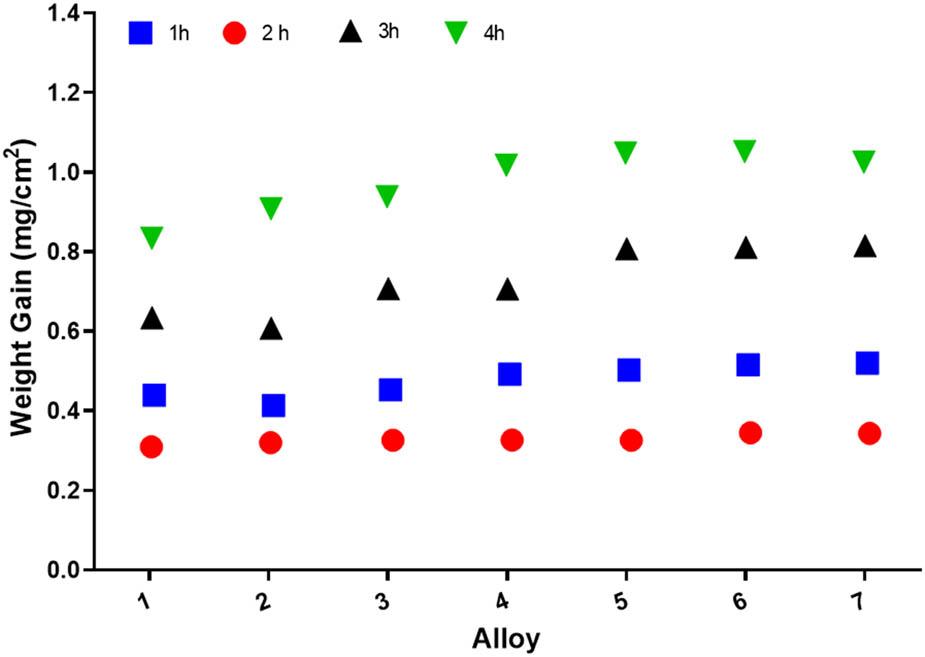

Figure 19

Oxidation results of the specimens at different durations.
Oxidation results of the specimens at different durations.

Strength values of the HESA_

AlloyTensile strength (MPa)
(1)Al15Co9Cr16Fe20Mn4Ni33Ti3 765
(2)Al15Co4Cr16Fe20Mn4Ni38Ti3 742
(3)Al20Co4Cr16Fe20Mn4Ni33Ti3 680
(4)Al20Co9Cr16Fe15Mn4Ni33Ti3 685
(5)Al20Co9Cr11Fe20Mn4Ni33Ti3 690
(6)Al24Co6Cr11Fe23Mn3Ni30Ti3 690
(7)Al25Co5Cr10Fe25Mn3Ni27Ti5 699
ReferenceInconel 718 (NiCr19Fe19Nb5Mo3)1,050

Mixing enthalpy values (kJ/mol) of the binary alloys [18,19]_

AlCoCrFeMnNiTi
Al—−19−10−11−20−22−60
Co−19—−4−1−50−28
Cr−10−4—−12−7−7
Fe−10−1−1—0−2−17
Mn−20−520—−8−11
Ni−220−72−8—−35
Ti−60−28−7−17−11−35—

Calculated parameters of the AlCoCrFeMnNiTi based HESAs_

HESAVEC (e/a) δ (%)ΔS mix (J/K mol)ΔH mix (kJ/mol)Ω
Al15Co9Cr16Fe20Mn4Ni33Ti3 7.9856.7913.78394−10.8982.222
Al15Co4Cr16Fe20Mn4Ni38Ti3 8.0416.7912.97311−11.1832.035
Al20Co4Cr16Fe20Mn4Ni33Ti3 7.7916.7713.47905−12.5211.866
Al20Co9Cr16Fe15Mn4Ni33Ti3 7.8506.7413.94583−12.7651.892
Al20Co9Cr11Fe20Mn4Ni33Ti3 7.9546.7413.80207−12.3381.917
Al24Co6Cr11Fe23Mn3Ni30Ti3 7.7476.7013.64152−13.2231.753
Al25Co5Cr10Fe25Mn3Ni27Ti5 7.5756.6713.86842−15.0531.561

Chemical compositions of the HESA_

AlloyChemical Composition (wt%)
AlCoCrFeMnNiTi
(1)Al15Co9Cr16Fe20Mn4Ni33Ti3 15916204333
(2)Al15Co4Cr16Fe20Mn4Ni38Ti3 15416204383
(3)Al20Co4Cr16Fe20Mn4Ni33Ti3 20416204333
(4)Al20Co9Cr16Fe15Mn4Ni33Ti3 20916154333
(5)Al20Co9Cr11Fe20Mn4Ni33Ti3 20911204333
(6)Al24Co6Cr11Fe23Mn3Ni30Ti3 24611233303
(7)Al25Co5Cr10Fe25Mn3Ni27Ti5 25510253275

Parameters of the atoms_

AlCoCrFeMnNiTi[Refs.]
Mass Number26.98258.93351.99655.84554.93858.69347.867[18,19]
r (nm)0.14310.12510.12490.12410.13500.12450.1461[18,19]
T m (K)9331,7682,1801,8111,5191,7281,941[18,19]
VEC39687104[18,19]

Mean cost and density values of the HESA_

AlloyCost (US$/tonne)Density (g/cm3)
(1)Al15Co9Cr16Fe20Mn4Ni33Ti3 12,0037.29
(2)Al15Co4Cr16Fe20Mn4Ni38Ti3 10,7297.29
(3)Al20Co4Cr16Fe20Mn4Ni33Ti3 9,9576.98
(4)Al20Co9Cr16Fe15Mn4Ni33Ti3 12,1107.04
(5)Al20Co9Cr11Fe20Mn4Ni33Ti3 11,7737.07
(6)Al24Co6Cr11Fe23Mn3Ni30Ti3 10,0276.80
(7)Al25Co5Cr10Fe25Mn3Ni27Ti5 9,1706.65
ReferenceInconel 718 (NiCr19Fe19Nb5Mo3)17,6178.67
