Protective efficacy of the recombinantly expressed C-terminal domain of Mannheimia haemolytica leukotoxin in mice and goats

The Mh13948 strain from the Bioresource Collection and Research Center (Hsinchu, Taiwan) and the field-isolated B2 strain of M. haemolytica were cultured aerobically in brain heart infusion supplemented with 0.5% yeast extract and 3% horse serum at 37°C, being shaken at 150 rpm for 16 h. For isolation, 100 μL of bacteria suspension was spread on a new blood agar plate and incubated at 37°C for 24 h. Typical colonies from the culture-positive plates were then stained to check their reactions and cell shape under a microscope. A single colony of Mh 13948 was selected and cultured for further DNA extraction. Bacterial genomic DNA was extracted using the PetNAD Nucleic Acid Co-prep Kit (GeneReach Biotechnology, Taichung, Taiwan) according to the manufacturer’s instructions. The quality of the extracted DNA was confirmed by A260/A280 ratios between 1.8 and 2.0, and its concentration was determined using a NanoDrop spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) to ensure adequacy for further manipulation. The extracted DNA was kept at −20°C for later use.

The sequence of the full-length LktA gene logged in GenBank under accession number AF314503 was retrieved from the National Center for Biotechnology Information. The potential linear B-cell epitope regions of the LktA protein were predicted using the Bepipred Linear Epitope Prediction 2.0 server (16).

Two recombinant protein constructs were designed in-frame with their vector using SnapGene version 3.2.1 software (GSL Biotech, Boston, MA, USA) (Fig. 1), and cloned into the pET32a plasmid vector (Novagen, part of Merck, Darmstadt, Germany) For cloning, the targeted genes were amplified using a PCR with the primers shown in Table 1. The expected PCR product for nLktA was 1,131 base pairs (bp) and for cLktA it was 1,035 bp. The PCR products were purified and then digested with BamHI and EcoRI for nLktA and with EcoRI and XhoI for cLktA. The digested genes were then purified and ligated into pET32a and selected in a lysogeny broth (LB) agar plate with ampicillin antibiotic. The final constructs were verified via restriction enzyme digestions, and sequencing was performed for reconfirmation.

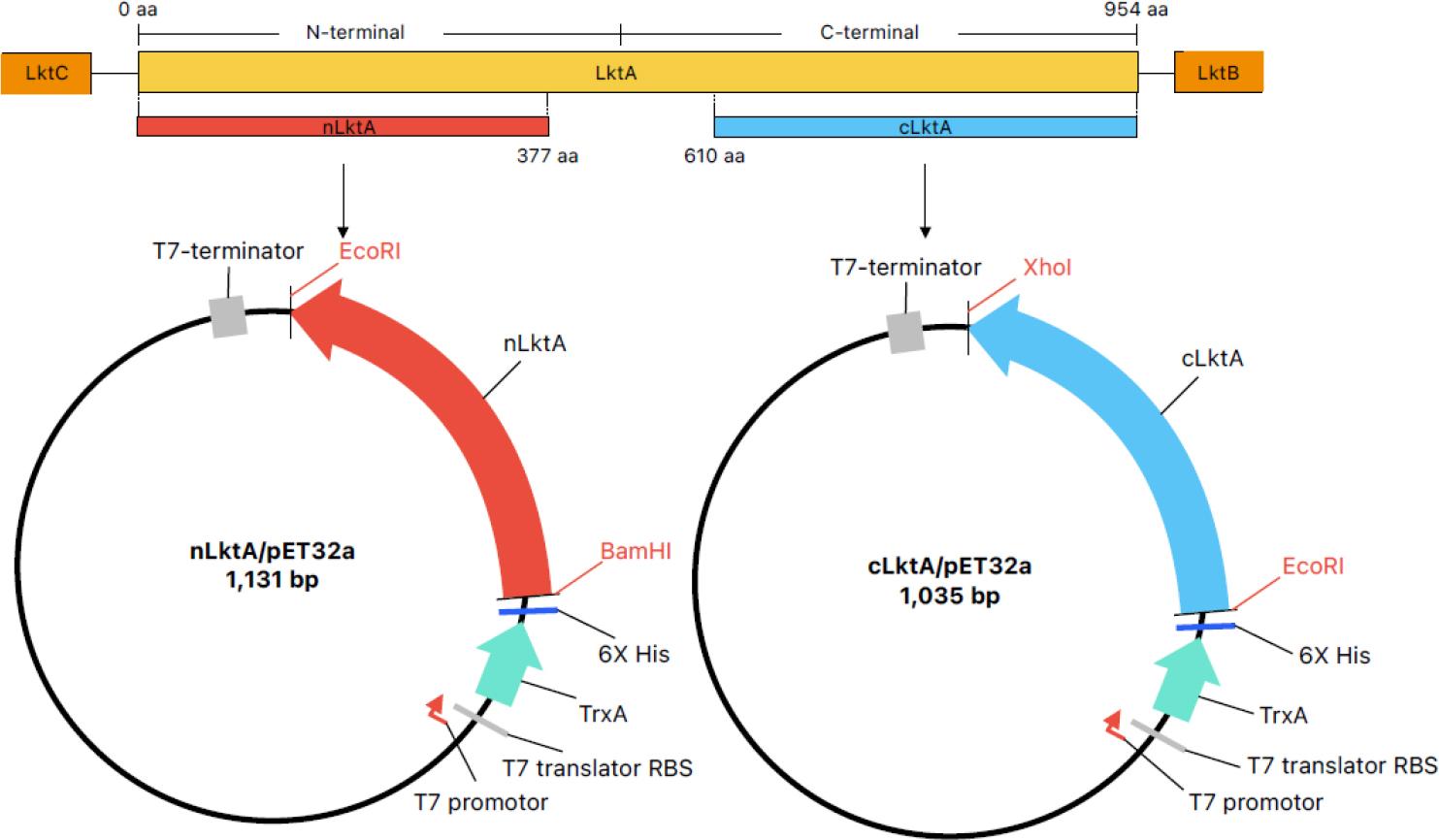

Fig. 1.

Constructions of pET32a/N- and C-terminal Mannheimia haemolytica leukotoxin A (nLktA and cLktA) plasmids. (A) Truncation of LktA. (B) Locations of the BamHI and EcoRI restriction sites for the N-terminal region of leukotoxin A (LktA) and of EcoRI and XhoI for the C-terminal region. LktB – leukotoxin B; LktC – leukotoxin C; aa – amino acids; bp – base pairs

Cells of E. coli BL21 (DE3) were transformed with pET32a/nLktA or pET32a/cLktA plasmids by heat shock (42°C for 45 s) for expression of nLktA and cLktA proteins. Transformed BL21 cells were cultured on LB agar plates supplemented with 100 μg/mL ampicillin, which served as a selective marker for the constructed plasmids. A single positive colony was propagated in LB medium with ampicillin until it reached an optical density (OD) at 600 nm of 0.4–0.6. Protein production at 0 and 4 h was collected after adding isopropyl ß-D-1-thiogalactopyranoside (Sigma-Aldrich, part of Merck, Darmstadt, Germany) at a final concentration of 1 μM/mL. After induction, the BL21 cells were collected by centrifugation at 5,000 rpm for 10 min. Empty pET32a was induced under the same conditions as the pET32a/nLktA and pET32a/cLktA constructs as a negative control. One mL of each induction of cell pellet was then mixed with sample buffer and heated at 100°C for 5 min for protein analysis via sodium dodecyl sulphate polyacrylamide gel electrophoresis (SDS-PAGE) and Western blot.

Before deciding whether to use a native or denaturing purification buffer, solubility screening was performed according to the instructions in the Bio-Scale Mini Profinity manual (Bio-Rad, Hercules, CA, USA). For soluble protein purification, induced cells were collected by centrifugation at 12,000 rpm for 10 min. Cell pellets from 100 mL of culture were lysed in native lysis buffer (300 mM KCl, 50 mM KH₂PO₄ and 5 mM imidazole) and then sonicated on ice for 10 min using a Vibra-Cell ultrasonic processor (Sonics & Materials, Newtown, CT, USA). The soluble protein was collected by centrifuging the lysate at 5,000 rpm for 10 min and then passing it through a 0.45-μM-pore filter. Subsequently, the filtered supernatant was purified with nickel-nitrilotriacetic acid beads according to the manufacturer’s protocol (Bio-Rad). The purified protein was confirmed by SDS-PAGE and Western blot. The purified cLktA was quantified via SDS-PAGE to a final concentration of 200 μg/mL using bovine serum albumin (BSA, KPL, Gaithersburg, MD, USA) as a standard. Serial dilutions of BSA were prepared to establish a standard curve. The proteins were run on a gel, stained with 0.1% Coomassie blue for 45 min and washed with destain buffer. The concentration of cLktA was measured using Image Lab 6.01 (Bio-Rad).

To evaluate the antigenicity of the recombinant nLktA and cLktA proteins, sera from mice infected with an inactivated M. haemolytica B2 strain and secreted leukotoxin (sLkt) were used for binding with the recombinant proteins in a Western blot analysis. Briefly, the recombinant proteins were separated using 12% SDS–PAGE gel and subsequently transferred onto a polyvinylidene difluoride membrane (Merck, Darmstadt, Germany). The membrane was incubated with 5% skimmed milk at room temperature, shaken at 100 rpm for 1 h and incubated overnight at 4°C with anti-M. haemolytica B2 and anti-sLkt antibodies at final dilutions of 1 : 1,000. The membrane was washed with TBST 1× (PBS, containing 0.05% Tween 20) and incubated with goat anti-mouse horseradish peroxidase (HRP)-conjugated antibody (Arigo Biolaboratories, Hsinchu, Taiwan) at a dilution of 1 : 5,000 as the secondary antibody. The targeted protein was detected using Western Lightning chemiluminescent HRP substrate (Revvity, Groningen, the Netherlands) and analysed with a Gel Doc EZ Imager system run by Image Lab 5.0 software (Bio-Rad).

The purified cLktA was used to immunise the animals at a final concentration of 200 μg/mL. To formulate the inactivated Mh 13948 vaccine, M. haemolytica 13948 strain was cultured and then heated at 56°C for 30 min to reach a final concentration of 1×10⁹ CFU/mL. Phosphate-buffered saline (PBS) served as the negative control. All the antigen preparations were emulsified in Montanide ISA 201 VG water-in-oil-in-water adjuvant (Seppic, Puteaux, France) at a 1 : 1 (v/v) ratio. Vaccine sterility was assessed by inoculating 100 μL of each sample onto trypticase soy agar, thioglycolate agar and Sabouraud dextrose agar plates, which were incubated at 37℃ (first two media) or 25°C (Sabouraud) for 14 d. No viable contaminants were detected in any vaccine samples.

All experimental protocols were reviewed and approved by the Institutional Animal Care and Use Committee (IACUC) at the National Pingtung University of Science and Technology (NPUST). Mice were randomly assigned into three groups of 10 mice: group G1 were administered 1 × 10⁹ CFU/mL of Mh 13948), G2 received 200 μg/mL of cLktA and group G3 only PBS. Nine goats confirmed to be free of M. haemolytica antibodies were randomly assigned to three analogous groups G1, G2 and G3. Each animal received an intramuscular injection with a final volume of 0.2 mL for mice and 1 mL for goats. Two weeks after the primary vaccination, the animals received a booster injection. In mice, a challenge test was conducted via intraperitoneal injection of 0.2 mL of M. haemolytica (2 × 10⁹ CFU/mL) strain 13948 and the field-isolated B2 strain. The mice were monitored for clinical signs, and their survival rates were recorded over a two-week post-challenge period. The details of the vaccination schedule and immune evaluation are shown in Fig. 2.

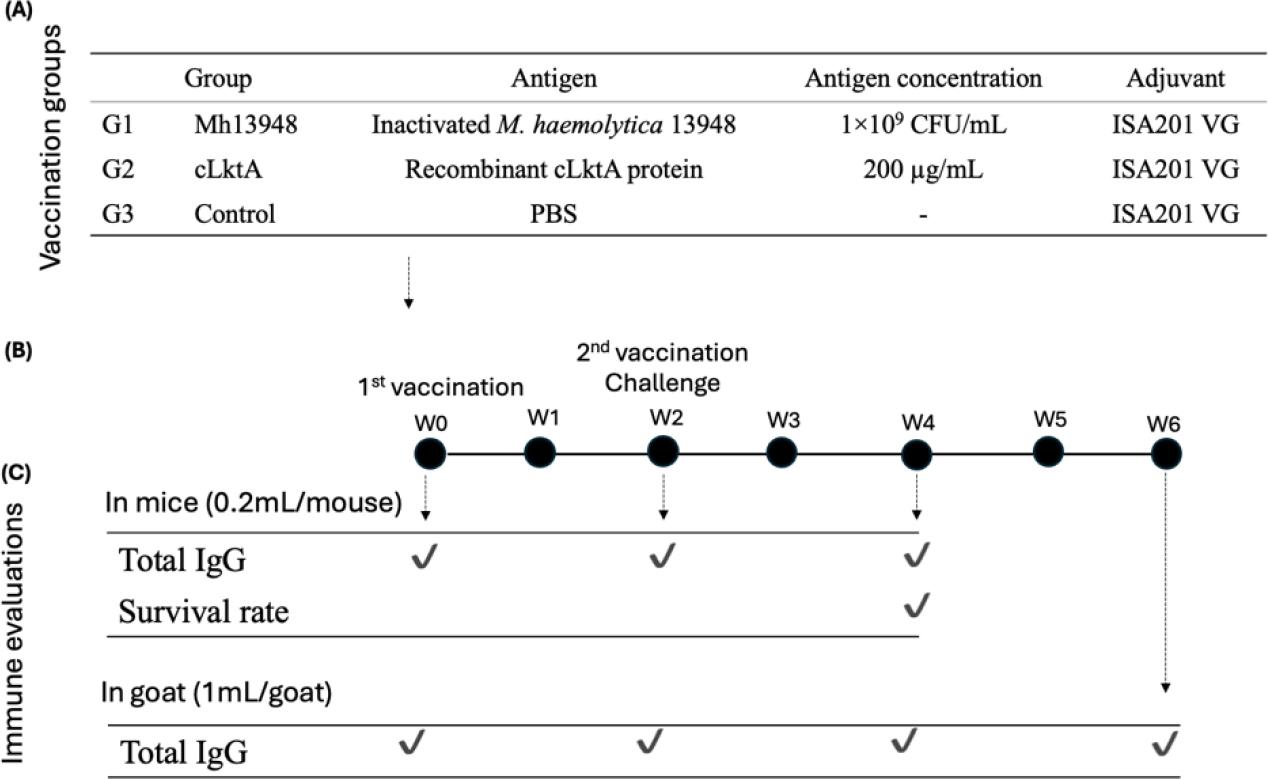

Fig. 2.

Antigens, immunisation schedule and immune evaluation of a truncated C-terminal leukotoxin A (cLktA) of Mannheimia haemolytica in mice and goat models. (A) Vaccination groups. (B) Immunisation schedule: primary vaccination administered in week (W) 0 and followed by a booster dose in W2. (C) Immune response evaluation through ELISA assay and challenge test. Mh 13948 – Mannheimia haemolytica strain 13948; CFU – colony-forming units; ISA201 VG – Seppic water-in-oil-in-water adjuvant 201; PBS – phosphate-buffered saline; IgG – immunoglobulin G

To assess the antibody response induced by the vaccines, an indirect ELISA was conducted using sera from immunised animals at 0, 2, and 4 weeks post immunization and from goats also at 6 weeks. In brief, 96-well round-bottom plates were coated overnight at 4°C with 1.25 μg/mL of sonicated M. haemolytica 13948 in a coating buffer (15 mM Na₂CO₃, 35 mM NaHCO₃ and 3 mM NaNO₃, pH 9.6). The plates were then washed three times with TBST and blocked with 1% BSA for 1 h at 37°C under 80-rpm shaking. After blocking and washing, the diluted mice serum samples (1 : 300) and goat serum (1 : 800) were added to the plates and incubated for 1.5 h also at 37°C and under 80-rpm shaking. After the plates had been washed four times with TBST, HRP-conjugated rabbit anti-mouse IgG (Merck, Darmstadt, Germany) or rabbit anti-goat IgG (KPL) was added, and the plates were incubated at room temperature for 1 h. Next, the plates were washed five times with TBST before 100 μL per well of substrate solution (Peroxidase Kit; KPL) was added to allow colour development at room temperature for 10 min. Optical density was then measured at 450 nm using a Multiskan FC Microplate Photometer (Thermo Fisher Scientific, Vantaa, Finland), and the sample-to-positive (S/P) ratio was calculated as follows: S/P ratio = (OD _sample − OD _negative) / (OD _positive − OD _negative). An S/P ratio of 0.5 or greater was considered positive.

Graphical data representations were generated using Microsoft Excel version 16.87, (Microsoft, Redmond, WA, USA) and statistical analyses were carried out with SPSS software version 22 (IBM, Armonk, NY, USA). Mean differences were evaluated using one-way ANOVA followed by Tukey’s post-hoc test. Results wer reported as the mean ± standard deviation (SD), with a significance threshold set at P-value < 0.05.

The sequential linear B-cell epitope regions of the full-length LktA protein were identified (Fig. 3A).The LktA protein was found to predominantly show higher peaks in epitope prediction scores (0.5–0.7) in the C-terminus than in the N-terminus. This result indicated that the C-terminal region of LktA had a higher likelihood of being recognised by B-cells and appeared to be a key area for antibody binding (Fig. 3B).

Fig. 3.

(A) Epitope prediction for the full-length LktA leukotoxin A protein of Mannheimia haemolytica with a threshold value of 0.5. Positive peaks above the threshold line indicate amino acids likely to be part of an epitope. (B) Eleven potential epitopes ranked based on their mean prediction scores, listed from highest to lowest (1–11)

The nLktA and cLktA genes were successfully amplified using PCR, resulting in products of 1,131 bp and 1,035 bp, respectively (Fig. 4A). Restriction enzyme digestion for confirmation of successful protein construction revealed three fragments: pET32a (approximately 5,900 bp), nLktA (1,131 bp, data not shown) and cLktA (1,035 bp) (Fig. 4B).

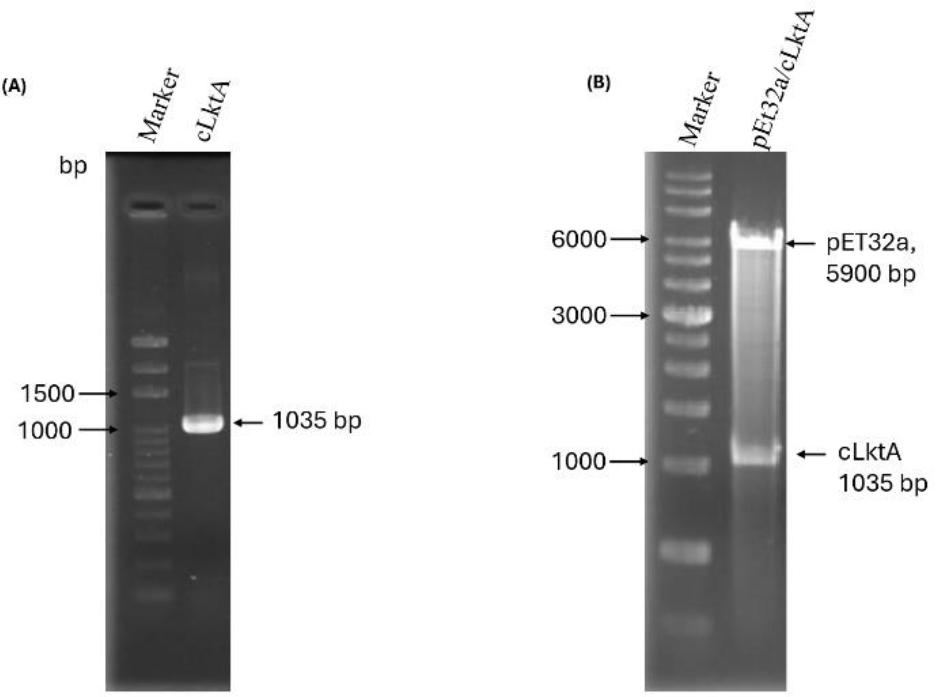

Fig. 4.

PCR amplification of C-terminal Mannheimia haemolytica leukotoxin A (cLktA) and confirmation of cloning cLktA into pET32a. (A) Product of 1,035 bp after amplification, indicating cLktA. (B) Restriction enzyme digestion with EcoRI and XhoI confirming the pET32a/cLktA construct

After protein expression, SDS-PAGE analysis showed prominent bands at the predicted molecular weight of 58 kDa for cLktA (pET32a inserts a 20-kDa Trx-His-S-enterokinase tag at the N-terminus). However, no protein expression was detected at the expected size of 61 kDa for nLktA (Fig. 5A). The recombinant protein’s identity was further confirmed by Western blotting using a 1 : 1,000 dilution of anti-M. haemolytica B2 (Fig. 5B) and anti-sLktA (Fig. 5C). The Western blot results demonstrated that cLktA exhibited strong antigenicity by effectively binding to sera from mice vaccinated with M. haemolytica. As a result, cLktA was chosen for further in vivo studies.

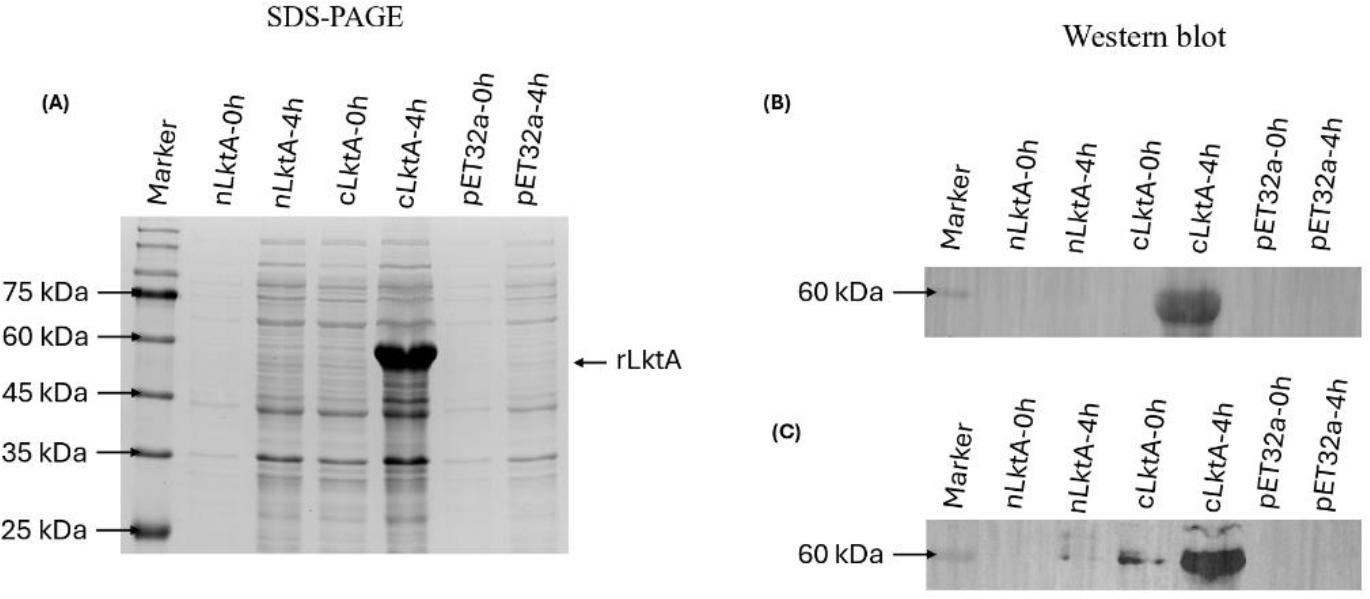

Fig. 5.

Expression of N- and C-terminal Mannheimia haemolytica leukotoxin A (nLktA and cLktA) in E. coli. (A) Isopropyl ß-D-1-thiogalactopyranoside-induced expression of nLktA, cLktA and control pET32a at 0 h and 4 h. (B) Western blot confirmation of recombinant cLktA protein using anti-M. haemolytica B2 strain antibody. (C) Further Western blot confirmation using anti–secreted leukotoxin (sLkt) serum

Regarding protein solubility, the cLktA protein was successfully expressed in a soluble form, as demonstrated in Fig. 6A. Following expression, the recombinant cLktA protein was purified as shown in Fig. 6B. The yield of cLktA was 700 mg/L.

Fig. 6.

Purification of recombinant cLktA protein. (A) Solubility screening of cLktA demonstrating that it was a soluble protein. (B) Purification of cLktA using affinity chromatography

For the mice experiment, at 0 and 2 weeks post vaccination (wpi), there was no significant different between the vaccinated and control groups. However, two weeks after the booster vaccination, both mice vaccinated with Mh13948 and those vaccinated with cLktA showed significantly higher antibody levels than the PBS group. While the cLktA vaccine group had significantly enhanced secretion of antibodies against M. haemolytica, this group’s production was not as high as that of the Mh 13948 vaccine group (Fig. 7).

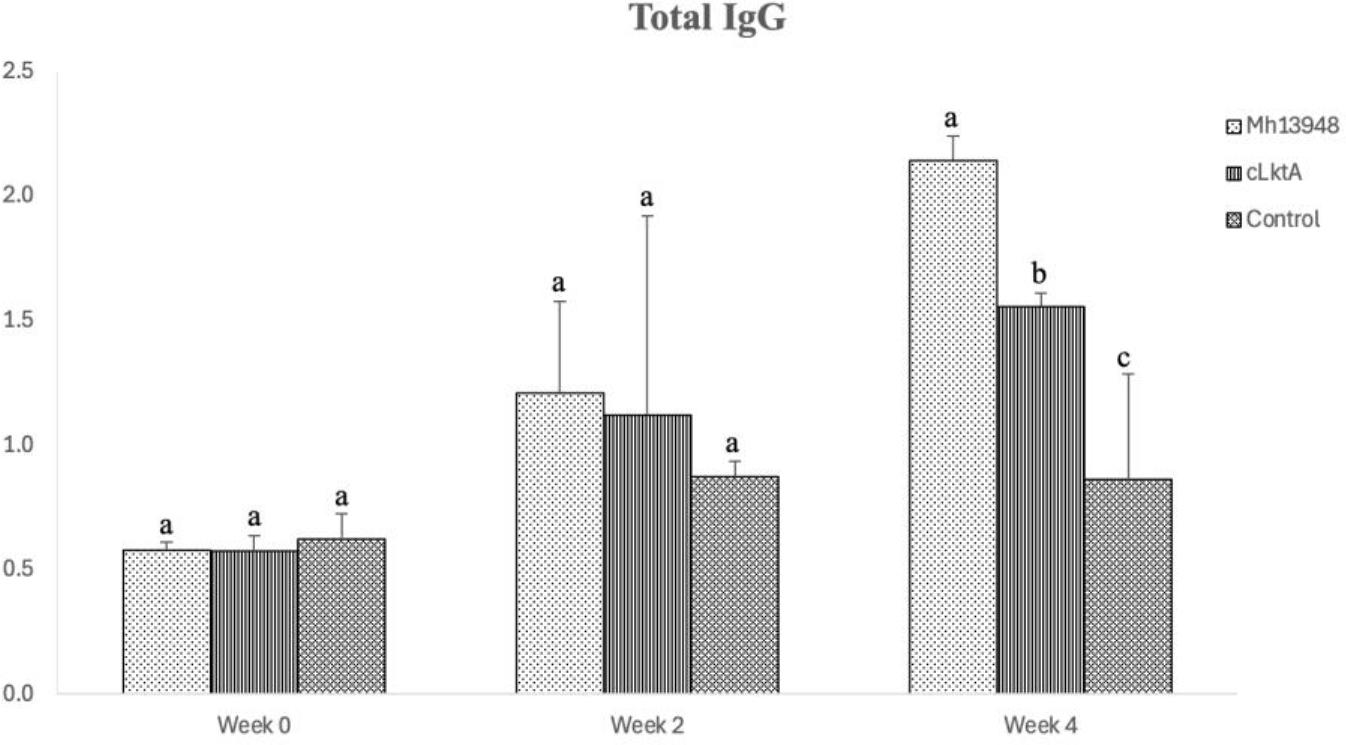

Fig. 7.

Results of indirect ELISA to determine the levels of antigen-specific total immunoglobulin G (IgG) in the sera of mice immunised with inactivated Mannheimia haemolytica 13948 (Mh 13948) or recombinant C-terminal protein of M. haemolytica leukotoxin A (cLktA) or injected with phosphate-buffered saline (control). Different superscript letters present statistically significant differences (P-value < 0.05)

For the goat experiment, long-term antibody levels were measured up to 6 wpi. Similarly to the results observed in the mice experiment, no specific anti-M. haemolytica antibodies were detected in the immunised or control groups at weeks 0 and 2 wpi. However, goats vaccinated with cLktA produced significantly higher levels of specific anti-M. haemolytica antibodies compared to the control group from 4 to 6 wpi, indicating a sustained humoral response to the vaccines (Fig. 8).

Fig. 8.

Results of indirect ELISA to determine the levels of antigen-specific total immunoglobulin G in the sera of goats immunised with inactivated Mannheimia haemolytica 13948 (Mh 13948) or recombinant C-terminal protein of M. haemolytica leukotoxin A (cLktA) or injected with phosphate-buffered saline (control). Different superscript letters present statistically significant differences (P-value < 0.05)

Mice vaccinated with either the Mh13948 or cLktA vaccines demonstrated a survival rate of 80% following challenge with the homologous M. haemolytica 13948 strain, compared to a 20% survival rate in the PBS control group. Additionally, in a separate challenge with the heterologous M. haemolytica field-isolated B2 strain, vaccinated mice achieved a 100% survival rate, while the PBS group only had a 40% survival rate (Fig. 9). These results indicate that a single administration of cLktA vaccine provided protection against M. haemolytica challenges.

Fig. 9.

Survival rates of mice immunised with inactivated Mannheimia haemolytica 13948 (Mh 13948) or recombinant C-terminal protein of M. haemolytica leukotoxin A (cLktA) or injected with phosphate-buffered saline (control) when challenged with (A) Mannheimia haemolytica 13948 strain or (B) M. haemolytica B2 field isolate strain
