Ensembled combination of Q-Learning and Deep Extreme learning machine to achieve the high performance and less latency to handle the large IoT and Fog Nodes.

The Internet of Things (IoT) has revolutionized the way devices and systems interact, enabling seamless connectivity and data exchange across diverse domains. From smart homes and healthcare to industrial automation, IoT facilitates the real-time collection and processing of data, driving innovation and efficiency [1–3]. Complementing this paradigm is fog computing, an extension of cloud computing that brings computational resources closer to the data sources. Fog computing reduces the dependency on centralized cloud infrastructures, significantly lowering latency and enhancing the performance of time-sensitive applications.

In parallel, the concept of Body Area Networks (BANs) has gained prominence, particularly in healthcare and wearable technology. BANs consist of interconnected sensors and devices operating in close proximity to the human body, enabling continuous monitoring of vital signs, activity levels, and environmental factors [4–5]. IoT-enabled BANs further enhance this capability by integrating BANs into the broader IoT ecosystem, allowing for remote monitoring, real-time analytics, and adaptive decision-making. These advancements hold immense potential for applications such as telemedicine, fitness tracking, and personalized healthcare.

Body Area Networks (BAN) and IoT working together have greatly advanced task planning, implementation, and execution. IoT-enabled BAN devices, powered by batteries, connect with sensors, microcontrollers, and smartphones to gather patient health data and send it to the cloud via gateways. However, the limited battery life of these hubs makes continuous health monitoring challenging [6–9]. Fog and edge computing now serve as essential links between cloud systems and BAN-IoT devices, enhancing quality of service (QoS). Fog nodes are integrated into BAN-IoT devices to collect and process data locally, reducing the need for a centralized network [10].

Despite these advancements, the exponential growth of IoT devices and fog nodes presents significant challenges. Managing the vast volume of data generated by IoT-enabled BANs requires intelligent frameworks capable of optimizing resource allocation and ensuring low-latency processing. Traditional methods often struggle to meet the dual demands of high performance and scalability, especially in dynamic and resource-constrained environments[11–14].

To address these challenges, this paper proposes an ensembled framework combining Q-Learning and Deep Extreme Learning Machine (DELM). Q-Learning, a model-free reinforcement learning algorithm, excels in making adaptive decisions in uncertain environments, while DELM offers high-speed data processing and robust generalization. The integration of these techniques aims to optimize resource management and decision-making in IoT-enabled BANs and fog networks. The ensembled model leverages Q-Learning for dynamic workload distribution and DELM for efficient data processing, ensuring high performance and minimal latency.

Ramya and Ramamoorthy (2024) [15] developed a Q-based deep extreme neural network learning algorithm for smart healthcare applications, integrating prediction and resource allocation capabilities. Their system architecture consisted of four primary modules: data collection unit (DCU), data processing unit (DPU), intelligent prediction module (IPM), and adaptive resource allocation module (ARAM). The system was specifically designed for heart attack prediction using medical training data from the IoT layer. Through extensive experimentation, they demonstrated improved Quality of Service (QoS) with reduced latency in real-time monitoring scenarios. A notable limitation of the study is its lack of comprehensive comparative analysis with existing prediction systems and insufficient attention to scalability concerns in large-scale deployments.

Abirami and Poovammal (2024) [16] introduced HAWKFOGS, an innovative framework combining deep learning with edge and fog computing devices for cardiac problem diagnosis. Their approach utilized Logistic Chaos based Harris Hawk Optimized Enhanced Gated Recurrent Neural Networks for prediction, implemented on Embedded Jetson Nano devices. Data collection was performed using IoT devices interfaced with electrocardiography and blood pressure sensors. They demonstrated exceptional efficiency with a model building in reduced time. The research is constrained by its focus on specific hardware configurations and lacks validation across diverse healthcare environments and patient populations.

Singh and Singh (2023) [17] explored the convergence of machine learning in robotics with fog/cloud computing and IoT technologies. Their research highlighted how this combination enables intelligent and adaptive autonomous systems through distributed computing and real-time data processing. They addressed critical challenges including security, privacy, resource management, latency, bandwidth, interoperability, and energy efficiency. The study presented case studies demonstrating potential applications across various industries. Their work emphasized the importance of ethical principles and appropriate integration strategies. A significant drawback of the research is the absence of quantitative validation of the proposed solutions and real-world implementation data.

Chakraborty et al. (2023) [18] proposed a lightweight secure framework utilizing Deep Learning for detecting security attacks in IoT applications within fog computing environments. Their ANN-based model was strategically deployed with cloud-based training and fog node-based detection mechanisms. The framework achieved impressive results when tested on NSL-KDD datasets: 99.43% accuracy, 99.26% precision, and a minimal 0.7396% false alarm rate. Comparative analysis showed superior performance against baseline techniques including SVM, Logistic Regression, and Decision Trees. Their approach effectively addressed the security vulnerabilities common in dynamic fog computing environments. One key limitation lies in the framework's validation being restricted to standard datasets, lacking testing against emerging attack patterns and real-world security threats.

Elhadad et al. (2022) [19] developed a healthcare monitoring framework leveraging fog computing for real-time notification management. Their system continuously monitored vital signs including body temperature, heart rate, and blood pressure through wearable devices. The framework incorporated machine learning algorithms for anomaly detection and automated notification generation. They implemented features for both emergency alerts and routine medication reminders. The system demonstrated effective real-time communication between IoT devices and healthcare providers. The study's primary weakness is its lack of comprehensive performance metrics and insufficient attention to potential scalability issues in large-scale healthcare deployments.

Narayana and Patibandla (2021) [20] created a fog-based model (FBELPM) for secure data communication in IoT environments. Their JAVA-implemented system focused on establishing secure communication channels between IoT devices. The model incorporated strong security mechanisms while maintaining efficient data transmission capabilities. They presented a detailed layered approach to IoT-based fog computing implementation. The framework demonstrated effectiveness in reducing attacks while improving supervision quality. A major shortcoming of the research is the absence of quantitative performance analysis and comparison with existing security frameworks in real-world scenarios.

Zhang et al. (2021) [21] addressed distributed fog computing challenges through improved LT codes optimization for deep learning in IoT applications. Their approach focused on managing large-scale sensor data processing while considering potential fog node failures. The improved LTC-based scheme achieved simultaneous reduction in average overhead and degree. Their method demonstrated significant improvements in reducing latency and computation complexity in distributed environments. The research specifically addressed the challenges of processing big data in real-time with limited resources. The primary limitation emerges from insufficient validation in diverse network conditions and inadequate addressing of network heterogeneity impacts.

Abdel-Basset et al. (2021) [22] proposed an energy-aware model based on the marine predators algorithm (MPA) for optimizing task scheduling in fog computing. They developed three versions of the algorithm, with the improved MMPA showing superior performance metrics. Their approach effectively addressed energy consumption, makespan, flow time, and carbon dioxide emission concerns. The system demonstrated particular strength in handling discrete task scheduling challenges. Their research showed significant improvements over genetic algorithms and other metaheuristic approaches. The study falls short in its evaluation under dynamic workload conditions and real-time task arrival scenarios.

Bhandari et al. (2021) [23] developed a deep learning-based content caching method (DLCC) for fog-access points using 2D CNN architecture. Their approach specifically addressed the challenges of predicting and storing user content efficiently in dynamic environments. The system demonstrated superior performance in DL accuracy, mean square error, cache hit ratio, and overall system delay. Their method outperformed existing approaches including transfer learning-based cooperative caching and randomized replacement strategies. The framework showed particular effectiveness in addressing latency-related issues in 5G and beyond cellular communication. A critical gap in the research is its insufficient validation with diverse content types and user behavior patterns in real-world network conditions.

Rahman et al. (2020) [24] introduced a Deep Reinforcement Learning based computation offloading and resource allocation scheme for Fog Radio Access Networks (F-RANs). Their approach intelligently determined optimal task processing locations between device level, fog access points, and cloud servers. The system demonstrated significant improvements in minimizing latency and increasing throughput. Their framework effectively handled the joint optimization of mode selection, resource allocation, and power allocation. The approach showed particular strength in achieving suboptimal solutions for complex F-RAN environments. The research is particularly limited by its assumptions about network stability and insufficient consideration of dynamic user mobility patterns.

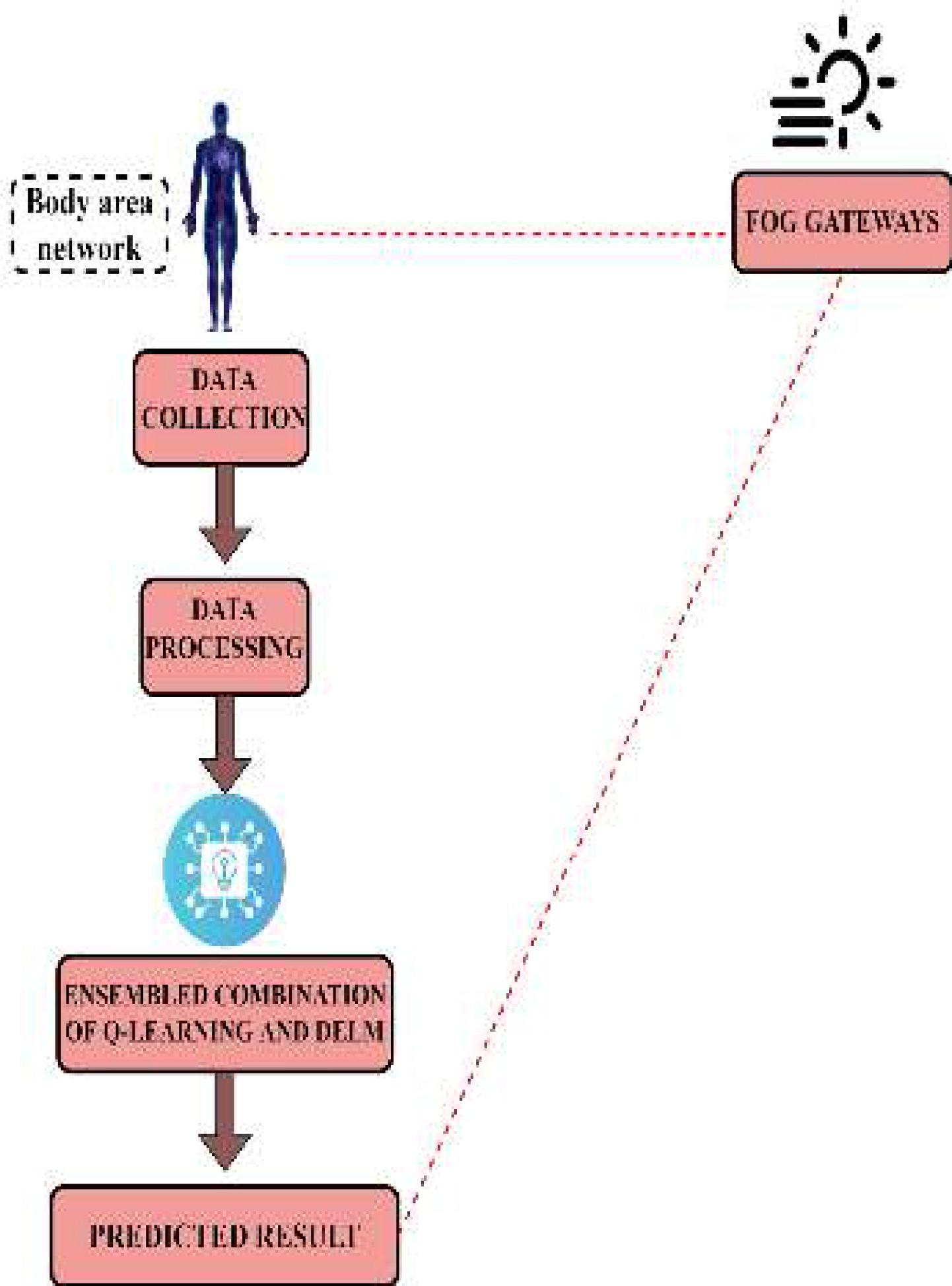

The proposed IoT and Fog node management framework, shown in Figure 1, combines Q-Learning and Deep Extreme Learning Machine (DELM) to address challenges in large-scale IoT and Fog environments. The resource optimization component uses Q-Learning to allocate resources dynamically. By learning and adapting to changing network conditions, it improves resource utilization, reduces latency, and enhances decision-making. The data processing component employs DELM for fast and accurate handling of large-scale data. DELM processes complex datasets efficiently, meeting the real-time demands of IoT and Fog systems while supporting high throughput and scalability. The framework’s performance is validated through simulations representing large IoT and Fog networks. Key metrics like latency, resource usage, and throughput demonstrate significant improvements. By combining Q-Learning’s adaptability with DELM’s speed, the framework ensures low latency, efficient computation, and scalability. This approach highlights its suitability for real-time IoT and Fog applications, providing a reliable and efficient solution for managing large-scale networks.

Figure 1:

Proposed Architecture

3.3

System Design

The system design integrates Q-Learning and Deep Extreme Learning Machine (DELM) to optimize resource allocation and enable high-speed data processing. It features two primary components: resource optimization for adaptive network management and data processing for efficient handling of large-scale IoT and Fog environments.

3.3.1

Q-LEARNING CONCEPTS

Reinforcement learning (RL) plays a critical role in machine learning systems, particularly in artificial intelligence applications. In the context of Body Area Networks for the Internet of Things (BAN-IoT), Q-learning, a specialized area of RL, is widely adopted. The core concept of RL is based on sequential decision-making, where an agent interacts with an environment, selects actions, and, based on the feedback from the environment, receives rewards that guide the decision-making process [25]. This cycle continues until the agent reaches a conclusion or maximizes its objective. Figure 2 illustrates the basic framework of reinforcement learning.

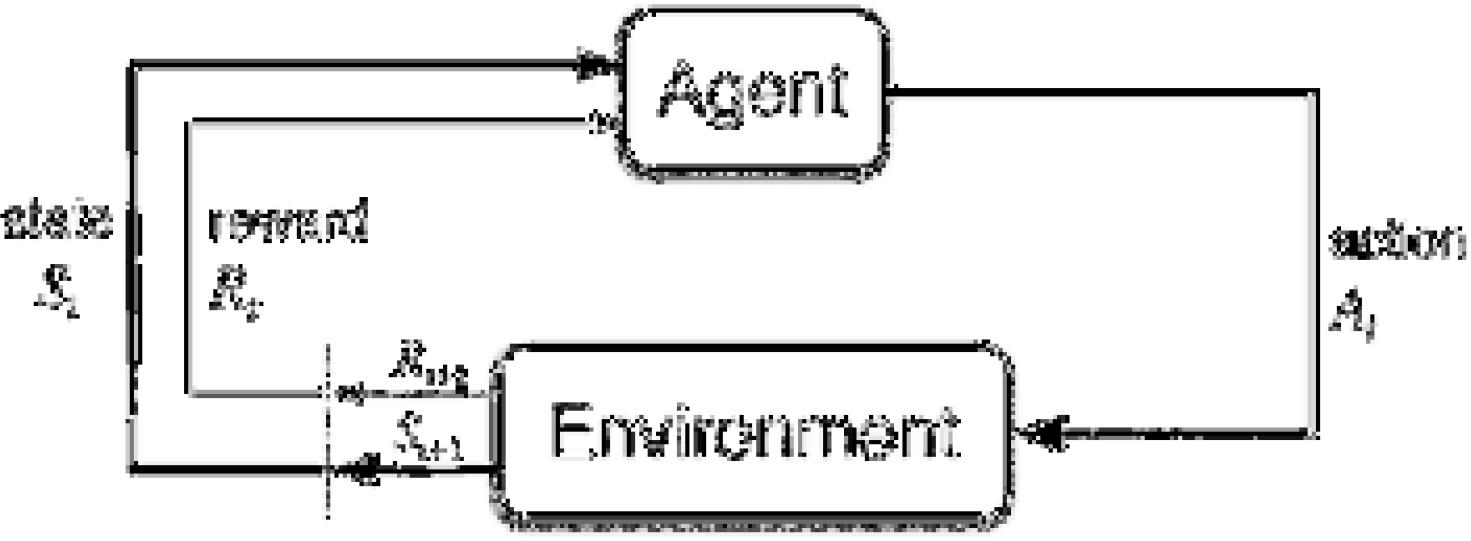

Figure 2:

Reinforcement learning framework

In RL, the agent's primary goal is to identify and perform the optimal actions to maximize the cumulative discounted reward over time. This process requires the agent to make informed decisions at each stage of the interaction, balancing immediate and long-term rewards. A policy, which represents the strategy the agent follows, defines the actions the agent will take in each state. The policy maps each state, represented as t, to a corresponding action. The primary aim of RL is to fine-tune the agent's policy such that the total long-term reward is maximized, essentially teaching the agent to make decisions that yield the most beneficial outcomes.

The effectiveness of RL largely hinges on the success of Q-learning, a model-free, off-policy algorithm that allows agents to learn from the environment without needing a predefined model of the environment. Q-learning is a leading algorithm in RL, known for its ability to approximate the value of state-action pairs by leveraging samples collected during interactions with the environment. The discrete-time Q-function, which is the key to understanding Q-learning, is mathematically represented in Equation (4).

In Q-learning, the decision-making process is formulated within the framework of a Markov Decision Process (MDP), which characterizes the environment's states, actions, rewards, and the associated transition probabilities. These elements are denoted as (S, A, P, R), where S represents the set of possible states, A is the set of actions, P is the probability distribution of transitions between states, and R is the reward function. Let z be the current state and z′ be the next state with action value a. 1Pzz′a=Prob{ zi+1=z′∣zt=z,at=a }

The reward function for states z and z′ is given as Rztzt+1a.t . The overall reward function at a given state is the sum of the rewards for all possible next states, weighted by their transition probabilities, as shown in Equation (5). 2Rt=∑zt+1∈ZPstst+1atRztzt+1∣zt=z,at=aat

Let the utility function with a policy variable ω, Q_ω(z, a) be defined. 3Qω(z,a)={ Rt+γ∑zt+1ϵZPzzt+1atQω(zt,a) }

γ →e reduction factor [0,1] & practically γ values primarily be [0.5,0.99]. 4Q*(z,a)=max{ Qω(z,a) }={ Rt+γ∑zt+1∈ZPztzt+1atmax{ Qω(zt+1,a) } }∣zt=z,at=a={ Rt+γ∑zt+1∈ZPztzt+1atQ*(zt+1,a) }∣zt=z,at=a

3.3.2

Deep Extreme Learning Machine

The Deep Extreme Learning Machine (DELM) extends the concept of the traditional Extreme Learning Machine (ELM) by incorporating deep learning principles, making it highly effective for complex data. DELM utilizes a deep architecture where multiple hidden layers are employed to extract hierarchical features from input data, enabling better performance in tasks such as classification and prediction. The key characteristic of DELM is the random initialization of weights in the hidden layers, similar to the original ELM, which avoids the need for backpropagation. This results in significantly faster training times compared to conventional deep learning models.

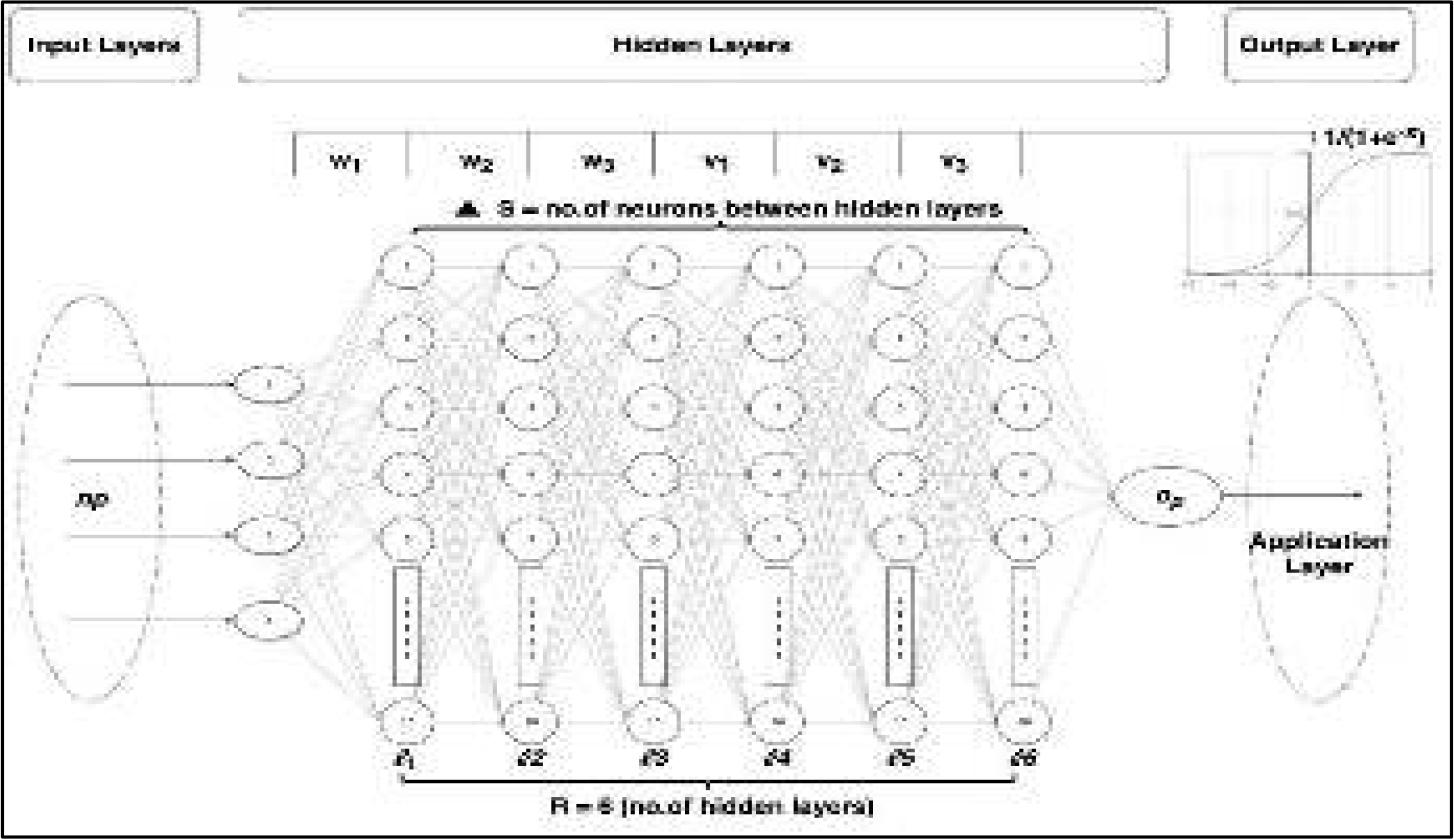

In DELM, as illustrated in Figure 3, the input data is passed through several hidden layers, each with randomly initialized weights. The output layer’s weights are computed analytically using a closed-form solution, based on the activations from the last hidden layer. The lack of backpropagation in DELM speeds up the training process, making it suitable for large-scale datasets and real-time applications. The model’s output is determined by applying a linear transformation to the activations of the hidden layers, and it minimizes the difference between the predicted and actual outputs through a least-squares solution.

Figure 3:

DELM Framework

One of the main advantages of DELM is its computational efficiency, as it significantly reduces the time required for training compared to traditional neural networks. However, the random initialization of weights can sometimes result in suboptimal performance, particularly in more complex tasks. Despite this, DELM’s ability to handle large datasets with minimal training time and without extensive manual tuning makes it a strong choice for many machine learning applications, including image classification, time series prediction, and anomaly detection.

This section provides an evaluation of the proposed approach, focusing on key performance metrics and analyzing the effectiveness of the hybrid Q-Learning and DELM model in optimizing resource allocation and processing data in large-scale IoT and Fog environments.

4.1

Implementation Details

The proposed framework is implemented on an Intel Core i7 CPU with a 512 GB SSD, a 12 GB NVIDIA GPU, and 16 GB of RAM, operating at a frequency of 3.6 GHz. The system records datasets from IoT-BAN-Fog environments. A total of 90 nodes were deployed, interfacing with a variety of medical sensors, including ECG, pulse, and motion sensors. Table 1 presents the simulation parameters used for the experimentation. A total of 18,350 raw data points were recorded, encompassing eight attributes, and were used for training the network.

Table 1:

S.No	Simulation Parameters	Specifications
1	Number of Nodes Deployed	90
2	Number of Fog Gateways	04
3	Initial Energy per BAN Node	0.002 Joules
4	Distance Variation Between BAN Nodes	4-12 meters
5	Equipped Transceivers	5G
6	Uplink Bandwidth	250 Mbps
7	Downlink Bandwidth	125 Mbps
8	RAM in Fog Gateways	3GB
9	Number of Recorded Attributes	08

Table 2:

SL.NO	Performance Measures	Expression
1	Accuracy	TP+TNTP+TN+FP+FN
2	Recall	TPTP+FN×100
3	Specificity	TNTN+FP
4	Precision	TNTP+FP
5	F1-Score	2. Precison*Recall Precision+Recall

4.3

Experimental Outcome

Table 3 compares the performance of various models in IoT-Fog environments based on metrics such as accuracy, sensitivity, specificity, precision, and F1-score. Among the models, RF-SVM and CNN-LSTM show moderate performance, with accuracies of 89.4% and 91.7%, respectively. Hybrid Fuzzy-Q-Learning and DRL-GRU demonstrate improved metrics, with DRL-GRU achieving 95.8% accuracy due to its advanced sequential data handling. The proposed model, an ensembled combination of Q-learning and Deep Extreme Learning Machine, achieves the highest accuracy of 98.6% and excels across all metrics, showcasing its superior ability to handle large-scale IoT-Fog environments efficiently while minimizing latency.

Table 3:

Algorithm	Accuracy (%)	Sensitivity (%)	Specificity (%)	Precision (%)	F1-Score (%)
RF-SVM	89.4	88.9	87.8	88.2	88.5
CNN-LSTM	91.7	91.2	90.1	90.6	91.0
Hybrid Fuzzy-Q-Learning	93.5	93.1	92.3	92.7	93.0
DRL-GRU	95.8	94.9	94.5	94.7	95.2
Proposed Model	98.6	99.1	98.8	98.9	99.0

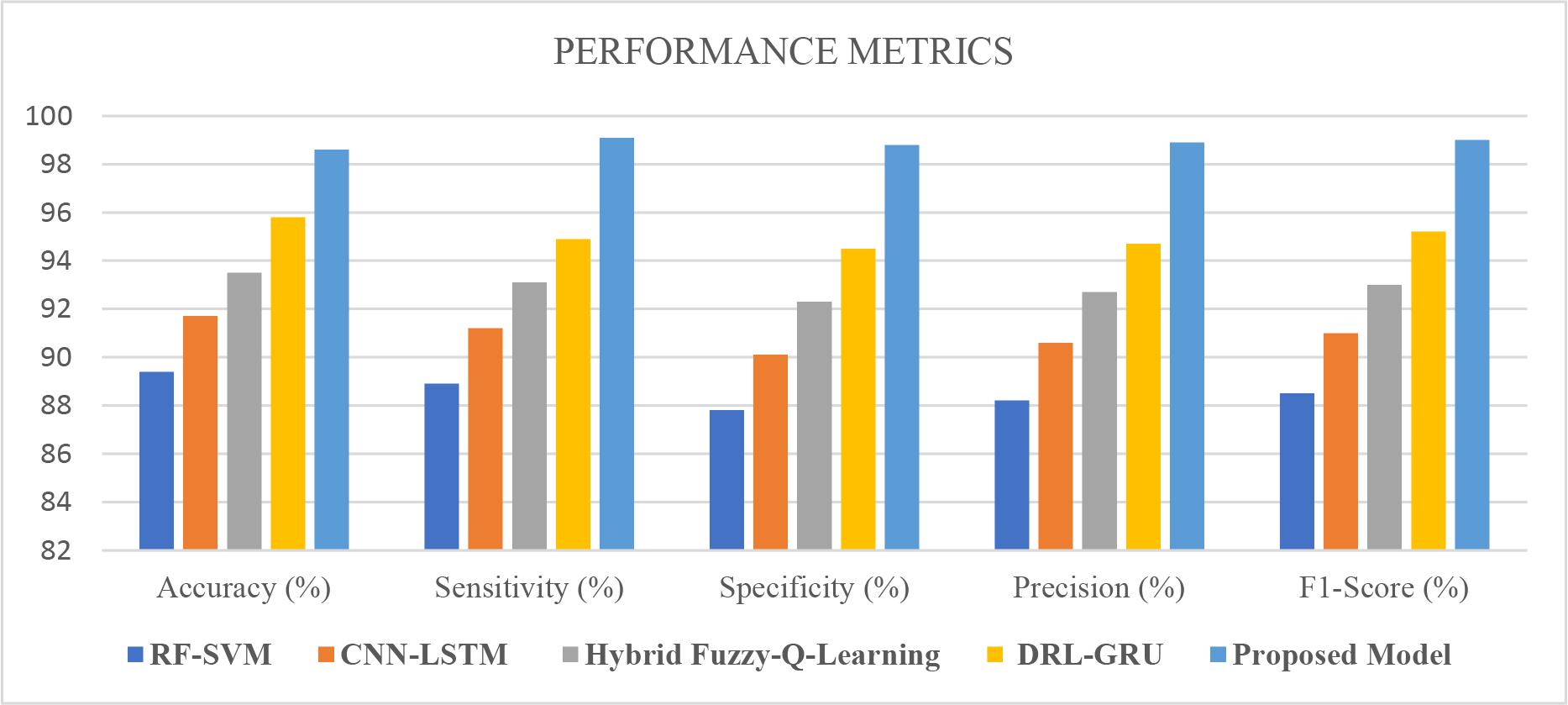

Figure 4 illustrates the comparative performance of different models in IoT-Fog environments based on key metrics. It highlights the substantial improvement of the proposed model in all evaluation criteria, including accuracy, sensitivity, specificity, precision, and F1-score, when compared to other models. Notably, the proposed model outperforms existing hybrid and deep learning architectures, such as DRL-GRU and Hybrid Fuzzy-Q-Learning, demonstrating its effectiveness in achieving higher accuracy and better overall performance in large-scale IoT and Fog network scenarios.

Figure 4:

Performance Evaluation of Various Models in IoT-Fog Environments

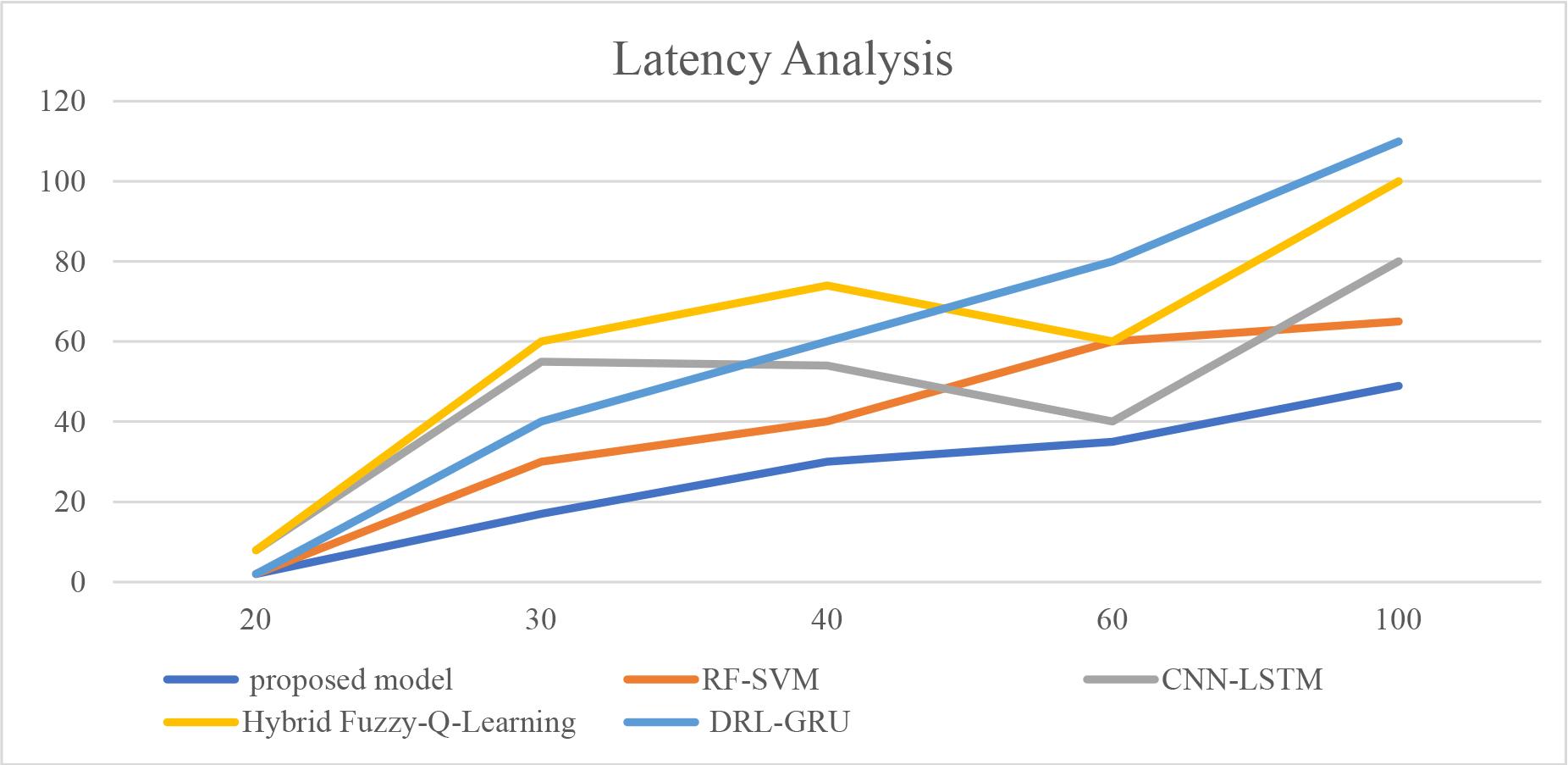

Figure 5 compares the latency performance of different learning-based Fog-BAN networks as the number of nodes increases. The proposed model outperforms others by maintaining lower latency, demonstrating its effectiveness in large-scale IoT and Fog environments. This highlights its ability to optimize resource allocation and ensure efficient data processing even with higher node counts.

Figure 5:

Latency Performance Comparison of Different Learning-Based Fog-BAN Networks with Varying Node Counts

This research demonstrates the transformative potential of integrating Q-Learning with Deep Extreme Learning Machine (DELM) in optimizing large-scale IoT and Fog computing environments. The proposed framework successfully addresses critical challenges in network management, achieving exceptional performance metrics with 98.6% accuracy, 99.1% sensitivity, and a 99.0% F1-score, significantly outperforming traditional approaches like RF-SVM and CNN-LSTM. The integration of Q-Learning's adaptive decision-making capabilities with DELM's efficient data processing has proven particularly effective in reducing latency and optimizing resource allocation across distributed networks. The framework's success in handling real-time data processing while maintaining high performance metrics demonstrates its practical viability for diverse applications, particularly in healthcare monitoring systems where reliable, low-latency operation is crucial. Future enhancements could focus on improving security through blockchain integration, implementing smart energy management systems, expanding network scalability, and developing more sophisticated real-time analytics capabilities. Additional research could explore integrating advanced machine learning algorithms to enhance prediction accuracy and system performance. The framework could also be extended to support more diverse IoT applications and incorporate emerging technologies for better resource optimization.
