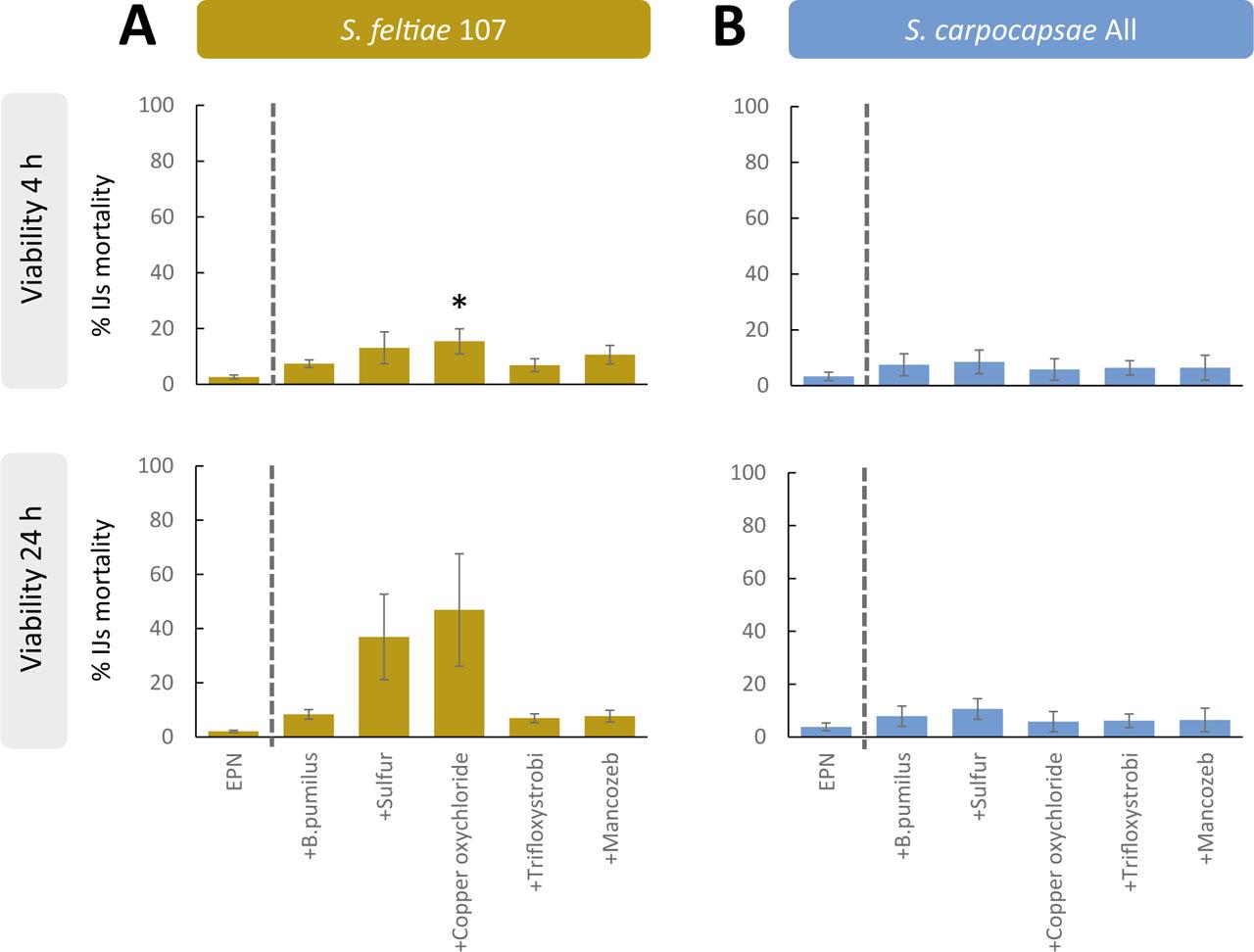

Figure 1:

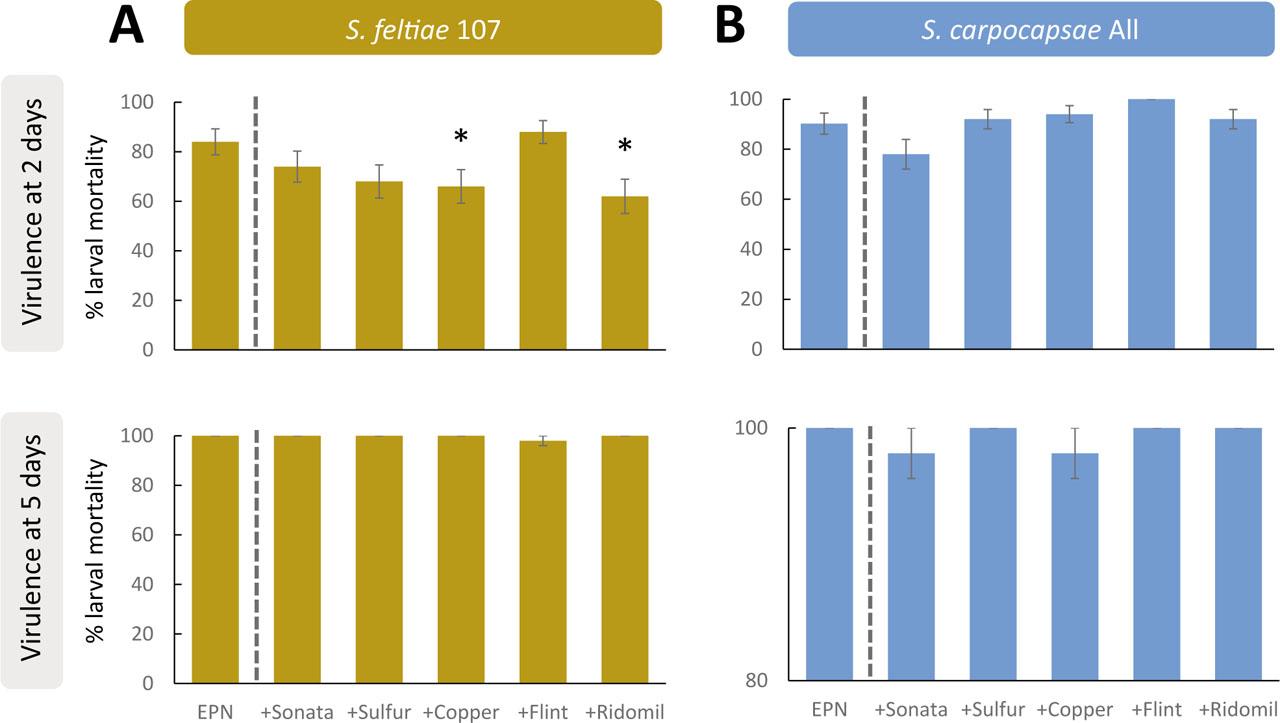

Figure 2:

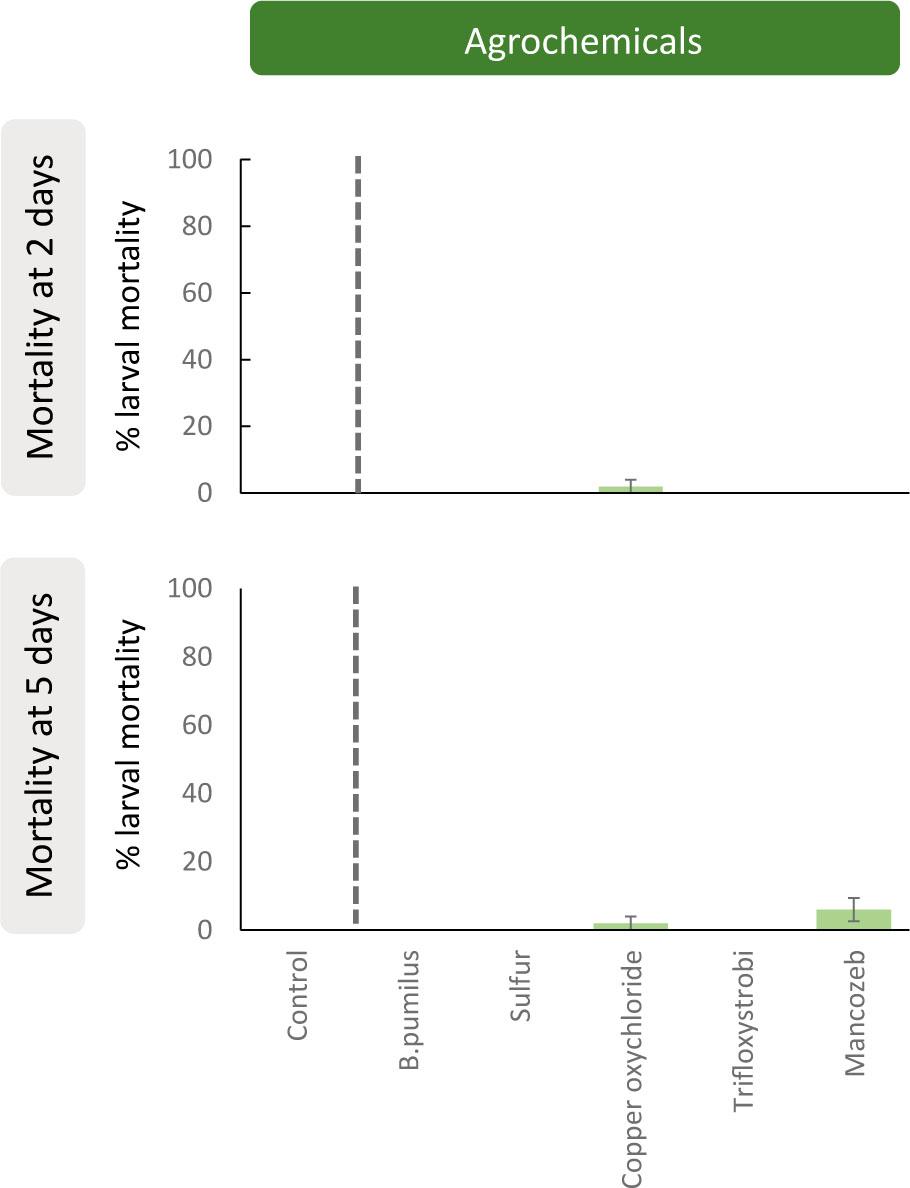

Figure 3:

Compatibility test of co-application of fungicides certified for use in vineyards in Spain with entomopathogenic nematodes_
| Commercial product | Supplier | Active ingredient | Concentration prepared | Recommended field application |
|---|---|---|---|---|
| Sonata | Bayer | Bacillus pumilus strain QST 2808 | 20 ml/l | 10 ml/l |
| Sulfur | Sipcam Jardin | Sulfur 80% | 10 g/l | 5 g/l |
| Copper oxychloride | Sipcam Jardin | Copper oxychloride 50% p/p | 8 g/l | 4 g/l |
| Flint | Bayer | (WG) with 50% trifloxystrobin | 0.30 g/l | 0.15 g/l |
| Ridomil-Gold | Syngenta | 64%p/p of Mancozeb,3.9% of Metalaxyl-M | 5.0 g/l | 2.5 g/l |
