MD-YOLOV12: Two-Stage Feature Injection for Robust Tool Wear Detection

To address the limitations of existing approaches in integrating self-supervised visual models with supervised detectors—particularly the computational inefficiency and semantic constraints caused by full backbone replacement and single-point feature injection—this study introduces a novel hierarchical semantic injection strategy. This method integrates DINOv3’s rich semantic representations into the YOLO architecture at two critical stages: semantic grounding at the input layer enhances the representational capacity of low-level features, while the subsequent Mamba2 [11] module effectively captures important features extracted by DINOv3 and models long-range dependencies with linear complexity, thereby cooperatively improving the detector’s semantic robustness and spatial localization accuracy under data-scarce training conditions.

Figure1, illustrates the YOLOv12 [12] architecture with DINOv3 as the backbone. The model processes 640×640 input images through a hierarchical pipeline consisting of the following sequential stages: input preprocessing, a DINOv3-enhanced backbone, deep backbone stages composed of Mamba2 and convolutional layers, a feature pyramid network that integrates top-down and bottom-up pathways, and a multi-scale detection head. The detection head operates at three different resolution levels: P3/8, P3/16, and P5/32. Two pre-trained DINOv3-ViT-B/16 modules (each with 86 million parameters and frozen weights) are incorporated. The entire architecture contains a total of 218 million parameters, of which 36 million are trainable, and requires 124 Giga Floating-point Operations (GFLOPs) for a 640×640 input.This dual-stage feature injection strategy is designed to address the diverse feature requirements across different abstraction levels in the object detection pipeline. By enhancing complementary aspects of semantic representation, it effectively improves the model's overall representational capacity and detection performance under data-scarce conditions.

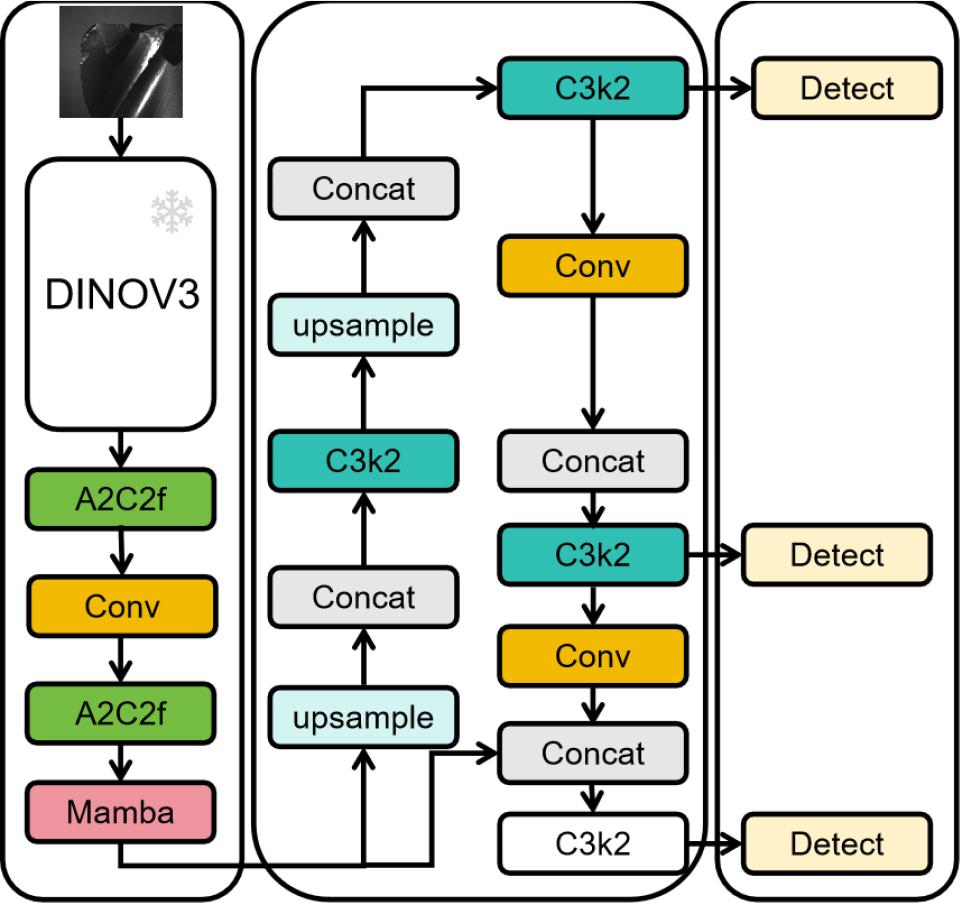

Figure 1.

The main architecture of proposed DINO-YOLO model

DINOv3, Meta AI's third-generation self-supervised vision transformer model, serves as an ideal backbone replacement for YOLO in tool

Wear detection applications due to its exceptional visual feature extraction capabilities, as illustrated in Figure 2. The model employs an efficient "self-distillation" framework that learns highly universal visual representations without relying on manually annotated data — a crucial advantage in industrial scenarios where tool wear data is often costly and challenging to label. Through its unique training mechanism involving dual enhanced views of the same image, DINOv3 develops robust multi-scale feature representations that naturally align with YOLO's multi-scale detection heads, enabling precise identification of wear regions across varying severity levels. The knowledge distillation process, formalized by the loss function: 1L=−1N∑i=1NPt(i)(x2;Tt)·logPs(i)(x1;Ts) {\rm{L}} = - {1 \over N}\sum\nolimits_{i = 1}^N {P_t^{(i)}} \left( {{x_2};{T_t}} \right)\cdot\log P_s^{(i)}\left( {{x_1};{T_s}} \right)

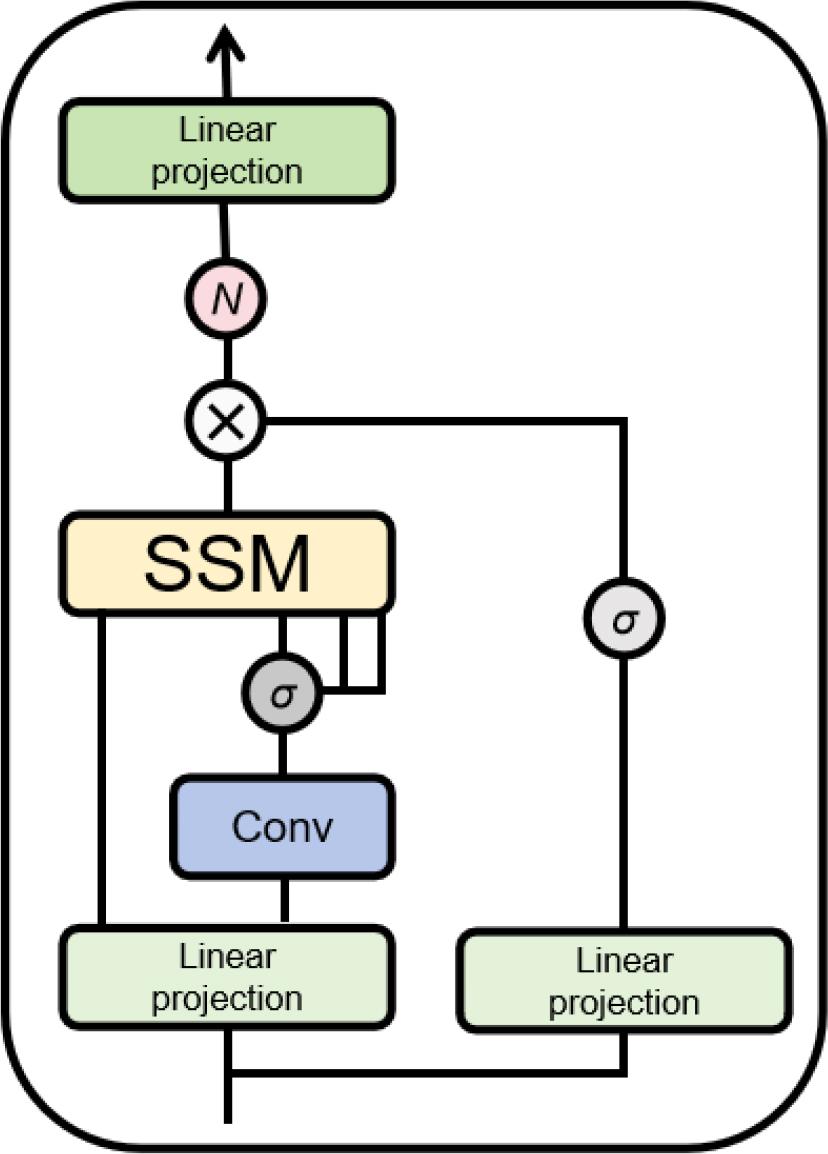

Figure 2.

The architecture of Mamba block.

Here, L represents the total loss that the student network aims to minimize. The student's probability distribution P_s, generated from the first augmented view x₁, is trained to match the teacher's distribution P_t, which is generated from the second view x₂. The temperature parameters and control the sharpness of these distributions, helping the model focus on meaningful semantic relationships. Ensures the model captures subtle wear characteristics on tool surfaces while maintaining stability against environmental variations like lighting and scale changes. Furthermore, the teacher-student parameter update rule can be formurla as:

2θt←λθt+(1−λ)θs {\theta _{\rm{t}}} \leftarrow \lambda {\theta _{\rm{t}}} + (1 - \lambda ){\theta _{\rm{s}}}

In this exponential moving average update θ_t and θ_s denote the parameters of the teacher and student networks, respectively. The momentum coefficient λ, a value very close to 1, dictates the update speed.Guarantees reliable feature extraction during fine-tuning, allowing the pre-trained model to quickly adapt to specific tool wear domains even with limited samples. This integration creates a powerful tool wear detection system that accurately locates wear areas, quantifies degradation levels, and maintains consistent performance in complex industrial environments, thereby providing reliable technical support for tool condition monitoring in smart manufacturing applications.

To further augment the model's capability in capturing long-range dependencies and fine-grained spatial relationships within tool wear images, we integrate the Mamba block. As a state space model (SSM) [13] with data-dependent selection mechanisms, Mamba overcomes the computational limitations of traditional transformers while excelling at modeling complex global contexts. This is particularly beneficial for tool wear detection, where a single localized wear region may be correlated with distant visual cues across the entire tool surface. The core of the Mamba block involves a structured state space sequence transformation. It was illustrated in Figure 2. The continuous-time state space is defined by the following equations: 3h′(t)=Ah(t)+Bx(t) {h^\prime }(t) = Ah(t) + Bx(t) 4y(t)=Ch(t)+Dx(t) y(t) = Ch(t) + Dx(t)

Here, h(t) represents the hidden state at time tt, x(t) is the input signal, and y(t) is the output signal. The matrices A, B, C, and D are parameters that govern the system's dynamics.

For digital computation, the continuous system is discretized using a zero-order hold method with a timescale parameter Δ. This is achieved by transforming the continuous parameters (A, B) into their discrete counterparts (A¯,B¯) \left( {\bar A,\bar B} \right) : 5A¯=exp(ΔA) \overline {\rm{A}} = \exp (\Delta A) 6B¯=(ΔA)−1(exp(ΔA)−1)·ΔB \overline {\rm{B}} = {(\Delta A)^{ - 1}}(\exp (\Delta A) - 1)\cdot\Delta B

The discrete-time computation for a given input sequence x_k is then performed via a linear recurrence or a parallelized global convolution: 7hk=A¯hk−1+B¯xk {h_{\rm{k}}} = \bar A{h_{k - 1}} + \bar B{x_k} 8yk=Chk+Dxk {y_{\rm{k}}} = C{h_k} + D{x_k}

By integrating the Mamba block after the DINOv3 backbone and before the YOLO detection heads, the feature maps are enriched with globally-aware, contextually refined representations. This enables the detection system to not only identify local wear spots but also understand their significance within the broader context of the entire tool's condition, leading to more robust and accurate wear level quantification and localization in complex industrial environments.

The significant performance enhancement achieved by our proposed architecture is not merely a result of stacking advanced modules, but stems from the fundamental theoretical complementarity between the static semantic extraction of DINOv3 and the dynamic contextual modeling of Mamba. This synergy functions, driven by three specific mechanistic pathways:

First, Global Contextualization via Linear Complexity. While DINOv3 excels at extracting object-centric features via its attention mechanism, standard Vision Transformers often lack efficient global modeling at high resolutions due to quadratic computational complexity O(N^2). In contrast, the Mamba block introduces a linear-complexity global receptive field O(N). By treating the flattened feature map as a sequence, Mamba utilizes its recurrent state space model to propagate information across the entire image. This allows the detection head to correlate distant visual cues—such as relating shank discoloration to tip wear—without computational bottlenecks, ensuring the model perceives the holistic tool state rather than isolated patches.

Second, The “Selection Mechanism” as a Semantic Rectifier. Industrial scenarios are often plagued by high-frequency noise that DINOv3 might encode as salient features due to its high sensitivity. The core innovation of Mamba—the Data-Dependent Selection Mechanism—acts as a dynamic semantic filter. Unlike static convolutional layers, Mamba's input-dependent parameters allow the model to selectively "forget" or "remember" information. When the scan encounters irrelevant background noise, the model generates a smaller time-step to suppress state updates; conversely, when it detects wear patterns characterized by DINO's high-level semantics, the gate opens to integrate this information. This process effectively rectifies the feature stream, filtering out environmental interference while preserving the structural integrity of wear defects.

Third, Modeling the Spatial Continuity of Wear. Tool wear is inherently a continuous physical phenomenon rather than a set of discrete pixels. While DINOv3 processes images in discrete patches, potentially leading to fragmented representations, Mamba is derived from continuous-time systems. This inductive bias makes it exceptionally capable of modeling the spatial continuity of wear marks. By processing DINO features through Mamba, discrete patch embeddings are smoothed into coherent “wear trajectories.” This ensures that the predicted bounding boxes align with the physical reality of the defect's shape, significantly improving localization accuracy and Intersection over Union (IoU) scores.

Data and Evaluation. To evaluate the performance of the proposed MD-YOLOV12, We collected a dataset of approximately 8,038 tool wear images, called Tool Wear Detection Dataset (TWDD), including normal wear, crater wear, flank wear, and groove wear. The worn tools were annotated, with 70% of the data used as the training set, 20% as the validation set for testing, and 10% as the test set. We employ mAP50 [14] as the evaluation metrics. Figure 3. Presents visual examples of each type of defect.

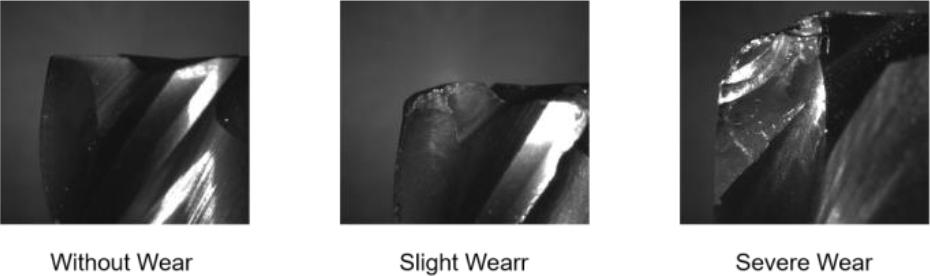

Figure 3.

Examples of TWDD dataset.

Training Settings. We employ different variant of DINOv3 as the backbone of MD-YOLOv12. Since DINOv3 is already a powerful feature extractor, we freeze its parameters during training to reduce the number of trainable parameters and model complexity. It underwent training employing the Adam optimizer, lauded for its adaptive learning rate features that expedite model convergence. The initial learning rate was configured at 0.003, which diminishes the learning rate by a factor of 0.1 in the absence of performance enhancements on the validation set over 20 consecutive epochs. Training extended across 200 epochs, with early stopping mechanisms in place to avert overfitting. This halts the training process if the validation loss fails to improve over 20 consecutive epochs. To enhance model robustness against real-world variations, data augmentation techniques such as random rotations, translations, and scaling (detailed in the Dataset subsection) were applied to the training images. Our model is implemented using PyTorch [15] and trained on two RTX 3090 GPUs.

As shown in Table 1, demonstrating that optimal integration strategies depend strongly on YOLO backbone scale, DINOv3 model variant.The ablation results demonstrate that optimal DINO-YOLO configurations vary systematically with YOLO model scales, refuting the hypothesis that a single universal integration strategy exists for all model sizes. When employing DINOv3 ViT-L/16 as the backbone with YOLOv12-M configuration, the model achieves its best performance of 58.78% mAP50. The large backbone network possesses sufficient capacity to effectively integrate semantic features from two DINOv3 injection points without causing architectural interference or gradient flow complications. Furthermore, we observe that the introduction of the Mamba block brings performance improvements to all configured models, with optimal performance consistently achieved when both DINOv3 and Mamba block are incorporated simultaneously.

Based on the ablation findings discussed above, practitioners should select configurations according to deployment requirements and resource constraints. For application scenarios where computational resources permit and maximum detection accuracy is prioritized, the optimal configuration when employing a large-scale backbone is YOLOv12-M with DINOv3 ViT-L/16. We show visual in Figure 4. This validates that the integration of high-quality DINO features with strategic architectural design enables efficient models to outperform larger counterparts. For resource-constrained edge deployment scenarios requiring small-scale architectures, practitioners should adopt YOLOv12-S with DINOv3 ViT-B/16.s

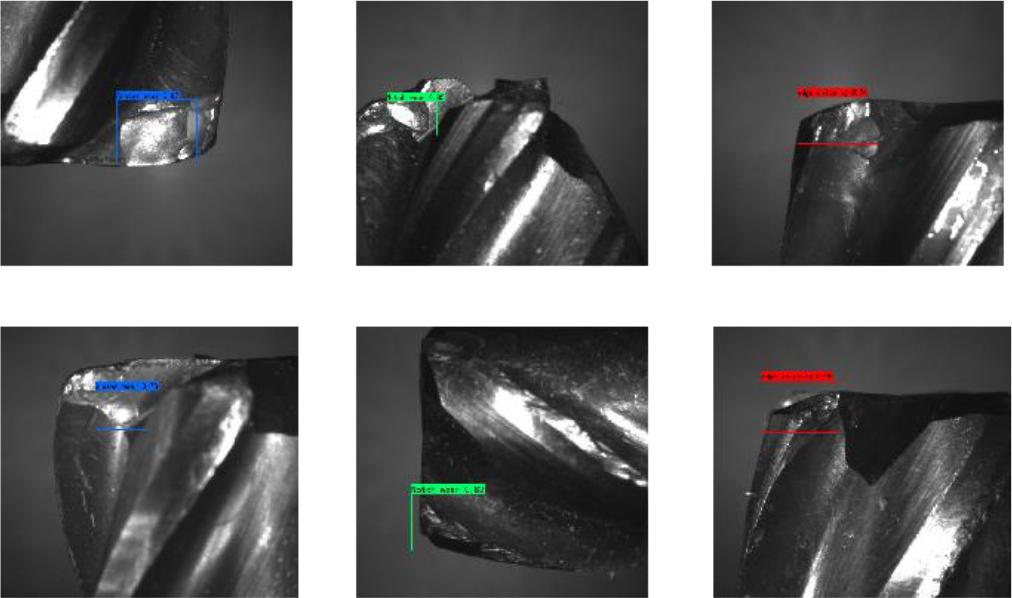

Figure 4.

Visual result for MD-YOLOv12 in out test cases.

To validate the adaptability of our model in complex industrial scenarios, specifically under conditions of strong interference and micro-wear, we conducted a comprehensive evaluation. We compared our proposed MD-YOLOv12 against seven state-of-the-art (SOTA) object detection methods: YOLOv3 [16], YOLOv5 [17], YOLOv7 [18], Gold-YOLO [19], YOLOv8 [20], YOLOv10 [21], and the baseline YOLOv12.

As shown in the experimental results, MD-YOLOv12 (specifically the M-scale variant) demonstrates significant superiority over baseline models. In terms of mAP50, our model achieves improvements of 24.53%, 19.05%, 16.81%, 15.62%, 8.24%, and 17.80% over YOLOv3, YOLOv5, YOLOv7, Gold-YOLO, YOLOv8, and YOLOv10, respectively. Notably, even compared to the latest YOLOv12 baseline, MD-YOLOv12 secures a 6.62% performance gain.

This substantial improvement highlights the advanced nature of MD-YOLOv12 in tool wear detection. While models like YOLOv10 offer a decent balance between speed and accuracy, MD-YOLOv12 exhibits better robustness in distinguishing tiny wear patterns from complex background noise. It effectively solves the problem of missed detections caused by micro-scale features and environmental interference, offering the most optimal trade-off for real-time industrial inspection.
