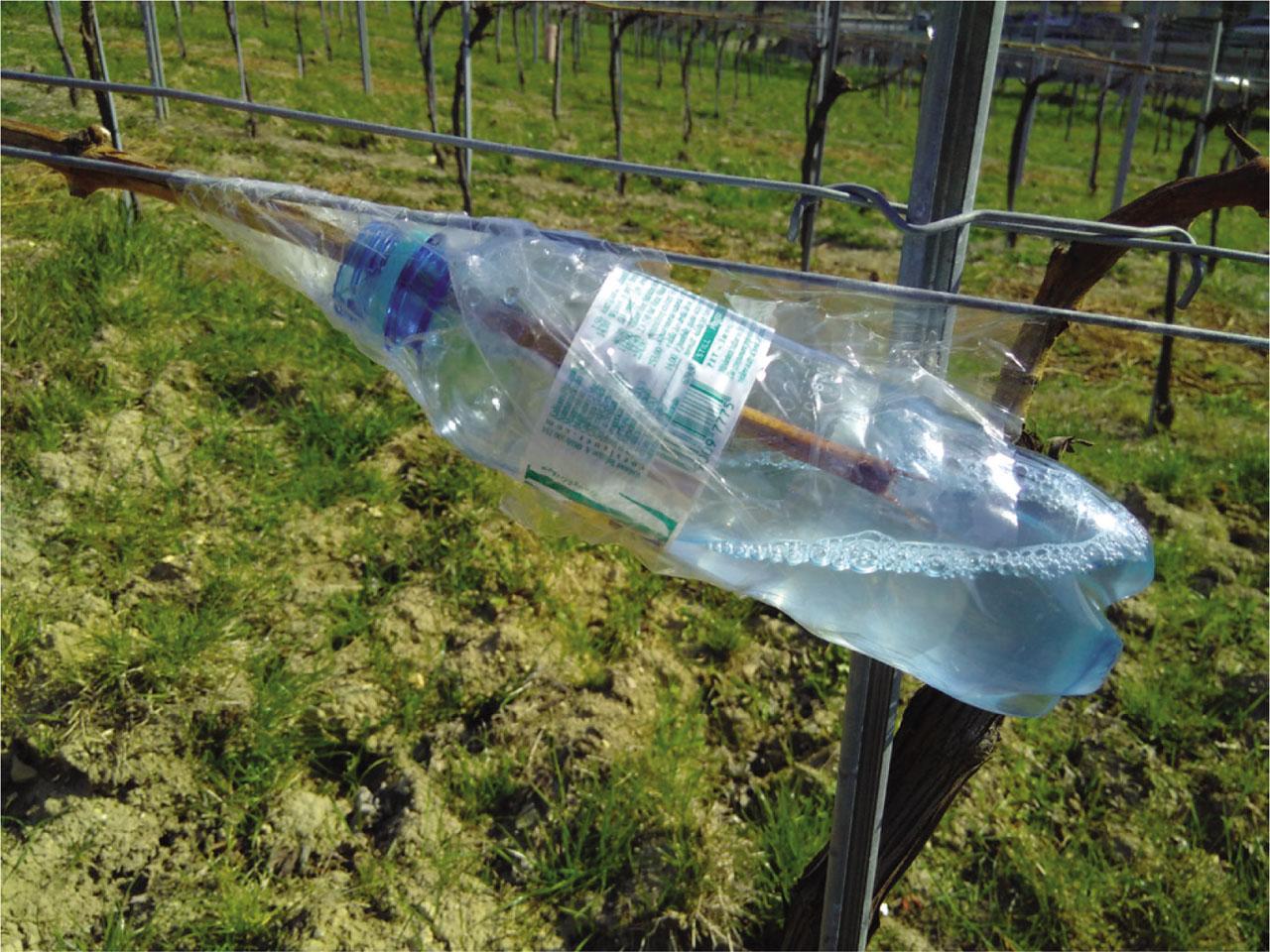

Abbildung 1
Verwendete 0,5-l-PET-Flasche für die Gewinnung des Blutungssaftes.
Figure 1. 0.5 l PET bottle used for obtaining the bleeding sap.
Tabelle 1
Mineralstoffdarstellung in Form von Mittelwerten und Standardabweichungen, erstellt mittels Photometrie und Amtomabsorption; n. n. nicht nachweisbar
Table 1. Representation of the mean values and standard deviations of the minerals using photometry and amtomabsorption; n. n. undetectable
| Kalium mg/l | Natrium mg/l | Magnesium mg/l | Calcium mg/l | Asche mg/l | Kupfer mg/l | Eisen mg/l | Zink mg/l | Mangan mg/l | Gesamt-Phosphat (als P2O5) mg/l | |
|---|---|---|---|---|---|---|---|---|---|---|
| Blutungssaft | 110 ± 80 | n.n. | 7,5 ± 6 | 77,25 ± 6,8 | 466,8 ± 77 | < 0.13 | n.n. | n.n. | 0,38 ± 0,17 | 48,43 ± 30,98 |

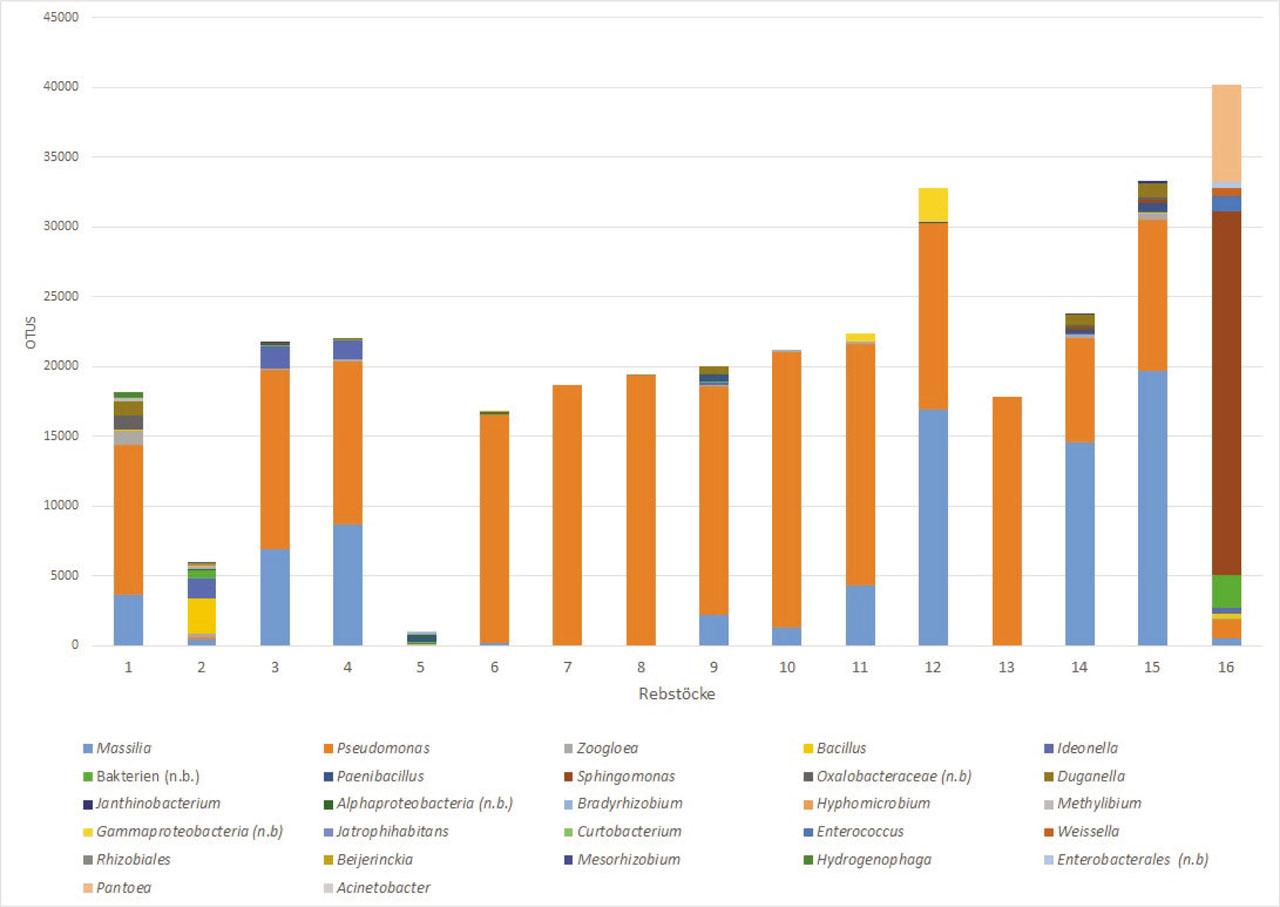

Abbildung 2
Grafische Darstellung der Gattungen in OTUs (Operational Taxonomic Units). (n. b. = nicht näher bestimmbar).
Figure 2. Graphic representation of genera in OTUs (Operational Taxonomic Units). (n. b. = not in detail determinable).

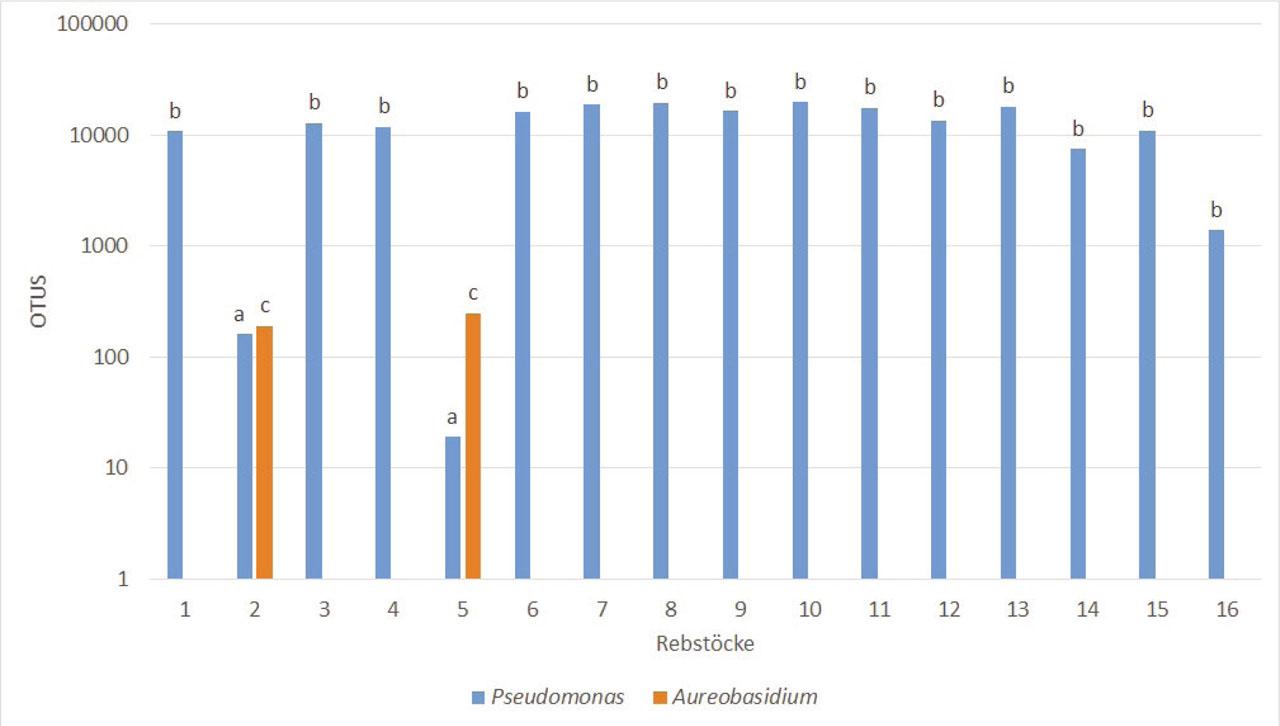

Abbildung 3
Die logarithmische Darstellung der Beziehung zwischen der Gattung Pseudomonas (a, b) und Aureobasidium (c) zeigt, dass signifikante Unterschiede (a, b) bei den OTUs von der Gattung Pseudomonas beim Vorhandensein von Areobasidium pullulans (c) auftreten.
Figure 3. Logarithmic plot of the relationship between the genus Pseudomonas (a, b) and Aureobasidium (c) shows that significant differences (a, b) in the OTUs from the genus Pseudomonas occur in the presence of Areobasidium pullulans (c).
Tabelle 2
Darstellung der NGS-Leseprozesses
Table 2. Representation of the NGS reading process
| Parameter | OTUs | Prozent |
|---|---|---|
| Gesamtzahl der Eingabesequenzen | 1.471.487 | 100,0 % |
| Verbleibende Sequenzen nach Vorverarbeitung und Qualitätsfilterung | 1.471.454 | 100,0 % |
| Verbleibende Sequenzen nach Chimärenerkennung und -filterung | 1.469.417 | 99,9 % |
| Gesamtzahl der OTUs zugewiesenen Sequenzen | 1.236.742 | 84,0 % |
| Gesamtzahl der den Taxa zugeordneten Sequenzen | 1.236.227 | 84,0 % |
| Kopienzahl korrigierte Gesamtzahl | 339.349 | – |
| Gesamtzahl der OTUs | 1.216 | 100,0 % |
| Anzahl der OTUs, die der Taxonomie zugeordnet sind | 1.215 | 99,9 % |
Tabelle 3
Metrische Darstellung der OTU (Operational Taxonomic Units) Ergebnisse in Gattungen dargestellt (n. b. = nicht bestimmbar)
Table 3. Metric representation of the OTU (Operational Taxonomic Units) results presented in genera (n. b. = not determinable)
| Rebstöcke | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | Betroffene Rebstöcke | Prozent |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bakterien (n. b.) | 0 | 556 | 66 | 77 | 66 | 38 | 0 | 0 | 138 | 0 | 0 | 0 | 0 | 0 | 0 | 2313 | 7 | 44 |
| Jatrophihabitans | 0 | 11 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Curtobacterium | 0 | 0 | 0 | 0 | 0 | 78 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Bacillus | 96 | 2507 | 37 | 0 | 64 | 0 | 0 | 0 | 18 | 0 | 0 | 0 | 0 | 37 | 64 | 338 | 8 | 50 |
| Paenibacillus | 0 | 0 | 52 | 0 | 398 | 0 | 0 | 0 | 444 | 0 | 0 | 96 | 0 | 199 | 587 | 0 | 6 | 38 |
| Enterococcus | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1111 | 1 | 6 |
| Weissella | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 572 | 1 | 6 |
| Alphaproteobacteria (n. b.) | 0 | 41 | 0 | 0 | 105 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 13 |
| Rhizobiales** | 0 | 76 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Beijerinckia | 0 | 82 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Bradyrhizobium | 0 | 126 | 0 | 0 | 184 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 13 |
| Hyphomicrobium | 0 | 68 | 0 | 0 | 41 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 13 |
| Mesorhizobium | 0 | 46 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Sphingomonas | 0 | 0 | 76 | 68 | 0 | 213 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 248 | 226 | 26025 | 6 | 38 |
| Ideonella | 0 | 1493 | 1603 | 1354 | 84 | 0 | 0 | 0 | 125 | 0 | 0 | 0 | 0 | 65 | 111 | 464 | 8 | 50 |
| Methylibium | 246 | 96 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 13 |
| Hydrogenophaga | 422 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Oxalobacteraceae (n. b.) | 1003 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 120 | 188 | 54 | 4 | 25 |
| Duganella | 986 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 604 | 0 | 0 | 0 | 0 | 761 | 1032 | 0 | 4 | 25 |
| Janthinobacterium | 0 | 0 | 33 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 99 | 126 | 0 | 3 | 19 |
| Massilia | 3622 | 441 | 6873 | 8636 | 0 | 213 | 0 | 0 | 2188 | 1265 | 4263 | 16877 | 0 | 14550 | 19668 | 506 | 14 | 88 |
| Zoogloea | 1017 | 235 | 104 | 117 | 0 | 0 | 0 | 0 | 82 | 161 | 95 | 0 | 0 | 273 | 396 | 44 | 10 | 63 |
| Gammaproteobacteria (n. b.) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 588 | 2440 | 0 | 0 | 0 | 0 | 2 | 13 |
| Enterobacterales (n. b.) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 409 | 1 | 6 |
| Pantoea | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 6963 | 1 | 6 |
| Acinetobacter | 0 | 0 | 0 | 0 | 22 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 6 |
| Pseudomonas | 10775 | 160 | 12861 | 11718 | 19 | 16275 | 18680 | 19407 | 16403 | 19727 | 17376 | 13398 | 17797 | 7452 | 10855 | 1379 | 16 | 100 |
| Aureobasidium | 0 | 191 | 0 | 0 | 246 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 13 |
