Accelerating Atmosphere Modeling: Neural Network Enhancements for Faster NRLMSISE Calculations

Since the goal is to replicate the algorithm of NRLMSISE based on the reference application, it is reasonable to use the existing NRLMSISE program, which is currently used in Juliette for dataset generation. It was decided to select all inputs of the original model except “year” because it is implicitly covered by solar and magnetic indices in the model.

In order to properly represent natural periodicity of day of year (DOY), seconds (SEC), local solar time (LST), longitude (Long), and latitude (Lat), their sine and cosine values are used. The following rescaling is used for DOY, SEC, and LST to represent them as angles in range [0;2π]: (1) θDOY=2πDOY−1365, θSEC=2πSEC86400, θLST=2πLST24 {\theta _{DOY}} = 2\pi {{DOY - 1} \over {365}},\;\;\;{\theta _{SEC}} = 2\pi {{SEC} \over {86400}},\;\;\;{\theta _{LST}} = 2\pi {{LST} \over {24}}

All periodic inputs are selected for dataset generation, and their ranges are shown in Table 1.

The normal altitude range for NRLMSISE is from 0 (ground) to 1000 km; however, here altitude is used in the range from 500 to 1500 kilometers due to the specific NRLMSISE model usage in Juliette application, as it relies on the model’s smooth parametric extrapolation for heights above 1000 km.

F10.7 adjusted, F10.7 81a (81-day average), and Ap historical values were extracted from the dataset provided by Geomagnetic Observatory Niemegk, GFZ covering 1947–2024 period (Matzka et al. 2021). The F10.7 series itself originates from the Canadian observatory network (Tapping, 2013).

Outliers for F10.7 and daily Ap were removed using a Hampel filter with 11-day sliding window, median ± 3 · 1.4826 MAD (median absolute deviation) (Hampel, 1974). The cleaned up F10.7 values show a minimum of 62 sfu (solar flux units) and a maximum of 458 sfu. Daily Ap has the range from 0 to 189 nT (nanotesla) after removing outliers. The range for F10.7 81a was taken as minimum and maximum values based on the archive. To make the neural network more tolerant against extremes, we applied a ∼10 % safety margin, yielding the final sampling as shown in Table 2.

Considering that the neural network should learn NRLMSISE program algorithms, but not observable physical phenomena, it was decided to generate each input value independently and randomly with uniform distribution, of course, preserving sine and cosine relations. This can lead to irrelevant input combinations from a physics standpoint, but it is acceptable since the focus is on learning algorithms of NRLMSISE. However, naive uniform distribution for longitude sine/cosine, latitude sine/cosine, and altitude resulted in poor sphere coverage, especially around the poles as shown on the plot in Figure 1.

Figure 1.

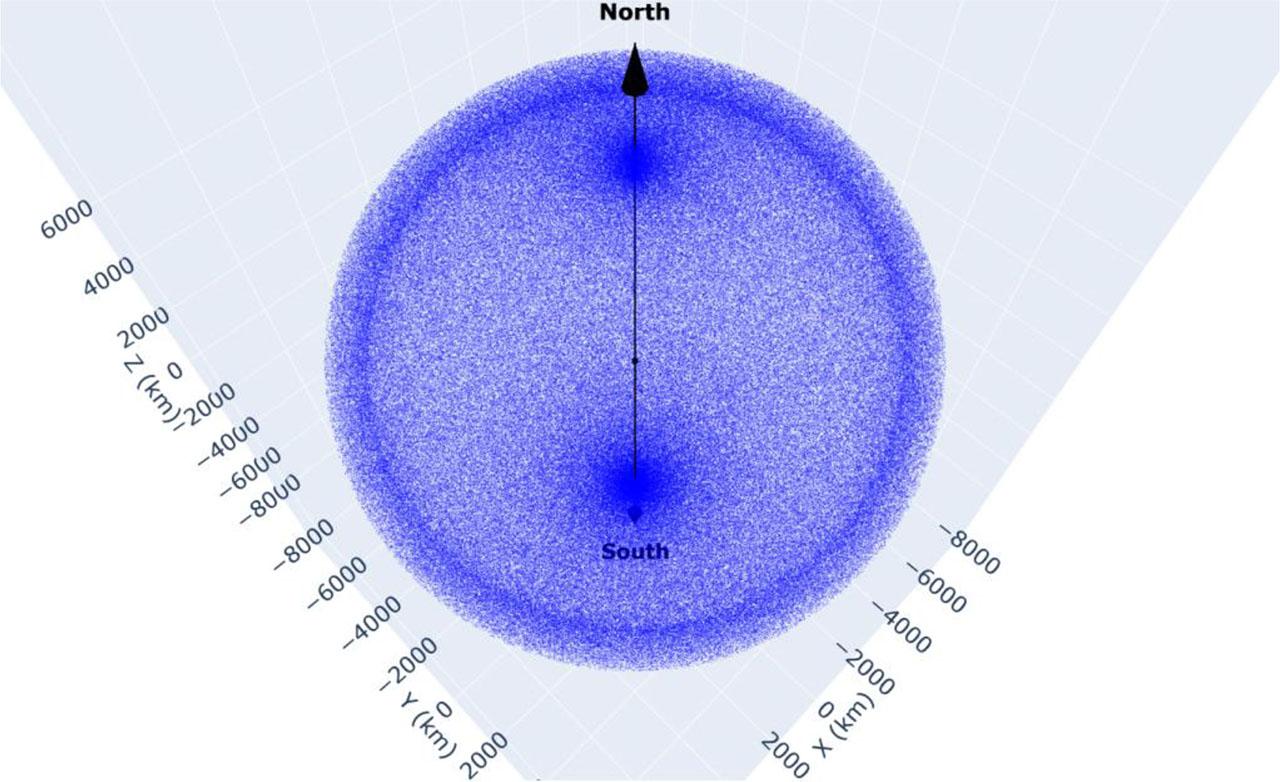

Distribution of input points based on naive uniform distribution of longitude, latitude, and altitude from 500 to 1500 km with the Earth radius taken as 6378 km. There are clearly visible cluster on poles, which should be removed.

The volume element in spherical coordinates after switching to geographic coordinates is as follows: (2) dV=r2cosφdr dφ dλ dV = {r^2}cos\left( \varphi \right)dr\;d\varphi \;d\lambda where here and further in the formulas:

• λ – the longitude;

• φ – the latitude;

• r – the altitude.

There is visible clustering near the poles on the spherical shell because the surface area element on a sphere is proportional to the cos(φ) value. It is possible to eliminate that factor by using the following approach to generate latitude and longitude: (3) φ=arcsinv; λ=πu \varphi = arcsin\left( v \right);\;\lambda = \pi u where v and u are the uniform distributed values from −1 to 1.

In this case, arcsine eliminates cos(φ) factor in Formula (2). Altitude also requires proper distribution, and it can be handled as follows: (4) r=Rw3 r = R\root 3 \of w where:

• w – the uniform distributed value from 0 to 1;

• R – the sphere radius.

Formula (4) is for sphere; however, in fact, we have a spherical shell, so it should be modified to support the altitude range: (5) r=R13+wR23−R133 r = \root 3 \of {R_1^3 + w\left( {R_2^3 - R_1^3} \right)} where:

• w – the uniform distributed value from 0 to 1;

• R₁,R₂ – the lesser and greater radii of the spherical shell.

Earth radius (R_Earth) is taken as 6378 km and altitude range is 500..1500 km by the definition above, and this allows letting R₁ = R_Earth + 500 km and R₂ = R_Earth + 1500 km. The spherical shell built using this approach is shown in Figure 2, and it illustrates much better distribution without visible clusters. So, the strategy described above is used for generating altitude, longitude, and latitude in our dataset with a good spherical shell distribution.

Figure 2.

Distribution of input points based on proper distribution of longitude, latitude, and altitude from 500 to 1500 km with the Earth radius taken as 6378 km

The initial generated dataset for both training and evaluation contained two million records.

The total number of input features is 14 based on Tables 1 and 2. Ranges of cyclic parameters specified in Table 1 do not require further normalization, as they lie in a natural range [−1;1] for neural networks with Hardswish activation (Howard, 2019). However, non-periodic input parameters described in Table 2 require normalization. Since these parameters have strictly defined ranges and they are generated uniformly distributed, it was decided to use classic min-max normalization for inputs from Table 2 with the range [0;1]: (6) zi(k)=xi(k)−minx(k)maxx(k)−minx(k) z_i^{\left( k \right)} = {{x_i^{\left( k \right)} - min \left( {{x^{\left( k \right)}}} \right)} \over {max \left( {{x^{\left( k \right)}}} \right) - min \left( {{x^{\left( k \right)}}} \right)}} where:

• zi(k) z_i^{\left( k \right)} – the i^th element of feature k, after normalization;

• xi(k) x_i^{\left( k \right)} – the i^th element of feature k, before normalization;

• minx(k),maxx(k) min \left( {{x^{\left( k \right)}}} \right),max \left( {{x^{\left( k \right)}}} \right) – the min and max values of feature k.

All input features now are in the [0; 1] or [−1; 1] range after normalization.

The total number of output features is 10. The list of outputs and their main characteristics are given in Table 3 for number densities and in Table 4 for temperatures.

After analyzing these outputs, it is clearly visible that the ranges are very wide and span several orders of magnitude. For example, Ar’s 25th percentile is on the order of 10⁻⁹, while its 75th percentile is on the order of 10⁻². Such a dynamic range impedes stable gradient propagation, therefore, to eliminate such difference, natural logarithm normalization can be used, which is shown below: (7) yi(k)′=lnxi(k) y_i^{\left( k \right)'} = ln\left( {x_i^{\left( k \right)}} \right) where:

• yi(k)′ y_i^{\left( k \right)'} – the i^th sample of output feature k, after ln normalization;

• xi(k) x_i^{\left( k \right)} – the i^th sample of output feature k, before ln normalization.

The ln transformation compresses the range, which can help stabilize variance and make patterns in the data more apparent to the neural network.

Although the logarithmic transformation substantially compresses the dynamic range, the resulting values still extend from approximately −36 to +14 and exhibit high variance. To obtain targets that are numerically well conditioned for back-propagation, z-score standardization is applied further: (8) yi(k)=yi(k)′−μ(k)σ(k) y_i^{\left( k \right)} = {{y_i^{\left( k \right)'} - {\mu ^{\left( k \right)}}} \over {{\sigma ^{\left( k \right)}}}} where:

• yi(k) y_i^{\left( k \right)} – the i^th sample of output feature k, after ln and z-score normalization;

• yi(k)′ y_i^{\left( k \right)'} – the i^th sample of output feature k, after ln normalization;

• μ^(k) – the mean of output feature k;

• σ^(k) – the standard deviation of output feature k.

Some examples of output distributions of the first million records before and after normalizations are shown in Figure 3 and Figure 4. Plots of normalized data demonstrate new compressed and unit scaled ranges.

Figure 3.

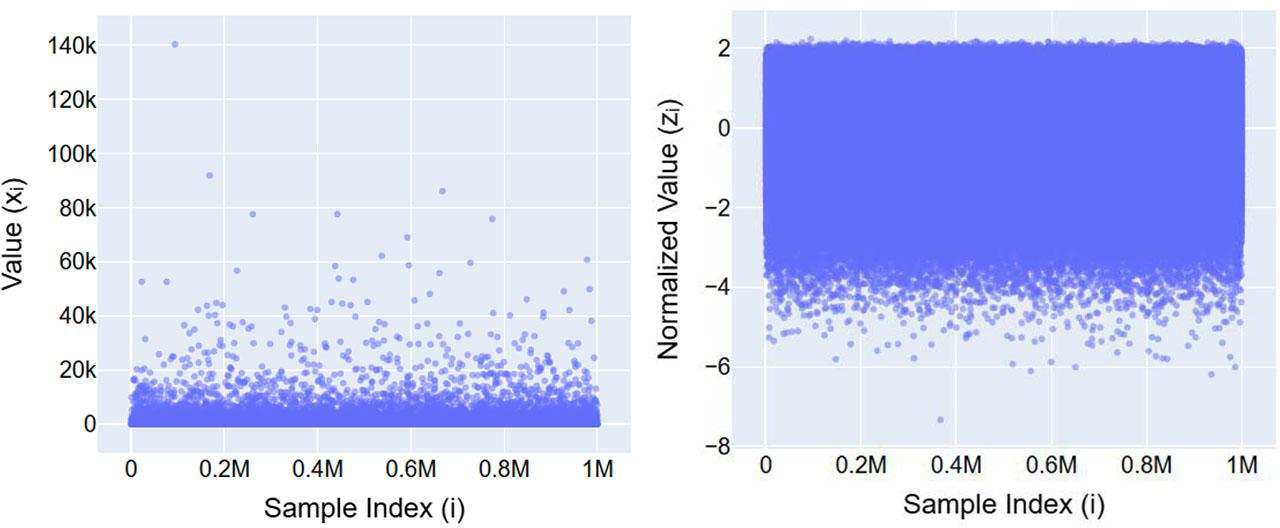

Distribution of argon (Ar) number densities before (left) and after (right) normalizations. Here, M stands for 1 million and k for 1 thousand.

Figure 4.

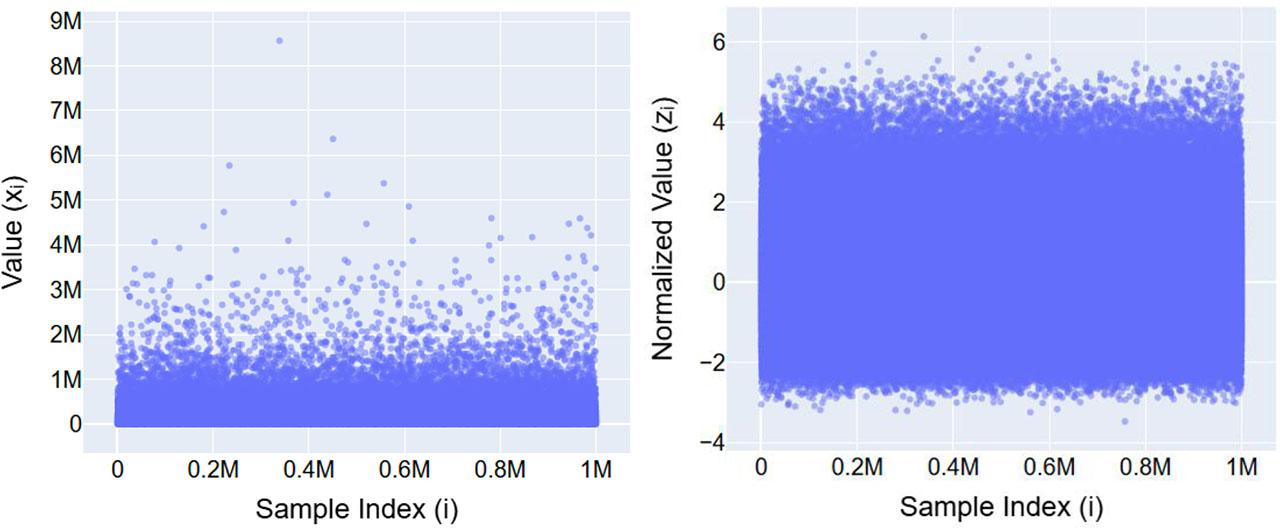

Distribution of hydrogen (H) before (left) and after (right) normalizations. Here, M stands for 1 million.

It is worth noting that total mass density is not included in the output feature list which will be processed by the neural network because this value is straightforwardly restored based on predicted number densities in the way it is done in NRLMSISE: (9) ρTotal=1NA⋅∑i=18niMi {\rho _{Total}} = {1 \over {{N_A}}} \cdot \mathop \sum \nolimits_{i = 1}^8 {n_i}{M_i} where:

• N_A – Avogadro’s constant (∼ 6.022 × 10²³ mol⁻¹);

• n_i & M_i – number density and molar mass of i^th gas species (Table 3).

Neural networks, especially feedforward architecture, have proven themselves to be powerful tools for modeling complex physical processes due to their ability to approximate any continuous function with arbitrary accuracy, if they contain sufficient neurons and layers (Hornik et al., 1989). This capability is formally established by the Universal Approximation Theorem (UAT) and its extensions. The original UAT states that even simple neural network architectures, such as multilayer perceptrons with at least one hidden layer, can approximate continuous functions on compact subsets of n-dimensional Euclidean space Rⁿ to arbitrary precision, given enough hidden units (Cybenko, 1989).

The NRLMSISE model should employ segmented empirical fits and smooth interpolation techniques to ensure that its outputs vary continuously with respect to input parameters, such as altitude, solar flux, and geomagnetic indices, in order to illustrate real physical processes in the atmosphere. Although the use of piecewise functions may introduce localized regions of reduced smoothness (i.e., where the derivatives are not perfectly continuous), the overall behavior of the model is continuous and largely differentiable. This makes the NRLMSISE model a good candidate for approximation by neural networks.

By training a neural network on a sufficiently rich and representative dataset derived from the NRLMSISE algorithm, it can theoretically capture underlying functional mapping with high precision. The UAT provides a strong theoretical foundation for using neural networks as surrogate models of the NRLMSISE algorithm, potentially offering benefits such as reduced computational overhead and enhanced real-time performance.

Neural networks are computational models built from interconnected neurons that transform input data through weighted sums and non-linear activation functions. A general feedforward multilayer perceptron (MLP) takes an input vector x¯ \bar x and processes it through L layers, where each layer performs a linear transformation followed by a non-linear activation. For each layer l (with l = 1, ... , L and a0=x¯ {a^{\left( 0 \right)}} = \bar x ), the computation is as follows: (10) al=σlWlal−1+bl {a^{\left( l \right)}} = {\sigma ^{\left( l \right)}}\left( {{W^{\left( l \right)}}{a^{\left( {l - 1} \right)}} + {b^{\left( l \right)}}} \right) where:

• W^(l) – the weight matrix;

• b^(l) – the biases vector;

• σ^(l)(∙) – continuous, non-polynomial activation function R→R.

The mapping introduced by an L-layer neural network can be written as a nested composition of the layer-wise functions: (11) fNx¯=fLfL−1…f1x¯… {f_N}\left( {\bar x} \right) = {f^{\left( L \right)}}\left( {{f^{\left( {L - 1} \right)}}\;\left( { \ldots {f^{\left( 1 \right)}}\left( {\bar x} \right) \ldots } \right)} \right) where:

• f_N – the function implemented by a neural network whose capacity is N (e.g., the number of trainable parameters).

Additionally, UAT states that for any continuous function f : K → ℝ defined on a compact set K ⊂ ℝ^d and for any tolerance ɛ > 0, there exists a neural network such that: (12) supx∈Kftx¯−fNx¯<ε,N=Nε {sup _{x \in K}}\left| {{f_t}\left( {\bar x} \right) - {f_N}\left( {\bar x} \right)} \right| < \varepsilon ,N = N\left( \varepsilon \right) where:

• f_t – the target function to approximate;

• f_N – the function implemented by a neural network whose capacity is N;

• ɛ – a user-chosen error tolerance.

These formulas capture the essence of multilayer perceptrons and underscore their capabilities, which is guaranteed by the UAT, to approximate any continuous function, such as those mapping the input parameters of the NRLMSISE model to its atmospheric outputs.

The process of training a feedforward neural network includes finding the optimal weights and biases that minimize a predefined loss function. This includes using methods like gradient descent and backpropagation so that network’s output f_N closely matches the target values f_t across the training data as shown in formula (12) more formally.

It is important to consider the model size during the architecture definition and training process, as our main goal is to achieve optimal performance of the neural network evaluation. Therefore, a balance must be kept between minimizing loss and ensuring efficient execution time of the model.

The global training strategy was as follows: first, the performance requirement was ignored, and the only resulting loss was considered. Then, once the required loss threshold was achieved for the reasonable number of parameters, the model was then optimized preserving the accuracy, mostly by increasing training time, decreasing the number of parameters, tuning hyperparameters, and using less computation intensive activation functions.

It is interesting that classic multilayer perceptron (MLP) neural networks performed well, and architectures like ResNet (modified for the regression problem) and custom structures, such as two-headed neural networks, do not provide any benefits, and their evaluation time is longer than that of a classic MLP for the achieved optimal loss. So, we focused on MLP neural networks.

The most optimal neural network architecture in terms of minimal relative loss and evaluation time is outlined in Table 5.

Initially, SiLU-Swish (Elfwing et al., 2018) was used to introduce non-linearity; however, it includes Sigmoid function, which is computationally heavy. In order to maintain accuracy gains and get evaluation speed enhancements, about 10–20%, Hardswish activation is used, the piece-hard analog of Swish (Howard, et al., 2019): (13) Hardswishx=0,x≤−3x,x≥+3xx+3/6,otherwise Hardswish\left( x \right) = \left\{ {\matrix{ {0,} & {x \le - 3} \cr {x,} & {x \ge + 3} \cr {x\left( {x + 3} \right)/6,} & {otherwise} \cr } } \right.

The first models were trained on the 2 million dataset (1 million training + 1 million validation), while later it was safe to drop the training dataset to 0.5 million records without noticeable drawbacks, using 0.5 million of other records as the validation dataset during training.

Since the current task is regression one, mean squared error (MSE) is used as a loss function for training. It is smoothly differentiable and scales trivially from one-to-many outputs, making optimization stable and implementation simple.

Three Adam-family optimizers were tried: Adam (Kingma, et al., 2015), AdamW (Loshchilov, et al., 2019), and AdaMax (Kingma, et al., 2015) on the proposed network architecture. AdaMax converged fastest and achieved the lowest final validation loss. Core parameters to tune within AdaMax are learning rate (LR), momentum coefficient (β₁) and variance coefficient (β₂).

The following training parameters were used along with the structure defined in Table 5:

• learning rate strategy during training:

  • use a cyclical learning-rate schedule with inversed momentum coefficient, where the global learning-rate is allowed to oscillate between two boundary values for a specific number of cycles (Smith, 2015; Smith, 2018);

  • for finding the first guess for the two boundary values, Leslie N. Smith search algorithm was used (Smith, 2017). After applying it and some further empirical tuning, the LR boundaries were taken: [0.0001, 0.013] for LR and [0.8, 0.9] for inversed momentum;

  • other parameters: number of steps up per cycle is 1000; number of steps down per cycle is 10 000; β₂ = 0.999; learning rate upper range is halved each cycle;

• batch size: 2000;

• training dataset size: 0.5 million records;

• validation dataset size: 0.5 million records;

• stop condition: 60 000 epochs (full passes over 0.5 million samples).

Although SiLU and Hardswish perform similarly, the optimal training parameters are quite different. While a batch size of 512 is nearly optimal for SiLU (Swish), switching to the piecewise version of HardSwish required additional tuning of both the learning rate and the batch size, with a batch size of 2000 proving to be the best fit.

PyTorch, a deep learning library, was used to implement the neural network using the parameters defined above. The training process was done on CUDA (Compute Unified Device Architecture by Nvidia Corporation)-enabled GPU, and also, the training loop was moved to CUDA graphs to have the training speed up to 10 times due to eliminating CPU bottlenecks.

The neural network model was trained and compared against C++ reference NRLMSISE program in the same environment, which consists of AMD Ryzen 9 5900x CPU and Nvidia RTX 4070 GPU. All comparisons are done using x64 compiled programs in release configuration with maximum optimizations favoring speed and without debugger attached on Windows 11. The evaluation time of the neural network model listed in Results section includes reading the model from file, computing number densities and temperatures, restoring the normalized predicted output data to original ranges, and calculating the total mass density.

The training time of the neural network with the specified parameters and environment above is 50–60 minutes after 60 000 epochs. We used many epochs to attain the target loss without enlarging the model, thereby keeping fast evaluation of the model. The NRLMSISE neural network model should be trained only once and then used without any changes for any input data in the ranges specified in Tables 1 and 2. The edge cases which might require re-training are changing input parameter ranges, changes of NRLMSISE model internal empirical parameters, or significant changes of NRLMSISE code.

Also, it is verified that native Pytorch’s C++ library LibTorch allows running the same models trained by Python interface in C++ code. Loss and execution time are the same.

Table 6 and Table 7 contain final relative loss for each restored NRLMSISE output separately. Figure 5 illustrates validation loss trends during training: mean squared error (MSE) for normalized outputs and mean relative loss (REL) among all restored outputs.

Figure 5.

Validation loss on test dataset vs. epochs: MSE and REL (mean relative loss of all output features). Here, “k” means thousand.

“Saw-tooth” spikes seen on Figure 5 are normal for cyclical learning rate. They are visible near the top of each cycle where LR reaches its max value.

The losses illustrated in Tables 6 and 7 are calculated on the extended 1 million testing dataset, which did not participate in the training process. The relative percentage loss is calculated as follows: relik=pik−tiktik, RELk=100%×1N∑i=1Nrelik, REL=1K∑k=1KRELk {rel_{ik}} = {{\left| {{p_{ik}} - {t_{ik}}} \right|} \over {\left| {{t_{ik}}} \right|}},\;\;\;\;\;RE{L_k} = 100\% \times {1 \over N}\sum\limits_{i = 1}^N {re{l_{ik}}} ,\;\;\;\;\;REL = {1 \over K}\sum\limits_{k = 1}^K {RE{L_k}} where:

• rel_ik – the relative loss for i^th sample of k^th output feature;

• p_ik – the predicted output value for i^th sample of k^th output feature;

• t_ik – the truth/expected output value for i^th sample of k^th output feature;

• REL_k – the relative percentage loss for k^th output feature (shown in Tables 6 and 7);

• REL – mean relative percentage loss of all output features (shown in Figure 5);

• N, K – numbers of samples and output features, respectively.

As mentioned before, total mass density is not a part of the learning process; during evaluation phase, it is restored based on formula (9). After getting numbers from NRLMSISE and placing them into (9), we got the exact formula we used to restore total mass density (g/cm³): (15) ρTotal=1.66⋅10−244⋅nHe+16⋅no+28⋅nN2+32⋅no2+40⋅nAr+nH+14⋅nN {\rho _{Total}} = 1.66 \cdot {10^{ - 24}}\left( {4 \cdot {n_{He}} + 16 \cdot {n_o} + 28 \cdot {n_{{N_2}}} + 32 \cdot {n_{{o_2}}} + 40 \cdot {n_{Ar}} + {n_H} + 14 \cdot {n_N}} \right) where:

• n_k – the predicted number density (1/cm³) by the neural network for gas k (Table 6).

Anomalous oxygen is not included in (15), as it is not used in GTS7 routine of NRLMSISE, which is the point of interest within Juliette. Total mass density loss is calculated compared to reference data in the generated testing dataset.

Execution times and achieved boost for neural networks are outlined in Table 8.

In CPU single-threaded tests conducted on the same machine, the neural network model achieved performance between 3 and 4.5 times faster than the reference NRLMSISE model. When multithreading was enabled for the neural network NRLMSISE model, speed increased up to 9.7 times on the same CPU compared to the original model. In a GPU CUDA environment using an Nvidia RTX 4070, performance improvements of up to 250 times were observed. It is worth noting that switching between CPU and GPU evaluation is very straightforward, just changing one parameter in the program.

In this work, we successfully replicated the NRLMSISE model using a feedforward neural network. The neural network model meets relative loss requirements: the worst mean relative loss is for argon, and it is 0.850%, which is smaller than the 1% threshold, and the best loss is 0.137% for hydrogen. The most important feature total mass density has 0.245% relative loss, which is better than 1% requirement.

The neural network model provides a notable boost of computation speed compared to the reference C++ NRLMSISE program: on the same CPU one-threaded environment, we got 4.5 times boost. While using multithreaded CPU, we got up to 9.7 times boost, and using GPU CUDA-enabled environments, we got ∼250 times boost compared to the original program.

Having these results, we can affirm that replacing NRLMSISE’s branch- and transcendental-heavy evaluations with a compact dense network, the surrogate reduces computation overhead, which enhances the model's applicability in real-time and computationally intensive environments, including Juliette. Moreover, the NRLMSISE neural network model can be easily integrated into existing C++ applications using the Libtorch library, deployed as a web-service or used in other environments where neural networks are supported.
