A comprehensive study of ground-roasted coffee beans from Coffea liberica as dipeptidyl peptidase IV inhibitors Cover

Figures & Tables

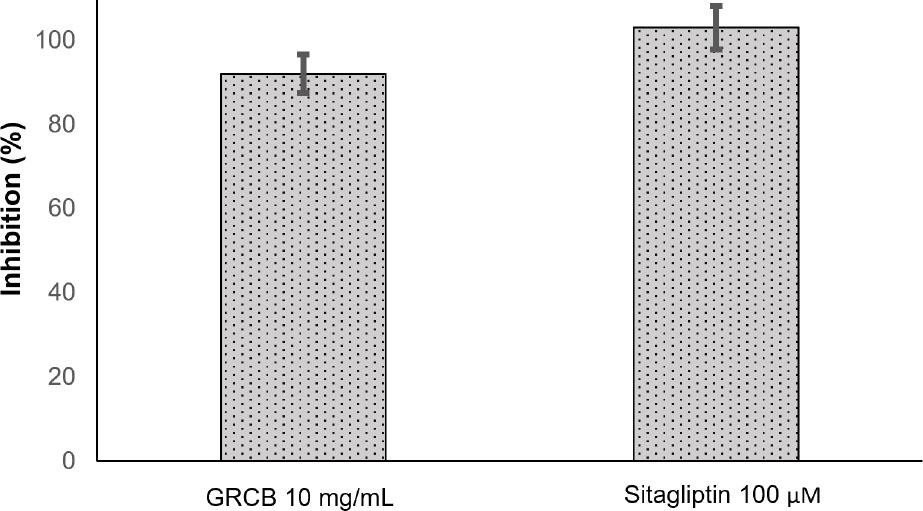

Figure 1.

Inhibition percentage of GRCB solution and sitagliptin.
Inhibition percentage of GRCB solution and sitagliptin.

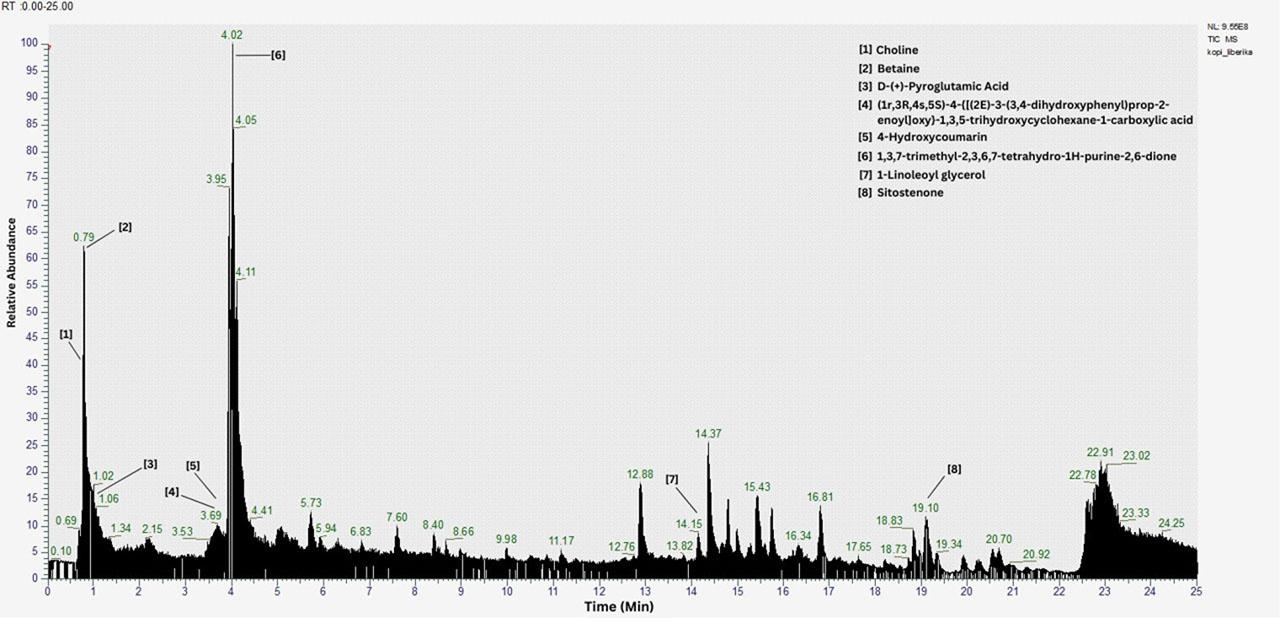

Figure 2.

Total ion chromatogram of GRCB of Coffea liberica obtained from LC-HRMS analysis.
Total ion chromatogram of GRCB of Coffea liberica obtained from LC-HRMS analysis.

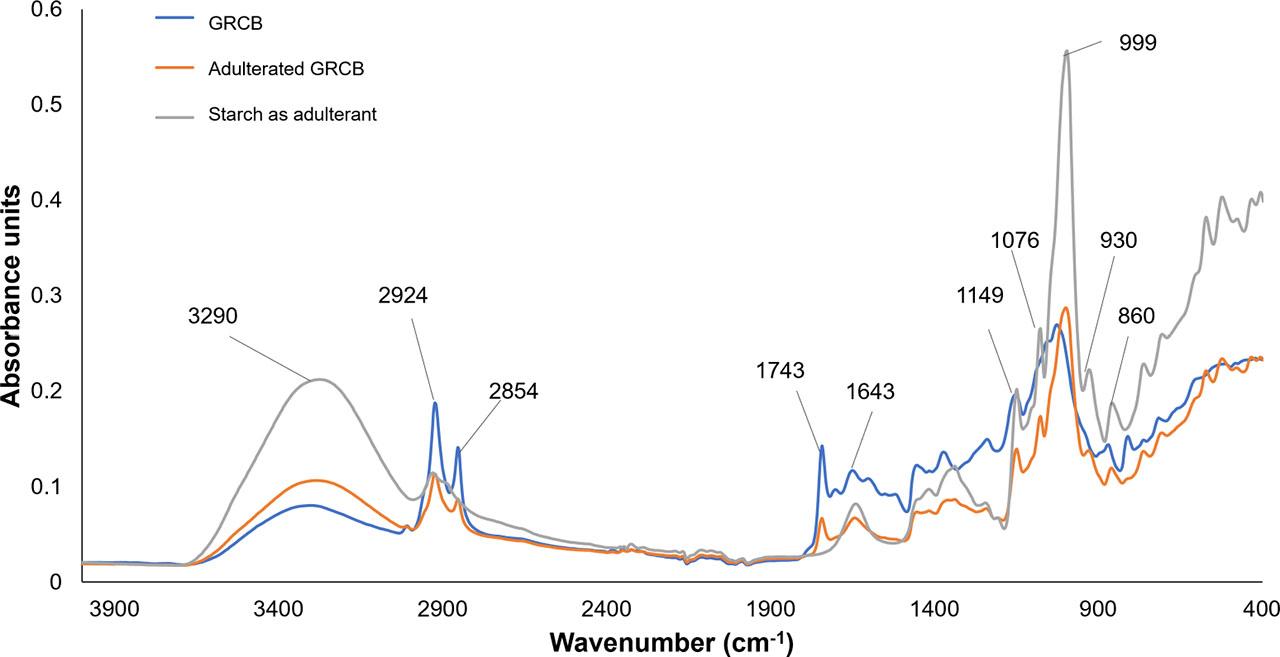

Figure 3.

FTIR spectral profiles of GRCB, starch as an adulterant, and adulterated GRCB. Annotated peaks indicate selected peaks for generating the PCA model.
FTIR spectral profiles of GRCB, starch as an adulterant, and adulterated GRCB. Annotated peaks indicate selected peaks for generating the PCA model.

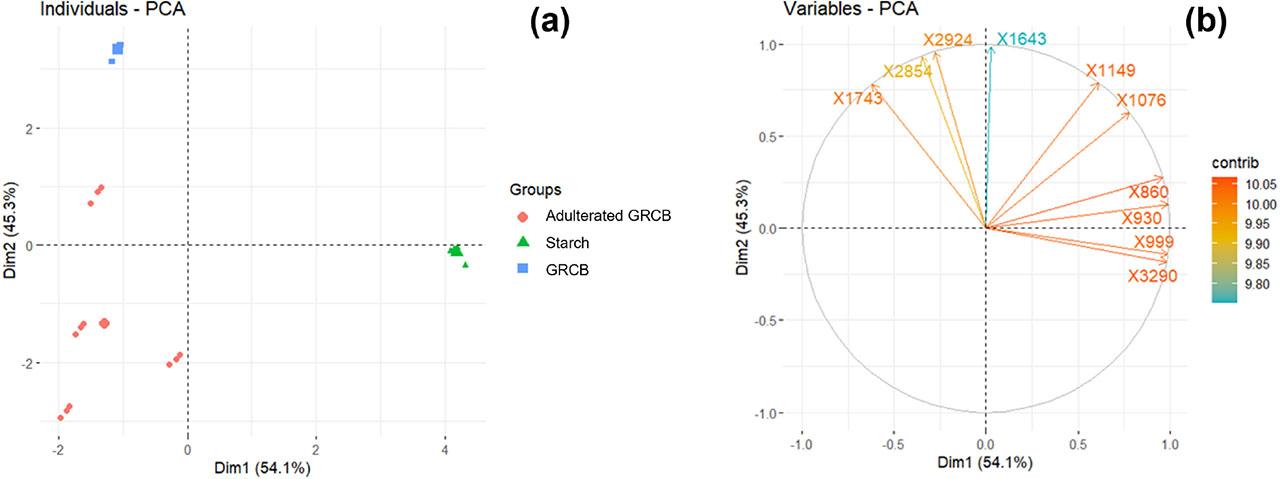

Figure 4.

Individual plot (a) and variables plot (b) resulting from the principal component analysis.
Individual plot (a) and variables plot (b) resulting from the principal component analysis.

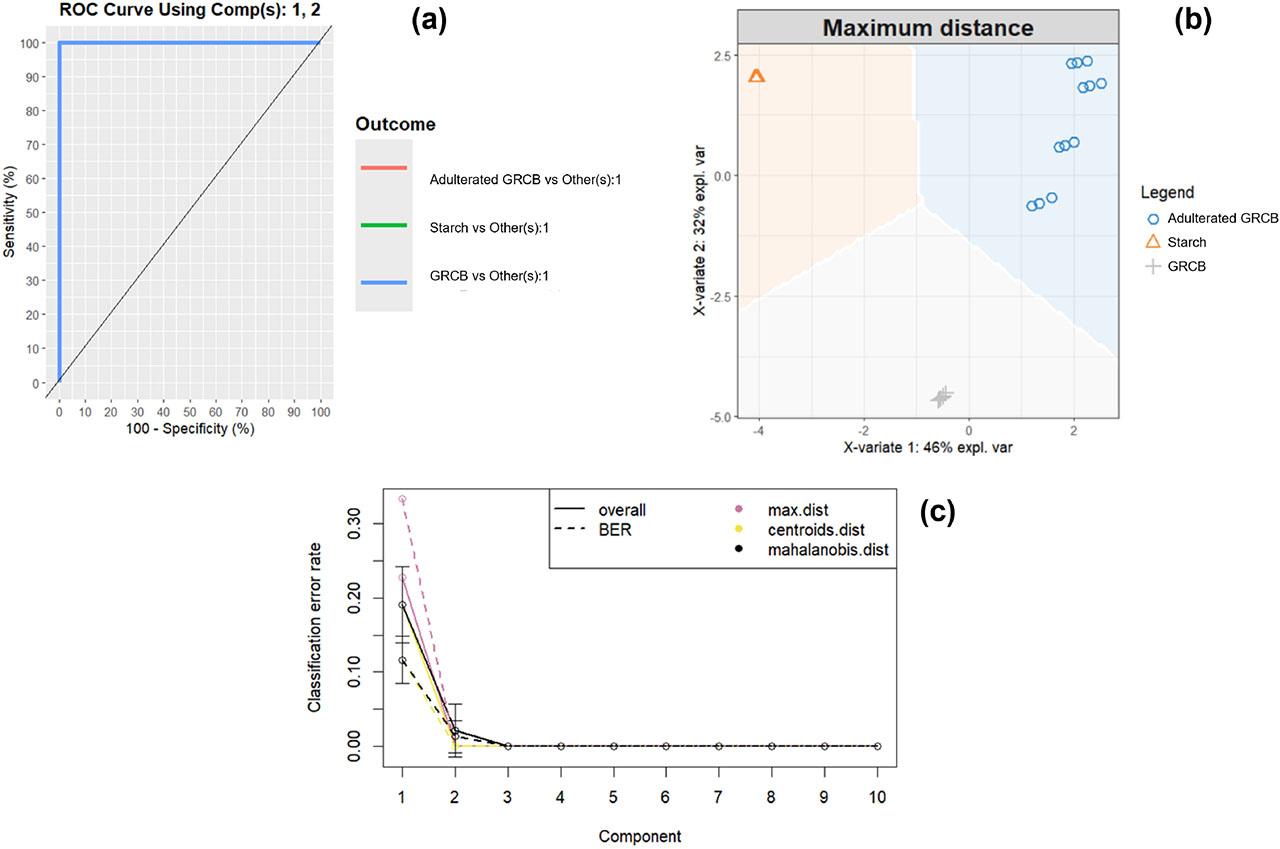

Figure 5.

AUC-ROC graph (a), individual background plot which was obtained using the maximum distance approach (b), and classification error rate analysis (c) of the partial least-squares discriminant analysis.
AUC-ROC graph (a), individual background plot which was obtained using the maximum distance approach (b), and classification error rate analysis (c) of the partial least-squares discriminant analysis.

FTIR spectral and functional groups identification_

NoWavenumbers (cm−1)Functional groupsRelated compounds/materialsReferences
IdentifiedLiterature
132903660–2970OH (phenol, alcohol, carboxylic acid)Phenolic compoundAbreu et al., 2020
229242925–2908C=O and C–HLipidSahachairungrueng et al., 2022
328542858C–H methylCaffeineSilva et al., 2018
417431745Carboxyl linkage derived from xanthine derivativesCaffeineWei-Lung Chou, 2012
516431650–1580C=C phenyl ringChlorogenic acid isomersLiang et al., 2016 several indices of browning and subsequent antioxidant values. Principal component analysis was used to interpret the correlations between physiochemical and antioxidant parameters of coffee. CGA isomer content was positively correlated (p < 0.001 Simatupang et al., 2023
611491176–1106C–OH cyclohexaneChlorogenic acid isomersAbreu et al., 2020 Simatupang et al., 2023
710761077C–O–C of hydrogen bonds between starch moleculesStarchAbdullah et al., 2019
89991157–982C–O and C–C stretching with COH contributionsStarchPozo et al., 2018
9930920C–O–C ring vibration of carbohydrateStarchAbdullah et al., 2018
10860856C–O–C ring vibration of carbohydrateStarchAbdullah et al., 2018

Major metabolite compounds identified using LC-HRMS analysis_

No.NameFormulaCalc. MWRT (min)Area (%)References
11,3,7-Trimethyl-2,3,6,7-tetrahydro-1H-purine-2,6-dioneC8H10N4O2194.0804.02761.344Mazzafera et al., 1994
2Methyl isonicotinateC7H7NO2137.0480.80913.210Liu et al., 2009
31-StearoylglycerolC21H42O4358.30715.4383.910Ma et al., 2002
44-HydroxycoumarinC9H6O3162.0323.7122.356Vezzulli et al., 2022
53-Hydroxy-2-methylpyridineC6H7NO109.0530.8032.138Subarnas et al., 1991
6MaltolC6H6O3126.0322.2451.922Stoffelsma et al., 1968
7CholineC5H13NO103.1000.7641.561Shirley & Chapple, 2003
8(1R,3R,4S,5S)-4-{[(2E)-3-(3,4-dihydroxyphenyl)prop-2-enoyl]oxy}-1,3,5-trihydroxycyclohexane-1-carboxylic acidC16H18O9354.0953.7051.369Moreira et al., 2005
91-Linoleoyl glycerolC21H38O4354.27614.1650.887Tran et al., 2023
10Picolinic acidC6H5NO2123.0321.0140.589Du et al., 2007
11NP-011220C11H18N2O2210.1375.3130.585Zhang et al., 2007
123-[(19Z)-15,16-dihydroxy-19-dotriaconten-1-yl]-5-methyl-2(5H)-furanoneC37H68O4576.51121.3050.522Gleye et al., 2000
13d-(+)-Pyroglutamic acidC5H7NO3129.0431.0530.512Osborne et al., 1994
14Ethyl palmitoleateC18H34O2282.25515.6060.465Ekpendu et al., 1993
152,2,6,6-Tetramethyl-1-piperidinol (TEMPO)C9H19NO157.1478.9940.442Aprilia et al., 2025
16N,N-dimethylanilineC8H11N121.0891.1350.435Thomas & Bassols, 1992
17(1S,3R,4R,5R)-1,3,4-trihydroxy-5-{[(2E)-3-(4-hydroxy-3-methoxyphenyl)prop-2-enoyl]oxy}cyclohexane-1-carboxylic acidC17H20O9368.1115.0530.428Moreira et al., 2005
18GuvacolineC7H11NO2141.0791.7660.402Holdsworth et al., 1998
193-HydroxypyridineC5H5NO95.0370.8010.384Miyazawa et al., 1983
20MonooleinC21H40O4356.29214.7810.362Okuyama et al., 2001
217-Hydroxy-6-methoxy-2H-chromen-2-oneC10H8O4192.0425.6900.329Komissarenko & Kovalev, 1992
22NP-019811C6H7NO2125.0481.0350.325Zheng et al., 2018
23SitostenoneC29H48O412.37019.1560.282Xie et al., 2007
24o-ToluidineC7H9N107.0741.1330.273Vitzthum et al., 1975
