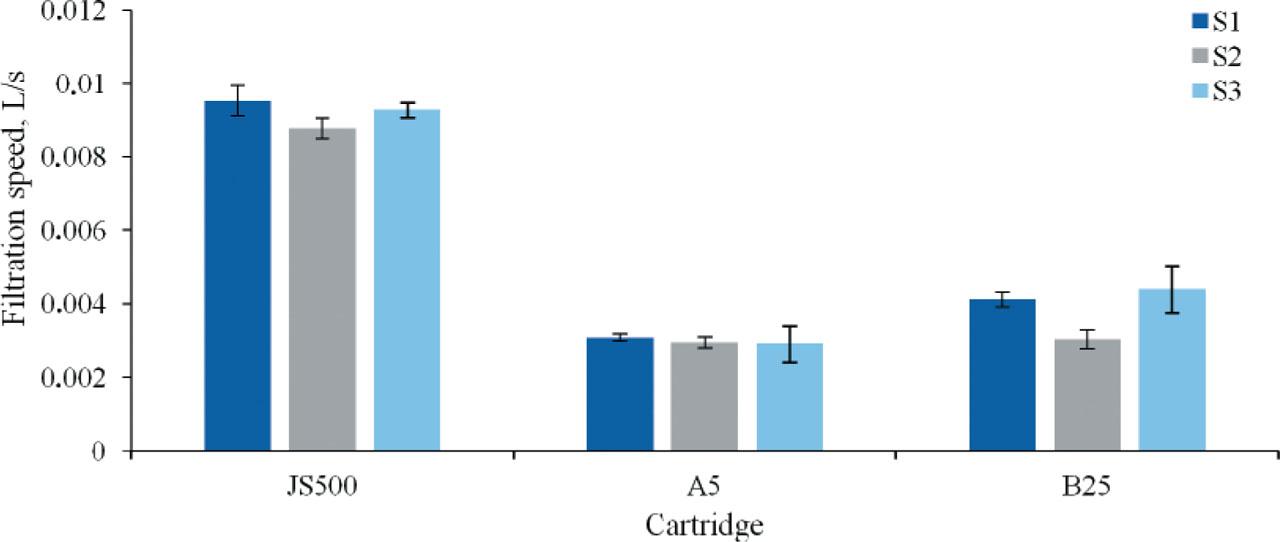

Figure 1

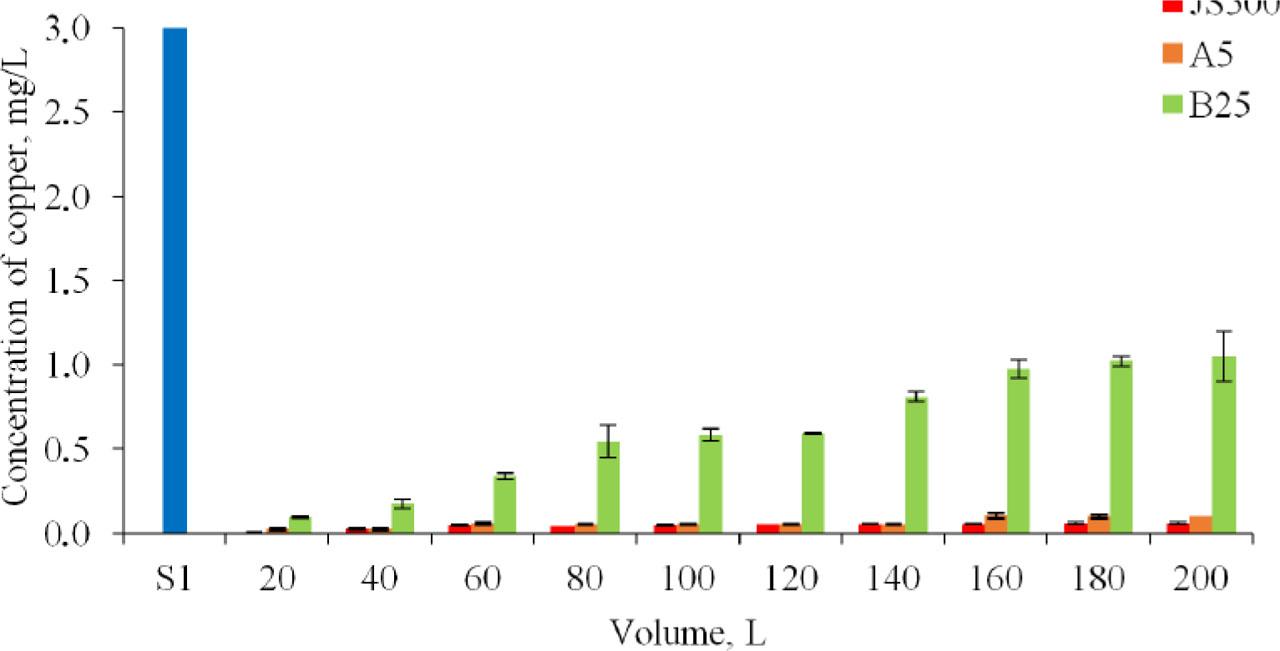

Figure 2

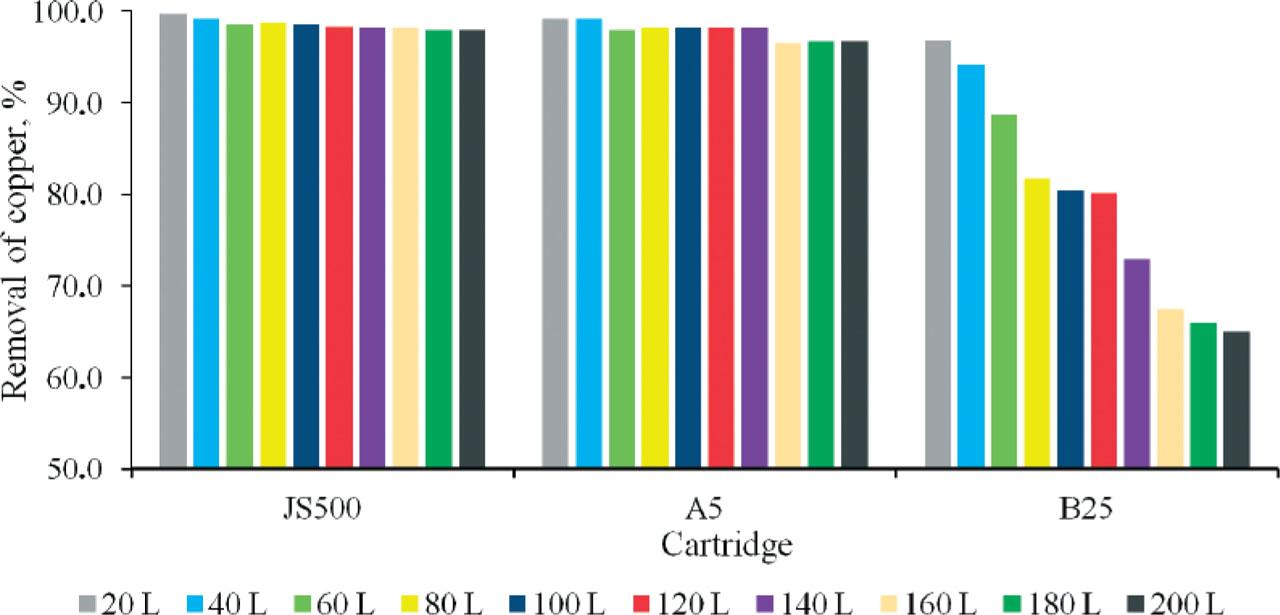

Figure 3

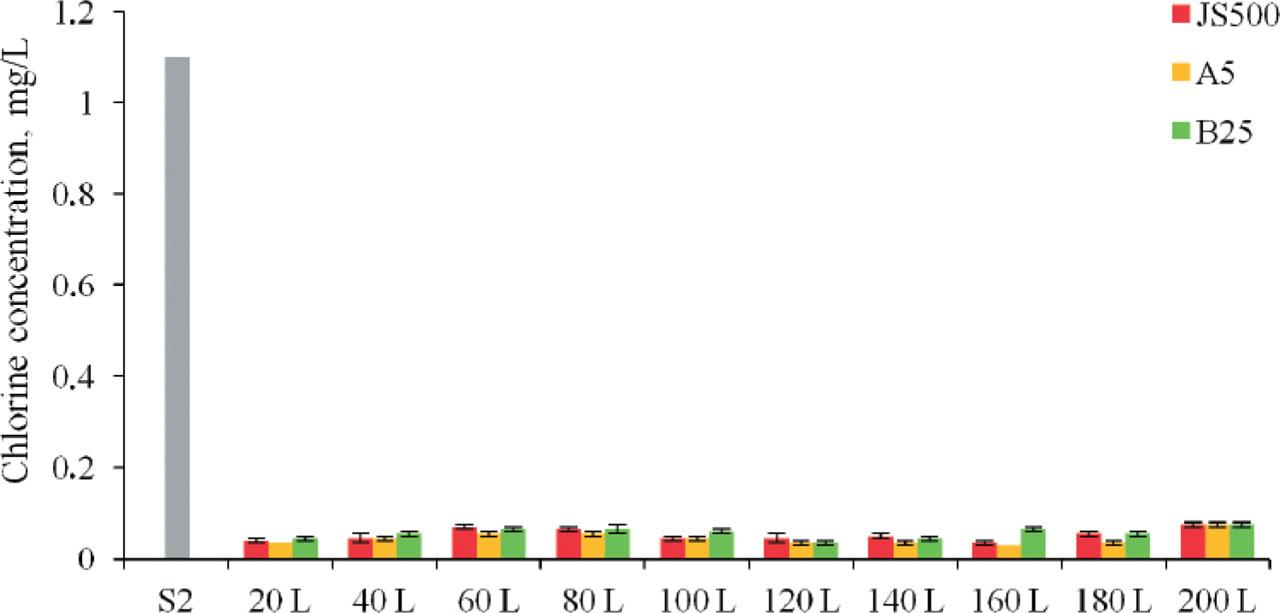

Figure 4

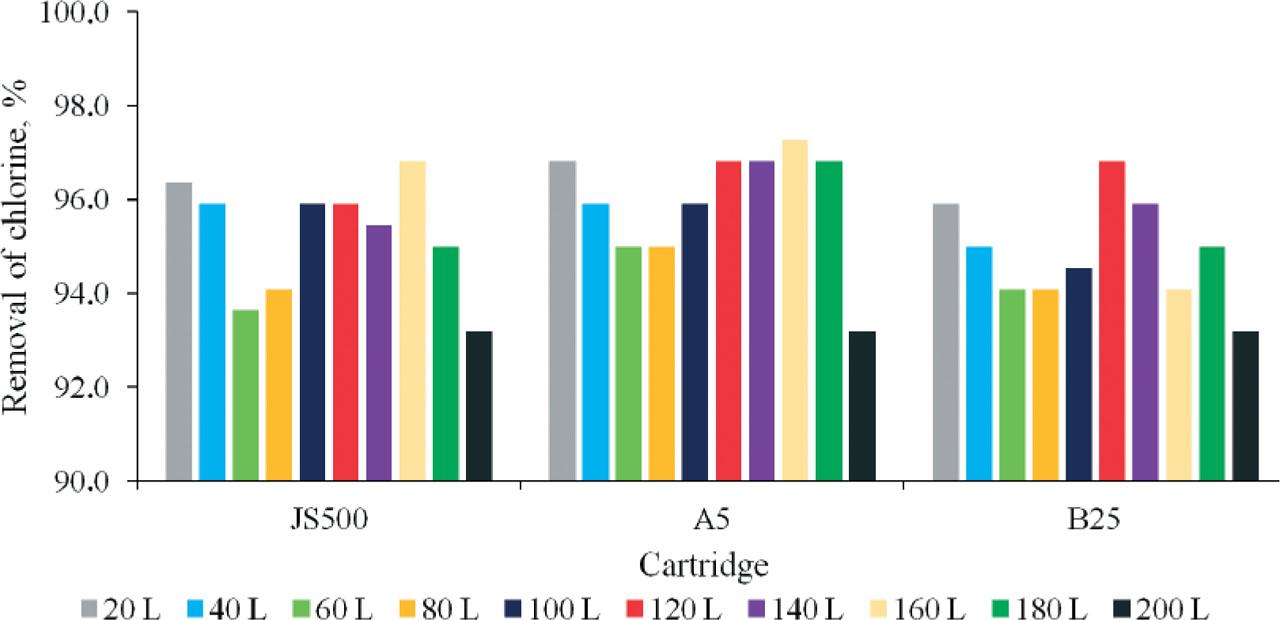

Figure 5

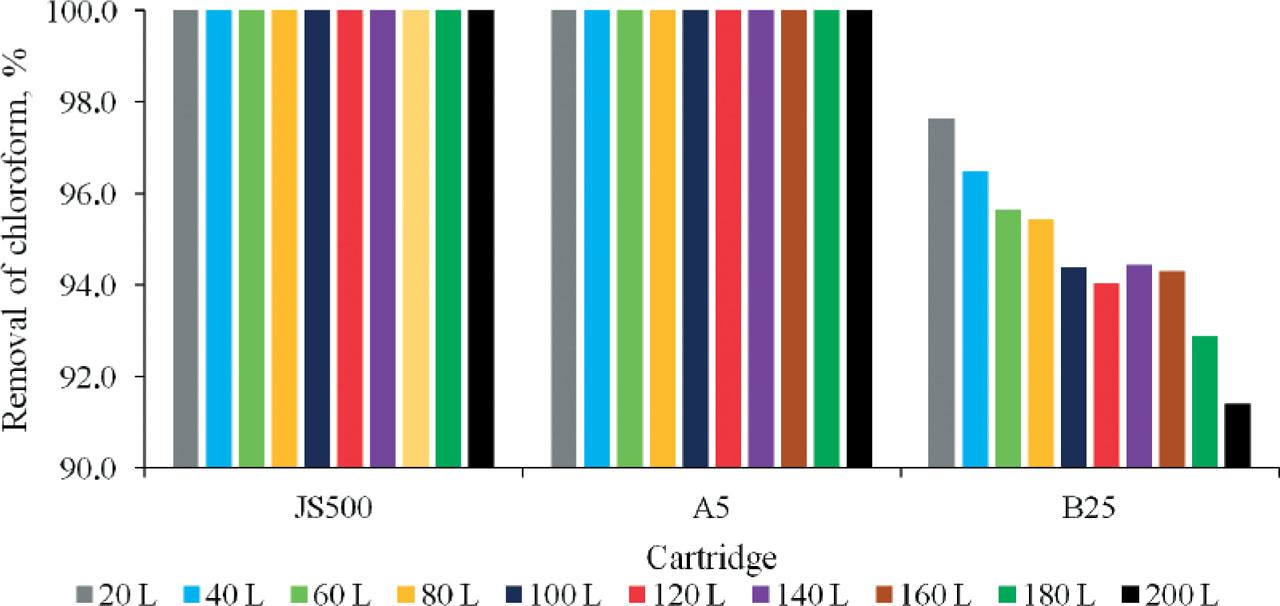

Figure 6
Characteristic of cartridges
| Cartridge | Performance | Filling | Shape | Intended use |
|---|---|---|---|---|
| JS500 | 500 L | Fibrous sorption materials with activated carbon and a microfiltration membrane | One-chamber oblong | Removal of pollutants with size>0,1 μm, including chlorine, organic compounds, heavy metals, phenols, and bacteria |
| A5 | 350 L | Sorbent | One-chamber oblong | Elimination of chlorine, phenols, pesticides, heavy metals, and water softening |
| B25 | 200 L | Ion exchange resin and activated carbon, Aqualenfiber | Oval single-chamber | Improvement of taste, smell, and color of water, water softening |
The concentration of chloroform during filtration of 200 L of S3 feed solution
| Cartridge | JS500 | A5 | B25 |
|---|---|---|---|
| The concentration of chloroform, μg/L | |||
| S3 | 100 | ||
| 20 L | <0.1 | <0.1 | 2.35 |
| 40 L | <0.1 | <0.1 | 3.5 |
| 60 L | <0.1 | <0.1 | 4.35 |
| 80 L | <0.1 | <0.1 | 4.55 |
| 100 L | <0.1 | <0.1 | 5.6 |
| 120 L | <0.1 | <0.1 | 5.95 |
| 140 L | <0.1 | <0.1 | 5.55 |
| 160 L | <0.1 | <0.1 | 5.7 |
| 180 L | <0.1 | <0.1 | 7.1 |
| 200 L | <0.1 | <0.1 | 8.6 |
Characteristics of feed solutions
| Parameter | S1 | S2 | S3 |
|---|---|---|---|
| Water hardness, mval/L | 7.5 | 7.5 | 7.5 |
| Colour, mg Pt/L | 6.0 | 6.0 | 6.0 |
| pH | 7.0 | 7.0 | 7.0 |
| Copper, mg/L | 3.0 | <LOD | <LOD |
| Free chlorine, mg/L | 0.0 | 1.1 | 0.0 |
| Chloroform, μg/L | <LOD | <LOD | 100.0 |
