Enhanced UAV Path Planning Using the Tangent Intersection Guidance (TIG) Algorithm

Hichem Cheriet; Badra Khellat Kihel; Samira Chouraqui

doi:10.14313/jamris-2026-018

.blurhash-client-img { display: none !important; }

Enhanced UAV Path Planning Using the Tangent Intersection Guidance (TIG) Algorithm

Journal of Automation, Mobile Robotics and Intelligent Systems

Volume 20 (2026): Issue 2 (June 2026)

By: Hichem Cheriet, Badra Khellat Kihel and Samira Chouraqui

Open Access

|Jun 2026

Figures & Tables

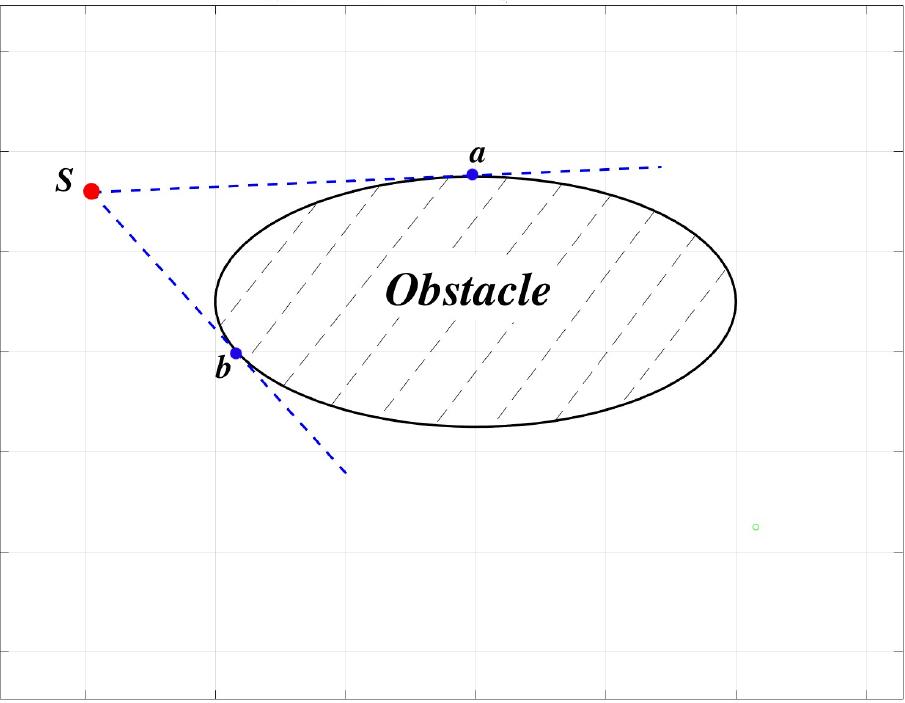

Tangent lines from start point S to elliptic obstacle

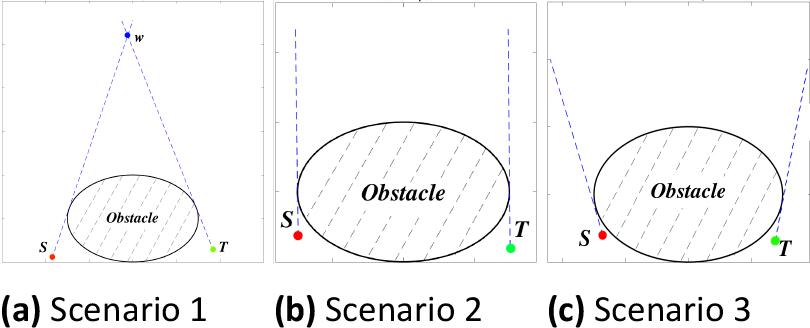

3 Potential scenarios resulting in infeasible paths

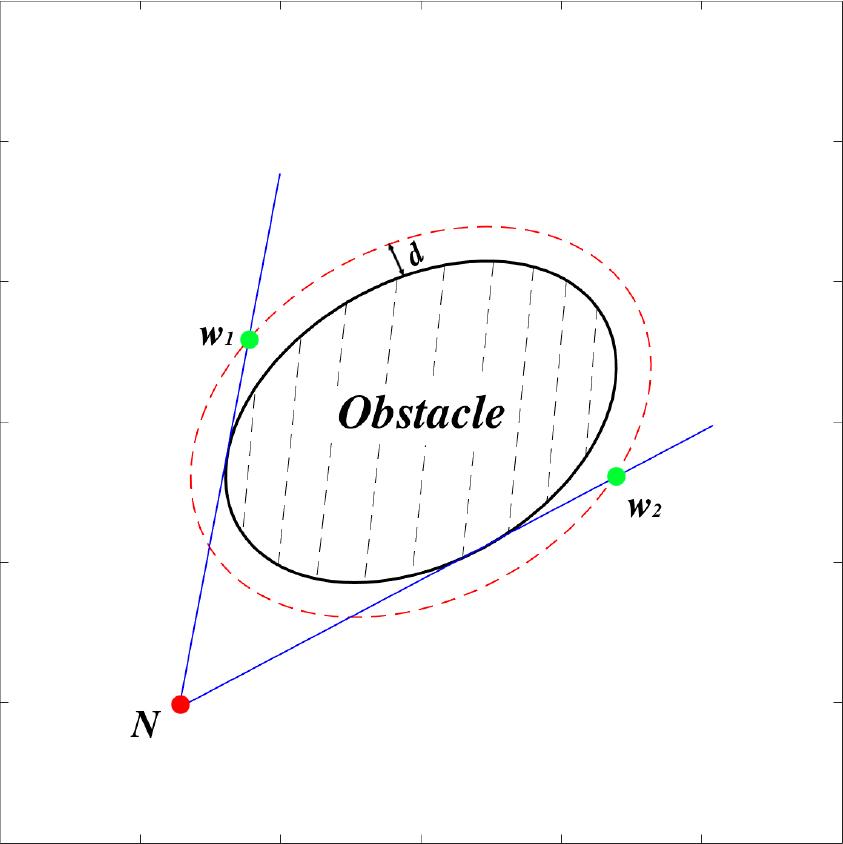

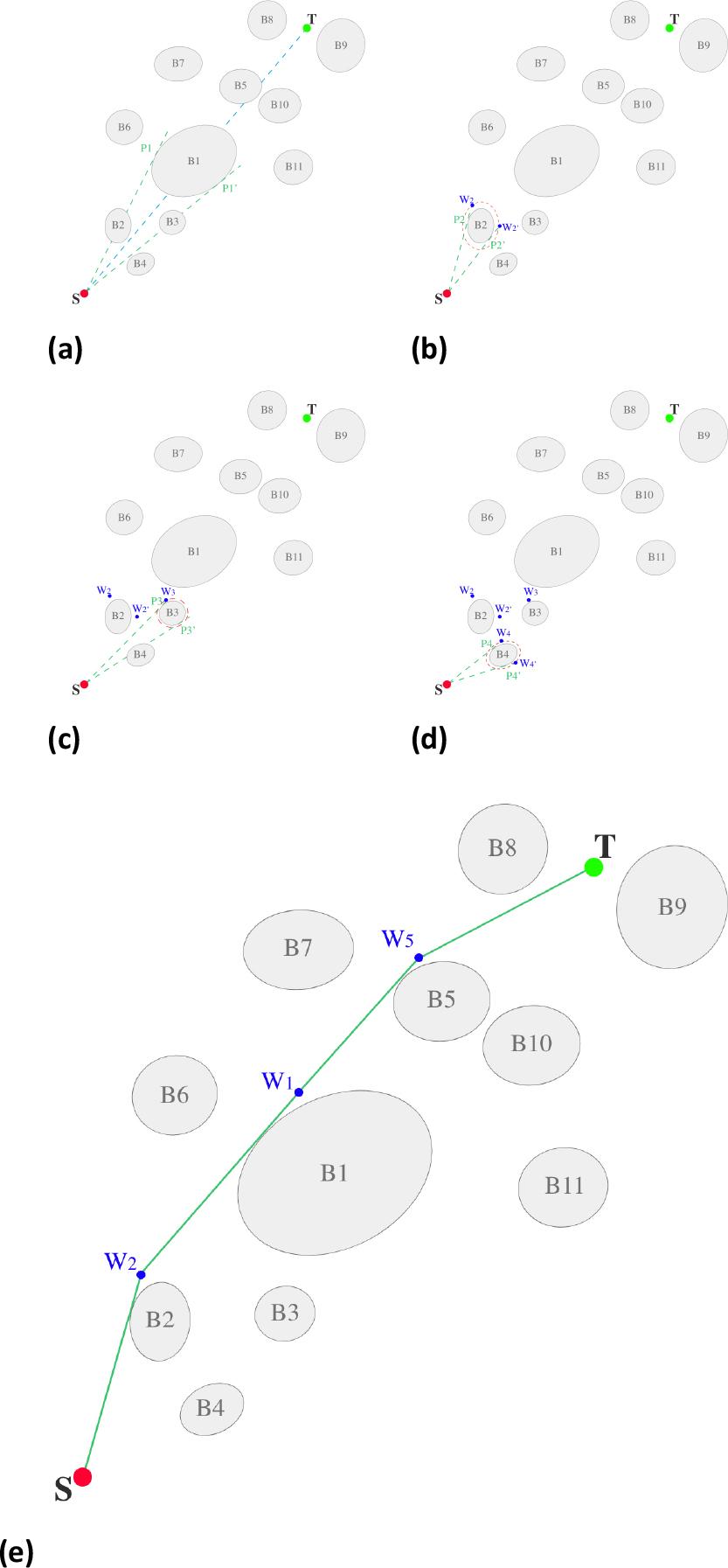

Waypoint generation using virtual ellipse technique

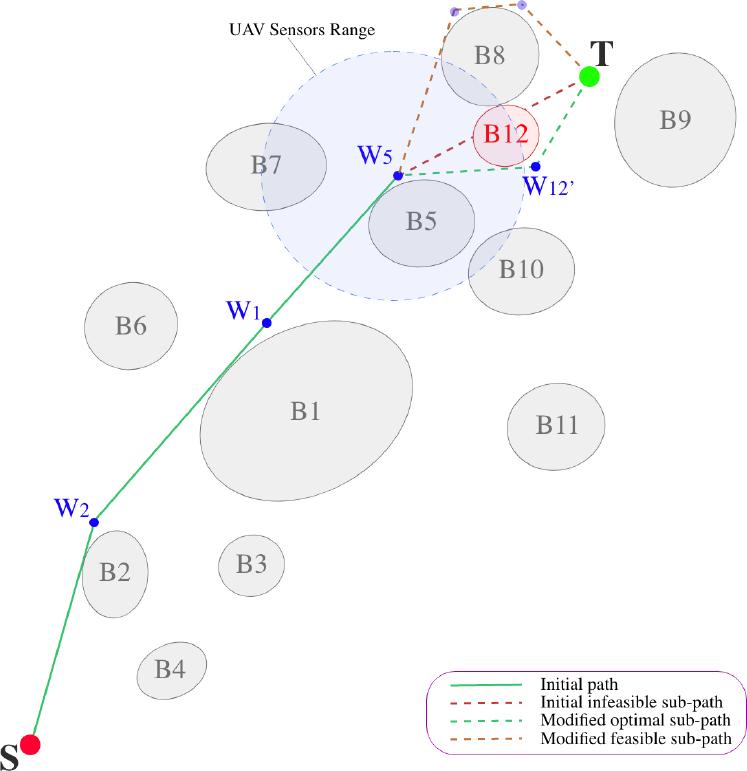

Generated path using dynamic path planner in a partially-known environment

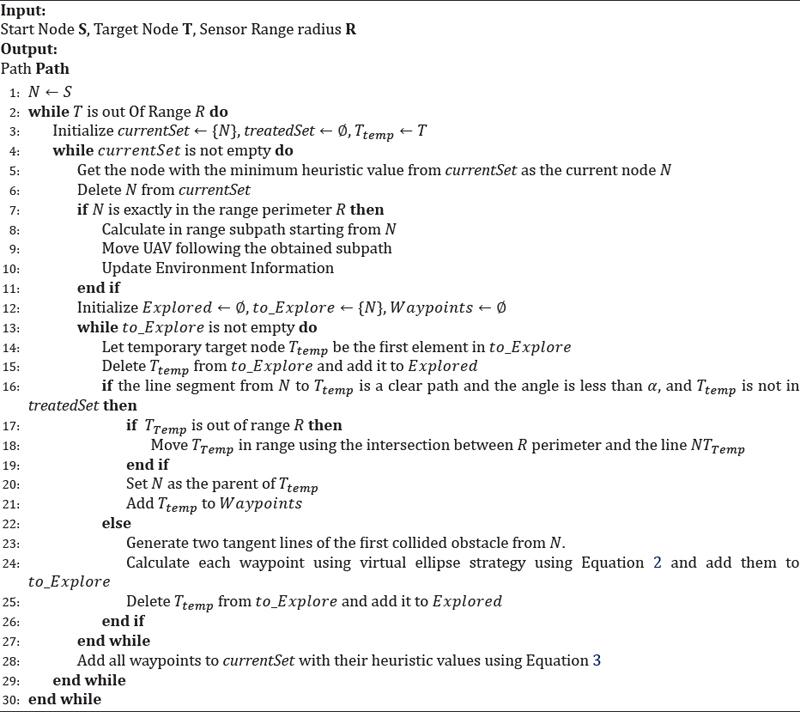

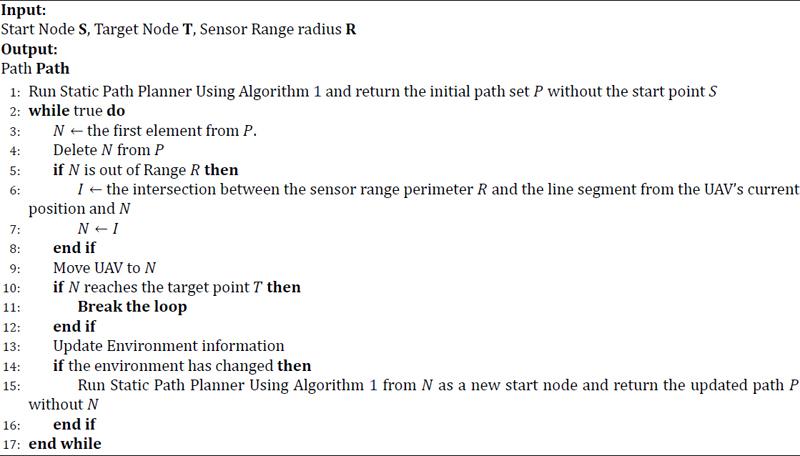

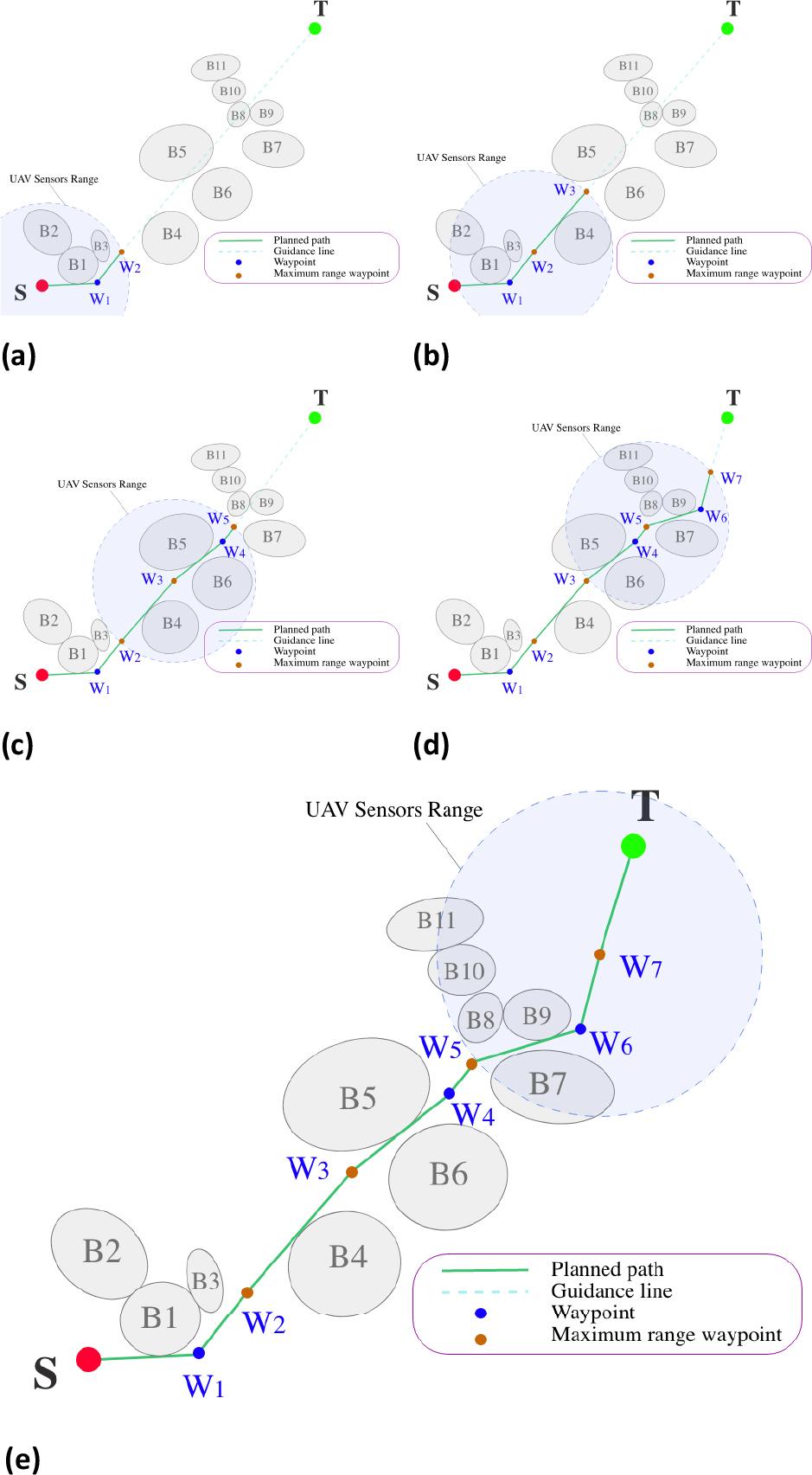

D-TIG planner algorithm steps in an unknown environment

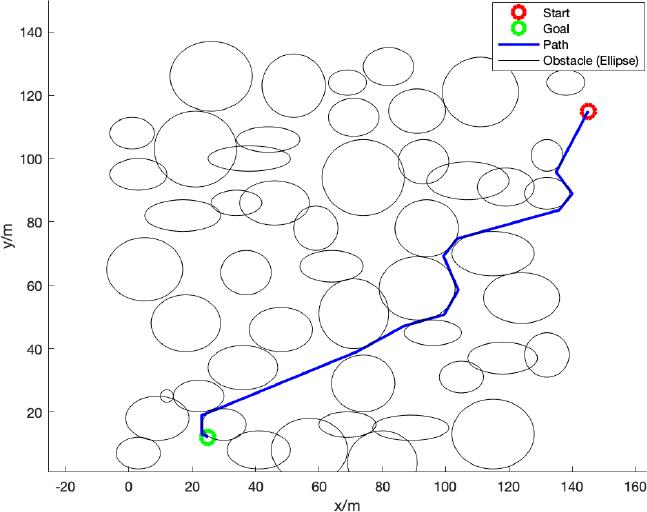

Example of a generated path without smoothing

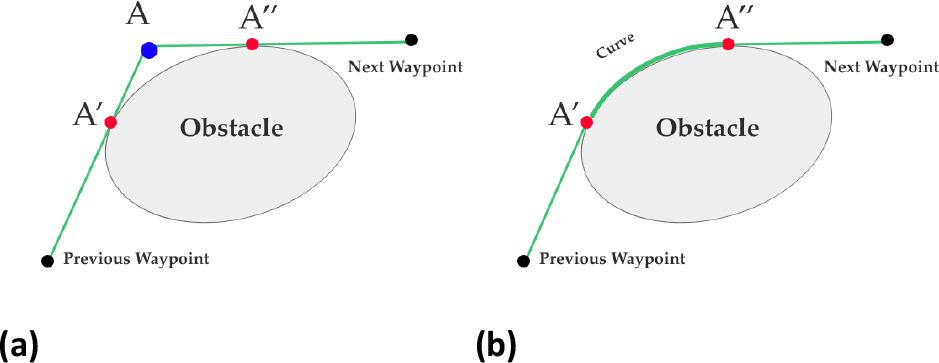

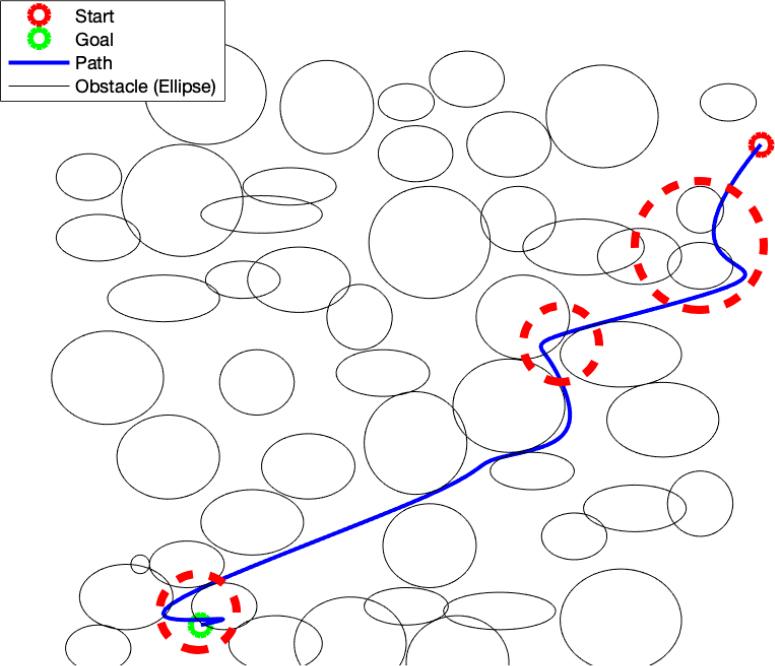

A smoothed path using a quadratic Bézier curve with collision

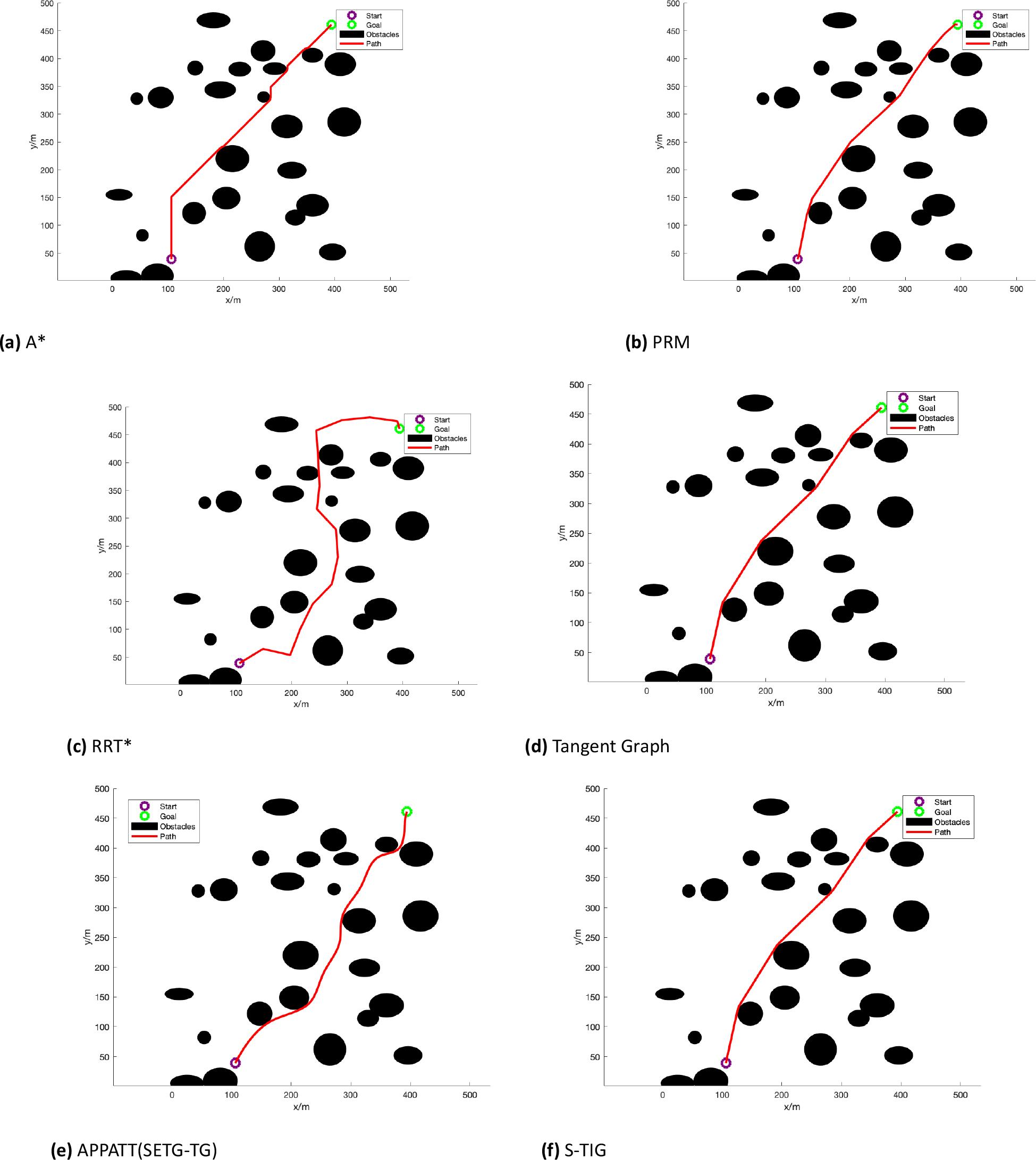

Generated paths in static environments on a short map (C1)

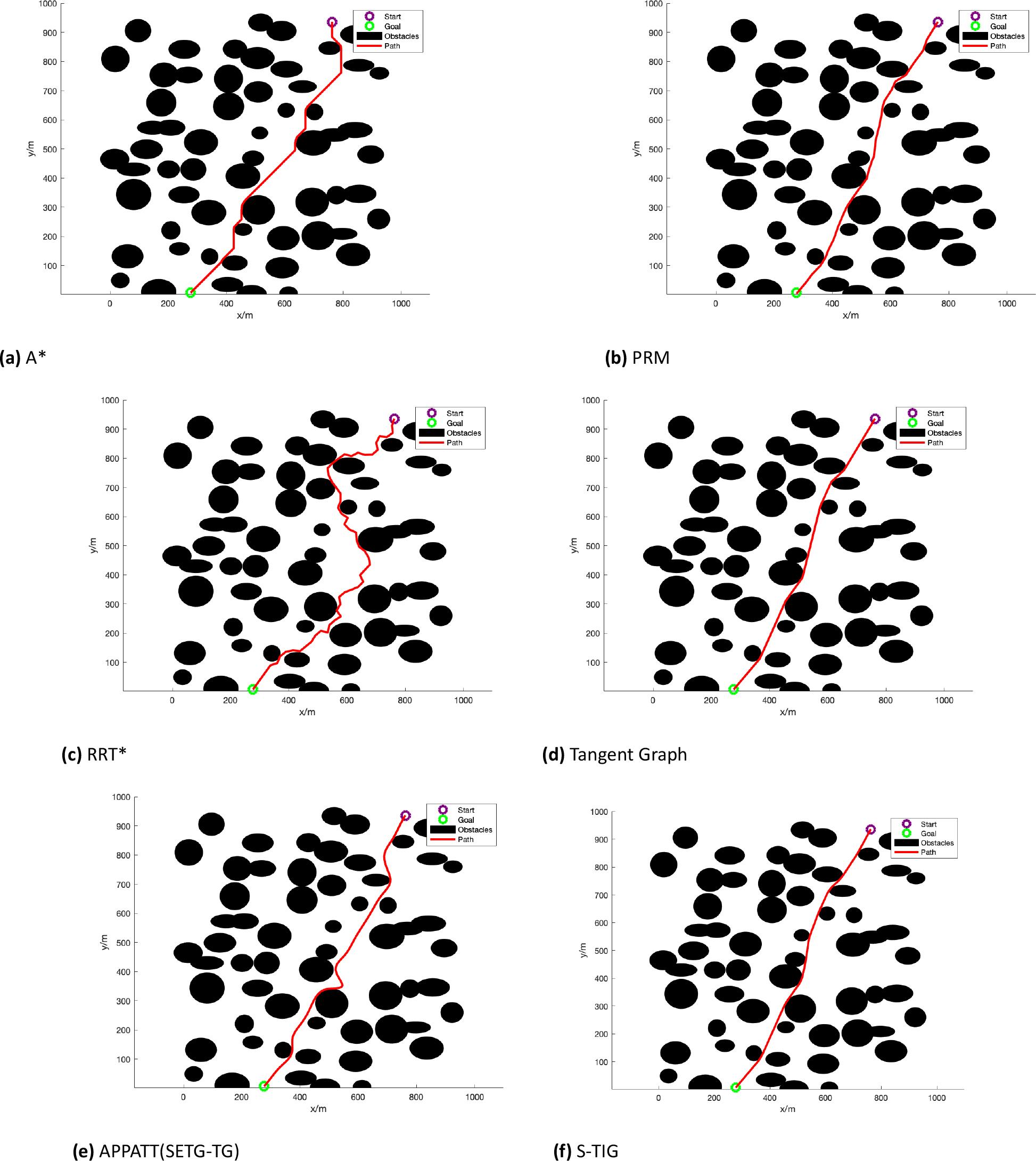

Generated paths in static environments on a large map (C5)

Generated paths in static environments on a sparse map (C9)

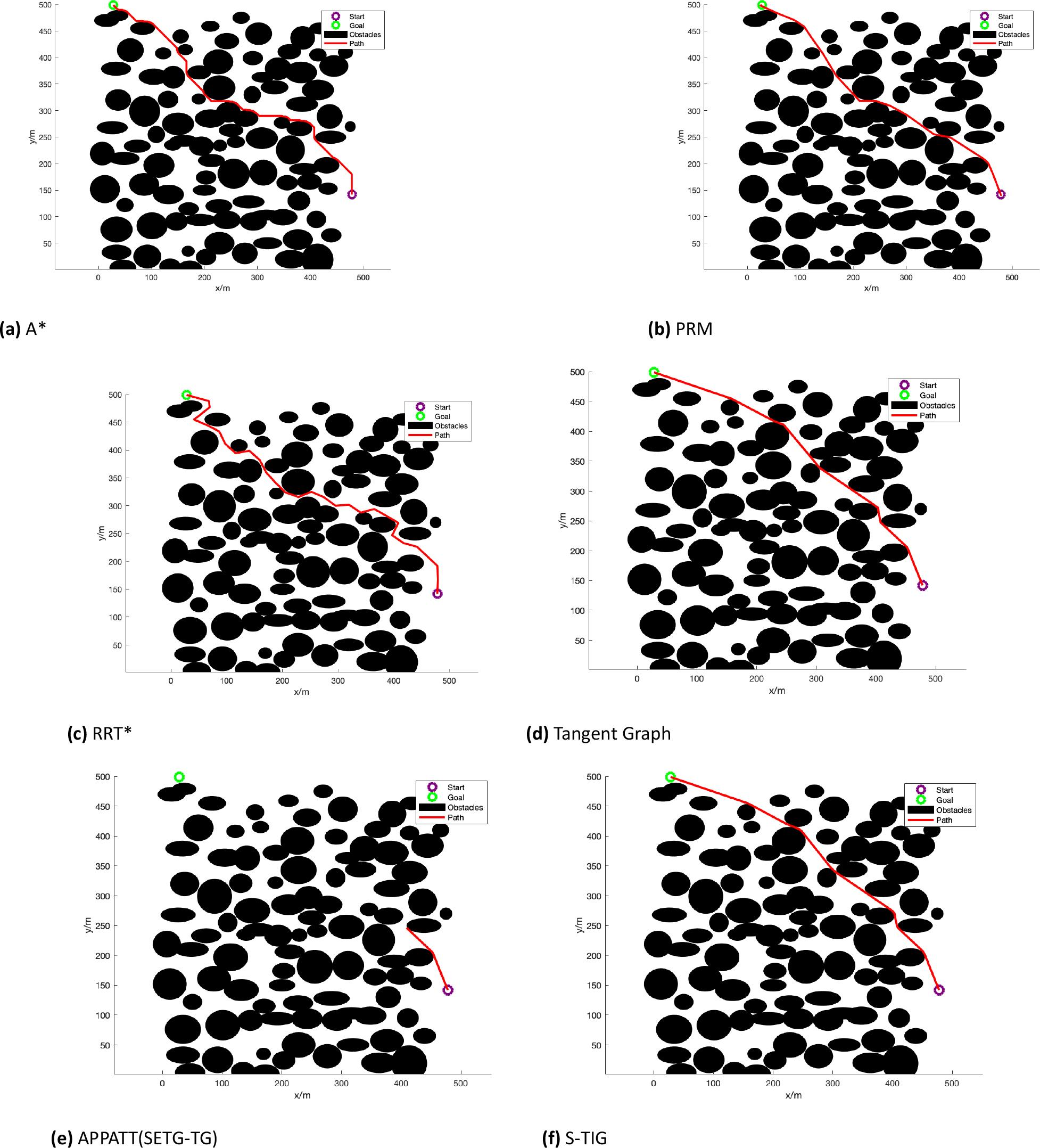

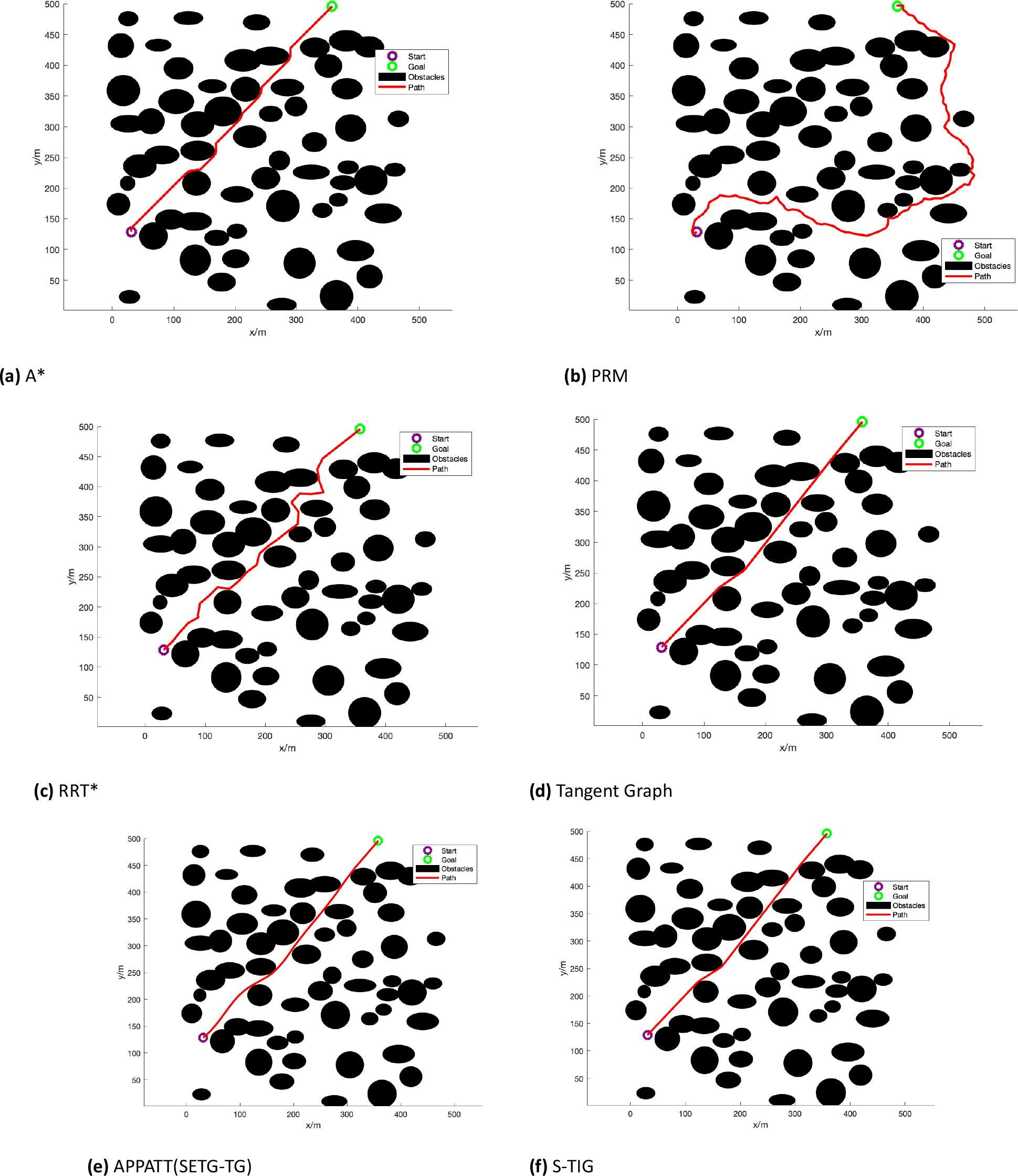

Generated paths in static environments on a dense map (C13)

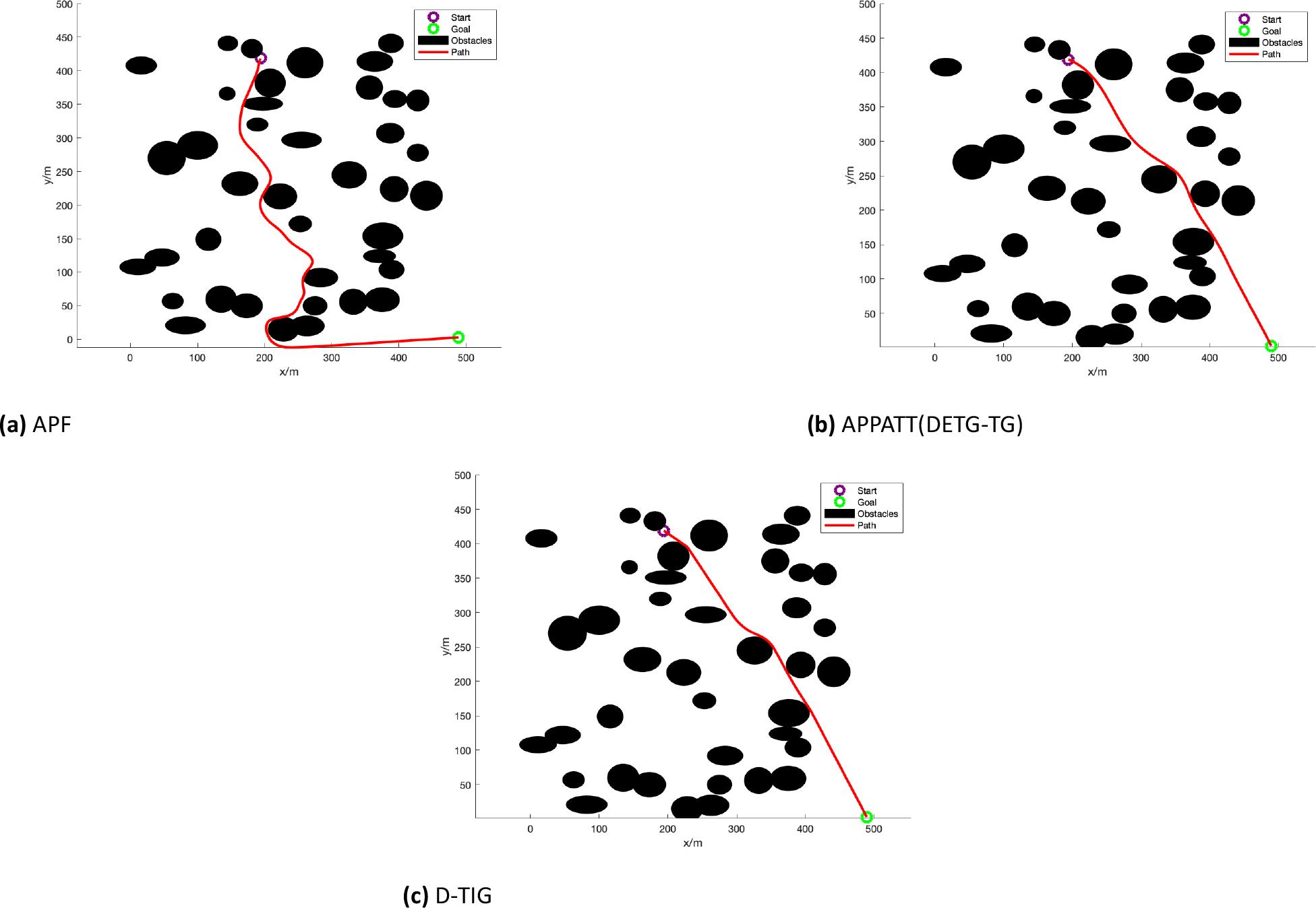

Generated paths in unknown environment on a short map (C17)

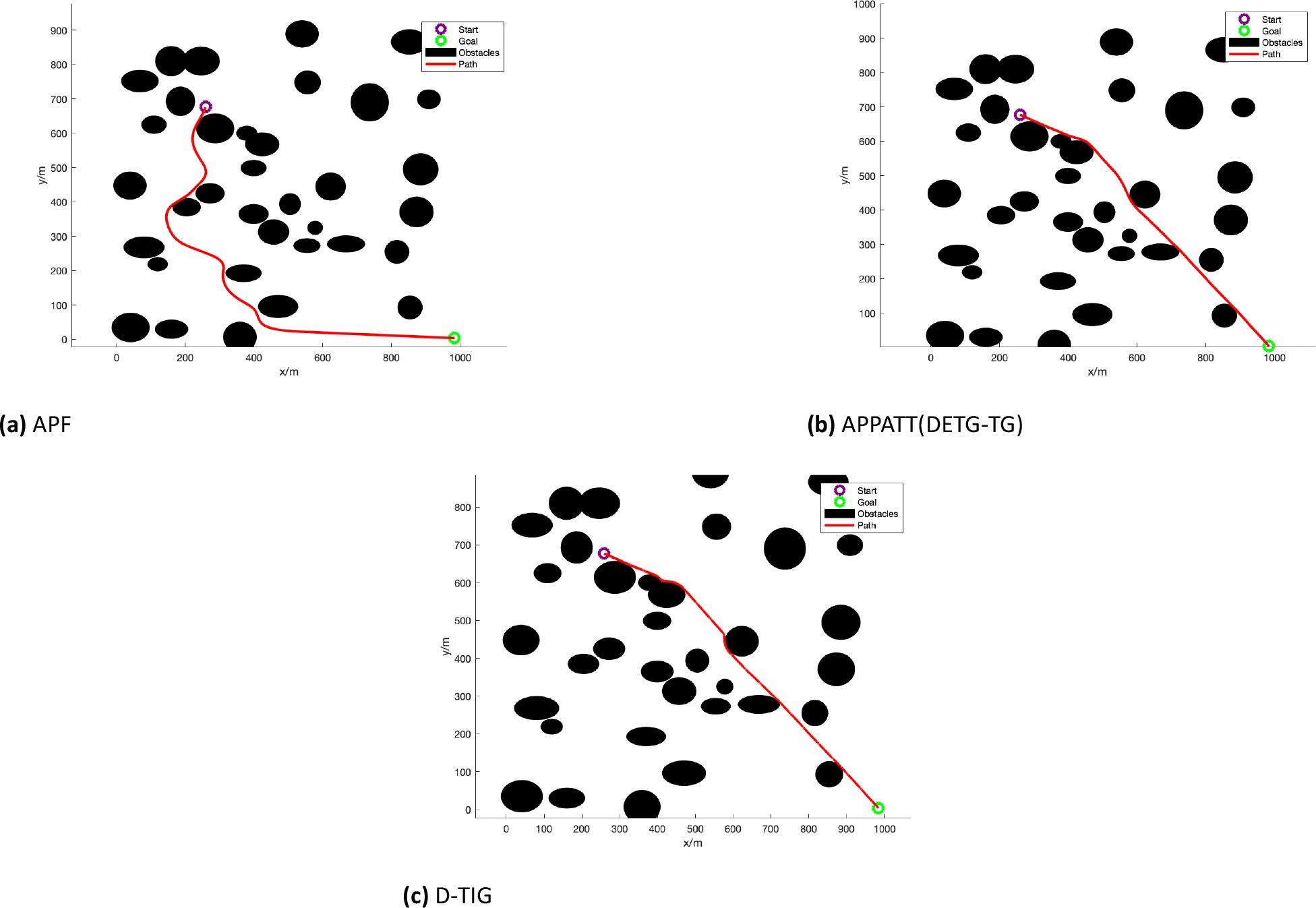

Generated paths in unknown environment on a large map (C21)

Generated paths in unknown environment on a sparse map (C25)

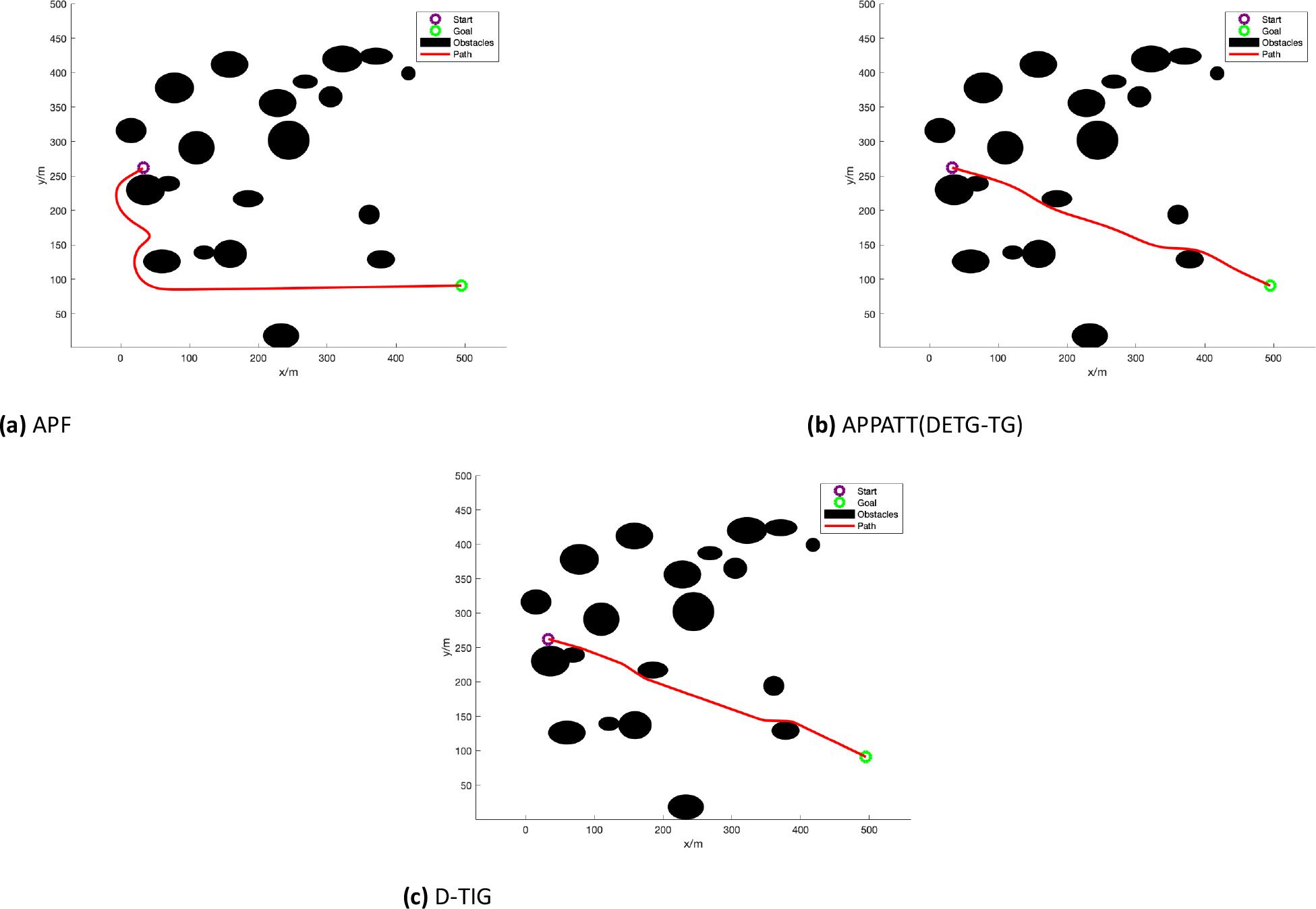

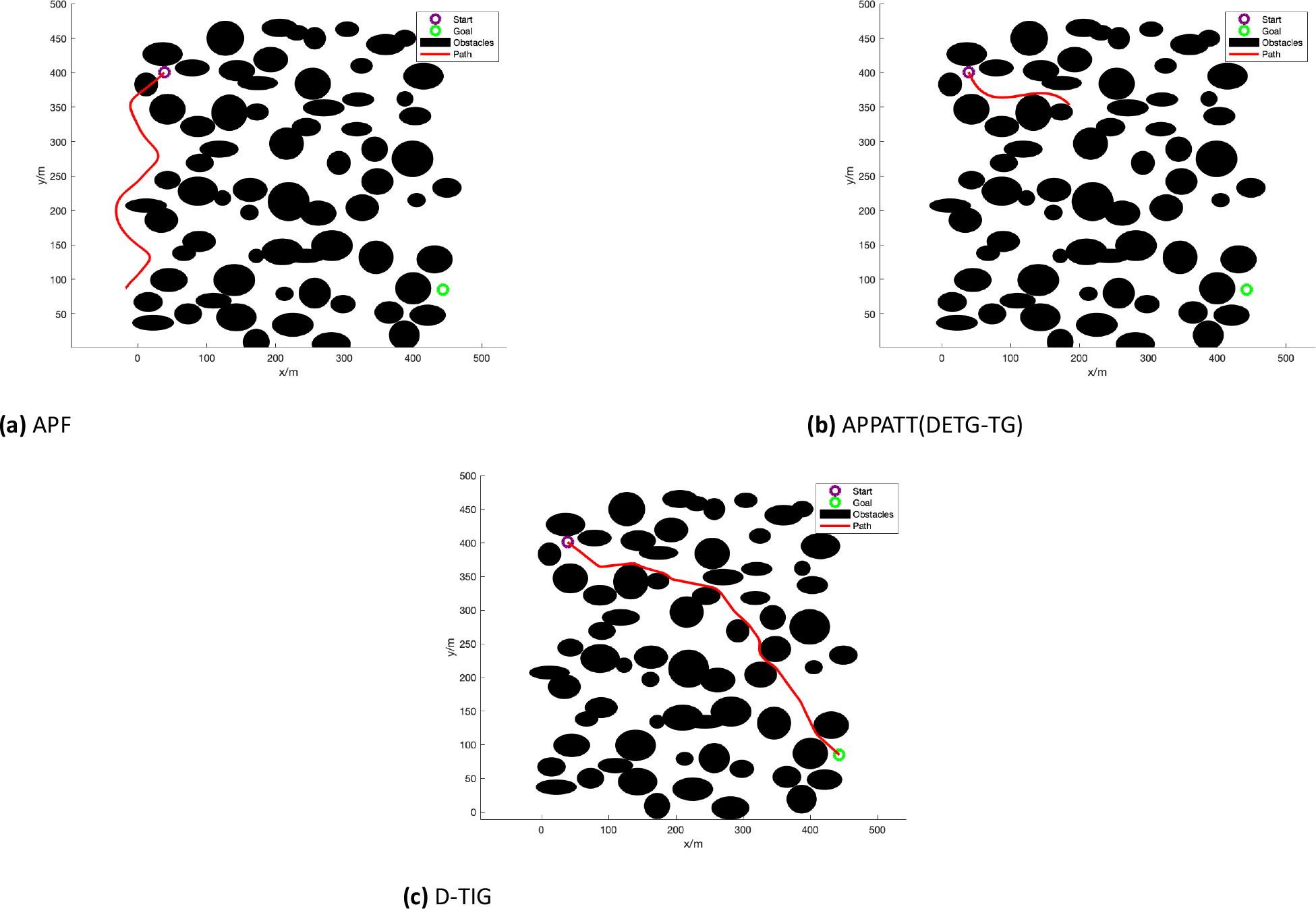

Generated paths in unknown environment on a dense map (C29)

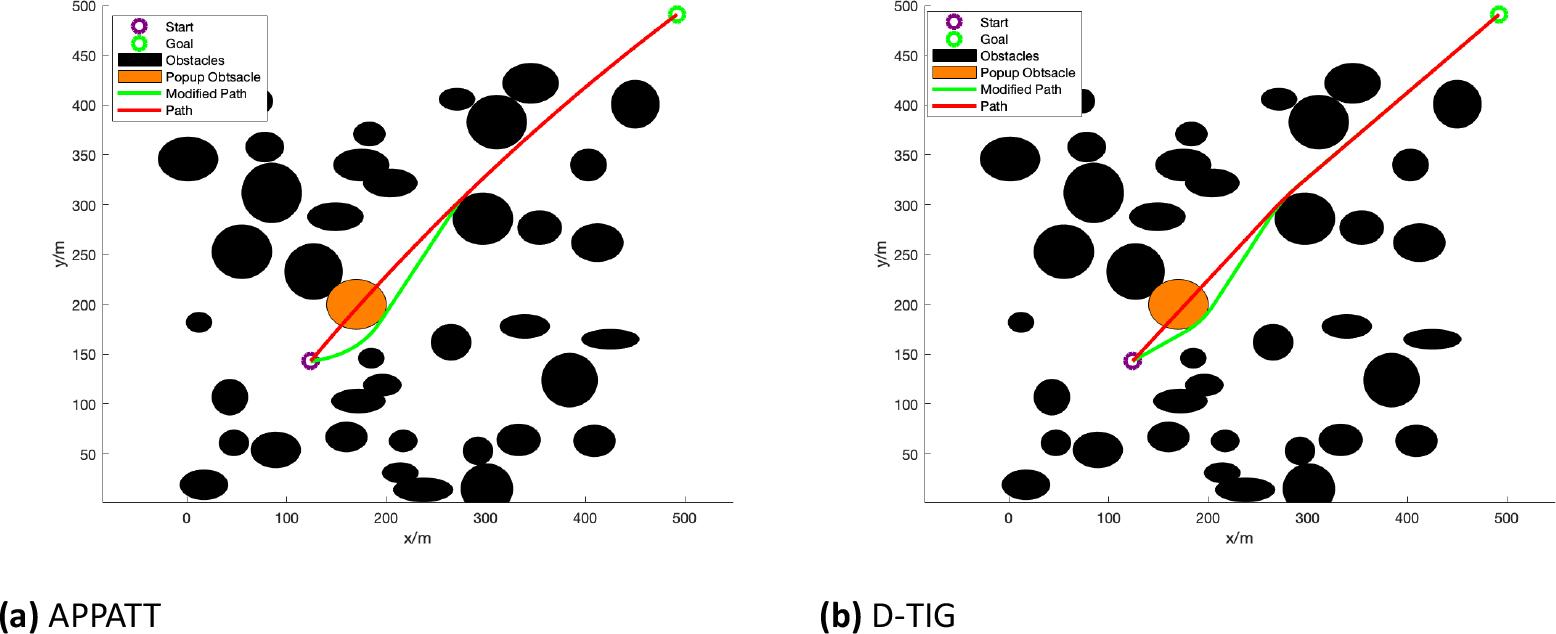

Generated paths in a partially known environment with pop-up obstacles on a short map (C19)

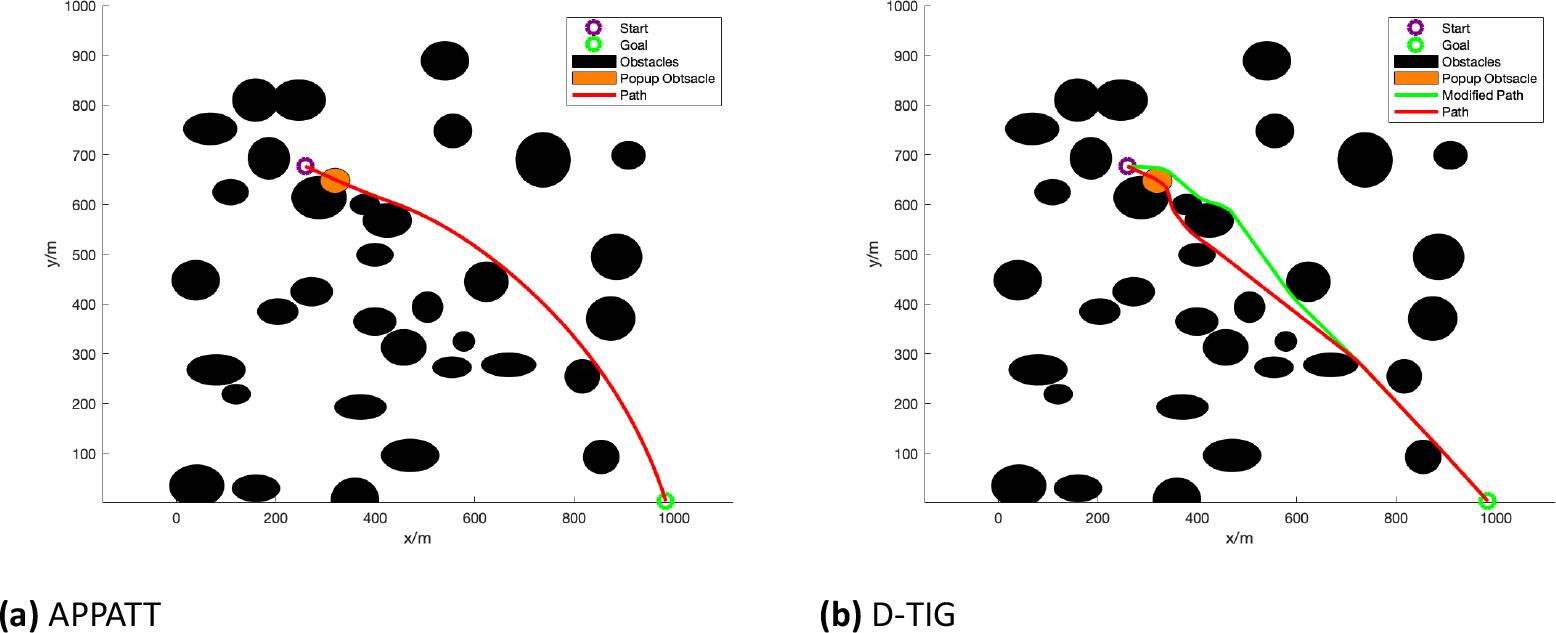

Generated paths in a partially known environment with pop-up obstacles on a long map (C20)

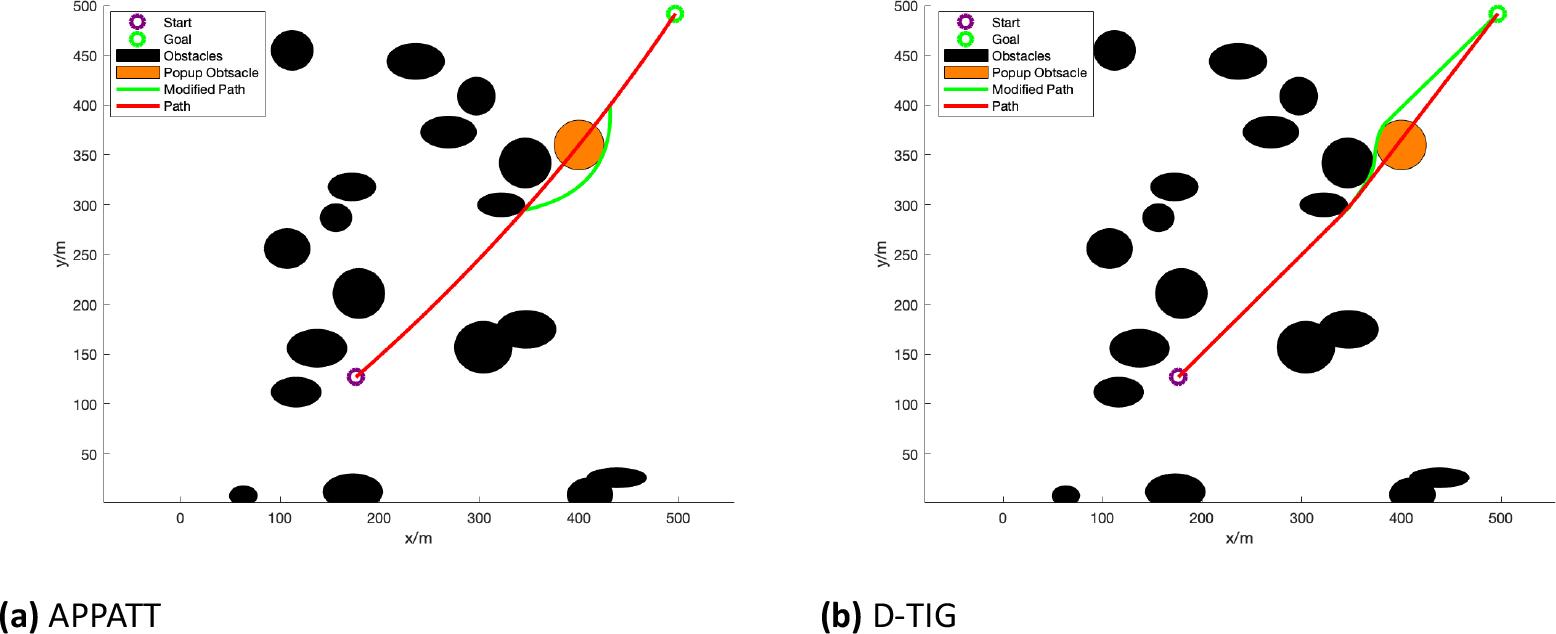

Generated paths in a partially known environment with pop-up obstacles on a sparse map (C25)

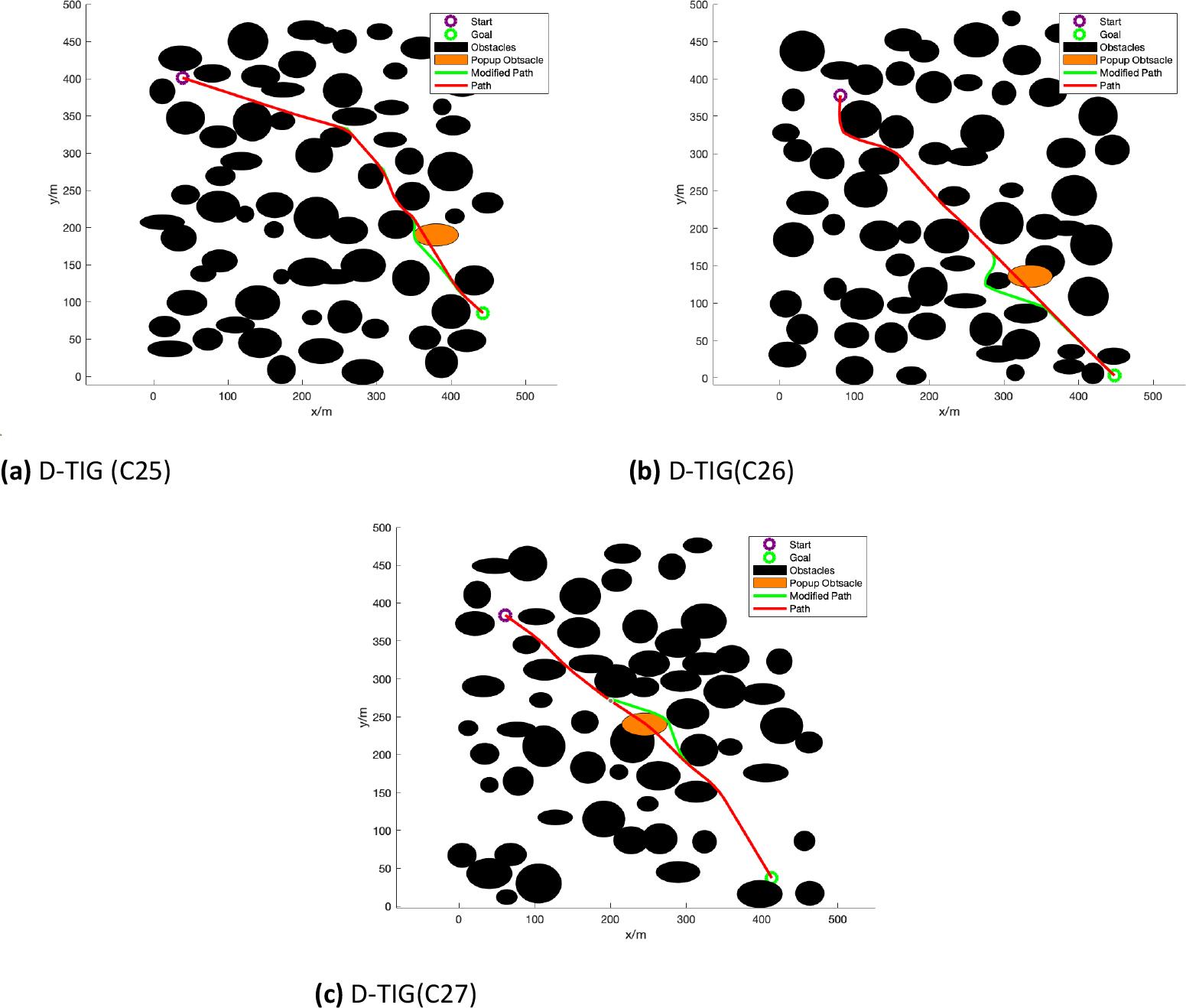

Generated paths using D-TIG in a partially known environment with pop-up obstacles on dense maps

Comparison of different dynamic path planning algorithms across different scenarios

Map Type	Case	Path Length			Time			Turning Radius
Map Type	Case	D-TIG	APF	APPATT	D-TIG	APF	APPATT	D-TIG	APF	APPATT
Short	C17	520.46	844.00	519.67	0.03	0.11	0.04	1.72	35.01	2.22
	C18	485.87	718.00	491.07	0.03	0.08	0.03	0.64	147.98	3.45
	C19	509.74	531.00	510.58	0.01	0.07	0.01	0.82	63.21	1.57
	C20	625.68	885.00	N/A	0.04	0.12	N/A	3.08	13.03	N/A
Large	C21	1010.41	1406.00	1010.01	0.07	0.14	0.05	1.38	10.65	1.90
	C22	1125.06	1419.00	1124.14	0.06	0.14	0.04	1.99	9.66	2.28
	C23	1036.91	1401.00	1033.27	0.04	0.14	0.03	3.52	1200.42	2.86
	C24	990.64	N/A	994.53	0.03	N/A	0.04	1.95	N/A	3.40
Sparse	C25	495.73	687.00	496.27	0.02	0.06	0.01	1.08	7.26	1.65
	C26	516.49	532.00	518.80	0.01	0.04	0.01	1.08	2.98	2.17
	C27	489.01	552.00	489.39	0.01	0.05	0.01	0.63	184.25	1.18
	C28	508.54	536.00	513.59	0.01	0.05	0.01	2.21	8.04	3.59
Dense	C29	558.54	N/A	N/A	0.05	N/A	N/A	6.51	N/A	N/A
	C30	562.17	N/A	N/A	0.06	N/A	N/A	5.92	N/A	N/A
	C31	505.38	N/A	505.14	0.04	N/A	0.05	1.86	N/A	2.59
	C32	564.15	N/A	N/A	0.06	N/A	N/A	7.55	N/A	N/A

Comparison of Different Dynamic Path Planning Algorithms Across Different Scenarios

Map Type	Case	Path Length		Time		Turning Radius
Map Type	Case	D-TIG	APPATT	D-TIG	APPATT	D-TIG	APPATT
Short	C17	520.46	571.56	0.02	0.03	0.55	4.12
	C18	496.99	502.81	0.01	0.01	1.62	1.36
	C19	513.46	520.09	0.005	0.007	0.97	1.47
Large	C21	1017.12	N/A	0.02	N/A	2.03	N/A
	C22	1130.68	1244.94	0.08	0.01	1.56	4.44
	C23	1027.61	1044.94	0.03	0.01	2.70	3.99
Sparse	C25	494.90	522.74	0.001	0.003	0.97	4.27
	C26	534.93	N/A	0.002	N/A	2.2	N/A
	C27	495.09	561.69	0.008	0.002	1.48	4.42

Comparison of different static path planning algorithms across four scenarios

Map Type	Case	Path Length						Time						Turning Radius
Map Type	Case	S-TIG	A*	PRM	RRT	APPATT	TG	S-TIG	A*	PRM	RRT	APPATT	TG	S-TIG	A*	PRM	RRT	APPATT	TG
Short	C1	493.84	510.06	949.33	566.49	495.29	493.59	0.01	8.44	3.65	0.18	0.09	0.20	0.53	32.20	58.35	14.96	1.45	0.53
	C2	511.89	533.16	661.20	595.68	N/A	511.60	0.07	11.72	3.65	0.27	N/A	2.73	0.68	32.20	42.18	16.84	N/A	0.46
	C3	520.53	545.25	587.87	931.31	531.38	514.25	0.06	9.26	3.68	0.64	0.21	2.81	2.81	49.48	30.59	36.17	1.99	1.86
	C4	527.59	557.87	645.85	840.31	584.34	528.50	0.06	10.38	3.36	0.14	0.06	2.02	2.34	46.33	37.94	26.21	2.72	2.34
Large	C5	1063.13	1156.40	1071.65	1429.14	1135.71	1063.76	0.11	73.00	5.25	0.77	0.15	73.48	1.97	55.76	6.43	34.66	9.28	1.72
	C6	1004.27	1022.01	1040.68	1313.74	1064.00	1004.14	0.02	92.65	5.09	0.35	0.10	0.14	0.16	10.21	7.20	34.58	1.87	0.14
	C7	1241.35	1289.83	1253.50	1558.46	N/A	1238.23	0.05	80.09	5.88	0.78	N/A	4.13	1.49	69.90	6.69	44.56	N/A	1.07
	C8	1001.01	1054.11	1019.10	1254.34	1925.46	999.66	0.09	72.85	5.25	0.39	0.14	8.57	1.67	52.62	5.08	35.32	10.29	1.42
Sparse	C9	522.01	545.98	524.81	706.33	543.33	522.24	0.04	16.00	9.85	0.11	0.01	0.83	1.02	18.06	2.30	8.14	5.55	1.02
	C10	515.36	548.42	526.48	714.74	515.30	515.38	0.03	17.47	9.02	0.02	0.03	0.04	0.25	14.92	4.76	12.66	0.24	0.24
	C11	514.74	524.83	525.51	643.16	524.88	514.81	0.01	12.82	9.44	0.11	0.05	0.03	0.37	13.35	6.32	16.09	0.69	0.37
	C12	511.61	520.28	525.26	613.53	N/A	509.00	0.06	16.69	9.36	0.09	N/A	0.16	2.05	16.49	6.08	15.28	N/A	1.14
Dense	C13	601.13	652.94	613.57	713.55	N/A	602.23	0.32	6.71	10.90	0.34	N/A	57.50	2.97	69.90	9.38	17.87	N/A	2.96
	C14	509.77	562.94	515.49	604.97	N/A	509.69	0.29	6.73	9.25	0.47	N/A	5.26	2.46	62.05	6.15	12.70	N/A	2.14
	C15	686.06	698.61	638.75	868.91	N/A	686.05	0.68	6.16	11.60	0.42	N/A	62.59	18.90	68.33	13.63	23.39	N/A	18.90
	C16	572.76	644.14	574.83	711.90	N/A	568.13	0.32	4.35	10.10	0.34	N/A	61.27	11.80	52.62	7.33	17.47	N/A	3.80

Definitions of main notations

Notations	Description
S	Start-point
T	Target-point
w	A waypoint generated by the tangent planner
CurrentSet	A set to store candidate waypoints
ClosedSet	A set to store visited waypoints
treatedSet	A set that records tangent points that have already been calculated
