The Nexus of Cult and Pastoralism in Neolithic Northwest Arabia: Contextualising the Mustatil Phenomenon Cover

The Nexus of Cult and Pastoralism in Neolithic Northwest Arabia: Contextualising the Mustatil Phenomenon

Open Quaternary
Volume 10 (2024): Issue 1
By: ,  ,  ,  ,   and
Open Access
|Oct 2024
Figures & tables

Figures & Tables

Figure 1

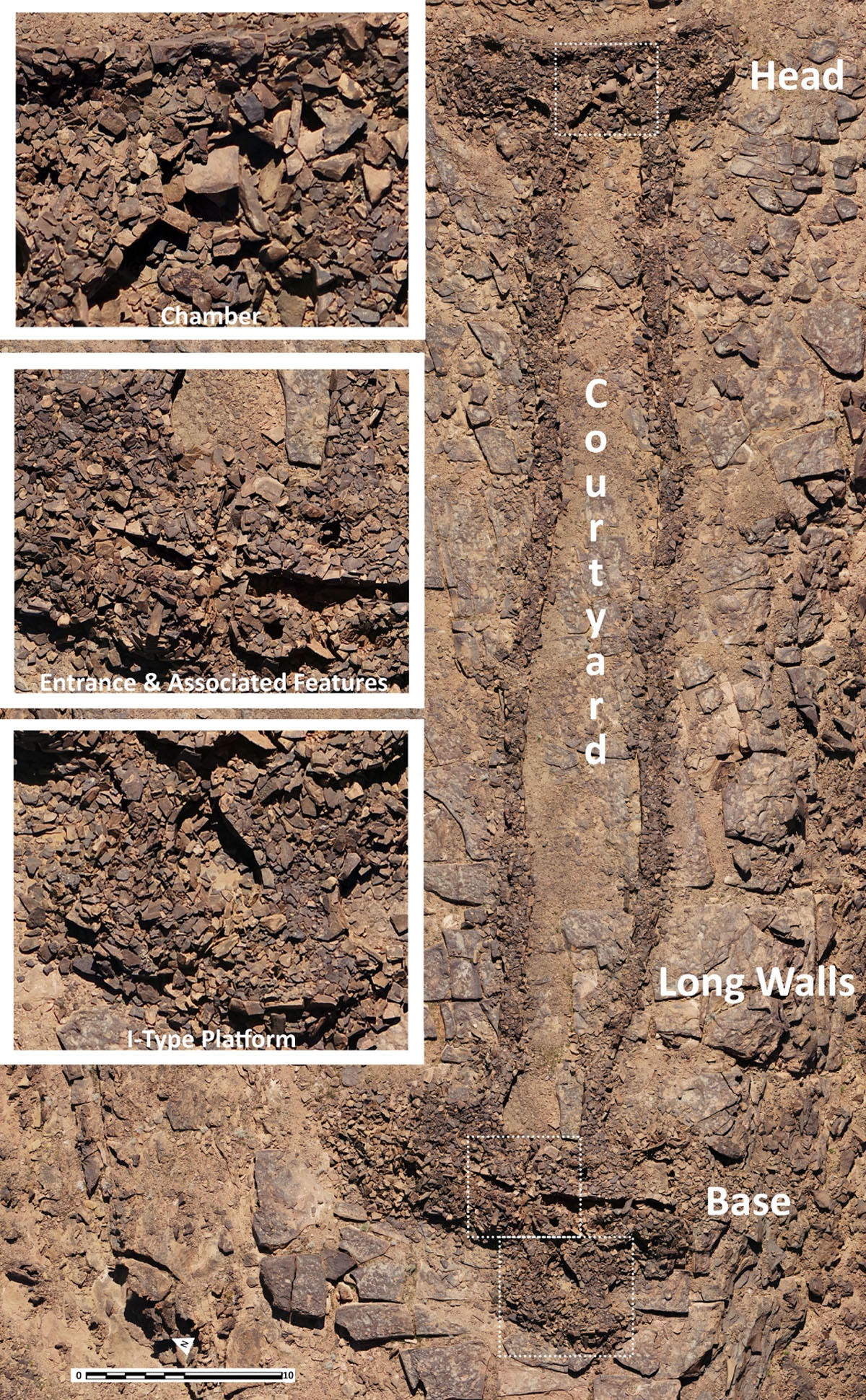

Key architectural features of a mustatil. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 2

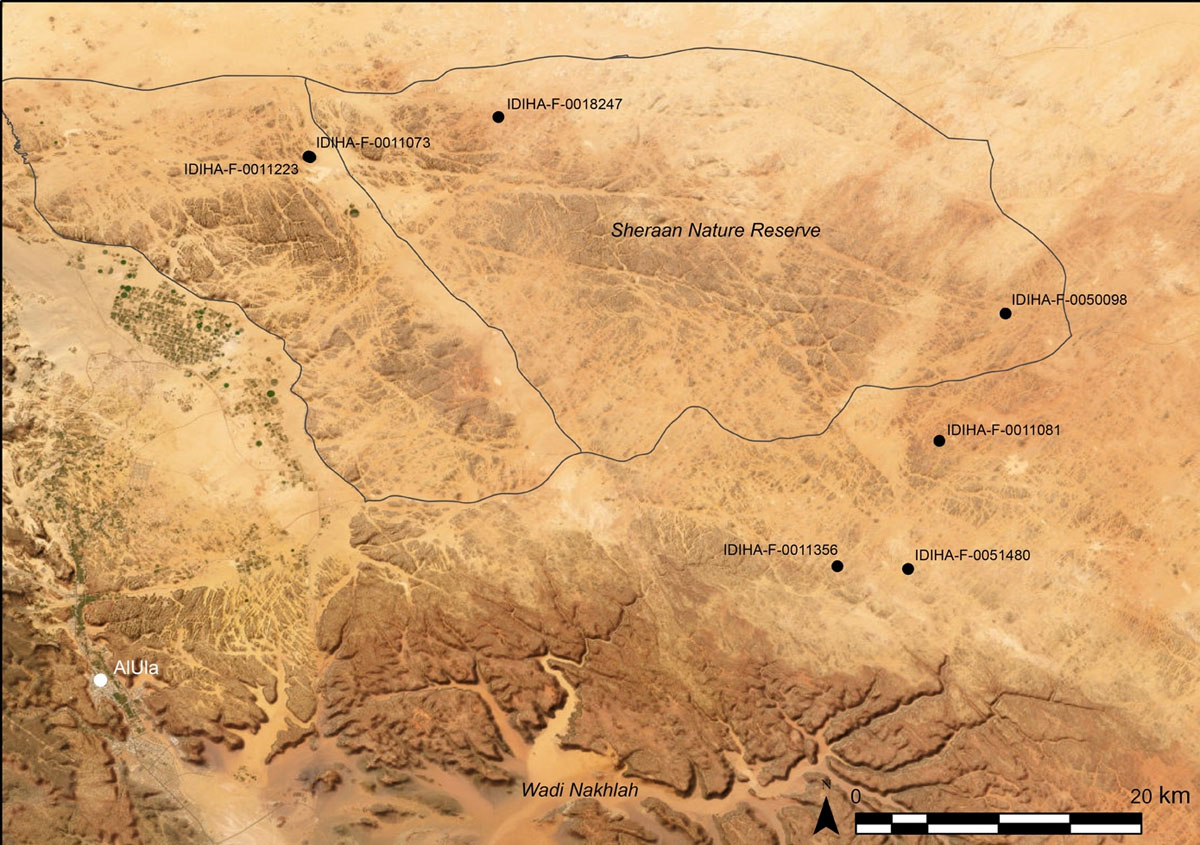

Map of excavated mustatils in AlUla County. © AAKSA/PAKEP.

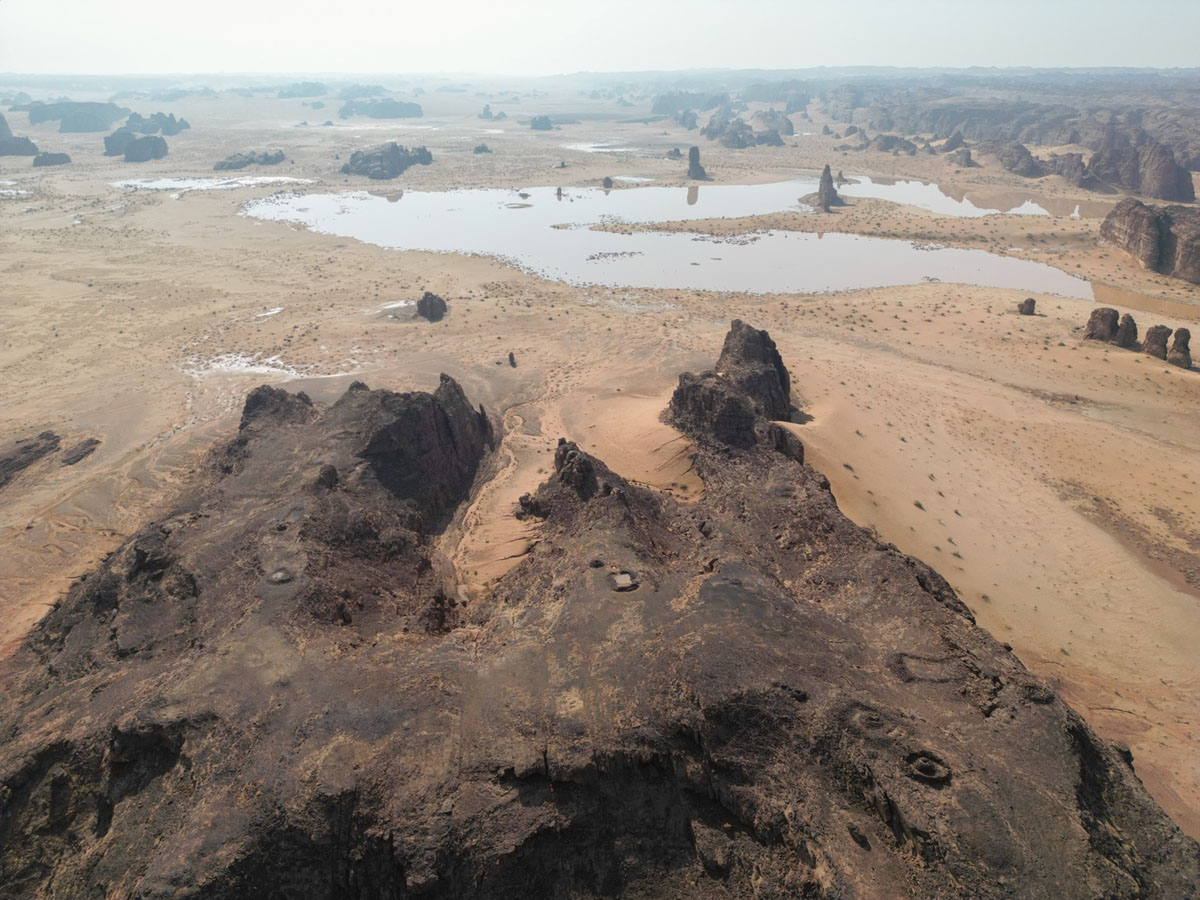

Figure 3

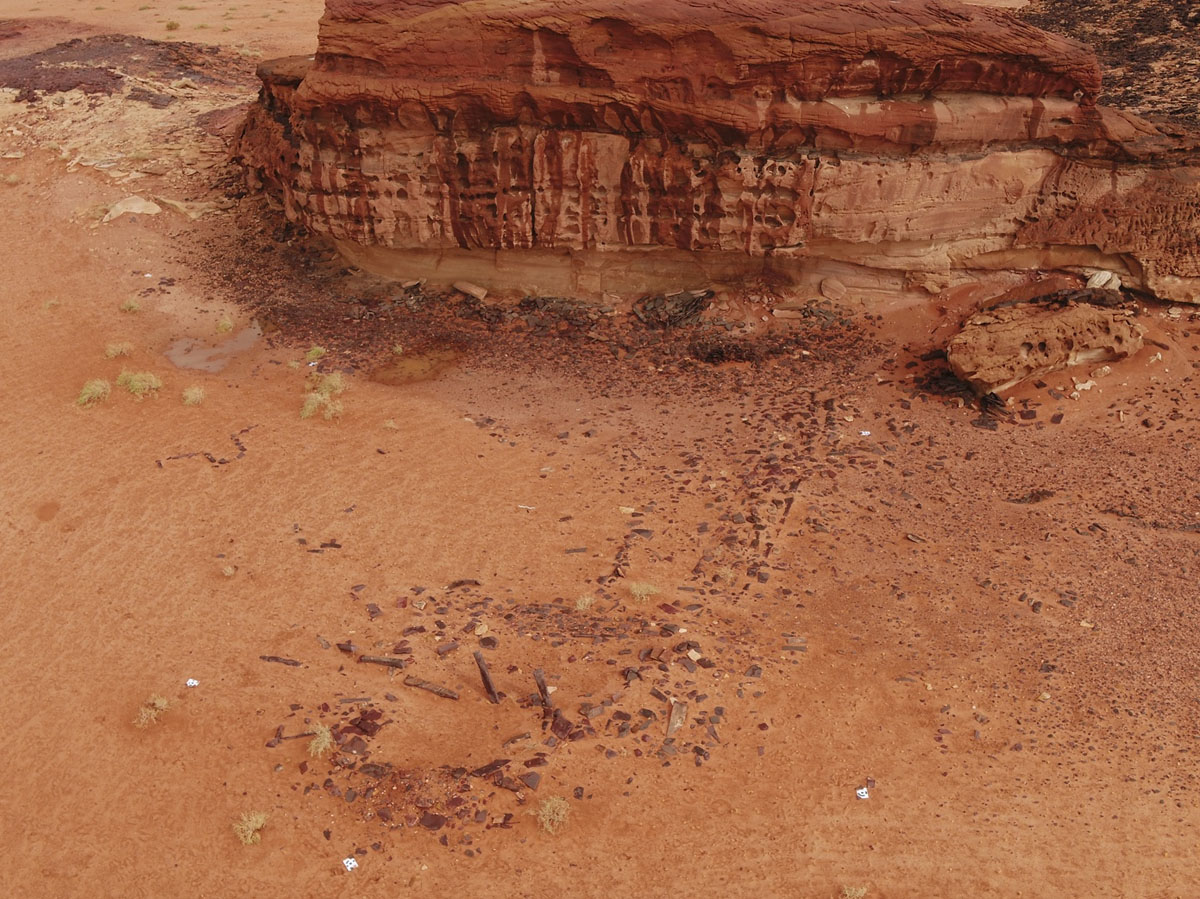

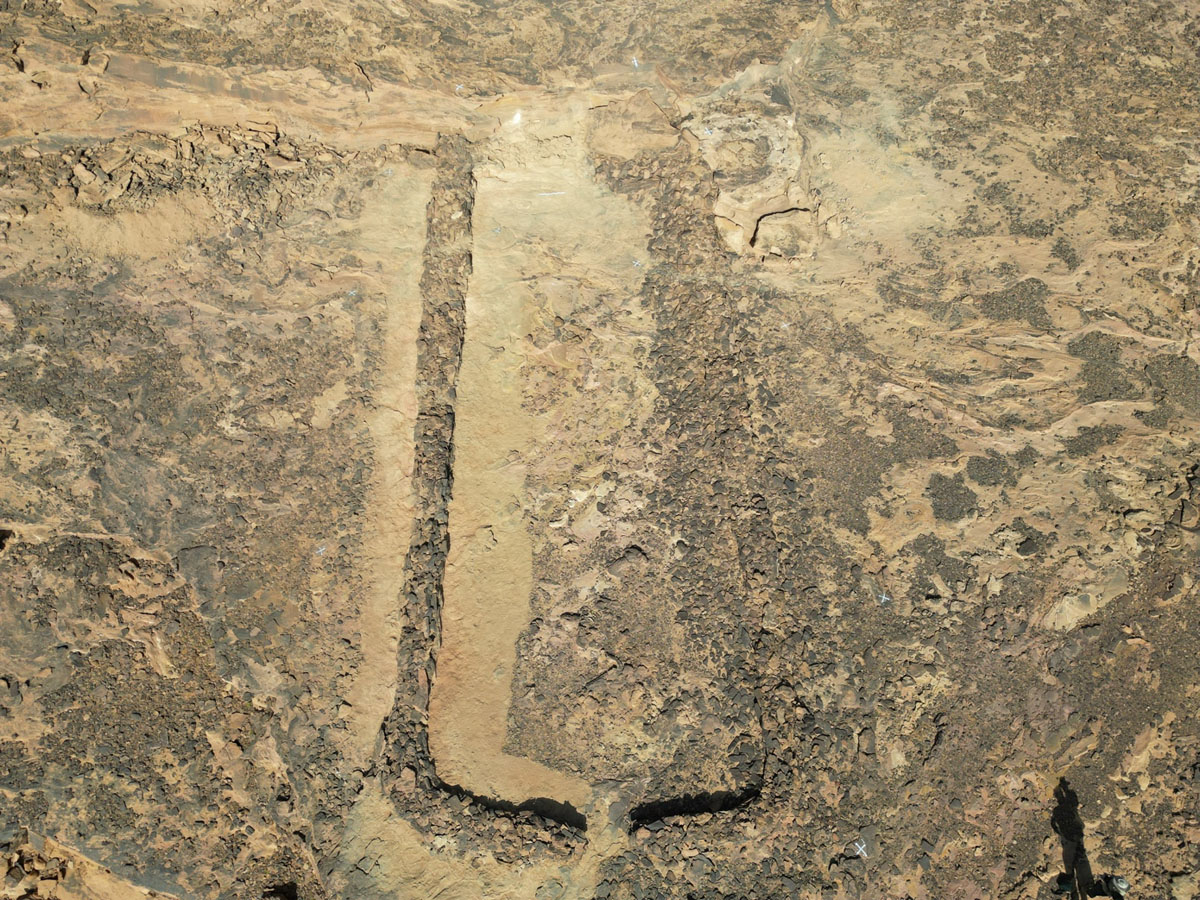

Aerial view of IDIHA-0011233, photo facing south. Note the area still holds significant water after rain. © AAKSA/PAKEP and The Royal Commission for AlUla.

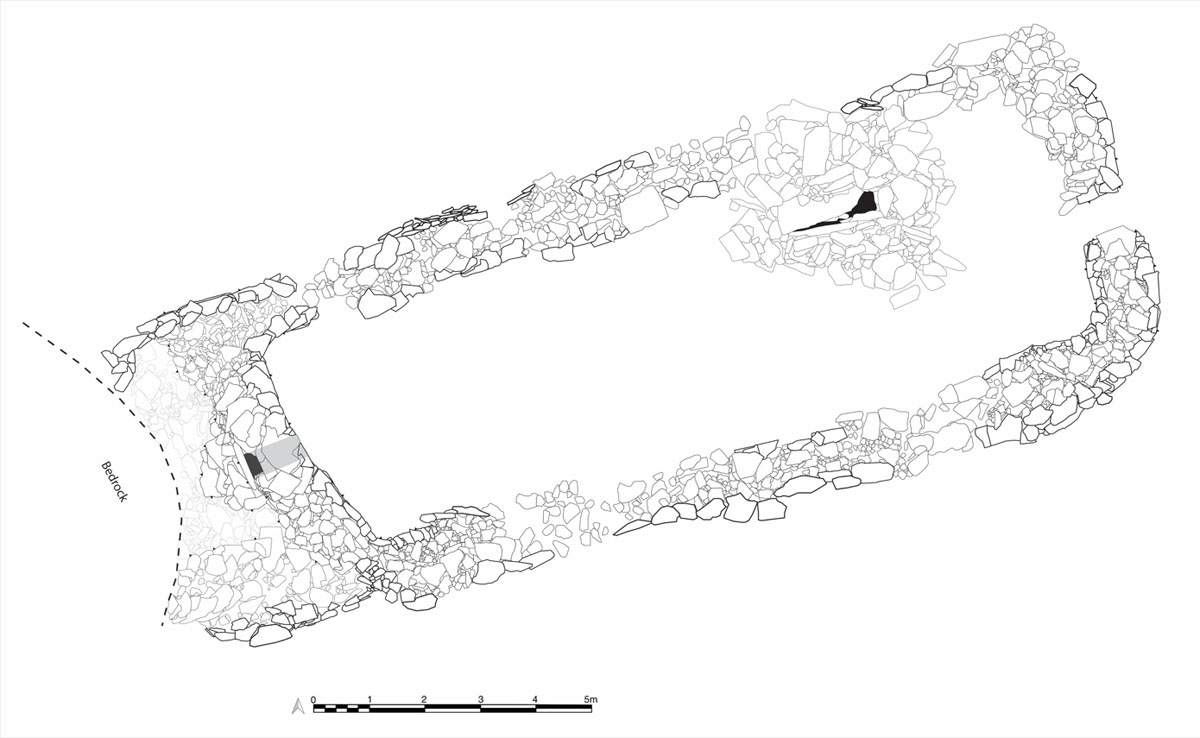

Figure 4

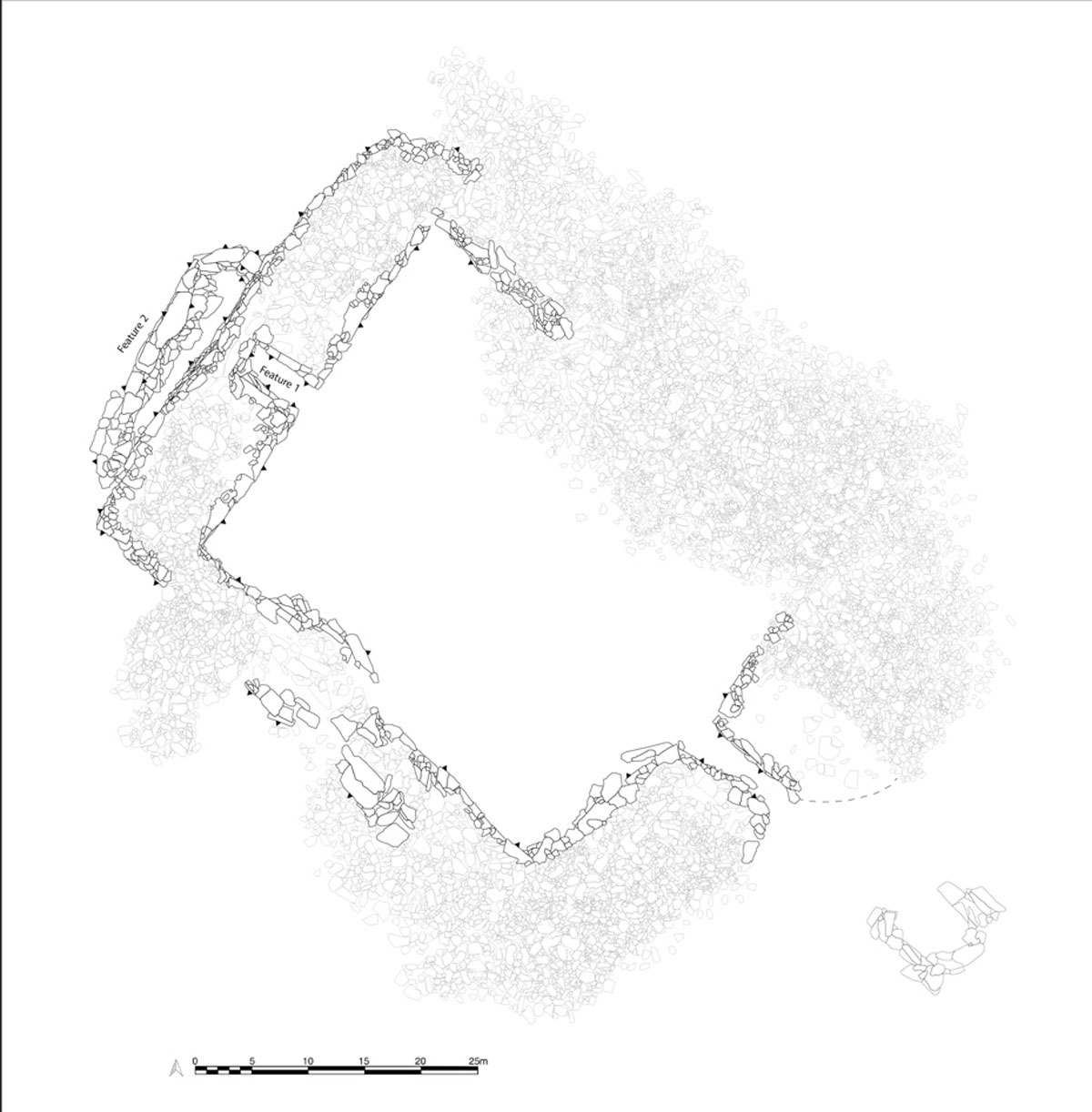

Plan of IDIHA-F-0011073. © AAKSA/PAKEP and The Royal Commission for AlUla.

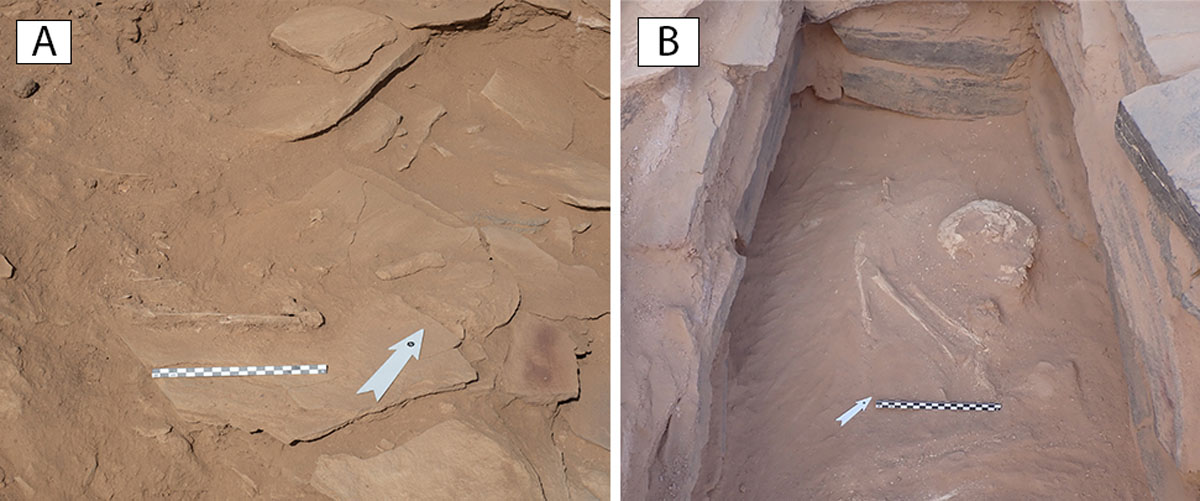

Figure 5

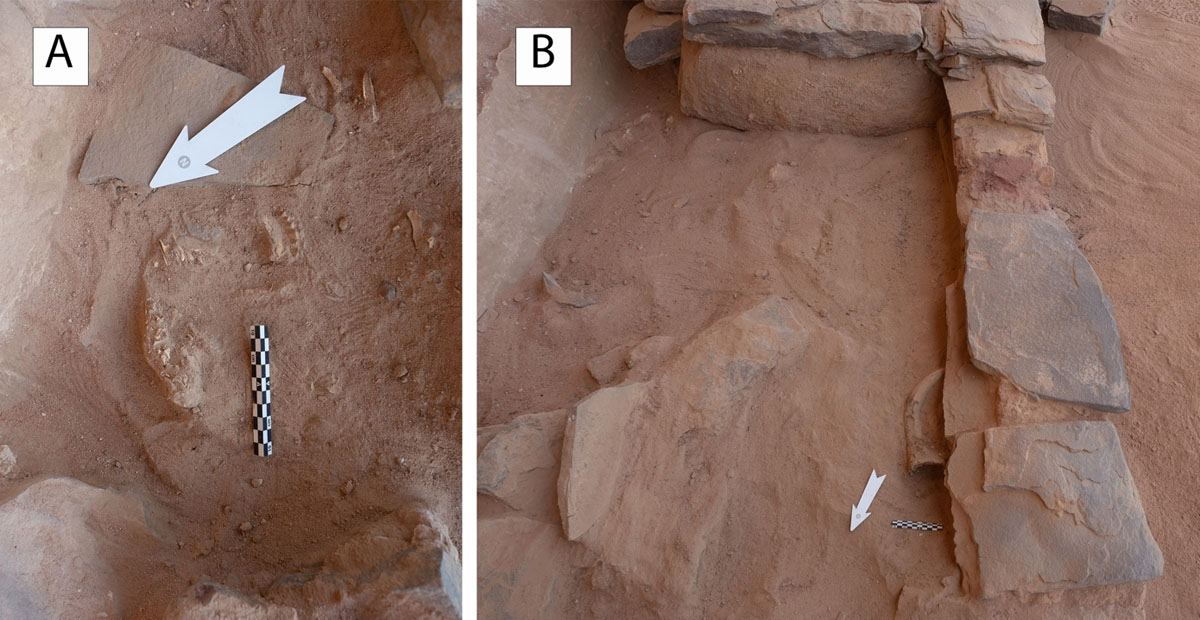

Human remains found within IDIHA-F-0011073. 5A: IB0463. 5B: IB0397. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 1

Quantification of faunal remains from IDIHA-F-0011073.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle18729%22030%
Bos sp.44768%50568%
Indeterminate Caprine112%30%
Indeterminate112%132%
Total656100%741100%
Table 2

Radiocarbon assays from IDIHA-F-0011073.

LAB IDSAMPLE IDMATERIALCONTEXTANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS56659#0539Cattle Tooth004Bioapatite5990 ± 254933–4920 (8.4%)
4908–4838 (59.8%)		4948–4793 (95.4%)
UGAMS56661#0549Cattle Tooth014Bioapatite5980 ± 254904–4861 (37.7%)
4856–4831 (19.4%)
4816–4800 (11.1%)		4942–4791 (95.4%)
UGAMS56660#0547Cattle Tooth012Bioapatite5940 ± 254846–4784 (63.8%)
4743–4734 (4.5%)		4898–4866 (10.7%)
4850–4724 (84.7%)
UGAMS56615IB0463Human Bone004Bioapatite5950 ± 204878–4874 (2.0%)
4846–4791 (66.3%)		4902–4862 (16.4%)
4854–4776 (73.3%)
4758–4728 (5.7%)
UGAMS56881IB0397Human Bone012Bioapatite5510 ± 254435–4430 (5.9%)
4362–4336 (62.4%)		4444–4417 (16.7%)
4404–4328 (786.8%)
4282–4272 (1.9%)
Figure 6

A: Aerial photo of IDIHA-F-0011223, note this mustatil has been turned into a pendant, photo facing south. The chamber is visible in the right-hand side of the photo. 6B: The chamber of IDIHA-F-0011223 during excavation. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 3

Quantification of faunal remains from IDIHA-F-0011223.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle17230.7%27348.8%
Bos sp.26747.7%17932.0%
Indeterminate Caprine20.4%50.9%
Small Ruminant20.4%50.9%
Large Ungulate20.4%81.4%
Indeterminate11520.5%8915.9%
Total560100%559100%
Table 4

Radiocarbon assay from IDIHA-F-0011223.

LAB IDSAMPLE IDMATERIALCONTEXTANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS58732#1048Cattle Tooth004Bioapatite5930 ± 254840–4782 (56.6%)
4748–4730 (11.7%)		4888–4870 (4.4%)
4848–4722 (91.0%)

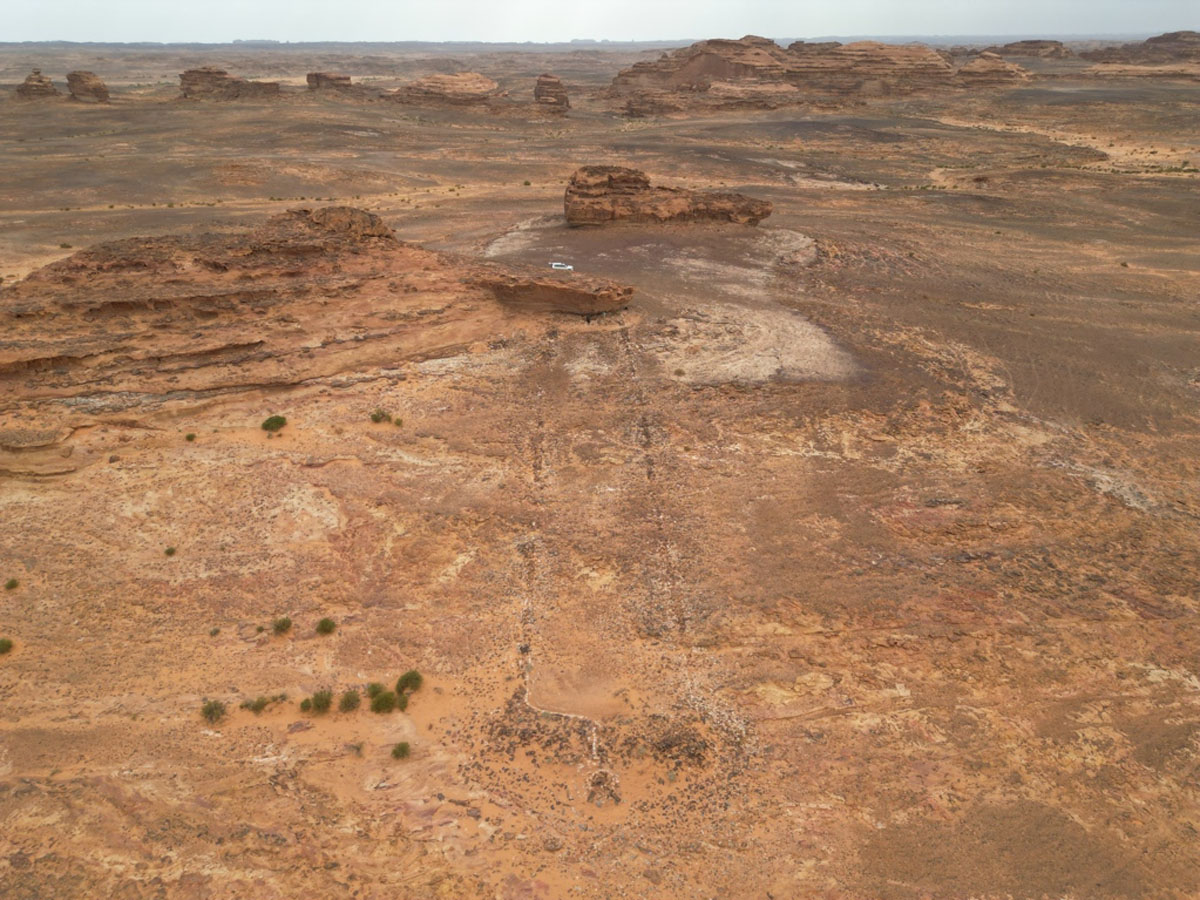

Figure 7

Aerial photograph of IDIHA-0011182, prior to excavation, photo facing northeast. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 8

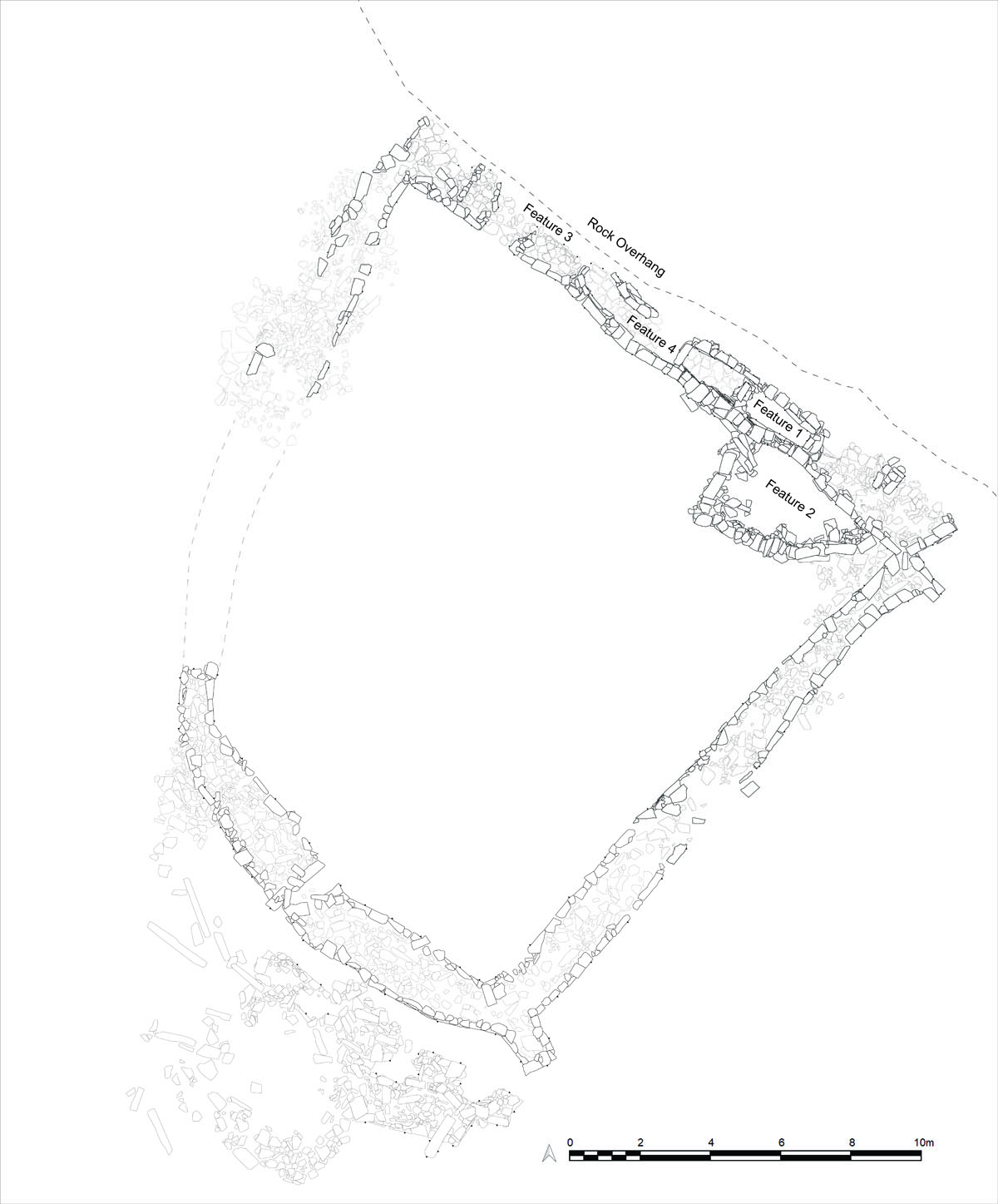

Plan of IDIHA-F-0018247, orthostats are in light grey. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 9

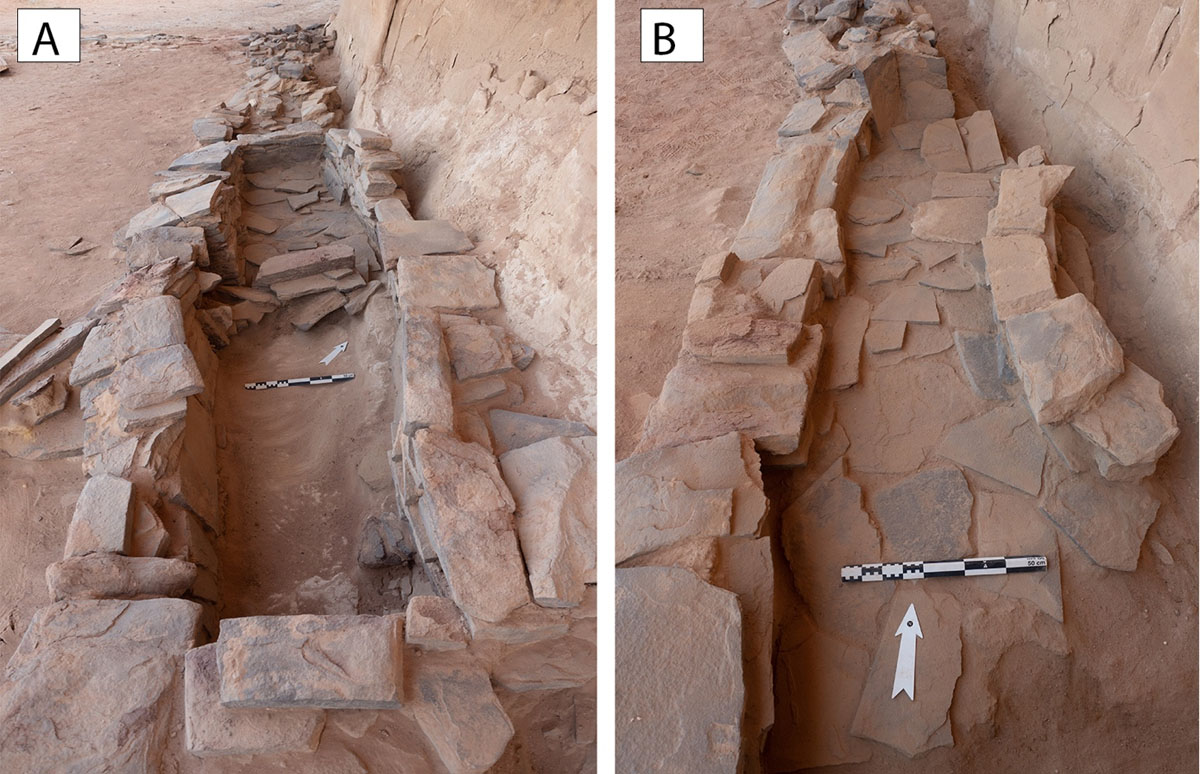

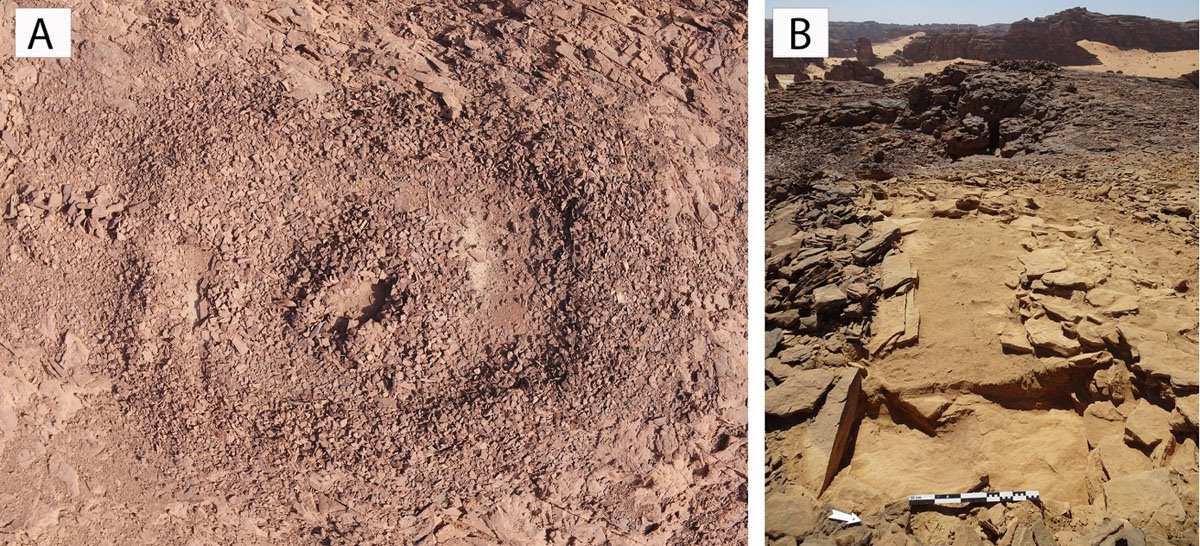

A: Feature 1, post excavation. 9B: Feature 4, post excavation. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 10

In situ faunal elements from IDIHA-F-0018247. 10A: Caprine remains a top of Feature 1. 10B: Cattle horns deposited in Feature 4. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 5

Quantification of faunal remains from IDIHA-F-0018247.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle242%429.218.7%
Bos sp.403.4%226.79.9%
Goat595.0%365.815.9%
Sheep/Goat1119.3%580.525.3%
Indeterminate Caprine46038.8%292.712.7%
Gazelle20.2%39.21.7%
Small Ruminant20.2%5.50.2%
Ruminant12510.5%101.54.4%
Large Ruminant30.3%22.31.0%
Large Ungulate40.3%57.12.5%
Hare30.3%40.2%
Fox10.1%3.80.2%
Small Carnivore30.3%1.50.1%
Rodent80.7%30.1%
Reptile10.1%0.9<0.1%
Bird20.2%0.2<0.1%
Indeterminate33628.3%163.57.1%
Total1,184100%2,297.4100%
Figure 11

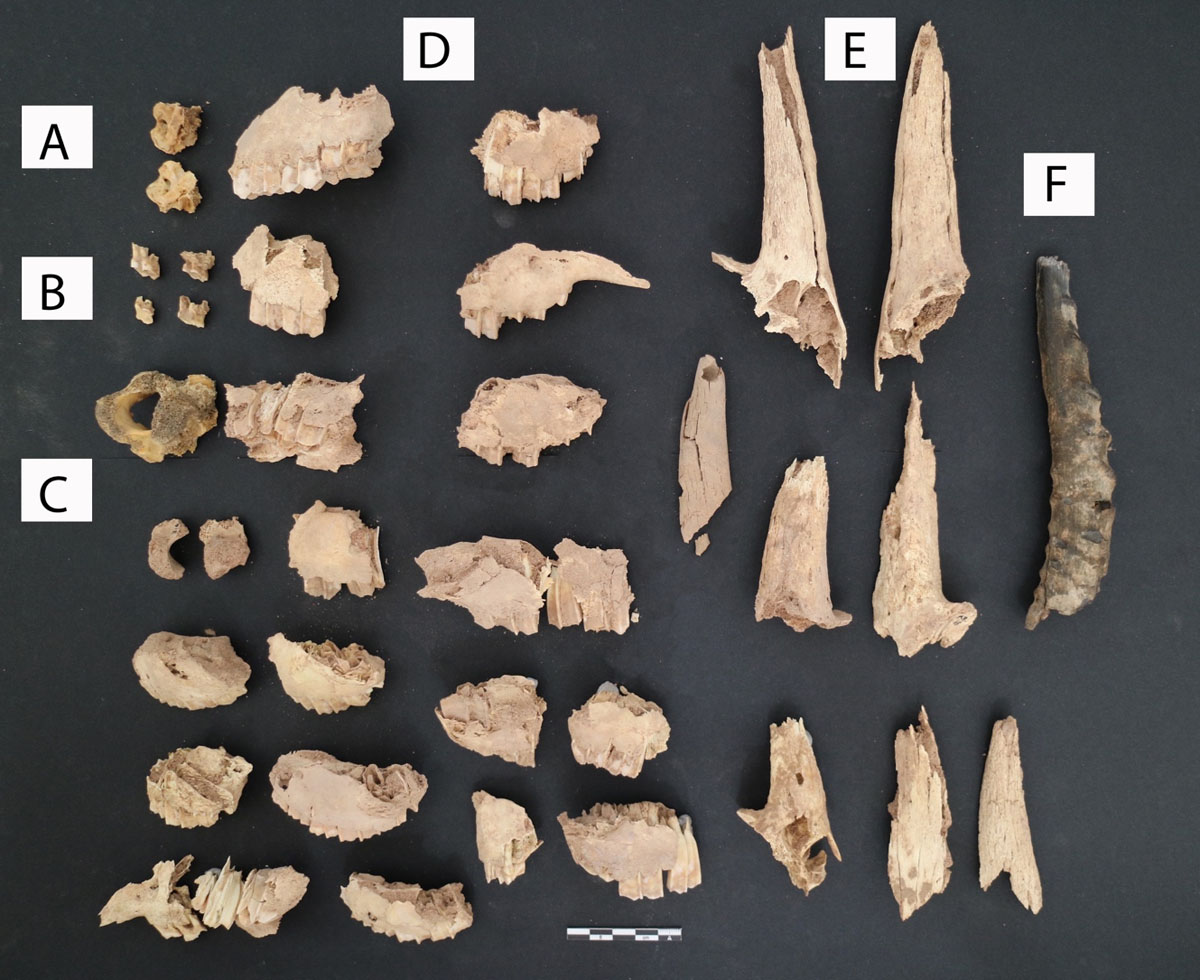

A representative sample of the small ruminant remains found in mustatil IDIHA-F-0018247: 11A: Goat petrous bones. 11B: Caprine isolated maxillary teeth. 11C: Caprine portions of the skull (occipital bones). 11D: Caprine and sheep/goat maxillaries with teeth. 11E: goat horn cores. 11F: Gazelle horn sheath. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 6

Radiocarbon assays from IDIHA-F-0018247.

LAB IDSAMPLE IDMATERIALCONTEXTANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS56871#0397Charcoal
Chenopodiaceae sp.		021Charcoal6270 ± 255302–5254 (59.4%)
5223–5215 (8.9%)		5316–5207 (95.0%)
5140–5135 (0.5%)
UGAMS53909#0533Keratin
(Goat Horn)		008Collagen6120 ± 305204–5176 (17.5%)
5067–4992 (50.7%)		5208–5152 (23.2%)
5126–4947 (72.2%)
UGAMS53910#0411Keratin
(Cattle Horn)		023Collagen6100 ± 305200–5187 (6.8%)
5051–4982 (50.2%)
4975–4952 (11.3%)		5208–5162 (13.6%)
5121–5096 (2.2%)
5078–4932 (78.3%)
4923–4906 (1.3%)
UGAMS53911#0346Keratin
(Goat Horn)		002Collagen6070 ± 305030–4936 (68.3%)5201–5186 (2.6%)
5053–4896 (88.8%)
4868–4848 (4.1%)
Figure 12

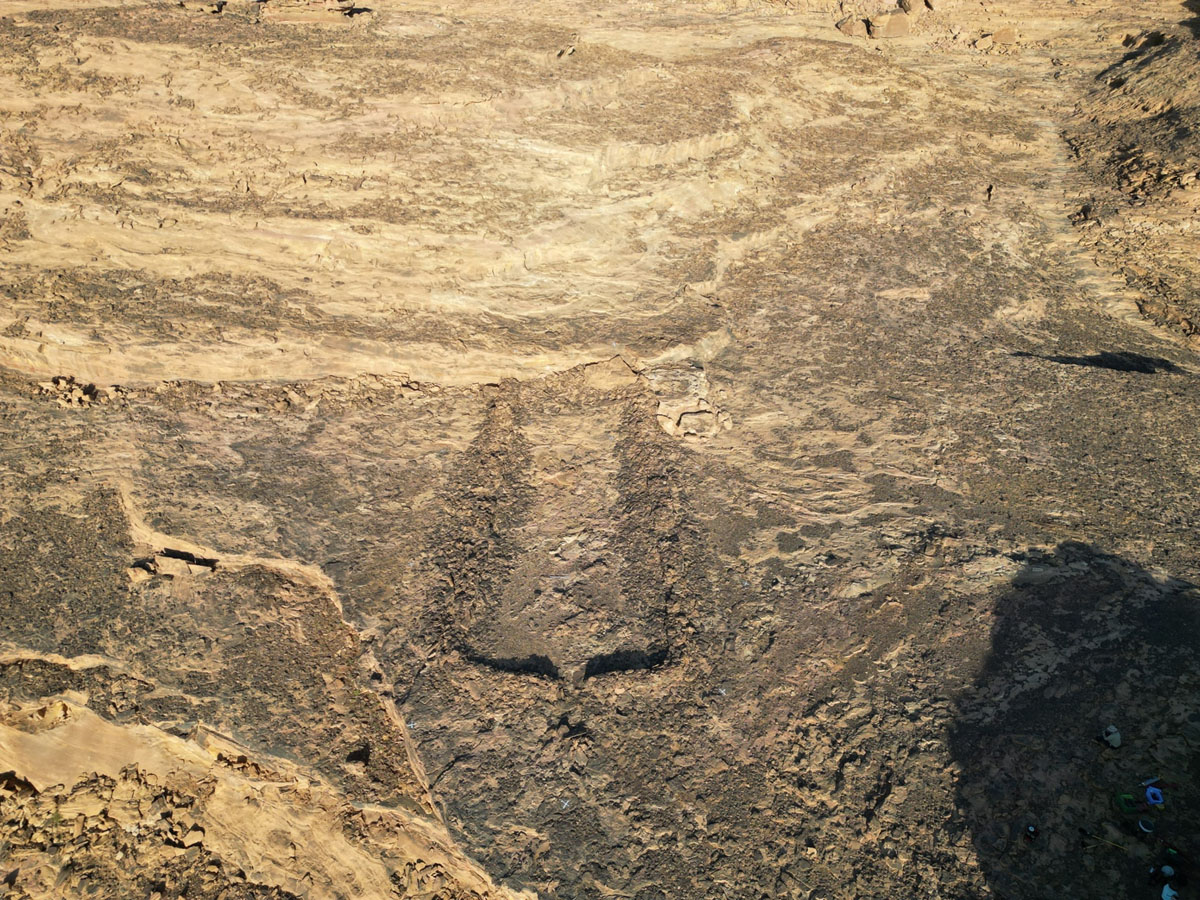

Aerial photograph of IDIHA-0008385, photo facing southwest. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 13

Plan of IDIHA-F-0050098. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 14

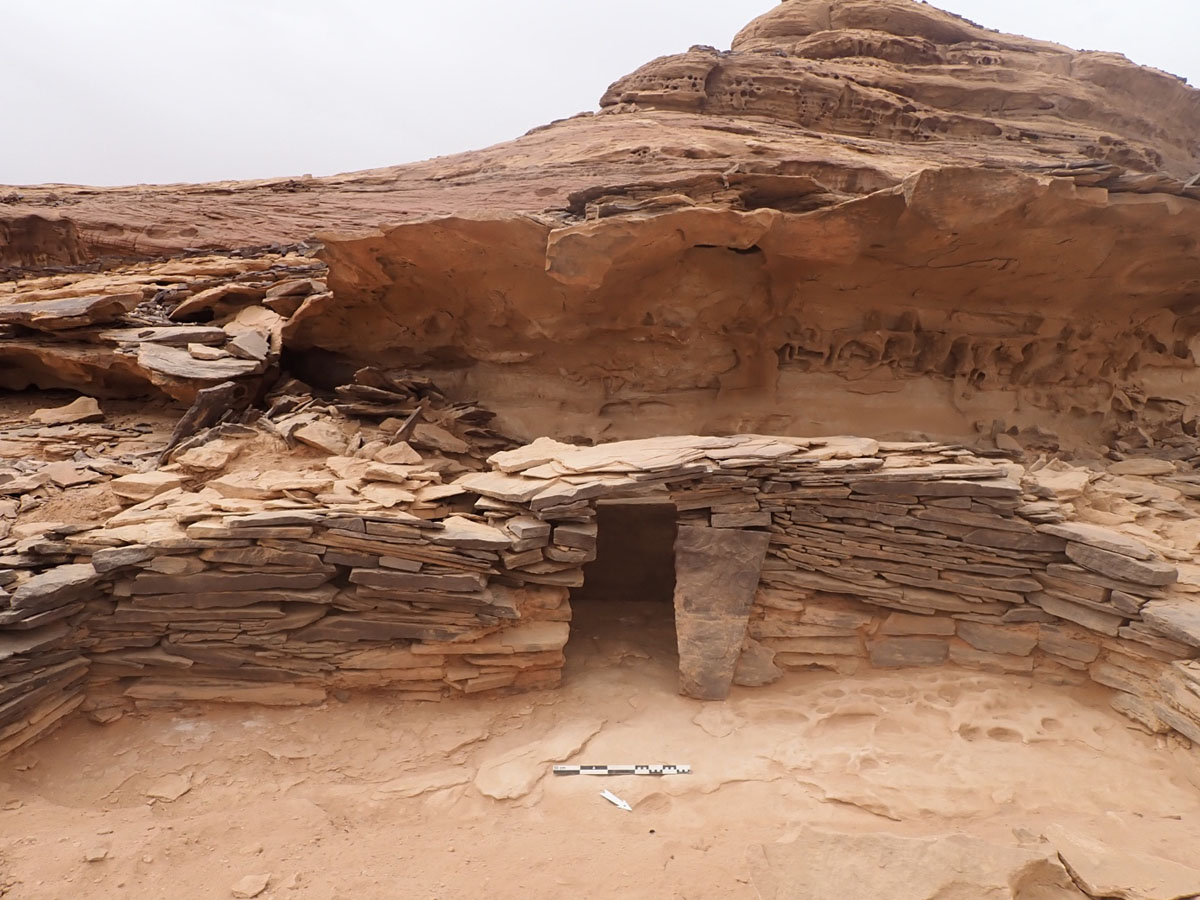

The main chamber and head of IDIHA-F-0050098, post excavation. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 15

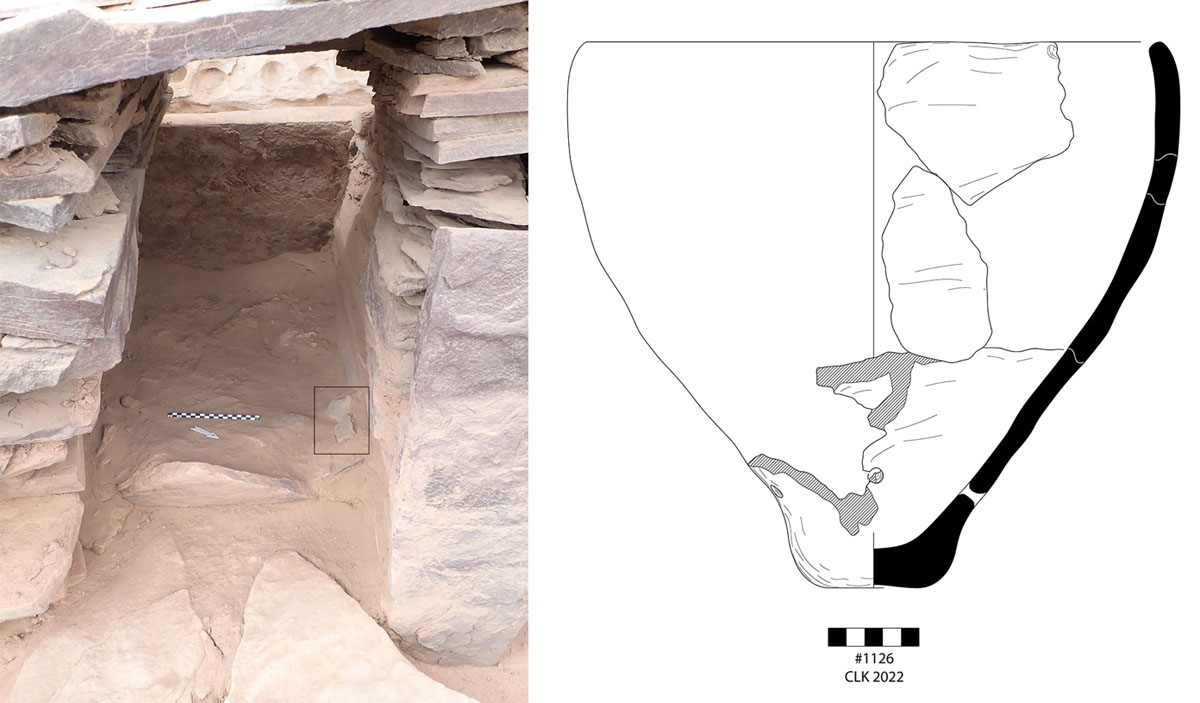

Vessel #1126. On the left in the black box are two in situ fragments of the vessel. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 7

Description of Neolithic vessel from IDIHA-F-0050098.

CAT. NO.INV. NO.TYPEDIAMETERFABRICCOLOURMUNSELLINCLUSIONSDECORATIONCOREMANUFACTURE
#52#1126Bowl/Vat30 cmCoarseGrey5YR (4/1)Medium density, grey (basalt) & white (calcareous) grits & vegetal matterPossible self-slip, two perforations towards the base.Dark GreyHandmade
Table 8

Quantification of faunal remains from IDIHA-F-0050098.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle34628.0%1353.954.7%
Bos sp.55544.9%734.229.7%
Goat30.2%160.6%
Indeterminate Caprine50.4%351.4%
Small Ruminant443.6%60.12.4%
Large Ungulate272.2%53.52.2%
Hare50.4%9.10.4%
Fox20.2%1.40.1%
Indeterminate25020.2%211.58.5%
Total1,237100%2,474.7100%
Table 9

Radiocarbon assays from IDIHA-F-0050098.

LAB IDSAMPLE IDCONTEXTMATERIALANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS58754#1331007Cattle ToothBioapatite6010 ± 254939–4880 (47.7%)
4872–4847 (20.5%)		4991–4835 (93.9%)
4811–4803 (1.5%)
UGAMS56667#0699SurfaceAnimal BoneBioapatite6000 ± 254935–4916 (13.7%)
4911–4844 (54.5%)		4987–4966 (3.2%)
4955–4827 (86.3%)
4821–4797 (5.9%)
UGAMS58753#1327006Animal BoneBioapatite5890 ± 254786–4724 (68.3%)4836–4811 (7.0%)
4804–4706 (88.5%)
UGAMS58723SK012001Human BoneBioapatite5750 ± 304668–4666 (1.4%)
4658–4636 (13.6%)
4616–4544 (53.3%)		4691–4502 (95.4%)
Figure 16

Aerial view of IDIHA-F-0011356, photo orientated to the southwest. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 17

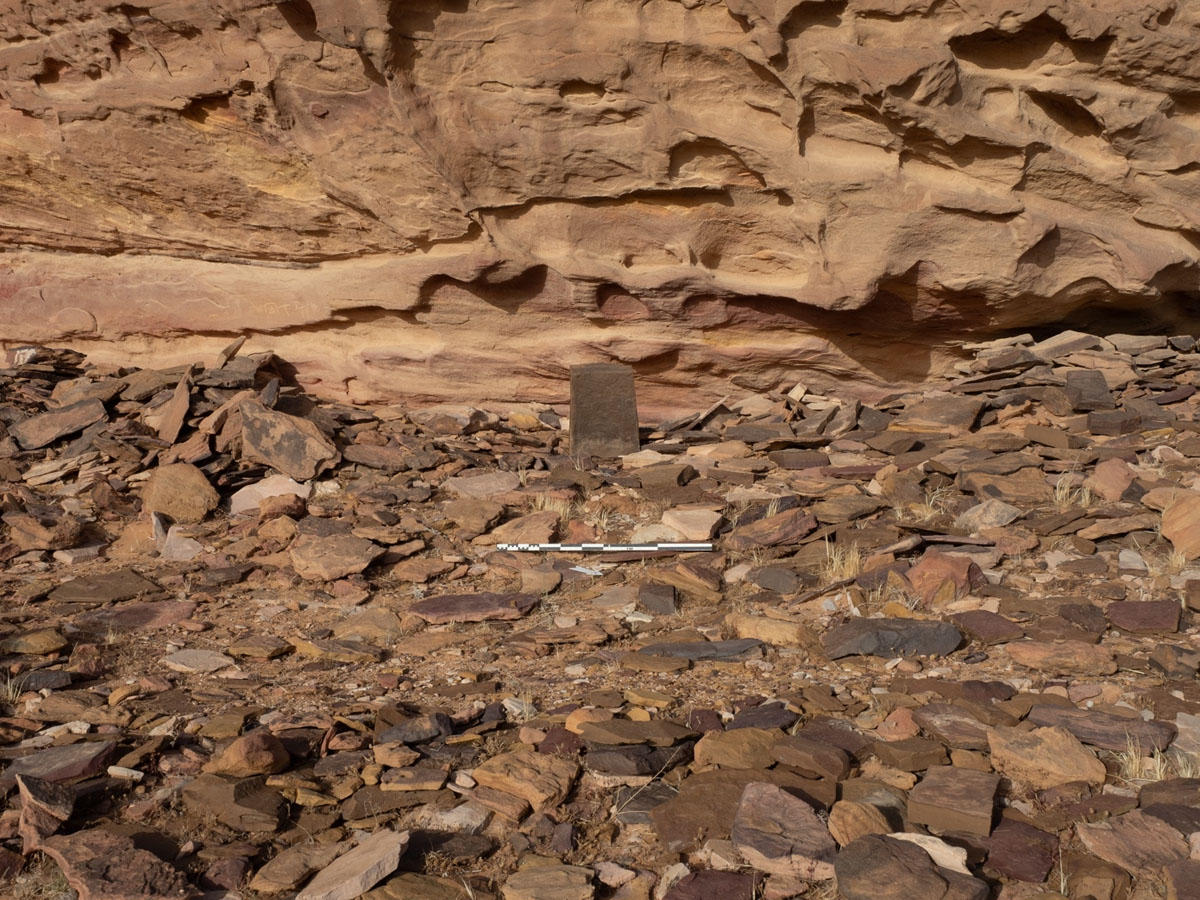

Orthostat in central chamber, pre-excavation. © AAKSA/PAKEP and The Royal Commission for AlUla.

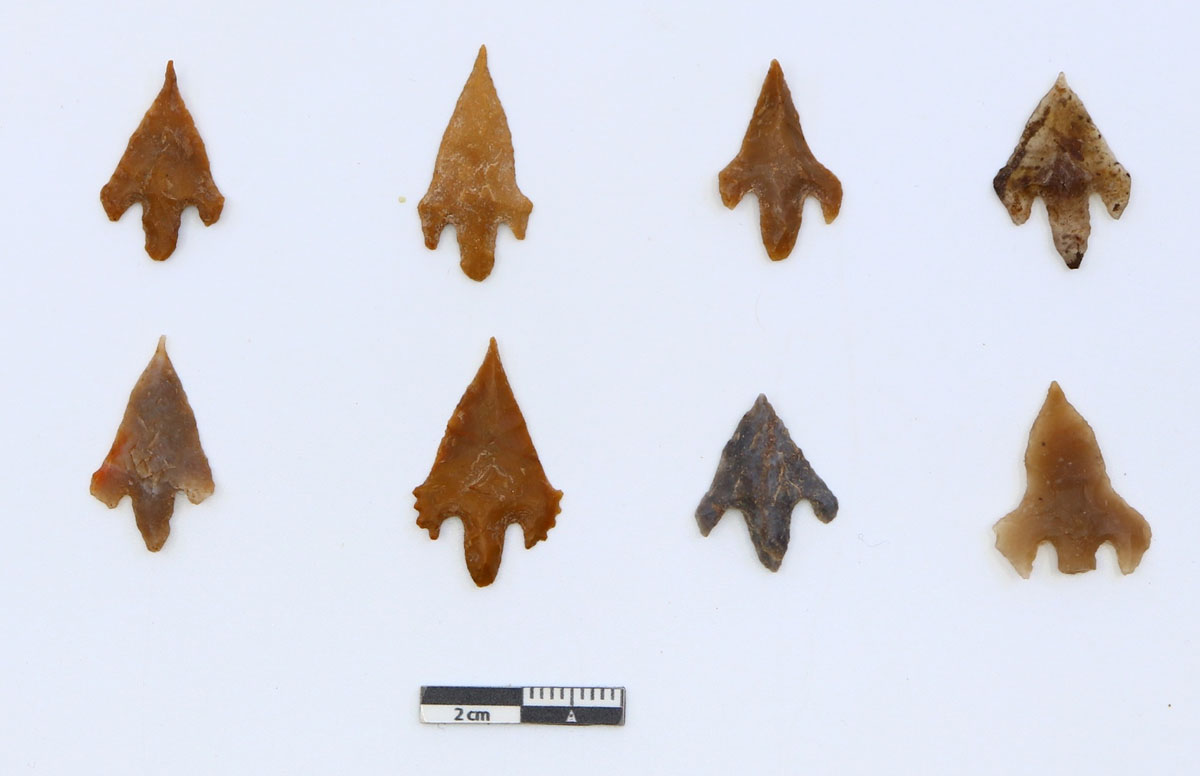

Figure 18

A selection of the arrowheads found in the main chamber of IDIHA-F-0011356. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 19

In situ faunal elements from IDIHA-F-0011356. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 20

Overhead photograph of all chambers in IDIHA-F-0011356, post excavation. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 10

Quantification of faunal remains from IDIHA-F-0011356.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle30260.6%4486.789.1%
Bos sp.81.6%45.80.9%
Goat30.6%541.1%
Sheep61.2%98.62.0%
Goat/Sheep71.4%280.6%
Indeterminate Caprine346.8%76.51.5%
Small Ruminant163.2%370.7%
Ruminant6312.7%73.91.5%
Large Ruminant142.8%74.81.5%
Hare61.2%2.5<0.1%
Fox10.2%3.90.1%
Rodent10.2%0.1<0.1%
Bird10.2%0.7<0.1%
Indeterminate367.2%50.91.0%
Total498100%5,033.4100%
Table 11

Radiocarbon assays from IDIHA-F-0011356.

LAB IDSAMPLE IDCONTEXTMATERIALANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS65383#1524044Animal BoneBioapatite6120 ± 255203–5181 (16.4%)
5060–4996 (51.9%)		5208–5157 (23.2%)
5124–5092 (5.5%)
5082–4949 (66.7%)
UGAMS65377#1492033Charcoal
(Unidentified)		Charcoal6090 ± 305042–4950 (68.3%)5206–5173 (8.9%)
5072–4901 (85.6%)
4864–4853 (1.0%)
UGAMS65376#1498042Charcoal
(Unidentified)		Charcoal6080 ± 305034–4944 (68.3%)5204–5180 (5.2%)
5060–4898 (88.1%)
4866–4851 (2.1%)
UGAMS65378#1393013Cattle HornKeratin6070 ± 305026–5019 (3.4%)
5011–4938 (64.8%)		5198–5191 (1.1%)
5046–4900 (92.1%)
4864–4852 (2.4%)
UGAMS65381#1468032Animal BoneBioapatite6060 ± 255002–4934 (64.2%)
4918–4910 (4.1%)		5042–4896 (90.2%)
4868–4848 (5.2%)
UGAMS65382#1490039Animal BoneBioapatite5930 ± 254840–4782 (56.5%)
4748–4730 (11.7%)		4888–4870 (4.4%)
4848–4722 (91.0%)
UGAMS65373IB1012028Human BoneCollagen5910 ± 304828–4820 (6.7%)
4798–4725 (61.6%)		4878–4874 (0.5%)
4846–4712 (95%)
UGAMS65372IB1008044Human BoneBioapatite5870 ± 254784–4742 (45.9%)
4734–4714 (22.4%)		4824–4821 (0.4%)
4798–4684 (95.1%)
UGAMS65379#1411020Animal BoneCollagen5030 ± 253940–3871 (47.0%)
3809–3776 (21.3%)		3946–3762 (90.5%)
3738–3713 (5.0%)
UGAMS65380#1416021Animal BoneCollagen5000 ± 253891–3884 (4.8%)
3798–3756 (36.1%)
3746–3711 (27.3%)		3938–3874 (21.2%)
3806–3704 (70.4%)
3674–3658 (3.9%)
Figure 21

Aerial photograph of IDIHA-0041426, photo orientated to the east. © AAKSA/PAKEP and The Royal Commission for AlUla.

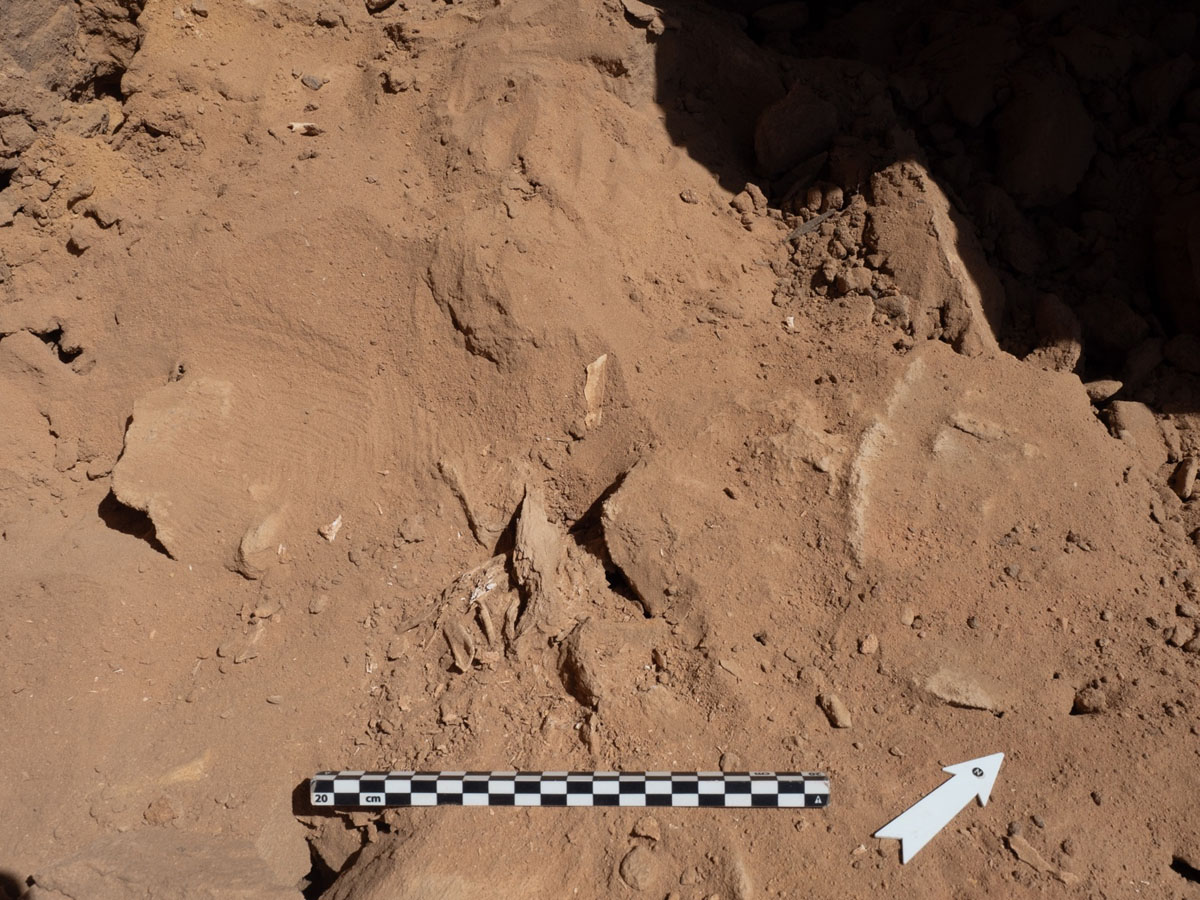

Figure 22

In situ faunal remains from IDIHA-F-0051480. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 23

Post excavation aerial photograph of IDIHA-F-0051480, photo photo orientated to the east. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 12

Quantification of faunal remains from IDIHA-F-0051480.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle20427.4%588.751.8%
Bos sp.23131.0%285.925.2%
Goat81.1%100.88.9%
Sheep20.3%60.5%
Indeterminate Caprine709.4%45.14.0%
Small Ruminant719.5%201.8%
Ruminant13618.3%41.13.6%
Large Ruminant202.7%47.54.2%
Rodent20.3%0.5<0.0%
Total744100%1,135.6100%
Table 13

Radiocarbon assays from IDIHA-F-0051480.

LAB IDSAMPLE IDCONTEXTMATERIALANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
UGAMS65399#1356002Animal BoneBioapatite6210 ± 255214–5206 (6.1%)
5171–5112 (41.6%)
5104–5072 (20.6%)		5295–5261 (8.2%)
5220–5200 (9.7%)
5186–5053 (77.6%)
UGAMS65400#1361007Animal BoneBioapatite6180 ± 305177–5140 (23.9%)
5134–5066 (44.4%)		5216–5030 (95.2%)
5018–5016 (0.3%)
Figure 24

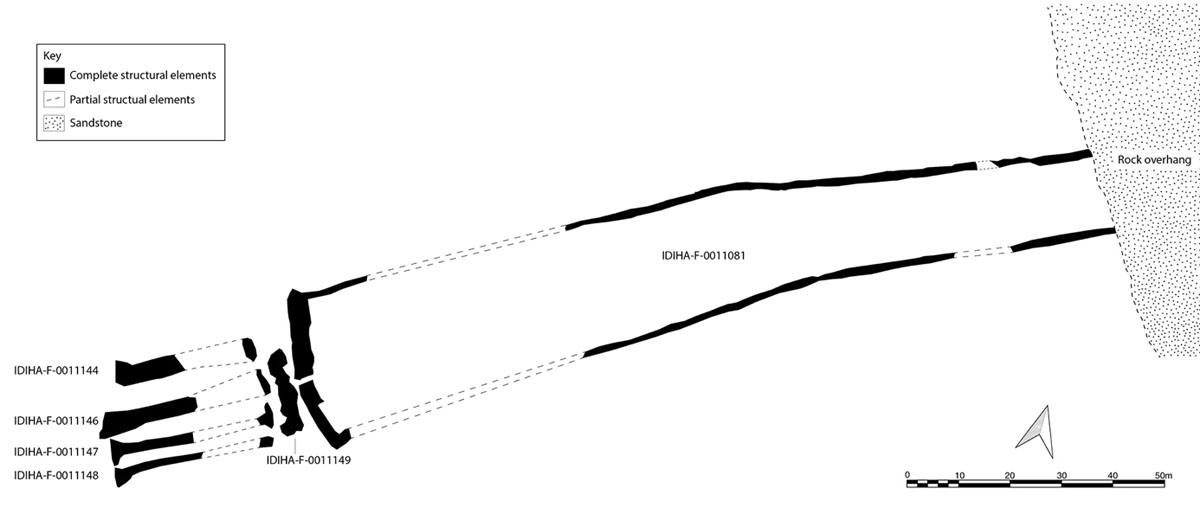

Plan of the various features at site IDIHA-0008222. © AAKSA/PAKEP and The Royal Commission for AlUla.

Figure 25

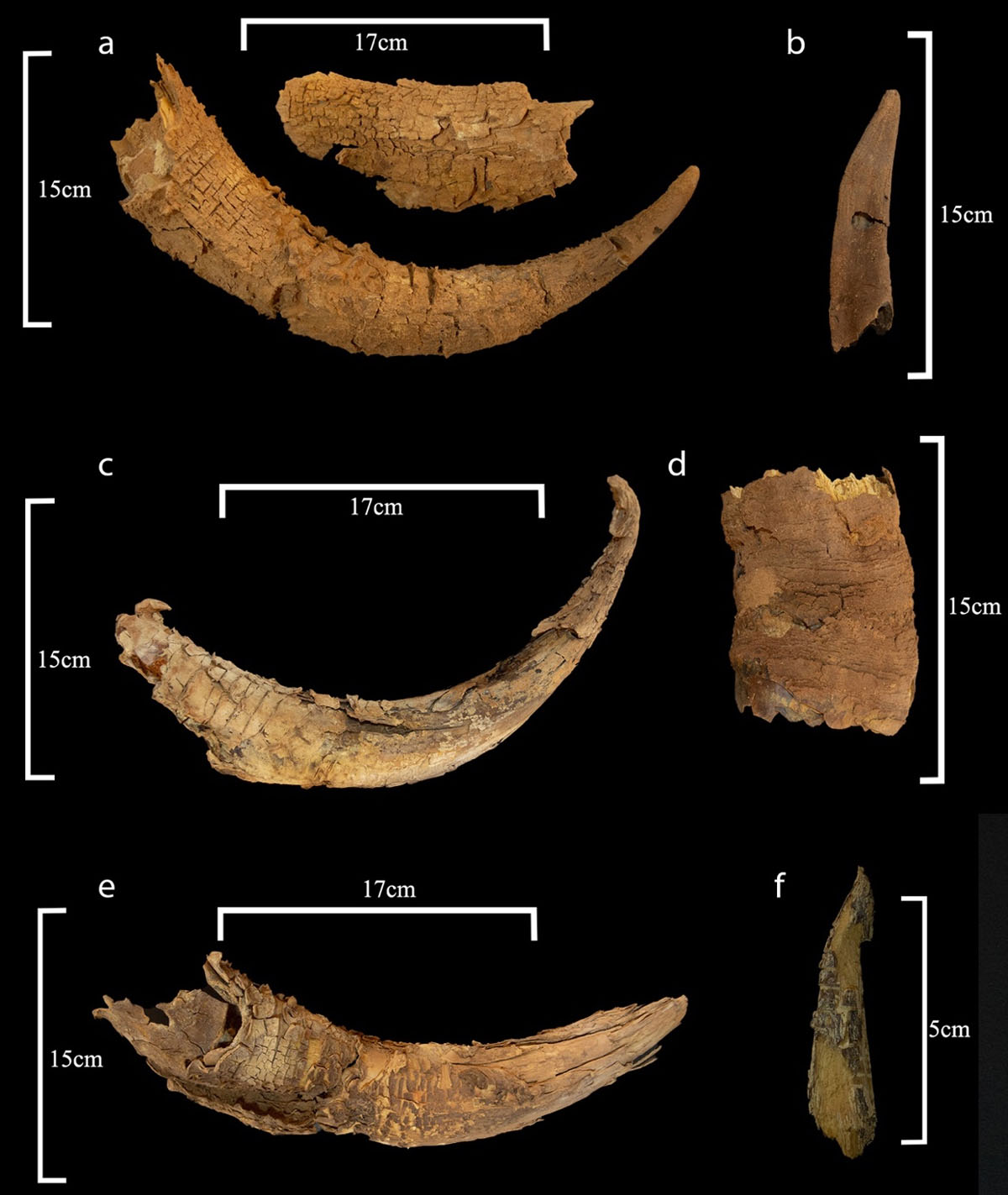

Faunal remains from IDIHA-F-0011081. 25A: Cattle horn. 25B: Goat horn. 25C: Cattle horn. 25D: Cattle horn. 25E: Bos sp. horn sheath. 25F: Gazelle horn. © AAKSA/PAKEP and The Royal Commission for AlUla.

Table 14

Quantification of faunal remains from IDIHA-F-0011081.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle8934.2%2223.267.1%
Bos sp.12849.2%810.524.5%
Goat51.9%153.34.6%
Indeterminate Caprine197.3%15.90.5%
Gazelle10.4%30.1%
Small Ruminant51.9%60.2%
Indeterminate135%1003.0%
Total260100%3,311.9100%
Table 15

Radiocarbon assays from IDIHA-F-0011081.

LAB IDSAMPLE IDCONTEXTMATERIALANALYSIS14C (BP)CALIBRATED DATE BC 68.2% (1σ)CALIBRATED DATE BC 95.4% (2σ)
SANU-66604#0086014Charcoal (Unidentified)Charcoal6210 ± 275214–5206 (6.1%)
5172–5112 (41.2%)
5106–5072 (21.0%)		5296–5269 (9.0%)
5220–5199 (9.8%)
5186–5052 (76.7%)
SANU-64603#0102007Animal ToothKeratin6192 ± 595216–5196 (7.1%)
5191–5046 (61.2%)		5306–5238 (12.3%)
5231–4994 (83.2%)
SANU-65412#0034011Cattle HornKeratin6187 ± 415211–5204 (3.7%)
5180–5061 (64.5%)		5292–5266 (4.0%)
5219–5008 (91.4%)
SANU-66605#0037011Cattle HornKeratin6116 ± 275203–5181 (15.1%)
5060–4994 (53.1%)		5208–5158 (21.2%)
5124–5092 (5.0%)
5082–4944 (69.3%)
SAUN-66606#0039011Cattle HornKeratin6115 ± 275203–5181 (14.9%)
5060–4993 (53.4%)		5208–5158 (20.7%)
5124–5092 (4.7%)
5081–4944 (70.1%)
SANU-66609#0043011Cattle HornKeratin6111 ± 275203–5182 (18.5%)
5058–4991 (54.7%)		5208–5161 (18.5%)
5122–5094 (3.5%)
5080–4941 (73.5%)
SANU-66607#0042011Goat HornKeratin6111 ± 285203–5181 (13.7%)
5060–4990 (54.5%)		5208–5160 (18.7%)
5122–5094 (3.9%
5080–4940 (72.9%)
UGAMS-46488#0072012Cattle HornBioapatite6050 ± 204996–4932 (59.6%)
4920–4908 (8.7%)		5026–4894 (88.2%)
4870–4848 (7.3%)
SANU-65411#0100011Cattle HornKeratin5911 ± 294829–4818 (8.6%)
4798–4770 (24.9%)
4764–4725 (34.8%)		4846–4712 (95.4%)
UGAMS-46484SK003003Human BoneCollagen5720 ± 204602–4534 (56.9%)
4520–4504 (11.3%)		4672–4637 (5.2%)
4616–4491 (88.5%)
4472–4461 (1.7%)
Table 16

Quantification of faunal remains from all seven excavated mustatils in AlUla County.

TAXANUMBER% OF NUMBERWEIGHT (g)% OF WEIGHT
Cattle132425.8%9574.761.6%
Bos sp.167632.6%2787.117.9%
Goat781.5%689.94.4%
Sheep80.2%104.60.7%
Goat/sheep1182.3%608.53.9%
Indeterminate Caprine60111.7%473.23.0%
Gazelle30.1%42.20.3%
Small Ruminant1402.7%133.60.9%
Ruminant3246.3%216.51.4%
Large Ruminant370.7%144.60.9%
Large Ungulate330.6%118.60.8%
Hare140.3%15.60.1%
Fox40.1%9.10.1%
Small Carnivore30.1%1.5<0.1%
Rodent110.2%3.6<0.1%
Reptile1<0.1%0.9<0.1%
Bird30.1%0.9<0.1%
Indeterminate76114.8%627.94.0%
Total5,139100%15,553100%

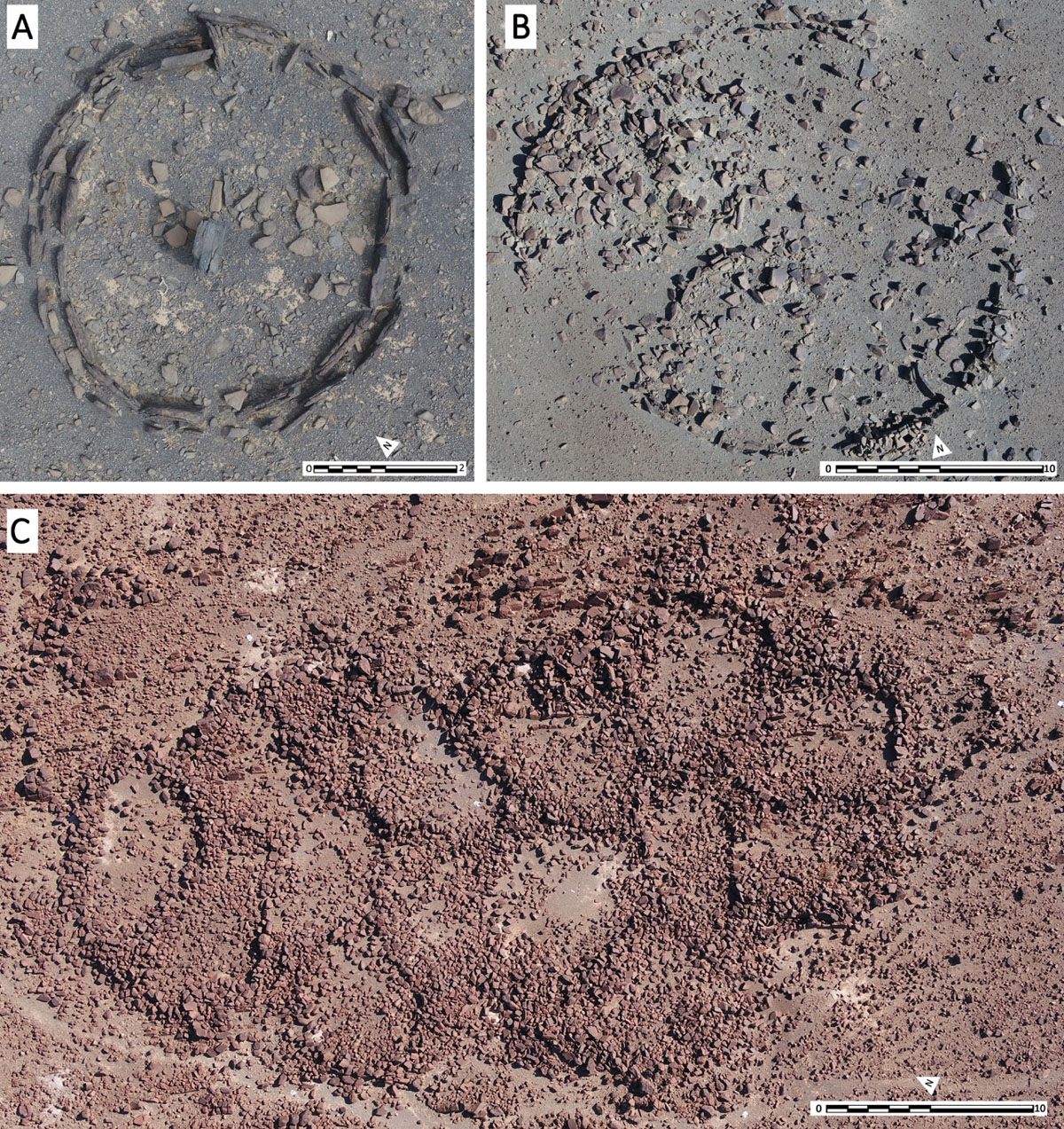

Figure 26

Curvilinear architecture contemporary with the mustatil tradition in northern Arabia. 26A: Single standing stone circle. 26B: Multi standing stone circle. 26C: Agglomerated curvilinear enclosures.

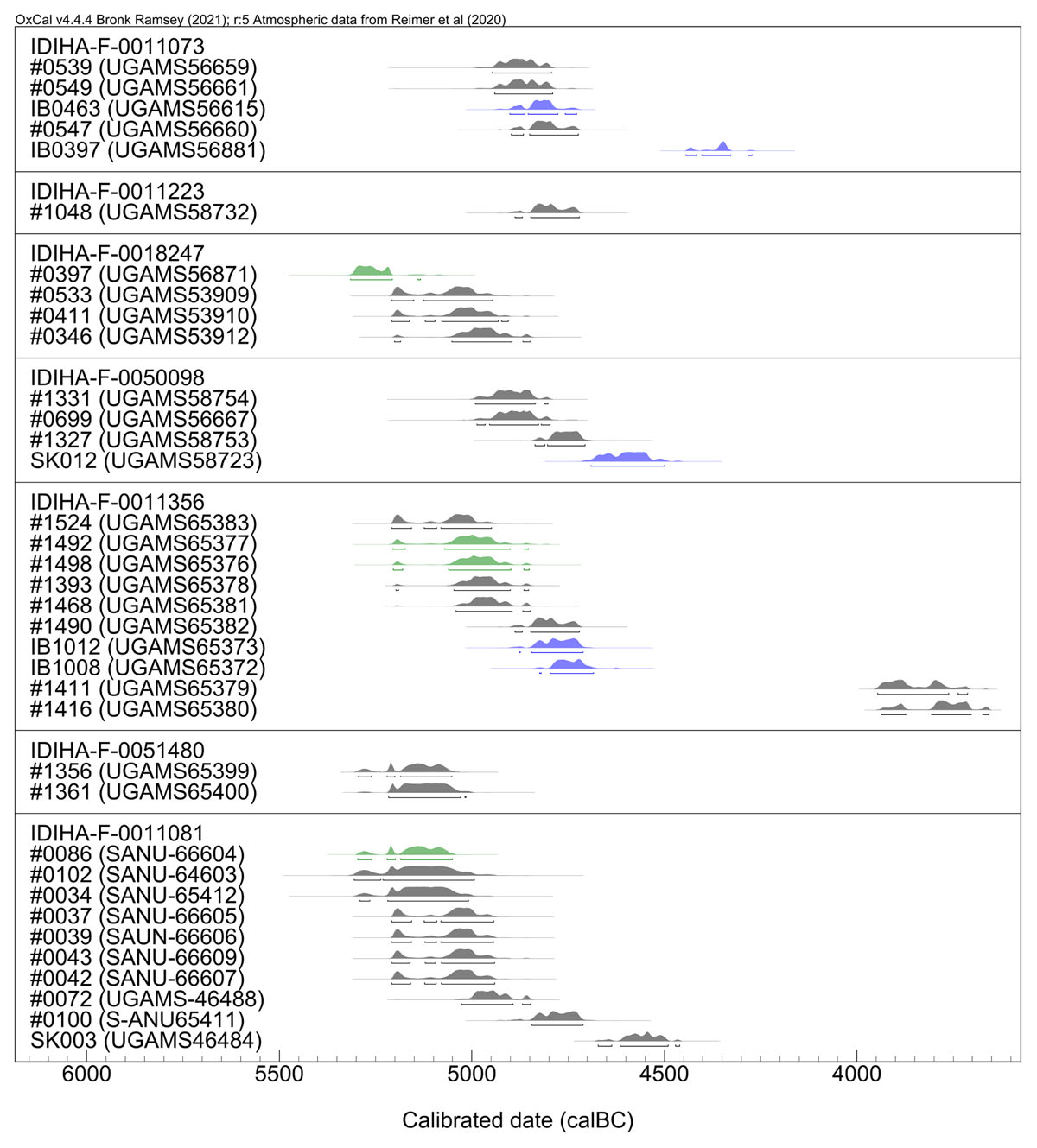

Figure 27

Radiocarbon dated remains from the mustatils of AlUla: charcoal (green); human (blue); and animal (black).

DOI: https://doi.org/10.5334/oq.139 | Journal eISSN: 2055-298X
Journal RSS Feed
Language: English
Page range: 6 - 6
Submitted on: May 30, 2024
Accepted on: Jul 30, 2024
Published on: Oct 1, 2024
Published by: Ubiquity Press
In partnership with: Paradigm Publishing Services
Keywords:
Mustatil,
Arabia,
Neolithic,
Cult,
Monumentality,
Pastoralism

© 2024 Melissa Kennedy, Laura Strolin, Lauren Swift, Fahad Bagdadi, Jane McMahon, Hugh Thomas, published by Ubiquity Press
This work is licensed under the Creative Commons Attribution 4.0 License.

Volume 10 (2024): Issue 1
Previous article
