CodeEntropy: A Python Package for Multiscale Cell Correlation Entropy Estimation from Molecular Dynamics Simulations

Theoretical Background

At the heart of MCC is the separation of the full probability distribution of all quantum states of the system into a product of lower-dimensional distributions of beads at each length scale involving translation and rotation in localised Cartesian coordinates; these distributions are further discretised into a configurational term over multiple minima and a vibrational term averaged over these minima. Total system entropy is therefore evaluated as a sum of terms $S_{\mathit{\text{mlo}}}^{\text{vib}}+S_{\mathit{\text{mlo}}}^{\text{config}}$ over molecule type m, molecule level l, and motion type o either translation (t) or rotation (r) expressed by

where M is the number of molecule types, N_m is the number of molecules of type m, and L_m is the number of levels for molecule type m. CodeEntropy currently implements the united-atom, residue, and polymer levels of hierarchy.

Vibrational Entropy

The translational and rotational components of vibrational entropy of a set of beads at a given level l and given type of molecule m are calculated in the harmonic approximation using the quantum harmonic oscillator equation

where $N_{\mathit{\text{mlo}}}^{\text{vib}}$ is the number of coordinates for all beads at level mlo, h is Planck’s constant, T is temperature and ${\nu }_{\mathit{\text{mloi}}}^{\text{vib}}$ are the characteristic frequencies of each vibrational eigenvector. The frequencies are derived from the eigenvalues ${\lambda }_{\mathit{\text{mloi}}}^{\text{vib}}$ of the covariance matrix of mass-weighted forces for translation and of inertia-weighted torques for rotation via

To construct each covariance matrix, forces and torques on each bead at every time step are transformed into the local coordinate frame of each bead. The axes at the molecule level are taken as the principal axes with origin at the centre of mass. Translation of beads within a molecule at the level below uses the same molecular axes, while rotation uses local bead axes that are constructed from other beads covalently bonded to it, with origin at the central bead’s position (3, 12). This pattern continues if there is an even lower level. The entropy of the six lowest-frequency translational eigenvectors is excluded to avoid double-counting entropy at the higher level of hierarchy. The vibrational term is omitted at the atomic level because of almost complete occupancy in the ground quantum state at ambient conditions, owing to hydrogen’s light mass and high-frequency bond vibration making a high-energy gap to the first excited state. Forces and torques are halved for degrees of freedom treated with the mean-field approximation, so as to partition all pairwise forces equally between the two beads contributing to that force. In practice, this means that torques are halved at all levels and forces are halved at the molecule level but not for internal translation due to correlation across covalent bonds. The exception to this is molecules with flexible dihedrals, as defined in the next section, whose flexibility makes them decorrelated. Consequently, the eigenvalues of the lowest $N_{\mathit{\text{mlo}}}^{\text{dih}}$ eigenvectors, corresponding to these soft modes, are halved twice (4), where $N_{\mathit{\text{mlo}}}^{\text{dih}}$ is the number of flexible dihedrals.

Configurational Entropy

The configurational term quantifies the entropy associated with the probability distribution $p_{\mathit{\text{mloj}}}^{\text{config}}$ of energy well j at level mlo and is evaluated using Eq. 1. Configurational entropy comprises three kinds of term: conformational, orientational, and positional entropy. These reflect different levels of hierarchy and whether it involves translation or rotation. Previous works (3, 4, 9, 10, 12, 13, 15, 16) had referred to these terms as “topographical.”

Conformational entropy involves translation of intramolecular beads. To calculate it, dihedrals are computed using the MDAnalysis package (17, 18) for all quadruplets of contiguously bonded beads. At the united atom level, dihedrals are defined from four bonded heavy atoms within a residue, while at the residue level, dihedrals are defined using the connecting bond vectors of four consecutive residues. The resulting dihedral distributions are binned into coarse histograms and distinct conformers are assigned to each peak in the histogram (12). Each dihedral j in the bead is assigned to the nearest state, allowing calculation of the probability $p_{\mathit{\text{mlj}}}^{\text{conform}}$ for the set of dihedrals in the bead, noting that “conform” represents both translation and configuration at level l. Entropy is then evaluated using Eq. 1. This procedure has been applied at both the united-atom and residue levels. Configurational entropy for rotation of united atoms is currently not included in CodeEntropy owing to its small contribution because of symmetry or correlation with neighbouring molecules.

Orientational entropy $S_m^{\text{orient}}$ of molecule m arises from the discretisation of a molecule’s rotation by neighbouring molecules in its environment, where we note that the superscript “orient” represents rotation and configuration. The number of orientations ${\mathrm{\Omega }}_{\text{orient}}$ relates to the number of molecular neighbours $N_m^{\text{nb}}$ which is calculated using the relative angular distance (RAD) method (19). This parameter-free method defines a molecule j to be in the coordination shell of the central molecule i if for all other molecules k

where, r_ij is the distance between i and j and ${\theta }_{\mathit{\text{jik}}}$ is the angle between j, i, and k (with i at the vertex). The number of orientations ${\mathrm{\Omega }}_m^{\text{orient}}$ for non-linear molecules, which have three rotational degrees of freedom, is given by

and for linear molecules, which have two rotational degrees of freedom, this number is

where ${\sigma }_m$ is the symmetry number of the molecule, $N_m^{\text{nb}}$ is the average number of molecular neighbours, and the max function ensures there is at least one orientation. The resulting entropy

is equivalent to Eq. 1 with probability $1/{\mathrm{\Omega }}_m^{\text{orient}}$. RDKit is used to determine $\sigma$ using the GetSubstructMatches function and to determine if the molecule is linear using the GetHybridization function. Molecules with two united atom beads are treated as linear. If a molecule has $N+\ge$3 united atom beads and at least N–2 of the heavy atoms have sp hybridization, then the molecule is considered linear for this orientational entropy calculation. CodeEntropy includes a second method to evaluate $S_m^{\text{orient}}$ for water specifically as the solvent in the software waterEntropy that accounts for hydrogen-bond correlations at the atom level between neighbouring molecules and is discussed elsewhere (15, 13).

Positional entropy, commonly referred to as the entropy of mixing, arises from the discretisation of a molecule’s translation by the other molecules in the system. This term has not yet been included in CodeEntropy, but is included in future plans.

Software contribution

The primary software contribution of CodeEntropy is the representation of MCC analysis as an explicit dependency-driven workflow that maps theoretical transformations directly onto executable computational stages. The implementation separates workflow orchestration, molecular hierarchy construction, frame-local observable evaluation, streaming statistical accumulation, conformational state construction, and final entropy estimation into modular components.

This design exposes intermediate quantities as first-class objects within the workflow, enabling inspection, validation, and extension of individual analytical stages. It also separates frame-independent molecular topology from frame-dependent numerical calculations, allowing static information such as hierarchy definitions, bead mappings, conformational topology, and coordinate-frame topology to be constructed once and reused throughout trajectory processing.

Motivation and design drivers

CodeEntropy is intended as an open and inspectable research implementation of the MCC framework. Its architecture is designed to reflect the conceptual structure of the method as closely as possible. Rather than a linear procedural workflow, the analysis is represented as a set of dependency-constrained scientific transformations. This provides a direct correspondence between the theoretical stages of MCC and the computational structures used to evaluate them. MCC calculations involve multiple layers of abstraction and heterogeneous computational stages. Entropy contributions arise from different physical observables such as forces, torques, and conformational states, and are evaluated across multiple levels of molecular hierarchy including atoms, residues, and polymers.

Reproducible research software also requires transparent data flow. Intermediate quantities such as covariance matrices, hierarchy assignments, and bead mappings must remain accessible for validation and downstream analysis. These requirements motivate a graph-based architecture in which each scientific transformation is represented explicitly and execution order is derived automatically from data dependencies.

Design principles

The architecture of CodeEntropy is guided by three core design principles:

DAG architecture

The CodeEntropy workflow is organised as a composition of DAGs that collectively implement the MCC method. In this model, the computation is expressed as a collection of analysis graphs connected through explicit data dependencies. Nodes represent transformations that derive new physical or statistical quantities from existing ones, while edges represent the required inputs for those transformations. By making dependencies explicit, the DAG structure provides a transparent mapping between MCC theory and its computational implementation.

In practice, the dependency graphs corresponding to static setup, conformational state construction, frame-level statistical accumulation, and entropy estimation are constructed at the beginning of an analysis based on the selected entropy estimators and molecular hierarchy. Together, these graphs define the executable representation of the MCC workflow.

Each node performs a single transformation following the pattern

Nodes retrieve required inputs from the shared data store, perform their transformation, and write results back to the shared state. Each node is placed within the graph according to its dependencies, allowing the scheduler to determine when a node becomes executable. In practice, this corresponds to dependency-resolved execution over the graph, equivalent to evaluation under a topological ordering of valid transformations.

This representation is well suited to MCC because the method itself is naturally defined by transformations whose ordering is constrained by data dependencies. Structural descriptors must exist before frame-level observables can be computed, and entropy estimators depend on statistical quantities accumulated across the trajectory.

In the current implementation, DAGs are used both to make scientific data dependencies explicit and to determine reproducible execution order. The workflow can be executed serially, which remains the simplest reference execution mode, or through an optional Dask-based frame execution layer. In the parallel mode, independent frame-local calculations are distributed across workers after the static setup stage has completed. Each worker evaluates the required frame-level observables for its assigned frames, and the resulting partial statistical contributions are reduced back into the same accumulated ensemble quantities used by the serial workflow.

This design makes the parallelisation boundary explicit: frame-independent topology, hierarchy definitions, bead mappings, and accumulator definitions are constructed once, while frame-dependent observables such as forces, torques, coordinate frames, covariance contributions, and local-environment quantities can be evaluated independently across selected frames. Conformational observations are handled through the specialised conformational pathway described below. The graph-based representation therefore provides both a transparent description of MCC data dependencies and a practical basis for optional parallel frame execution without changing the scientific definition of the calculation.

Mapping MCC theory to DAG nodes

MCC defines a sequence of transformations: construction of a molecular hierarchy, evaluation of frame-dependent observables, accumulation of correlation statistics, and conversion of these statistics into entropy contributions. The CodeEntropy implementation maps each conceptual MCC stage onto one or more dependency-resolved computational nodes.

Static setup nodes construct the frame-independent elements of MCC, including molecular groupings, hierarchy definitions, bead mappings, cached coordinate-frame topology, and persistent statistical accumulators. These objects define the molecular representation and analysis state used during subsequent trajectory processing.

Conformational analysis maps the configurational component of MCC onto dependency-resolved stages for identifying conformational degrees of freedom and estimating conformational state populations.

Frame-processing nodes compute dynamic observables for each selected trajectory frame, including force vectors, torque vectors, frame-level second-moment contributions, and neighbour or local-environment relationships required for orientational entropy estimation. These quantities are incorporated into ensemble statistics through streaming accumulation.

Statistical accumulation nodes update ensemble averages and probability distributions required by MCC estimators, including covariance matrices and conformational state populations.

Finally, estimator nodes transform accumulated statistics into vibrational, configurational, and orientational entropy contributions for each molecule type, hierarchy level, and type of motion.

This alignment between theoretical stages and computational nodes ensures that intermediate quantities correspond directly to well-defined physical observables, simplifying interpretation, validation, and extension of the method.

Execution phases

In a typical analysis, CodeEntropy first constructs the static representation of the molecular system, then performs conformational state construction where required, then processes selected trajectory frames to accumulate statistical observables, and finally evaluates entropy estimators from the accumulated state.

From a software architecture perspective, the workflow is realised as a composition of DAGs with distinct execution semantics rather than as a single monolithic graph. The LevelDAG defines the static setup stage required to initialise molecular hierarchy information, bead mappings, cached topology, and persistent statistical accumulators. A specialised ConformationDAG handles the conformational entropy pathway by organising dihedral topology construction, angle observation, peak detection, and conformational state assignment. The FrameDAG defines the frame-local computations used to evaluate observables and accumulate covariance statistics across selected trajectory frames. Following completion of conformational analysis and frame-level statistical accumulation, a separate EntropyGraph consumes the accumulated state and evaluates the final entropy estimators.

Trajectory access is handled through an explicit frame-selection model. The selected source-frame indices define the frames included in the analysis, and frame-local computation operates on the corresponding frame state. This avoids hidden dependence on trajectory cursor state and makes the relationship between the configured trajectory range and the analysed frames explicit.

The frame-processing stage may be executed serially or using the optional Dask execution layer. In serial execution, selected frames are processed sequentially and incorporated directly into the running statistical state. In optional Dask execution, the selected frame range is divided into independent frame chunks, frame-local observables are evaluated by workers, and partial results are combined through a reduction step. In both execution modes, the same accumulated statistical quantities are produced and subsequently consumed by the EntropyGraph during entropy estimation.

This decomposition separates execution control from scientific data dependencies, exposes the execution semantics of each stage, and provides a clear foundation for reasoning about execution ordering, reproducibility, optimisation, and optional parallelisation while preserving a direct correspondence between the MCC method and its software realisation.

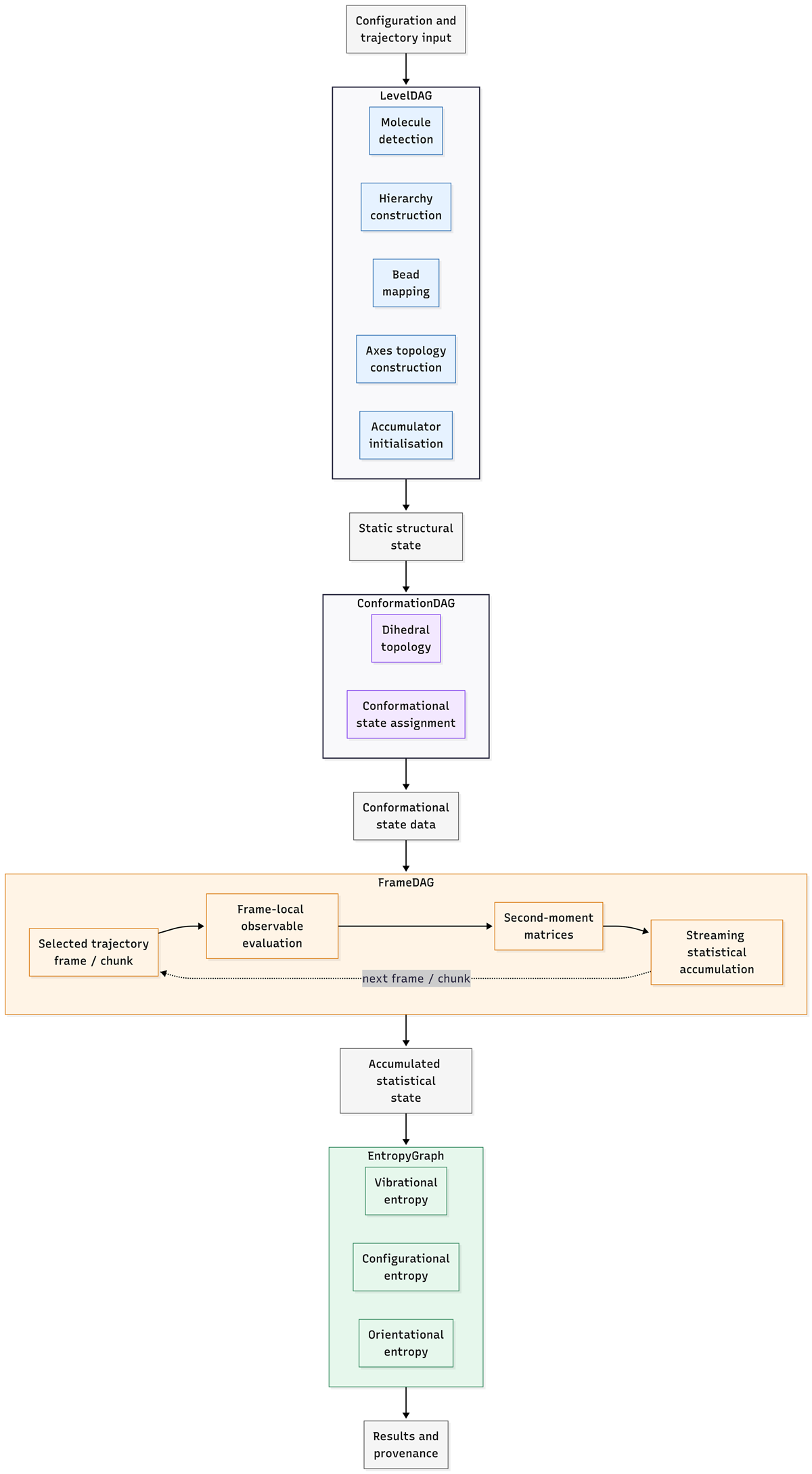

This execution model is illustrated in Figure 1, which summarises the relationship between static setup, conformational state construction, frame-level statistical accumulation, and final entropy evaluation. The figure also highlights the separation between frame-independent setup, conformational analysis, frame-local computation, streaming reduction, and post-processing evaluation over accumulated statistical state.

Figure 1

Shared data model

Nodes communicate through a shared mutable state container referred to as shared_data.

This shared data structure acts as a lightweight state container through which nodes exchange intermediate scientific objects without introducing tight coupling between workflow components. The design favours transparency and modularity over heavy abstraction: intermediate scientific objects remain explicitly represented and can therefore be inspected, validated, and serialised during execution.

The shared state also distinguishes between frame-independent and frame-dependent data. Static molecular topology, hierarchy definitions, bead mappings, and cached axes topology are constructed once before frame processing. Conformational topology, conformational observations, and state populations are handled through the specialised conformational pathway. Frame-dependent values such as positions, forces, torques, coordinate axes, covariance contributions, and neighbour relationships are computed during frame processing and accumulated into persistent statistical state. Conformational observations and state populations are handled through the specialised conformational pathway.

Streaming statistical accumulation

MD trajectories may contain very large numbers of frames, often extending to millions of time steps, making storage of per-frame observables impractical. Instead, CodeEntropy accumulates statistics incrementally using streaming estimators. For each frame f, the second moment

is incorporated into a running mean

This allows ensemble averages such as $⟨F{F}^{𝖳}⟩$ to be computed without storing individual frames. The covariance matrix used in MCC estimators is then obtained as

This streaming formulation allows the DAG-based workflow to operate on long MD trajectories while maintaining bounded memory usage and preserving reproducible statistical accumulation semantics.

Computational characteristics

Let N_f denote the number of selected trajectory frames and k the dimensionality of a force or torque block corresponding to a given set of degrees of freedom. Computing an outer-product second moment for one frame requires $O(k^2)$ operations, giving a total cost of $O(N_f{k}^2)$ for streaming accumulation across the trajectory. Eigen decomposition-based entropy estimators scale as $O(k^3)$ per block. Because only accumulated statistics are stored, memory usage scales with the dimensionality of the retained matrices rather than the number of frames.

The implementation reduces avoidable per-frame overhead by separating static topology discovery from frame-local numerical work. Molecular hierarchy definitions, bead membership, conformational topology, and coordinate-frame topology are established before frame iteration. The frame loop then reuses these static descriptions while computing only quantities that depend on instantaneous coordinates and forces.

For workflows where frame processing dominates runtime, the optional Dask execution layer can distribute independent frame-local calculations across workers. Partial frame results are reduced into the same accumulated statistical quantities used by the serial workflow, preserving the statistical semantics of the MCC calculation while providing a route to improved performance on multicore or cluster resources.

Output and provenance

Results are written as structured JSON output.

This structured output format allows results and associated metadata to be parsed directly by downstream software, supporting reproducible workflows and reuse of derived quantities.

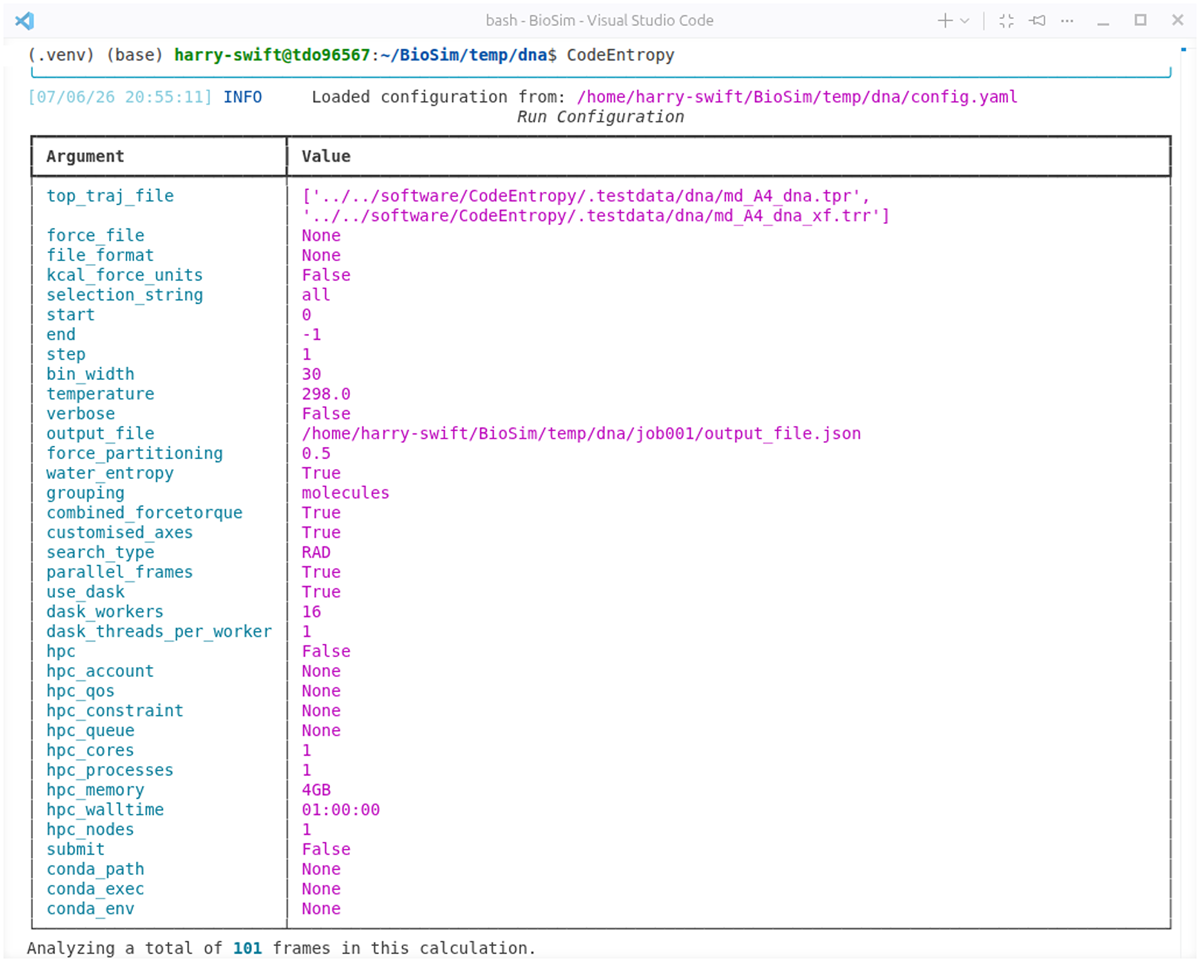

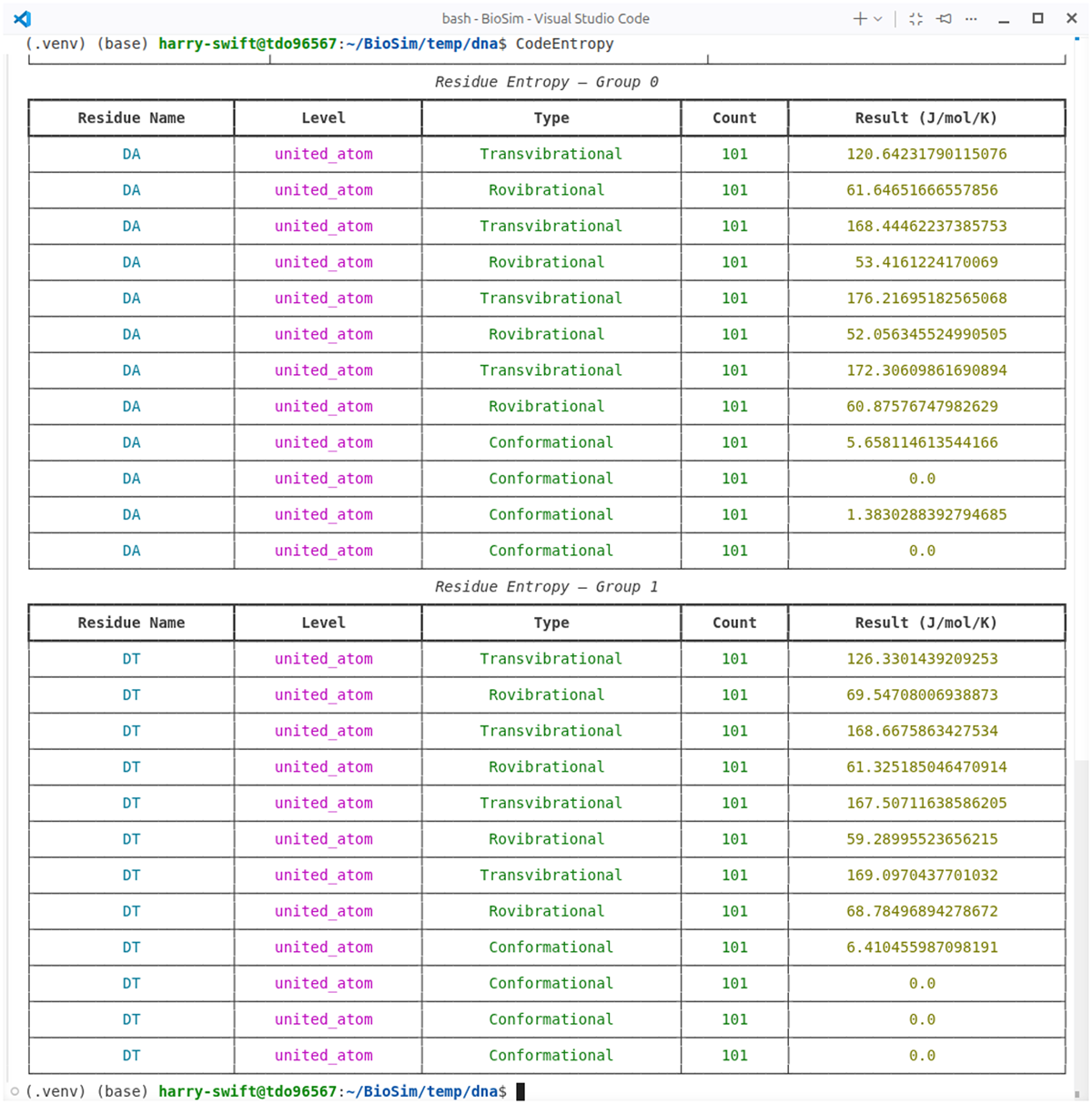

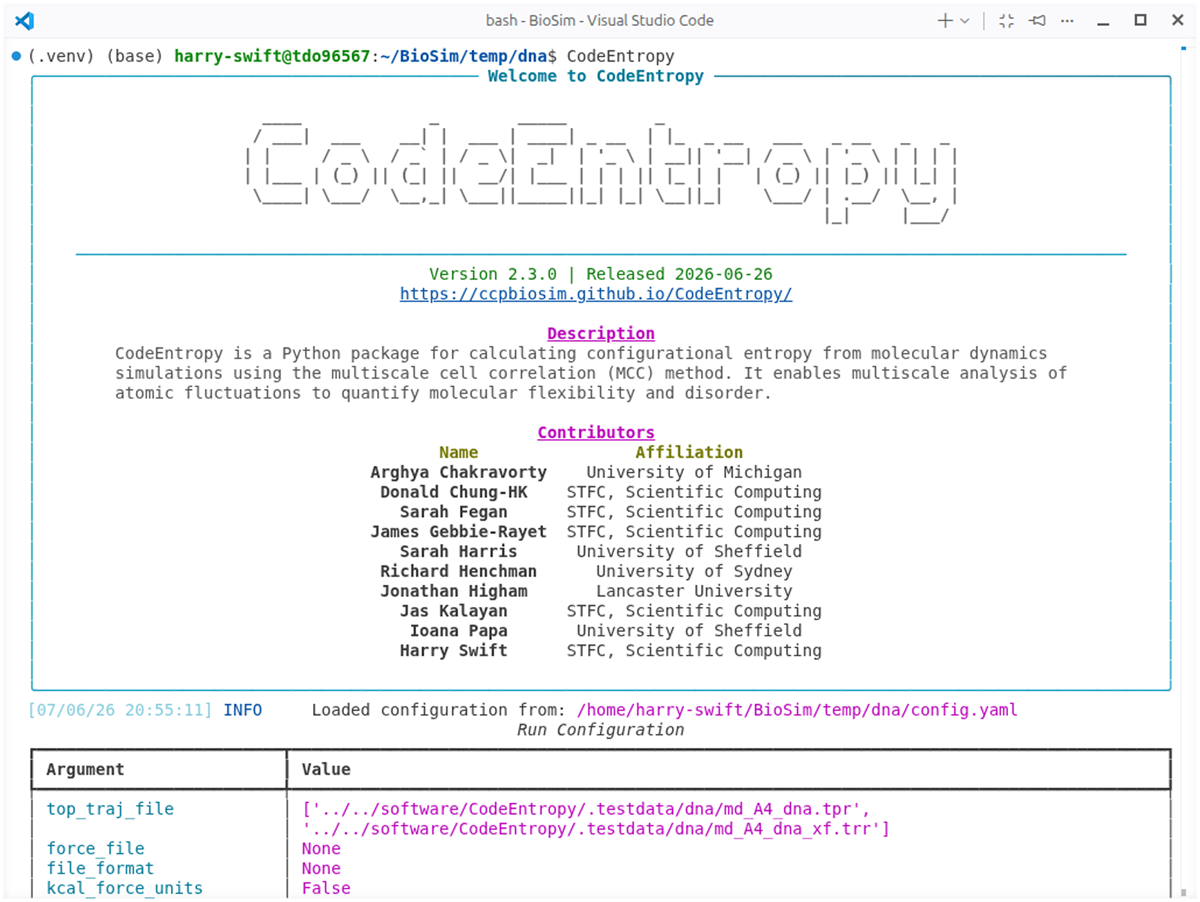

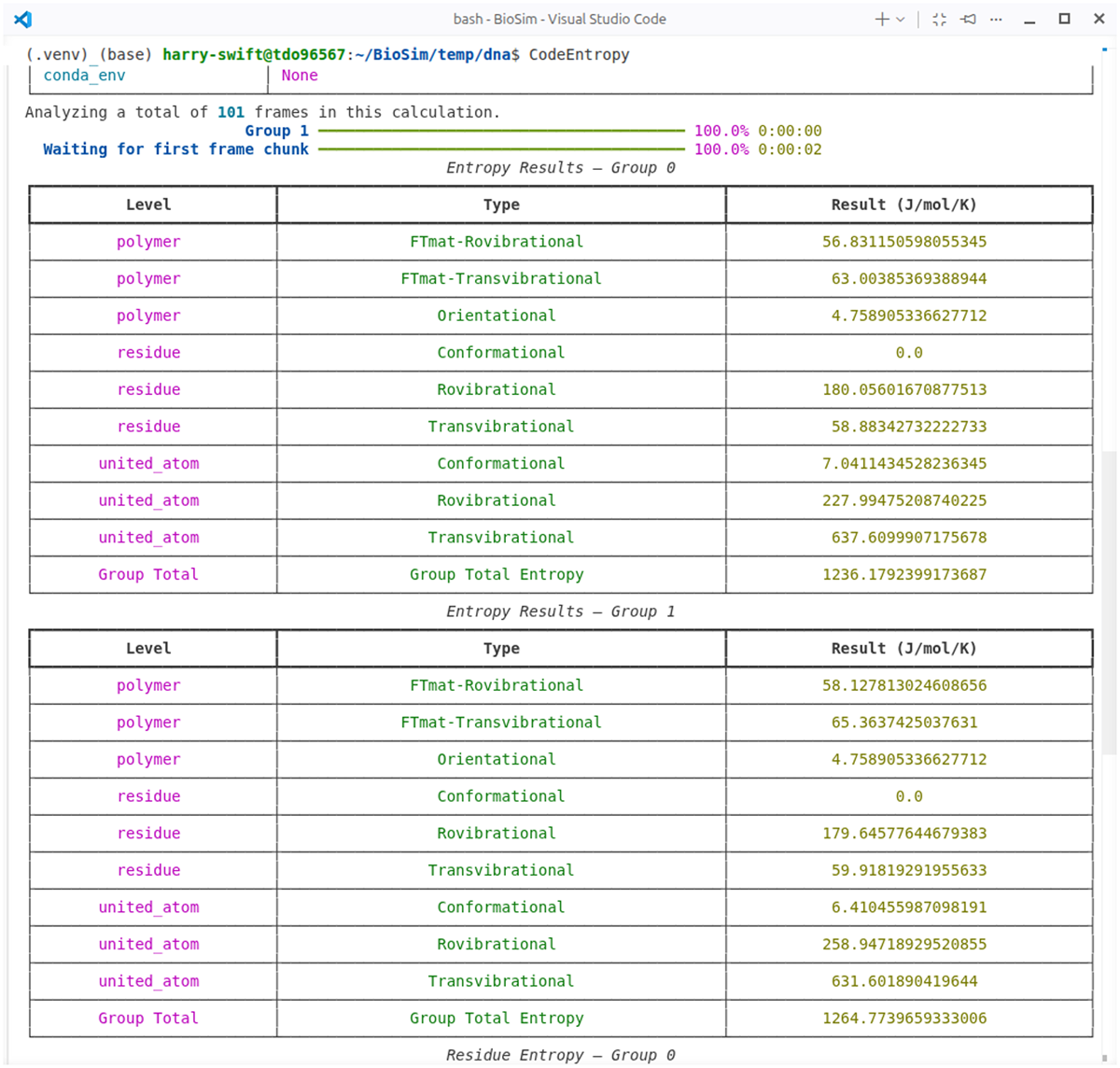

To enhance transparency during execution, results are also rendered interactively in the terminal using the rich library, which produces colour-coded tabular summaries of residue- and molecule-level entropy contributions. Figure 2 shows the command-line interface displayed during program initialisation, while Figure 3 illustrates the YAML-based runtime configuration used to define analysis parameters. Representative terminal outputs showing aggregated entropy summaries and residue-level entropy decomposition are shown in Figures 4 and 5, respectively.

Figure 2

Figure 3

Figure 4

Figure 5

In addition to structured result export, CodeEntropy records detailed runtime provenance through a configurable logging subsystem. Multiple logging handlers capture complementary aspects of program execution, including interactive console output, command-line invocation, routine informational messages, and error reports. Low-level trajectory processing events originating from MDAnalysis are also recorded to facilitate debugging of data parsing and selection operations.

All log records include timestamps, message severity levels, and source identifiers, enabling reconstruction of the full computational history of an analysis. Together with the structured output files, these logs provide a self-describing record of each run, supporting reproducibility and alignment with FAIR research software principles. The source code is maintained in a public Git repository with versioned releases to PyPI and to the CCPBioSim Conda channel, allowing specific software versions to be associated with published analyses.

Extensibility

The dependency-graph architecture provides a clear foundation for extending MCC analysis. New entropy estimators can be introduced as additional terminal nodes consuming existing statistical objects, while alternative hierarchy definitions or statistical accumulation strategies can be incorporated by modifying upstream nodes without restructuring the overall workflow. This separation of analytical stages supports both methodological development and long-term software maintainability.

Case studies

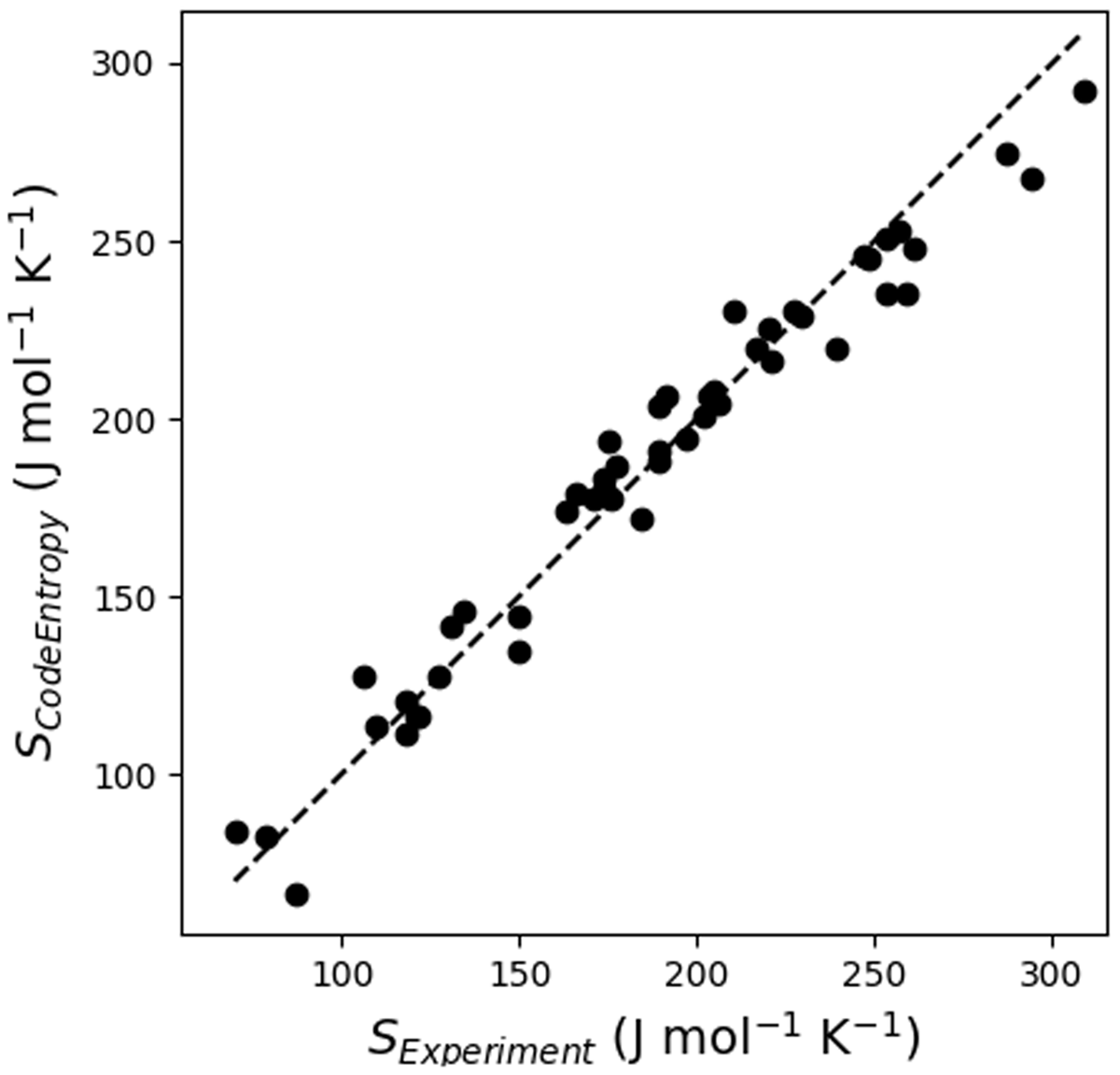

We first demonstrate CodeEntropy for a set of 49 liquids which had previously been examined with MCC as detailed elsewhere (4). The trajectories are 1 ns, 1000-frame MD trajectories using the AMBER 14 (23) MD engine and the GAFF force field (24). The calculated entropies in Figure 6 are in reasonable agreement with experiment, with a mean unsigned error (MUE) versus experiment of 9.0 J mol^-1 K^-1. The mean unsigned difference between MCC values and the previous work (4) is 5.5 J mol^-1 K^-1. To our knowledge Two-Phase Thermodynamic (2PT) is the only method that has been used to calculate entropy from MD simulations for a range of liquids (25). Similar to what was found earlier (4), for the 12 liquids in common the MUE for 2PT versus experiment is 24.4 J mol^-1 K^-1, more than triple that of MCC at 7.8 J mol^-1 K^-1.

Figure 6

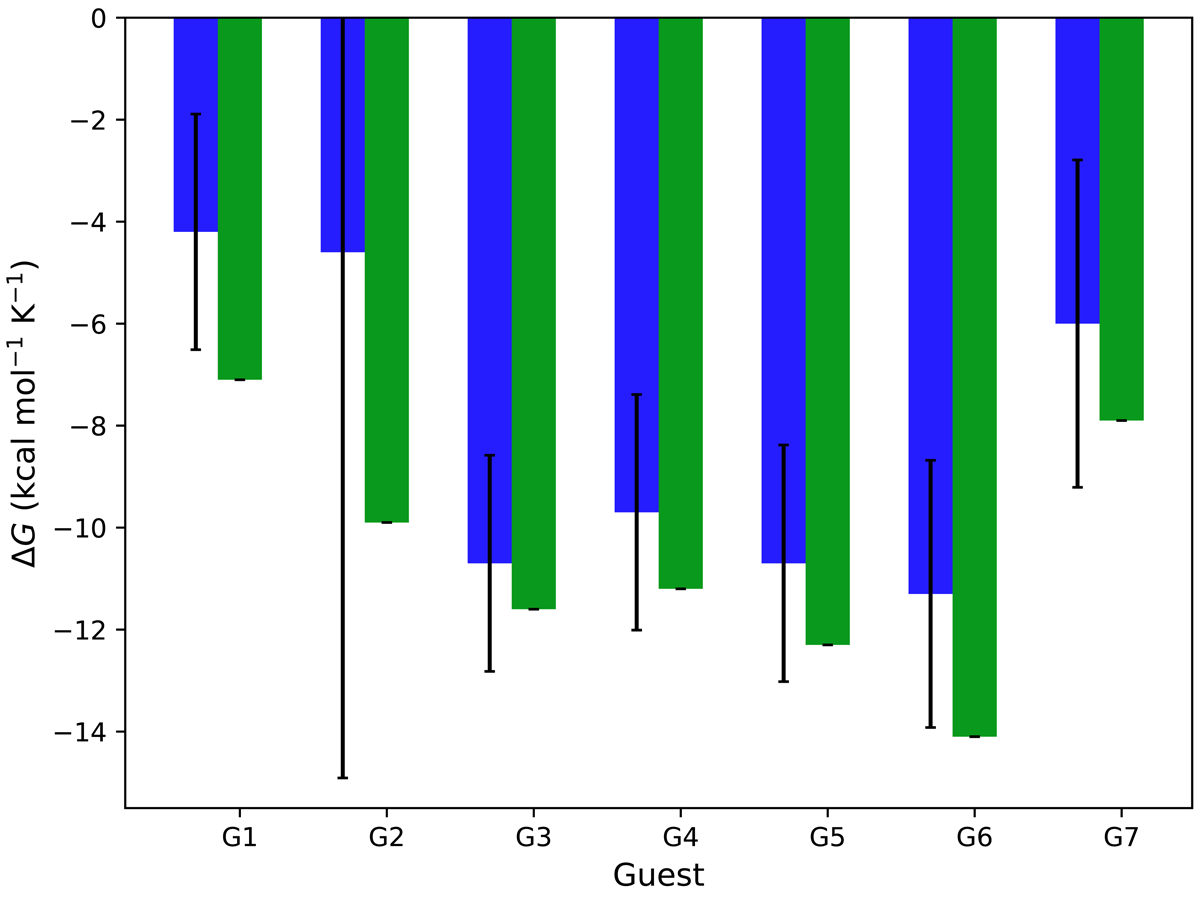

We next demonstrate CodeEntropy for seven host-guest systems from the SAMPL8 (Statistical Assessment of the Modeling of Proteins and Ligands) “Drugs of Abuse” Blind Challenge (26), which had been previously investigated with MCC (16). This used an earlier version of CodeEntropy (12, 27) for the solutes and an earlier version of waterEntropy for water called POSEIDON (15, 28), which had united-atom axes defined using bonded hydrogens instead of bonded united atoms as in the current version, and the origin was at the oxygen for water. MD simulations were run in triplicate with GROMACS 2023.3 (29) using the same starting structures, conditions, and force field, which is GAFF2 (30) for the solutes and TIP3P (31) for water. Entropy was calculated using 1001 frames for the solvated guest, host, and host-guest complexes and only 11 frames for the bulk water systems, which converge much faster with many identical molecules. Terms were included for the positional entropy of the solute in a 1 M solution and orientational entropy of the solute when bound, which are discussed elsewhere in more detail (16) but not yet included in CodeEntropy. For water, the factor of 1/4 in ${\mathrm{\Omega }}_m^{\text{orient}}$ for hydrogen-bond correlation (3) is not needed because it would entirely cancel in the entropy difference. The free energy of binding is calculated using the standard relationship $\mathrm{\Delta }G=\mathrm{\Delta }H-T\mathrm{\Delta }S$ where the differences in enthalpy $\mathrm{\Delta }H$ and entropy $\mathrm{\Delta }S$ are calculated from the values for the bound complex and bulk water minus those of the unbound host and guest. Figure 7 shows satisfactory agreement with experiment for $\mathrm{\Delta }G$ with a MUE versus experiment of 2.4 kcal mol^-1 and a MUE relative to the previous work (16) of 2.2 kcal mol^-1. Errors are inevitably larger, given the reduced symmetry compared to pure liquids and the large number of degrees of freedom, especially from the solvent water. For guest G2, the larger error in $\mathrm{\Delta }G$ is partly from the force-field energy and partly from insufficiently sampled binding poses of the guest in the host, issues which are beyond the scope of this work but highlight the need for multiple simulations. The MUE here versus experiment is not as close as the MUE in previous work (16), which was 0.9 kcal mol^-1, but is comparable to the error bars and demonstrates that longer simulations and other techniques will be needed to reduce errors. For the SAMPL8 challenge,(26) the MCC results are close to the three MM/PBSA entries (Molecular Mechanics/Poisson Boltzmann Surface Area), a method that also predicts free energy directly, which had MUEs of $\sim$1.7 kcal mol^-1 but fell short of the top-ranked alchemical method using Bennett’s acceptance ratio and a polarisable force field which had a MUE <1 kcal mol^-1. Incidentally, Ali et al. (4) achieved the top-ranked $\mathrm{\Delta }H$ prediction in SAMPL8, but that does not involve MCC.

Figure 7

CodeEntropy is applicable to polymers such as proteins and DNA, but examples are not included here, owing to a lack of experimental entropies for comparison. Further refinements to the configurational entropy, levels of hierarchy and overall accuracy are in progress.
