AIKoGAM: An AI-driven Knowledge Graph of the Antiquities Market: Toward Automatised Methods to Identify Illicit Trafficking Networks Cover

AIKoGAM: An AI-driven Knowledge Graph of the Antiquities Market: Toward Automatised Methods to Identify Illicit Trafficking Networks

Open Access
|Jan 2024

Figures & Tables

Figure 1

Example of a specific ‘sale page’, highlighting the straightforward structure of typical auction houses’ websites. Screenshot: Christie’s (2023b), edited by the authors.

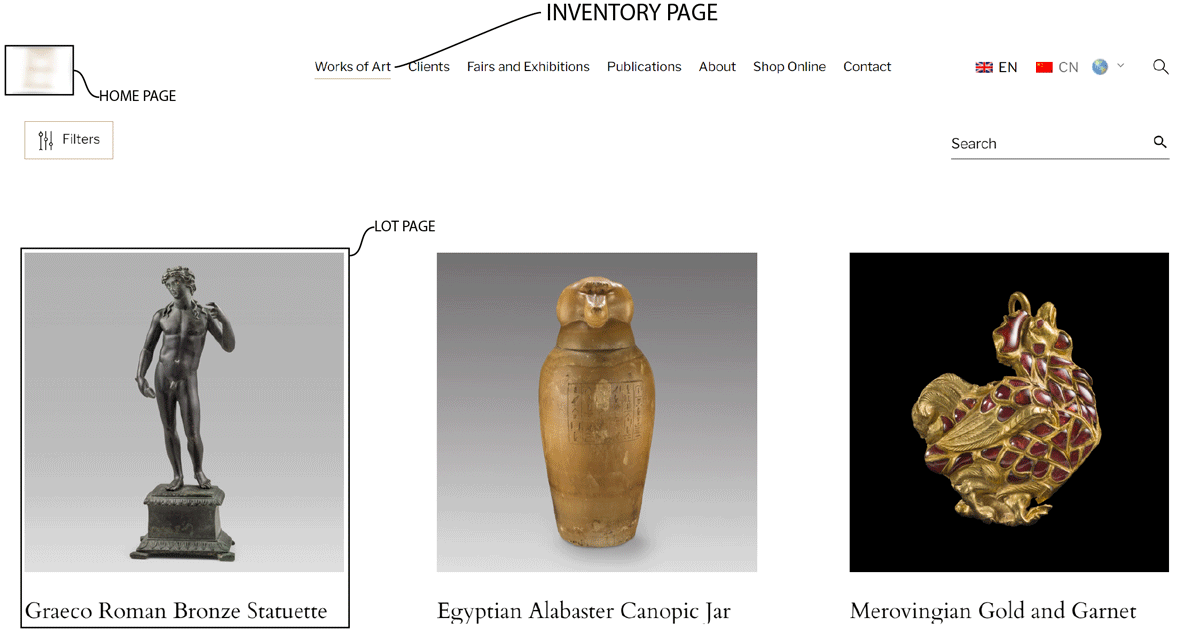

Figure 2

Example of a specific ‘inventory page’ of an antiquity gallery, highlighting the straightforward structure of typical gallery websites. Screenshot: Phoenix Ancient Art (2023b), edited by the authors.

Figure 3

Examples of how relevant information are placed on lot pages of a) an antiquity gallery (Phoenix Ancient Art, 2023a) and b) an auction house (Christie’s 2023a).

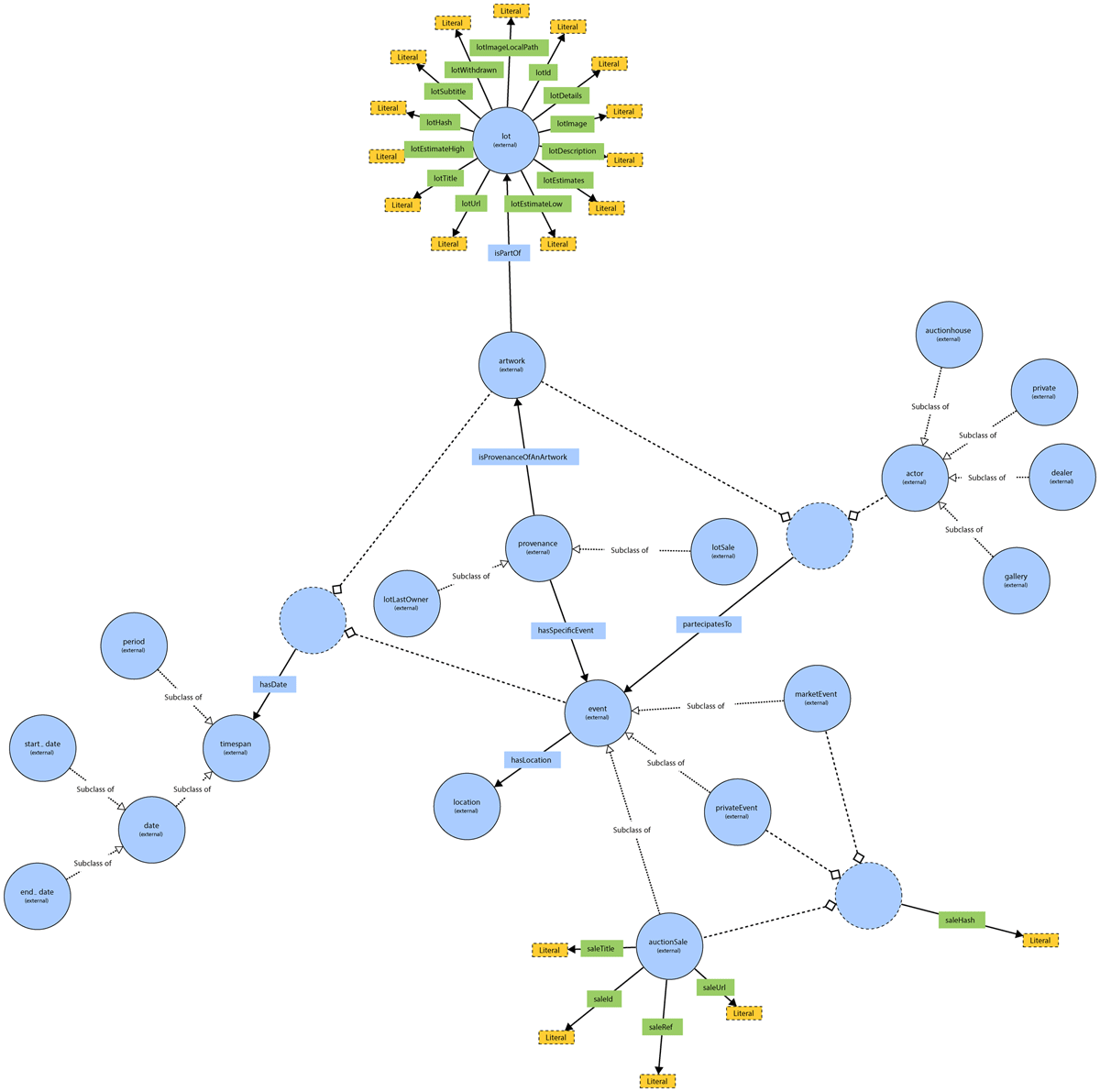

Figure 4

AIKoGAM partial ontology schema.

Table 1

Error Rates per Model.

MODELERROR RATE (%)
en_core_web_md3.35
zh_core_web_sm6.17
de_core_news_sm6.25
es_core_news_sm6.67
fr_core_news_sm11.46
it_core_news_sm16.67
pl_core_news_sm20.00
nl_core_news_sm32.36
lt_core_news_sm33.33
pt_core_news_sm33.33
da_core_news_sm66.67
Table 2

All Errors and Their Counts.

PREDICTEDTRUECOUNT
ORGOTHER17
PERSONOTHER16
GPEOTHER11
GPEPERSON10
PERSONGPE4
ORGGPE4
FACPERSON4
GPEORG4
ORGDATE3
NORPOTHER3
NORPPERSON2
GPEDATE2
FACORG2
FACGPE2
MONEYOTHER1
PRODUCTORG1
PRODUCTGPE1
NORPORG1
PRODUCTOTHER1
WORK OF ARTORG1
NORPDATE1
WORK OF ARTDATE1
WORK OF ARTOTHER1

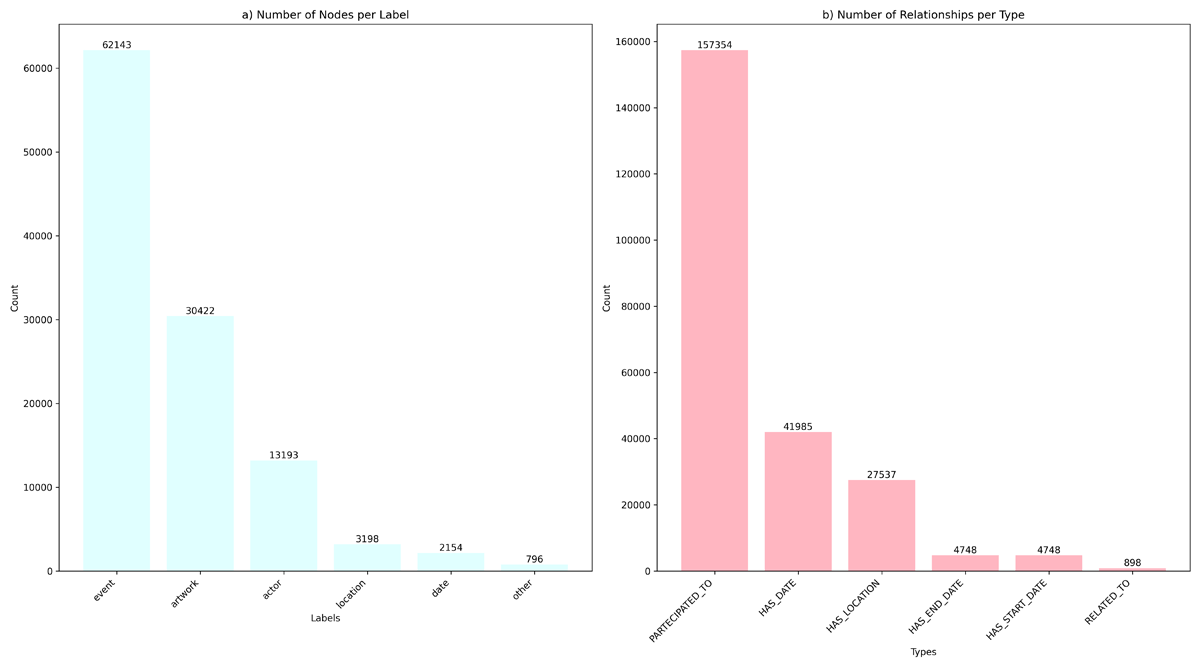

Figure 5

Nodes (a) and Relationships (b) counts by their labels and types.

Figure 6

Nodes with the highest degree in the actors-artwork bipartite network.

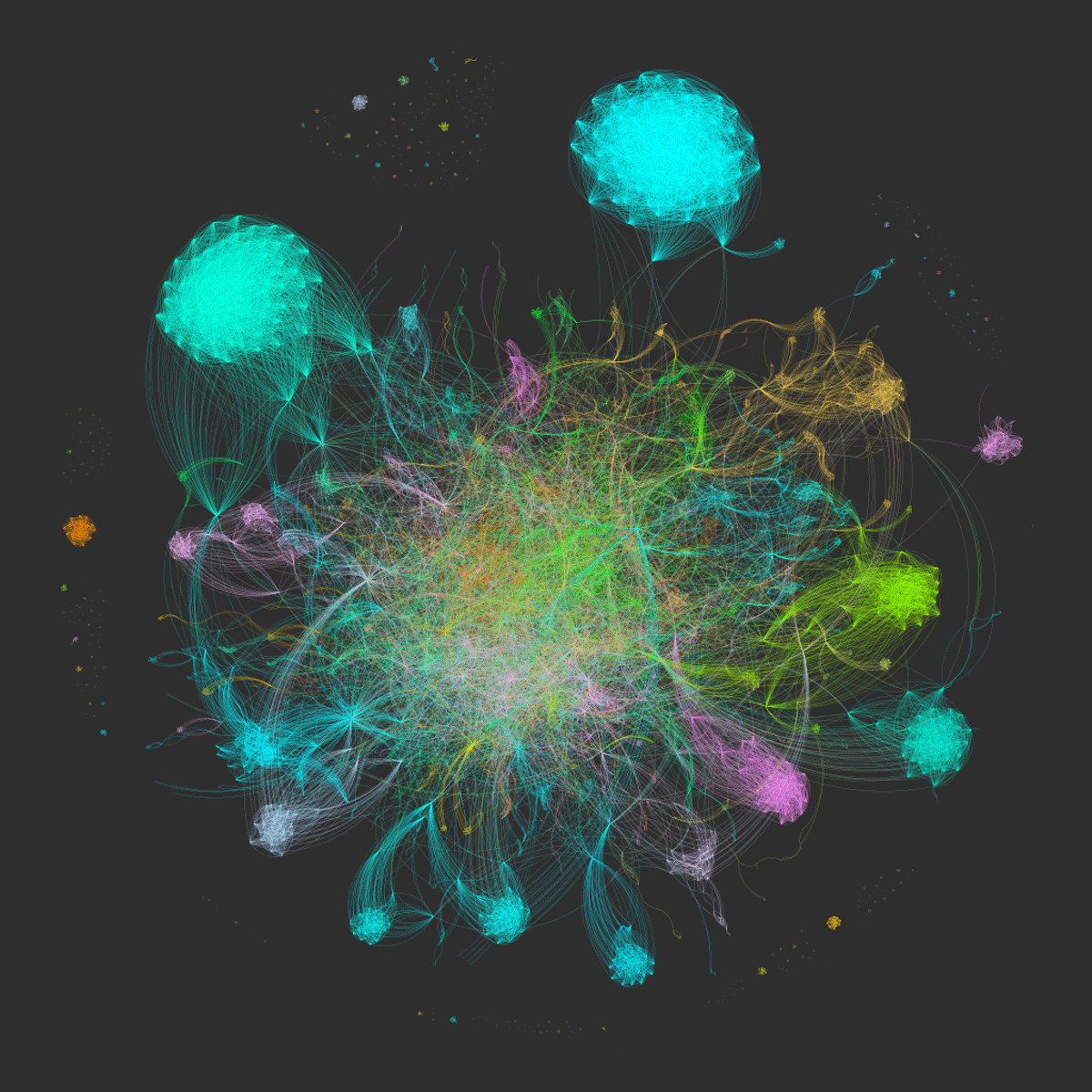

Figure 7

Visualisation of the actor-to-actor graph. The colours are based on the inferred community IDs. Graph designed with Gephi (Bastian, Heymann & Jacomy 2009).

Table 3

Summary of Network Measures.

METRICVALUE
Nodes6159.0000
Relationships22390.0000
Average Degree (AD)7.2707
Average Degree Centrality (ADC)0.0012
Average Eigenvector Centrality (AE)0.0012
Average Betweenness Centrality (AB)0.0007
Average Closeness Centrality (AC)0.2123
Average Path Length (APL)4.8148
Average Clustering Coefficient (ACC)0.7161
Graph Edge Density (GED)0.0012
Graph Diameter (GD)14.0000

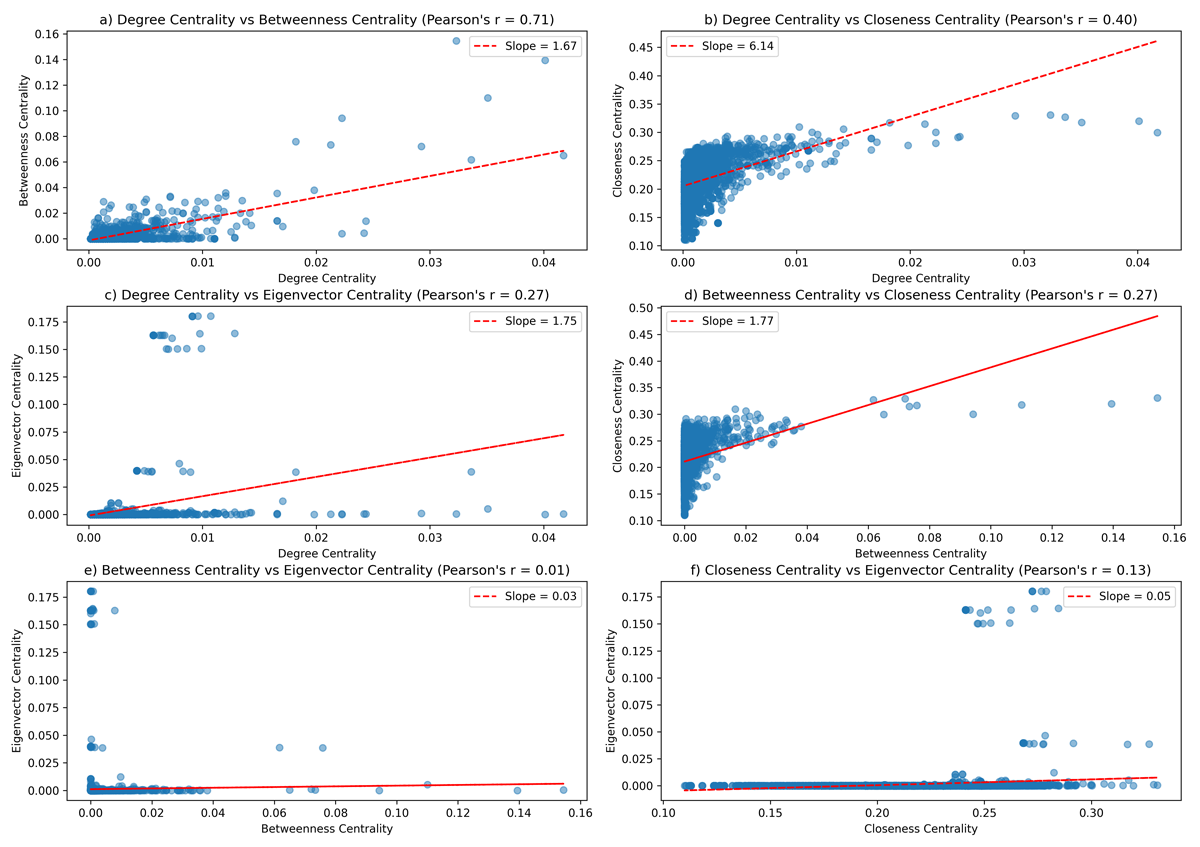

Figure 8

Scatter plots of centrality measures and linear regression for (a) degree and betweenness, (b) degree and closeness, (c) degree and eigenvector, (d) betweenness and closeness, (e) betweenness and eigenvector, (f) closeness and eigenvector.

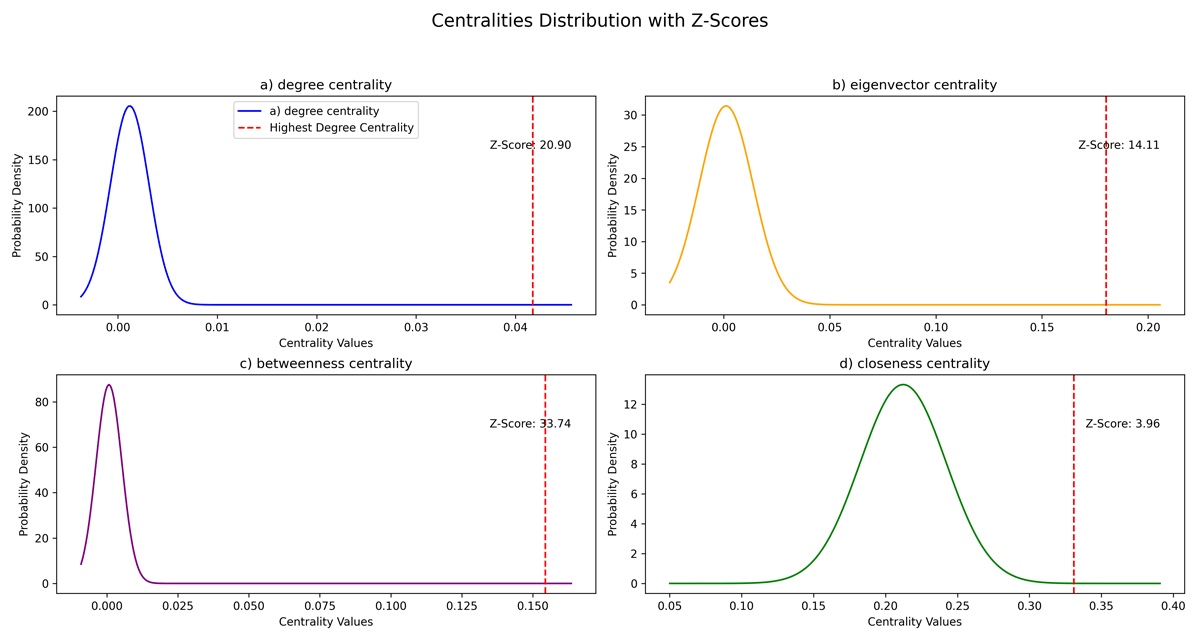

Figure 9

Gaussian plots of centralities values, with highest values in red and z-Score of each centrality: (a) degree centrality, (b) eigenvector centrality, (c) betweenness centrality, (d) closeness centrality.

Table 4

Table comparing intersecting nodes between the top 50 centralities measures. In bold, nodes that are discussed in the paper.

LABELCLOSENESSDEGREEBETWEENNESS
Sotheby Parke-Bernet0.3310.0320.154
Royal Athena0.3290.0290.072
Parke-Bernet0.3270.0340.062
Hˆotel Drouot0.3200.0400.139
European private collection0.3170.0350.110
Spink0.3170.0180.076
Bonhams0.3150.0210.073
The Devoted Classici…0.3090.0100.016
Property from a New…0.3060.0140.020
Charles Ede0.3000.0220.094
Collection Mrs0.3000.0420.065
Robin Symes0.3000.0110.024
Ariadne0.2960.0120.021
J-D Cahn0.2920.0100.017
Merton D Simpson0.2880.0090.023
N Koutoulakis0.2850.0120.033
Fortuna Fine Arts0.2840.0110.017
Mathias Komor0.2780.0100.029
Table 5

Top 50 Highest Degree Nodes.

NODE IDSCORENAME
afa43…0.042Collection Mrs
64045…0.040Hotel Drouot
379f0…0.035European Private Collection
2947d…0.034Parke-Bernet
315bc…0.032Sotheby Parke-Bernet
7b56c…0.029Royal Athena
00cbd…0.024Marianne Dreesmann
5705d…0.024Anton Cr Dreesmann
74ade…0.022Collection Professor Dr Drs An…
e9d66…0.022Charles Ede
e2ce0…0.021Bonhams
6e833…0.020Edric Van Vredenburgh
f758b…0.018Spink
7d374…0.0172Nd Earl
428a9…0.017Abraham Rosman
4be3a…0.017Paula Rubel
e4041…0.017Marguerite Riordan
2bfc7…0.014Sangiorgi
578b5…0.014Property From A New York City…
2f2a4…0.014Anderson
5dd68…0.013Collection Privee Francaise
63089…0.013Rugby School
86f9d…0.013Collection Edric Van Vredenbur…
06a32…0.013Gavin Hamilton
c7a1b…0.0135Th Duke
925fc…0.013Mh Bloxam
cff18…0.012Wou Kiuan
1fa15…0.012N Koutoulakis
2f7be…0.012Ariadne
80093…0.011John
40cfd…0.011Fortuna Fine Arts
dbab2…0.011Robin Symes
6dd43…0.011Harewood
98164…0.011David Bromilow
60489…0.011George Spencer
e0a1f…0.011John Winston Spencer-Churchill
eda69…0.011Julia Harriet Mary Jary
81961…0.011Bitteswell Hall
0c4d0…0.011The Metropolitan Museum Of Art
3d9af…0.011Lawrence
62272…0.010American Art Association
40284…0.010The Devoted Classici The Priva…
37a47…0.010Brabourne
1459e…0.010Lansdowne House
45532…0.010Salomon Reinach
aa10f…0.010Vermeule
c2e41…0.010J-D Cahn
a2acb…0.010Mathias Komor
d148b…0.009Merton D Simpson
502a7…0.009Art Of The Ancient World
Table 6

Top 50 Highest Betweenness Centrality Nodes.

NODE IDSCORENAME
315bc…0.154Sotheby Parke-Bernet
64045…0.139Hotel Drouot
379f0…0.110European Private Collection
e9d66…0.094Charles Ede
f758b…0.076Spink
e2ce0…0.073Bonhams
7b56c…0.072Royal Athena
afa43…0.065Collection Mrs
2947d…0.062Parke-Bernet
6e833…0.038Edric Van Vredenburgh
cff18…0.036Wou Kiuan
e4041…0.036Marguerite Riordan
1fa15…0.033N Koutoulakis
bb363…0.033Gunter Puhze
7a85d…0.033Property From A Manhattan Priv…
80093…0.032John
120da…0.031French Private Collection
5dd68…0.030Collection Privee Francaise
a2acb…0.029Mathias Komor
10b9b…0.029Mallett Son Ltd
1be38…0.029Collection Privee Americaine
399e6…0.028Plesch
37a47…0.028Brabourne
c51ee…0.026Heidi Vollmoeller
ba195…0.025Wilhem Horn
0e56f…0.025Property From A New York Priva…
49b25…0.025Jj Klejman
37fbd…0.024Steinitz
dbab2…0.024Robin Symes
d148b…0.023Merton D Simpson
0ae30…0.022Property From An Important Pri…
ae3eb…0.021E Borowski
2f7be…0.021Ariadne
2a5a2…0.021Alan Steele
814da…0.021Albert Museum
8b875…0.021Loo
77452…0.021Property From An American Priv…
63089…0.020Rugby School
bb92f…0.020Queen Victoria
578b5…0.020Property From A New York City …
01ab3…0.020Eskenazi Ltd
66e07…0.020Property From An Important Eur…
08294…0.019Safani Gallery
a8489…0.018The Tuyet Nguyet
27185…0.017The Junkunc Collection
dbc68…0.017Galerie Flak
0c4d0…0.017The Metropolitan Museum Of Art
40cfd…0.017Fortuna Fine Arts
c2e41…0.017J-D Cahn
40284…0.016The Devoted Classici The Priva…
Table 7

Top 50 Highest Closeness Centrality Nodes.

NODE IDSCORENAME
315bc…0.331Sotheby Parke-Bernet
7b56c…0.329Royal Athena
2947d…0.327Parke-Bernet
64045…0.320Hotel Drouot
379f0…0.317European Private Collection
f758b…0.317Spink
e2ce0…0.315Bonhams
40284…0.309The Devoted Classici The Priva…
578b5…0.306Property From A New York City …
e9d66…0.300Charles Ede
dbab2…0.300Robin Symes
afa43…0.300Collection Mrs
2f7be…0.296Ariadne
49b25…0.293Jj Klejman
66e07…0.293Property From An Important Eur…
00cbd…0.293Marianne Dreesmann
c2e41…0.292J-D Cahn
c33c4…0.292Hamilton
5705d…0.291Anton Cr Dreesmann
9b7d0…0.290Jay C Leff
5e5a6…0.289Drouot Richilieu
2bda0…0.289Rupert Wace
428a9…0.289Abraham Rosman
4be3a…0.289Paula Rubel
bb363…0.289Gunter Puhze
d148b…0.288Merton D Simpson
1fa15…0.285N Koutoulakis
502a7…0.285Art Of The Ancient World
06a32…0.285Gavin Hamilton
66cde…0.284Property From A North American…
40cfd…0.284Fortuna Fine Arts
e9b7e…0.283Ancient Sculpture Works Of Ar…
10773…0.283Arte Primitivo
7d374…0.2832Nd Earl
9a5c6…0.282Donna Jacobs Gallery
2bfc7…0.281Sangiorgi
74ade…0.281Collection Professor Dr Drs An…
120da…0.281French Private Collection
c7a1b…0.2815Th Duke
77452…0.280Property From An American Priv…
a817a…0.280Collection Louis Carre
741f3…0.279The Ernest Brummer Collection
0f1e8…0.279Property From The Harer Family…
817cf…0.278Beazley
dc9e0…0.278Shelburne
bc156…0.278Drouot Montaigne
a2acb…0.278Mathias Komor
b5262…0.278Comtesse Martine-Marie-Octavie
df6df…0.278Hubert De Ganay
98c6a…0.278Collection De Martine
Table 8

Top 50 Highest Eigenvector Centrality Nodes.

NODE IDSCORENAME
aa10f…0.180Vermeule
a8566…0.180American Journal Of Archaeolog…
39645…0.180Adolf Michaelis
950f1…0.180Michaelis
06a32…0.165Gavin Hamilton
45532…0.164Salomon Reinach
ec288…0.163Archaologischer Anzeiger
345df…0.163Ann Arbor
b5697…0.163California Private Collection
c541b…0.163Georg Lippold
87aac…0.163Whittall Collection
7115d…0.163The Ancient Marbles
a93d7…0.163Greek Sculpture And Roman Tast…
fa5de…0.163Legendary Hollywood Decorator
cd934…0.163William Haines
66eed…0.163Classical Marbles
de379…0.163Elizabeth Angelicoussis
742ca…0.163Jimmie Shields
87cd6…0.163Comte De Clarac
aed9a…0.163Hermann Winnefeld
fd02a…0.163Pierre Gusman
5f1e1…0.163Walter Trillmich
b1507…0.163Madrider Mitteilungen
c92df…0.163Joachim Raeder
547d8…0.163Peter Schifando
61be2…0.163Jean H Mathison
6684d…0.163Sascha Kansteiner
e8244…0.163Gnomon
f480d…0.163Pantanello
ac171…0.160Arthur H Smith
a7bab…0.151William Petty
1459e…0.151Lansdowne House
cb7ed…0.150Hadrian
0afb5…0.150Henry Petty Fitzmaurice
1bd54…0.150Lansdowne
dc9e0…0.046Shelburne
87b42…0.040Douglas Hamilton
49835…0.040Archibald Hamilton
0edbb…0.040Hamilton Palace
bede3…0.040Alexander Hamilton
891d4…0.040Charles Townley
ac145…0.040Scot
f572e…0.040Gustav F Waagen
4f2cb…0.040International Studio Art Corpo…
016d3…0.040Private Collection, By Descent…
4468f…0.040Capitol
4a2ab…0.040Hamilton Archive
f1d40…0.040Singleton Abbey Collections
c33c4…0.039Hamilton
1bccc…0.039Brandon
