Lichen-Associated Endophytes from Helan Mountains: Insight into Microbial Diversity and Application Cover

Lichen-Associated Endophytes from Helan Mountains: Insight into Microbial Diversity and Application

Open Access
|Dec 2025

Figures & Tables

graphic/j_pjm-2025-038_ufig_001.jpg
Table I

Primer design.

 Primer nameSequence
27F5′-AGAGTTTGATCCTGGCTCAG-3′
1492R5′-GGTTACCTTGTTACGACTT-3′
Table II

PCR Amplification Reaction System.

ReagentVolume
Genomic DNA (20 ng/μl)1.0 μl
10× Buffer (containing 2.5 mM Mg2+)5.0 μl
Taq Polymerase (5 U/μl)1.0 μl
dNTP (10 mM)1.0 μl
27F Primer (10 μM)1.5 μl
1492R Primer (10 μM)1.5 μl
ddH2O39.0 μl
Total volume50.0 μl
Table III

Polymerase Chain Reaction (PCR) Amplification Protocol.

Pre-denaturationDenaturationAnnealingExtensionFinal extensionNumber of cycles
95°C, 5min95°C, 30s58°C, 30s72°C, 1min 30s72°C, 7min35
Fig. 1.

The front and back morphology of 17 bacterial colonies.

Fig. 2.

Morphological diagram of 17 bacterial strains.

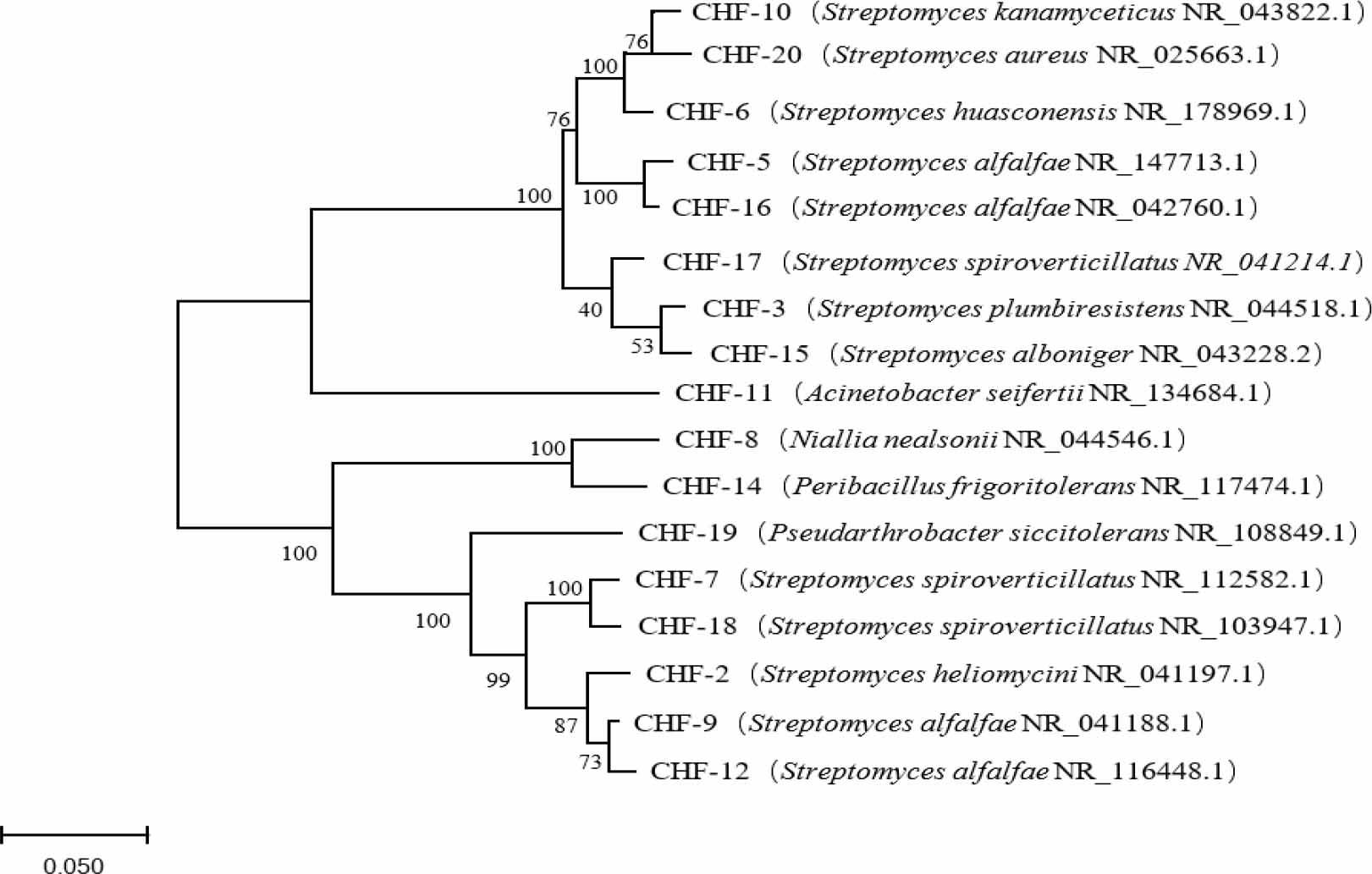

Fig. 3.

Phylogenetic tree constructed based on 16S rRNA gene sequences.

The values at the branch points are the bootstrap values calculated 1,000 times when constructing the phylogenetic tree; the scale 0.05 represents a 5% difference in calculations.

Table IV

Identification results of 17 bacterial strains.

Strain No.Scientific nameQuery coverageIdentitiesSequence ID
CHF-2Streptomyces heliomycini100%99.22%NR_041197.1
CHF-3Streptomyces plumbiresistens100%99.21%NR_044518.1
CHF-5Streptomyces alfalfae100%98.79%NR_147713.1
CHF-6Streptomyces huasconensis100%100.00%NR_178969.1
CHF-7Streptomyces spiroverticillatus100%99.50%NR_112582.1
CHF-8Niallia nealsonii100%99.22%NR_044546.1
CHF-9Streptomyces alfalfae100%98.71%NR_147713.1
CHF-10Streptomyces kanamyceticus99%98.88%NR_043822.1
CHF-11Acinetobacter seifertii100%100.00%NR_134684.1
CHF-12Streptomyces alfalfae98%97.99%NR_147713.1
CHF-14Peribacillus frigoritolerans100%99.93%NR_117474.1
CHF-15Streptomyces alboniger100%99.35%NR_043228.2
CHF-16Streptomyces alfalfae100%97.59%NR_147713.1
CHF-17Streptomyces spiroverticillatus100%99.43%NR_112582.1
CHF-18Streptomyces spiroverticillatus100%99.50%NR_112582.1
CHF-19Pseudarthrobacter siccitolerans100%99.50%NR_108849.1
CHF-20Streptomyces aureus99%99.06%NR_025663.1
Fig. 4.

Inhibitory activity of secondary metabolites of 17 strains against Staphylococcus aureus.

Fig. 5.

Inhibitory activity of secondary metabolites of 17 strains against Proteus vulgaris.

Fig. 6.

Inhibitory activity of secondary metabolites of 17 strains against Candida albicans.

Table V

Results of inhibition zone determination of antibacterial activity of strains.

Strain No.Bacteriostatic diameter/cm
Staphylococcus aureusProteus vulgarisCandida albicans
CHF-2
CHF-31.521.561.55
CHF-54.25
CHF-62.272.52
CHF-71.49
CHF-8
CHF-91.781.55
CHF-102.11
CHF-111.621.531.54
CHF-123.343.35
CHF-142.141.501.53
CHF-151.202.73
CHF-164.142.37
CHF-171.491.72
CHF-181.471.371.69
CHF-19
CHF-202.20

1 “–” in the table means that the strain did not produce obvious inhibition zone against the test bacteria at a concentration of 107–108 CFU/ml

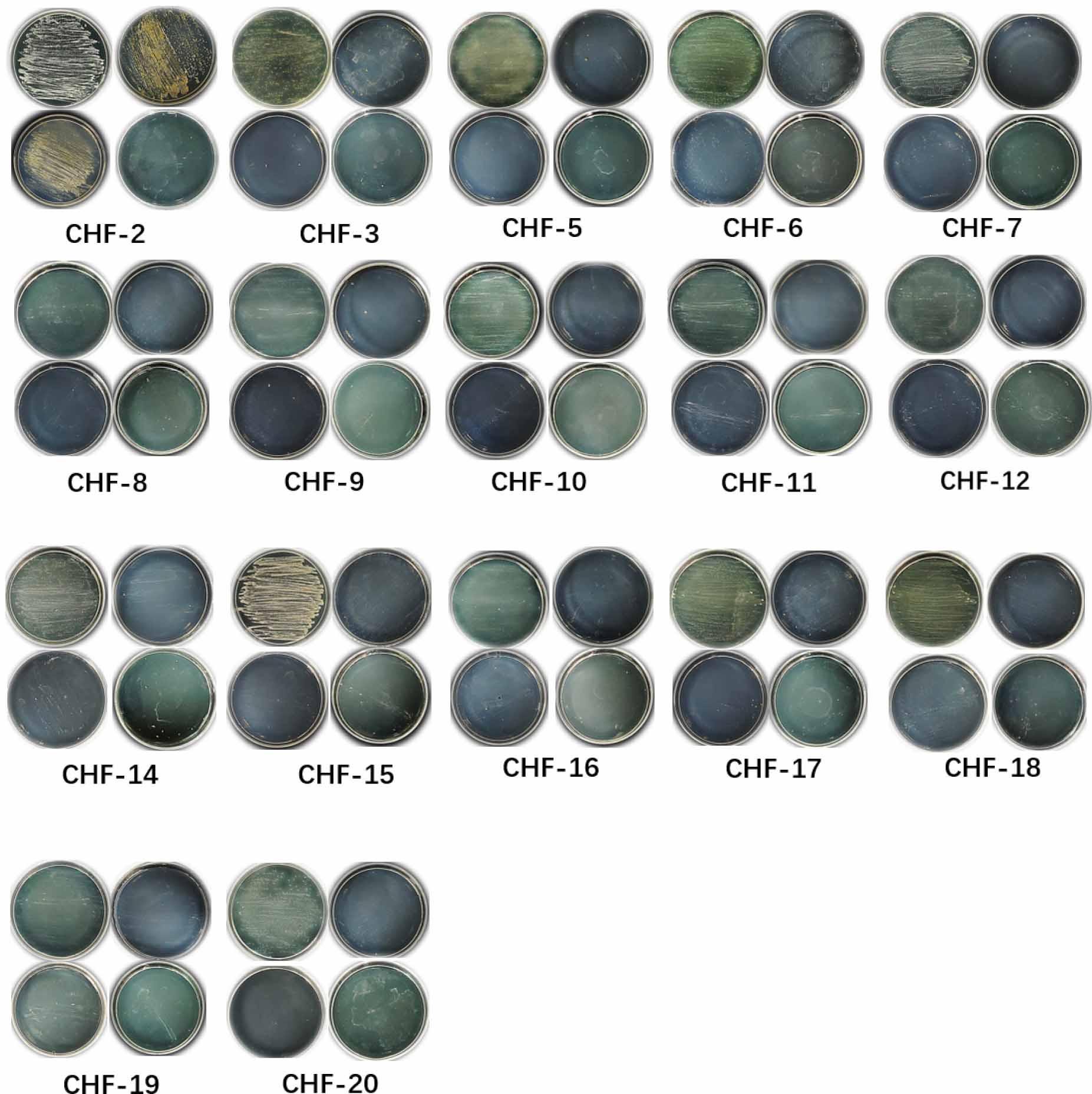

Fig. 7.

Test results of salt tolerance of 17 bacterial strains.

Table VI

Salt tolerance of 17 bacterial strains.

Strain No.NaCl concentration (g/l)
255075100
CHF-2+++
CHF-3+
CHF-5+
CHF-6+++
CHF-7++
CHF-8+
CHF-9+
CHF-10+
CHF-11++++
CHF-12+
CHF-14+++
CHF-15+++
CHF-16+
CHF-17++
CHF-18+++
CHF-19++
CHF-20++

1 “+” strain grew, “–” strain did not grow

Fig. 8.

Test results of alkali resistance of 17 bacterial strains.

Table VII

Alkali resistance of 17 bacterial strains.

Strain No.pH
891011
CHF-2++++
CHF-3++++
CHF-5++++
CHF-6++++
CHF-7++++
CHF-8+++
CHF-9++++
CHF-10++++
CHF-11++++
CHF-12++++
CHF-14++++
CHF-15++++
CHF-16++++
CHF-17++++
CHF-18++
CHF-19+
CHF-20++++

1 “+” strain grew, “-” strain did not grow
