Physics-Informed Telemetry Simulation and Shap-Based Explainable Machine Learning for Multi-Sensor UAV Fault Diagnosis

In contrast to prior studies that focus either on narrow subsystem datasets or opaque deep-learning architectures, the primary contribution of this work lies in the system-level integration of simulation-driven multi-sensor fault generation with interpretable machine learning and physically grounded explainability. Rather than emphasizing raw predictive performance, the proposed framework establishes a lightweight, reproducible, and transparent diagnostic baseline that enables engineers to understand which sensor behaviours drive fault detection and how diagnostic confidence evolves over time. This emphasis on traceability and interpretability directly addresses critical requirements in aerospace applications, particularly during pre-flight verification, digital-twin analysis, and the early stages of UAV health-monitoring system design. Furthermore, the structured integration of simulation, statistical feature engineering, ensemble learning, and explainability provides a foundation that can be extended toward real-flight validation studies, hybrid simulation–field data calibration, and certification-aligned diagnostic system development.

UAV fault detection has evolved significantly as autonomous aerial systems have become increasingly complex and safety-critical. Early approaches relied primarily on model-based observers and threshold-based rules, where sensor deviations were compared against predefined analytical models [1–5]. Although effective for well-characterized failure modes, these methods exhibit reduced robustness under nonlinear flight dynamics, variable mission conditions, and disturbances such as delays and jitter [6,7]. The limitations of handcrafted rules motivated the adoption of data-driven approaches, including classical machine-learning classifiers and deep-learning architectures for detecting anomalies in IMU signals, motor behaviour, battery health indicators, and actuator responses [8–14]. Recent studies demonstrate the effectiveness of deep learning for motor fault detection [19], actuator damage diagnosis [20], and multi-sensor UAV fault detection [21–23]. More recent experimental investigations have explored multi-sensor-based propeller damage detection using deep learning algorithms [24], while signal-processing-enhanced methodologies have been proposed for improved UAV propeller fault localization [25]. Mobility-aware fusion strategies combining vision and vibration data have also been investigated for UAV health monitoring [26], and machine-learning-driven optimization of multi-sensor fusion frameworks has been explored to enhance state estimation robustness and fault resilience [27].

Comprehensive surveys further highlight the growing role of ML in UAV fault diagnosis while emphasizing persistent challenges related to generalization and interpretability [28]. Despite their predictive capability, many ML-based diagnostic systems remain opaque, complicating validation and certification in safety-critical aerospace contexts [29–31]. Explainable Artificial Intelligence (XAI) has therefore emerged as a promising direction for enhancing transparency and trust in learning-based systems. Among XAI methods, SHAP (SHapley Additive exPlanations) has emerged as a leading approach, using concepts from cooperative game theory to assign each input feature a contribution value that quantifies its marginal influence on a given model prediction. SHAP-based interpretability has been successfully applied to aerospace sensor diagnostics [32], industrial fault detection [33–35], and predictive maintenance applications [36]. However, the integration of XAI within UAV fault-diagnosis pipelines remains limited. Existing UAV-focused ML/XAI studies often concentrate on isolated sensor subsets, restricted fault types, or post-hoc explanations without controlled multi-sensor fault generation [14,19,28]. Consequently, a clear research gap persists at the intersection of UAV multi-sensor telemetry simulation, structured time-series feature learning, robust classification, and physically grounded explainability within a unified and reproducible framework. Addressing this gap forms the central motivation of the present work.

The proposed framework is closely aligned with digital-twin-based UAV development workflows, where high-fidelity simulation environments are used to replicate, monitor, and refine physical system behaviour. In such architectures, simulation is not limited to pre-flight design validation but forms part of a continuous health-monitoring ecosystem. The integration of controlled multi-sensor fault injection, structured feature extraction, and interpretable classification enables systematic evaluation of subsystem degradation within a digital twin environment. Because both nominal and faulty states can be simulated in a controlled and repeatable manner, the framework supports sensitivity analysis, interpretability validation, and incremental model refinement prior to field deployment. Moreover, the modular structure of the proposed pipeline allows for the progressive incorporation of real-flight telemetry as it becomes available. In a digital twin architecture, simulated degradation patterns can be recalibrated using observed operational data, while diagnostic models can be retrained or fine-tuned accordingly. This bidirectional interaction between virtual and physical domains strengthens consistency between the virtual and physical UAV states. By embedding explainable machine learning within a simulation-driven architecture, the framework provides a structured foundation for digital-twin-supported UAV health monitoring and iterative system validation.

The endurance limitations of small unmanned aerial vehicles (UAVs) have been widely documented, with conventional lithium-based batteries offering specific energies typically below 250 Wh kg^-1, insufficient for sustained long-duration missions such as surveillance, mapping, and reconnaissance [1–3]. This inherent constraint has motivated extensive research into hybrid and hydrogen-assisted propulsion systems, which provide substantially higher specific energy while enabling low-emission or zero-emission operation across a wide range of small-UAV scales [4–6]. Experimental demonstrations and conceptual design studies have shown that hydrogen fuel-cell systems can extend UAV flight times well beyond those achievable with battery-only configurations, although challenges remain related to hydrogen storage mass, fuel-cell integration, and onboard energy management [2,4,8–10]. Investigations by Tak et al. [1], Özbek et al. [2], and Farajollahi and Dincer [3], among others, present design methodologies, propulsion-system architectures, and hybrid-electric performance assessments that highlight the potential for multi-hour endurance gains.

Complementary studies have explored advanced hybrid concepts, including solid-oxide fuel-cell (SOFC) architectures, thermoelectric integration, and multi-source energy scheduling using model-predictive control strategies [4,8]. Collectively, these works demonstrate the growing interest in hydrogen-assisted hybrid propulsion as a pathway toward long-endurance and energy-efficient UAV operation.

Parallel advances in UAV aerodynamics, structural optimization, and propulsion-system design have further strengthened the foundation for hybrid-electric development. Research on energy-efficient propulsion technologies [5], UAV propulsion-design strategies [6], and time-varying endurance modelling [7] has provided valuable insight into aerodynamic–propulsive coupling, power-management strategies, and mission-level performance estimation. Recent studies focusing on hybrid-UAV control, aerodynamic optimization, and integrated system analysis further emphasize the importance of modelling frameworks that explicitly link energy availability with aerodynamic requirements [9,10,28–30]. Alongside these developments, a substantial body of classical aircraft-performance literature continues to offer analytical tools that remain highly relevant to UAV endurance analysis. Foundational works by Filippone, Raymer, Mason, Torenbeek, and others [11,15–27] present closed-form formulations for lift, drag, power required, cruise performance, and optimal operating conditions – relationships that have long been used in both manned and unmanned aircraft conceptual design. Because these models are grounded in first-principles aerodynamics rather than empirical curve fitting or numerical simulation, they have proven particularly effective for early-stage sizing and performance prediction. More recent efforts in open aircraft-performance modelling and trajectory-analysis frameworks, such as LEAPS and data-driven mission parameterization approaches, further demonstrate how analytical and semi-analytical methods can support rapid and generalizable performance estimation across diverse aircraft configurations [18,19]. In the UAV context, studies addressing drag estimation, low-speed aerodynamic performance, and airframe-configuration optimization highlight how even modest changes in aerodynamic characteristics can significantly influence endurance-oriented missions [28–34].

Despite this progress, many existing hybrid-UAV studies remain heavily dependent on CFD, numerical optimization, or prototype-level experimentation. While powerful, these approaches are often computationally demanding, geometry-specific, and less suited to broad design-space exploration during early conceptual phases. As a result, there remains a clear need for analytical, first-principles-based frameworks that can rapidly and transparently predict endurance and range without reliance on CFD or experimental calibration. The present work addresses this gap by developing a fully analytical, physics-driven model for predicting endurance and range in hybrid hydrogen–electric UAVs using only fundamental aerodynamic and energetic relationships. By avoiding empirical curve fitting and simulation-heavy techniques, the framework provides a deterministic and reproducible means of exploring mass–energy trade-offs, propulsion-architecture choices, and conceptual design trends. In doing so, it bridges the gap between simplified theoretical approximations and complex numerical models, offering a practical and openly verifiable tool for early-stage, sustainability-oriented UAV propulsion studies grounded in first-principles physics.

The overall methodological flow is illustrated in Figure 1. The process begins with the development of a physics-informed telemetry simulator capable of generating synchronized multivariate time-series data representing accelerometer, gyroscope, motor RPM, battery voltage, and GPS signals. Controlled fault profiles – motor degradation, battery voltage sag, IMU drift, and GPS anomalies – are systematically injected to emulate representative operational failure scenarios. The multivariate telemetry is segmented using a fixed-length sliding window with overlap. This strategy preserves temporal continuity while enabling detection of both short-duration anomalies and slowly evolving subsystem degradation.

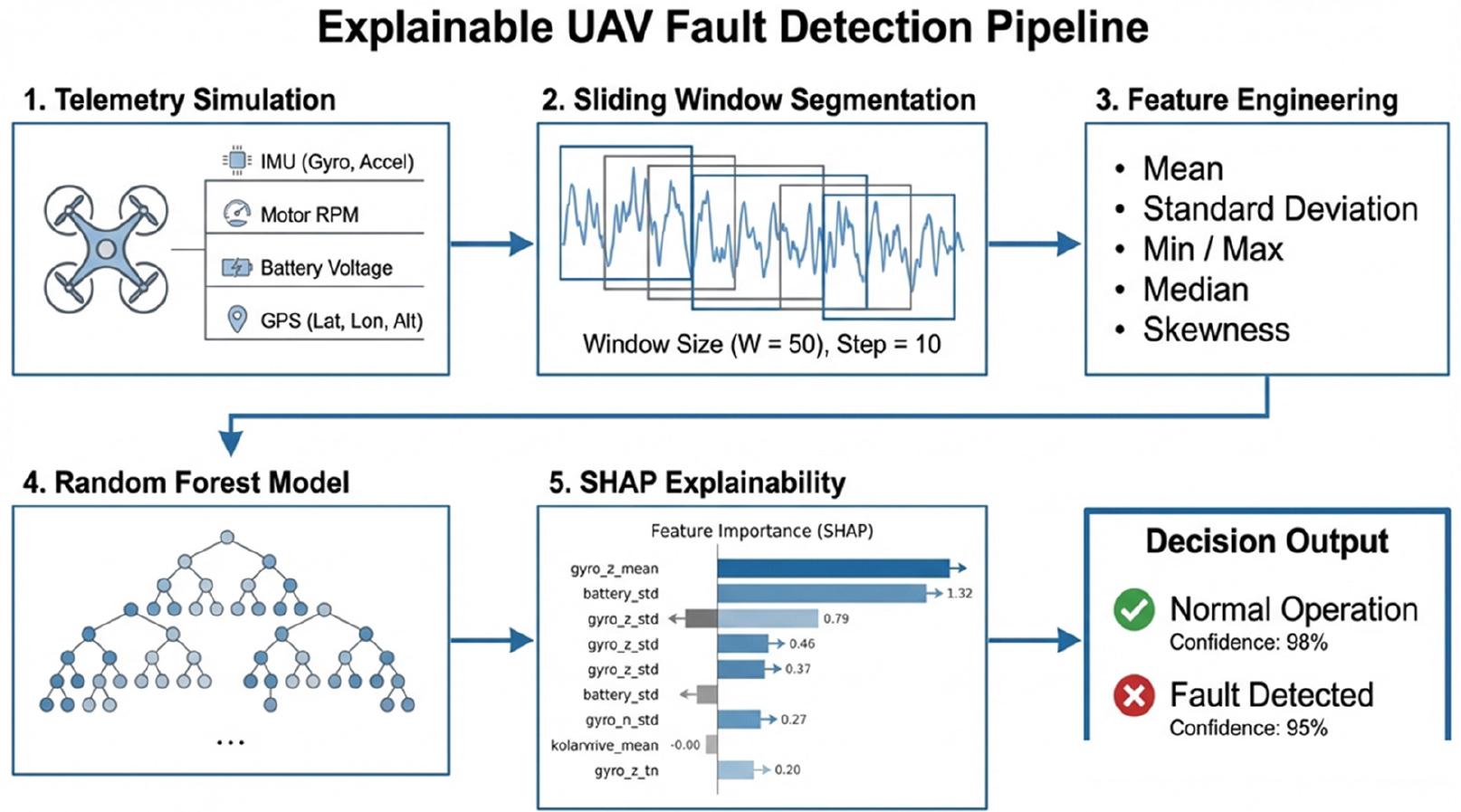

Fig. 1.

Full pipeline diagram illustrating the data flow from simulated UAV telemetry to windowing, feature engineering, machine-learning-based fault detection, and SHAP explainability.

Each window is transformed into a 60-dimensional statistical feature vector capturing central tendency, variability, amplitude extrema, and distribution shape across all sensor channels. Statistical feature engineering is selected for its interpretability, computational efficiency, and robustness to noise – all of which are characteristics essential for safety-critical aerospace applications. Unlike end-to-end deep learning approaches that require large labelled datasets and offer limited transparency, this representation allows direct physical interpretation of sensor behaviour while retaining strong discriminative capacity.

The engineered feature vectors serve as inputs to a Random Forest classifier. The ensemble architecture is chosen for its ability to capture nonlinear feature interactions, accommodate heterogeneous sensor distributions, and maintain stable decision boundaries under noisy and moderately imbalanced conditions. The model outputs a binary classification indicating nominal or faulty operation at the window level. To ensure interpretability, SHAP-based explainability is integrated into the pipeline. SHAP values quantify the marginal contribution of each feature to individual predictions, enabling explicit identification of the sensor statistics driving fault detection. This allows interpretation of how behaviours such as progressive gyroscope drift or abrupt battery-voltage deviations influence classification outcomes. Collectively, the simulation environment, structured feature representation, ensemble classifier, and explainability layer form a transparent and reproducible methodology for UAV fault diagnosis. By balancing predictive performance with interpretability, the framework is particularly suited for simulation-driven validation, digital-twin analysis, and early-stage development of UAV health-monitoring systems.

A physics-informed simulation environment was developed to generate multivariate UAV telemetry representative of realistic flight behaviour and subsystem interactions. The simulator produces synchronized data streams from five essential sensing modalities – accelerometers, gyroscopes, motor rotational speed, battery voltage, and GPS measurements – each designed to reproduce both nominal operational characteristics and physically meaningful fault signatures. The primary objective of the simulation is to enable controlled analysis of fault sensitivity and model interpretability during early-stage system development, rather than to replicate the full complexity of operational flight environments. The baseline (healthy) operating state incorporates nominal flight dynamics, inherent sensor stochasticity, and low-frequency disturbances representative of small- to medium-scale multirotor UAV platforms. Gaussian noise, random-walk processes, gradual drift accumulation, and intermittent perturbations are embedded within the nominal signals to emulate environmental influences and hardware-induced variability, while maintaining statistical consistency across sensor channels. Building upon this baseline, four representative fault classes are systematically injected to capture a range of commonly reported UAV subsystem degradation behaviours.

(e)

GPS Glitch Injection

GPS anomalies are simulated by injecting short-duration, high-amplitude perturbations into the latitude and longitude channels. These perturbations emulate physical effects such as multipath interference, temporary satellite loss, or navigation filter instability. Unlike drift- or sag-based faults, GPS glitches are episodic and transient, producing localized statistical distortions that require precise temporal segmentation and feature extraction to be reliably identified.

Figure 2 presents representative examples of simulated UAV telemetry under nominal and faulty operating conditions, including motor RPM degradation, battery voltage sag, and gyroscope drift, illustrating the diversity and temporal characteristics of the injected fault signatures.

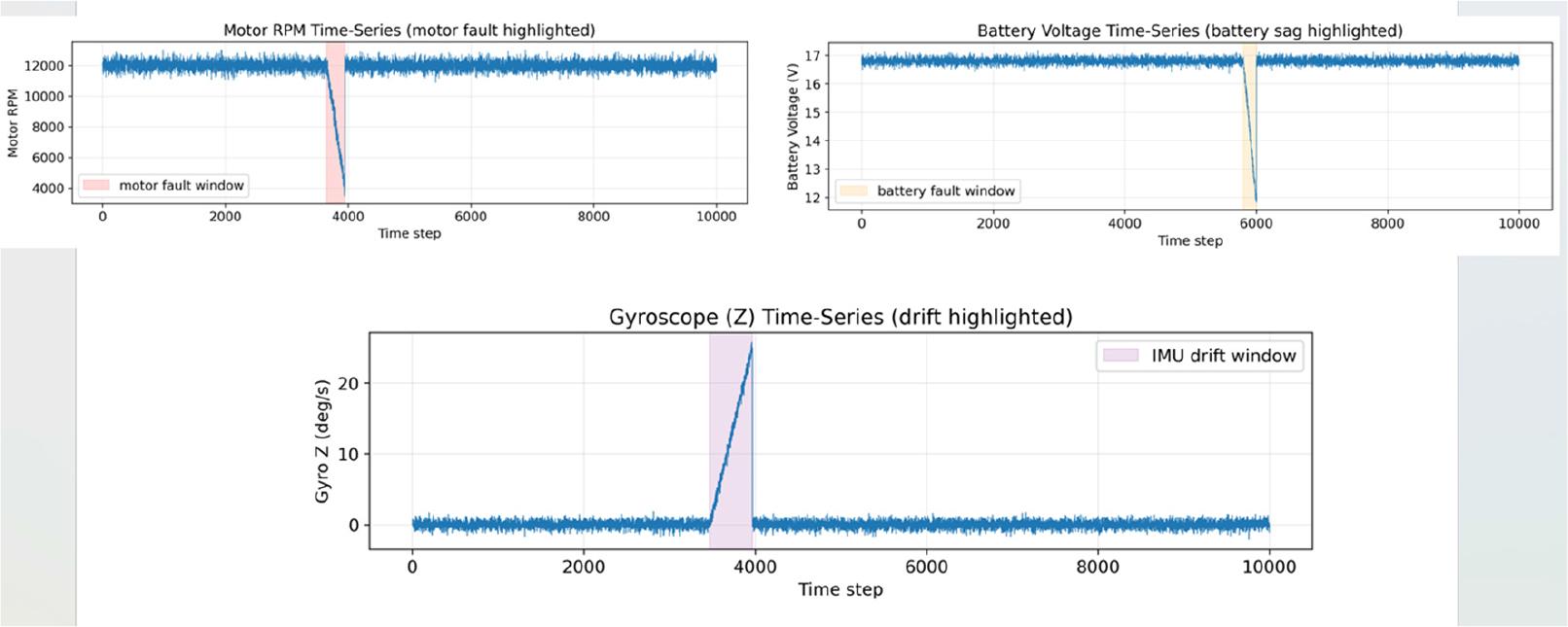

Fig. 2.

Representative examples of simulated UAV telemetry under nominal and faulty operating conditions. (a) Motor RPM time-series exhibiting stable rotational speed during healthy operation followed by a gradual, fault-induced degradation characteristic of propulsion-system weakening. (b) Battery voltage profile showing a distinct sag region, where a controlled drop in cell voltage emulates accelerated discharge or power-system instability, (c) Gyro-z angular rate signal illustrating progressive IMU drift, with a monotonic bias accumulation that reflects thermomechanical sensor degradation.

To capture the temporal evolution of sensor behaviour, the continuous multivariate telemetry stream is segmented into overlapping fixed-length windows. This segmentation strategy enables the framework to represent both localized disturbances and gradually developing fault patterns within a structured feature space. Each window consists of 50 consecutive samples, while a step size of 10 samples is employed to introduce substantial overlap between adjacent windows. This design choice ensures that short-duration anomalies as well as slowly accumulating subsystem degradations are preserved and consistently represented across multiple windows. Each window is assigned a binary label based on the presence of fault activity within its temporal span. A window is classified as faulty if any sample within the window corresponds to an injected fault event; otherwise, it is labelled as nominal. This inclusive labelling strategy improves sensitivity to brief but high-impact anomalies and avoids dilution of fault signatures across window boundaries, which can occur when faults span only a fraction of a window. As a result, the segmentation approach supports reliable detection of both transient and progressive fault behaviours. Figure 3 illustrates the window-level fault annotation timeline and the segmentation of the multivariate telemetry stream into overlapping analysis windows, highlighting how the adopted windowing strategy preserves temporal continuity while enabling structured downstream feature extraction and classification.

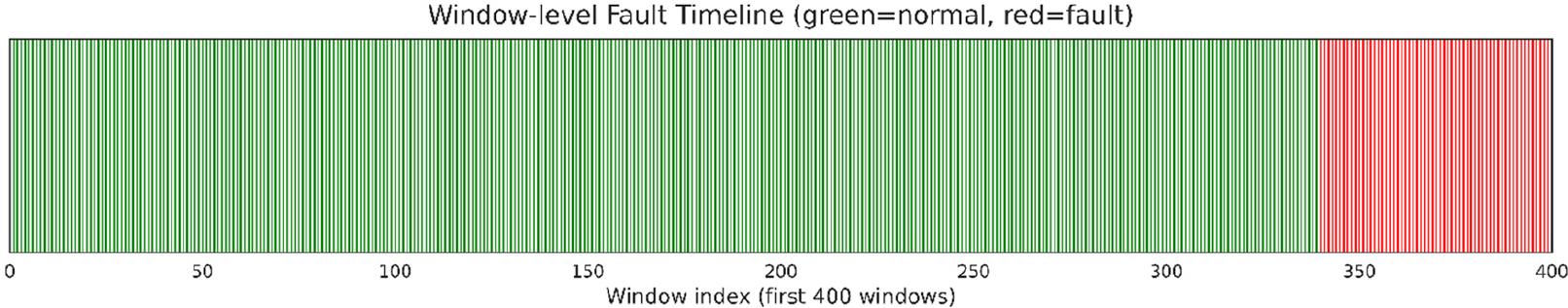

Fig. 3.

Window-level fault annotation timeline illustrating the segmentation of the multivariate telemetry stream into overlapping analysis windows. Each window is categorized as normal (green) or faulty (red) based on the presence of any injected anomaly within its temporal span. This visualization highlights the distribution and duration of simulated fault events and demonstrates how the windowing strategy preserves both short-term disturbances and gradually evolving subsystem degradations.

For each sliding window derived from the multivariate telemetry stream, a structured set of 60 statistical features is computed across the ten sensor channels, yielding a compact yet information-rich representation of local flight dynamics. This feature representation is designed to summarize both steady-state behaviour and evolving deviations in a manner that remains transparent and physically interpretable. The extracted feature vector includes descriptors that capture both first-order and higher-order characteristics of each signal:

• Central tendency metrics: mean and median, representing the nominal operational level of each sensor channel within the window,

• Variability measures: standard deviation, capturing short-term fluctuations arising from noise, disturbances, or evolving fault conditions,

• Amplitude-based descriptors: minimum and maximum values, highlighting abrupt deviations, saturation effects, and extreme operating points,

• Distribution-shape indicators: skewness, characterizing asymmetry in sensor behaviour that commonly emerges during progressive drift, nonlinear subsystem degradation, or transient anomalies.

These statistical descriptors are widely recognised for their robustness in time-series-based fault-detection tasks, offering strong discriminative capability while remaining computationally efficient and inherently interpretable. Unlike high-dimensional or end-to-end feature representations, their transparent mathematical formulation allows direct physical interpretation and facilitates systematic validation. Importantly, the selected feature set is fully compatible with SHAP-based explainability, enabling direct attribution of model predictions to specific and physically meaningful sensor behaviours. This compatibility ensures that the diagnostic reasoning remains traceable and aligned with engineering intuition, rather than relying on opaque correlations. The resulting feature representation provides a balanced combination of expressiveness, interpretability, and computational practicality. It is well suited for simulation-driven analysis, digital-twin environments, and feasibility studies related to near-real-time UAV health monitoring. Figure 4 presents a feature-level characterization identifying the most discriminative signals for UAV fault classification, while the complete list of extracted statistical features for each of the ten sensor channels (60 features in total) is summarized in Table 1.

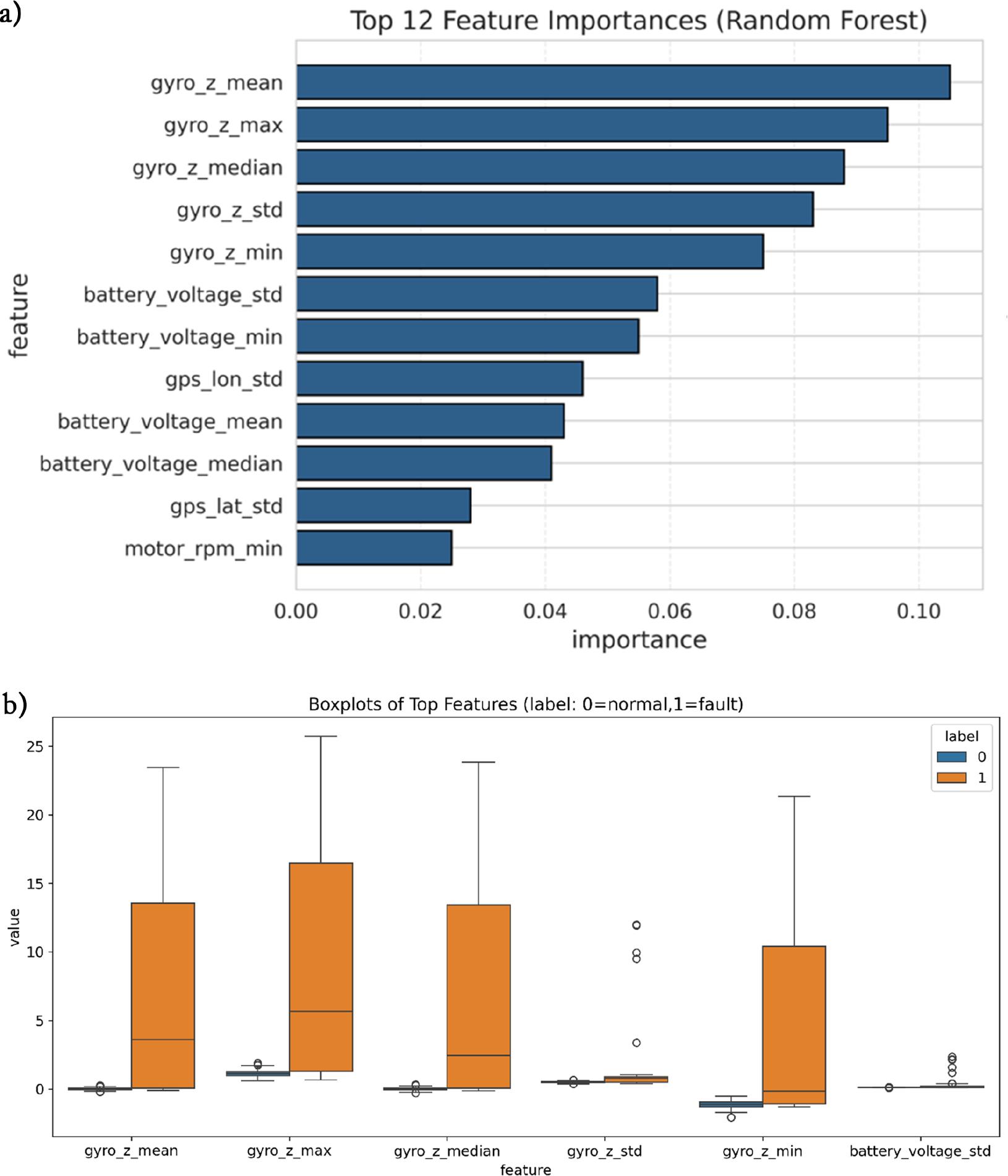

Fig. 4.

Feature-level characterization of the most discriminative signals for UAV fault classification. (a) Ranked feature importance scores computed using the Random Forest model, highlighting the dominant influence of gyro_z-related statistics (mean, max, median, and standard deviation) and battery-voltage variability, which collectively encode the strongest signatures of IMU drift and power-system instability. (b) Boxplot distributions of the top contributing features for normal (label 0) and faulty (label 1) windows. Fault conditions exhibit pronounced shifts in central tendency and dispersion, particularly in gyro_z_mean, gyro_z_max, and battery_std, demonstrating clear statistical separability between healthy and anomalous operating states.

The statistical descriptors selected in this study are grounded in the expected signal characteristics of common UAV subsystem degradations. Rather than serving as purely empirical constructs, these features correspond directly to physically measurable changes in sensor dynamics.

For progressive drift faults, such as IMU bias accumulation, the sensor signal can be represented as: x(t)=x0(t)+αt x(t) = {x_0}(t) + \alpha t

where α denotes the drift rate. Over a finite sliding window of length W, the sample mean increases proportionally with α, and the sample variance also increases due to systematic deviation from the nominal trajectory. Consequently, window-level mean and standard deviation serve as natural indicators of gradual bias evolution.

For abrupt amplitude-based faults, such as battery voltage sag, the signal may be approximated as: x(t)=x0(t)−ΔV x(t) = {x_0}(t) - \Delta V

within a localized time interval. This produces immediate shifts in minimum values and alters distribution symmetry, making amplitude extrema (min, max) and skewness particularly responsive to such events. Transient disturbances, including GPS glitches, introduce short-duration impulse-like deviations. These primarily affect extrema and distribution-shape descriptors without significantly altering long-term averages. As a result, skewness and maximum/minimum statistics become sensitive indicators of episodic anomalies. Thus, each statistical feature captures a distinct and physically interpretable aspect of degradation behaviour. This theoretical correspondence between signal dynamics and statistical response strengthens the engineering rationale of the feature-engineering strategy and supports its suitability for interpretable UAV fault diagnosis.

A Random Forest (RF) classifier was selected as the primary detection model due to its robustness to noisy inputs, ability to model nonlinear feature interactions, and strong performance on structured datasets derived from time-series feature engineering. These characteristics make RF well suited for heterogeneous multi-sensor UAV telemetry exhibiting varying physical scales and non-stationary behaviour. The dataset was partitioned into training (70%) and testing (30%) subsets using stratified sampling to preserve the distribution of nominal and faulty windows. Prior to training, all 60 statistical features were standardized using Z-score normalization to mitigate scale differences across sensor modalities, including accelerometer acceleration, gyroscope angular rate, battery voltage, and GPS coordinates. The RF model was configured with 300 decision trees (n_estimators = 300), providing a balance between predictive performance and computational efficiency. Bootstrap aggregation was employed during training, and impurity-based splitting enabled the ensemble to capture nonlinear interactions associated with IMU drift, battery voltage sag, motor RPM degradation, and GPS anomalies. The resulting ensemble established a stable decision boundary within the 60-dimensional feature space, enabling reliable separation of nominal and faulty operating states.

Model performance was evaluated using quantitative metrics and diagnostic visualizations. Under controlled simulation conditions, the RF classifier achieved a test accuracy of 99.33% despite moderate class imbalance (fault proportion ≈ 9%). The model maintained high sensitivity to fault windows while preserving a low false-alarm rate. The confusion matrix (Figure 5) indicates strong discrimination between classes, with a high proportion of true negatives and true positives. This behaviour confirms that the classifier effectively captures both transient anomalies and progressively evolving subsystem degradation patterns without excessive misclassification. The Receiver Operating Characteristic (ROC) curve (Figure 6) further demonstrates robust discriminative capability, with an Area Under the Curve (AUC) approaching 1.0. These results validate the effectiveness of the engineered statistical feature representation and confirm the suitability of the Random Forest architecture for simulation-driven UAV fault-diagnosis studies involving noisy and heterogeneous telemetry signals.

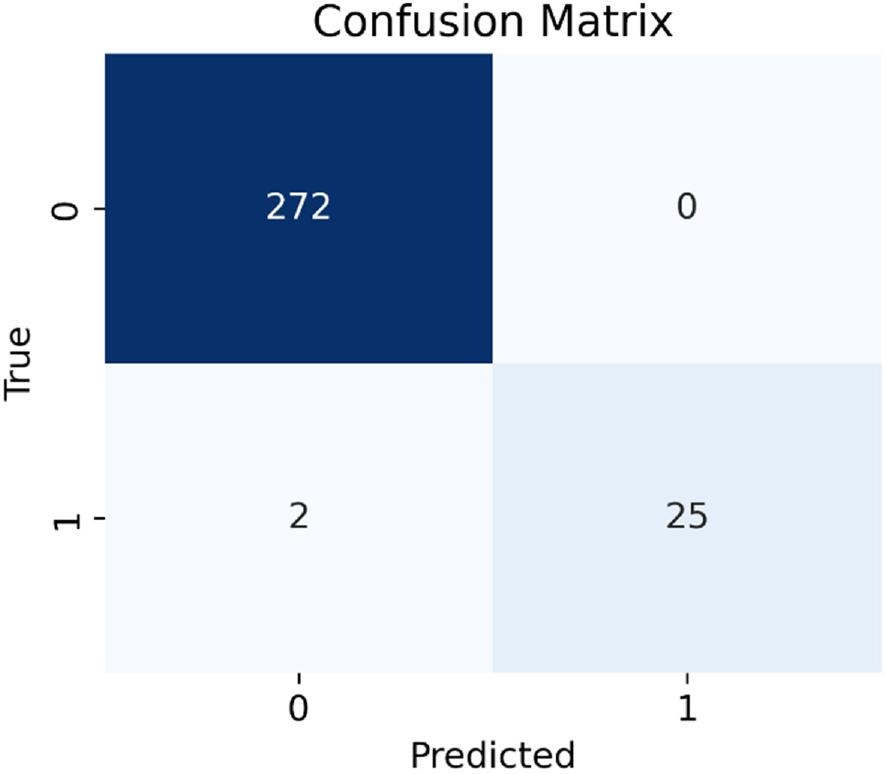

Fig. 5.

Confusion matrix illustrating the classification performance of the Random Forest model on the test dataset. The results indicate strong discrimination between nominal and faulty telemetry windows, with a high proportion of true negatives and true positives and limited misclassification. These findings support the effectiveness of the engineered statistical feature representation and ensemble-based classification strategy for detecting diverse UAV subsystem anomalies under the defined simulation conditions.

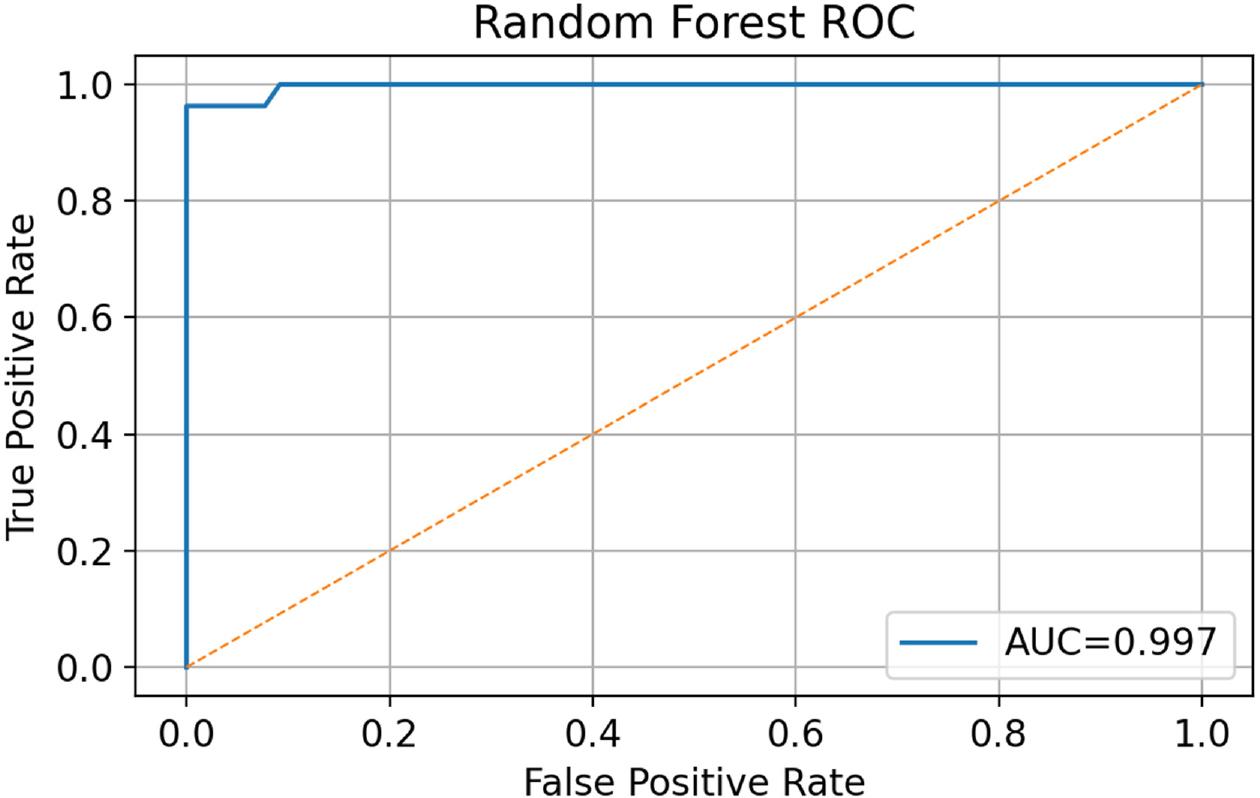

Fig. 6.

Receiver Operating Characteristic (ROC) curve for the Random Forest classifier, illustrating its strong discriminative capability across varying decision thresholds. The model achieves an Area Under the Curve (AUC) of 0.997, indicating near-perfect separability between normal and faulty telemetry windows and confirming the effectiveness of the engineered feature set and ensemble-learning architecture.

To provide a detailed view of classification behaviour, Table 2 summarizes the precision, recall, and F1-score for both classes. The high precision (1.00) and recall (0.93) for fault windows show that the model is capable of detecting even subtle anomalies while maintaining reliability. Classification report summarizing precision, recall, and F1-score for normal and faulty windows is shown in Table 2.

To ensure that the performance advantages of the proposed method arise from modelling capability rather than dataset differences, several widely used machine-learning classifiers were trained and evaluated on the exact same 60-feature dataset produced in this study. The baseline models include Logistic Regression (LR), Support Vector Machine with RBF kernel (SVM), k-Nearest Neighbour (kNN, k=5), Gradient Boosting (GB), and XGBoost, in addition to the proposed Random Forest (RF) classifier. All models were trained using identical train–test splits (70–30 stratified), identical Z-score normalization, and identical window-level labels. Hyperparameters for all models were tuned using a consistent grid-search procedure to avoid biased results. This uniform setup ensures that each algorithm is evaluated under the same conditions, allowing a transparent assessment of relative strengths and weaknesses. Performance comparison of different models trained on the same dataset is shown in Table 3.

The unified comparison shows that the Random Forest model achieves the highest overall accuracy (99.33%) while maintaining a strong balance between precision and recall. Models such as SVM and XGBoost achieve competitive performance but require more careful tuning and are less transparent during deployment. Linear approaches like Logistic Regression do not capture the nonlinear progression of drift, sag, or RPM-degradation faults, and kNN is sensitive to noise in high-dimensional feature spaces. The results confirm that the superior performance of the proposed Random Forest classifier is not an artifact of dataset selection but reflects its suitability for handling heterogeneous, noisy, and moderately nonlinear telemetry features. This benchmarking establishes a fair and scientifically consistent foundation for evaluating the proposed diagnostic pipeline.

The SHAP summary (beeswarm) plot in Figure 7 provides a global view of feature influence by ranking features according to mean absolute Shapley magnitude while visualizing their distribution across all test samples.

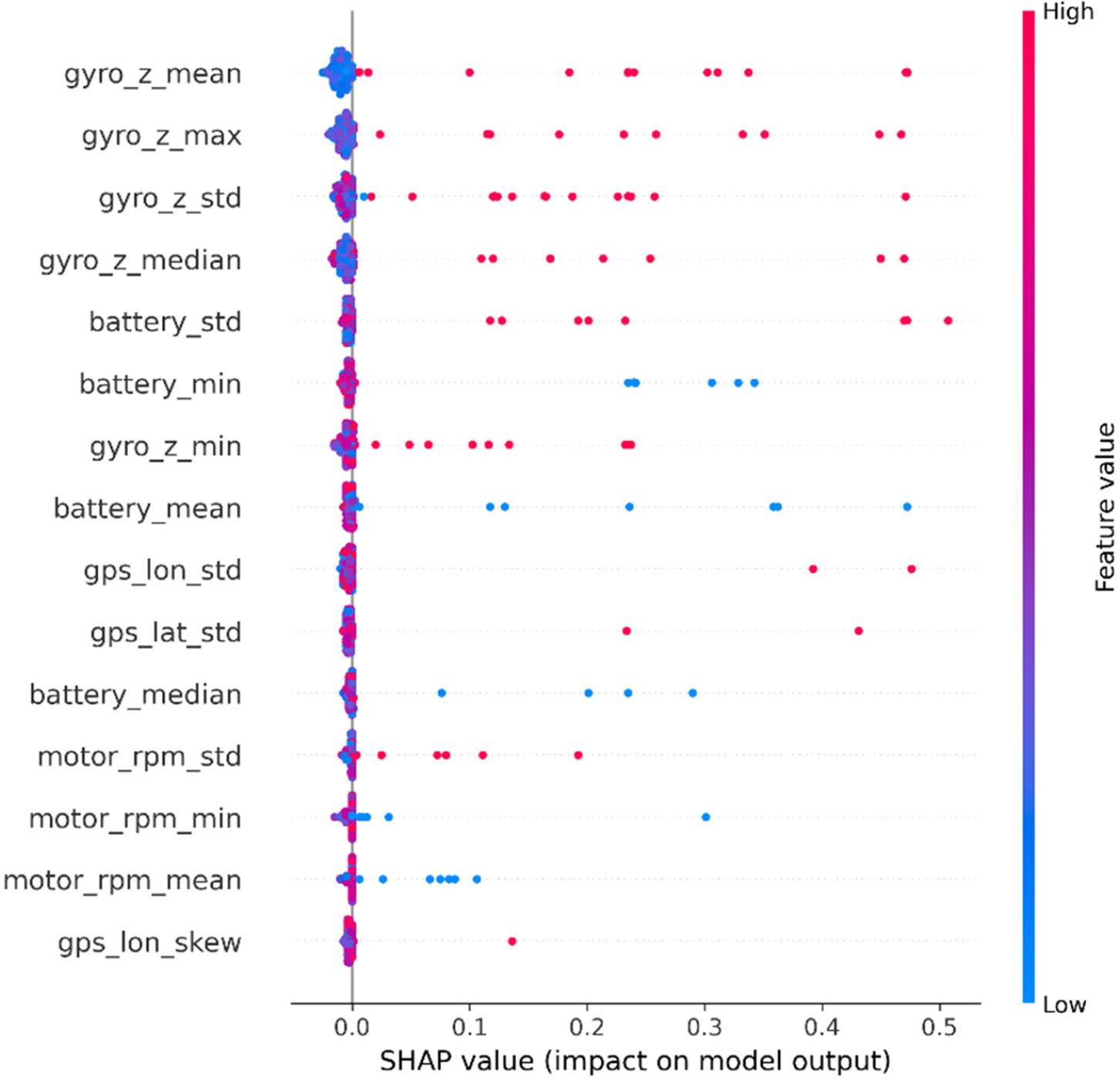

Fig. 7.

SHAP summary (beeswarm) plot illustrating the global contribution of each engineered feature to the Random Forest classifier’s decisions. Features related to gyro_z exhibit the highest Shapley magnitudes, confirming their dominant role in capturing IMU drift, while battery-voltage descriptors and GPS-variability metrics provide additional discriminative information for identifying sag events and positional anomalies. The colour gradient reflects the relative feature values within each window, enabling direct interpretation of how specific sensor behaviours influence fault likelihood.

Features derived from the gyro_z channel, particularly gyro_z_mean, gyro_z_std, and gyro_z_skew, exhibit the highest Shapley values, indicating that IMU drift produces the most statistically distinctive fault signature within the simulated dataset. Battery-related descriptors, including battery_min and battery_std, also demonstrate substantial contributions, reflecting their sensitivity to voltage sag dynamics. GPS-derived features contribute to a lesser extent, consistent with the transient and episodic nature of GPS anomalies. The colour gradient in the beeswarm plot illustrates how low and high feature values shift the predicted fault probability, enabling direct interpretation of the physical sensor behaviour underlying each prediction.

The observed ranking confirms that classification decisions are primarily driven by physically consistent subsystem responses. Overall, the SHAP analysis demonstrates alignment between model behaviour and known UAV degradation mechanisms, reinforcing the interpretability and engineering validity of the proposed framework.

The SHAP feature-importance bar plot shown in Figure 8 summarizes the mean absolute Shapley values for all 60 engineered features, providing a concise global view of the factors that most strongly influence the model’s predictions. Features derived from the gyro_z channel dominate the ranking, indicating that IMU drift yields the most distinct and consistently separable statistical signature within the constructed feature space. Battery-voltage descriptors – particularly features capturing minimum values and signal variability – appear next in importance, reflecting their high sensitivity to voltage-sag dynamics and their relevance to power-system degradation. GPS-related variability features also contribute meaningfully, though to a lesser extent, which is consistent with the short-duration and episodic nature of GPS anomalies. Overall, the ranked feature set demonstrates that the model’s decisions are primarily driven by sensor behaviours that are physically consistent with known UAV fault mechanisms. This alignment between feature importance and subsystem-level behaviour supports the interpretability of the proposed framework and reinforces its suitability for simulation-driven analysis and digital-twin-based fault-diagnosis studies.

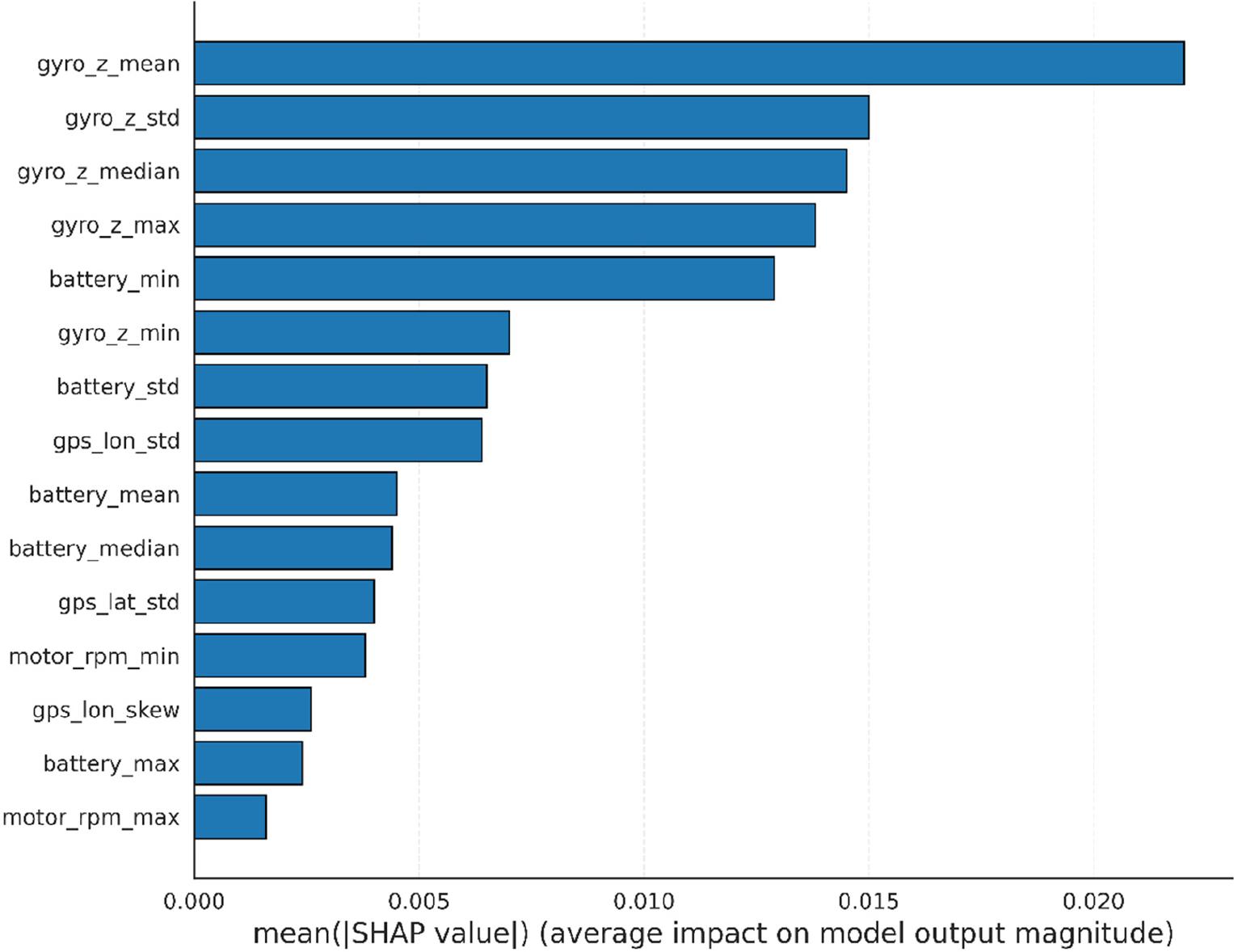

Fig. 8.

SHAP global feature-importance ranking computed from the mean absolute Shapley values across all test samples. Features associated with gyro_z exhibit the highest contributions, highlighting their dominant role in detecting IMU drift, while battery-voltage statistics and GPS-variability descriptors provide secondary yet meaningful influence on the classifier’s decisions. The ranking confirms that the model’s fault predictions are driven by physically interpretable sensor behaviours rather than noise or spurious correlations.

SHAP analysis provides detailed insight into the classifier’s decision mechanisms. The beeswarm plot (Figure 7) indicates that gyro_z_mean, gyro_z_std, and gyro_z_max contribute most strongly to prediction outcomes, confirming the model’s sensitivity to IMU drift. Battery-related descriptors also demonstrate substantial influence, reflecting their distinct statistical response to voltage sag events. Motor RPM–based features contribute at a moderate level, consistent with the progressive nature of propulsion degradation. Importantly, the ranking of feature contributions aligns with known subsystem fault mechanisms, indicating that model decisions are driven by physically consistent sensor behaviour rather than incidental statistical correlations. This agreement between learned feature importance and engineering expectations supports the interpretability and diagnostic validity of the framework in simulation-driven and digital-twin environments.

Table 4 compares the proposed framework with representative UAV anomaly-detection approaches reported in the literature. Many existing methods rely on:

• highly controlled laboratory datasets,

• single-sensor or narrowly scoped fault scenarios, or

• deep-learning architectures with limited interpretability.

In contrast, the present framework emphasizes:

• multimodal telemetry simulation,

• multi-fault and multi-timescale anomaly injection,

• interpretable statistical feature representation, and

• integrated SHAP-based explainability.

The primary contribution lies in the combination of interpretability, reproducibility, and structured multi-sensor analysis within a unified pipeline, rather than raw predictive performance alone. As shown in Table 4, the framework achieves performance comparable to existing approaches while providing enhanced transparency, making it particularly suitable for early-stage UAV system validation and explainable fault-diagnosis research.

Although the proposed framework demonstrates strong diagnostic performance and interpretability within the defined scope, several limitations should be acknowledged. First, the study is based on a physics-informed simulation environment for multi-sensor UAV telemetry generation. While the simulator incorporates realistic noise characteristics, subsystem coupling, and drift behaviours, it cannot fully reproduce the variability encountered during sustained outdoor flight operations. Environmental disturbances, aggressive manoeuvres, long-term component ageing, and hardware variability introduce complexities that extend beyond controlled simulation conditions. As is common in aerospace research, simulation-driven validation represents an early-stage development step that requires subsequent field-based verification. Second, the feature-engineering strategy prioritizes interpretability, computational efficiency, and compatibility with SHAP-based explainability. The selected statistical descriptors effectively capture dominant fault signatures; however, they may not represent high-frequency or fine-grained temporal dynamics that could be extracted using spectral, raw time-series, or deep temporal representations. This trade-off reflects a deliberate emphasis on transparency and traceability. Future work may explore hybrid feature representations or deep-learning-based temporal architectures while preserving interpretability. Third, the framework evaluates four representative fault modes: IMU drift, battery voltage sag, motor degradation, and GPS anomalies. Although these correspond to commonly reported and safety-relevant degradation mechanisms, real-world systems may experience compound or rare failure scenarios. The modular structure of the proposed pipeline allows integration of additional fault types as broader datasets and operational insights become available. Finally, SHAP provides post-hoc interpretability by attributing predictions to statistically meaningful sensor features at the window level. While this improves transparency, it does not replace formal verification or certification procedures required in regulated aerospace systems. Rather, it represents an intermediate step toward interpretable and certifiable learning-based diagnostics. Within these boundaries, the framework establishes a reproducible and extensible foundation for simulation-driven UAV fault-diagnosis research that can be incrementally expanded toward operational validation.

A primary limitation of the present study is the absence of real-flight telemetry for external validation. The scarcity of labelled UAV fault data is a practical constraint in this domain. Inducing faults such as battery collapse, IMU drift, or motor degradation during flight testing presents safety risks and potential hardware damage. Moreover, publicly available datasets are limited, often proprietary, or restricted to isolated sensor channels, precluding comprehensive multi-sensor analysis. Consequently, simulation-driven development is widely adopted for early-stage algorithm evaluation, enabling controlled and systematic exploration of multiple fault modes without compromising safety. The physics-informed telemetry generator used in this study enables controlled injection of representative anomalies across synchronized sensor modalities, supporting sensitivity analysis and interpretability assessment. Nevertheless, simulation cannot fully substitute for field validation. Future work will focus on acquiring multi-sensor real-flight datasets through supervised test campaigns, enabling hybrid validation in which simulation supports model design and field data confirm operational robustness.

To further evaluate the reliability of the proposed framework beyond baseline simulation settings, additional robustness and sensitivity analyses were conducted. These experiments assess how diagnostic performance responds to variations in noise intensity, temporal segmentation parameters, and fault severity. Such analysis is important in aerospace applications, where sensor uncertainty and operating conditions rarely remain constant.

In safety-critical aerospace systems, binary classification outcomes are insufficient without associated confidence measures. The Random Forest classifier inherently provides probabilistic outputs derived from the proportion of decision trees voting for each class. These probabilities offer an interpretable estimate of prediction confidence at the window level. Analysis of predicted probability distributions indicates that correctly classified windows typically exhibit strong confidence margins, with nominal windows clustering near low fault probabilities and faulty windows exhibiting high fault likelihoods. Misclassified or borderline cases generally occur near intermediate probability thresholds, reflecting reduced statistical separation in subtle or low-severity fault conditions. This probabilistic behaviour enables the incorporation of confidence-aware decision logic in operational contexts. For example, high-confidence fault predictions may trigger immediate alerts, whereas moderate-confidence cases may initiate secondary validation procedures or extended monitoring before corrective action. Such threshold-based strategies enhance safety alignment and reduce false-alarm propagation in real-world UAV deployments. By explicitly analysing prediction confidence, the proposed framework extends beyond deterministic classification and moves toward risk-informed diagnostic decision support, which is essential for aerospace reliability applications.

Although the framework is evaluated within a simulation-driven environment, its structure is designed with practical onboard implementation constraints in mind. Computational efficiency is maintained through lightweight statistical feature extraction. The selected descriptors (mean, standard deviation, extrema, median, skewness) involve simple arithmetic operations that scale linearly with window length and can be computed on resource-constrained embedded processors. The Random Forest classifier performs inference via tree traversal, resulting in limited computational overhead once the model is trained offline. In contrast to deep-learning architectures, deployment does not require GPU acceleration or large memory resources. The compact 60-dimensional feature representation further reduces storage and runtime requirements. Interpretability outputs can also be mapped to actionable health indicators. For instance, sustained elevation of gyro_z–related contributions may suggest progressive IMU drift requiring recalibration, while persistent battery-related contributions may indicate developing power-system degradation. Such structured attribution enables integration with higher-level health-monitoring and mission-management modules. Overall, these characteristics indicate that the framework is compatible with practical UAV diagnostic architectures. The combination of computational efficiency, interpretability, and stable predictive behaviour supports feasibility for real-time or near-real-time onboard health monitoring in small- and medium-scale UAV platforms.

Learning-based diagnostic systems deployed in aerospace applications must ultimately align with verification, validation, and certification requirements. Although formal certification analysis is beyond the scope of the present study, several structural characteristics of the proposed framework are consistent with safety-oriented development principles. First, the use of transparent statistical features enables traceability between sensor behaviour and diagnostic outcomes. Second, SHAP-based attribution provides explicit explanation of prediction drivers, supporting interpretability and auditability. Third, the modular architecture separating simulation, feature extraction, classification, and explainability facilitates structured validation at each processing stage. Such properties are important precursors to certification-aligned development, where reproducibility, interpretability, and controlled fault modelling are essential. While additional formal verification techniques and safety-case methodologies would be required for operational approval, the present framework establishes a foundation that is compatible with progressive certification-oriented refinement.
