Test Section Design for Measuring the Drag Coefficient of a Suborbital Rocket Model at Ma 2.45

The wind tunnel at the Institute of Fluid-Flow Machinery, Polish Academy of Sciences (IMP PAN) allows supersonic measurements to be performed in test sections with a maximum cross-section of 350 mm × 100 mm.

At the inlet side of the test section, ambient conditions are present, while on the outlet side very low pressure is achieved using vacuum tanks. The low pressure in the vacuum tanks is obtained using pumps, but their power is insufficient to provide continuous operation. Thus, for consecutive measurements the pressure in the vacuum tank has to be reduced again using pumps. This results in a fixed measurement time dependent on the mass flow in the test section.

The wind tunnel allows for the installation of converging/diverging (CD) nozzles to achieve the region with supersonic speed, where models can be placed for measurements. Given the available vacuum tank volume and the scale of the model (see Section 2.3), the CD nozzle was designed using the method of characteristics [14].

The flow velocity achieved in the test section corresponds to Ma=2.45. For such Mach number, the static pressure and temperature in the test section were 6 kPa and 130 K, respectively. The maximum measurement time for such a configuration, given the vacuum tank volume, was 10 seconds for an empty test section and 2.5 seconds with the model installed, due to increased losses. A numerical model replicating the test section was designed, confirming the values obtained with the method of characteristics, and was further used for in designing the model support.

The rocket model used in this study was scaled down to 1:50 of the original size. The initial length of the model rocket was 200 mm, with a body tube diameter of 10 mm. After initial simulations the model was shortened to 180 mm (while maintaining the same diameter), due to reflected shock interaction (described in depth in Section 2.4). The model also had 4 fins with a span of 6.5 mm, a root chord length of 19 mm, a tip chord length of 8 mm, and a thickness of 0.2 mm. Three models were built with different nose configurations. The nosecone geometry is confidential, but it can be revealed that they were of the Von Karman and Ogive types with a length-to-diameter ratio (l/d) of 3.1.

The design of the test section was aided by numerical simulations, described in this section.

The simulations were carried out using the finite volume solver Numeca/Fine Open. The method is based on governing equations derived from the principles of mass (Eqn. 1), momentum (Eqn. 2), and energy conservation (Eqn. 3), all shown here after Favre averaging: 1∂ρ¯∂t+∇ρ¯U˜=0{{\partial \bar \rho } \over {\partial t}} + \nabla \bar \rho \tilde U = 0 2∂ρ¯U˜∂t+∇(ρU˜U˜)=−∇p¯+∇(μ∇U˜)−∇ρ¯u′u′¯{{\partial \bar \rho \tilde U} \over {\partial t}} + \nabla (\rho \tilde U\tilde U) = - \nabla \bar p + \nabla (\mu \nabla \tilde U) - \nabla \overline {\bar \rho u'u'} 3∂ρ¯e˜∂t+∇(ρ¯U˜e˜)=∇α∇e˜−∇(ρ¯u′e′¯){{\partial \bar \rho \tilde e} \over {\partial t}} + \nabla (\bar \rho \tilde U\tilde e) = \nabla \alpha \nabla \tilde e - \nabla \left( {\overline {\bar \rho u'e'} } \right)

This formulation of the conservation equations introduces the Reynold stress tensor, which is unknown, thus necessitating the use of the Reynolds Averaged Navier-Stokes (RANS) method. In the RANS method, to solve the system of equations, the Reynold stresses are modeled using one of the available turbulence models. The Spalart-Allmaras model [15] was selected in this work due to its known effectiveness in predicting boundary layer development, which is crucial for force prediction on a body [16].

The entire test section was recreated using a full 3D model. A hybrid numerical mesh is generated in the computational domain (Fig. 1), which was split into three zones: the part upstream of the rocket body, a middle section including the body, and the downstream part. The inlet cavern, nozzle, and outlet cavern were meshed with block-structured, hexahedral mesh using Numeca/IGG. Hexahedral structured meshes are well-posed for meshing simple geometries using a minimal number of elements, while maintaining good mesh quality. However, creating a structured mesh for more complex geometries is challenging. Therefore, an unstructured hexahedral mesh, created in Numeca/Hexpress, was used in the middle zone where the rocket model was placed. The total mesh consists of 7.5 million hexahedral cells.

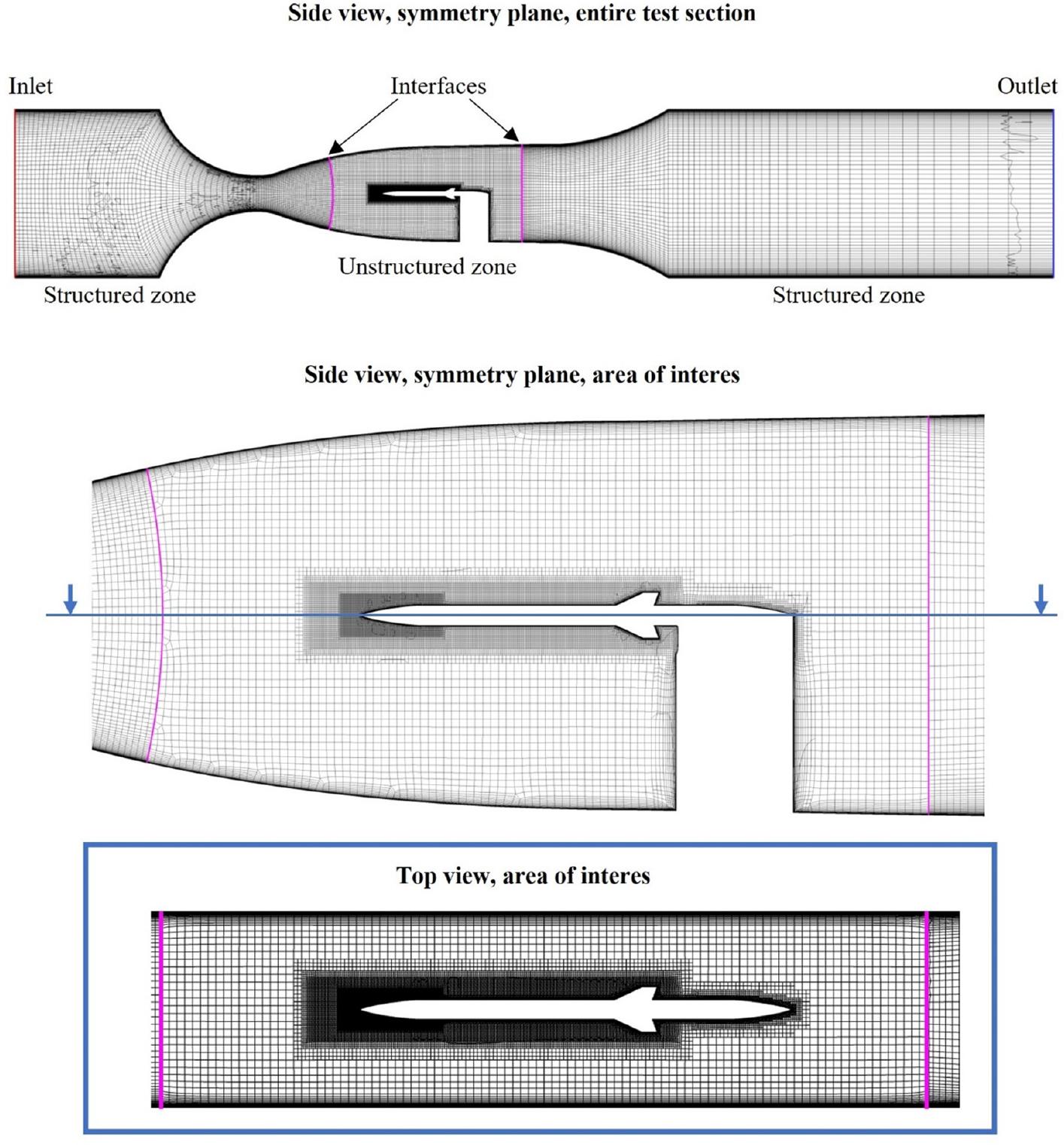

Fig. 1.

Grid used for numerical simulations. The boundary conditions are presented.

Since the three zones are meshed with different methods, a non-conformal connection is used at the interface. Despite unavoidable differences between the elements on both sides of the interface, the mesh in both neighboring zones was generated such that their sizes were very similar on both sides (Fig. 1). This similarity makes the interpolation of fluxes at the interface more robust.

Second-order central discretization is used with artificial dissipation for convective terms, and a multigrid method (Full Approximation Storage Approach), including coarse grid initialization with 4 levels, is used to accelerate a solution convergence.

The atmospheric conditions are set at the inlet: total pressure of 100 kPa, total temperature of 297 K, and turbulent viscosity ratio of 1. At the outlet the supersonic condition was set, extrapolating the necessary values from the interior. The medium was set as an ideal gas, with viscosity specification according to Sutherland’s law [17].

The requirements for the force sensor were quite stringent. It needed to measure low-value forces with low error and withstand high model vibration, necessitating durability. This meant that the forces in the direction normal to the flow could be significantly larger before and after the measurements than those predicted by numerical simulations for Ma=2.45. Force sensors typically have a maximum allowable force, and exceeding this can cause damage. Ideally, the sensor would measure forces and moments in all three axes. It was also crucial that the sensor did not interfere with the flow when coupled with the rocket and the support.

Market research revealed that available force sensors could not meet all these expectations, so some trade-offs were necessary. Two possible approaches were considered:

• 1)

  a three-axis force sensor mounted in the test-section floor, measuring forces acting on the rocket and the support.

• 2)

  a one-axis force sensor mounted between the rocket model and the support.

The dimensions of the one-axis sensor were ideal for the rocket model – its diameter is equal to the diameter of the model body tube, allowing for easy incorporation within the support. Such a sensor is less prone to failure if the values of normal forces are significant. The obvious drawback of such a configuration is the measurement of only one component of force.

There are no 3-axis force sensors available in the market that are small enough to fit between the rocket model and the support. Thus, mounting the sensor on the floor of the test section, at the base of the support, was considered. This would allow measurement of all three forces and moments. However, this setup would include the support in the force measurements, complicating the detection of small differences between the tested configurations. On the other hand, the measurements could be used for numerical model validation, allowing the various configurations to be tested there. Another issue is that this sensor has low maximum allowable forces (especially in the direction perpendicular to the flow), so it would be very susceptible to failure.

After weighing the advantages and disadvantages , the one-axis sensor was selected. It provides robust measurements of the most critical characteristic – axial force. The selected sensor was the XFTC300-10:

• Measurement range: 0–10 N

• Accuracy: ± 0.05 N

• Sampling frequency: 1000 Hz

The selection of the sensor facilitated the design of the support structure. The most important criterion was the size of the support. If the size (width) is too large the flow is choked and the required conditions in the test section are not achieved. Additionally, the support had to incorporate the wiring needed for the sensor.

The first design of the support (Fig. 2) was prepared and tested using the numerical model of the test section. The width of the support was 10 mm (equal to the model diameter), allowing for a relatively straightforward connection of the necessary wiring. Notably, this width equals 10% of the wind tunnel width in the test section.

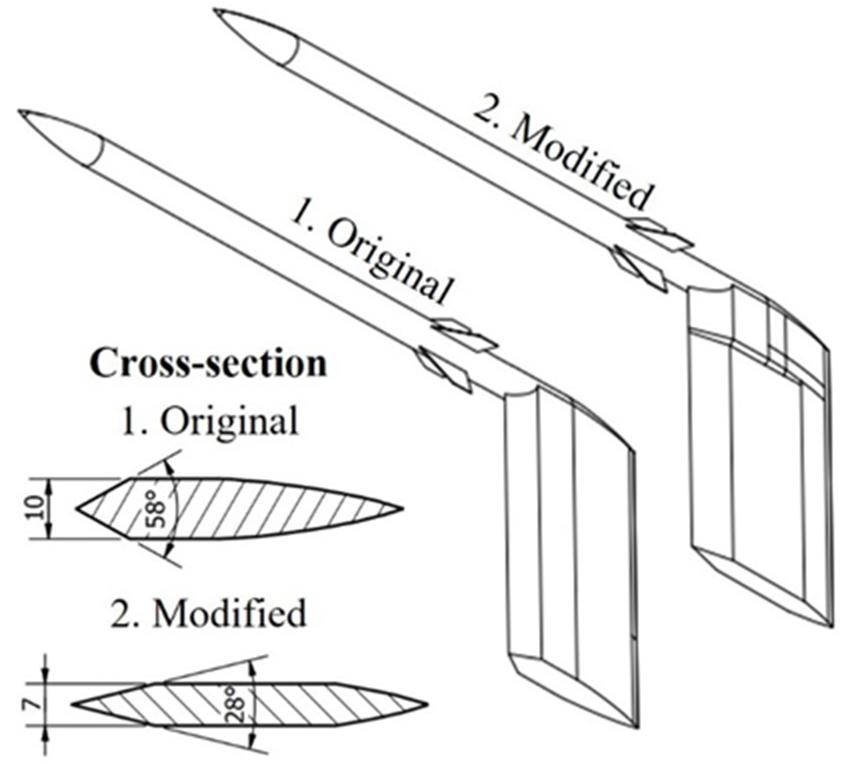

Fig. 2.

The sketch of the original and modified support, including the cross-section.

Numerical simulations revealed that the initial support design introduced a high blockage, preventing the required Mach number from being reached (Fig. 3). To address this, a new support design with a lower width (7 mm) and modified geometry of the leading edge was proposed. The leading edge angle was adjusted to generate more oblique shock waves. Simulations showed that the new design reduced blockage, enabling the test section to achieve the desired Ma=2.45. The original width was preserved at the top of the support to accommodate the sensor and wiring (Fig. 2).

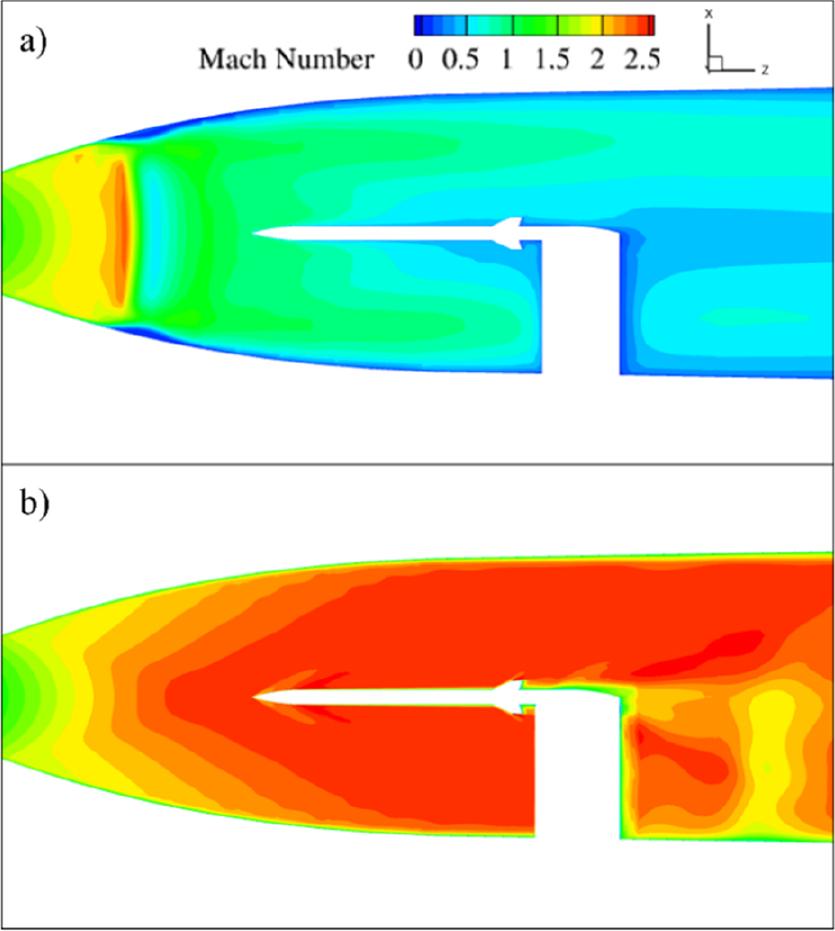

Fig. 3.

Mach contour plot for configurations with original support (a) and thin support (b) – side view.

The improved support, located within the supersonic region, generates a shock structure. Although the shock is not directly visible in Fig. 3b, as it is located outside of the central plane, it is shown on Fig. 4, where the Mach number contour at half of the support span is presented. Several interesting features, less critical for drag measurement but still noteworthy, can be observed. Firstly, boundary layer separation is present where the oblique shock interacts with the boundary later – happening on both sides of the tunnel, each time the shock interacts with the boundary later. Secondly, higher-velocity zones are created where the shocks reflected from both walls interact with each other in the middle of the tunnel.

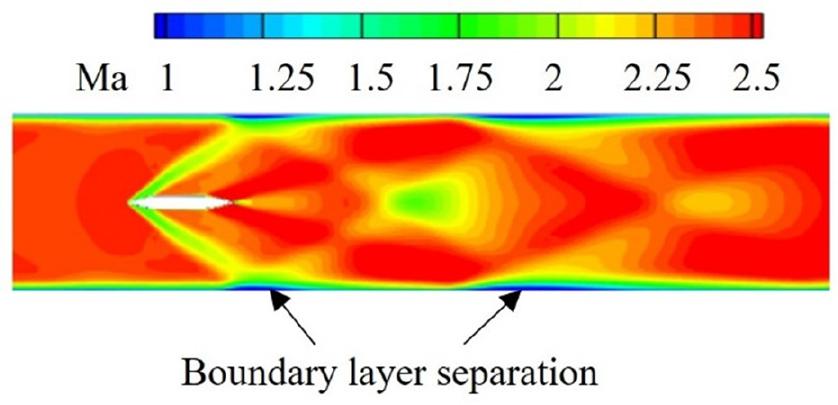

Fig. 4.

Mach number contour downstream of the support. Cross-section at half of the support span.

However, a low-velocity region downstream of the support is noticeable, where those shockwaves interact after reflection from the wind tunnel sidewalls. Such interaction creates a three-dimensional flow structure downstream of the support but does not create instabilities or unsteady effects on the model located upstream.

Initial simulations allowed for analysis of the shock wave structure in the test section using the density gradient magnitude (Fig. 5). The scale range was selected to visualize the shock structure near the model. Noticeably, the shock generated at the nose of the model reflects from the side walls and impacts the model near the fins.

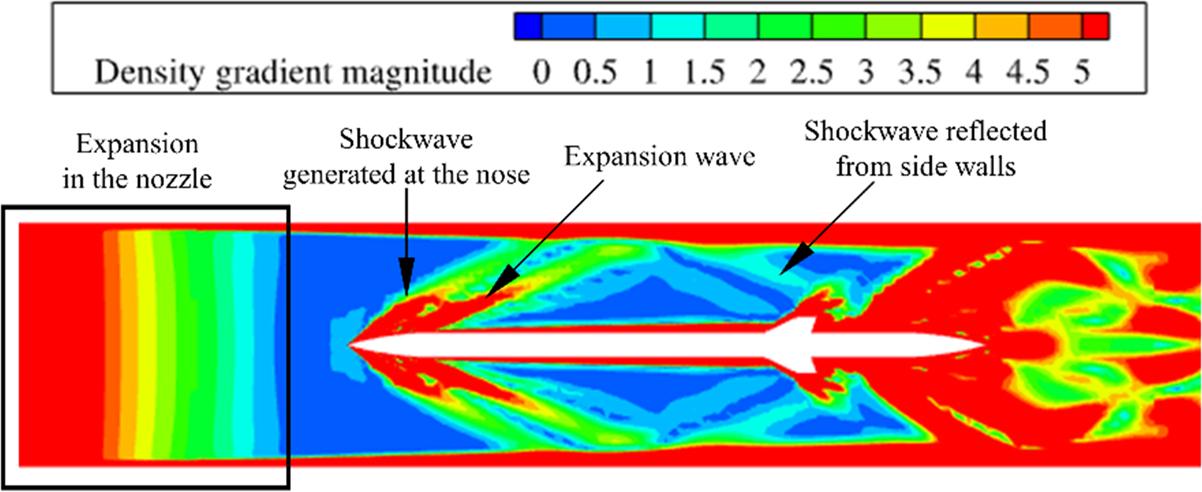

Fig. 5.

Density gradient magnitude for the model with original length – top view.

Such a situation is undesirable, as the shock can significantly impact the flow in that region, interfering with the pressure distribution of the model and affecting the measured drag. Given that the main goal of the study was to compare the nose geometry, the mitigation strategy chosen was to slightly reduce the length of the body tube by 20 mm. This changes the scale of the model, which is no longer consistent with 1:50 in all directions. The nosecone, fins, and diameter are still on a 1:50 scale, while the length of the body tube is not. This modification moves the shock wave reflection downstream, allowing the reflected shock to pass by the model.

First, the pressure distribution at the top and bottom walls of the tunnel were compared for simulations and measurements (Fig. 6). The comparison shows very good agreement, with a decrease in wall pressure observed up to 400 mm from the throat.

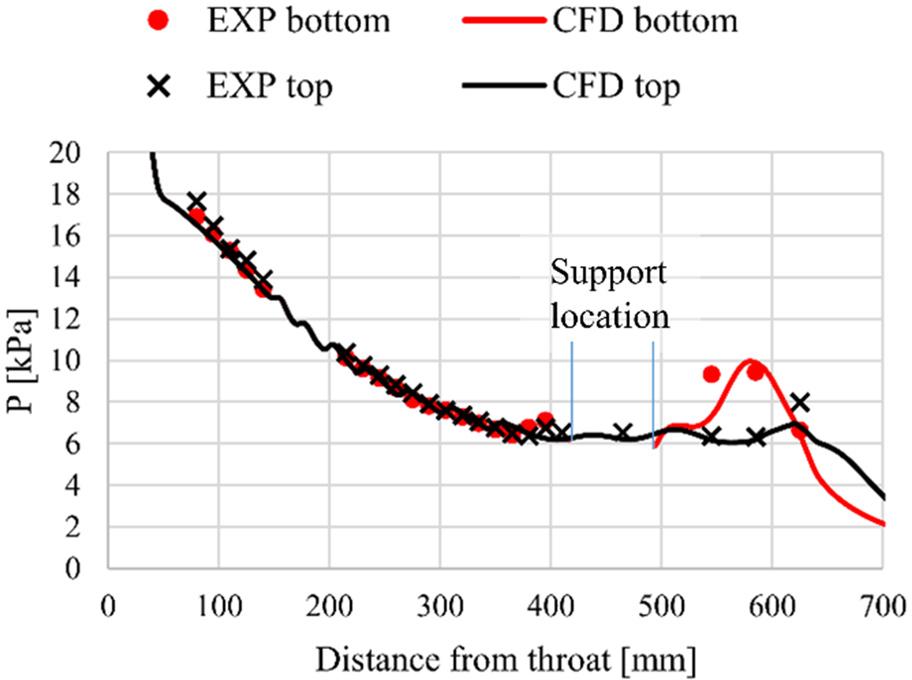

Fig. 6.

Pressure at top and bottom walls, measurements (EXP) and simulations (CFD).

On the bottom wall, the presence of the support is visible, with an increase of pressure in the wake downstream of the support. This effect is seen in both measurements and simulations. The results from the top wall show a constant pressure zone between 400 and 600 mm from the throat, which indicates that there is a constant velocity zone as well, which was one of the main design criteria for the nozzle.

In addition to force and wall pressure measurements, schlieren visualizations were performed during the experiment (Fig. 7) to analyze the shock structure and compare with numerical simulations to validate the model. The schlieren images show waves in the test section representing compression or expansion. Weak waves can be seen from the left, top, and bottom, generated by the geometry imperfections at the nozzle throat. Slight discontinuities at the top and bottom walls of the nozzle, which result from machining and cannot be detected visually or tactilely, caused two pairs of weak waves seen in Fig. 7.

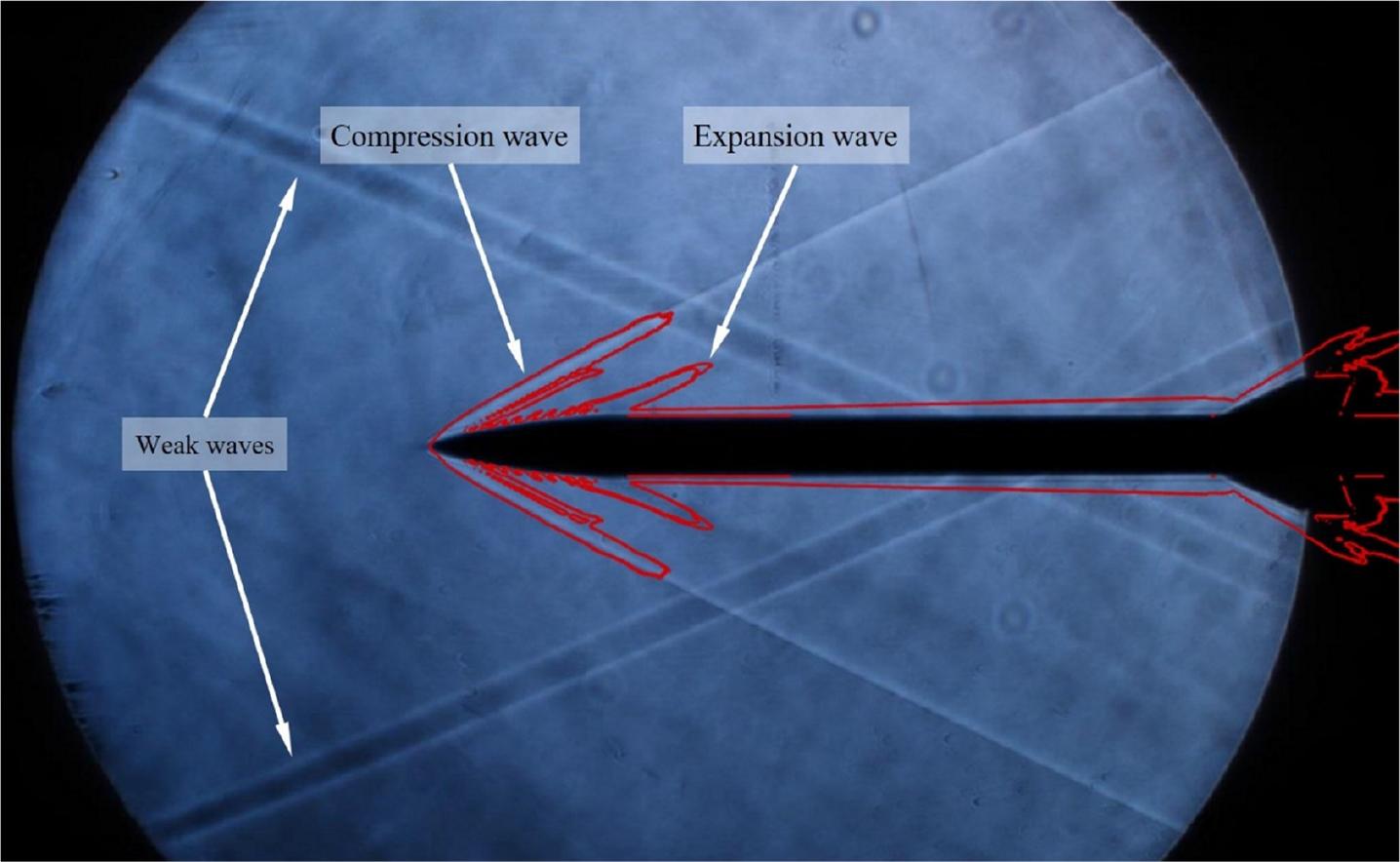

Fig. 7.

Schlieren visualization for configuration “Nose 2”. Red lines are the iso-surface of the density gradient magnitude of 5 kg/m4.

The oblique shock wave generated at the nose of the rocket model was compared to simulation results by plotting an iso-surface of the density gradient magnitude on top of the schlieren picture. This comparison shows that the shock angle predicted by the numerical model is consistent with measurements. The shock wave in the numerical simulations disappears after a short distance from the nose, due to a lower density gradient in this zone due to decreasing grid resolution away from the model rocket. However, the reduced mesh resolution does not affect the prediction of forces on the body. Moreover, the reflected shock from wind tunnel walls does not interact with the model, which was achieved by adjusting its length.

Additionally, the expansion wave can be seen in the schlieren as a slightly darker region, its location conforming with the location of the expansion wave from numerical simulations.

Force measurements were performed for three rocket models with varying nosecones, as described in Section 2.3. Ten consecutive measurement runs were performed for each configuration. Each measurement run consisted of a speed-up phase, where the flow was accelerated and stabilized, and after achieving the required Mach number, force measurements taken for 2.5 seconds, followed by a gradual velocity decrease due to pressure increase in vacuum tanks downstream of the test section.

During the speed-up phase, model vibration occurred due to the flow separation in subsonic and transonic conditions. However, after achieving the required flow conditions and Mach number, the vibrations decreased and the force stabilized at a certain level. Finally, the instantaneous force measurements for various nose configurations were time-averaged and compared with numerical simulations. The unsteady effects caused discrepancies between the consecutive runs, for which a standard deviation of up to 3.4% was recorded.

The force measurements are presented using non-dimensional drag coefficient C_D (Eqn. 4). The reference area assumed for calculation was the frontal area of the rocket model (including fins, but not the support).4CD=2·Fρ·A·v2{C_D} = {{2\cdotF} \over {\rho \cdotA\cdot{v^2}}}

The drag coefficient CD shown in Fig. 8 presents the mean value from 10 measurements. An error bar denotes the highest and lowest value obtained for each case. In the case of the investigated Mach number, the configuration with the “Nose 2” cone shape proved to be the most effective, with drag 35% lower than the “Nose 1” configuration and 15% lower than the “Nose 3” configuration.

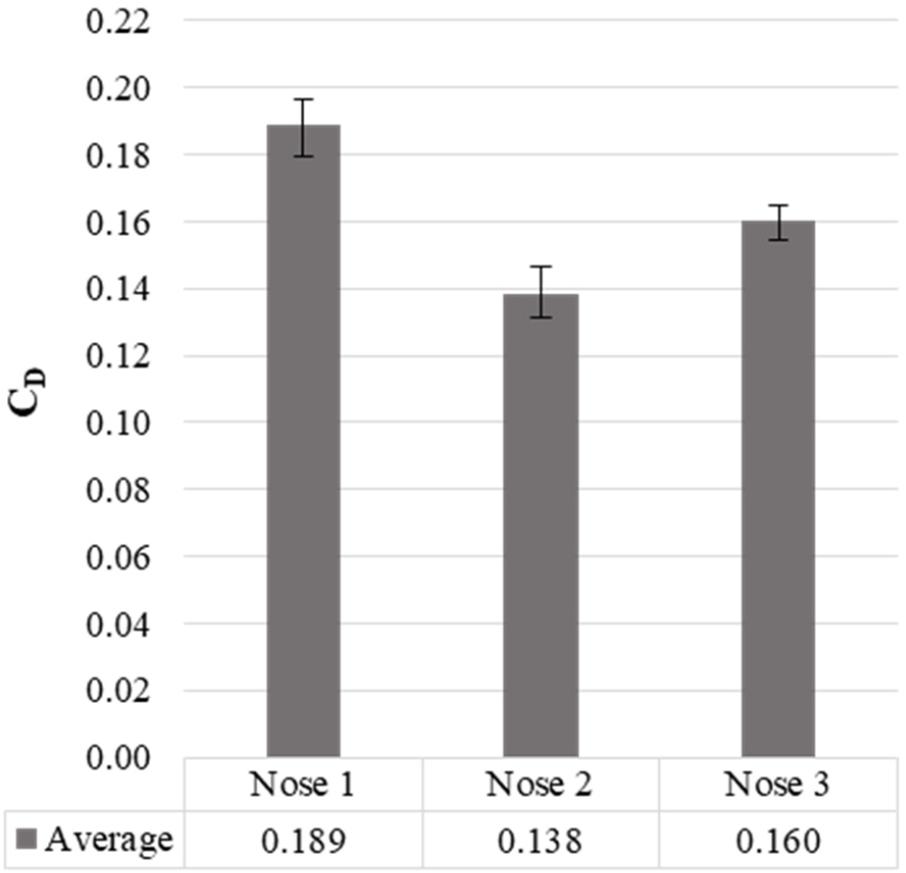

Fig. 8.

Drag coefficient for three nose configurations.

Numerical simulations are presented for one of the configurations – “Nose 2”. The drag coefficient C_D obtained from simulations was significantly larger than the measurement – C_D=0.568. The sizeable discrepancy merits further investigation, especially considering the good agreement between predicted and measured pressure distribution and visualized shock wave structure.

Since there was a significant discrepancy between measured and calculated results, an empirical formula was used to calculate the drag coefficient of a cone with the same angle as the nosecone used. While the actual shape of the nosecone is more complex than a simple cone, the result provides a point of comparison indicating which result is closer to the truth. The formula used was [18]: 5CD=(0.083+0.096Ma2)(σ10)1.69{C_D} = \left( {0.083 + {{0.096} \over {M{a^2}}}} \right){\left( {{\sigma \over {10}}} \right)^{1.69}} where: Ma is the Mach number and σ is the cone angle in degrees. The σ angle was calculated from the nosecone length (l) and diameter (d) as follows: 6σ=tan−1(dl)\sigma = {\tan ^{ - 1}}\left( {{d \over l}} \right)

The C_D resulting from the empirical formula, accounting only for the pressure drag, was equal to 0.26. This is more consistent with simulation results, where the C_D (from pressure drag and friction drag) obtained was equal to 0.568.

During the measurements, it was noticed that the model axis deflects slightly upwards when the flow is present. This may cause the one-axis sensor to pick up only a part of the axial force acting on the model. The preferred mitigation strategy is to repeat the measurement using a sensor that records forces in all directions. As described in section 2.4, the selection of the force sensor was an inherent part of the support design, so it is not possible to change the sensor type and repeat the measurements without significant support redesign.

Based on the numerical simulation results, the contribution of the rocket sectors on the drag can be evaluated. It was found that 65% of the drag is generated by the nosecone, 23% by the body tube, and 12% by the fins. This shows that the nosecone is the dominating source of drag, and it is essential to use optimal geometry to reduce it. Moreover, drag is very sensitive to the nose geometry, and one of the reasons for differences in drag prediction by numerical simulations could be small deviations between the CAD and manufactured models.
