Figure 1

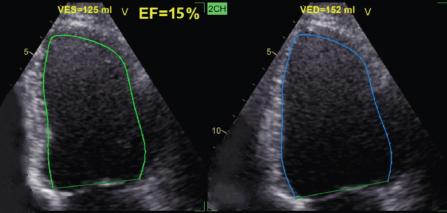

Transthoracic Echocardiography at admission – Apical two-chamber view of the dilated left ventricle with a calculated ejection fraction of 15%.
Figure 2

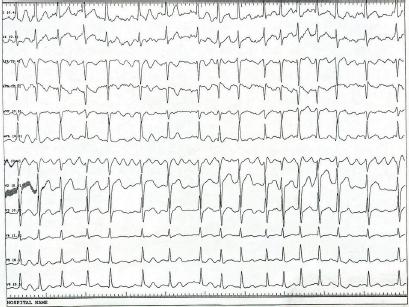

Preprocedural electrocardiogram showing atrial fibrillation.
Figure 3

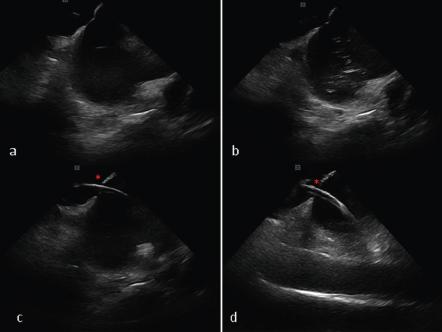

Intracardiac Echocardiography (ICE) image capturing the moment of transseptal puncture (a – tenting of the fossa ovalis upon contact with the needle; b – injection of saline bubbles confirming needle placement in the left atrium; c,d – transseptal sheath insertion). Red asterisk (*) showing the sheath through the interatrial septum.
Figure 4

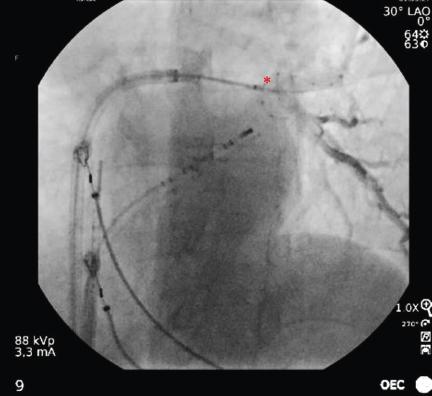

Intraprocedural fluoroscopy image showing contrast medium into the lumen at the tip of the balloon (red asterisk) that confirms left inferior pulmonary vein occlusion.
Figure 5

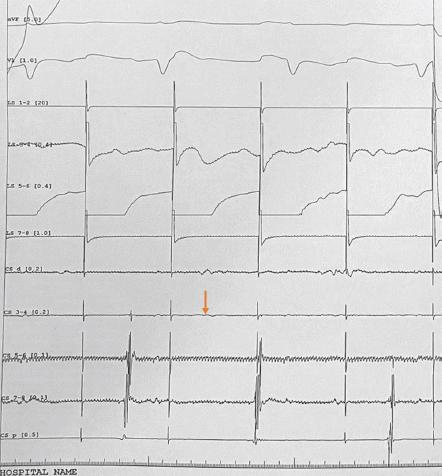

Intraprocedural Electrogram demonstrating exit block (orange arrow showing absence of conduction to the atria after pacing from the left inferior pulmonary vein).
Figure 6

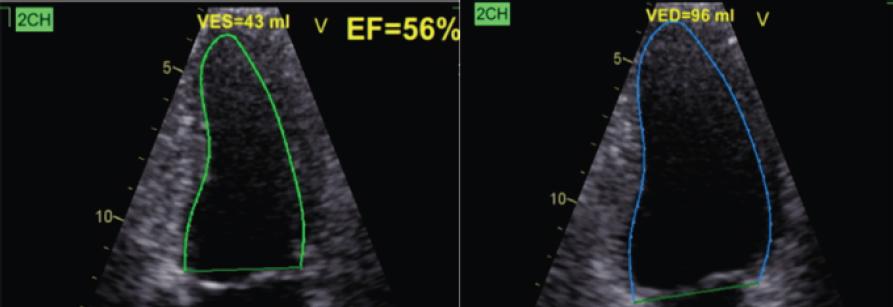

3-month Follow-up Transthoracic Echocardiography – Apical two-chamber view of the left ventricle showing a calculated ejection fraction of 56% and significant reverse remodelling.
