Effect of magnetic treatment of mixing water on the behavior of cement-based materials: A review Cover

Effect of magnetic treatment of mixing water on the behavior of cement-based materials: A review

Materials Science-Poland
Volume 41 (2023): Issue 3 (September 2023)
By:
Open Access
|Dec 2023
Figures & tables

Figures & Tables

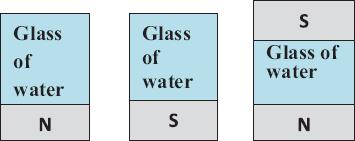

Fig. 1.

Different methods of magnetic treated water by poles: north pole (N), south pole (S), and bipolar (N-S)

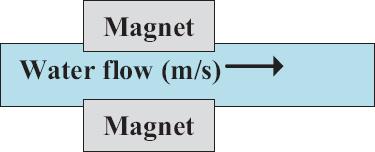

Fig. 2.

Magnetic treatment by means of passing water through a magnetic field

Table 1.

Effect of MTMW on compressive strength of cement-based materials

ReferencesIncrease (+) or decrease (-) in compressive strength at 28 days (%)
Al-Safy et al. [37]+0.05 to +22.47
Yousry et al. [36]+60 at 56 days age
Abdel-Raouf et al. [34]−26
Malathy et al. [25]+24.1
Keshta et al. [59]+23
Ahmed et al. [44]+80
Table 2.

Effect of MTMW on splitting tensile and flexural strength of cement-based materials

ReferencesIncrease in splitting tensile strength (%)Increase in flexural strength (%)
Keshta et al. [59]2024
Ahmed et al. [44]9822
Sevim et al. [38]44–
Karthik et al. [28]5–
Zhao et al. [43]–31
Reddy et al. [15]1815
Salehi et al. [64]9–

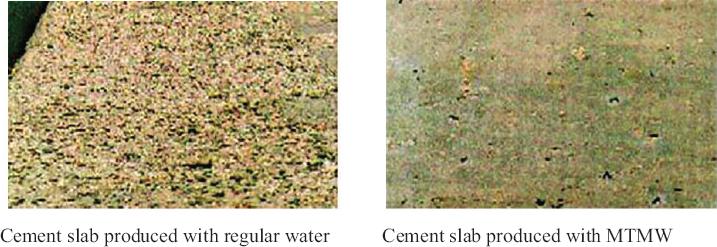

Fig. 3.

Cement slabs on highway exposed to a wide range of temperature changes (summer up to 40°C, winter down to − 40°C) after one year [69]

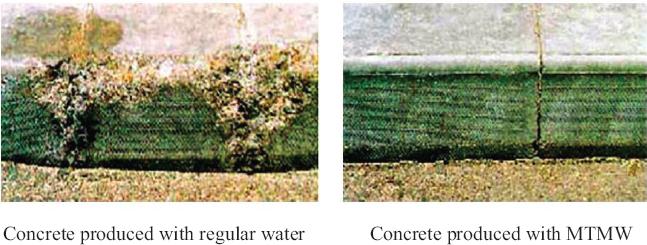

Fig. 4.

Highway precast pavement after three years [69]

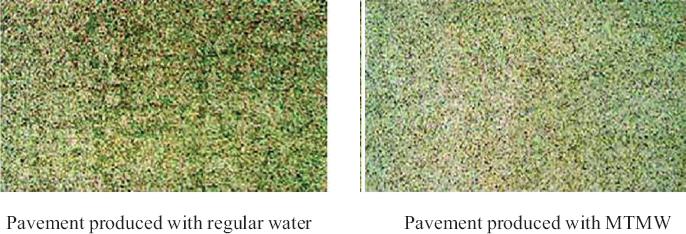

Fig. 5.

Change in the cement pavement after five years [69]
