Microplasma spraying of hydroxyapatite coatings on additive manufacturing titanium implants with trabecular structures Cover

Microplasma spraying of hydroxyapatite coatings on additive manufacturing titanium implants with trabecular structures

Materials Science-Poland
Volume 40 (2022): Issue 4 (December 2022)
By: Albina Kadyroldina,  Darya Alontseva,  Sergey Voinarovych,  Leszek Łatka,  Oleksandr Kyslytsia,  Bagdat Azamatov,  Aleksandr Khozhanov,  Nadezhda Prokhorenkova,  Almira Zhilkashinova and  Svitlana Burburska
Open Access
|Mar 2023

Figures & Tables

Fig. 1

Specimens of titanium trabecular substrates: detail of the endoprosthesis of the intervertebral disk (A); honeycomb structure (B)
Specimens of titanium trabecular substrates: detail of the endoprosthesis of the intervertebral disk (A); honeycomb structure (B)

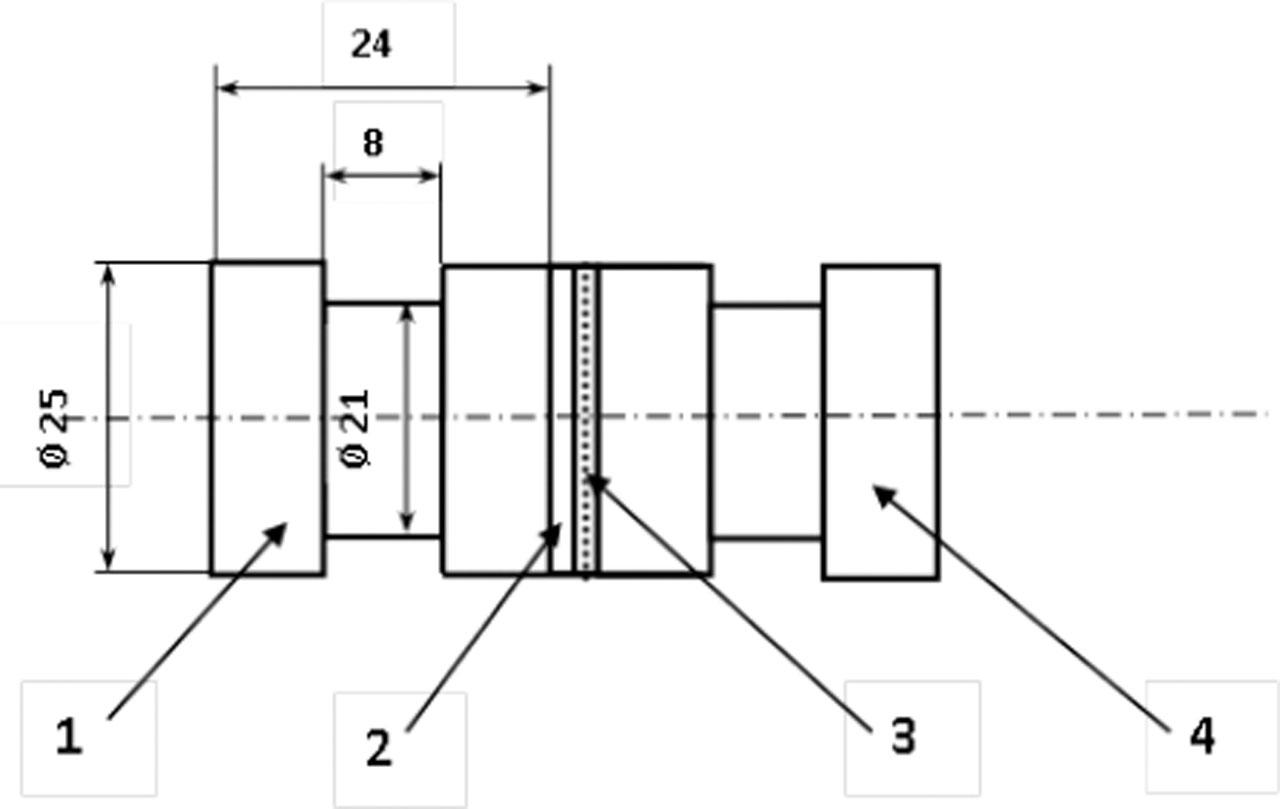

Fig. 2

Schematic representation (with dimensions in centimeters) of the assembled test assembly for testing the adhesion strength of coatings to a substrate: 1 — specimen No. 1; 2 - sprayed coating; 3 - a layer of adhesive bonding agent (a layer of glue); 4 – specimen No. 2
Schematic representation (with dimensions in centimeters) of the assembled test assembly for testing the adhesion strength of coatings to a substrate: 1 — specimen No. 1; 2 - sprayed coating; 3 - a layer of adhesive bonding agent (a layer of glue); 4 – specimen No. 2

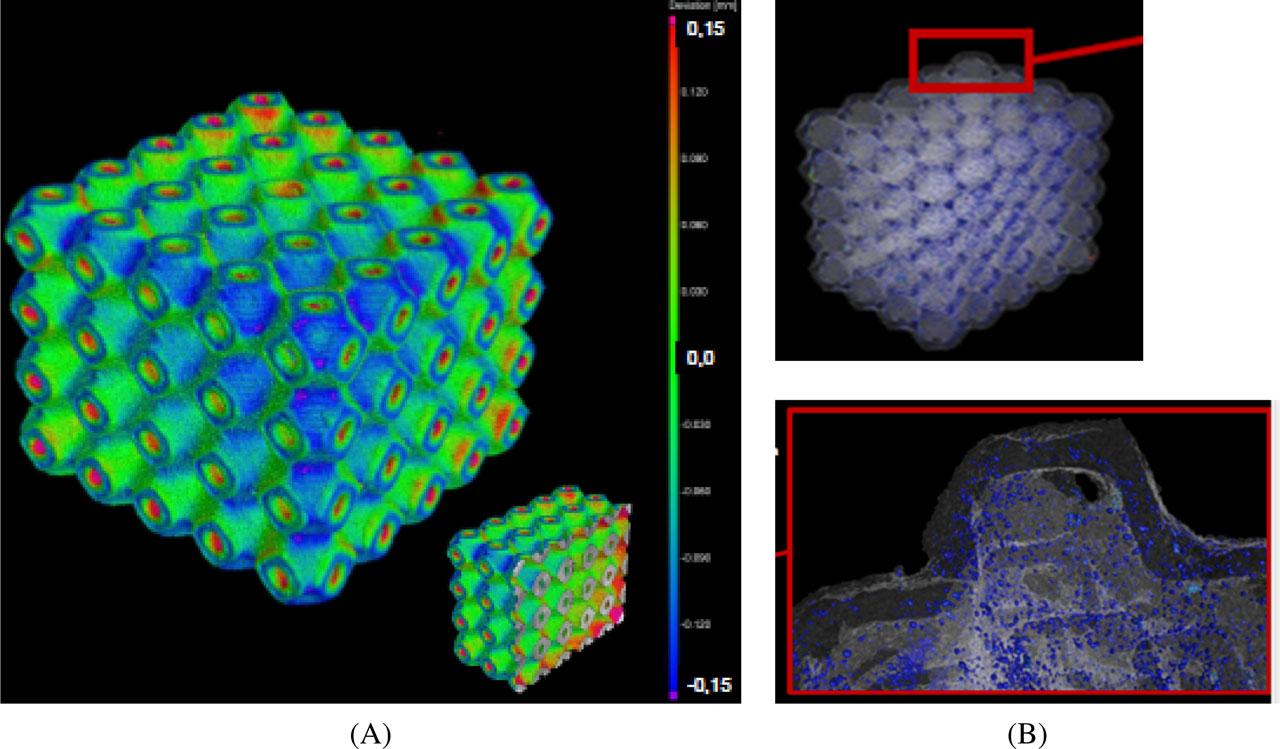

Fig. 3

Results of automated analysis with a color map of the deviations of a real specimen with a honeycomb structure from its stereolithographic (stl) model (A); visualization of the distribution of pores on a translucent three-dimensional model (B)
Results of automated analysis with a color map of the deviations of a real specimen with a honeycomb structure from its stereolithographic (stl) model (A); visualization of the distribution of pores on a translucent three-dimensional model (B)

Fig. 4

Results of automated analysis of the porosity of a specimen with a honeycomb structure; the arrows indicate the largest defect found at the indicated point
Results of automated analysis of the porosity of a specimen with a honeycomb structure; the arrows indicate the largest defect found at the indicated point

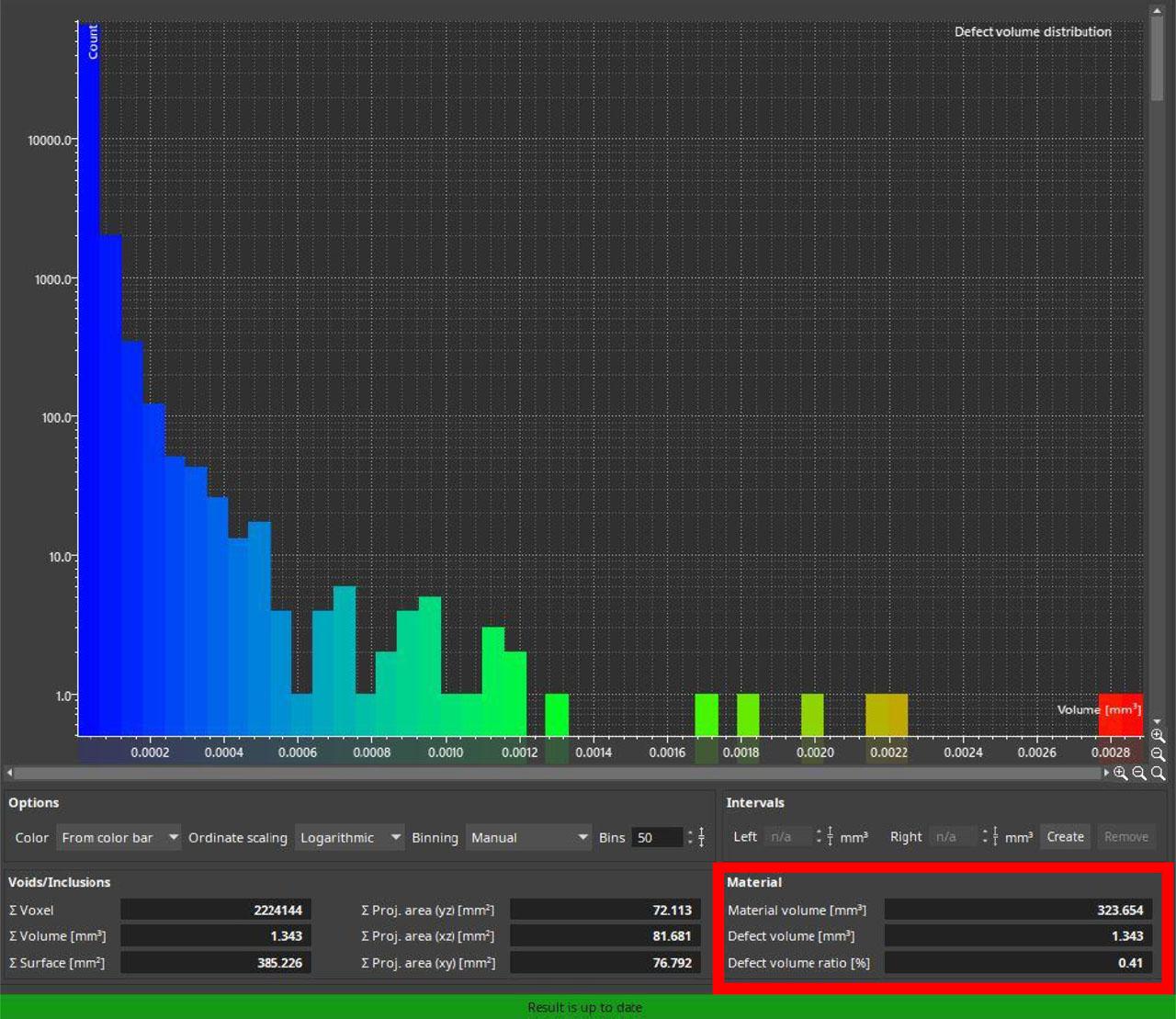

Fig. 5

Results of statistics on the analysis of the porosity (number of pores by volume) of a specimen with a honeycomb structure; statistics circled in red frame
Results of statistics on the analysis of the porosity (number of pores by volume) of a specimen with a honeycomb structure; statistics circled in red frame

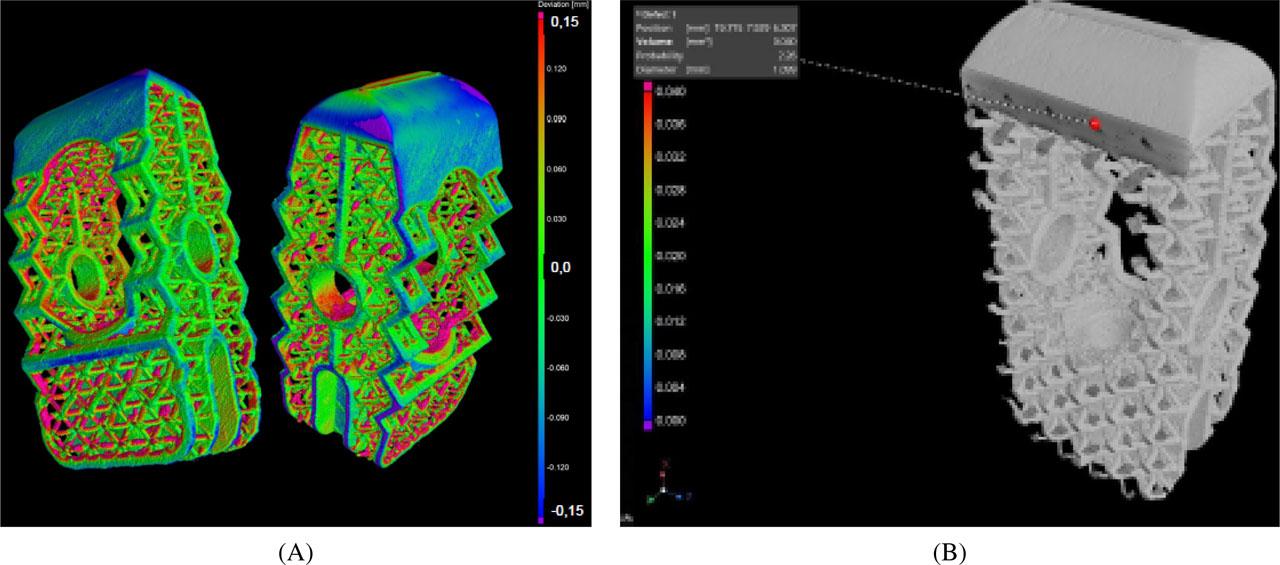

Fig. 6

Results of automated analysis with a color map of deviations of a real part of the endoprosthesis from the stereolithographic (stl) model (A); the largest defect found (B)
Results of automated analysis with a color map of deviations of a real part of the endoprosthesis from the stereolithographic (stl) model (A); the largest defect found (B)

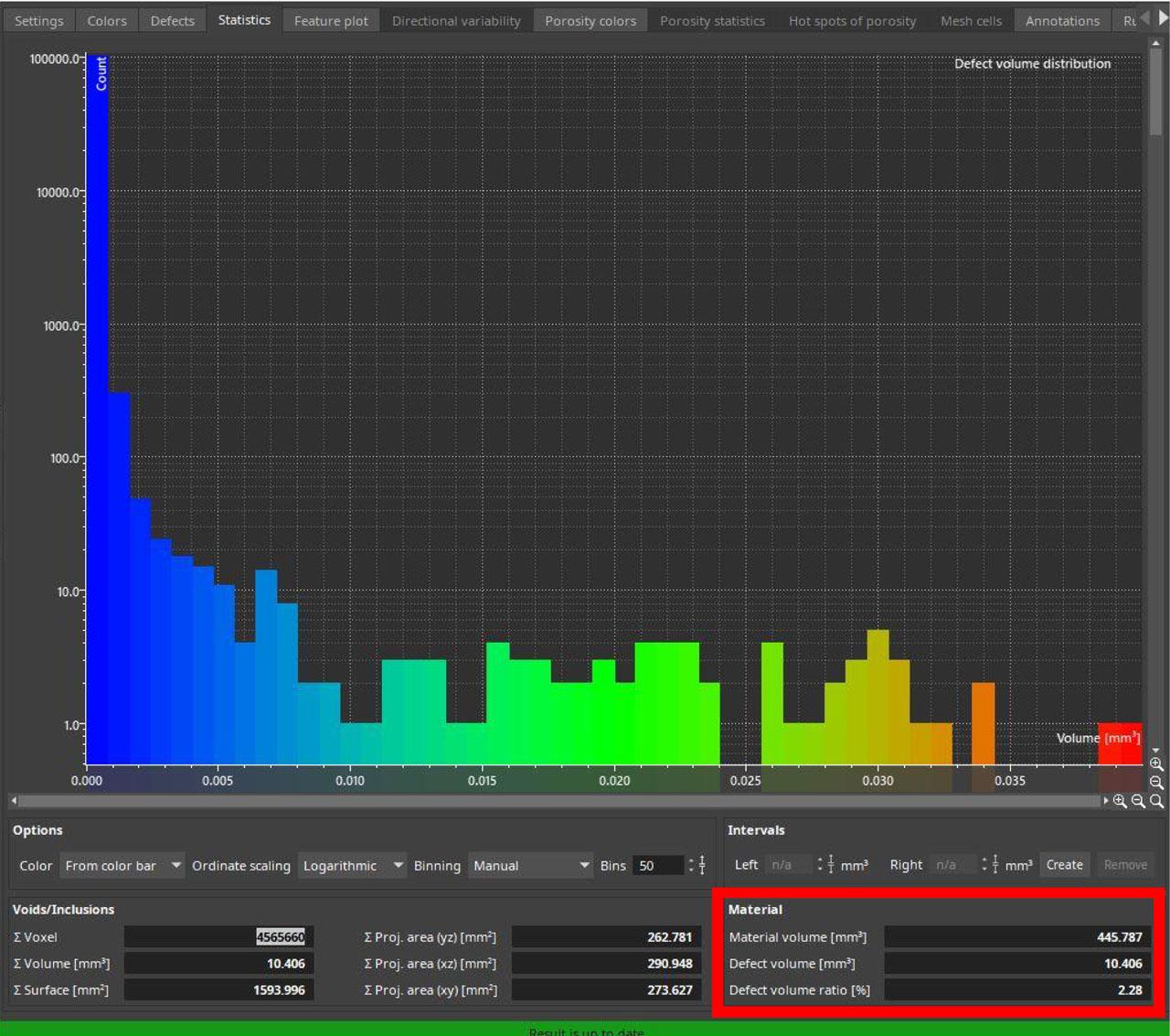

Fig. 7

Results of statistics on porosity analysis (number of pores by volume) for the part of the endoprosthesis; statistics circled in red frame
Results of statistics on porosity analysis (number of pores by volume) for the part of the endoprosthesis; statistics circled in red frame

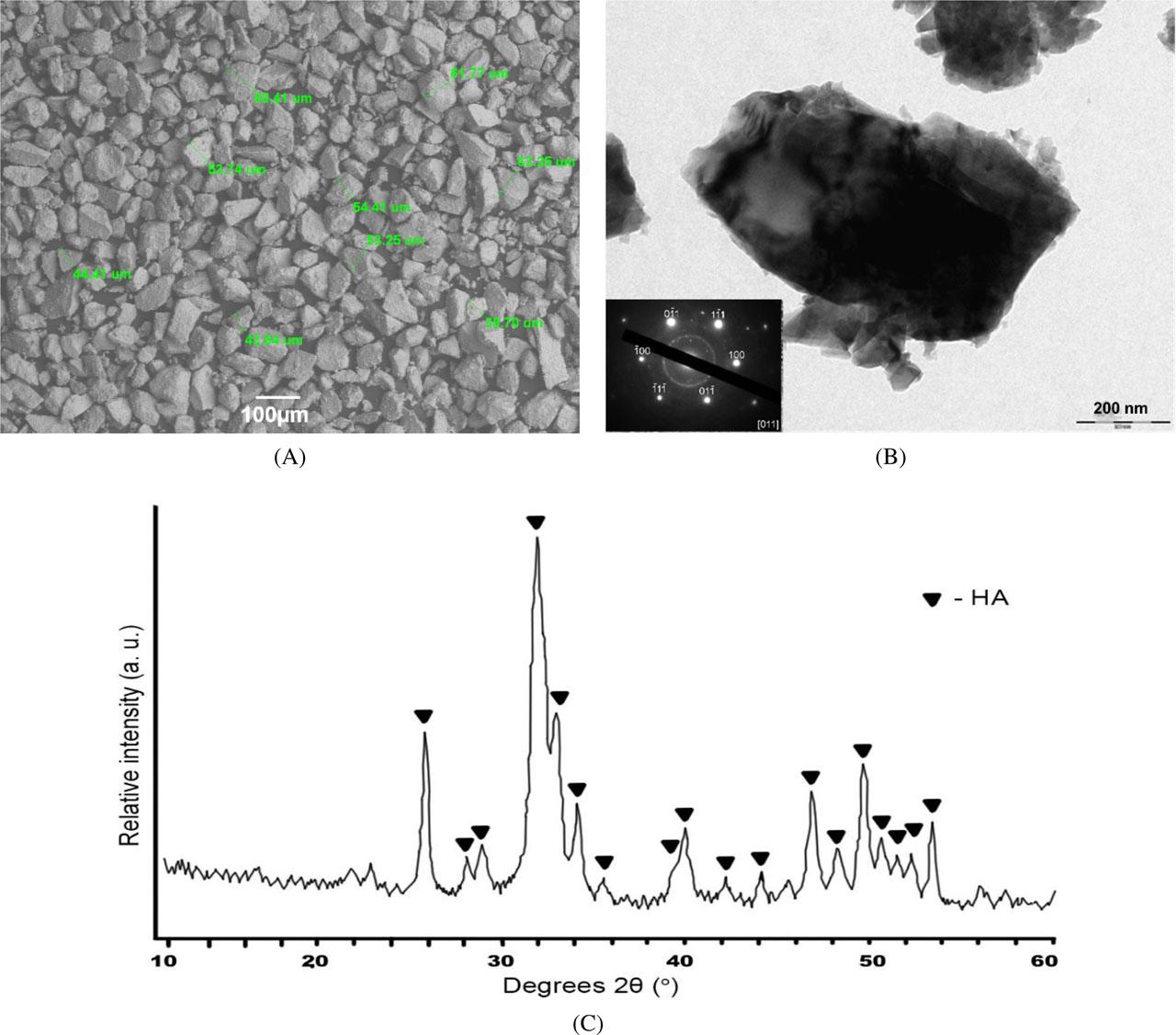

Fig. 8

HA powder feedstock: SEM image of HA particles indicating particle size (A); TEM image of the HA powder particle with the corresponding indexed microelectron diffraction pattern with zone axis [011] (B); XRD pattern of HA powder (C). SEM, scanning electron microscopy; TEM, transmission electron microscopy; XRD, X-ray diffraction
HA powder feedstock: SEM image of HA particles indicating particle size (A); TEM image of the HA powder particle with the corresponding indexed microelectron diffraction pattern with zone axis [011] (B); XRD pattern of HA powder (C). SEM, scanning electron microscopy; TEM, transmission electron microscopy; XRD, X-ray diffraction

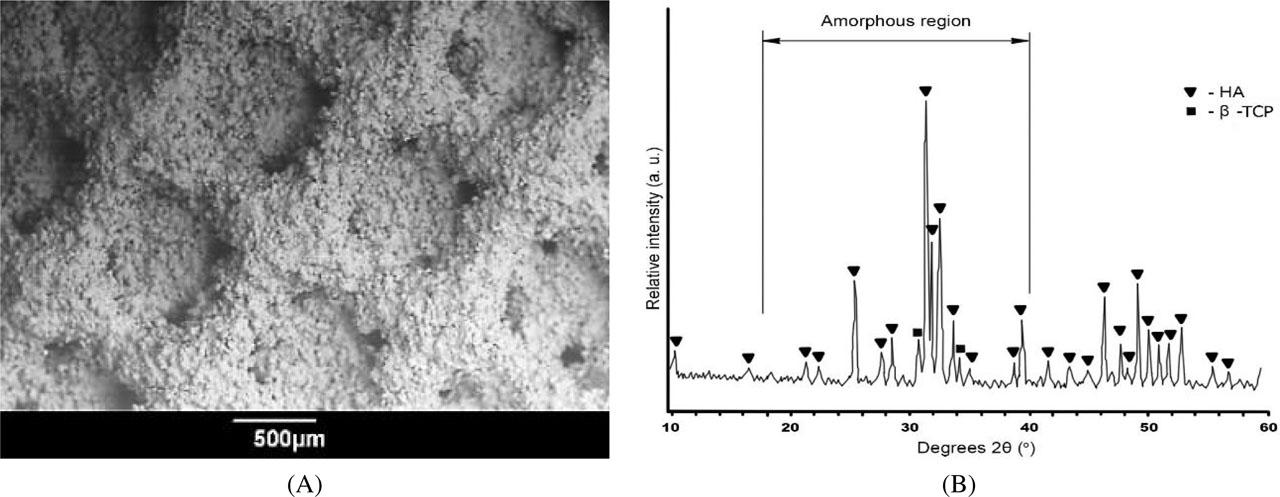

Fig. 9

HA-coating: SEM image of HA coating on a titanium trabecular 3D-printed substrate (A) and XRD pattern of microplasma-sprayed HA coating (B).HA, hydroxyapatite; SEM, scanning electron microscopy; TCP, tricalcium phosphate; XRD, X-ray diffraction
HA-coating: SEM image of HA coating on a titanium trabecular 3D-printed substrate (A) and XRD pattern of microplasma-sprayed HA coating (B).HA, hydroxyapatite; SEM, scanning electron microscopy; TCP, tricalcium phosphate; XRD, X-ray diffraction

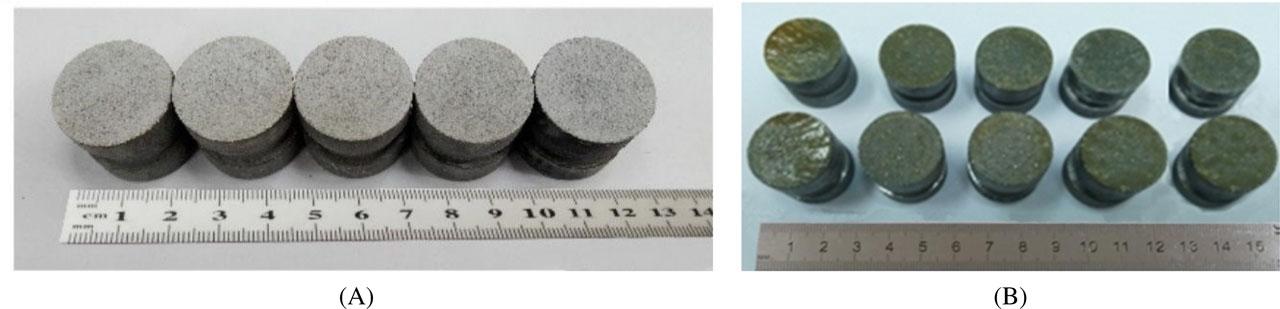

Fig. 10

Specimens of 3D-printed titanium substrates with HA microplasma coating before (A) and after (B) tensile adhesion tests. HA, hydroxyapatite
Specimens of 3D-printed titanium substrates with HA microplasma coating before (A) and after (B) tensile adhesion tests. HA, hydroxyapatite

Chemical composition of Ti6Al4V titanium alloy (powder) according to ISO 5832-3

ElementWt.% of element
Fe<0.3
N<0.05
O<0.2
Al5.5–6.75
C<0.08
V3.5–4.5
H<0.015
TiBalance
