Fig. 1
Fig. 2
Fig. 3

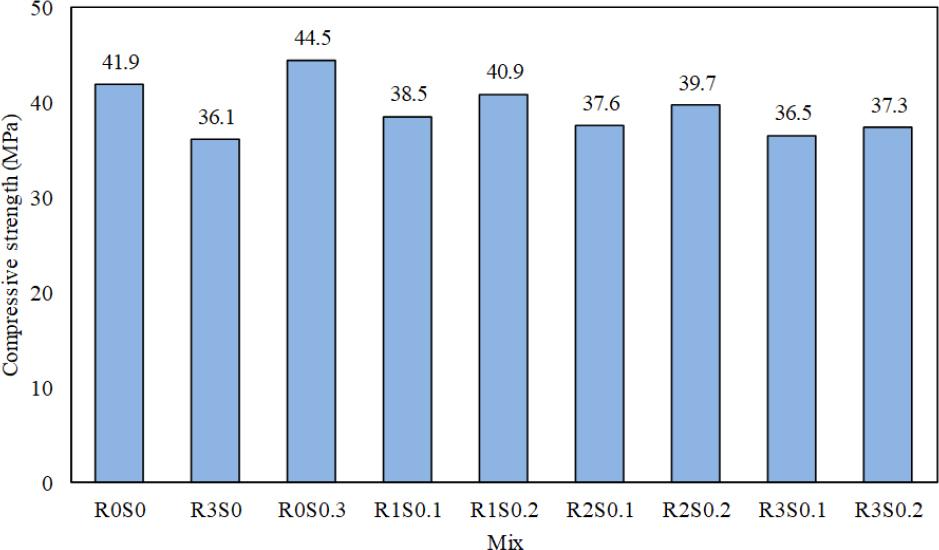

Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9

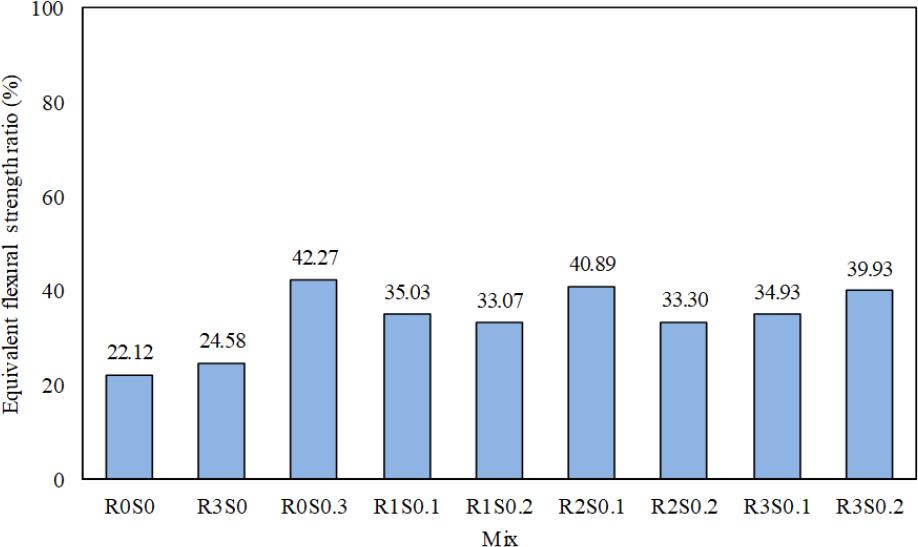

Fig. 10
Fig. 11

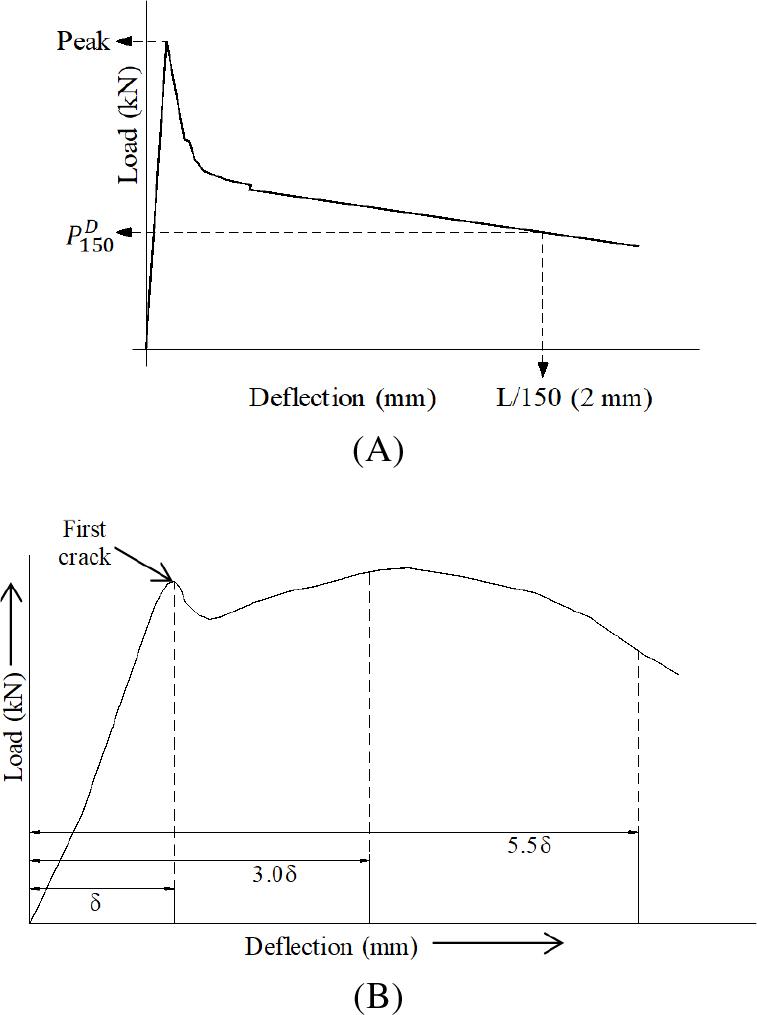

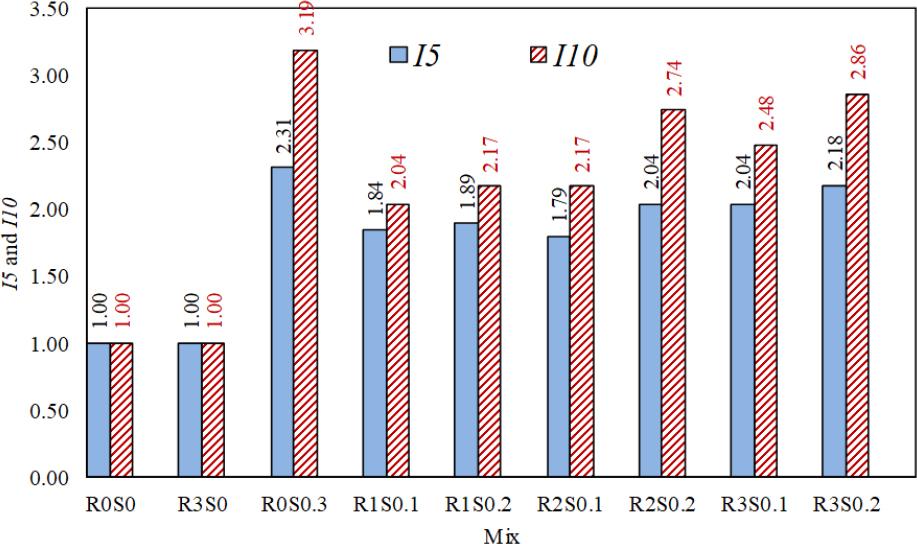

Toughness indices I5 and I10
| Mix | I5 | I10 | I10/I5 |
|---|---|---|---|
| R0S0 | 1.00 | 1.00 | 1.00 |
| R3S0 | 1.00 | 1.00 | 1.00 |
| R0S0.3 | 2.31 | 3.19 | 1.38 |
| R1S0.1 | 1.84 | 2.04 | 1.11 |
| R1S0.2 | 1.89 | 2.17 | 1.15 |
| R2S0.1 | 1.79 | 2.17 | 1.21 |
| R2S0.2 | 2.04 | 2.74 | 1.34 |
| R3S0.1 | 2.04 | 2.48 | 1.22 |
| R3S0.2 | 2.18 | 2.86 | 1.31 |
Concrete mixture details
| Mix name | R0S0 | R0S0.3 | R3S0 | R1S0.1 | R2S0.1 | R3S0.1 | R1S0.2 | R2S0.2 | R3S0.2 |
|---|---|---|---|---|---|---|---|---|---|
| Cement (kg/m3) | 541 | 541 | 541 | 541 | 541 | 541 | 541 | 541 | 541 |
| Sand (kg/m3) | 541 | 541 | 541 | 541 | 541 | 541 | 541 | 541 | 541 |
| Gravel (kg/m3) | 1,082 | 1,082 | 1,082 | 1,082 | 1,082 | 1,082 | 1,082 | 1,082 | 1,082 |
| Water (kg/m3) | 194.8 | 194.8 | 194.8 | 194.8 | 194.8 | 194.8 | 194.8 | 194.8 | 194.8 |
| Admixture (kg/m3) | 5.41 | 5.41 | 5.41 | 5.41 | 5.41 | 5.41 | 5.41 | 5.41 | 5.41 |
| Steel fibers (kg/m3) | 0 | 23.55 | 0 | 7.85 | 7.85 | 7.85 | 15.7 | 15.7 | 15.7 |
| Rubber fibers (kg/m3) | 0 | 0 | 34.2 | 11.4 | 22.8 | 34.2 | 11.4 | 22.8 | 34.2 |
Physical properties of fine and coarse aggregates
| Sr. No. | Aggregate property | Fine aggregates | Coarse aggregates |
|---|---|---|---|
| 1 | Fineness modulus | 2.40 | 6.48 |
| 2 | Specific gravity | 2.70 | 2.64 |
| 3 | Water absorption% | 1.00 | 0.70 |
| 4 | Bulk density (kg/m3) | 1,650 | 1,590 |

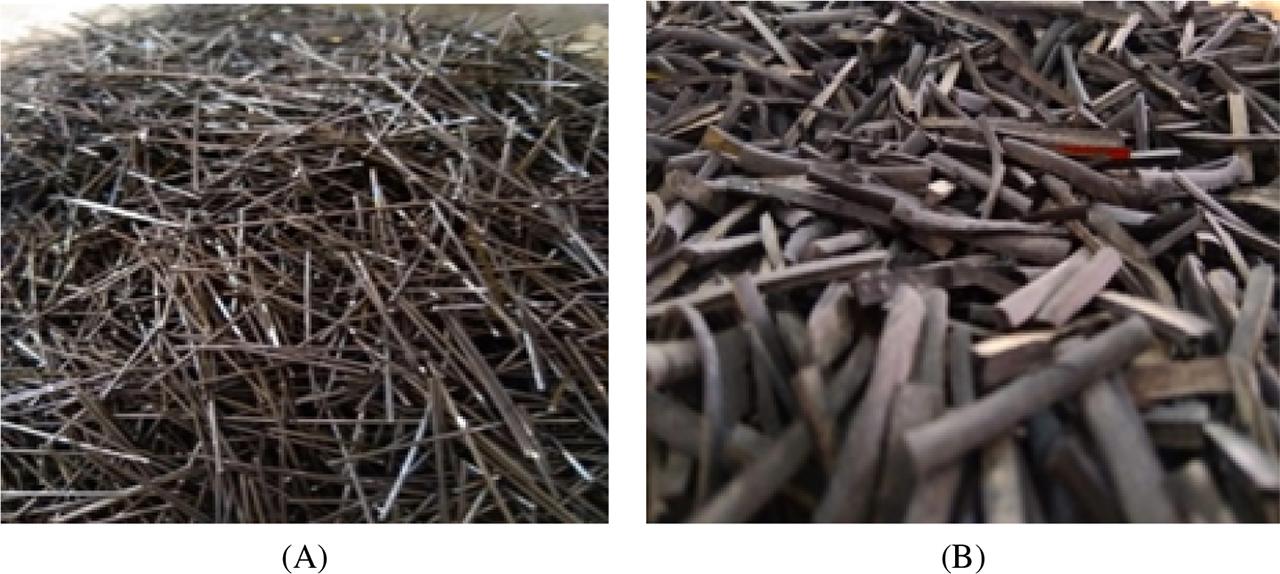

Physical properties of fibers
| Sr. No | Properties | Tire fibers | Steel fiber |
|---|---|---|---|
| 1 | Average lengths (mm) | 25 | 25 |
| 2 | Average diameter (mm) | 2.5 | 0.5 |
| 3 | Aspect ratios | 10 | 50 |
| 4 | Tensile strength (MPa) | 16.5–21.2* | 1,100 |
| 5 | Density (kg/m3) | 1,140 | 7,850 |
