Triple-layer remote phosphor structure: A potential packaging configuration to enhance both color quality and lumen efficiency of 6,000–8,500 K WLEDs Cover

Triple-layer remote phosphor structure: A potential packaging configuration to enhance both color quality and lumen efficiency of 6,000–8,500 K WLEDs

Materials Science-Poland
Volume 39 (2021): Issue 4 (December 2021)
By: Phan Xuan Le,  Sang Dang Ho,  Nguyen Doan Quoc Anh and  Hsiao-Yi Lee
Open Access
|Feb 2022

Figures & Tables

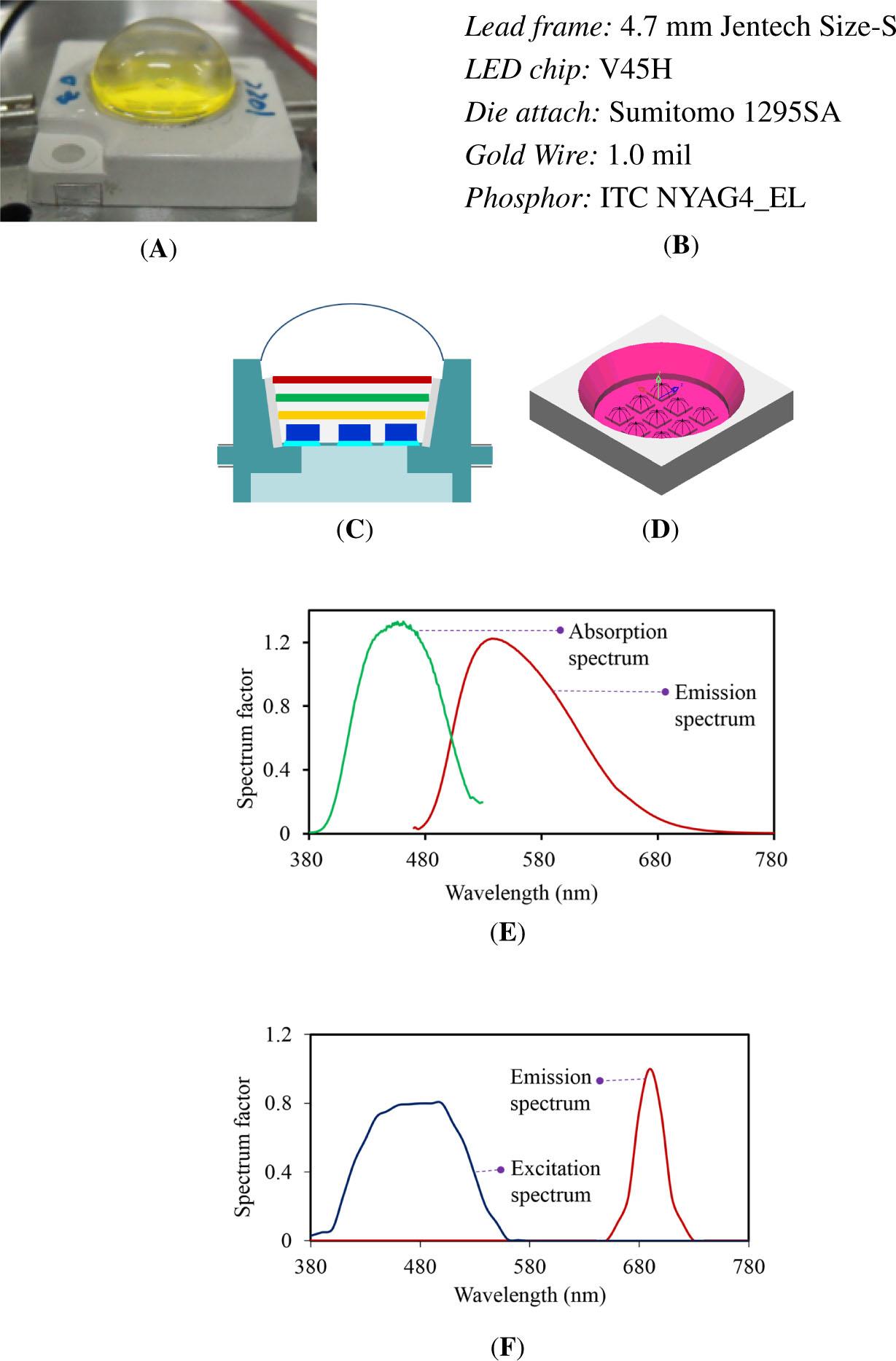

Fig. 1

(A) WLEDs; (B) its parameters; (C) illustration of triple-layer remote phosphor configuration; (D) the simulation of WLEDs; (E) the measured spectra of the yellow-emitting YAG:Ce3+ phosphor; (F) the measured spectra of the red-emitting CaMoO4:Eu3+ phosphor. WLEDs, white light-emitting diodes

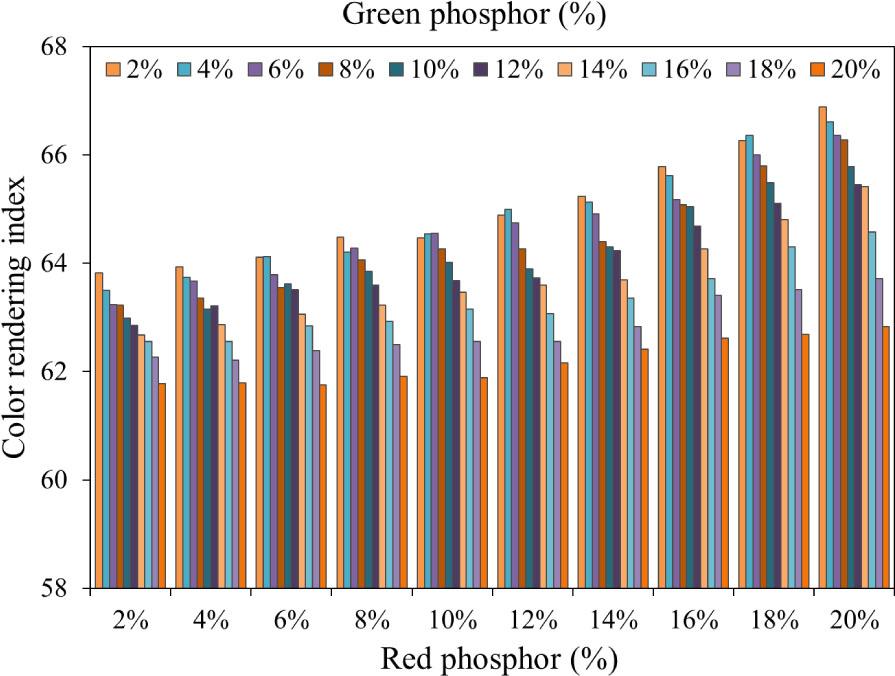

Fig. 2

Color rendering index of triple-layer remote phosphor structure as a function of red-emitting CaMoO4:Eu3+ and green-emitting CaAl2O4:Mn2+ phosphors

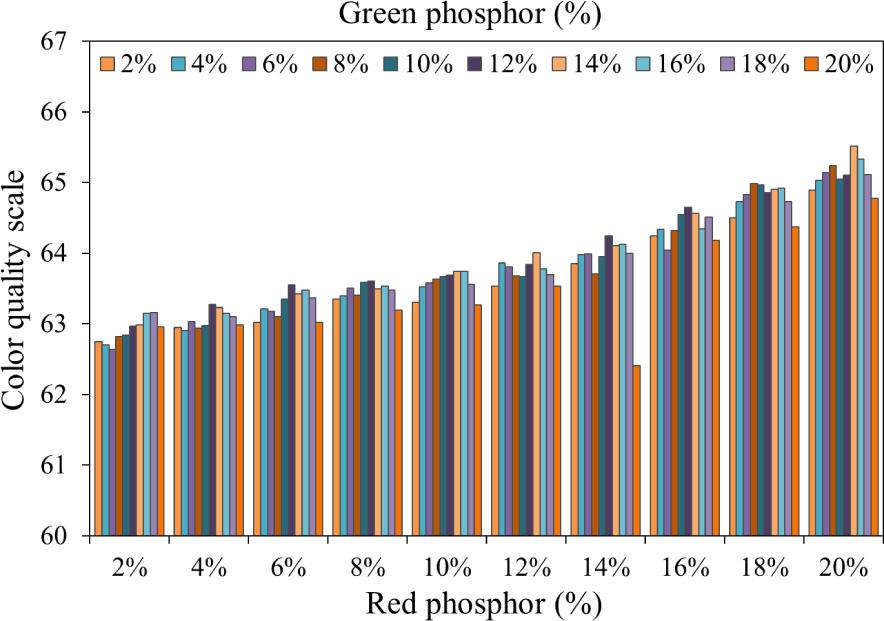

Fig. 3

CQS of triple-layer remote phosphor structure as a function of red-emitting CaMoO4:Eu3+ and green-emitting CaAl2O4:Mn2+ phosphors. CQS, color quality scale

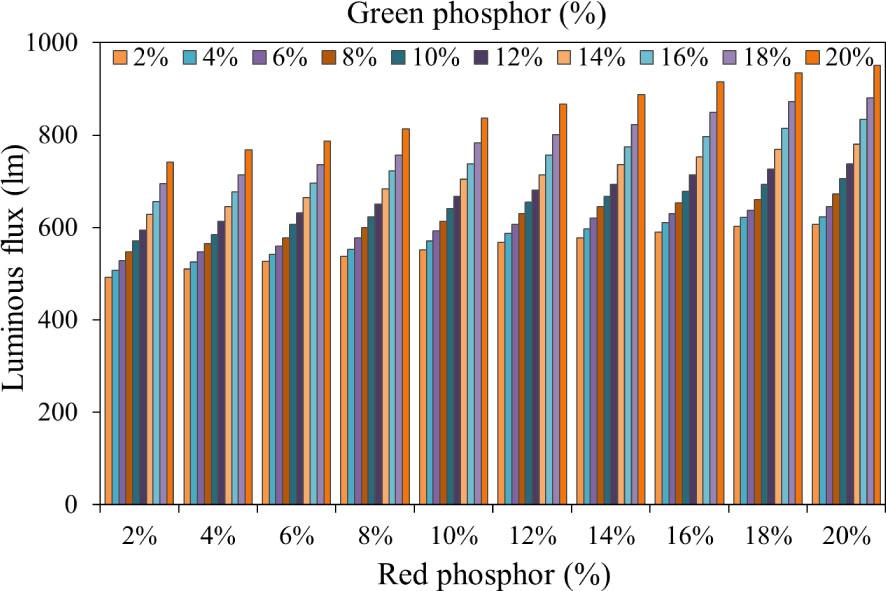

Fig. 4

Lumen output of triple-layer remote phosphor structure as a function of red-emitting CaMoO4:Eu3+ and green-emitting CaAl2O4:Mn2+ phosphors

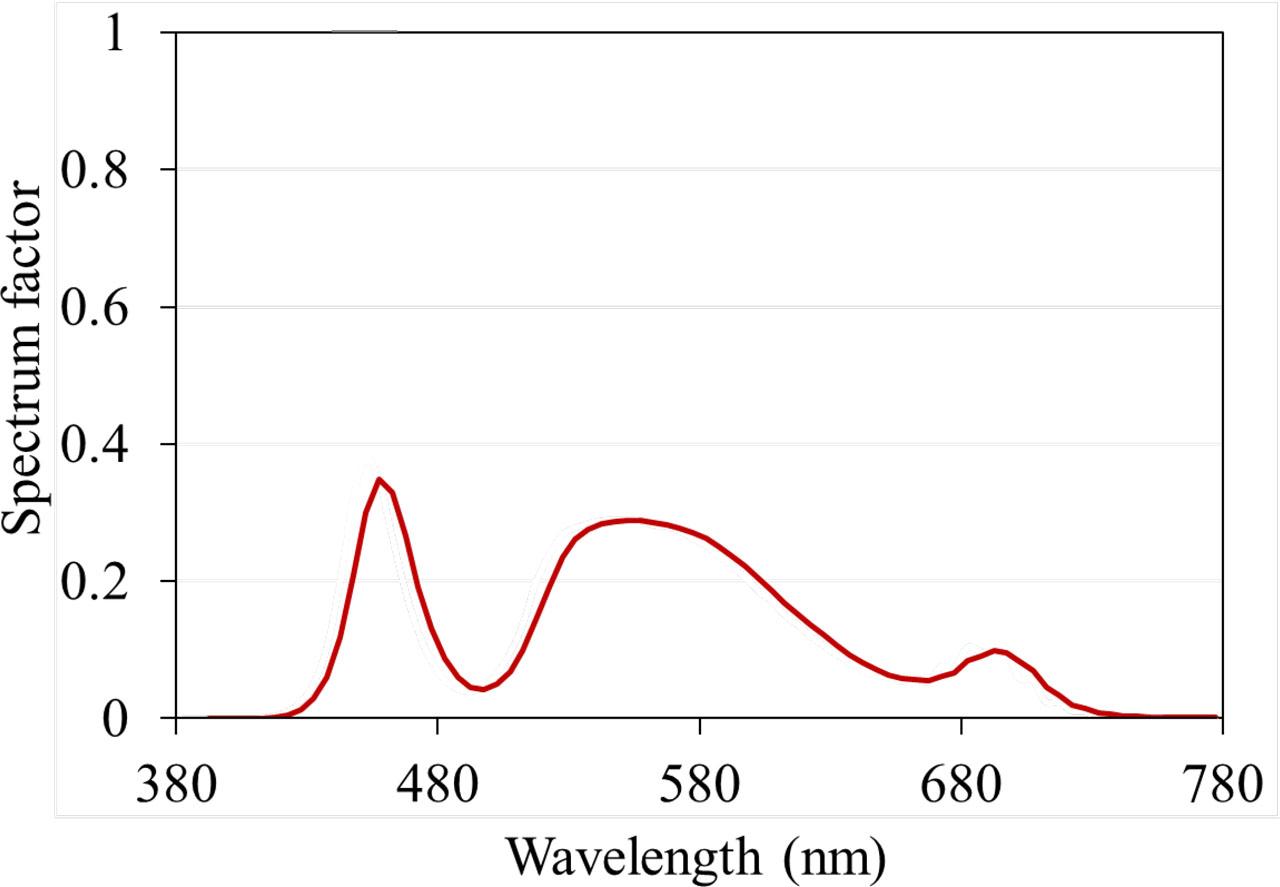

Fig. 5

The emission spectra of WLEDs under varying conditions of the triple-layer structure. WLEDs, white light-emitting diodes

Composition of red-emitting CaMoO4:Eu3+ phosphor

IngredientMole (%)By weight (g)
CaCO39090
Eu2O35 (of Eu)8.8
NaHCO354.2
MoO3105151

Composition of yellow-green-emitting CaAl2O4:Mn2+ phosphor

IngredientMole (%)By weight (g)
CaCO39393
Al2O3200 (of Al)102
MnCO322.3
CaF253.9
