Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Land cover change statistics [km2]
| Land cover | 2018 | 2030 | 2018–2030 |
|---|---|---|---|
| Urban | 76.81 | 80.45 | 3.65 |
| Agriculture | 53.60 | 50.06 | −3.54 |
| Vegetation | 17.30 | 17.29 | −0.01 |
| Wetlands | 0.00 | 0.00 | 0.00 |
| Water | 3.27 | 3.17 | −0.10 |

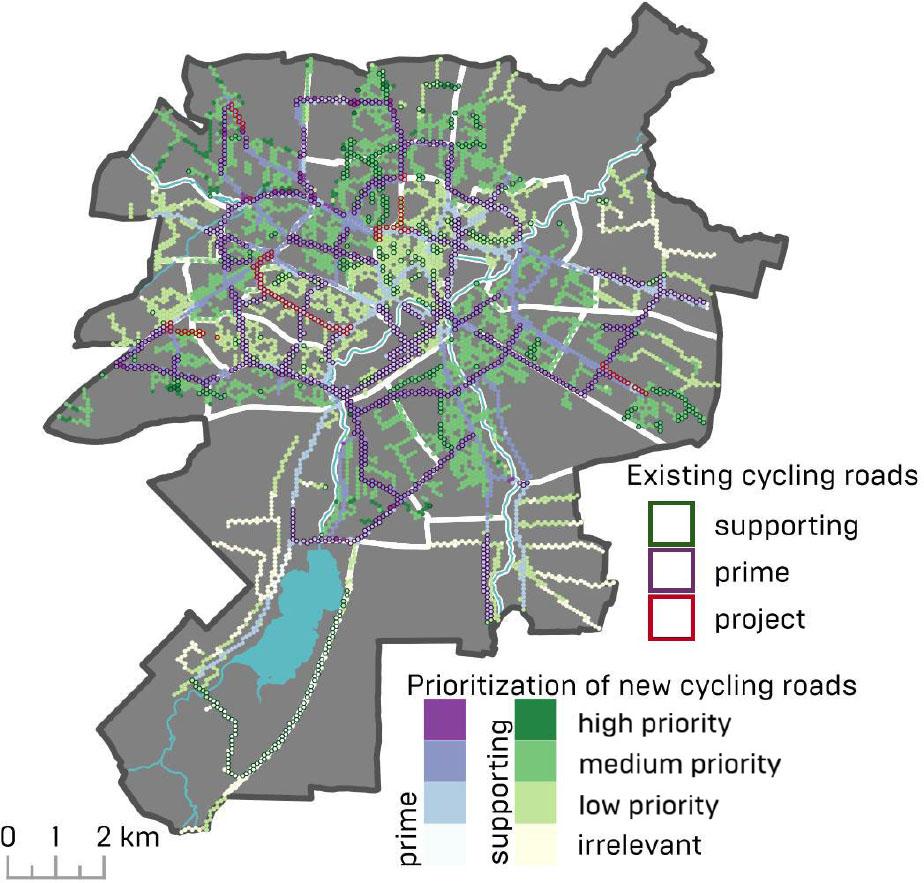

Number of hexagons of new bicycle infrastructure compared to the existing one
| cycle tracks | prime | supporting | ||||||
|---|---|---|---|---|---|---|---|---|
| proposed | existing | proposed | existing | |||||
| priority | number | share | number | value compared to the proposed ones * | number | share | number | value compared to the proposed ones * |
| high priority | 40 | 2% | 25 [2] | 68% | 106 | 3% | 14 [0] | 13% |
| medium priority | 1 079 | 54% | 498 [34] | 49% | 1 910 | 52% | 210 [13] | 12% |
| low priority | 877 | 43% | 430 [40] | 54% | 1 288 | 35% | 147 [14] | 12% |
| irrelevant | 22 | 1% | 3 [0] | 14% | 361 | 10% | 78 [0] | 22% |
| total | 2 018 | 100% | 956 [76] | 51% | 3 665 | 100% | 449 [27] | 13% |

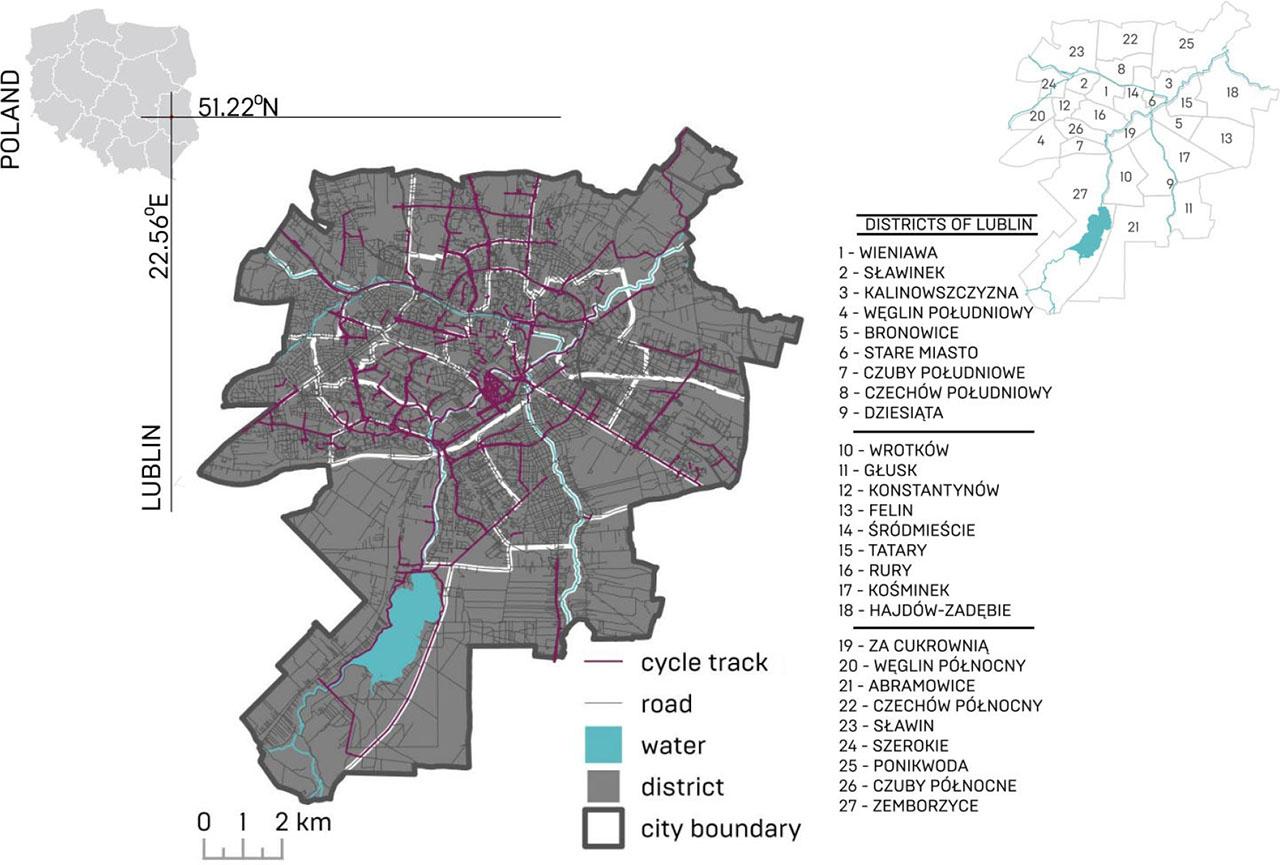

Length of cycle tracks in Lublin by type (as of December 2023)
| Type of cycle track | Characteristics | Length [km] |
|---|---|---|
| Segregated path | A section with separate lanes for pedestrians and bicycles | 132.7 |
| Shared use path | Possibility of cycling on footpaths | 12.4 |
| Cycle track | Clearly separated and independent of other roads | 16.0 |
| Contraflow cycle lane | Allows bicycle traffic in the opposite direction on one-way roads (e.g. by separating the road and the bicycle lane) | 5.4 |
| Cycle passage | Road surface intended for bicycles | 6.8 |
| With-flow cycle lane | A separate road lane for bicycles only (cycle lane in the same direction as traffic) | 30.4 |
| Designed | Sections designed – not yet implemented or in progress | 9.0 |
| Total | 212.7 |
Summary of data used
| Data / source | Reference years | Coordinate Systems Worldwide (EPSG number) | Data provider (source) | Purpose |
|---|---|---|---|---|
| Topographic Objects Database (BDOT10k) / vector | 2024 | ETRS89 / Poland CS92 (EPSG: 2180) | Head Office of Geodesy and Cartography (GUGiK 2024) | Road network, proximity to roads, built-up area, protected areas |
| Demographic data / PDF | 2018–2024 | - | Lublin City Office (Urząd Miasta Lublin n.d.) | Number of registrations |
| Land and building register (EGiB), Topographic Objects Database (BDOT500) / vector | 2024 | ETRS89 / Poland CS2000 zone 24 (EPSG: 2176) | Geoportal of Lublin (Geoportal of Lublin n.d.) | Administrative boundaries, bicycle infrastructure, right-of-way plots |
| Global Human Settlement Layer (GHSL) / grid | 2023 | World Mollweide (Pseudocylindrical) (EPSG: 54009) | Joint Research Centre (JRC) (Schiavina et al. 2023) | Population distribution |
| CORINE Land Cover (CLC) / vector | 2006, 2012, 2018 | ETRS89 / Poland CS92 (EPSG: 2180) | Copernicus Land Monitoring Services (CORINE Land Cover 2024) | Land cover |
| Digital Terrain Elevation Data (DTED) / raster | 2004 | WGS 84 (World Geodetic System 1984) (EPSG: 4326) | United States Geological Survey (USGS 2024) | Elevation, slope |
