Effect of Radix Paeoniae Rubra aqueous extract on the virulence and antibiotic susceptibility of multi-drug resistant Escherichia coli

Escherichia coli O101 was kindly provided by Professor Hong Dong from Beijing University of Agriculture. The RPRE was purchased from the TongRenTang Pharmacy (Beijing Qianmen Store, Beijing, China), and LB medium was obtained from Beijing ComWin Century Biotechnology (Beijing, China). Streptomycin, gentamicin sulphate, kanamycin, doxycycline, tilmicosin, tetracycline, cephalexin, florfenicol, spectinomycin, sulphadimethoxine and enrofloxacin were purchased from Beijing BoAoToda Technology (Beijing, China). The E. coli heat-stable enterotoxin (ST) and heat-labile enterotoxin (LT) ELISA kits used (cat. Nos. JL50422 and JL50416) were products of Jianglai Biotechnology Co., Ltd. (Shanghai, China). Use was made of a bacteria total RNA isolation kit (cat. No. B518625-0050) from Sangon Biotech (Shanghai, China).

The RPRE was prepared according to the reported method (11). Briefly, 200 g of Radix Paeoniae Rubra slices were soaked in 800 mL of deionised water for 30 min, brought to boiling point and then held just below for 30 min. The decoction was filtered and collected, and another 800 mL of deionised water was added to the Radix Paeoniae Rubra slices. This was repeated one more time. After two extractions, the filtered solutions were pooled, brought to boiling point and held just below for another 45 min to obtain a concentrated solution, which was cooled to room temperature and then centrifuged at 3,300 ×g for 15 min. The supernatant was collected and the stock solution of RPRE was prepared at a concentration of 200 mg/mL in deionised water. After aliquoting, it was autoclaved for later use; PBS was used as diluent solvent.

The broth microdilution method recommended by the Clinical Laboratory Standards Institute (CLSI) (5) was used to culture the bacteria. Bacterial suspension was added to a 96-well plate at a final concentration of 1×10⁵ CFUs/mL. Sterile culture medium was used as the negative blank control, bacterial suspension without antibiotics served as the no-drug control group, and a drug control group without bacteria (a sterile control) was also set up. Different concentrations of RPRE, antibiotics or a mixture of RPRE and antibiotics were added to the E. coli culture medium and then incubated at 37°C for 12 h. The absorbance value (OD₆₀₀) of the culture medium was measured by using a microplate reader. The experiment was performed three times.

The bacterial growth rate was calculated using the following formula: Bacterial growth rate (%) = (OD of drug treatment group – OD of no-drug control group) / (OD of sterile control group – OD of no-drug control group) × 100.

If the OD₆₀₀ of the experimental group was at least 90% less than that of the no-drug control group, bacterial growth can be considered to be inhibited. The drug concentration at that point was recorded as the minimum inhibitory concentration (MIC). Breakpoints for antimicrobial susceptibility were used as given by the CLSI with regard to their specified resistance concentrations for the pair of antimicrobial and E. coli. Susceptible, intermediate and resistant were the three classifications cut at the breakpoints. Resistance was more finely graded as low, moderate or high also according to CLSI brackets, where E. coli O101 had low resistance if the determined MIC was greater than or equal to the specified resistance concentration but less than twice this concentration, it had moderate resistance if the determined MIC was greater than or equal to twice the specified resistance concentration but less than four times this concentration, and it had high resistance if the determined MIC was greater than or equal to four times the specified resistance concentration (5).

Escherichia coli at 1×10⁶ CFUs/mL was co-cultured with RPRE and/or antibiotics at 220 rpm and 37°C for 24 h. The culture was centrifuged at 4,000 × g for 10 min, the supernatant was removed and the pellet was washed three times with PBS. The pellet was then resuspended in bacterial lysis buffer and sonicated on ice for 10 min. After centrifugation at 4,000 × g for 10 min, the supernatant was collected and the protein concentration was measured using a BCA protein assay kit. Subsequently, the contents of heat-stable enterotoxin, heat-labile enterotoxin and endotoxin were detected using the relevant ELISA kits.

Escherichia coli again at 1×10⁶ CFUs/mL was co-cultured with various concentrations of RPRE and/or antibiotics at 37°C for 3 d. The bacterial suspension was then slowly aspirated, and the experimental wells were washed three times with PBS. Ice-cold methanol was added for fixation for 30 min, after which the fixative was discarded and the wells were allowed to air dry. Next, 0.1% crystal violet was added for staining for 20 min and was then removed, and the solution was washed three times with PBS. After air-drying, the biofilms were observed under a microscope and photographed. Subsequently, 95% ethanol was added to completely dissolve the dye, and the OD₅₇₀ value was measured.

Escherichia coli at 1×10⁶ CFUs/mL was co-cultured with RPRE and/or antibiotics at 220 rpm and 37°C for 24 h. Bacterial total RNA was extracted using a kit and reverse-transcribed into cDNA. Primers for the nucleotide sequences of marA, soxS, ompC and ompF were designed based on GenBank sequences (Table 1), with 16S RNA as the internal reference gene, and were synthesised by Invitrogen (Thermo Fisher Scientific, Beijing, China). The PCR amplification thermal cycling conditions were as follows: pre-denaturation at 95°C for 30 s; amplification reaction at 95°C for 5 s and 58°C for 30 s for 45 cycles; and melting curve analysis at 95°C for 15 s, 60°C for 60 s and 95°C for 15 s. After the reaction was complete, the samples were stored at 4°C. The PCR data were taken for analysis of the relative gene expression using the 2-△△Ct method. Each determination was performed with four parallel samples.

Statistical analysis was performed using GraphPad Prism v. 9.0 software (GraphPad, San Diego, CA, USA). Data were expressed as means ± SD. The data were analysed with a one-way ANOVA and a Student’s t-test. The level of statistical significance was set at P < 0.05.

After E. coli O101 was cultured with concentrations of RPRE from 0–128 mg/mL, no significant differences in bacterial growth rate were observed, but the growth of bacteria treated with RPRE was approximately 15% lower than that of the control. However, even at the highest concentration of RPRE (128 mg/mL), the bacterial growth rate still exceeded 70% (Table 2). This finding indicates that RPRE has a weak inhibitory effect on the proliferation of E. coli.

The microdilution method was used to detect the sensitivity of the bacteria to the commonly used antibiotics. Bacterial growth was considered inhibited if the growth rate was less than 10% of the control group (without antimicrobials). The results showed that the MIC of gentamicin, tetracycline, doxycycline, florfenicol and enrofloxacin for E. coli O101 was 16 μg/mL; the MICs of streptomycin and cephalexin were 32 μg/mL and 64 μg/mL, respectively; the MIC of kanamycin and spectinomycin was 128 μg/mL; and the MIC of tilmicosin and sulphadimethoxine was greater than 256 μg/mL. According to the standards for antimicrobial susceptibility and the relationship between the MIC determined and the specified resistance concentration published by the CLSI (5), E. coli O101 was classified as having low resistance to gentamicin, spectinomycin, tetracycline, doxycycline, sulphadimethoxine and florfenicol; intermediate resistance to kanamycin, streptomycin and cephalexin; and high resistance to tilmicosin and enrofloxacin (Table 3). This indicates that the E. coli O101 used in this study is a multi-drug resistant strain.

Based on the chemical properties of antibiotics, one aminoglycoside, one cephalosporin, one sulphonamide and one macrolide were selected for testing (kanamycin, cephalexin, sulphadimethoxine and tilmicosin, respectively). Escherichia coli showed low resistance to sulphadimethoxine, moderate resistance to cephalexin and kanamycin and high resistance to tilmicosin. The results showed that the combination of RPRE with these antibiotics inhibited the proliferation of E. coli in a concentration-dependent manner (RPRE at concentrations of 4 mg/mL and above enhanced the antibacterial effect of all four antibiotics) (Fig. 1). This suggests that RPRE has the ability to enhance the susceptibility of resistant E. coli to antibiotics, even to those it resists best, e.g. tilmicosin, especially at concentrations equal to or greater than 8 mg/mL (Fig. 1).

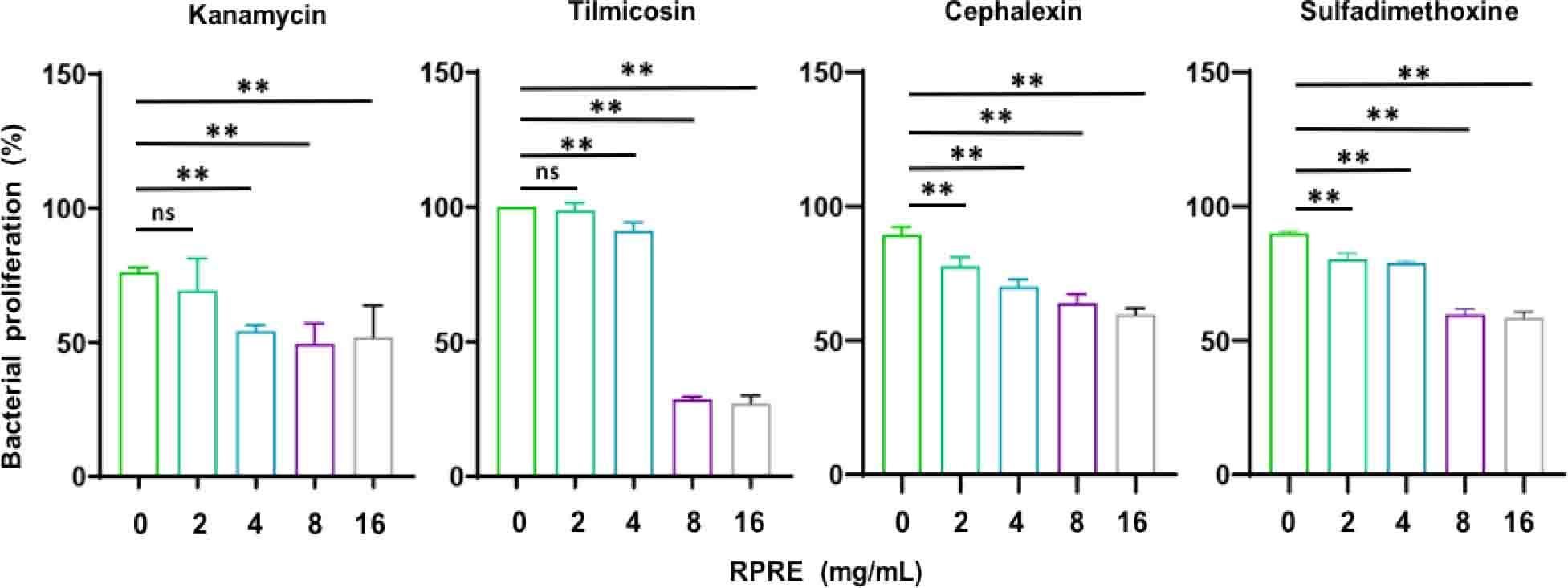

Fig. 1.

Effect of Radix Paeoniae Rubra aqueous extract (RPRE) on the antimicrobial resistance of E. coli O101. Growth of untreated control E. coli was taken as 100%, and bacterial growth in the treatment groups was calculated in relation to that benchmark. Data are expressed as mean ± SD (n = 3). ** – P < 0.01; ns – not significant (P > 0.05)

After the addition of different concentrations of RPRE to the E. coli culture medium, the secretion of the virulence factors heat-labile enterotoxin (LT) and heat-stable enterotoxin (ST) by E. coli decreased in a concentration-dependent manner (Fig. 2A), suggesting that RPRE could reduce the bacterium’s pathogenicity by this inhibition. Cephalexin also had a certain inhibitory effect on LT and ST secretion by E. coli: when the bacterium was cultured in the medium containing RPRE at 4 mg/mL in the presence of cephalexin, this was further inhibited (P < 0.01) (Fig. 2B). The results demonstrated that RPRE acted synergistically with an antimicrobial drug to inhibit E. coli O101 virulence factor protein secretion.

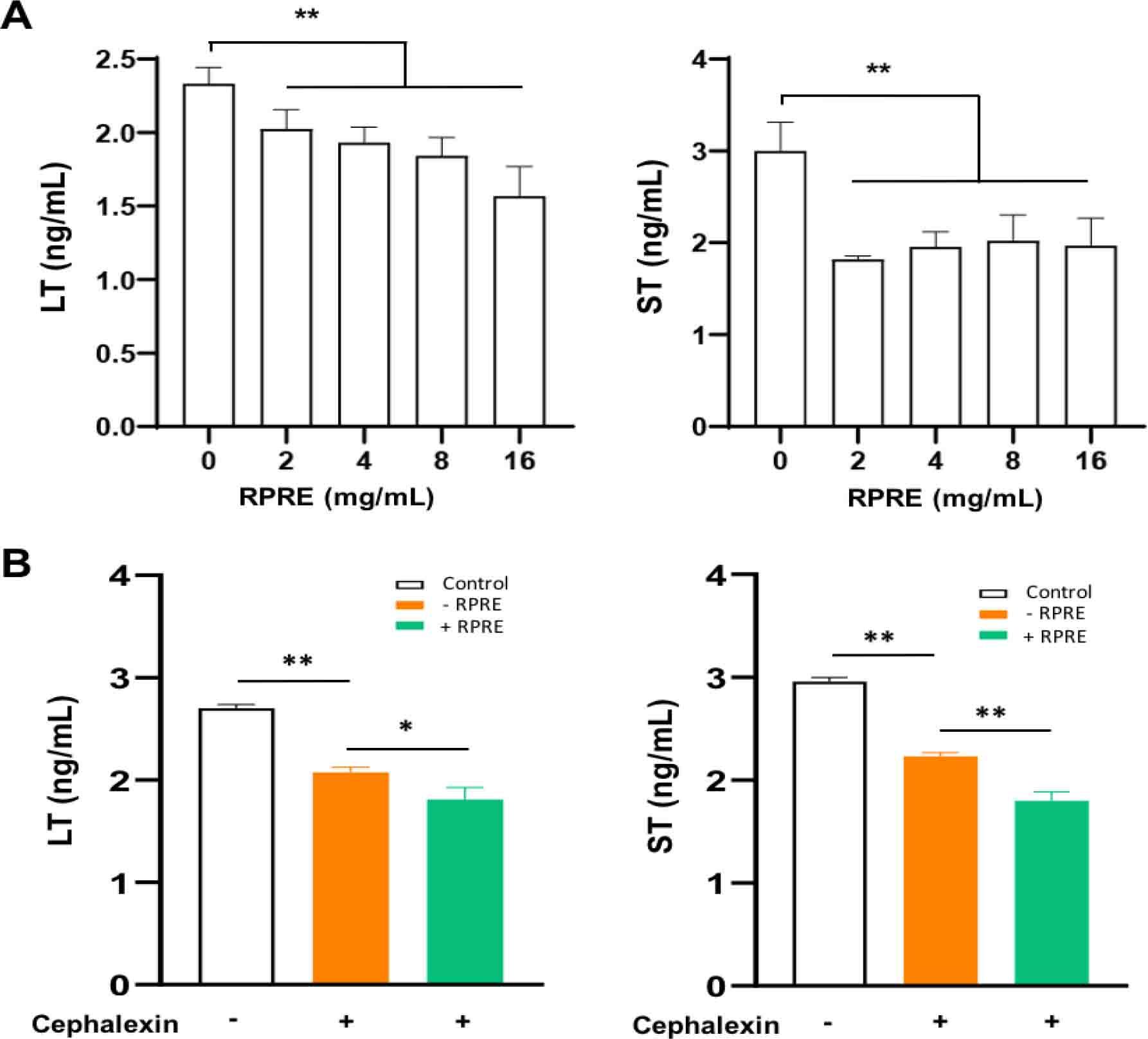

Fig. 2.

Effect on the secretion of E. coli O101 virulence factor proteins of 24-h incubation in Radix Paeoniae Rubra aqueous extract (RPRE). A – secretion with RPRE at concentrations ranging 0–16 mg/mL and without cephalexin; B – secretion with RPRE at 4 mg/mL and cephalexin at 4 μg/mL. Data are expressed as mean ± SD (n = 3). * – P < 0.05; ** – P < 0.01

The biofilm of E. coli O101 is closely related to its drug resistance and pathogenicity. The control group results showed the bacterial biofilm existing in sheets with the films tightly connected to each other. After treatment with low concentrations of RPRE (2–4 mg/mL), fissures between the biofilms can be observed. As the concentration of RPRE increased, the biofilms became gradually sparser, and after treatment with high concentrations of RPRE (8–16 mg/mL), they were mostly scattered in small plaque form (Fig. 3A). Quantitative analysis shows that as the concentration of RPRE increased, the OD values of the RPRE treatment group significantly decreased (P < 0.01) (Fig. 3B), suggesting that RPRE inhibited formation of the bacterial biofilm. Cephalexin also had a certain inhibitory effect on the formation of the biofilm, and when RPRE at 4 mg/mL was combined with cephalexin in the treatment, the formation of the bacterial biofilm was further inhibited (P < 0.01) (Fig. 3A and 3C). The results fully demonstrated that RPRE can act synergistically with an antimicrobial drug to inhibit the formation of the biofilm of the bacteria.

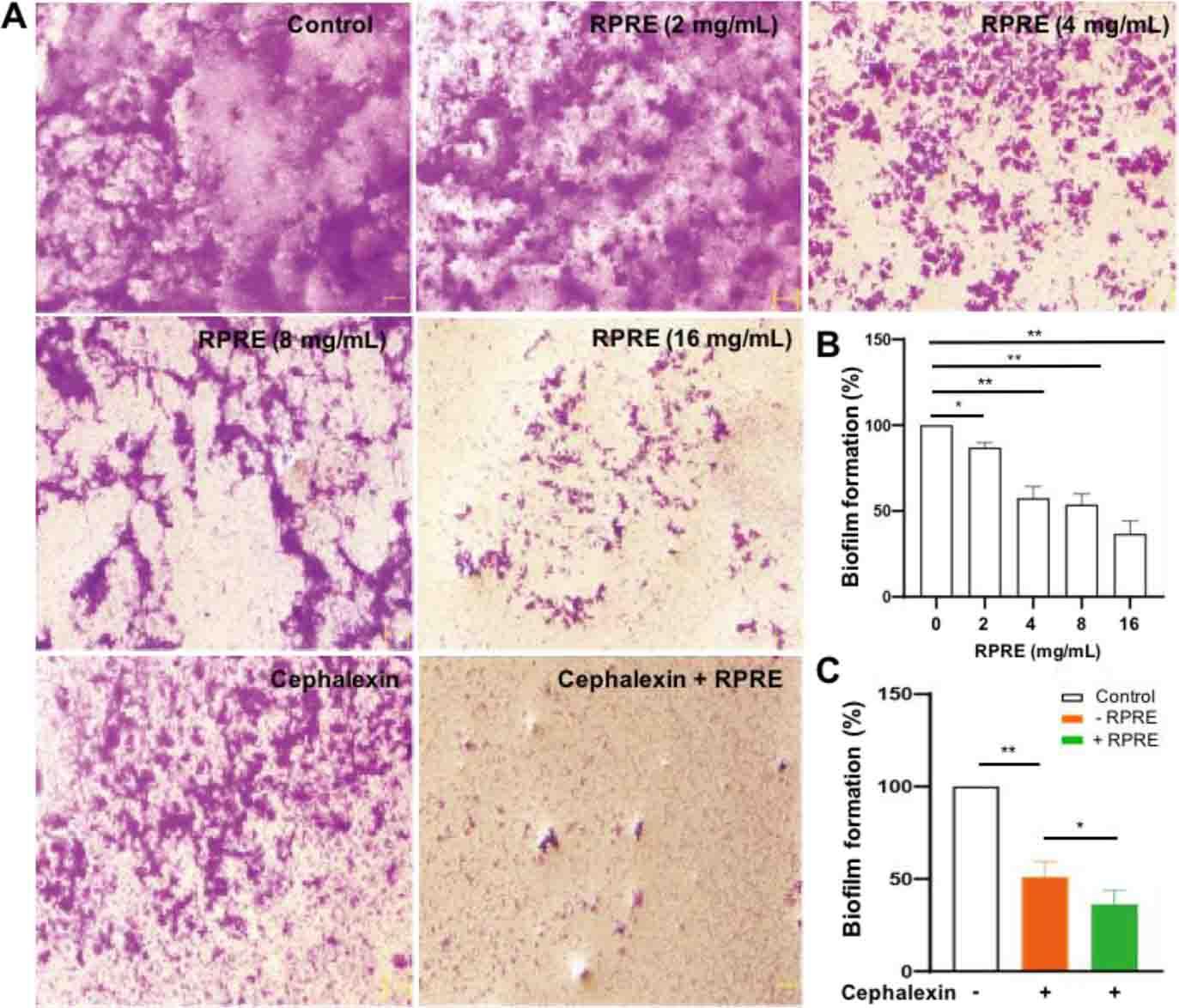

Fig. 3.

Effect on the biofilm formation of E. coli O101 of three-day incubation in Radix Paeoniae Rubra aqueous extract (RPRE) with or without treatment with cephalexin at 32 μg/mL. A – micrographs of crystal violet–stained biofilm; B and C – biofilm formation by untreated E. coli was taken as 100%, and the biofilm formation in the treatment groups was calculated in relation to that benchmark. Data are expressed as mean ± SD (n = 3). * – P < 0.05; ** – P < 0.01

With rising RPRE concentrations, the relative expression levels of the marA and soxS genes fell significantly (P < 0.01). After culture with RPRE at 0–16 mg/mL, E. coli expressed marA 36.85–77.00% and soxS 20–70% less (Fig. 4A). When cephalexin was used alone, the relative expression of these genes was higher, which indicated that the antibiotic induced their expression. However, when E. coli was cultured in the medium containing 4 mg/mL of RPRE in addition to cephalexin, the increase in transcription levels of marA and soxS induced by the antimicrobial was changed to a decrease to below the untreated control bacteria transcription level (Fig. 4B), indicating that RPRE inhibited the transcription of efflux pump genes. Thereby, RPRE may inhibit the bacterial efflux function.

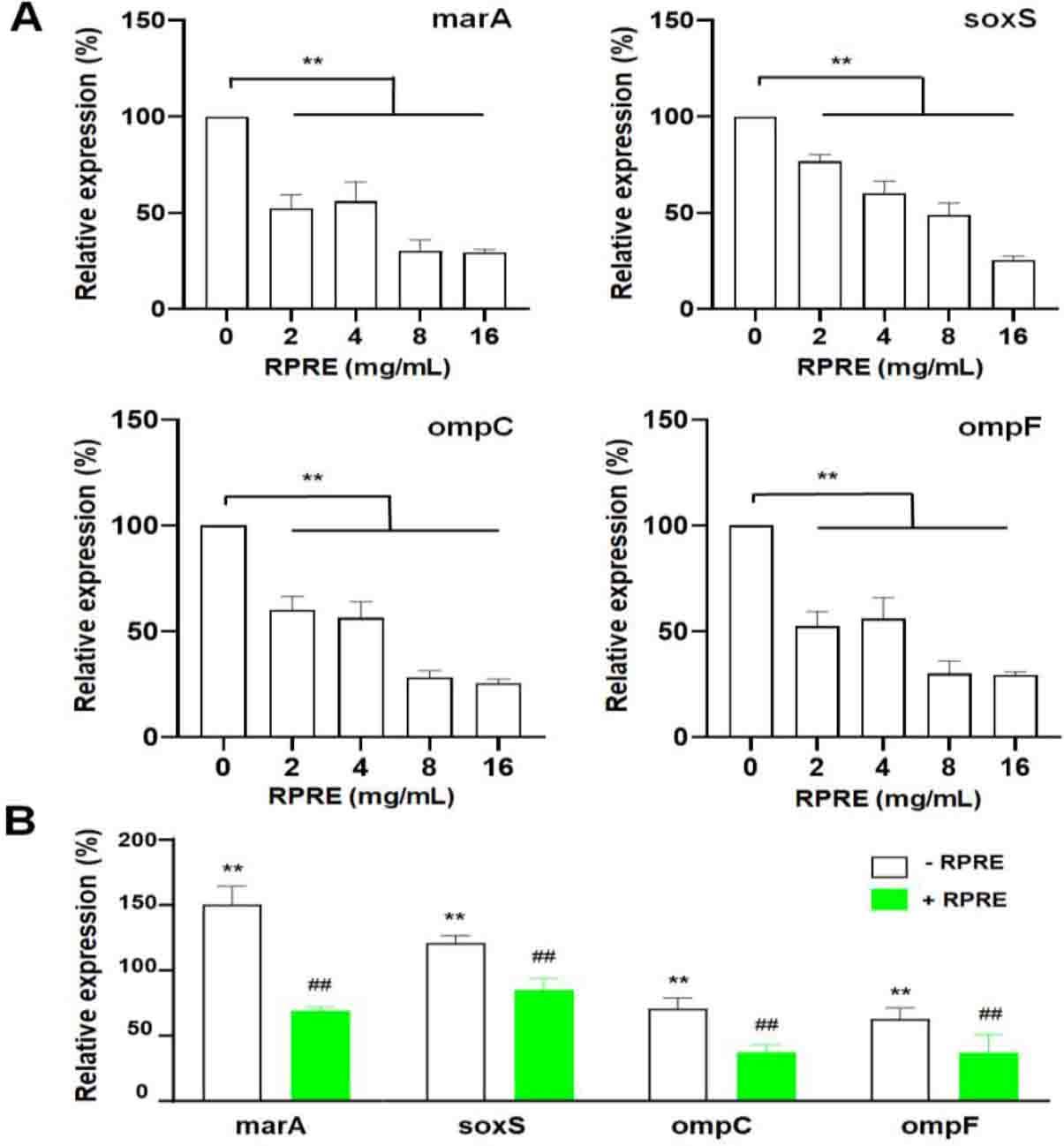

Fig. 4.

Effect on the expression of E. coli O101 efflux pump and outer membrane porin genes of 24-h incubation in Radix Paeoniae Rubra aqueous extract (RPRE) with or without treatment with cephalexin at 32 μg/mL. A – expression with RPRE in concentrations ranging 0–16 mg/mL; B – expression with RPRE at 4 mg/mL and cephalexin at 32 μg/mL. Expression by untreated E. coli was taken as 100%, and the expression in the treatment groups was calculated in relation to that benchmark. Data are expressed as mean ± SD (n = 3). ** – significant difference compared with the blank control (P < 0.01); ## – significant difference compared with the group without RPRE treatment (P < 0.01)

This study also examined the effect of RPRE on the transcription levels of the ompC and ompF genes that encode bacterial outer membrane porins. As the RPRE concentration was stepped up, the expression of the genes decreased in a dose-dependent manner (P < 0.01) (Fig. 4A). The relative expression level of ompC decreased by 17.78–74.49% and that of ompF by 35.65–70.59%. Notably, treatment with cephalexin alone could also reduce these genes’ transcription levels (P < 0.01), and when combined with 4 mg/mL of RPRE, the expression of ompC and ompF further decreased by 19.16% and 18.59%, respectively (P < 0.01) (Fig. 4B), indicating that RPRE inhibited the transcription levels of the outer membrane porin genes ompC and ompF and had a synergistic effect with the antibiotic.
