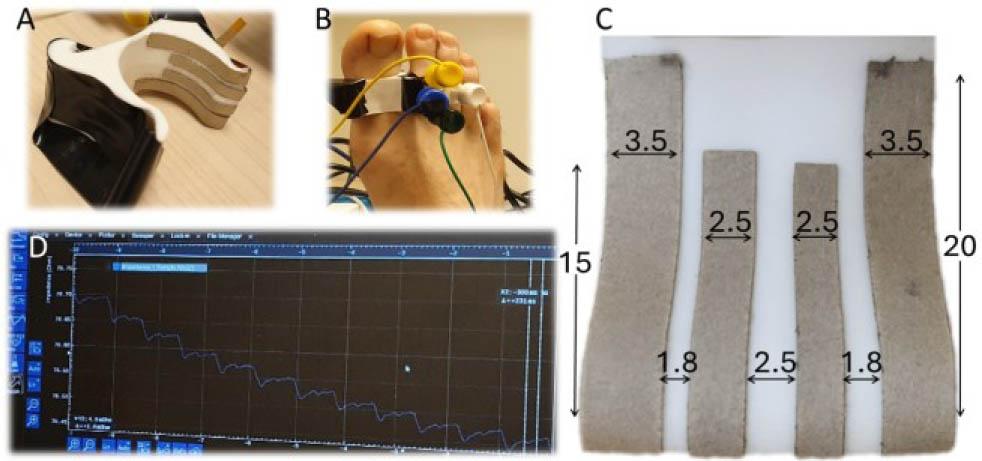

A: 3D-printed clamp with electrodes. B: Measurement position on the inside of right great toe. C: Electrode setup (approx. area CC = 70 mm2, PU = 37,5 mm2) D: Measurement software on the impedance analyzer.
Figure 2.

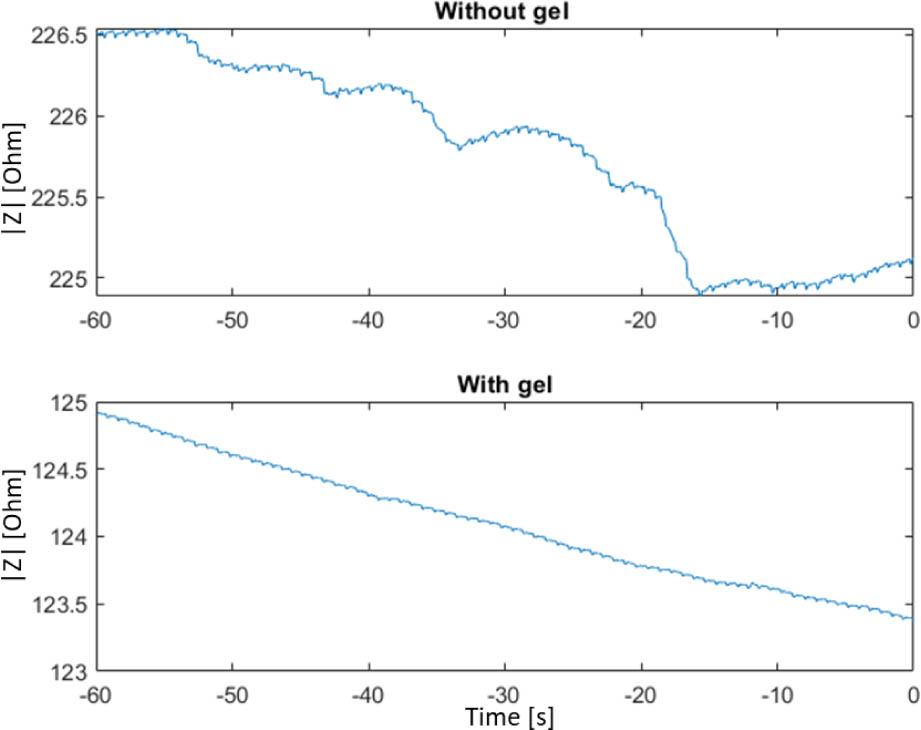

Example raw data measurements over 1 minute with the toe probe without and with gel applied to the electrode surface.
Figure 3.

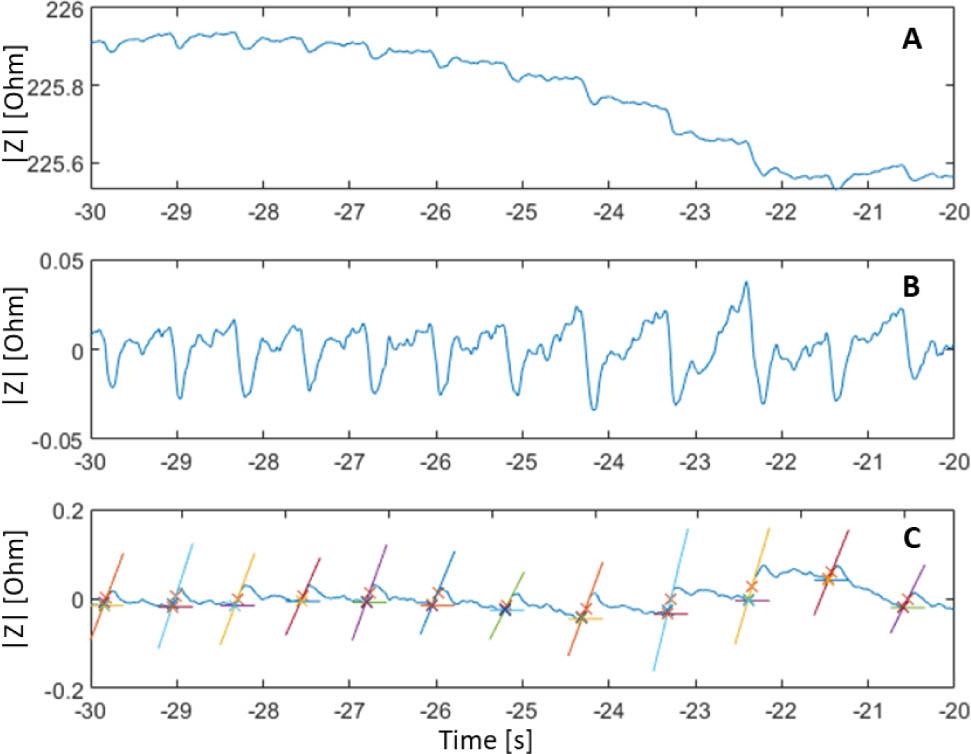

Signal processing of a 10 s segment of the without gel measurement showing A: raw data, B: high-pass filtered signal and C: identification of upstroke fiducial points based on the intersecting tangents method plotted along with the tangents on a negated filtered signal.
Figure 4.

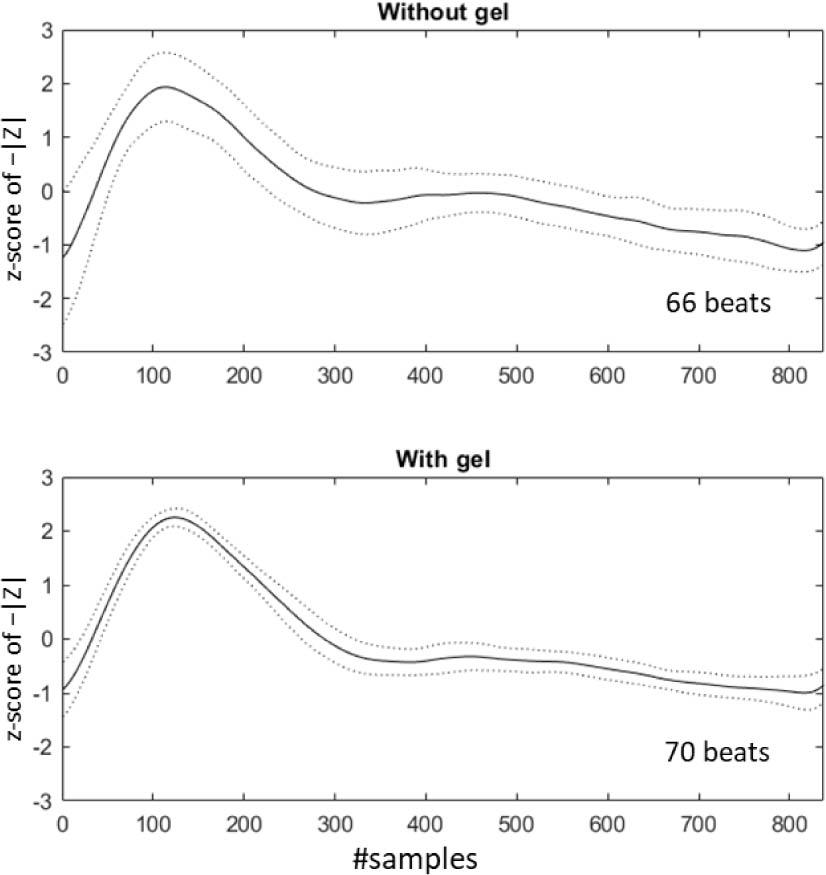

1-minute ensemble averaged IPG waveforms of the normalized example measurements without and with gel. The solid lines show the mean over all pulse waveforms and the dashed lines show the mean ± standard deviation.
