Wireless power system for left ventricular assist device: Influence of coil design and tissue behavior on efficiency Cover

Wireless power system for left ventricular assist device: Influence of coil design and tissue behavior on efficiency

Open Access
|Jun 2025

Figures & Tables

Fig. 1:

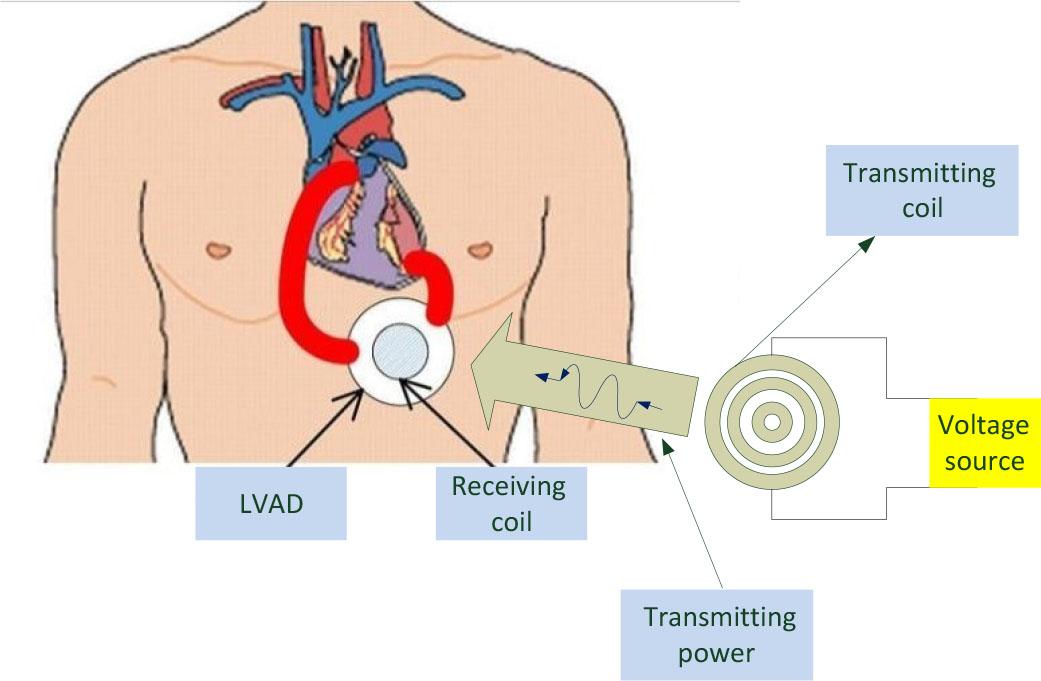

Wireless power transfer of LVAD.
Wireless power transfer of LVAD.

Fig 2.:

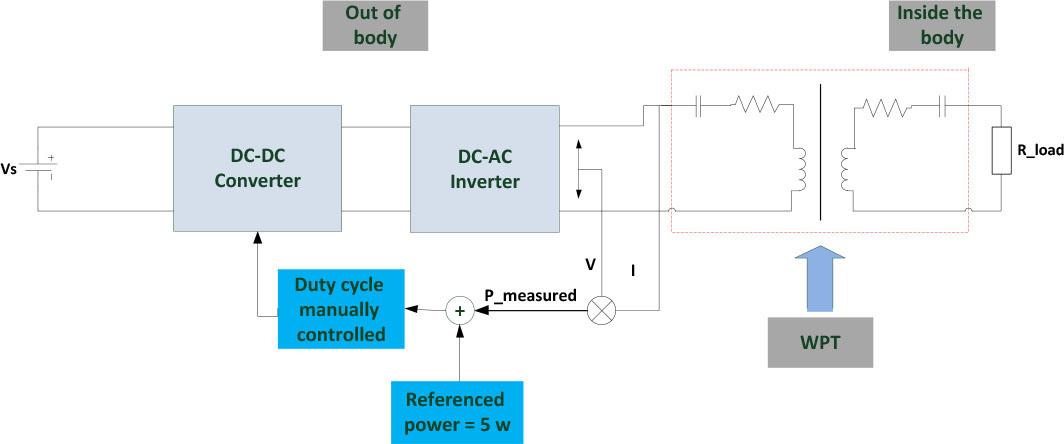

Block diagram of the WPT system.
Block diagram of the WPT system.

Fig. 3:

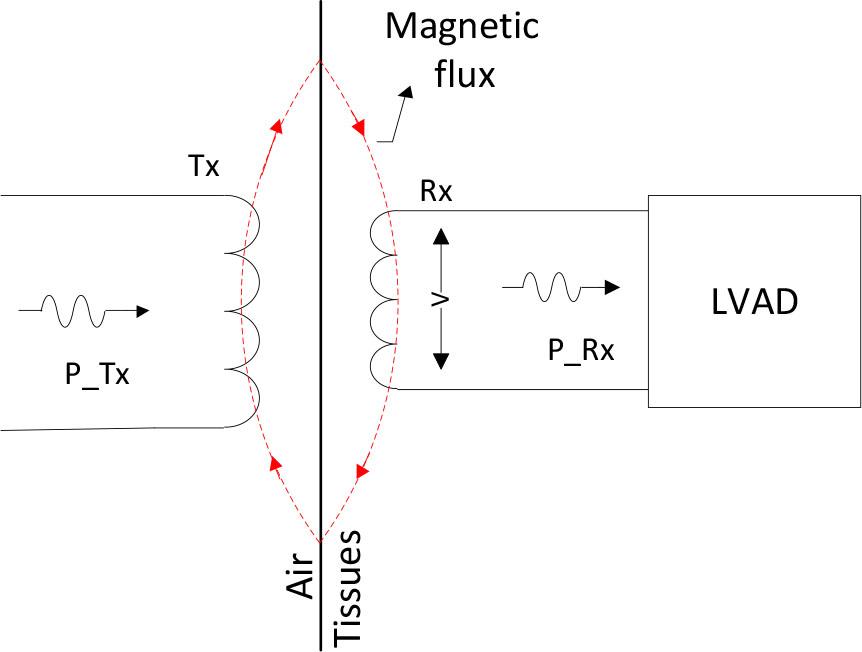

Block diagram of the proposed system.
Block diagram of the proposed system.

Fig. 4:

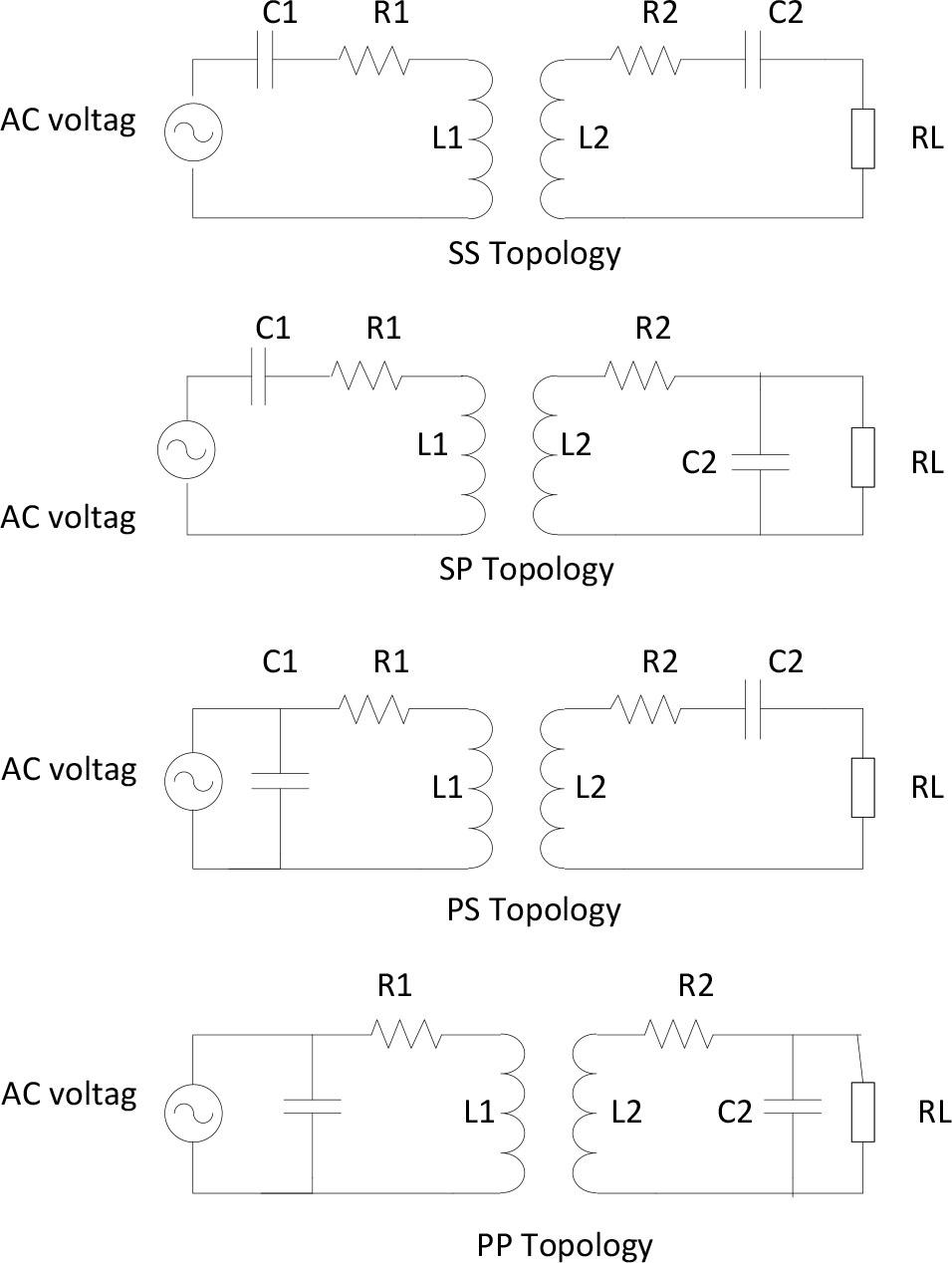

Resonant inductive coupling.
Resonant inductive coupling.

Fig. 5:

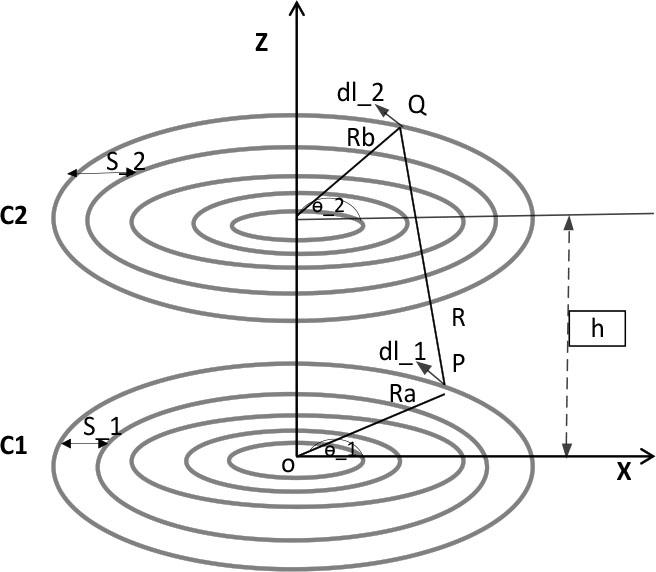

Aligned circular planar spiral coil.
Aligned circular planar spiral coil.

Fig. 6:

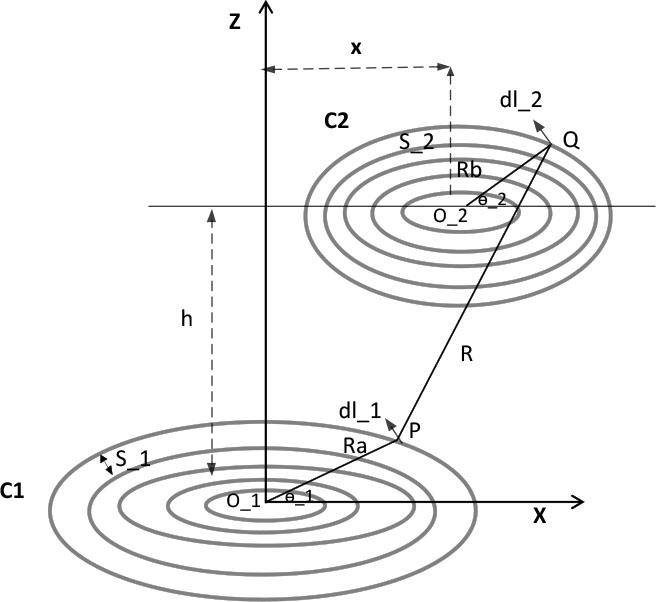

Planar spiral coil with lateral misalignment.
Planar spiral coil with lateral misalignment.

Fig. 7:

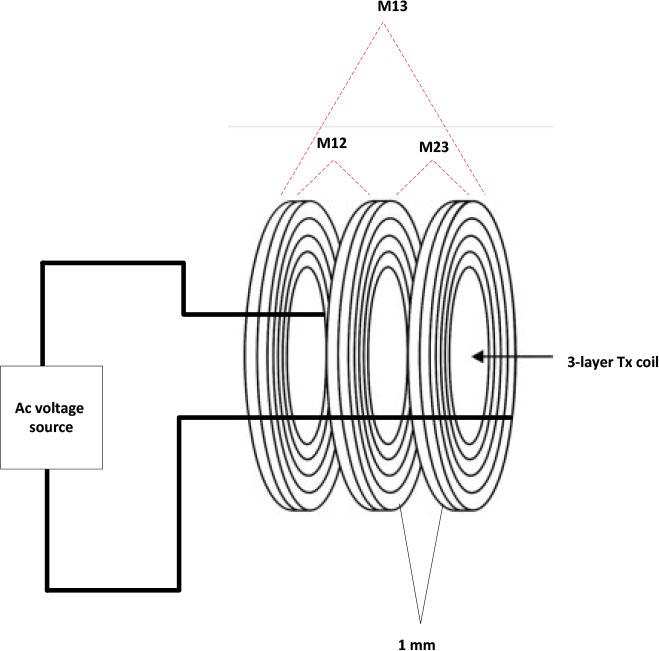

Three-layer Tx coil.
Three-layer Tx coil.

Fig. 8:

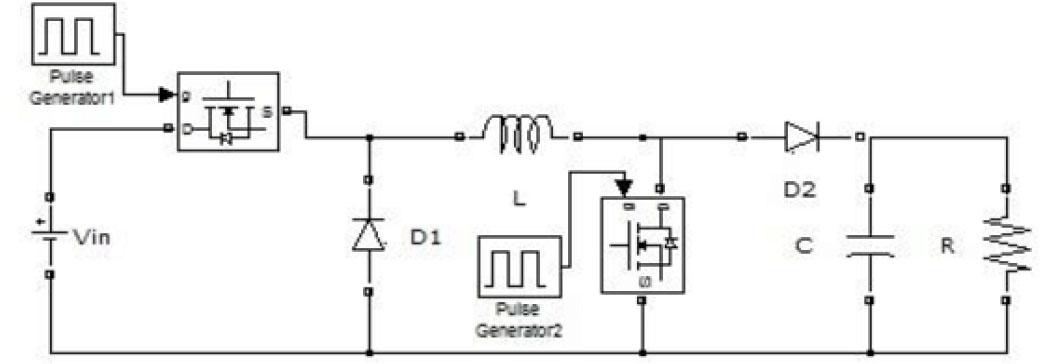

Non-inverting Buck-Boost converter.
Non-inverting Buck-Boost converter.

Fig. 9:

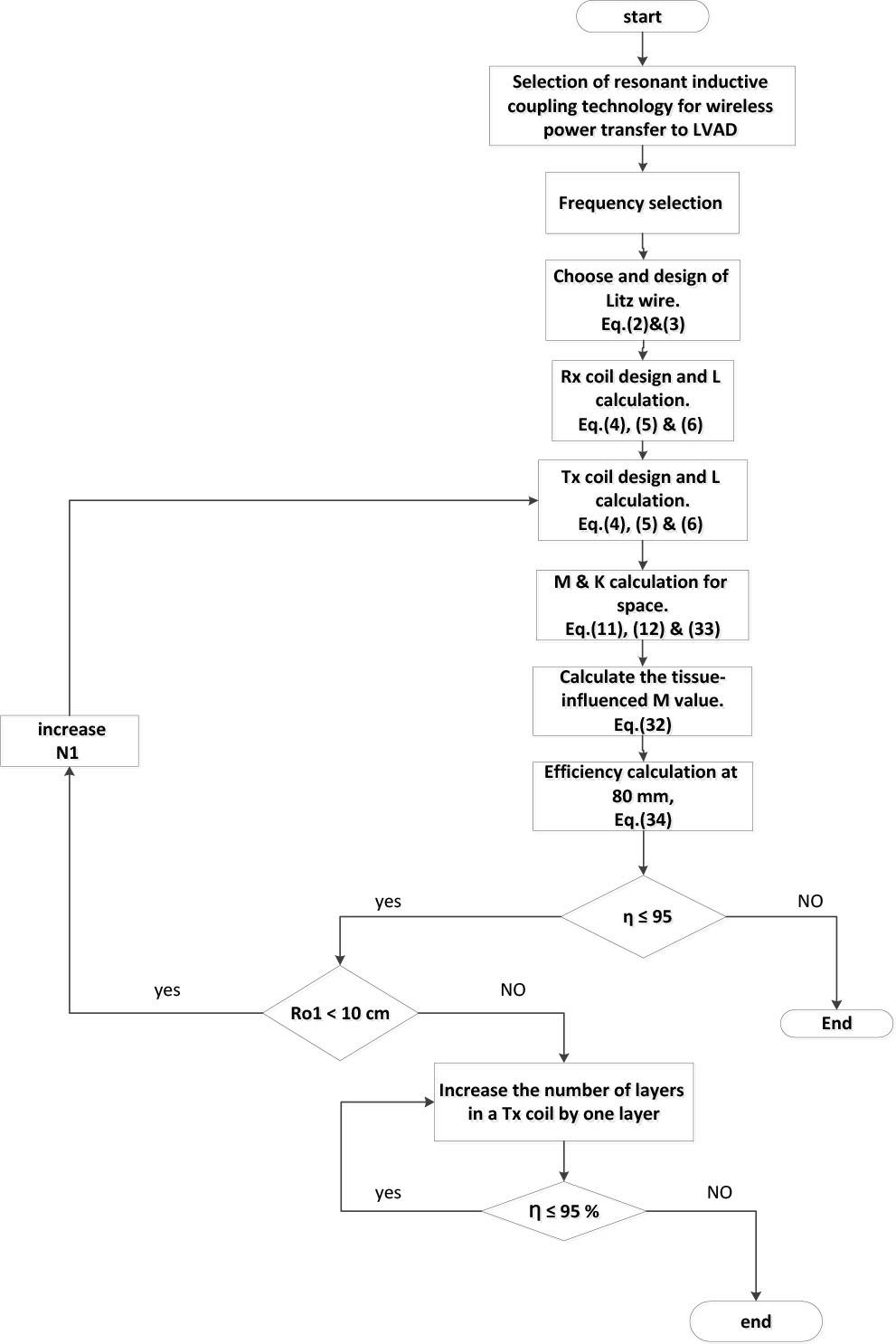

Coil design flowchart.
Coil design flowchart.

Fig. 10:

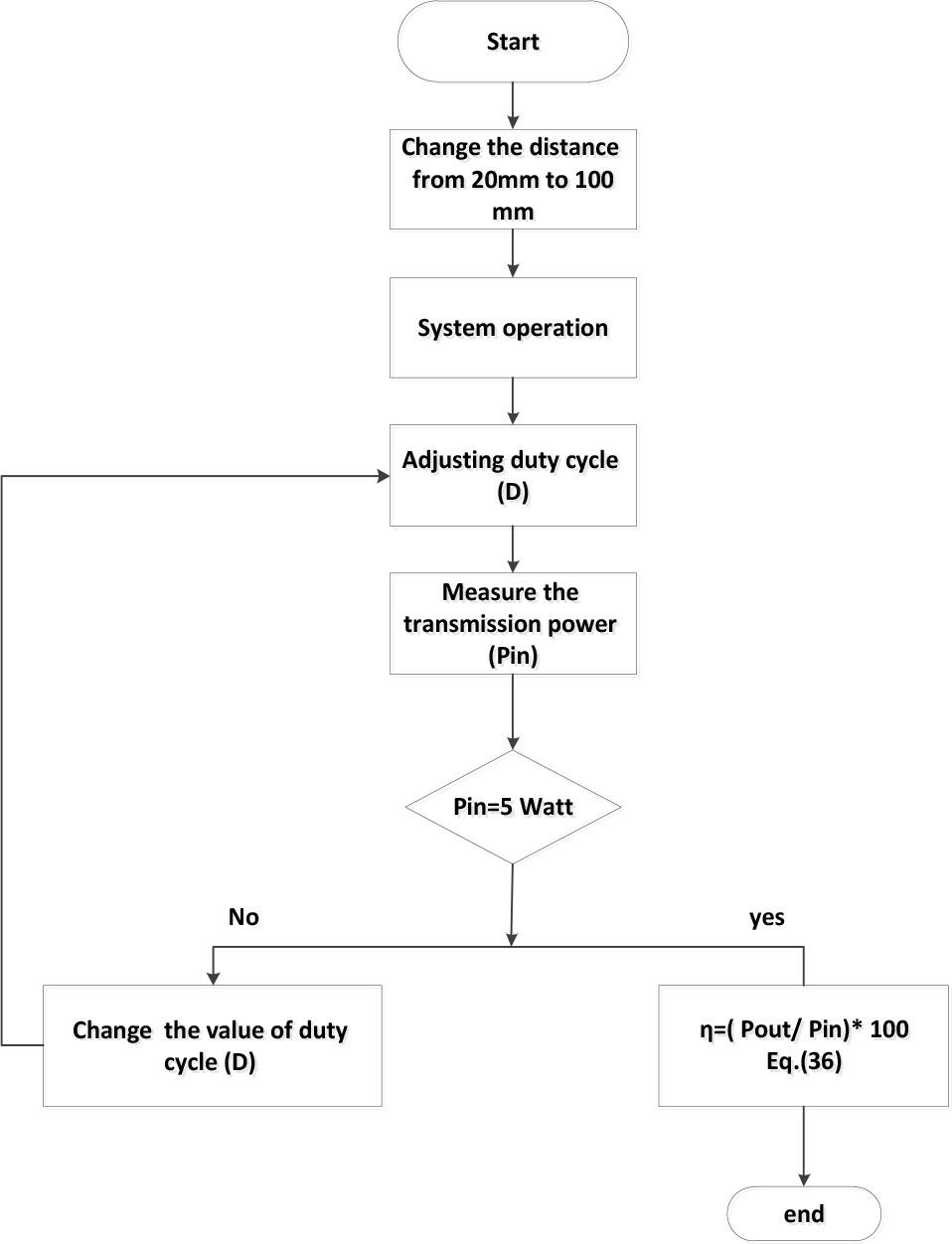

Transmission circuit power stabilization flowchart.
Transmission circuit power stabilization flowchart.

Fig. 11:

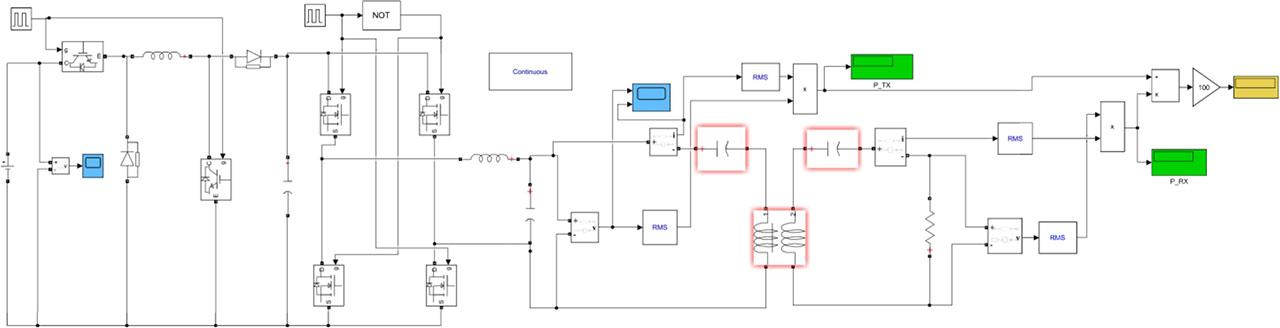

Simulink model of the proposed system.
Simulink model of the proposed system.

Fig. 12:

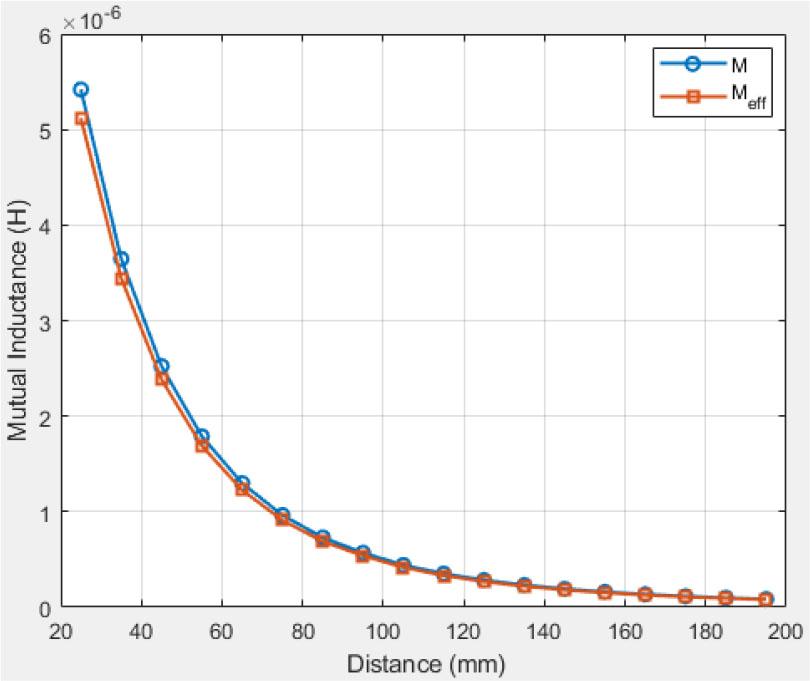

Mutual inductance at a single-layer Tx coil.
Mutual inductance at a single-layer Tx coil.

Fig. 13:

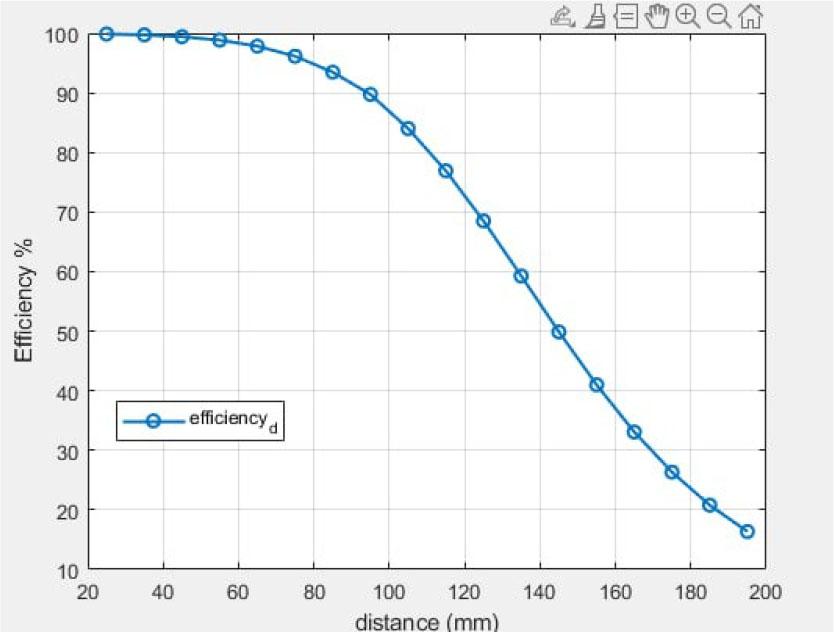

Theoretical efficiency of the WPT system at a single-layer Tx coil.
Theoretical efficiency of the WPT system at a single-layer Tx coil.

Fig. 14:

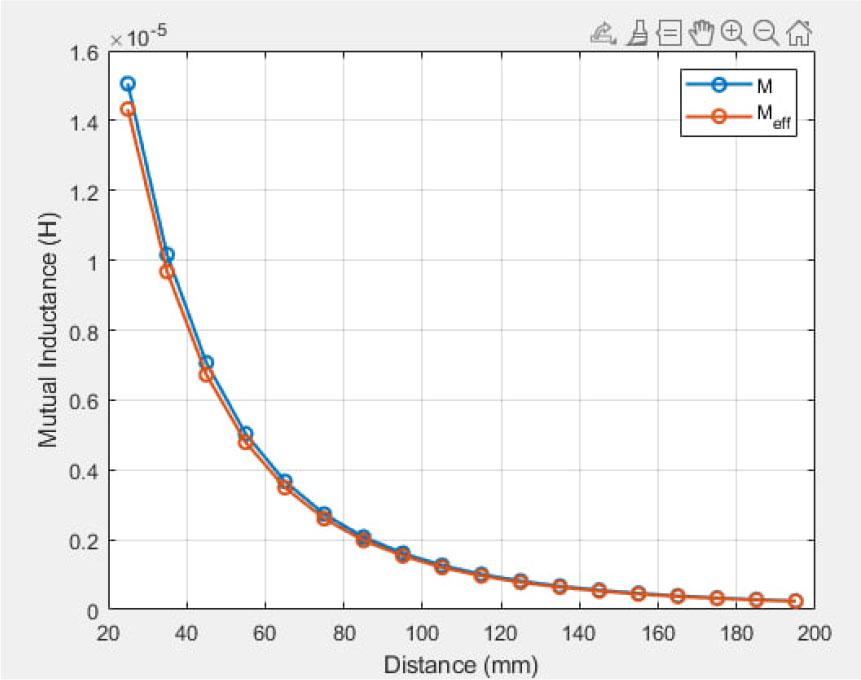

Mutual inductance at a multilayer Tx coil.
Mutual inductance at a multilayer Tx coil.

Fig. 15:

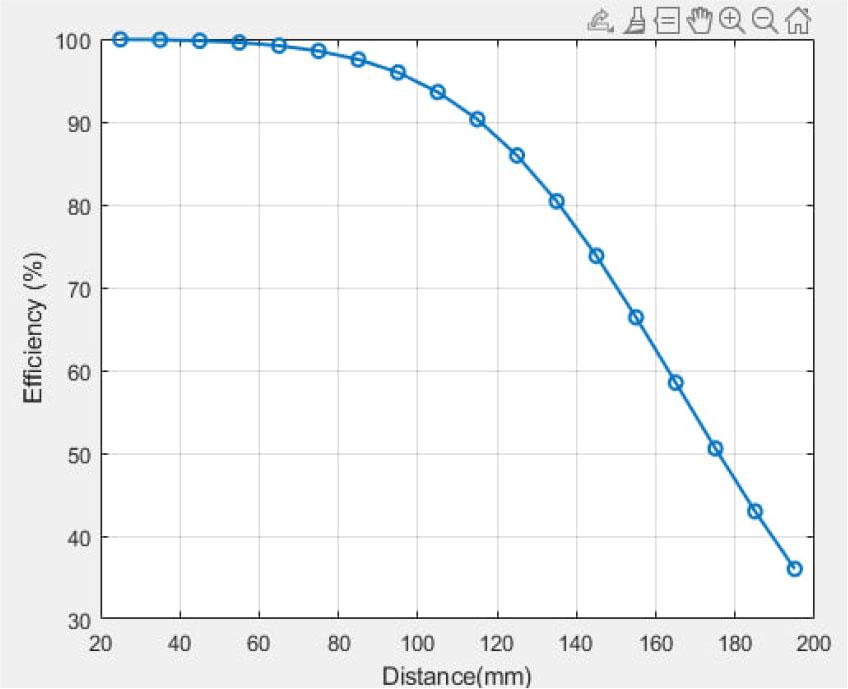

Theoretical efficiency of the WPT system at multilayer Tx coil.
Theoretical efficiency of the WPT system at multilayer Tx coil.

Fig. 16:

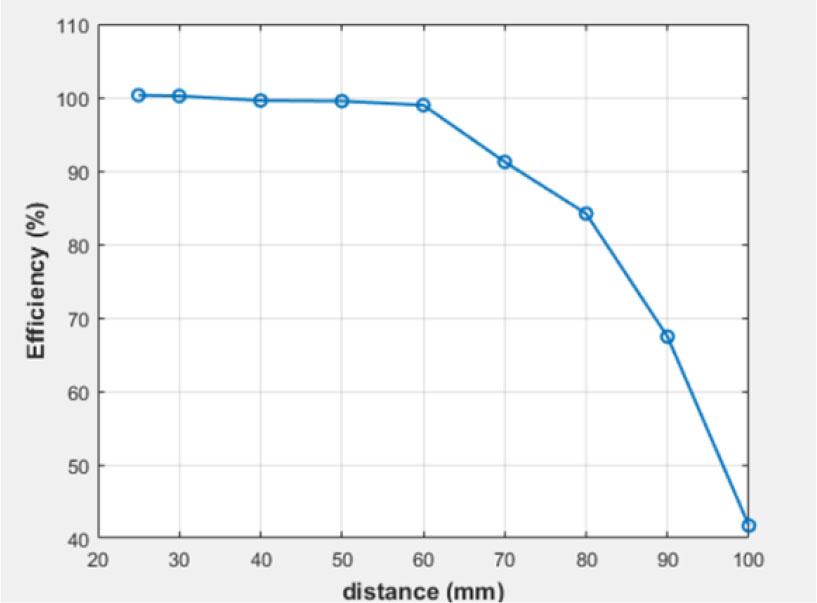

Simulated efficiecy of the proposed system.
Simulated efficiecy of the proposed system.

Fig. 17:

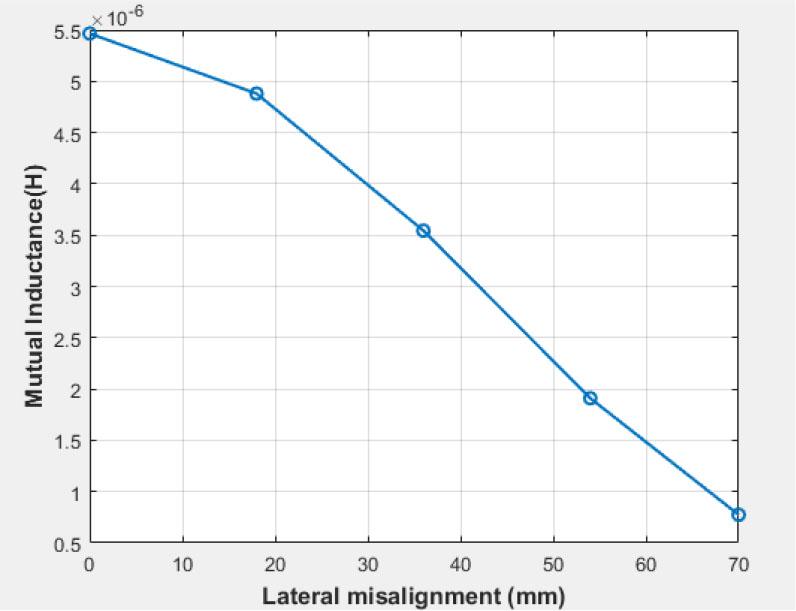

variation of mutual inductance with lateral alignment.
variation of mutual inductance with lateral alignment.

Fig. 18:

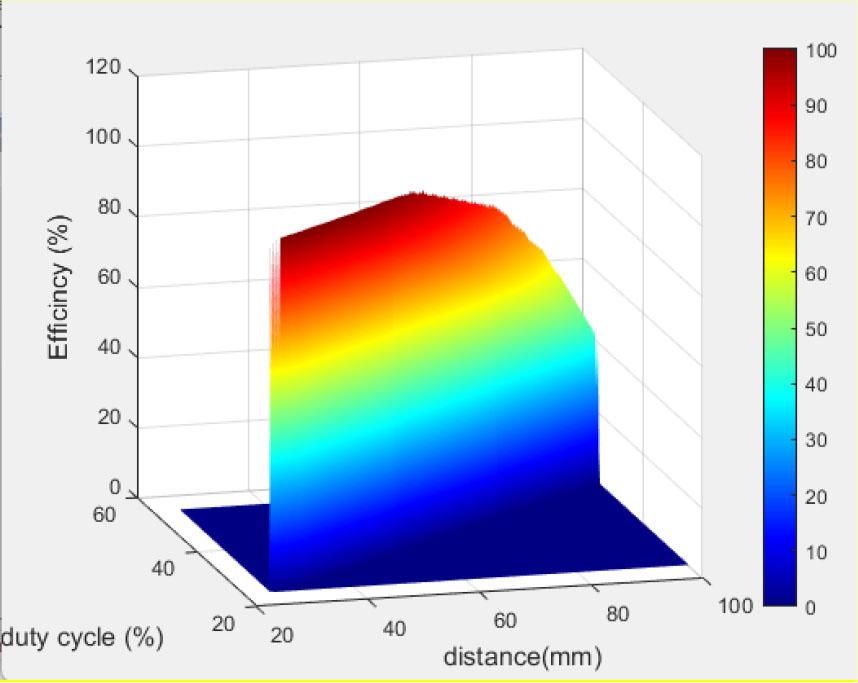

3D representation of the relationship between duty cycle, distance and efficiency.
3D representation of the relationship between duty cycle, distance and efficiency.

Simulated efficiency at different values of x_

X (mm)Efficiency %
099.5
1899.0
3695.9
5476.0

Parameters of the coils_

Number of turns for the primary and secondary coils (N1 & N2)50 & 15
The outer radius of the primary and secondary coil (RO1 & RO2)(112 & 35) mm
Inner radius of the primary and secondary coil (Ri1 & Ri2)13 mm
Space between turns (S1 & S2)(1 & 0.5) mm
Number of strands (Ns1 & Ns2)(103 & 345)
Wire diameter (W)1 mm
