Wireless power system for left ventricular assist device: Influence of coil design and tissue behavior on efficiency

A brushless DC motor drive is utilized in the LVAD, which is implanted within the human body [8]. External batteries always power the LVAD. The batteries are connected to the implanted device via a wire that passes through the abdomen. The LVAD is categorized as a high-power implanted device, necessitating an average output of approximately 5 watts and a peak power of around 20 watts under all operational conditions [8]. The load is represented as a resistance of around 40 ohms by Eq. (1) when the voltage is 14 V. (1) R=V2P R = {{{V^2}} \over P}

Wireless transmission systems are classified into two main categories: far-field and near-field. Far-field power transmission includes microwave and ultrasound technologies, both of which operate at radio frequencies (RF) (300 MHz – 300 GHz) [9]. Near-field transmission includes inductive coupling and capacitive coupling technologies. In capacitive coupling, power is transmitted by an electric field, while in inductive coupling, power is transmitted by a magnetic field. Generally, the frequencies in this category are lower than the far-field frequencies, usually above 10 kHz to a few MHz [10]. Near-field transmission systems are superior for medical applications due to their minimal coil losses and tolerance to tissue attenuation. This study employs an inductive coupling system for wireless power transfer because of its superior flexibility in coil distance and alignment compared to capacitive coupling, which necessitates a restricted distance and precise plate alignment [11].

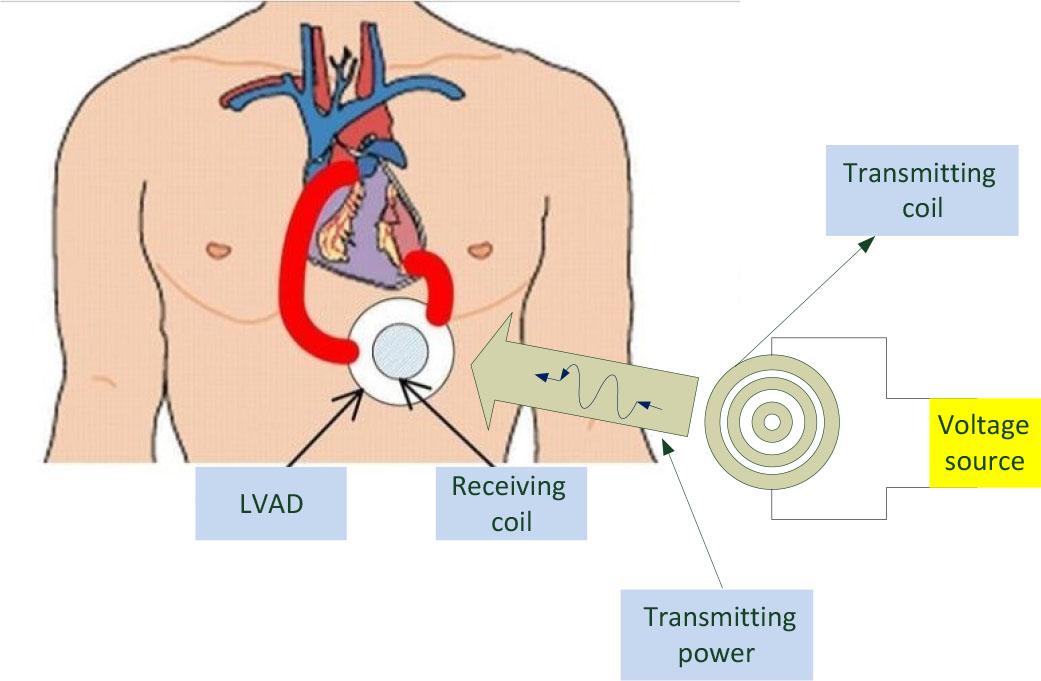

This system employs two distinct coils, designated as Tx and Rx. The Tx coil is the transmitting coil, connected to the voltage source and positioned at the output to the human body, forming the transmitting circuit. The Rx coil is the secondary or receiving coil, embedded within the human body and connected to the pump, thereby forming the receiving circuit, as illustrated in Fig. 3.

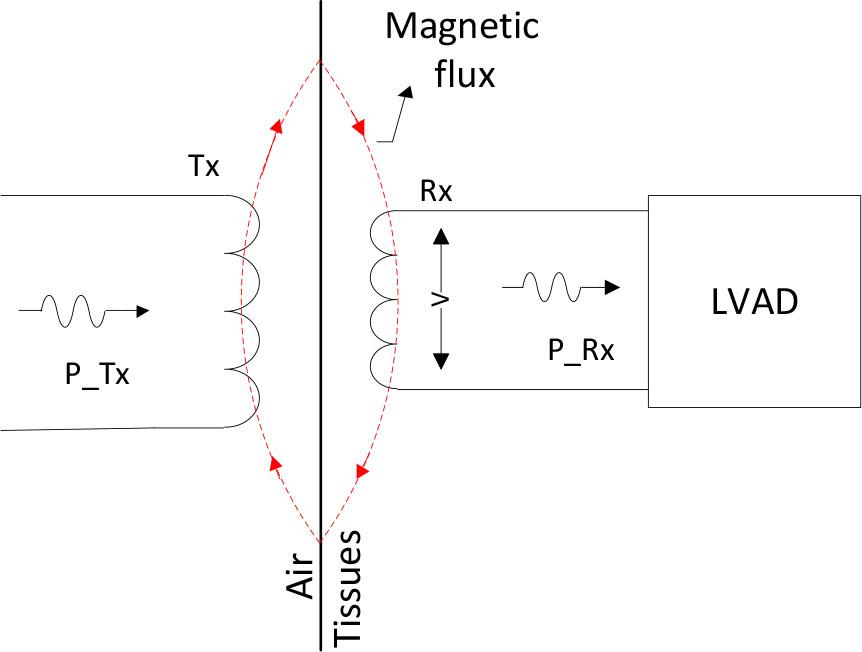

Fig. 3:

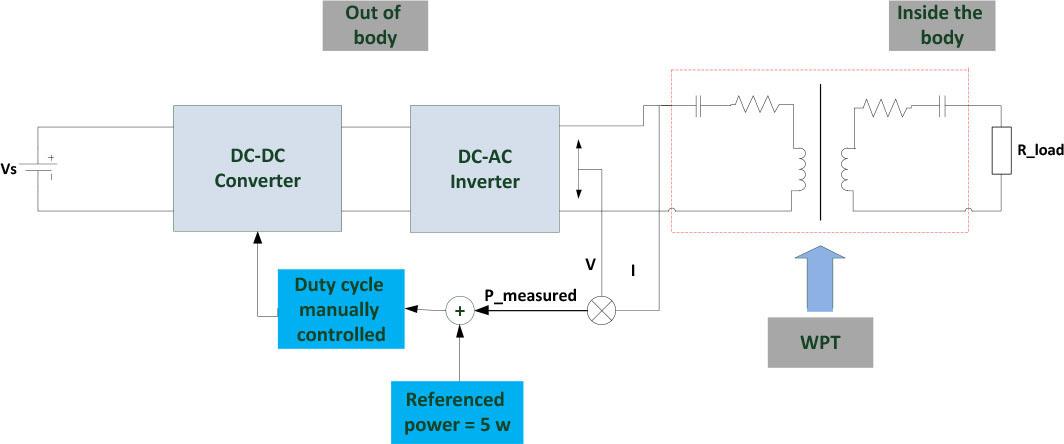

Block diagram of the proposed system.

To enhance power transfer efficiency, resonant inductive coupling is employed instead of conventional inductive coupling. This is because it can transmit greater power between the coils over extended distances [11]. The rationale is that operating at resonance minimizes the system's impedance, reducing losses. This provides an additional significant benefit, as the heat produced in the receiving circuit will decrease with reduced losses. Another benefit of resonance is its ability to reduce interference with other waves present in the medium. Resonance is attained by compensating the inductive reactance of the transmitting and receiving coils using compensating capacitors. As shown in Fig. 4, the system can incorporate capacitors in several configurations, specifically Series-Series (SS), Series-Parallel (SP), Parallel-Series (PS), and Parallel-Parallel (PP).

Fig. 4:

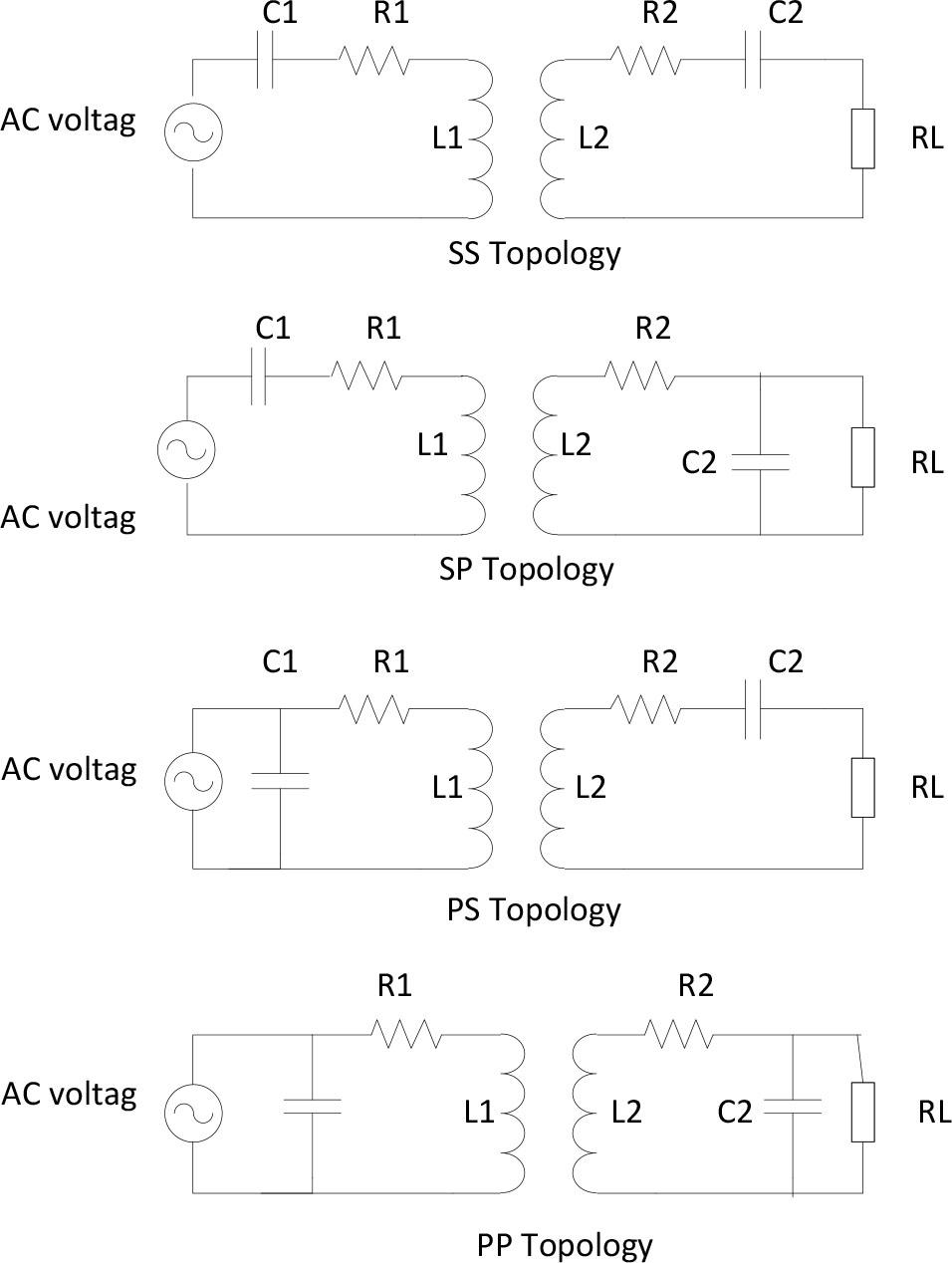

Resonant inductive coupling.

When tissues are exposed to high-frequency electro-magnetic waves, such as microwaves, polar molecules like water (H₂O) oscillate in response to the wave's electric field. The oscillations induce friction among the molecules, leading to heat generation that escalates with increased frequency, known as dielectric heating [24]. This process results in water evaporation from the tissues, leading to desiccation, particularly of muscle tissue [29]. The selection of operating frequency is essential as it directly correlates with the system's safety and efficiency. In [12], the optimal frequency for deep implantation is 4 MHz to obtain the highest electromotive force for a small coil inside the human body within safe limits. This frequency is not designated as unlicensed and necessitates a special license, as it lies outside the Industrial, Scientific, and Medical (ISM) bands.

The ISM bands are scientifically designated frequencies that can be utilized without specific licenses; examples include 6.78 MHz, 13.56 MHz, and 2.4 GHz [13]. The frequency of 6.78 MHz was chosen as it is the closest ISM frequency to 4 MHz. Furthermore, the chosen frequency of 6.78 MHz resides within the ISM bands, which is internationally acknowledged and controlled for non-communication purposes, encompassing medical devices. It has been widely adopted in various wireless power transfer applications due to its balance between efficiency and safety, and it complies with international standards such as FCC (Part 18) and IEC 60601-1 for electromagnetic compatibility in medical environments [13].

Skin and proximity effects in coils are induced by high frequencies, such as 6.78 MHz, resulting in an increase in their equivalent resistance [14]. This resistance immediately decreases efficiency by increasing coil heat and losses. In the receiving coil, this is particularly inappropriate, as it has the potential to cause tissue damage. A Litz wire is employed to mitigate proximity and the skin effects [14,15].

The design of the coil is essential for high-performance WPT. Therefore, a universal coil design technique must be developed, especially when using a miniature Rx coil. This study recommends designing WPT systems with significantly larger Tx coils and tiny Rx coils. A Litz wire was used to design these coils to mitigate skin and proximity effects [14,15]. Forming a solid coil consisting of individually insulated strands ensures equal current distribution. Designing a Litz wire is necessary to ascertain the number of strands and compute the coil's equivalent resistance. [15] presents a simple method for determining the number of strands of the Litz wire and calculating the coil resistance, demonstrating equivalence to more complex methods in other studies. The first step in the design of the Litz wire is calculating the skin depth by Eq. (2) [15]: (2) δ=ρπfμ° \delta = \sqrt {{\rho \over {\pi f\mu_{\circ}}}} where:

• ρ: The resistivity of the conductor is equal to (1.72 × 10⁻⁸ Ωm) for copper at room temperature.

• f: The frequency of a sinusoidal current in the windings.

• μ_○ : The permeability of free space (4π × 10⁻⁷).

Using SI units for all variables in this equation yields skin depth in meters. To guarantee that the current penetrates the entire cross-sectional area of the strand, the strand diameter (ds) is selected to be equal to or less than the skin depth (ds ≤ δ), hence minimizing the skin effect as much as possible. The current study utilizes the data sheet from [15] to determine the ideal characteristics of the Litz wire for an inexpensive design. In the second step, the number of strands is determined using Eq. (3) [15]: (3) ns=kδ2bN {n_s} = k{{{\delta^2}b} \over N} where:

• k: A constant corresponding to each strand diameter as specified in the data sheet presented in [15].

• b: Represents the breadth of a winding that intersects with another winding.

• N: Represents the number of coil turns.

The values of n_s derived from Eq. (3) should not be regarded as precise, as values 25% more or 25% less than n_s may also be acceptable. The third step involves calculating the AC resistance of the coil according to Eq.(4) [15]: (4) Fr=RacRdc=1+(πnN)2ds6192.δ2b2 {F_r} = {{{R_{ac}}} \over {{R_{dc}}}} = 1 + {{{{(\pi nN)}^2}{d_s}^6} \over {192.{\delta^2}{b^2}}} (5) Rdc=l(mm)σnπrs2 {R_{dc}} = {{l\left({mm} \right)} \over {\sigma n\pi {r_s}^2}} where Fr represents the AC resistance factor for any number of strands, l is the length of the wire, σ is a constant, and its value is 58,000, and r is the radius of one strand. The utilized coil is a flat spiral design, optimizing the circular configuration of the LVAD to maximize spatial occupancy. The self-inductance of the coil is calculated using Eq.(6) [16]: (6) L=N2(Rout−N(w+s))216Rout+28N(w+s)39.37106 L = {{{N^2}{{({R_{out}} - N(w + s))}^2}} \over {16{R_{out}} + 28N(w + s)}}{{39.37} \over {{{10}^6}}} where:

• L: Is the self-inductance in Henry.

• d_out : Is the outer radius of the coil.

• W: The diameter of the wire utilized for coil winding.

• S: The channel width separating two adjacent wires.

Mutual inductance denotes a coil's capacity to induce an electric voltage in the other coil. The coil utilized is a planar spiral. [17] proposes a simplified method for determining M based on Neumann's integral. Two opposing coils C₁, and C₂, are presumed to extend along the x and z axes, with their center located at the origin, as shown in Fig. 5. The two coils are separated by h. P and Q are the tangential elements on the C₁ and C₂. R_a and R_b represents the distance from the origin point of the two coils to the tangential elements, and it is given by Eq.(7) and Eq.(8) [17]. θ₁ represents the gap between them, which represents the angle of R_a relative to the x-axis of C₁, and θ₂ is the angle of C₂. (7) Ra=RI1+aθ1 {R_a} = {R_{I1}} + a{\theta_1} (8) Rb=RI2+aθ2 {R_b} = {R_{I2}} + a{\theta_2} where a is a pitch factor and is given by the following equation: (9) a=s2π a = {s \over {2\pi}}

Fig. 5:

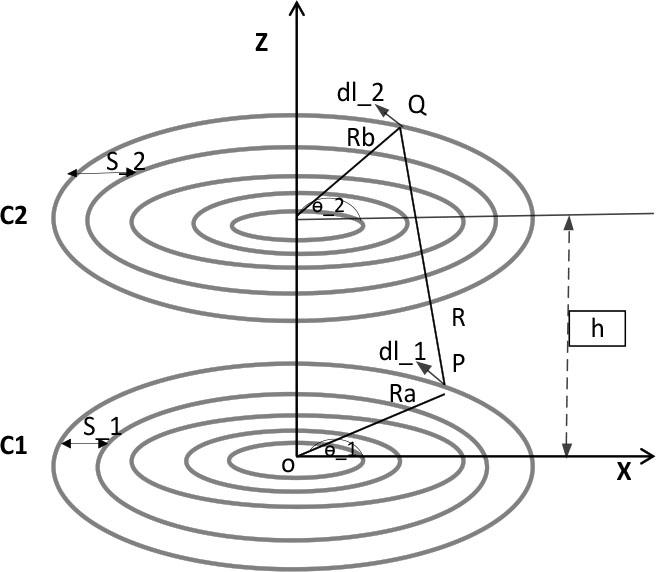

Aligned circular planar spiral coil.

The mutual inductance is determined using the Neumann equation as follows: (10) M=μ°4π∮C1∮C2dl1dl2R M = {{\mu_{\circ}} \over {4\pi}}\oint_{{C_1}} {\oint_{{C_2}} {{{d{l_1}d{l_2}} \over R}}} where, dl₁ and dl₂ are line elements. In [17], the value of M is computed in two distinct scenarios: first, using Eq. (11) for optimal alignment of the transmitting and receiving coils, and second, employing Eq. (12) for a lateral misalignment by x [17]. These two equations have been adopted in this paper. (11) M=μ°4π∬2πNj dθ1dθ2(Ri1+a1θ1)2+(Ri2+a2θ2)2−2j+h2j=(Ri1+a1θ1)(Ri2+a2θ2)cos(θ2−θ1) \matrix{{M = {{\mu_{\circ}} \over {4\pi}}\int\!\!\!\int_{2\pi N} {{{j\,d{\theta_1}d{\theta_2}} \over {\sqrt {{{({R_{i1}} + {a_1}{\theta_1})}^2} + {{({R_{i2}} + {a_2}{\theta_2})}^2} - 2j + {h^2}}}}}} \hfill \cr {j = \left({{R_{i1}} + {a_1}{\theta_1}} \right)\left({{R_{i2}} + {a_2}{\theta_2}} \right)cos\left({{\theta_2} - {\theta_1}} \right)} \hfill \cr}

In magnetically coupled coils, lateral misalignment often occurs, as illustrated in Fig. 6. Specifically, in this application, the lateral misalignment will occur in the transmitting coil, which leads to a weakening of the magnetic coupling between the two coils. The consequences are reflected in the value of the mutual inductance, which will be evident in a considerable reduction in the value of the mutual inductance. Consequently, its value is determined based on Eq. (12) [17]. (12) M=μ°4π∬2πNj dθ1dθ2Ra2+Rb2+h2+x2+−2j+2xRacosθ1−2xRbcosθ2 M = {{\mu_{\circ}} \over {4\pi}}\int\!\!\!\int_{2\pi N} {{{j\,d{\theta_1}d{\theta_2}} \over {\sqrt {{R_a}^2 + {R_b}^2 + {h^2} + {x^2} + - 2j + 2x{R_a}\cos {\theta_1} - 2x{R_b}\cos {\theta_2}}}}}

Fig. 6:

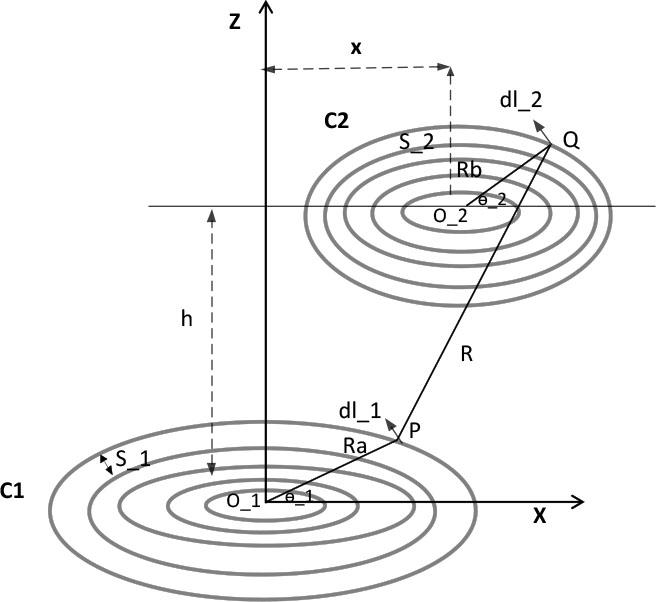

Planar spiral coil with lateral misalignment.

The equations indicate that the primary parameters influencing M are the number of coil turns N, the inner and outer diameters, and the inter-coil spacing. Consequently, by regulating these factors, the value of M is managed.

The WPT system's efficiency is correlated to the coils' self-inductance, which increases as the coil's diameter, number of turns, and number of layers increase [18]. The referencing coil is the transmitting coil, situated externally to the body, as the receiving coil is internal and its dimensions cannot be increased. Therefore, this work utilizes a multilayer coil approach, incorporating three layers of an identical-sized Tx coil, as shown in Fig. 7. The coil is constructed with identical wires to form these three layers, resulting in coils arranged in series. The self-inductance of the transmitting coil Tx is determined using Eq. (13) [18]. (13) Leq=L1+L2+L3+2(M12+M13+M23) {L_{eq}} = {L_1} + {L_2} + {L_3} + 2\left({{M_{12}} + {M_{13}} + {M_{23}}} \right) where L₁, L₂ and L₃ represent the self-inductance of the first, second, and third layers of the Tx coil, and M₁, M₂ and M₃ represent the mutual inductance between layers, calculated according to Eq. (11).

Fig. 7:

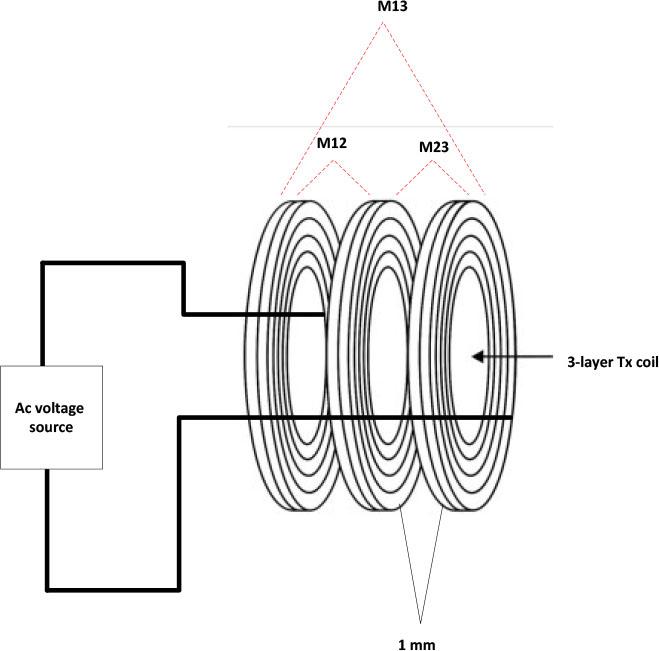

Three-layer Tx coil.

The transmission power varies with the changing distance between the transmitter and receiver in the WPT system. This variance is attributable to the circuit's input impedance (Z_in), which varies with M variations. As the distance between the transmitting and receiving coils increased, mutual inductance (M) decreased, resulting in a reduction in input impedance (Z_in) according to Eq. (14) [20]. To assess the efficacy of the WPT system, the transmitted power must remain constant. (14) Zin=Z1+w2M2Z1+ZL {Z_{in}} = {Z_1} + {{{w^2}{M^2}} \over {{Z_1} + {Z_L}}}

Power electronic converters manage voltage and ensure consistent power production. Therefore, the system comprises a non-inverting Buck-Boost Converter and an inverter. The power is controlled manually by adjusting the converter's duty cycle.

The buck-boost converter has been constructed according to [19]. As shown in Fig. 8, this converter operates in a three-switching mode that depends on the duty cycle value (D). When D equals 0.5, the output voltage matches the input; when D surpasses 0.5, the converter functions as a boost converter. When D is less than 0.5, it functions as a buck converter. The output voltage is defined by Equation (15) [19]. (15) Vo=VinD1−D {V_o} = {V_{in}}{D \over {1 - D}}

Fig. 8:

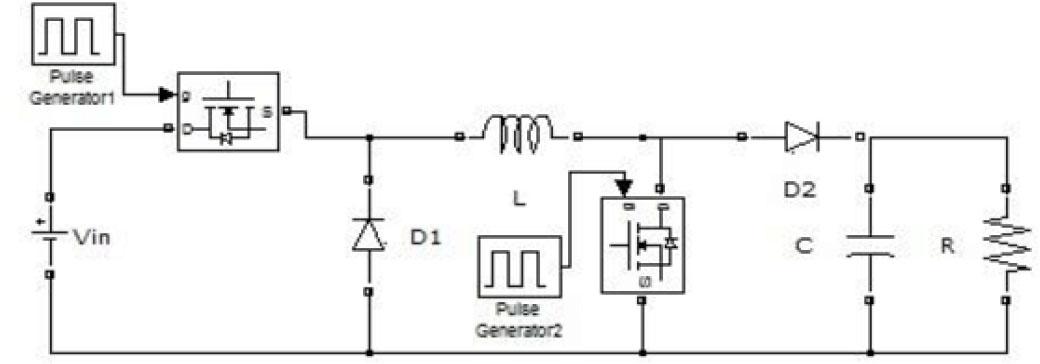

Non-inverting Buck-Boost converter.

The minimum and maximum values of the inductor and capacitor for both the buck and boost converters were computed independently by the following equations [21,30]:

• a)

  For buck converter: (16) Lmin=(1−D)R2fs {L_{min}} = {{\left({1 - D} \right)R} \over {2{f_s}}} (17) Cmin=1−D8L(ΔVoutVout)fs2 {C_{min}} = {{1 - D} \over {8L\left({{{\Delta {V_{out}}} \over {{V_{out}}}}} \right){f_{{s^2}}}}} where:

  • L_min: represents the minimum inductance required for the continuous current mode.

    (ΔVoutVout) \left( {{{\Delta {V_{out}}} \over {{V_{out}}}}} \right) : represents the ripple as a function of output voltage.

  • f_s: the switching frequency.

  R is the load resistance, and its value is determined based on the input voltage and current of the WPT circuit when operating at a separation distance of 80 mm, ensuring an efficient converter design.

• b)

  For the boost converter (18) Lmin=D(1−D)22fs {L_{min}} = {{D{{(1 - D)}^2}} \over {2{f_s}}} (19) Cmin=DR(ΔVoutVout)fs {C_{min}} = {D \over {R\left({{{\Delta {V_{out}}} \over {{V_{out}}}}} \right){f_s}}}

The minimum values of L and C for both the buck and boost converters were calculated for D = 0.1 and D = 0.9. The inductance is 2 × 10⁻³ H, the capacitance is 10 × 10⁻⁶ F, and the resistance is 230 Ω, which verifies optimal performance and efficiency.

The H-bridge inverter was used in conjunction with a low-pass filter to eliminate the harmonics associated with the inverter output. The low-pass filter was designed according to Eq. (20), the resonant frequency equation, which was considered equal to the fundamental frequency of 6.78 MHz. (20) fr=12πLC {f_r} = {1 \over {2\pi \sqrt {LC}}}

The medium for transferring electromagnetic waves between the transmitter and receiver coils consists of a vacuum and human body tissues. As electromagnetic waves penetrate, a portion of energy is absorbed by the tissues, leading to problems in the propagation of electromagnetic waves and diminishing the electric field. This results in losses that directly impact the magnetic linkage between the two coils [22]. This occurs due to tissues' electrical and magnetic characteristics, including permittivity ɛ, conductivity σ, and permeability μ; hence, in most academic studies, tissues are modeled as a network of R-C impedances. The tissues of the human body that transmit electromagnetic waves are classified as lossy media, characterized by two parameters: the propagation constant β and the attenuation constant α. [23] provides a detailed study of how electromagnetic waves travel through the human body using Maxwell's equations to explain electromagnetic effects, sets up the equations for alpha and beta, and calculates how these two factors affect the electric and magnetic fields of the electromagnetic wave as shown in Eq. (21–22) [23]. (21) α=wμε2[1+(σwε)2−1(NP/m) \alpha = {{w\sqrt {\mu \varepsilon}} \over 2}\sqrt {\sqrt {[1 + {{({\sigma \over {w\varepsilon}})}^2}} - 1} ({\rm{NP}}/{\rm{m}}) (22) β=wμε2[1+(σwε)2+1(rad/m) \beta = {{w\sqrt {\mu \varepsilon}} \over 2}\sqrt {\sqrt {[1 + {{({\sigma \over {w\varepsilon}})}^2}} + 1} ({\rm{rad}}/{\rm{m}}) where σ, ɛ, and μ denote the dielectric properties of tissue, which are conductivity, permittivity, and permeability, respectively [31].

The transmitted electrical and magnetic field into the human tissues is given in the form [23]: (23) E(z,t)=E°e−αzcos(wt−βz) E\left({z,t} \right) = {E_ \circ}{e^{- \alpha z}}\cos \left({wt - \beta z} \right) (24) H(z,t)=H°e−αzcos(wt−βz) H\left({z,t} \right) = {H_ \circ}{e^{- \alpha z}}\cos \left({wt - \beta z} \right) where w and z represent the angular frequency and tissue thickness, respectively. The magnitude of the electric and magnetic fields is affected by an exponential attenuation factor that depends on the thickness of the tissue and its dielectric properties. The dielectric properties of tissue represented by σ and ɛ at a frequency of 6.78 MHz were adopted by the IT'IS database based on Gabriel's study [24].

At the same time, μ was considered equal to the permeability of the vacuum because tissues are classified as non-magnetic materials [27, 28]. Individual body size and other factors, such as genetics, influence the tissue's variable thickness. The thickness of the epidermis varies between 0.06 and 0.1 mm, and the thickness of the dermis is 0.8 and 1.2 mm [23]. A study on cesarean sections, including 545 women, revealed that the muscle thickness in the upper left quadrant of the abdomen varied between 7.67 and 11.79 mm. In contrast, the fat layer thickness ranged between 15.47 and 31.31 mm [25]. The data also indicate that the thickness of the rib cage bone varied between 0.7 and 1.9 mm [26]. This study depended on the maximum thickness limits of these tissues to facilitate the propagation of electromagnetic waves towards the secondary coil integrated with the LVAD.

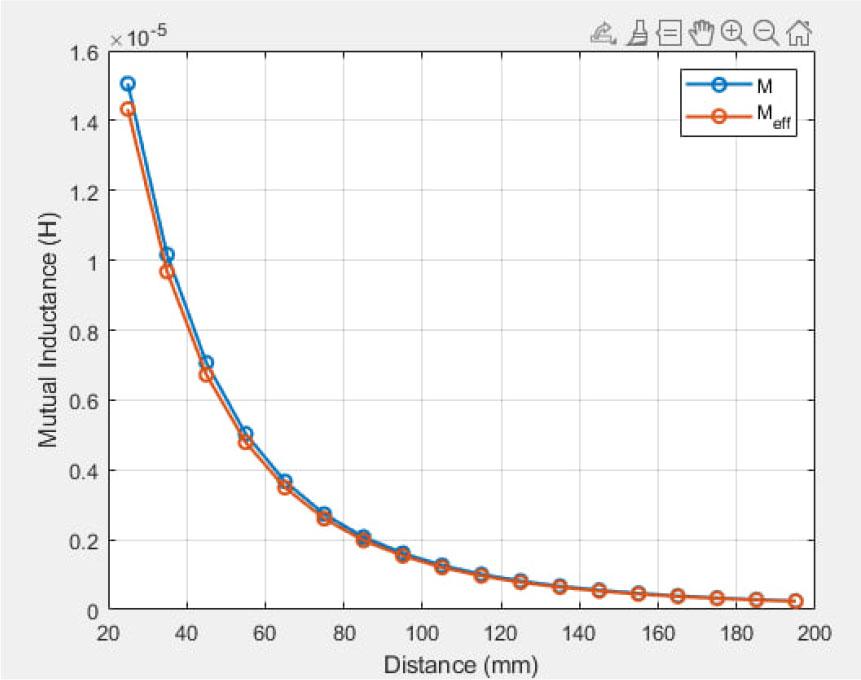

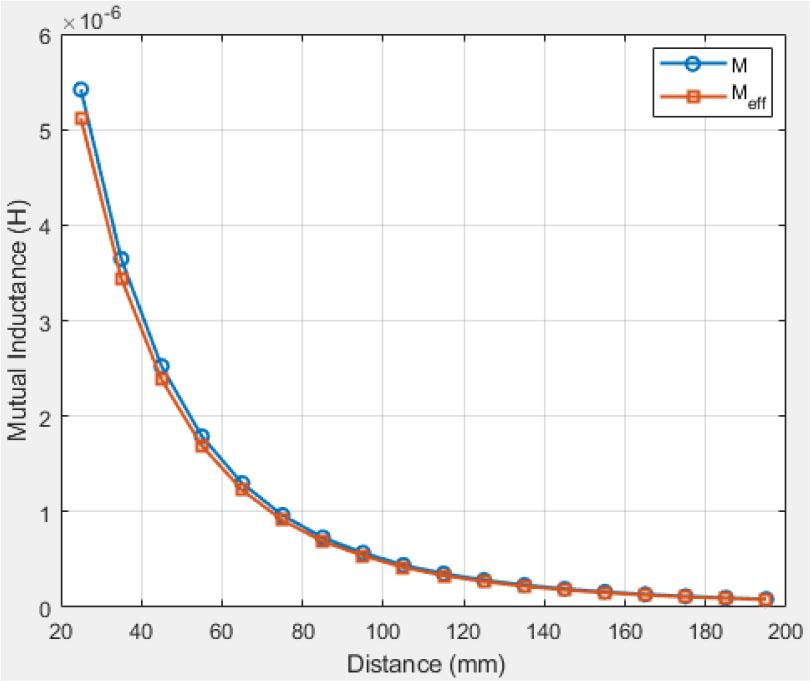

Eqs(23,24) represent the impact of tissues on the magnitude of mutual inductance, and its value is computed according to the following mathematical calculation. The magnetic flux density is: (25) B=μ°μrH B = {\mu_ \circ}{\mu_r}H where, μ_r is the permeability of the tissue. By substituting Eq.(24) in Eq.(25) (26) B=B°e−αze−jβzejwt B = {B_ \circ}{e^{- \alpha z}}{e^{- j\beta z}}{e^{jwt}} The following equation gives the amount of magnetic flux from one coil that penetrates another coil: (27) ∅=∫B dA \emptyset = \smallint B\,dA A denotes the cross-sectional area of the coil in m². By substituting Eq.(23) in Eq.(24) (28) ∅=B°Ae−αze−jβzejwt \emptyset = {B_ \circ}A{e^{- \alpha z}}{e^{- j\beta z}}{e^{jwt}} ∅_mag = B_○ Ae^−αZ, which is the magnitude of the magnetic flux and the amount of attenuation that will occur to it by an exponential factor. The magnitude of the mutual inductance depends directly on the magnitude of ∅. (29) M°=N2∅°I1 {M_ \circ} = {{{N_2}{\emptyset_ \circ}} \over {{I_1}}} where, ∅_○ and M_○ are the magnitude of flux and mutual inductance for vaccum. (30) Mmag_aten=N2∅magI1 {M_{ma{g_ -}aten}} = {{{N_2}{\emptyset_{mag}}} \over {{I_1}}} By substituting the equation ∅_mag in Eq.(30) (31) Mmag_aten=N2∅°e_αzI1 {M_{ma{g_ -}atten}} = {{{N_2}{\emptyset_ \circ}{e^{- \alpha z}}} \over {{I_1}}} (32) Mmag_aten=M°e−αz {M_{ma{g_ -}atten}} = {M_ \circ}{e^{- \alpha z}}

Mutual inductance M is directly related to the coupling factor K, as expressed by Eq (33): (33) K=ML1L2 K = {M \over {\sqrt {{L_1}{L_2}}}}

The system's efficiency is assessed both theoretically and through simulation. A theoretical approach dependent on the quality factor of the coils Q and the coupling factor K, is based on Eq. (34) [22]. This method of efficiency calculation was employed to evaluate the coil design, assuming that the WPT system operates under ideal conditions, free of magnetic field dispersion or losses. (34) ηth=K2Q1Q21+K2Q1Q2+Q2QL×11+LQ2 {\eta_{th}} = {{{K^2}{Q_1}{Q_2}} \over {1 + {K^2}{Q_1}{Q_2} + {{{Q_2}} \over {{Q_L}}}}} \times {1 \over {1 + {L \over {{Q_2}}}}} (35) Q1=WL1R1, Q2=WL2R2 and QL=RLWL2 {Q_1} = {{W{L_1}} \over {{R_1}}},\,\,{Q_2} = {{W{L_2}} \over {{R_2}}}\,\,and\,\,{Q_L} = {{{R_L}} \over {W{L_2}}} The system calculation efficiency from the simulation relies upon Eq. (36). (36) ηsimu=PoutPin×100% {\eta_{simu}} = {{{P_{out}}} \over {{P_{in}}}} \times 100\%

This section illustrates a flowchart outlining the procedures for designing the proposed system in this article.

The Simulink model presented in this study comprises six main components: a 14 V DC power source, a Buck-Boost converter, an H-bridge inverter, a low-pass filter, the wireless power transfer (WPT) system, and a resistive load R, as illustrated in Fig. 11.

Fig. 9:

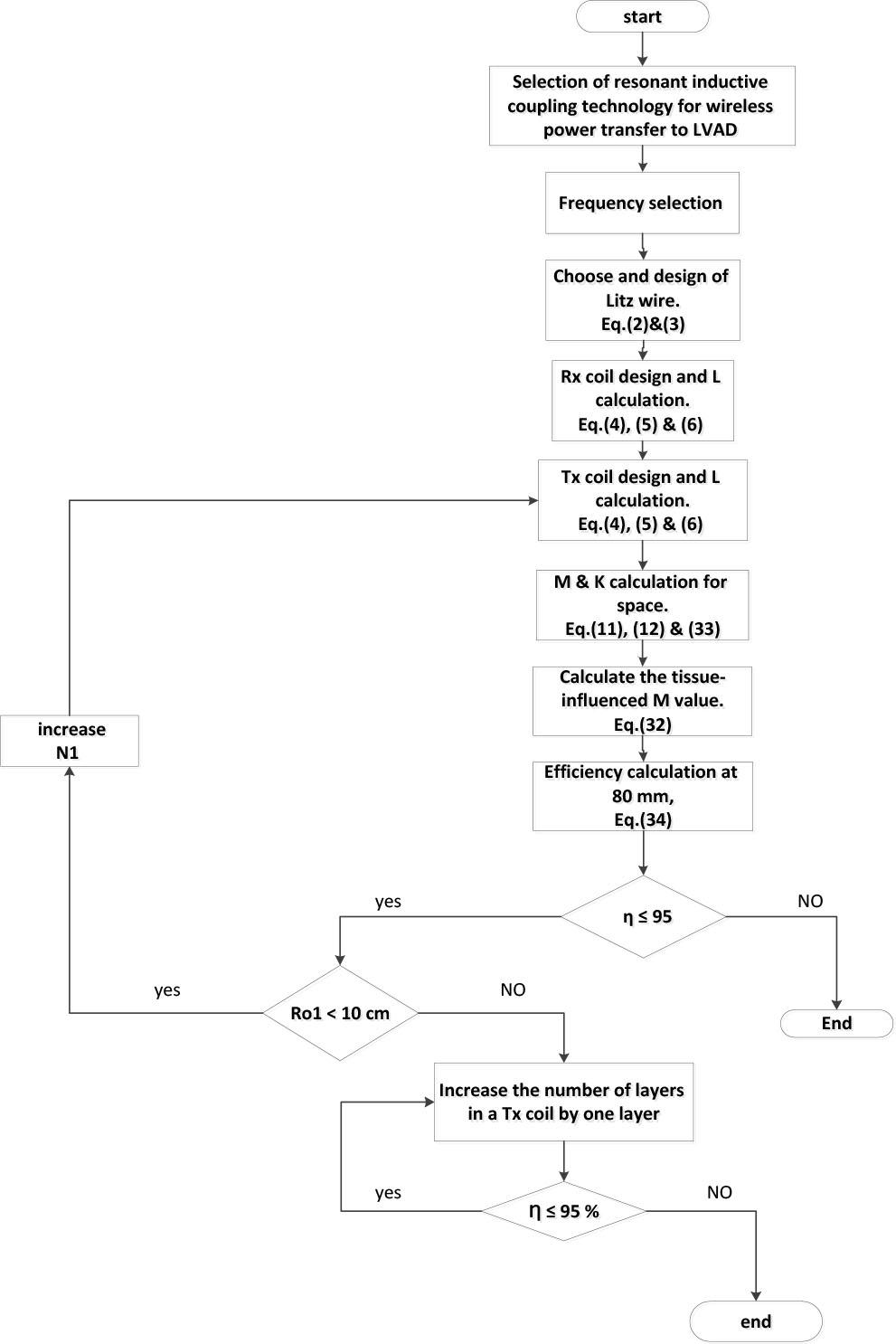

Coil design flowchart.

Fig. 10:

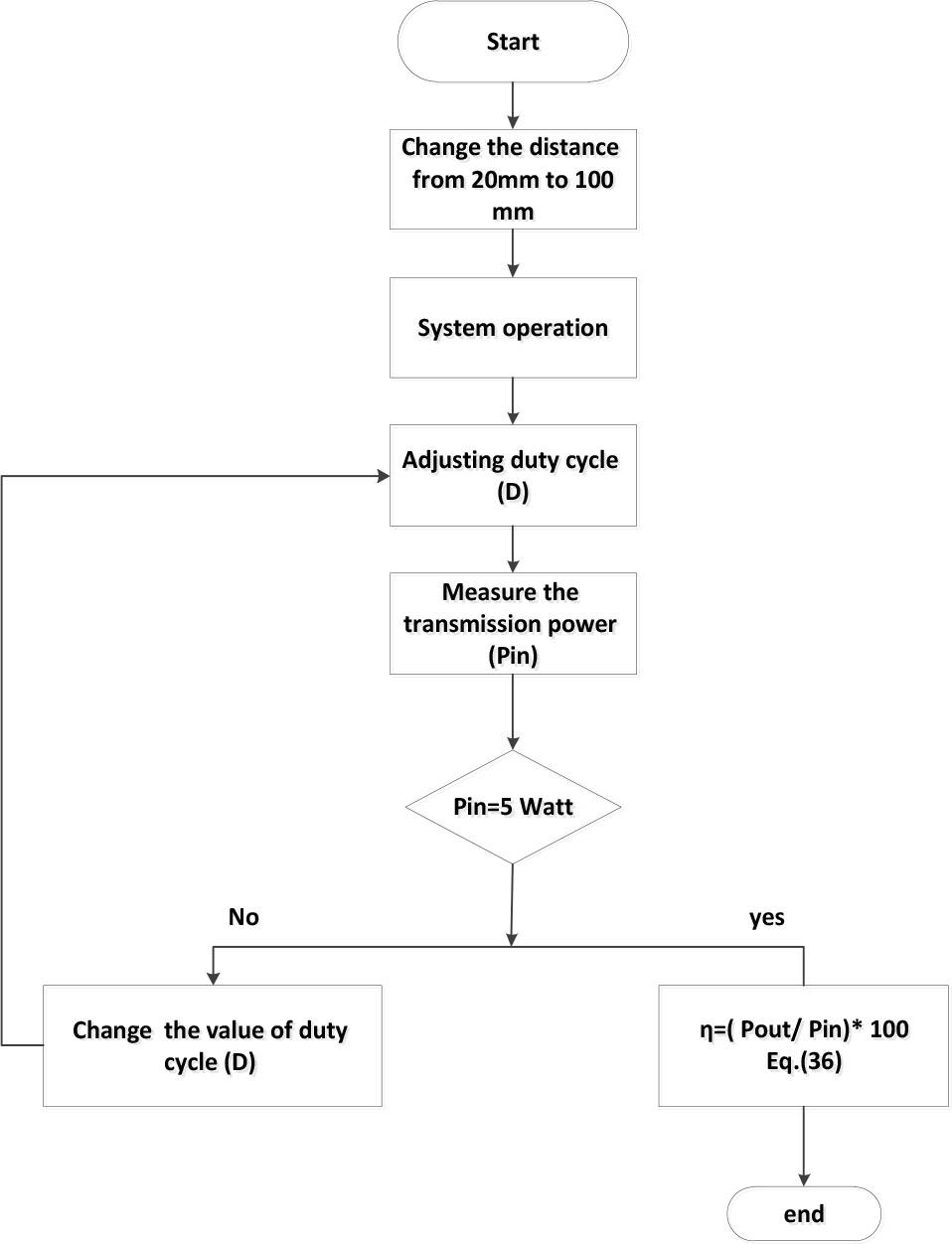

Transmission circuit power stabilization flowchart.

Fig. 11:

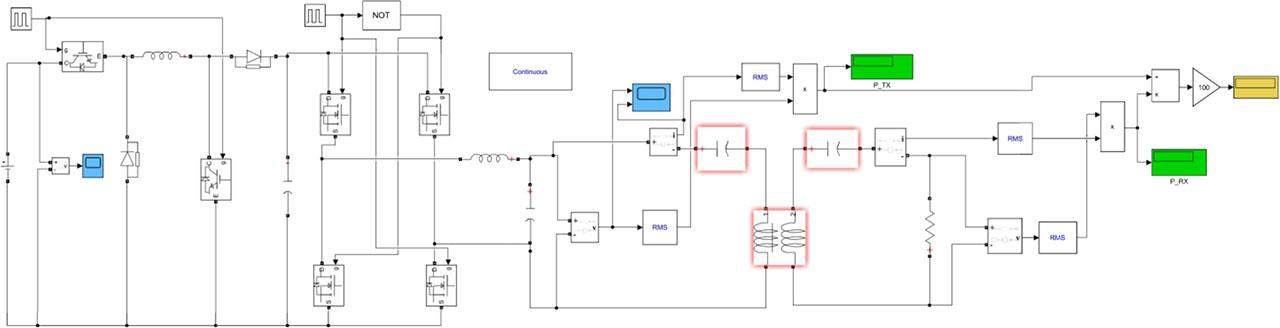

Simulink model of the proposed system.

The conducted research is not related to either human or animal use.

The lateral alignment of the coils was modified in relation to the receiving coil diameter, which measured 0,1/4, 1/2, and 1/3 times the transmitting coil diameter of 70 mm, at a separation distance of 50 mm.

The mutual inductance value was computed for each x value, as depicted in Fig. 17, indicating that M decreases with increasing x. This is due to the decreasing magnetic coupling strength between the two coils as their lateral misalignment increases. The simulated efficiency was also calculated at each value of x, as illustrated in Table 2. Three variables change during these scenarios: the distance between the coils, the duty cycle, and the efficiency. Fig. 18 illustrates the correlation among these three elements, indicating that efficiency is inversely related to distance and directly related to the duty cycle.

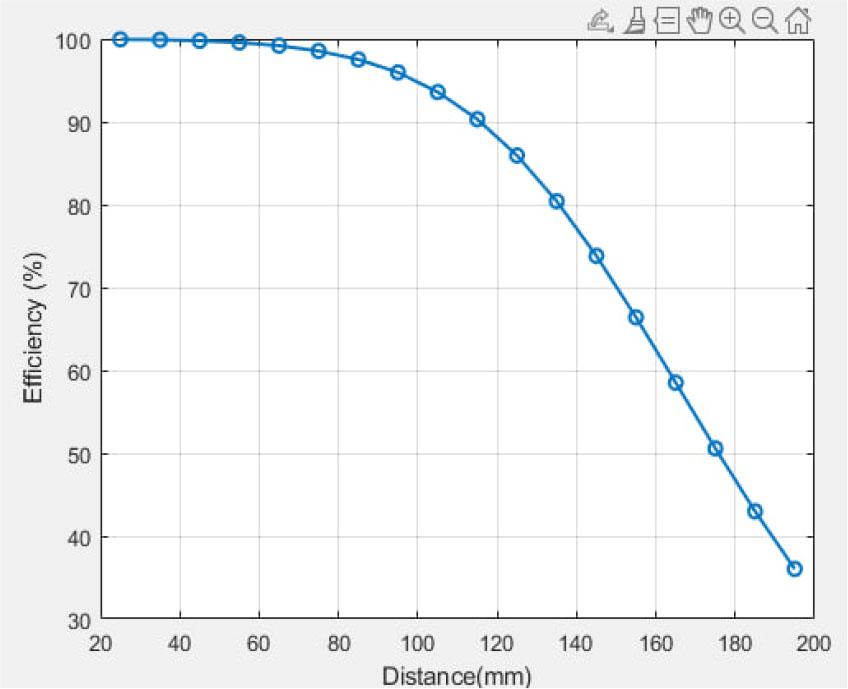

Fig. 16:

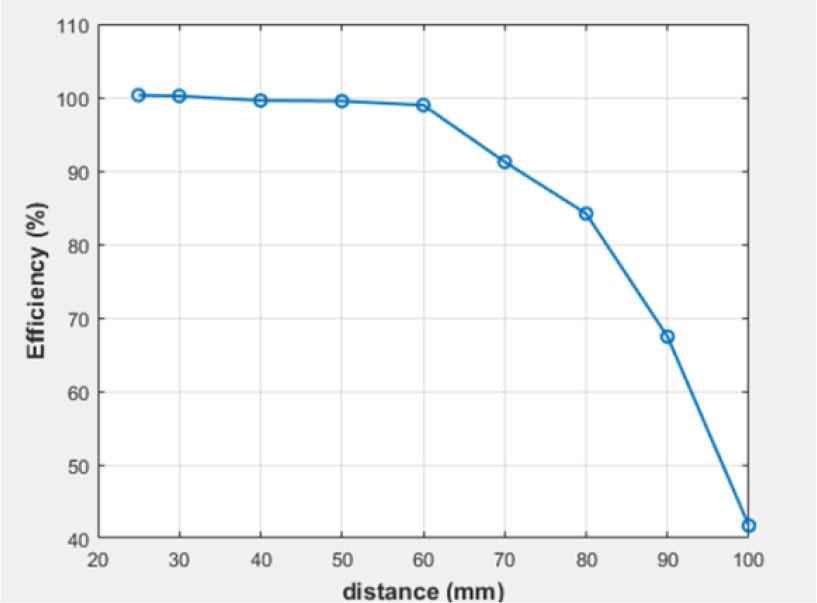

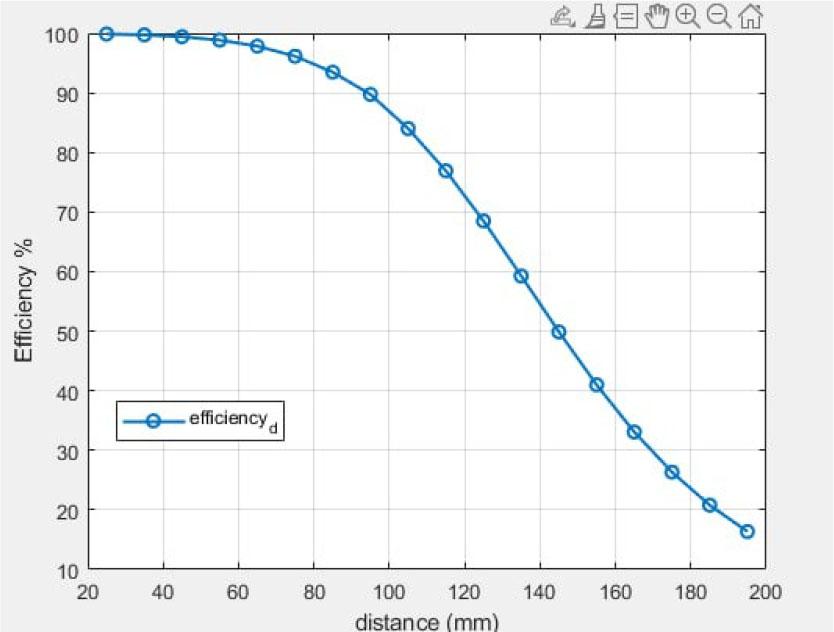

Simulated efficiecy of the proposed system.

Fig. 17:

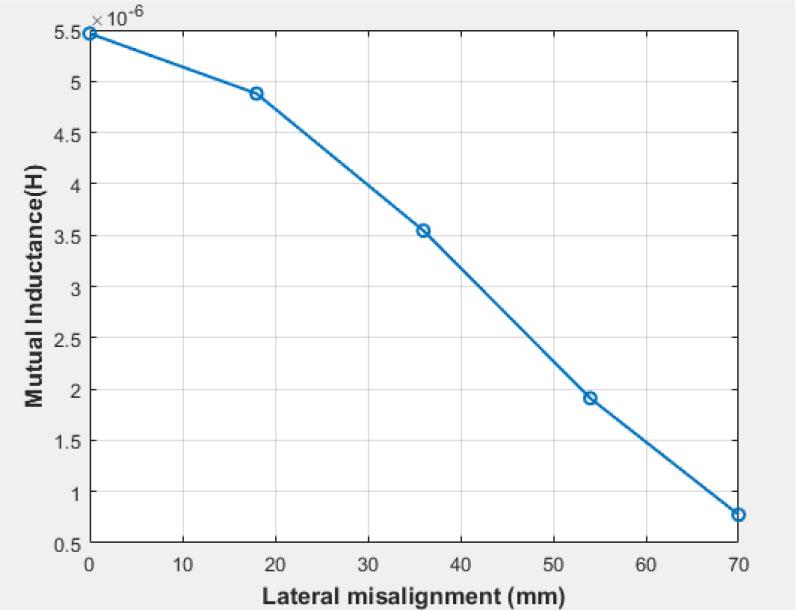

variation of mutual inductance with lateral alignment.

Fig. 18:

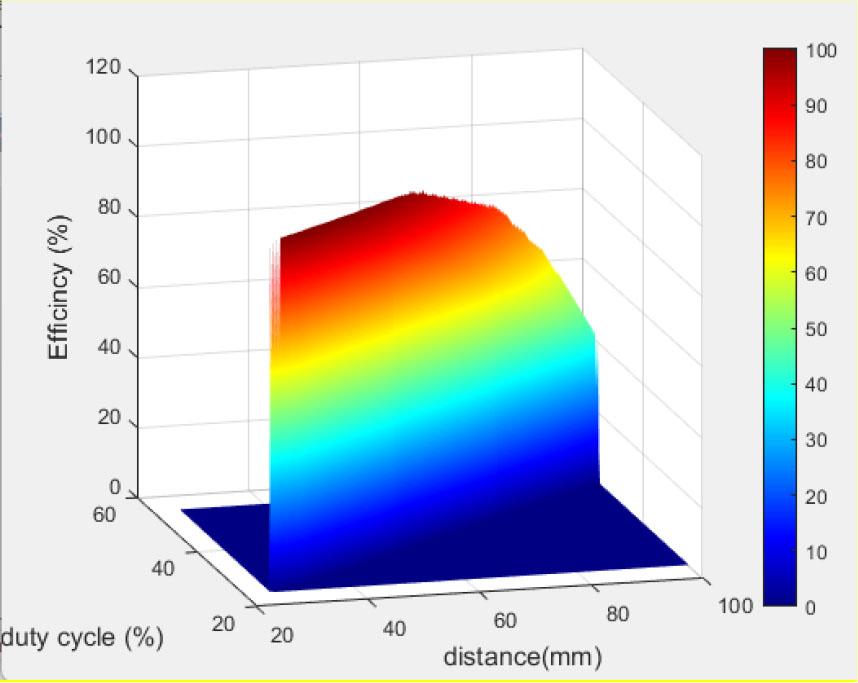

3D representation of the relationship between duty cycle, distance and efficiency.
