Feasibility analysis of wireless power delivery to implanted sensors of XLIF patients

International Journal on Smart Sensing and Intelligent Systems
Volume 17 (2024): Issue 1 (January 2024)
By: Subhas C. Mukhopadhyay,  Isaac Senn,  Vivek Ramakrishna,  Boby George,  Gangadhara Prusty and  Ashish Diwan
Open Access
|Sep 2024

Figures & Tables

Figure 1:

A. Cross-sectional view, B. Normal view. LIF surgery types and their relevant access points [1]. LIF, lumbar interbody fusion.
A. Cross-sectional view, B. Normal view. LIF surgery types and their relevant access points [1]. LIF, lumbar interbody fusion.

Figure 2:

Vertical, horizontal, planar, and angular misalignment [113].
Vertical, horizontal, planar, and angular misalignment [113].

Figure 3:

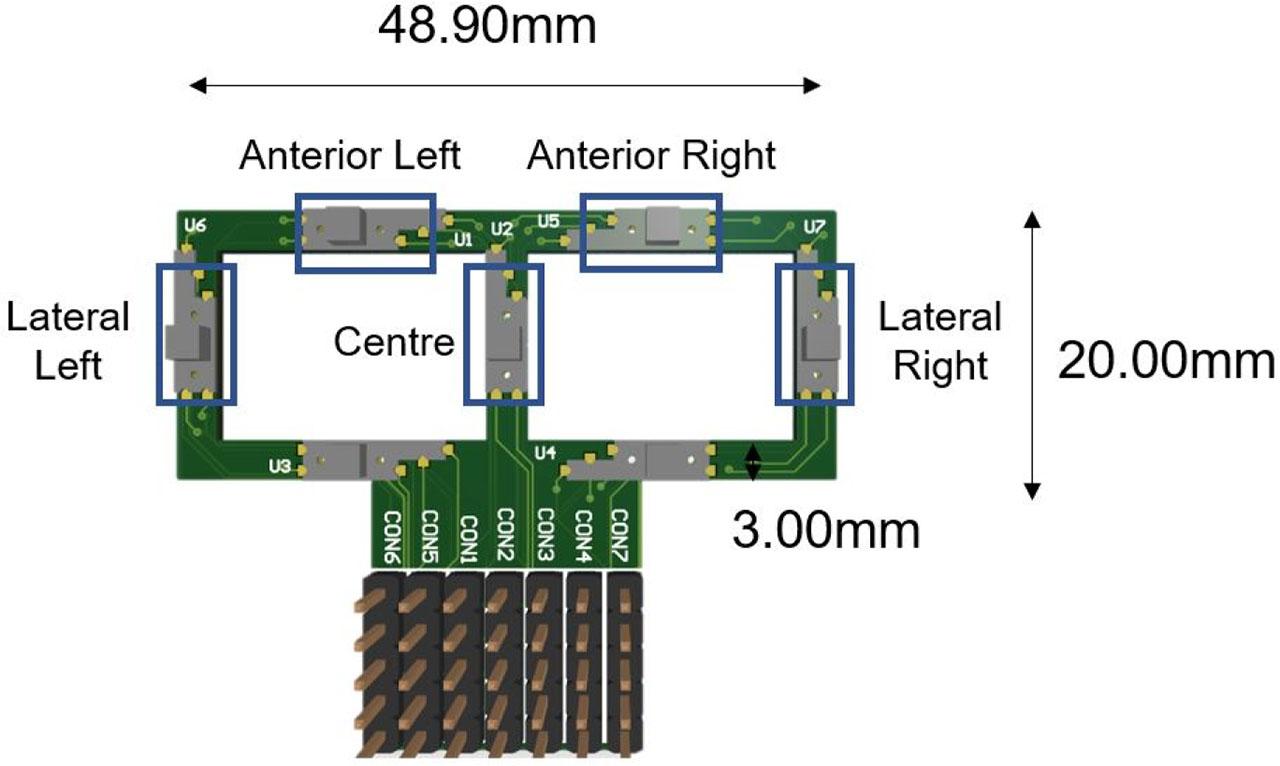

Piezoresistive sensor array.
Piezoresistive sensor array.

Figure 4:

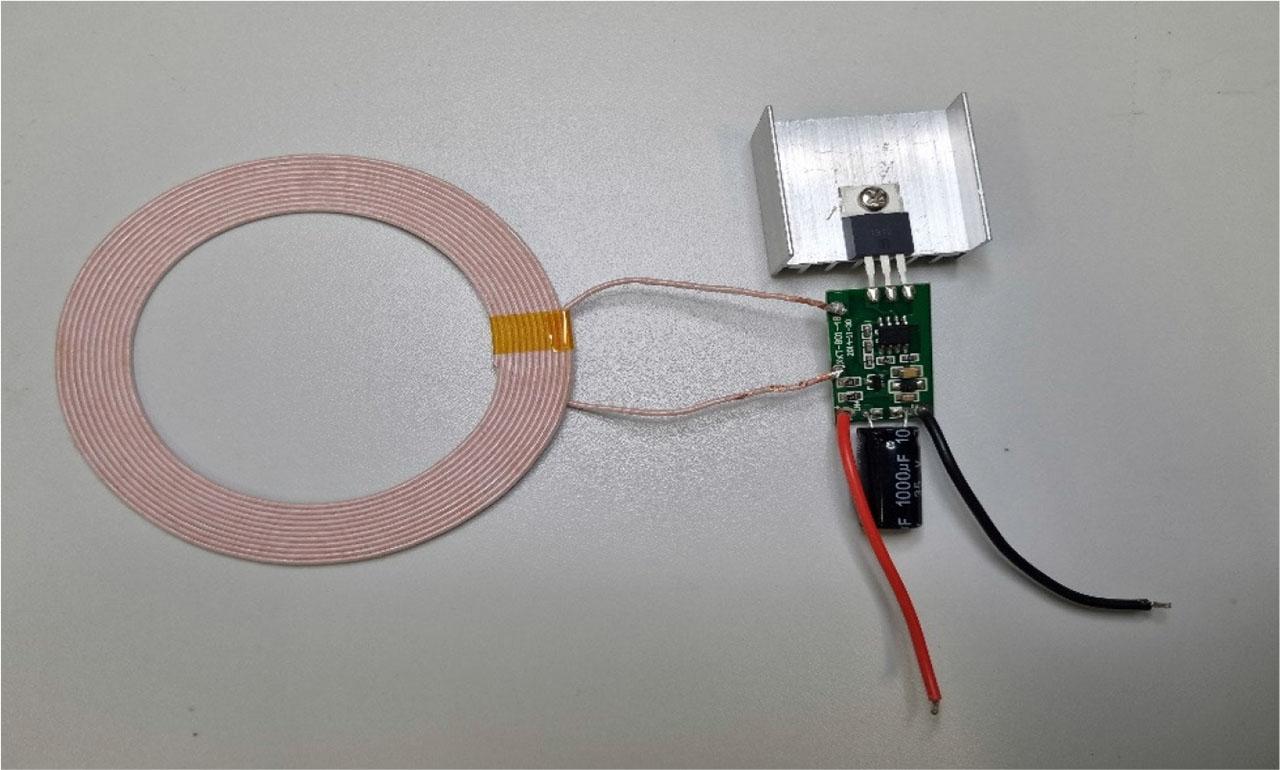

High power transmitting coil and circuitry.
High power transmitting coil and circuitry.

Figure 5:

Implant standalone version (left) and screwed version (right) [96].
Implant standalone version (left) and screwed version (right) [96].

Figure 6:

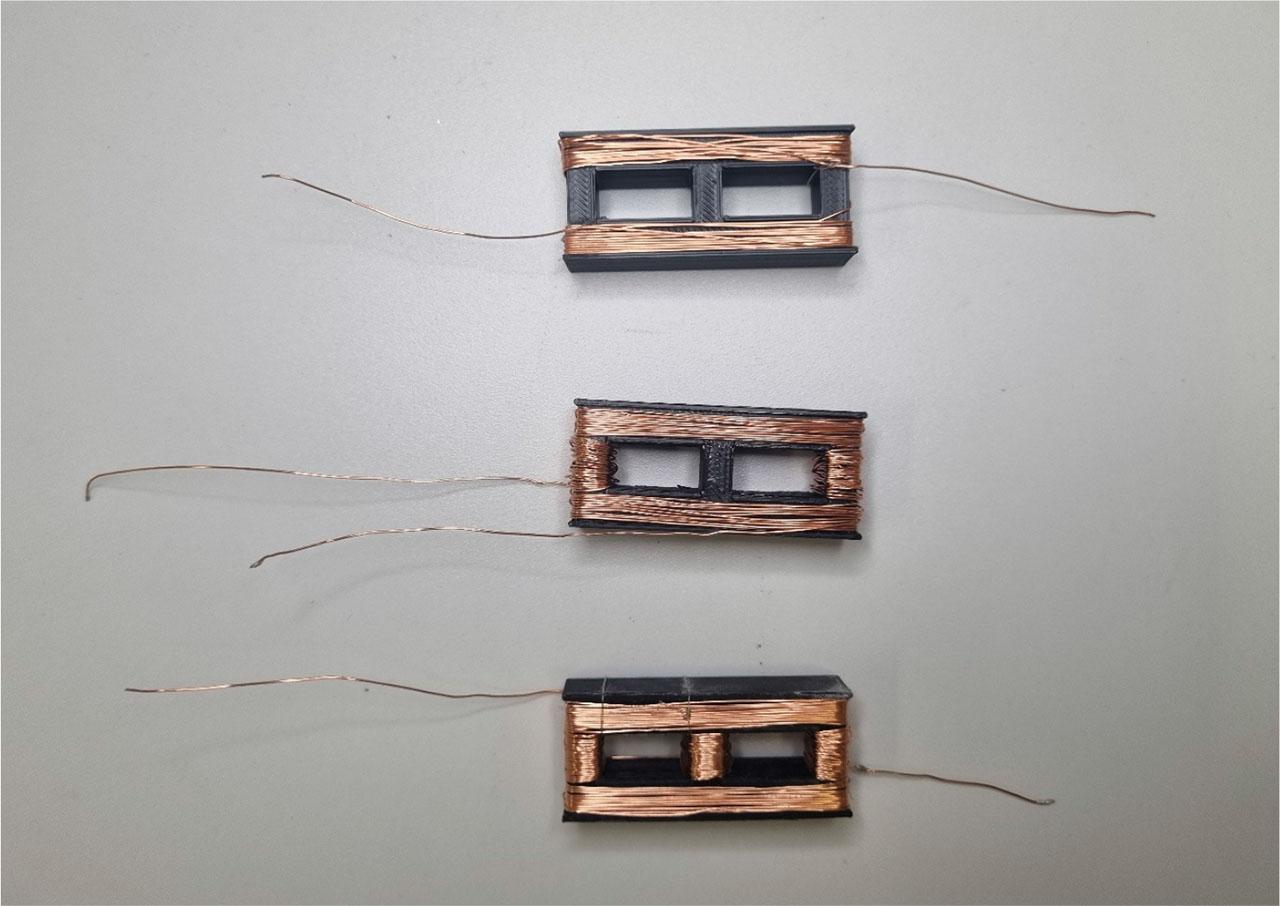

Coil V1, V2, and V3 designs using standalone implant geometry.
Coil V1, V2, and V3 designs using standalone implant geometry.

Figure 7:

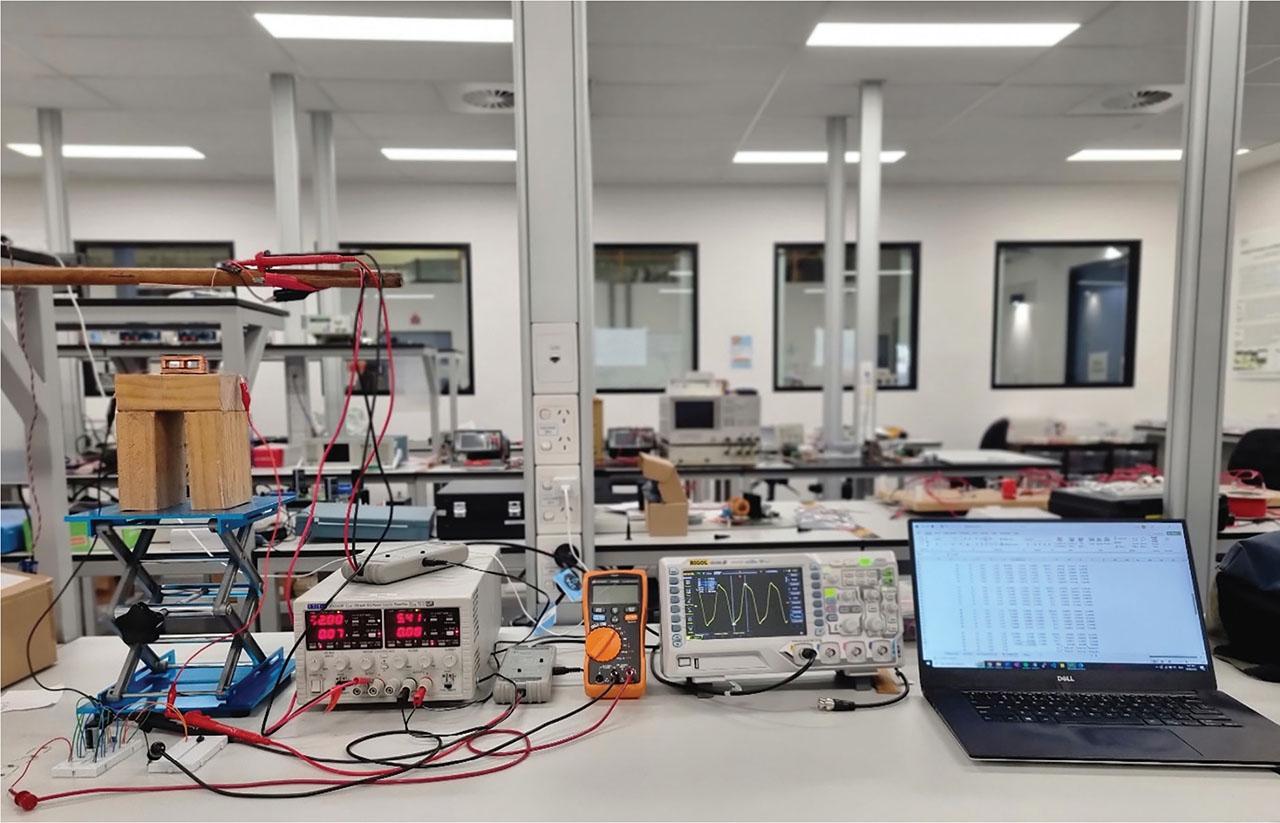

Vertical misalignment testing setup.
Vertical misalignment testing setup.

Figure 8:

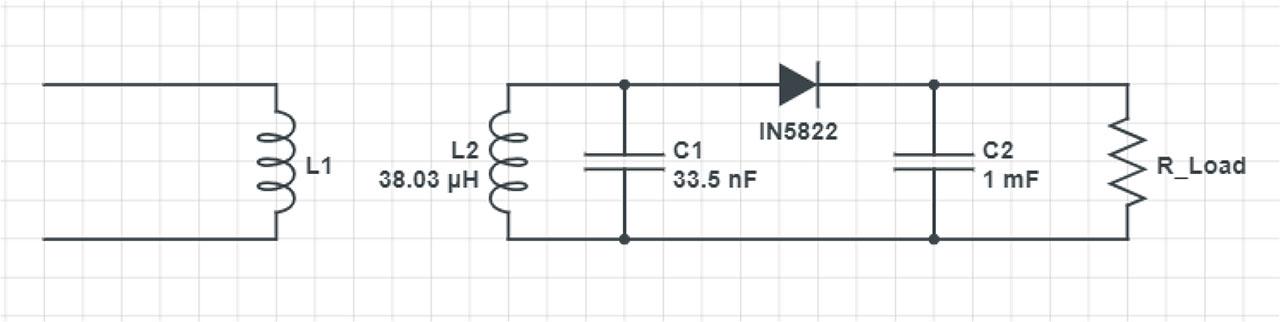

Half-bridge receiver perfectly tuned for 0.4 mm standalone v3 coil.
Half-bridge receiver perfectly tuned for 0.4 mm standalone v3 coil.

Figure 9:

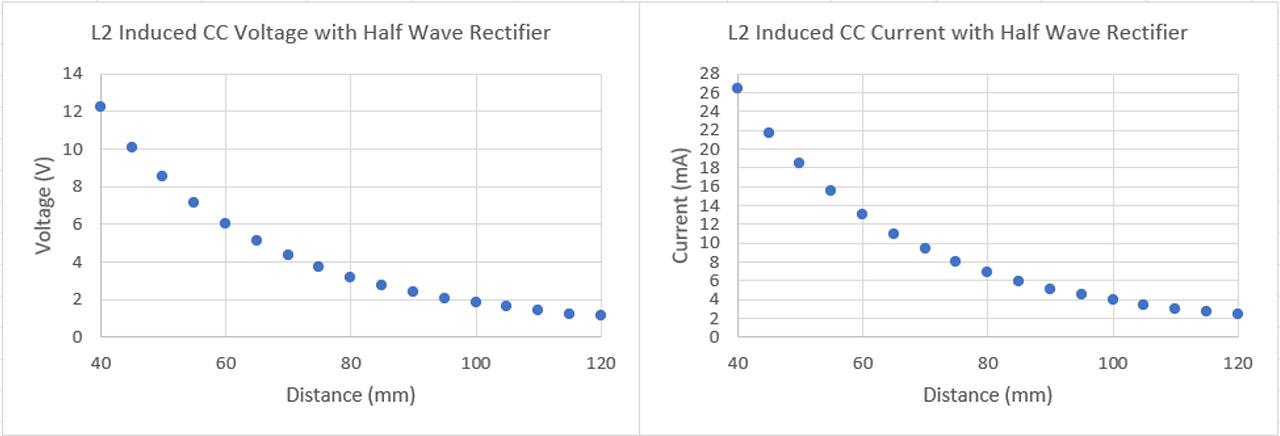

Receiver half-bridge distant dependent CC results through air.
Receiver half-bridge distant dependent CC results through air.

Figure 10:

X-ray of a natural spine [119], kyphosis [118], and lordosis [117].
X-ray of a natural spine [119], kyphosis [118], and lordosis [117].

Figure 11:

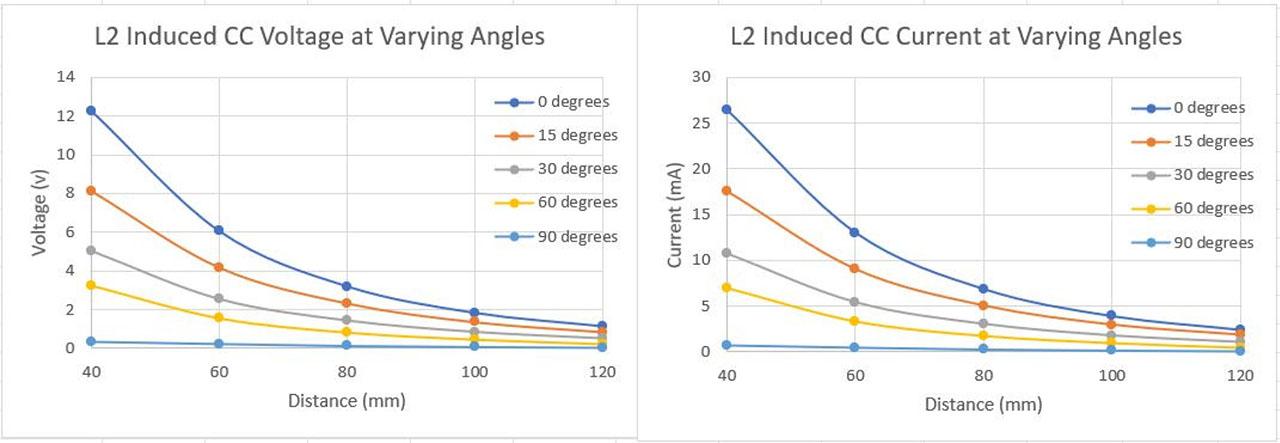

Receiver CC results at different distances and angles.
Receiver CC results at different distances and angles.

Figure 12:

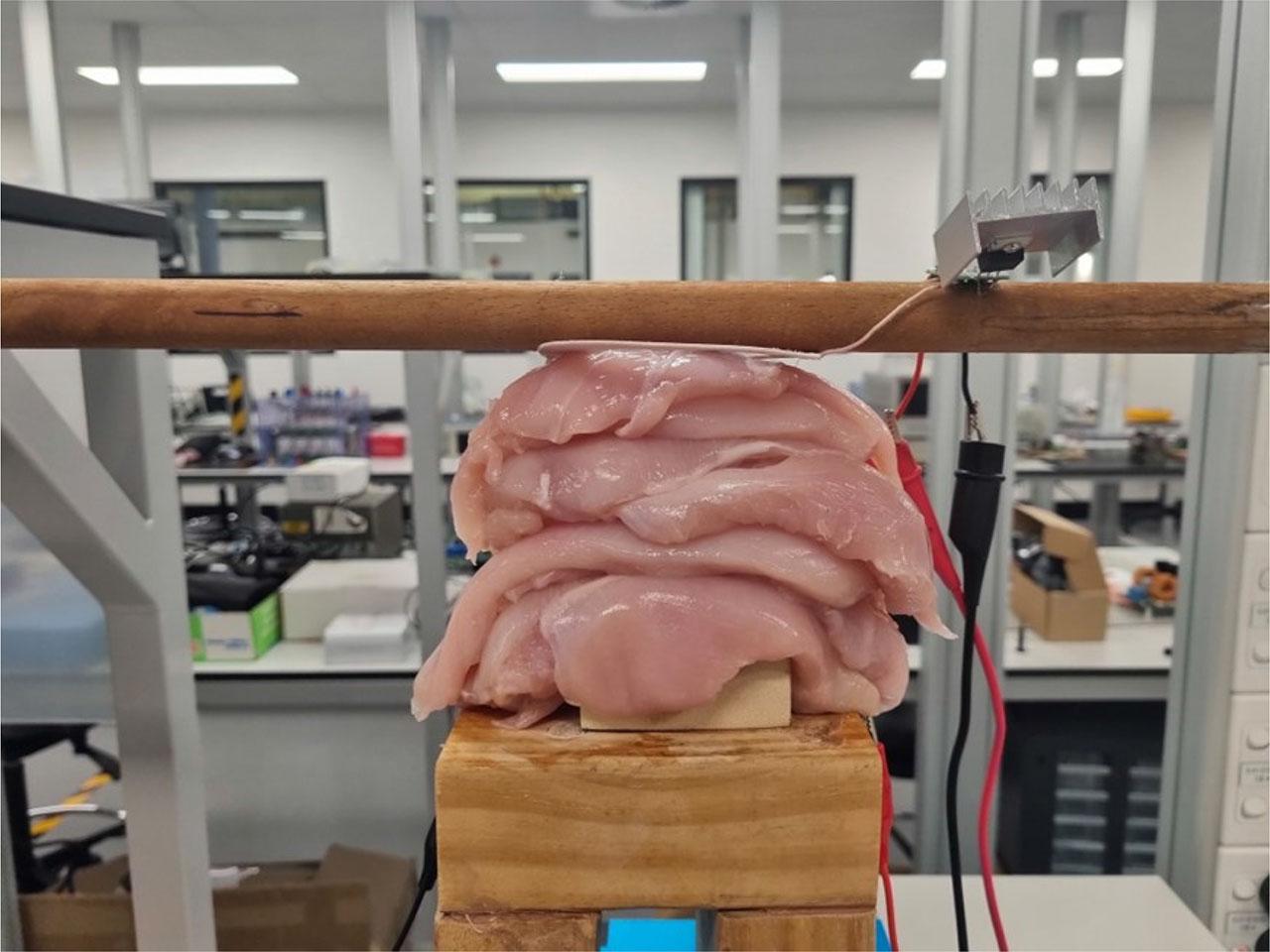

Vertical misalignment testing setup using tissue substitutes.
Vertical misalignment testing setup using tissue substitutes.

Figure 13:

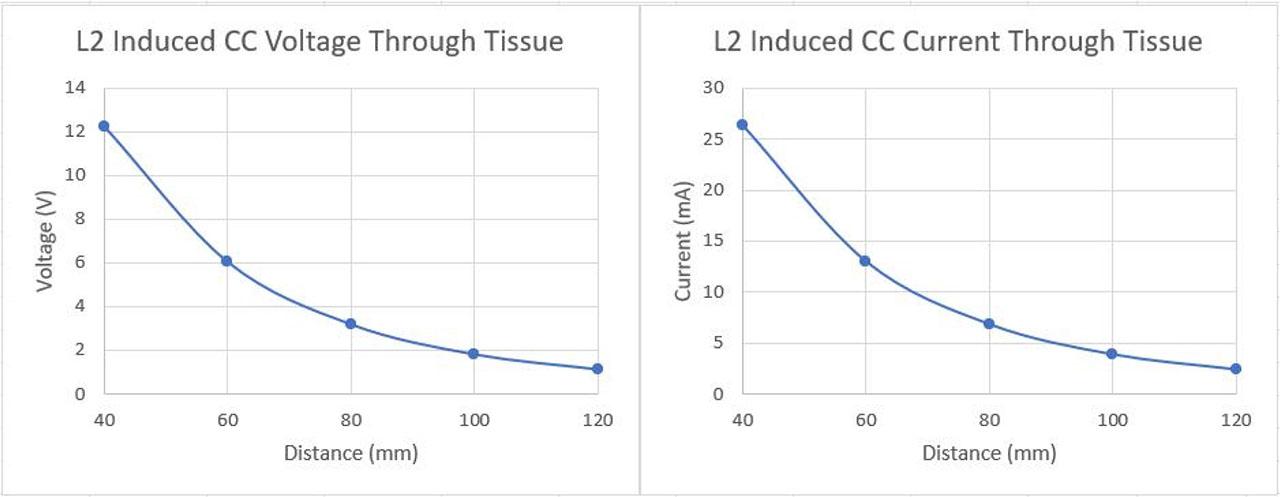

Receiver CC results at different distances through tissue.
Receiver CC results at different distances through tissue.

Figure 14:

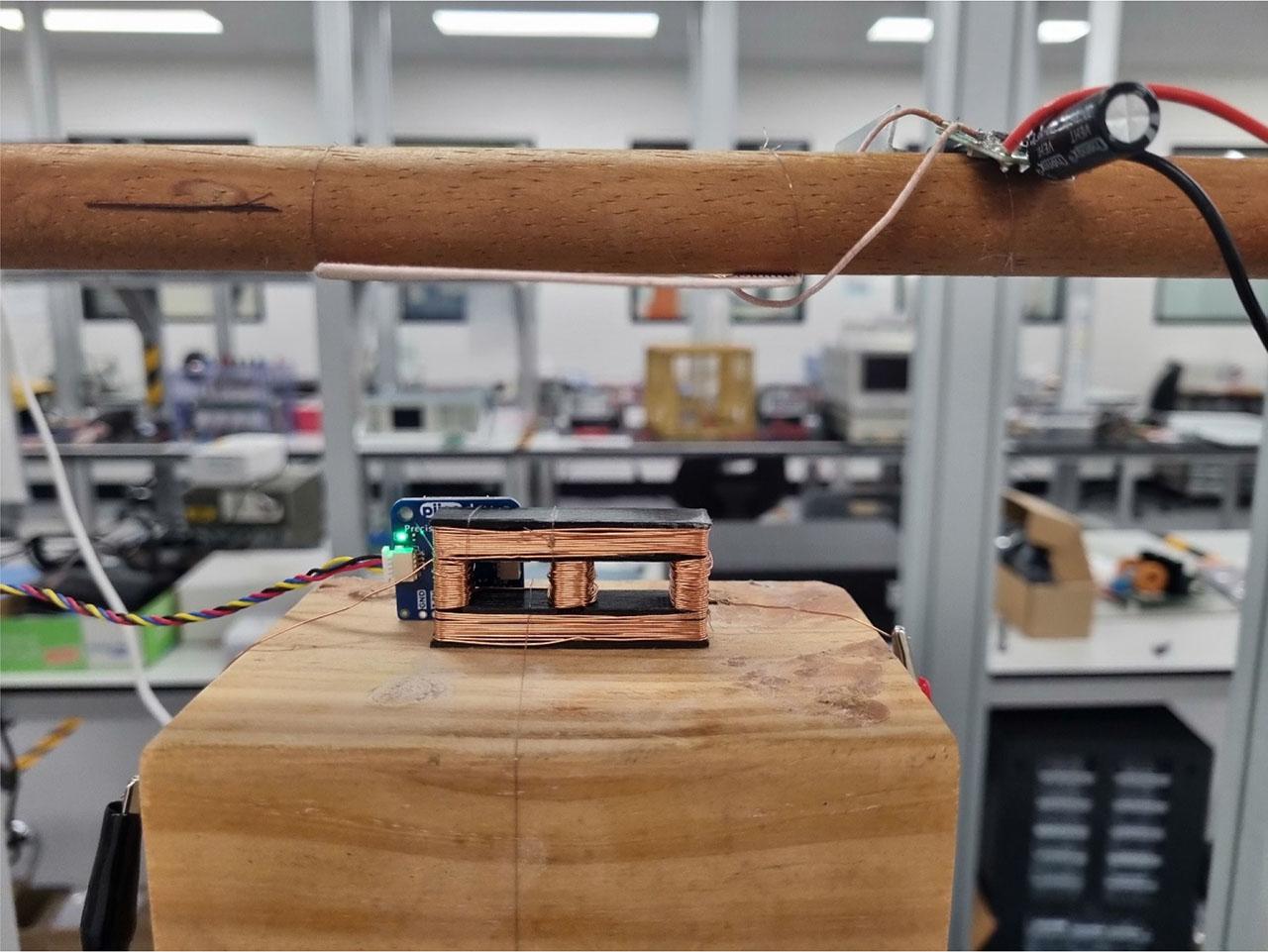

Temperature sensor setup.
Temperature sensor setup.

Figure 15:

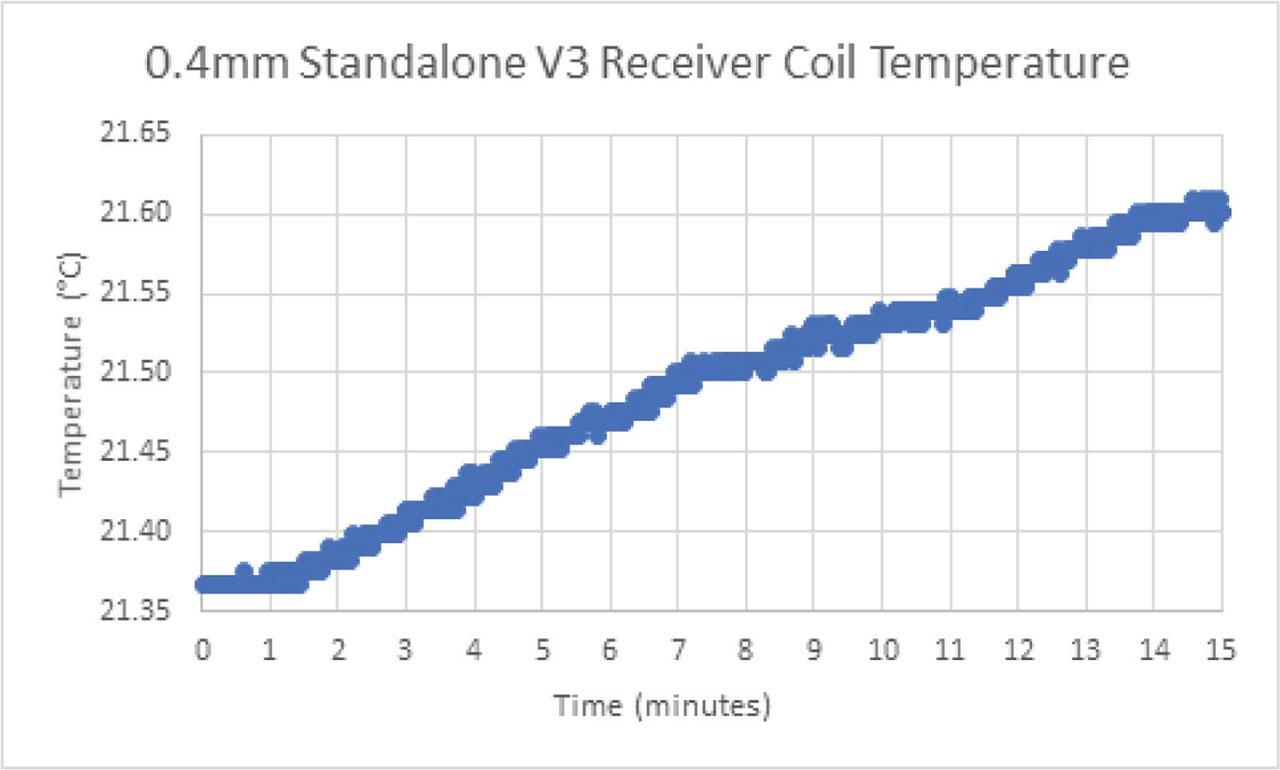

Receiver coil temperature as a function of time.
Receiver coil temperature as a function of time.

PTE and PDL losses due to angular misalignment_

Misalignment (°)Loss in PTE (%)Loss in PDL (%)
000
1524–3424–34
3056–5956–59
6074–8174–81
9095–9795–97

EFM8BB52 microcontroller component current requirements [94]_

ParameterSymbolTypUnit
Normal mode at 80 kHz using low-frequency oscillatorINORMAL612µA
ADC supply current at full speed with 12-bit conversionsIADC250µA
External voltage reference input currentIEXTVREF5µA
Current for VDD divider when VDD used as VREFIVDDRED16µA
