Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

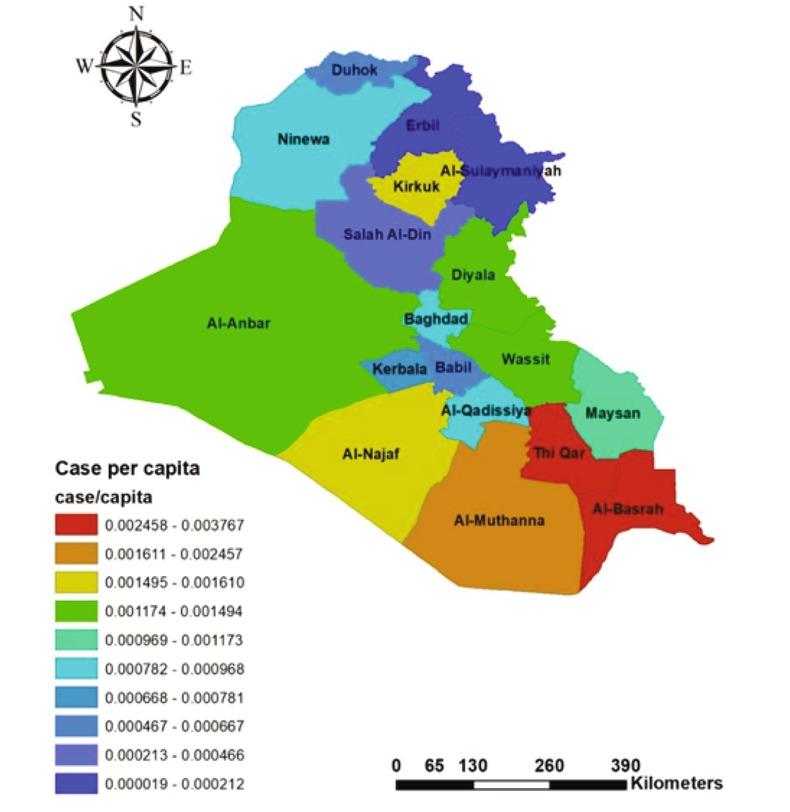

The distribution of enterobiasis among the Iraqi provinces for the years 2011 – 2015_
| Province | Year | total | average | SD | Population size of 2011 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 2011 | 2012 | 2013 | 2014 | 2015 | |||||
| Al-Anbar | 1545 | 737 | 4104 | 3628 | 1583 | 11597 | 2319.4 | 1461.438 | 1675600 |
| Al-Basrah | 8310 | 10613 | 7317 | 5974 | 15480 | 47694 | 9538.8 | 3728.468 | 2532000 |
| Al-Muthanna | 2053 | 1128 | 1164 | 1417 | 3702 | 9464 | 1892.8 | 1077.186 | 770500 |
| Al-Najaf | 904 | 914 | 1223 | 1698 | 5574 | 10313 | 2062.6 | 1989.311 | 1285500 |
| Al-Qadissiya | 621 | 1459 | 1382 | 944 | 1503 | 5909 | 1181.8 | 384.4265 | 1220300 |
| Al-Sulaymaniyah | 0 | 37 | 53 | 74 | 12 | 176 | 35.2 | 30.01166 | 1878800 |
| Babil | 952 | 1097 | 728 | 1825 | 1666 | 6268 | 1253.6 | 471.2518 | 1878700 |
| Baghdad | 2482 | 1723 | 3183 | 5483 | 19904 | 32775 | 6555 | 7593.631 | 7055200 |
| Diyala | 1751 | 2603 | 4056 | 1335 | 1038 | 10783 | 2156.6 | 1214.269 | 1443200 |
| Duhok | 117 | 273 | 713 | 870 | 1721 | 3694 | 738.8 | 629.7223 | 1128700 |
| Erbil | 617 | 350 | 332 | 255 | 159 | 1713 | 342.6 | 170.9131 | 1612700 |
| Kerbala | 164 | 1049 | 797 | 575 | 1581 | 4166 | 833.2 | 529.5236 | 1066600 |
| Kirkuk | 3435 | 3553 | 1371 | 574 | 2301 | 11234 | 2246.8 | 1292.884 | 1395600 |
| Maysan | 828 | 1742 | 2016 | 753 | 357 | 5696 | 1139.2 | 705.333 | 971400 |
| Ninewa | 8112 | 2434 | 2205 | 1619 | 391 | 14761 | 2952.2 | 2991.135 | 3270400 |
| Salah Al-Din | 1321 | 999 | 744 | 216 | 0 | 3280 | 656 | 545.7916 | 1408200 |
| Thi Qar | 7301 | 2396 | 2717 | 4051 | 15890 | 32355 | 6471 | 5611.617 | 1836200 |
| Wassit | 1294 | 1379 | 2516 | 1821 | 1719 | 8729 | 1745.8 | 484.3157 | 1210600 |
Age of 220607 Iraqi enterobiasis patients reported between 2011 and 2015_
| 2011 | 2012 | 2013 | 2014 | 2015 | Total | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Age | Number | % | Number | % | Number | % | Number | % | Number | % | Number | % |
| ˂1 | 97 | 0.23 | 109 | 0.31 | 799 | 2.17 | 5440 | 16.42 | 4437 | 5.94 | 10882 | 4.93 |
| (1 – 4) | 5023 | 12.04 | 5028 | 14.95 | 6605 | 18.01 | 5812 | 17.55 | 18084 | 24.24 | 40552 | 18.38 |
| (5 – 14) | 13009 | 31.11 | 13893 | 40.32 | 11004 | 30.01 | 6825 | 20.61 | 22743 | 30.49 | 67474 | 30.58 |
| (15 – 44) | 19233 | 46 | 9803 | 28.45 | 10916 | 29.77 | 8878 | 26.81 | 14916 | 19.99 | 63746 | 28.89 |
| ˃45 | 4445 | 10.63 | 5618 | 16.3 | 7332 | 20 | 6157 | 18.59 | 14401 | 19.3 | 37953 | 17.2 |
| Total | 41807 | 34451 | 36656 | 33112 | 74581 | 220607 | ||||||

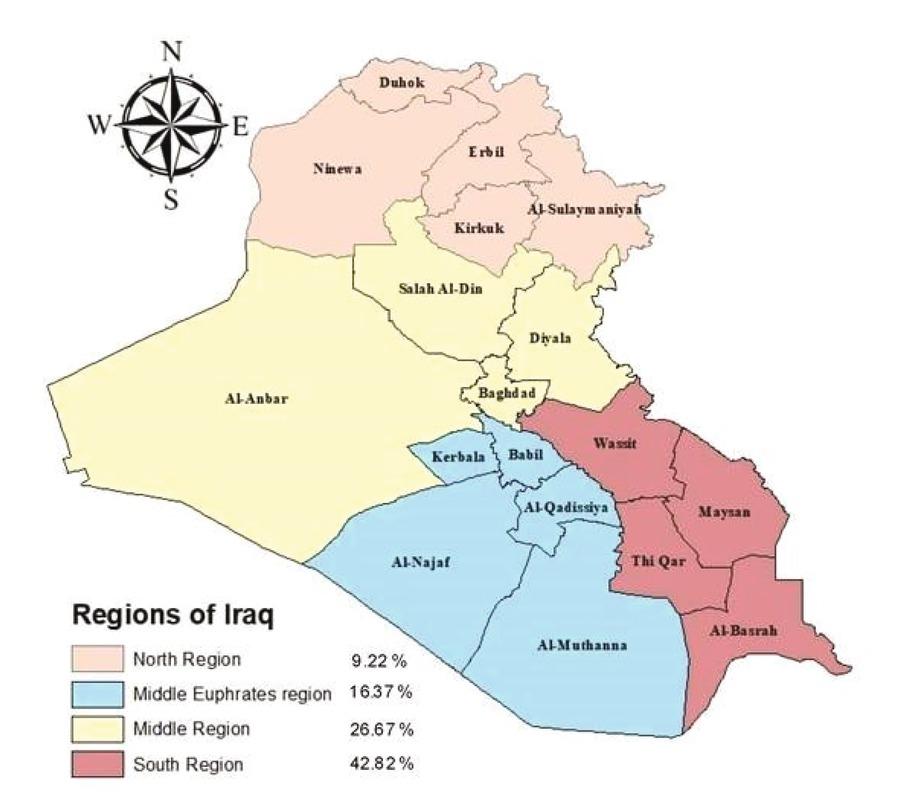

The distribution of enterobiasis among the Iraqi regions (South region provinces, Middle region provinces, Middle Euphrates provinces and North region provinces) for the years
| Region | Provinces | Number | % |
|---|---|---|---|
| South | (Thiqar, Miasan, Al-Basrah and Wassit) | 94474 | 42.82 |
| Middlel | (Baghdad, Al-Anbar, Diyala and Salah Al-Din) | 58849 | 26.67 |
| Middle Euphrates | (Babil, Kerbala, Al-Najaf, Al-Qadissiya and Al-Muthanna) | 36120 | 16.37 |
| North region | (Ninewa, Al-Sulaymaniyah, Kirkuk, Erbil and Duhok) | 20344 | 9.22 |
Sex of 220607 Iraqi enterobiasis patients reported between 2011 and 2015_
| 2011 | 2012 | 2013 | 2014 | 2015 | Total | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sex | Number | % | Number | % | Number | % | Number | % | Number | % | Number | % |
| Male | 18024 | 43.11 | 14548 | 42.22 | 20171 | 55.02 | 15992 | 48.29 | 33279 | 44.62 | 102014 | 46.24 |
| Female | 23783 | 56.88 | 19903 | 57.77 | 16485 | 44.97 | 17120 | 51.7 | 41302 | 55.37 | 118593 | 53.75 |
| Total | 41807 | 34451 | 36656 | 33112 | 74581 | 220607 | ||||||
