Micelle-based restricted access ion-pair microextraction of phosphate at trace levels in water samples for separation, preconcentration and determination Cover

Micelle-based restricted access ion-pair microextraction of phosphate at trace levels in water samples for separation, preconcentration and determination

The EuroBiotech Journal
Volume 4 (2020): Issue 2 (April 2020)
By: Mustafa Soylak,  Haldun Hilmi Gorucu and  Erkan Yilmaz
Open Access
|Apr 2020

Figures & Tables

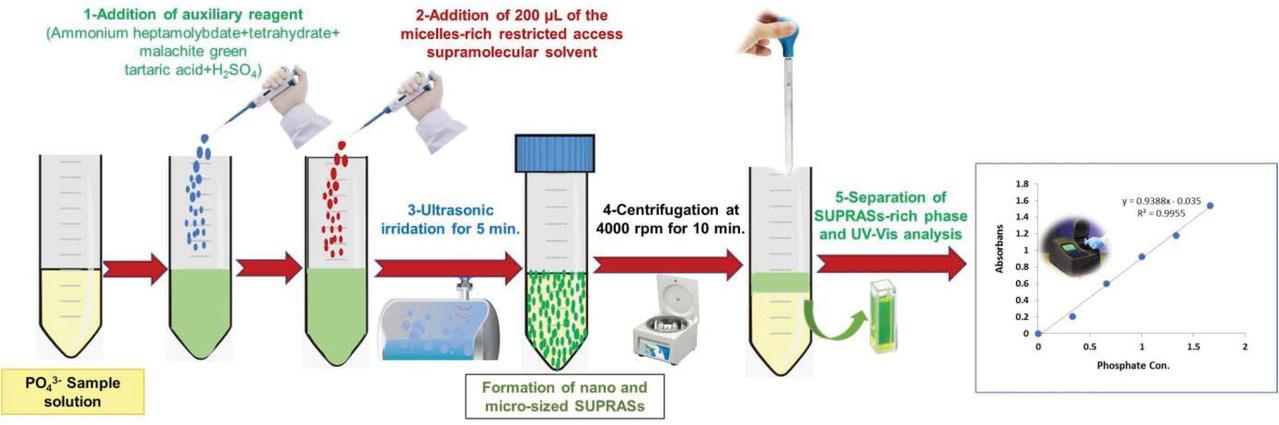

Figure 1

Graphical presentation of the presented RA-SUPRASs-LPME method.
Graphical presentation of the presented RA-SUPRASs-LPME method.

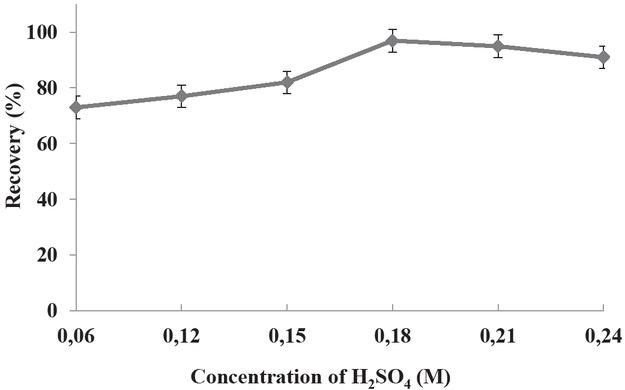

Figure 2

The effect of the concentration of H2SO4 on the recovery of phosphate ions in the presented study (N=3).
The effect of the concentration of H2SO4 on the recovery of phosphate ions in the presented study (N=3).

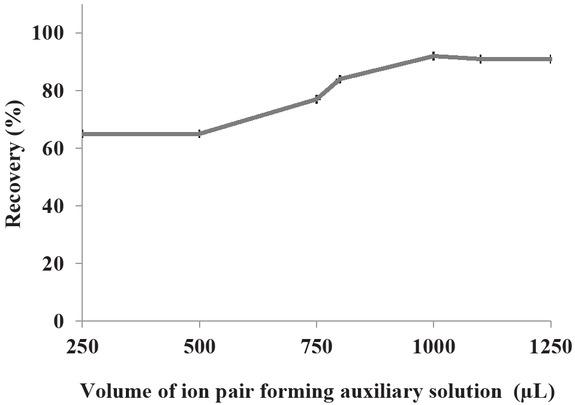

Figure 3

The effect of the volume of ion pair forming auxiliary solution on the recovery of phosphate ions (N=3).
The effect of the volume of ion pair forming auxiliary solution on the recovery of phosphate ions (N=3).

Figure 4

The effect of amount of decanoic acid on the recoveries of phosphate ions in the presented microextraction study (N=3).
The effect of amount of decanoic acid on the recoveries of phosphate ions in the presented microextraction study (N=3).

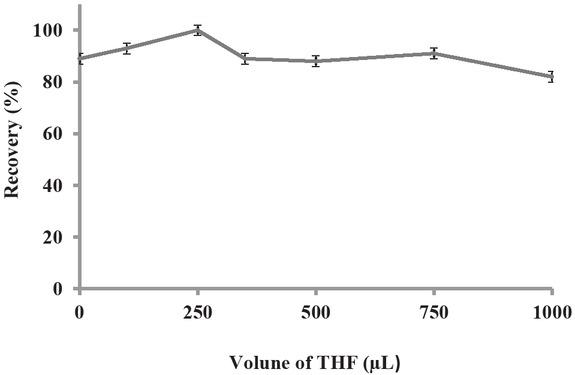

Figure 5

The effect of tetrahydrofuran volume on the recoveries of phosphate ions in the presented microextraction study (N=3).
The effect of tetrahydrofuran volume on the recoveries of phosphate ions in the presented microextraction study (N=3).

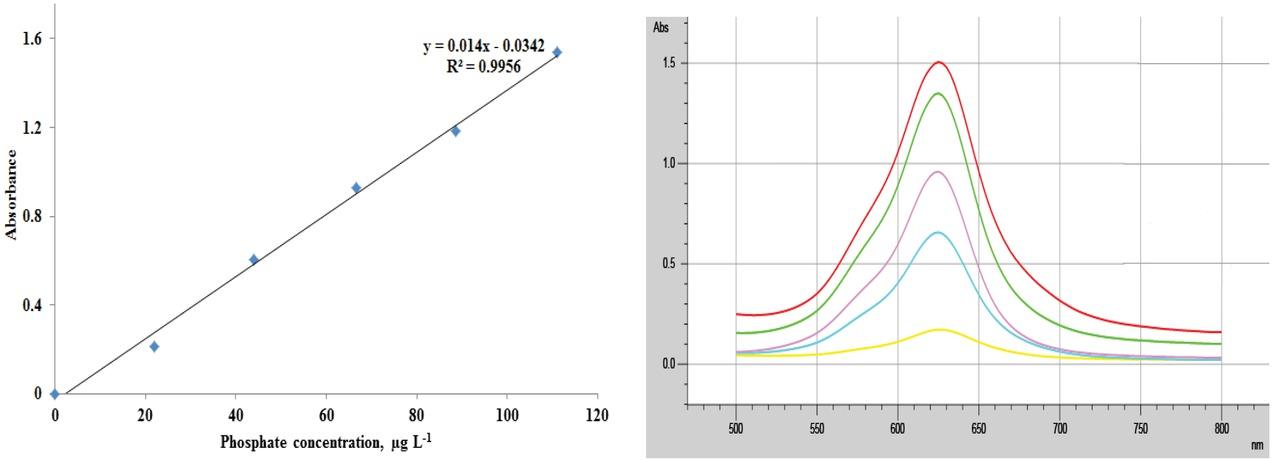

Figure 6

The calibration curve (A) and UV-Vis spectrum belong to increasing phosphate concentration (B).
The calibration curve (A) and UV-Vis spectrum belong to increasing phosphate concentration (B).

Comparison of the RA-SUPRAs-LPME method with other phosphate determination methods in literature studies

ExtractionmethodAnalysisinstrument SamplesLOD, μg L−1RSD, %PF or EFExtractiontime, minRef
DSDME UV-VisspectrophotometerMineralwaters0.192.73257.53
- Online UV-VisspectrophotometerNaturalwaters1.30.8-5.6--5
DLLME-SFO UV-VisspectrophotometerTap and riverwaters0.71.23-6.1550106
SPEUV-VisspectrophotometerFruit leavesand naturalwaters2.232-308
CPEUV-Visspectrophotometer Tap, welland mineralwaters0.51.4202031
SPE UV-Visspectrophotometer-0.040.38147.96035
On-line SPEflow-injectionamperometryFresh andMarinewaters 0.185.2-5.918-36
RA-SUPRAs-LPMEUV-VisspectrophotometerLake andspringwater9.620.44-3.51510Thisstudy

The effect of alkali, alkaline earth metals and some selected anions on the RA-SUPRASs-LPME method (N =3)

IonAdded SaltStudied concentration, mg·L-1Recovery, %
Na+NaNO32500102±0
K+KCl100097±1
Mg2+Mg(NO3)2.6H2O25098±3
Ca2+Ca(NO3)2.4H2O500100±2
Cl-KCl100097±1
SO42-Na2SO41000102±0

Application of the RA-SUPRASs-LPME method for determination of phosphate in real water samples (N=3)_

SampleAdded, μg·L-1Found, μg·L-1Recovery, %
Lake water-I0264±2

: mean ±SD.

-
66334±8101
132402±14102
Spring water0260±4-
100358±299
200450±298
Lake water-II0276±4-
66326±295
132432±294
