Evaluation the Operational Performance of Water Supply Network in a Selected Neighborhood in Karbala City, Iraq

Civil and Environmental Engineering

Volume 22 (2026): Issue 2 (June 2026)

By: Ali Adnan Abd, Riyadh Jasim Mohammed Al-Saadi and Jabbar H. Al-Baidhani

Open Access

|Jun 2026

Figures & Tables

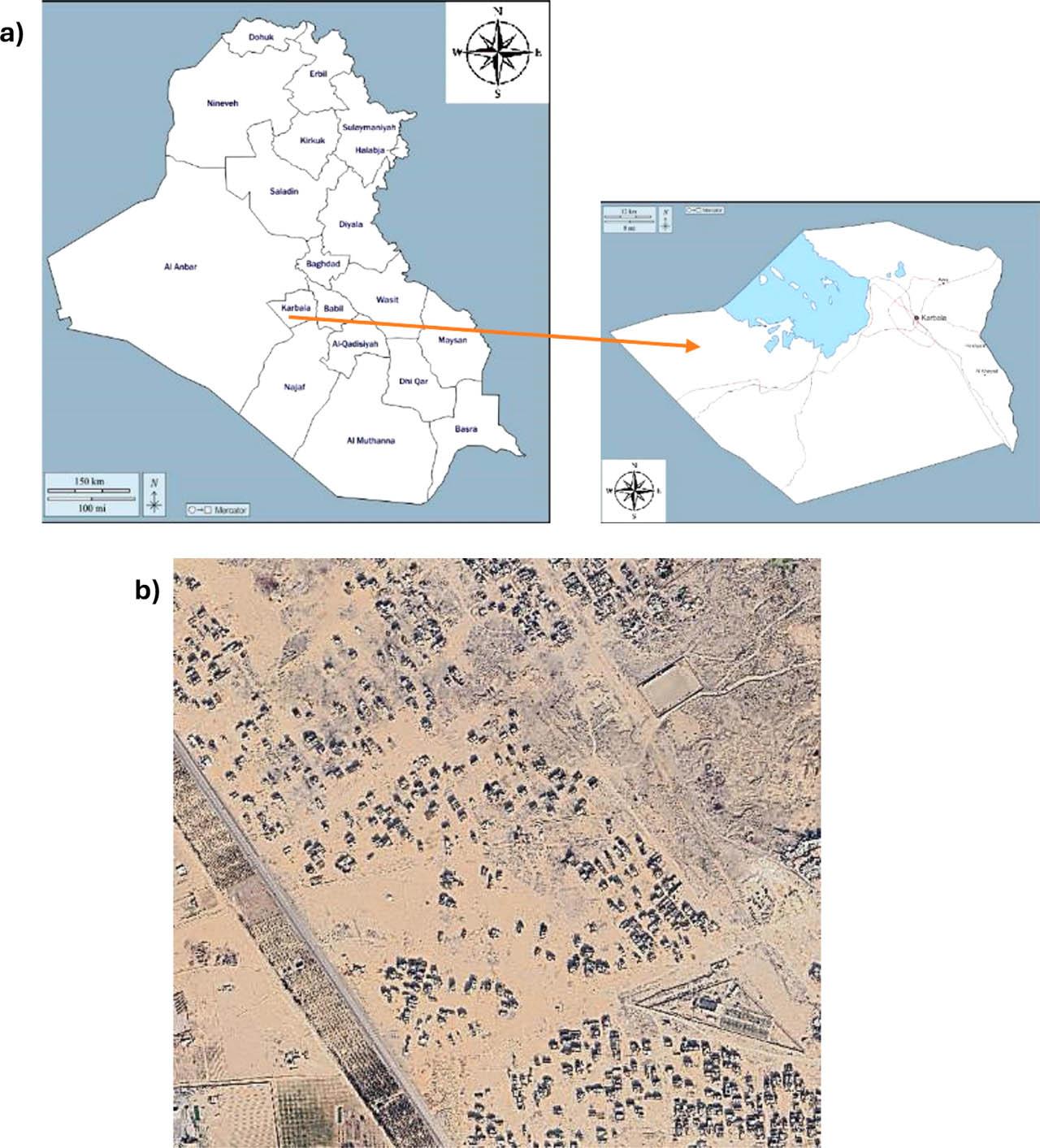

Location and Arial map of Muhandisin Al-Nidal neighborhood, Karbala City: a) Map of Karbala governorate location; (b) Arial map of Muhandisin Al-Nidal neighborhood

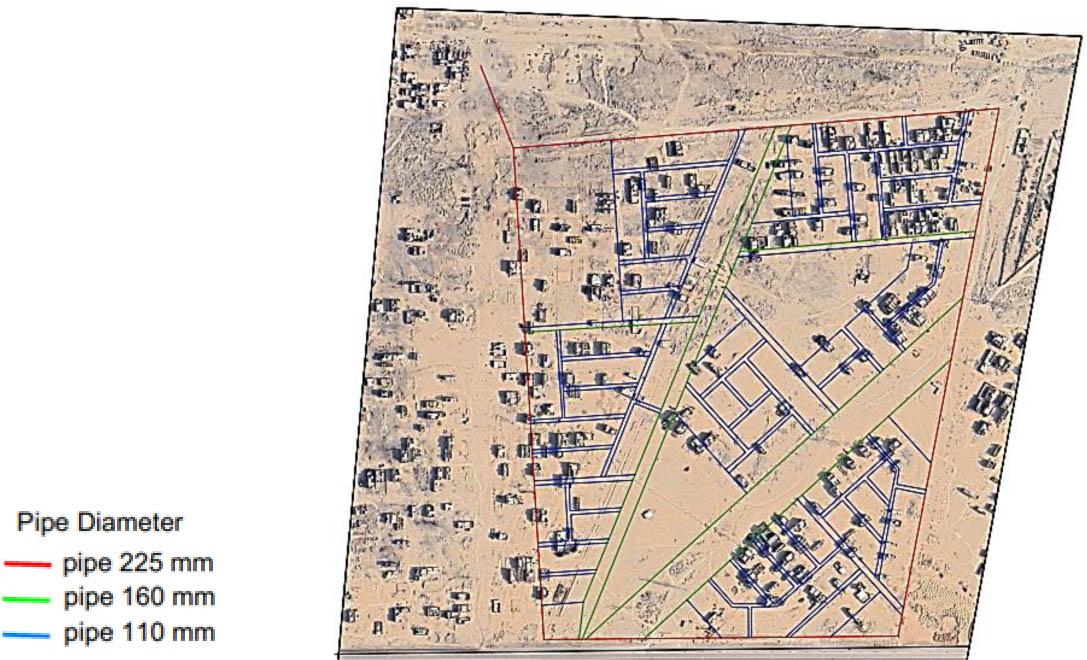

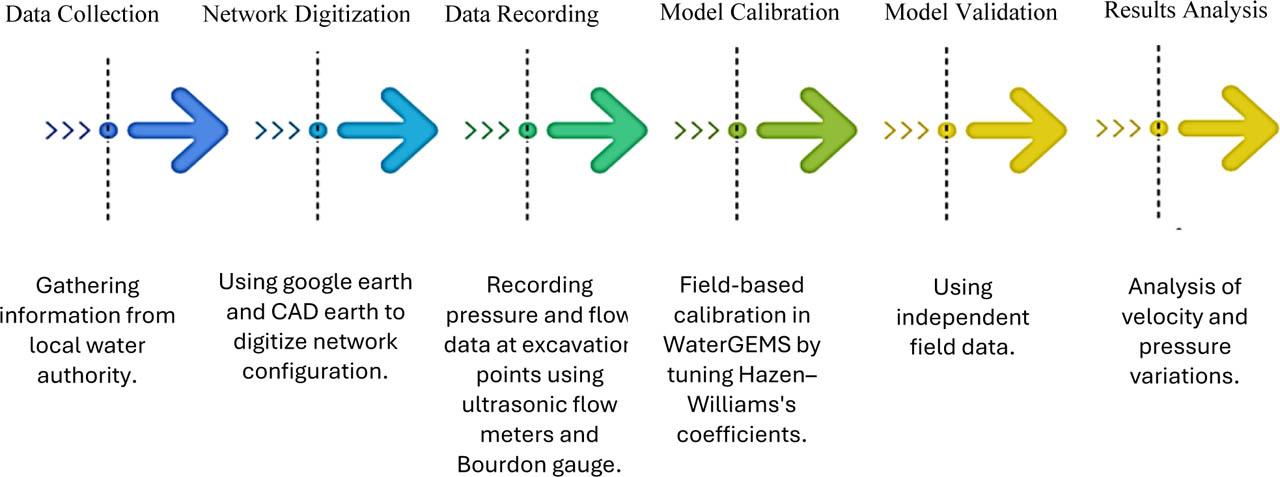

Arial map of water distribution network layout

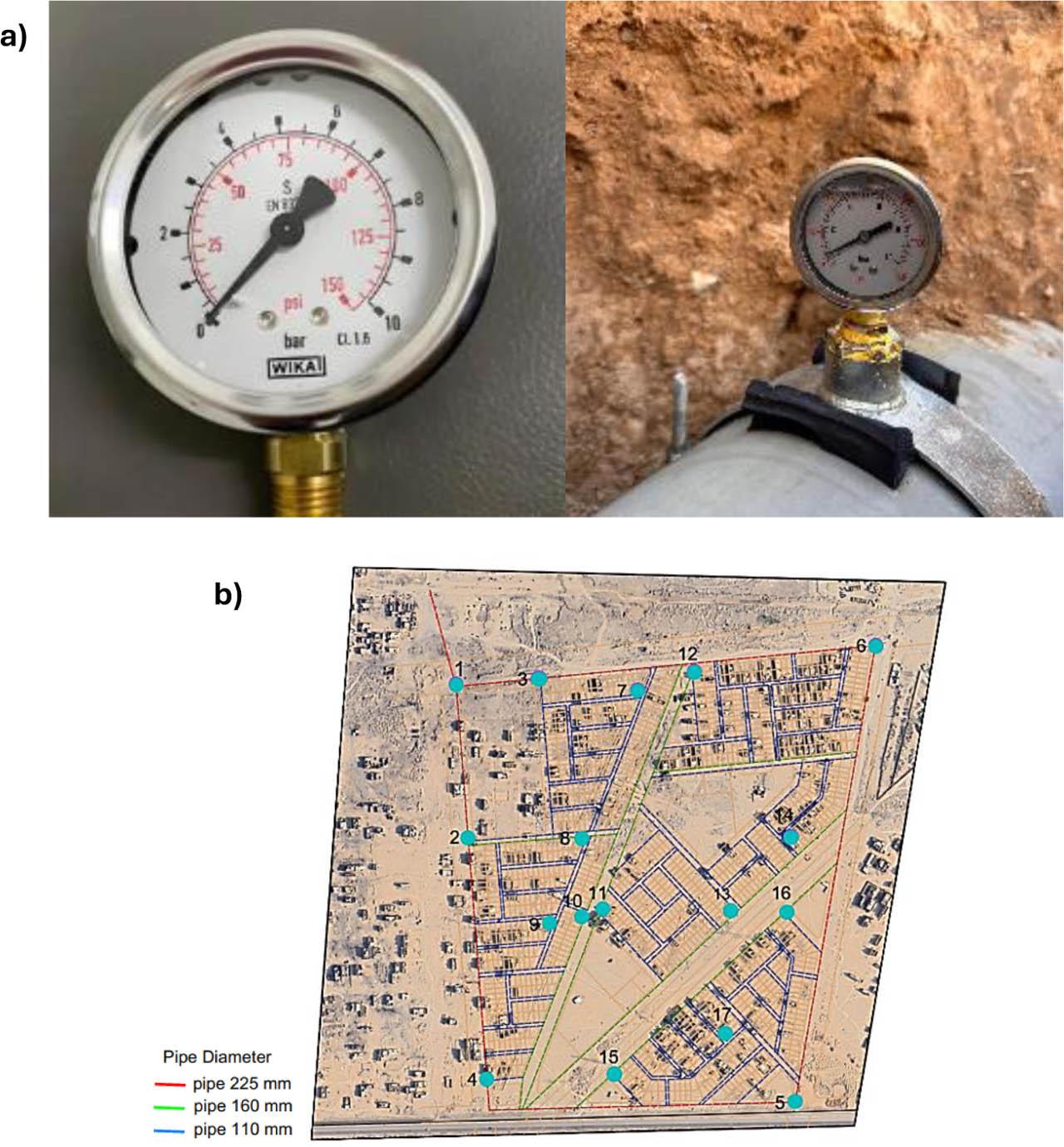

Pressure measurement: a) Device used to measure water pressure; b) Location of measured points

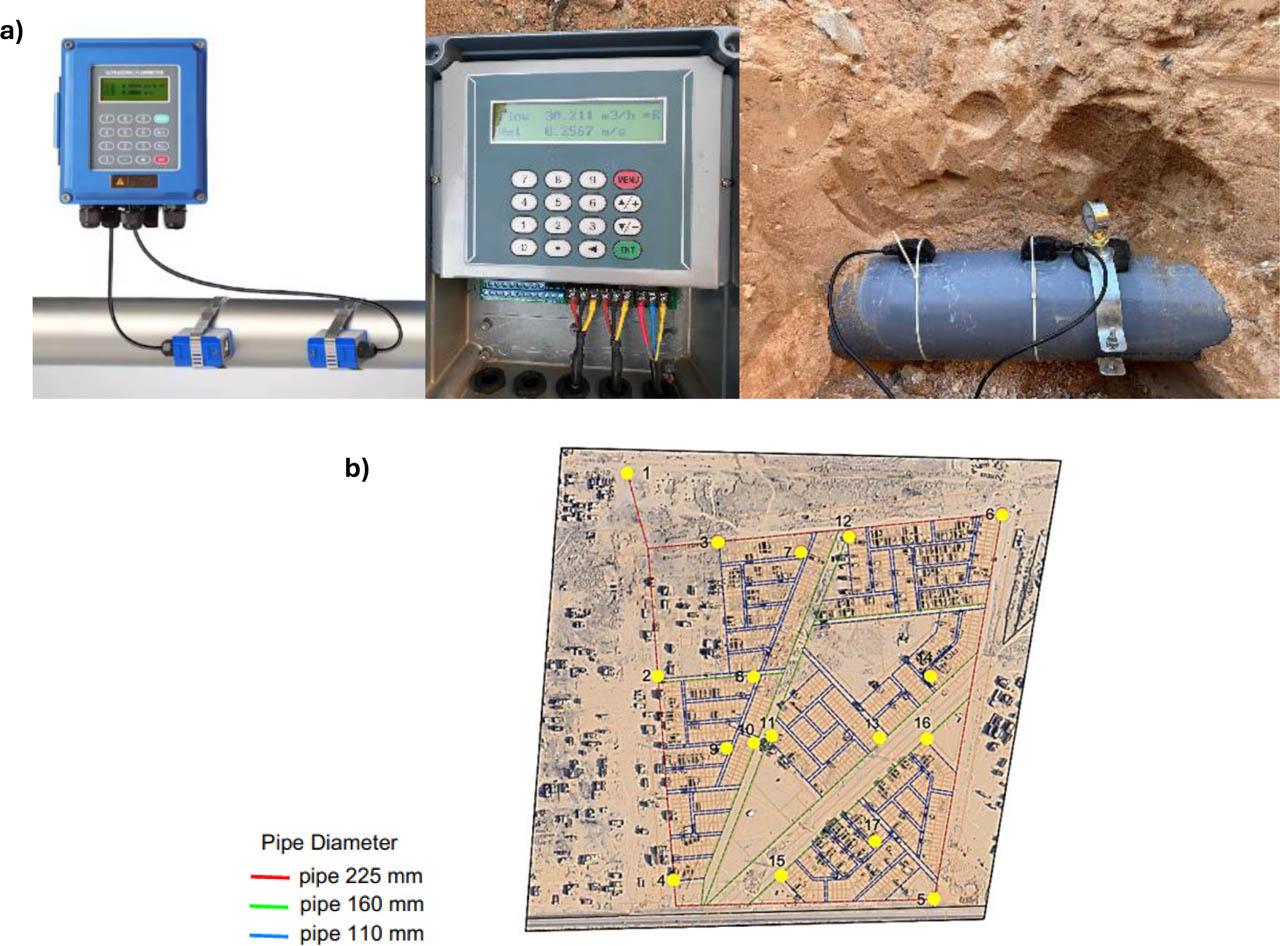

Flowrate measurements: a) Wall-mount ultrasonic flow meter (Eurosonic 2000) device; b) Location of measured points

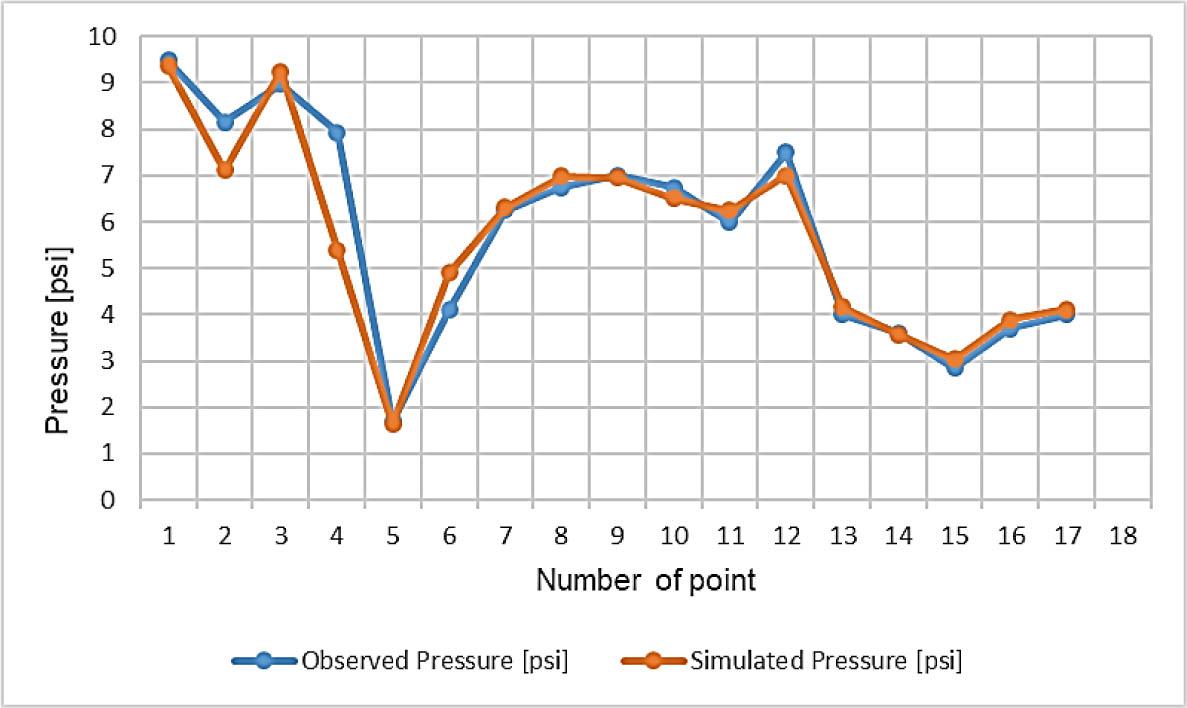

Calibration results using C=140: simulated vs observed water pressure

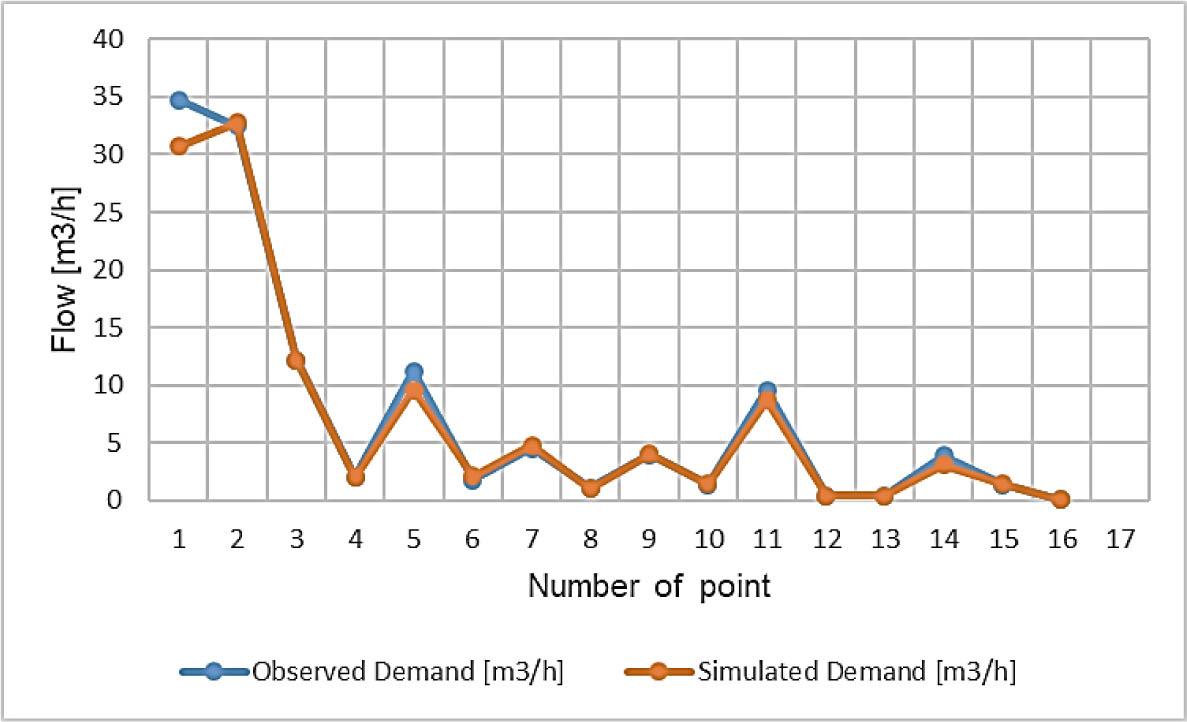

Calibration results using C=140: simulated vs observed demand

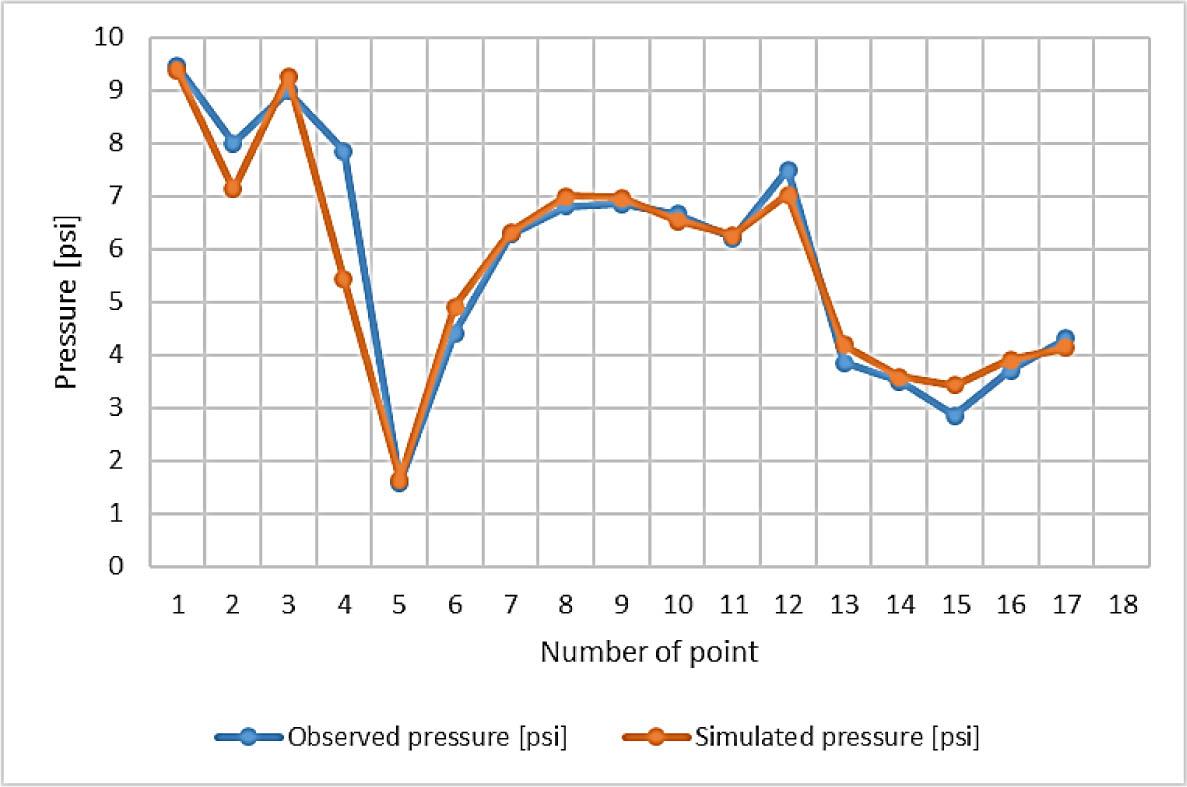

Validation results using C=140: simulated vs observed water pressure

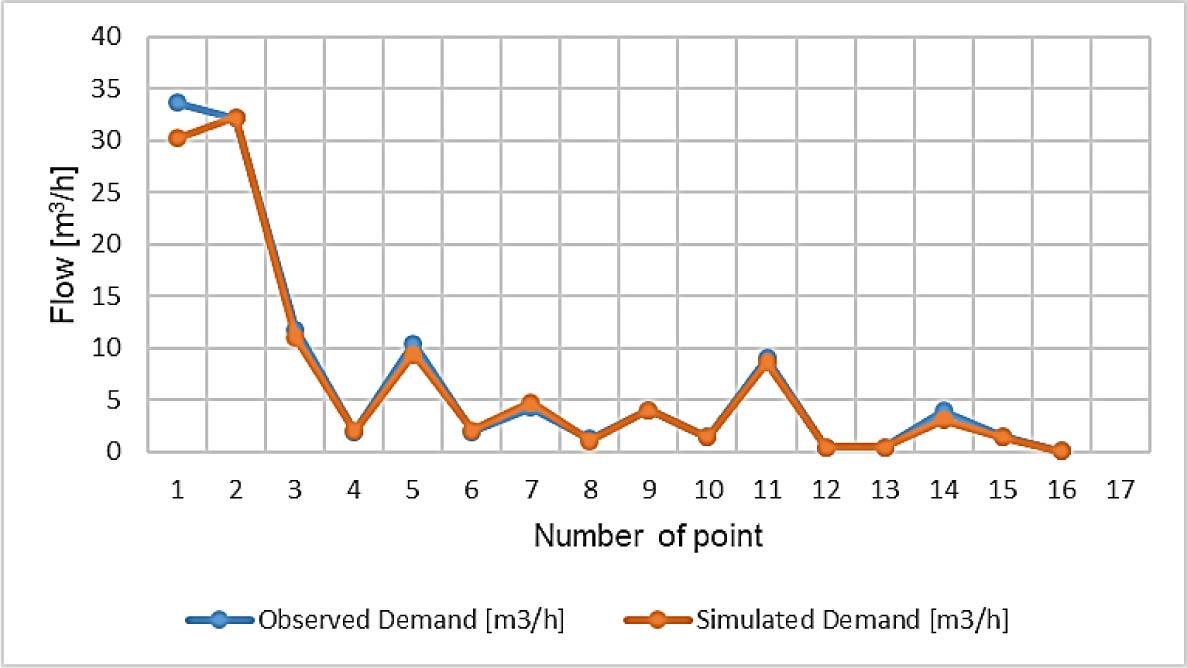

Validation results using C=140: simulated vs observed demand

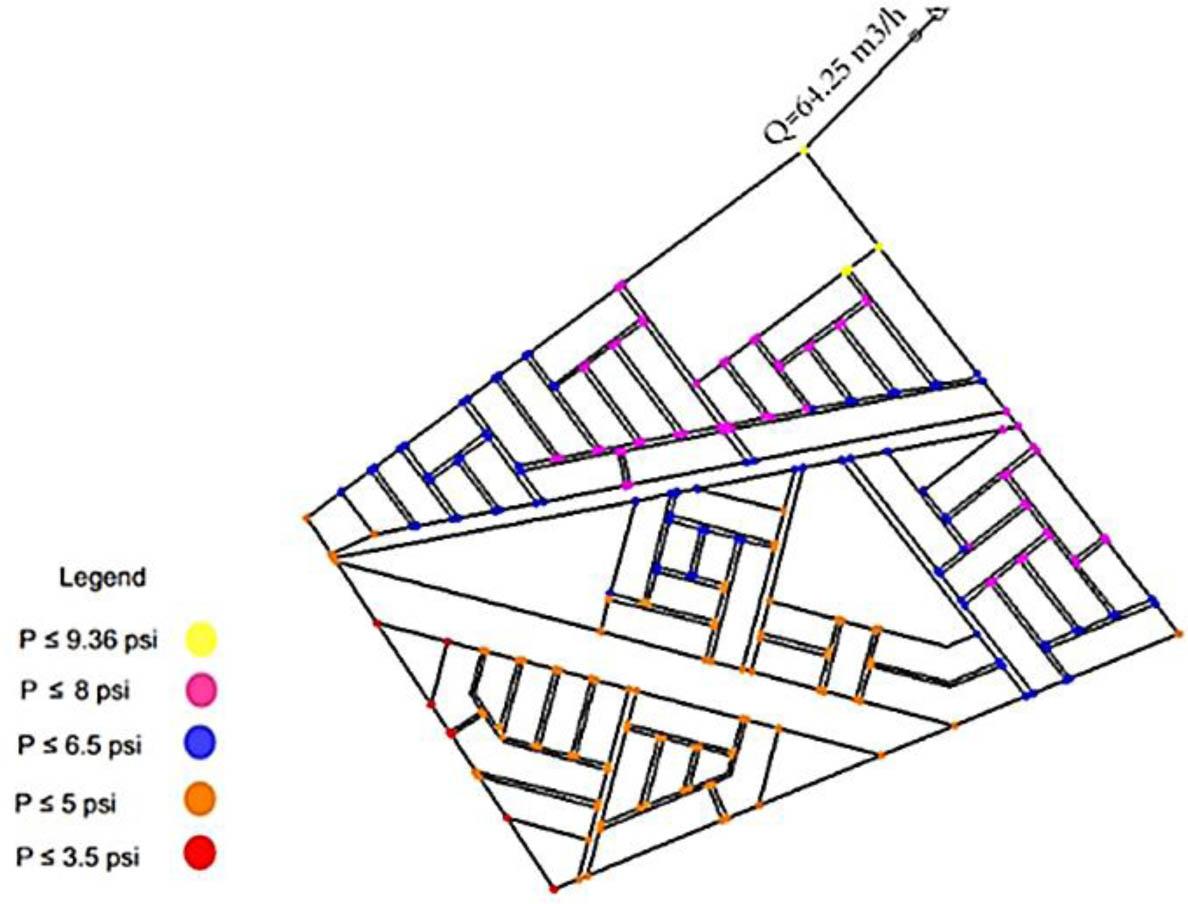

Illustrating the fluctuations of pressure values across the network

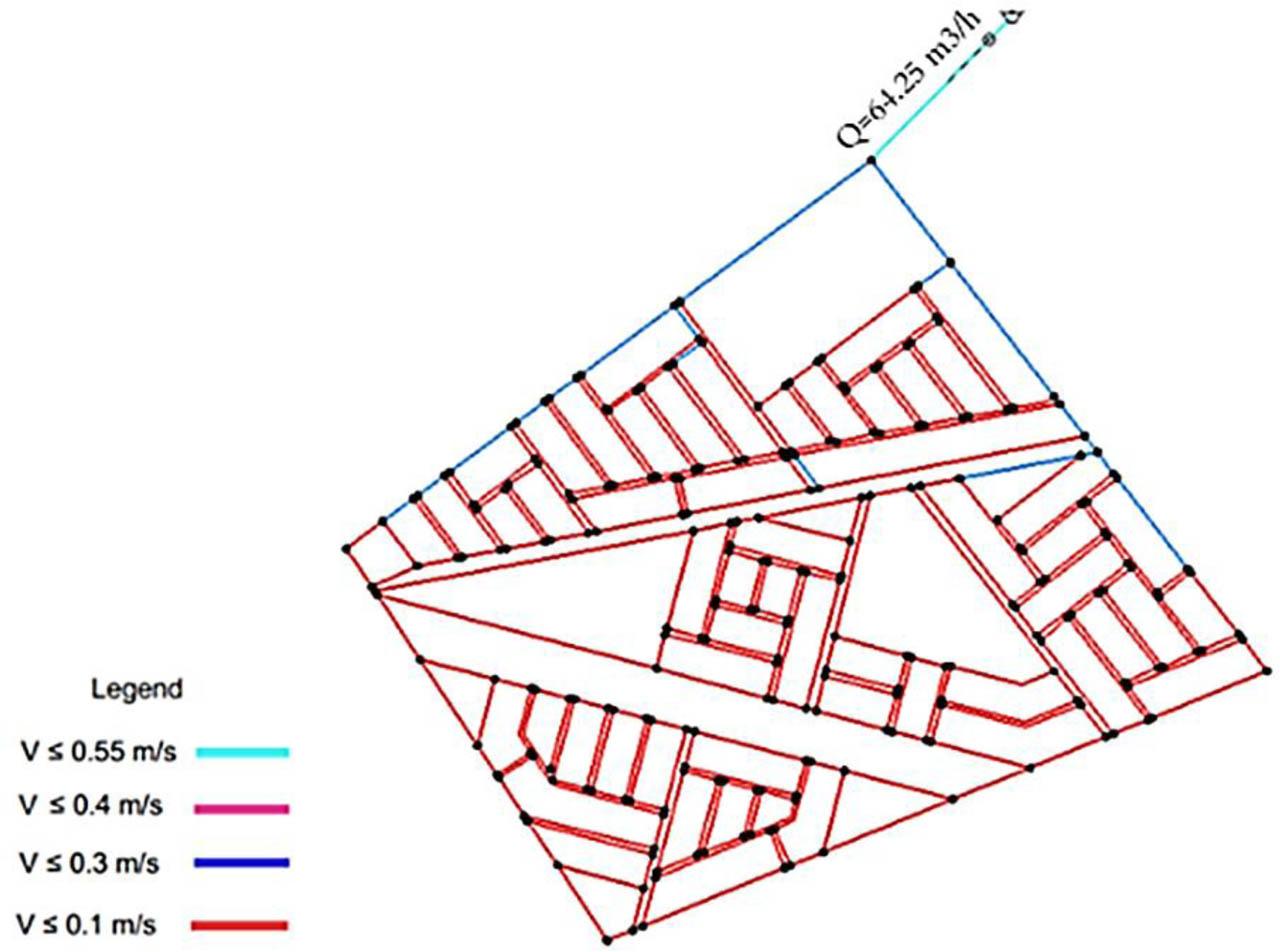

Illustrating the fluctuations of velocity values across the water distribution network

Correlation coefficient (R) and root mean square error (RMSE) between observed and simulated values of water pressure and demand for C=140

Parameter	Percentage Error %	RMSE	R
Water pressure	6.56	0.7165	0.9492
Demand	7.338	1.1382	0.9964

Validation results using C=140: simulated vs observed water pressure with absolute and percentage error

Number of points	Junction	Observed pressure [psi]	Simulated pressure [psi]	Absolute pressure difference [psi]	Percentage error [%]
1	J-25	9.45	9.36	0.09	0.952
2	J-26	8	7.13	0.87	10.875
3	J-24	8.98	9.26	0.28	3.118
4	J-38	7.85	5.42	2.43	30.955
5	J-1	1.58	1.64	0.06	3.797
6	J-13	4.4	4.91	0.51	11.591
7	J-190	6.28	6.32	0.04	0.637
8	J-229	6.8	6.99	0.19	2.794
9	J-223	6.85	6.97	0.12	1.752
10	J-216	6.65	6.53	0.12	1.805
11	J-123	6.2	6.26	0.06	0.968
12	J-170	7.5	7.02	0.48	6.400
13	J-113	3.85	4.19	0.34	8.831
14	J-95	3.5	3.59	0.09	2.571
15	J-92	2.85	3.42	0.57	20.000
16	J-51	3.7	3.9	0.2	5.405
17	J-77	4.3	4.13	0.17	3.953
Average Error					6.85

Validation results using C=140: simulated vs observed Demand with absolute and percentage error

Number of points	Pipe	Observed demand [m³/h]	Simulated demand [m³/h]	Absolute demand difference [m³/h]	Percentage error [%]
2	P-49	33.624	30.21	3.414	0.102
3	P-24	32.133	32.234	0.101	0.003
4	P-36	11.76	10.948	0.812	0.069
5	P-25	1.899	1.968	0.069	0.036
6	P-13	10.465	9.413	1.052	0.101
7	P-279	1.96	2.092	0.132	0.067
8	P-108	4.226	4.739	0.513	0.121
9	P-307	1.235	1.062	0.173	0.140
10	P-101	4.05	3.996	0.054	0.013
11	P-77	1.391	1.418	0.027	0.019
12	P-86	9.018	8.544	0.474	0.053
13	P-72	0.42	0.443	0.023	0.055
14	P-204	0.437	0.428	0.009	0.021
15	P-64	3.95	3.017	0.933	0.236
16	P-52	1.45	1.44	0.01	0.007
17	P-155	0.0751	0.076	0.0009	0.012
Average Error					6.595

Flow velocity range in the water distribution network pipes

Flow velocity range [m/s]	Percentage of pipe length [%]
< 0.01	28.91
0.01 – 0.1	62.32
0.1 – 0.2	4.22
0.2 – 0.3	3.48
0.3 – 0.4	0.0
0.4–0.5	0.0
0.5–0.6	1.07

Calibration results using C=140: simulated vs observed water pressure with absolute and percentage error

Number of points	Junction	Observed pressure [psi]	Simulated pressure [psi]	Absolute pressure difference [psi]	Percentage error [%]
1	J-25	9.485	9.36	0.125	1.318
2	J-26	8.16	7.12	1.04	12.745
3	J-24	8.975	9.25	0.275	3.064
4	J-38	7.925	5.4	2.525	31.861
5	J-1	1.7	1.63	0.07	4.118
6	J-13	4.1	4.9	0.8	19.512
7	J-190	6.25	6.31	0.06	0.960
8	J-229	6.75	6.98	0.23	3.407
9	J-223	7	6.95	0.05	0.714
10	J-216	6.75	6.51	0.24	3.556
11	J-123	6	6.25	0.25	4.167
12	J-170	7.5	7.01	0.49	6.533
13	J-113	4	4.17	0.17	4.250
14	J-95	3.6	3.57	0.03	0.833
15	J-92	2.85	3.04	0.19	6.667
16	J-51	3.7	3.89	0.19	5.135
17	J-77	4	4.11	0.11	2.750
Average Error					6.56

The percentage distribution of pressure ranges within the water distribution network

Pressure Range [psi]	Number of Junctions	Percentage of Total [%]
1 – 4	22	9.13
4 – 6	115	47.72
6 – 8	100	41.49
8 – 9.4	4	1.66
Total	241	100

Calibration Results using C=140: simulated vs observed Demand with absolute and percentage error_

Number of points	Pipe	Observed demand [m³/h]	Simulated demand [m³/h]	Absolute demand difference [m³/h]	Percentage error [%]
2	P-49	34.718	30.708	4.01	0.116
3	P-24	32.47	32.752	0.282	0.009
4	P-36	12.16	12.191	0.031	0.003
5	P-25	2.082	2	0.082	0.039
6	P-13	11.232	9.566	1.666	0.148
7	P-279	1.8	2.126	0.326	0.181
8	P-108	4.528	4.818	0.29	0.064
9	P-307	1.1379	1.08	0.0579	0.051
10	P-101	3.998	4.06	0.062	0.016
11	P-77	1.389	1.441	0.052	0.037
12	P-86	9.6016	8.696	0.9056	0.094
13	P-72	0.439	0.45	0.011	0.025
14	P-204	0.451	0.435	0.016	0.035
15	P-64	3.94	3.067	0.873	0.222
16	P-52	1.421	1.463	0.042	0.030
17	P-155	0.0697	0.077	0.0073	0.105
Average Error					7.338

Validation coefficient (R) and root mean square error (RMSE) between observed and simulated values of water pressure and demand for C=140

Parameter	Percentage Error [%]	RMSE	R
Pressure	6.85	0.679	0.953
Demand	6.595	0.963	0.997
