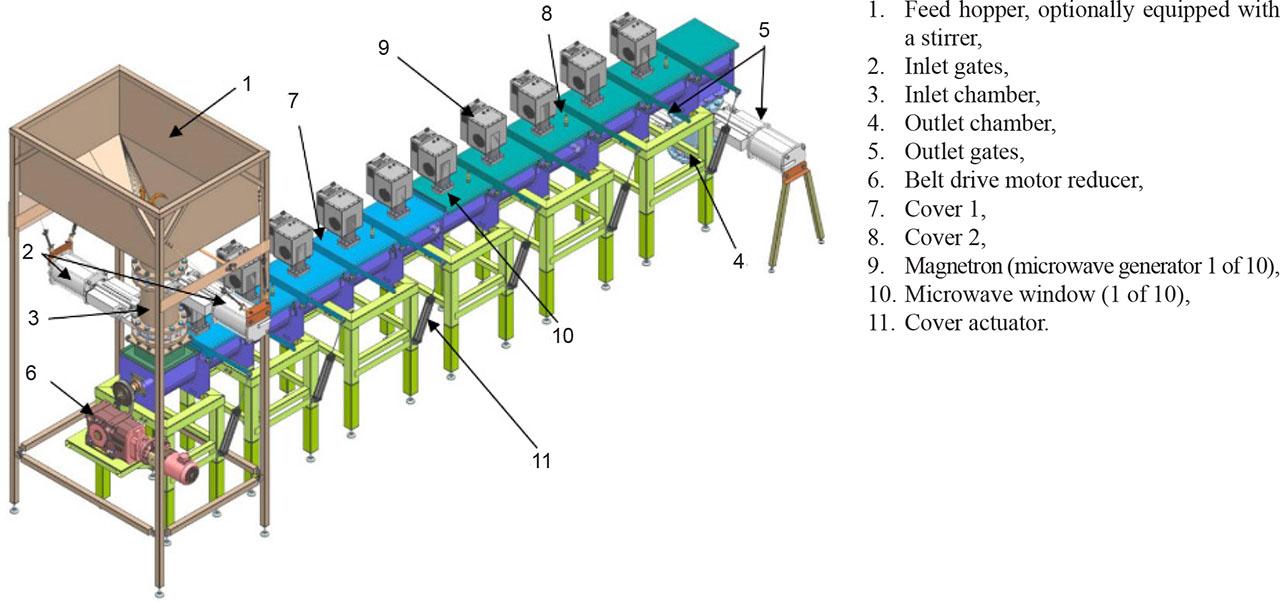

Figure 1.
Components of the microwave dryer body.

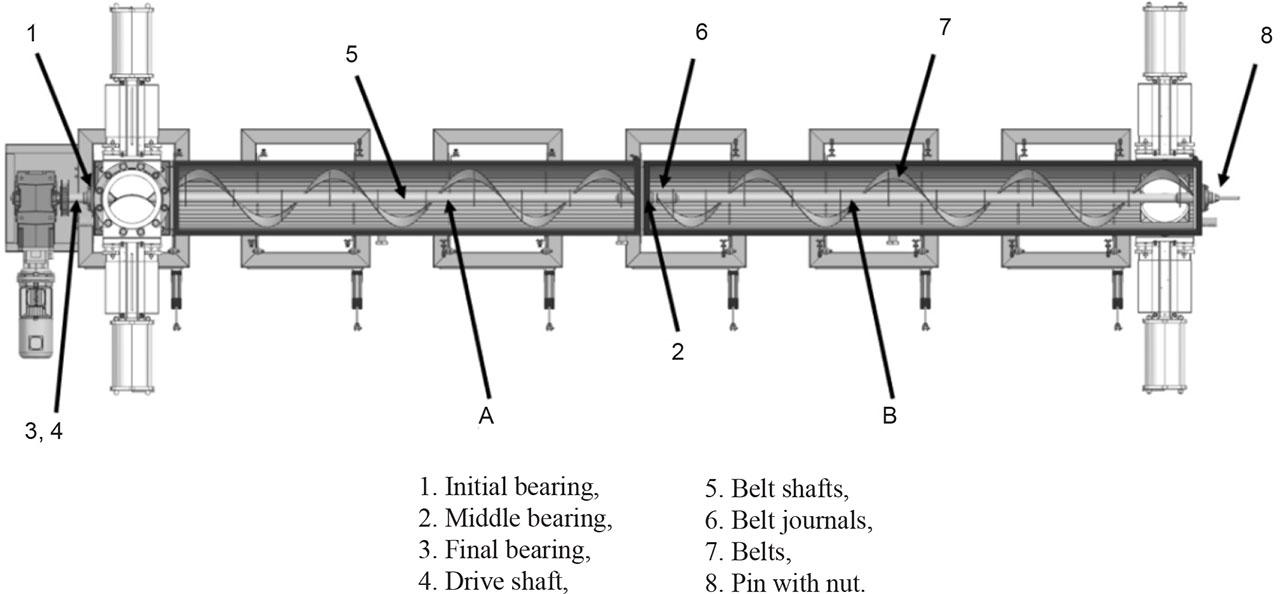

Figure 2.
View of final microwave dryer with the covers removed.

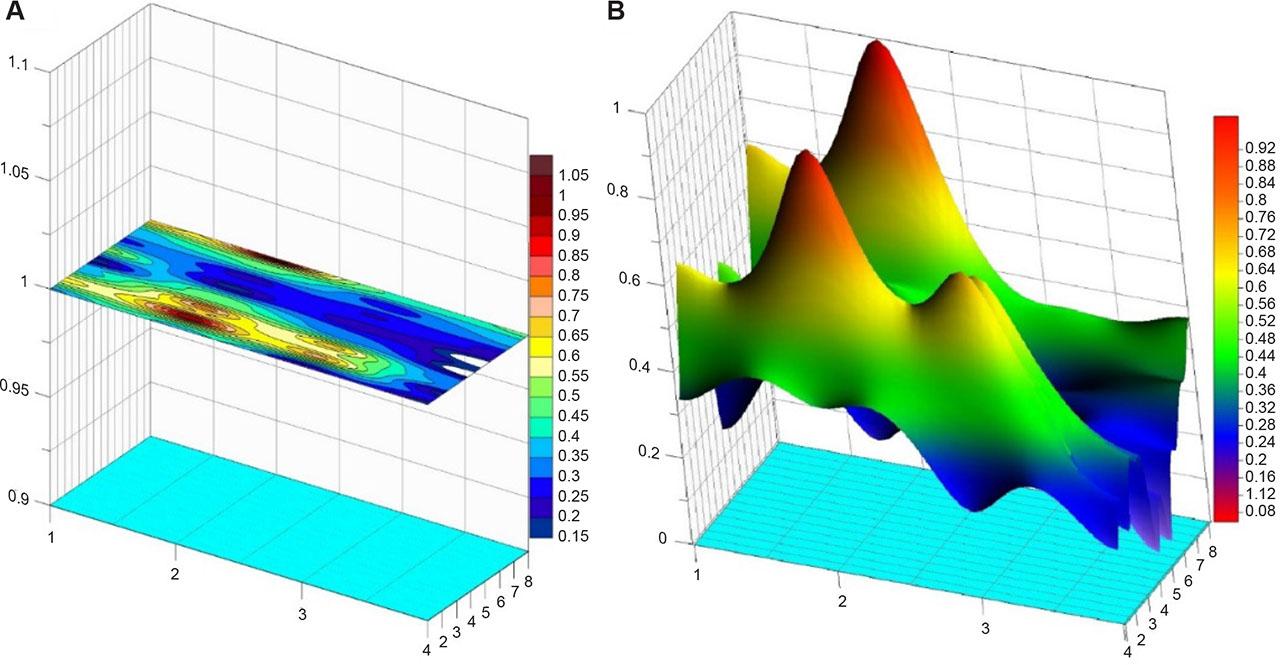

Figure 3.
A: Measured distribution of the total magnetic field (thermal, linear scale); B: Spatial plot of the total magnetic field intensity (linear scale).

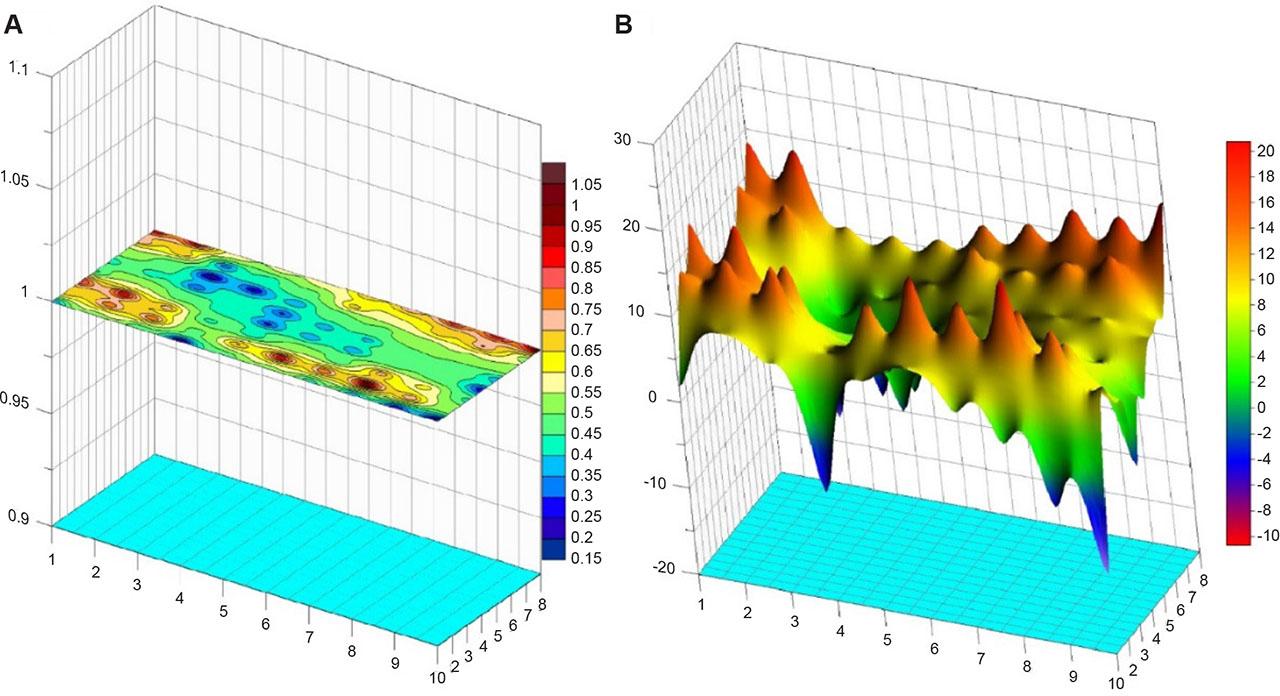

Figure 4.
A: Measured distribution of the electric field (thermal, linear scale); B: Spatial plot of the electric field intensity (thermal, logarithmic scale).

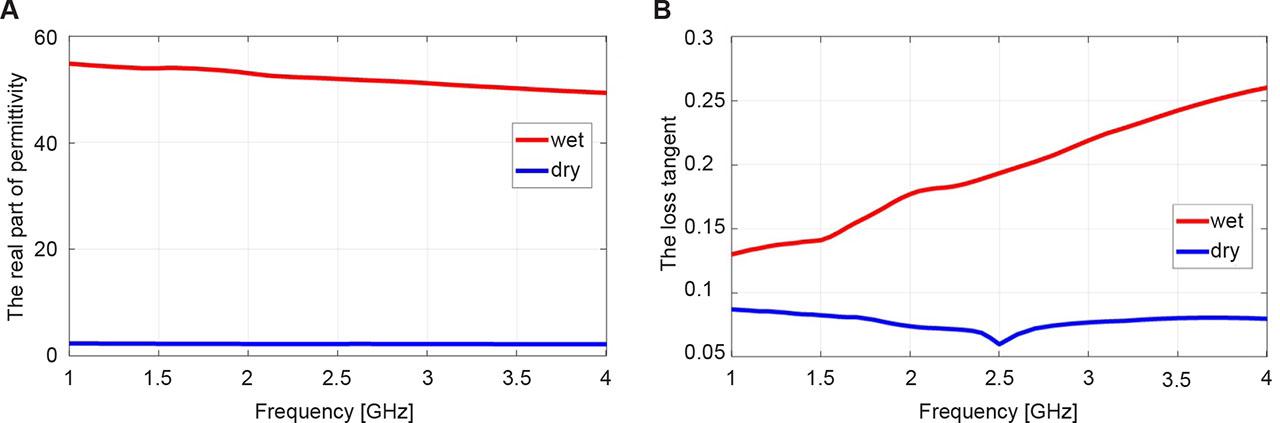

Figure 5.
A: Measured dielectric permittivity of apple pomace over a wide frequency range; B: Measured dielectric loss tangent of apple pomace over a wide frequency range.

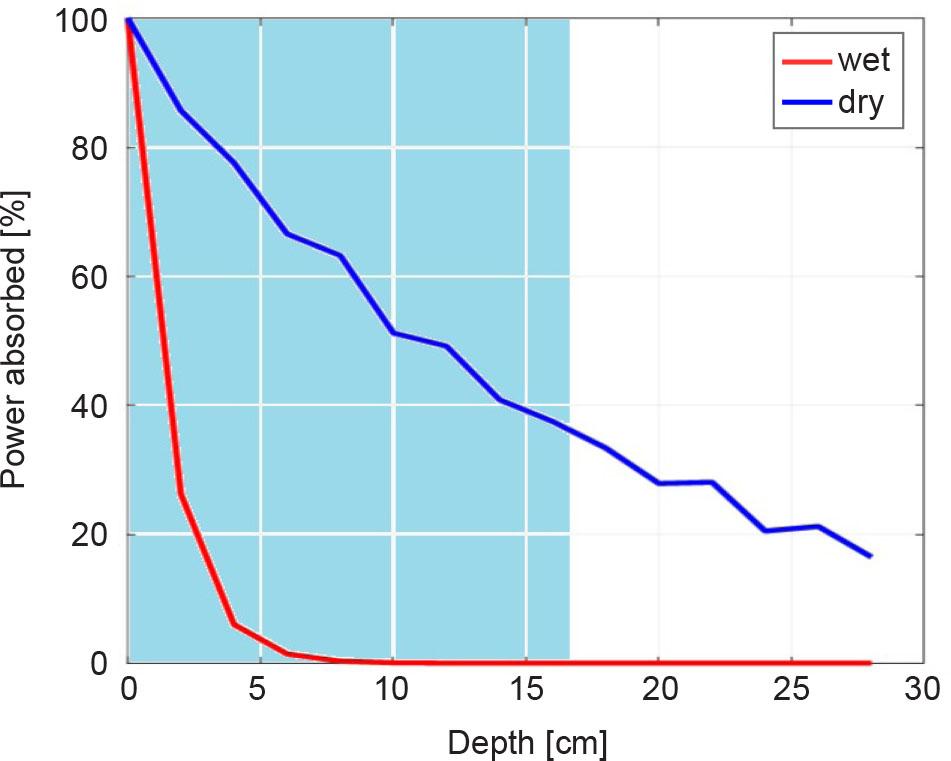

Figure 6.
Penetration depth of electromagnetic waves into the dried material.

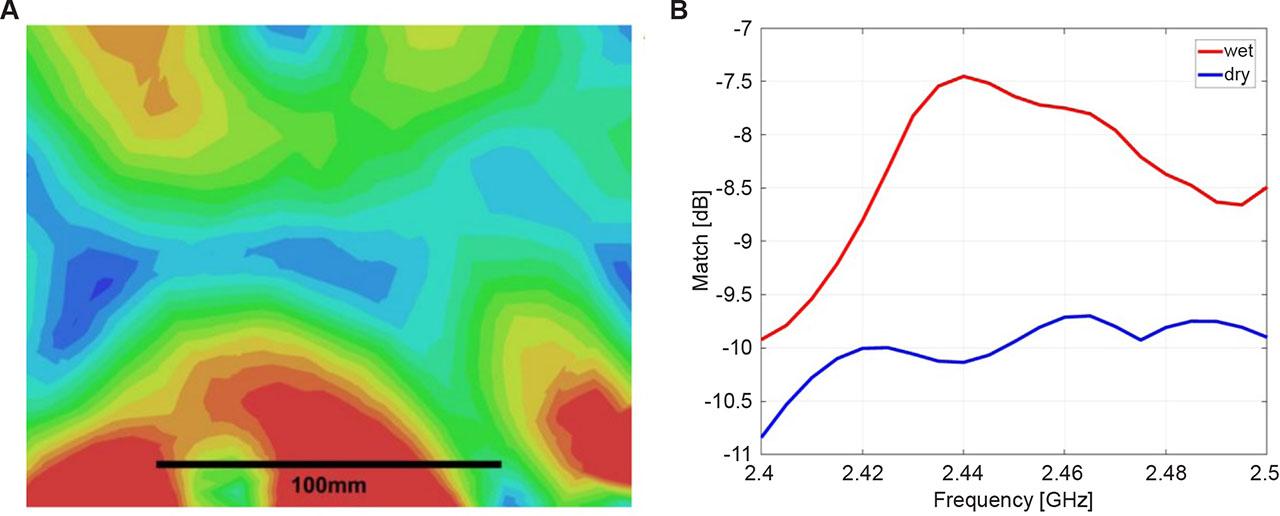

Figure 7.
A: Fragment of the electromagnetic field distribution inside the microwave dryer chamber; B: Magnetron matching for a dryer filled with wet or dry feed material.
