Figure 1
Figure 2
Figure 3
Figure 4
Summary of the three t-tests of the electrified and non-electrified value groupsTabelle 2_ Zusammenfassung von drei T-Tests der elektrifizierten und nicht-elektrifizierten Wertegruppen
| t | df | p | |
|---|---|---|---|
| Field 1 | 25.074 | 632.97 | <2.2e-16 |
| Field 2 | 33.341 | 774.15 | <2.2e-16 |
| Field 3 | 67.596 | 2132.00 | <2.2e-16 |

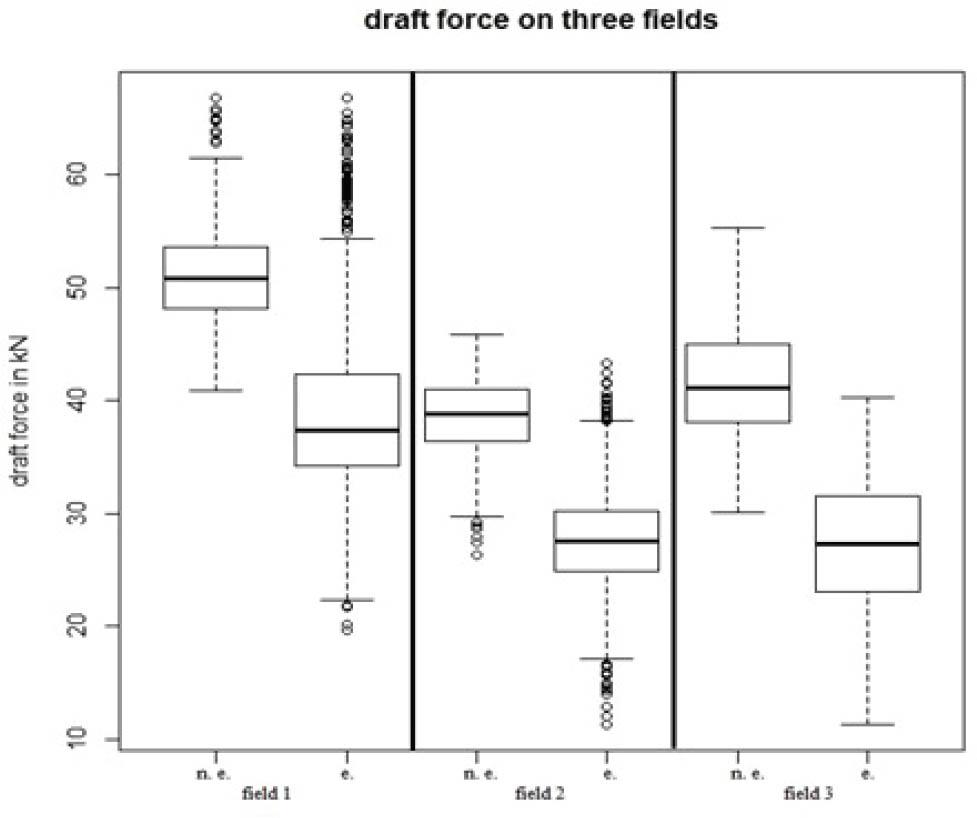

Draft force consumption of the prototype with 3-m working widthTabelle 3_ Zugkrafteinsparung mit dem Prototyp in 3 m Arbeitsbreite
| Mean without electrification (kN) | Mean with electrification (kN) | Saving in kN | Percent of reduction | |
|---|---|---|---|---|
| Field 1 | 51.19 | 39.82 | 11.37 | 22.21 |
| Field 2 | 38.35 | 27.55 | 10.80 | 28.16 |
| Field 3 | 41.63 | 27.03 | 14.60 | 35.07 |

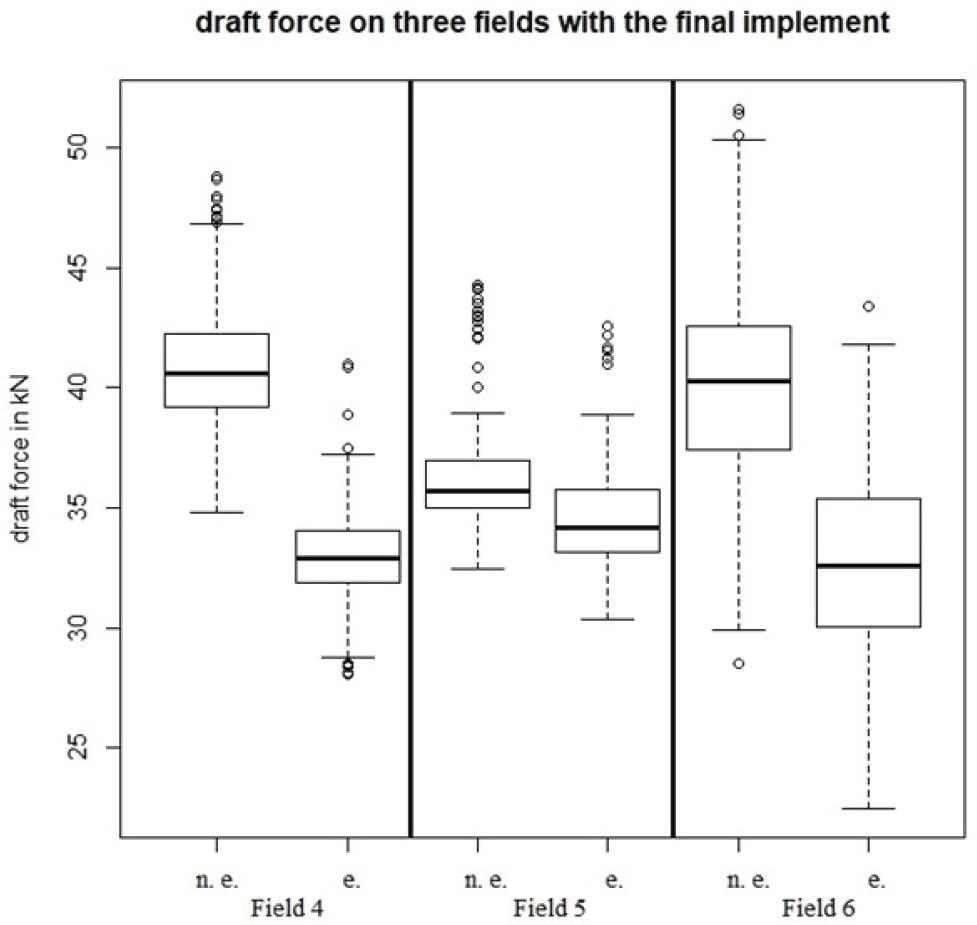

Draft force consumption of the final implement with 6-m working widthTabelle 5_ Zugkrafteinsparung mit dem finale Anbaugerät mit 6 m Arbeitsbreite
| Mean without electrification (kN) | Mean with electrification (kN) | Saving in kN | Percent of reduction | |
|---|---|---|---|---|
| Field 4 | 40.93 | 32.92 | 8.01 | 19.57 |
| Field 5 | 36.34 | 34.59 | 1.75 | 4.82 |
| Field 6 | 40.23 | 32.81 | 7.42 | 18.44 |
n values of traction force received per fieldTabelle 1: Erzielte Anzahl an Zugkraftwerten für jedes Versuchsfeld
| Field and setup | n |
|---|---|
| Prototype, 3-m working width | |
| Field 1 without electrification | 635 |
| Field 1 with electrification | 473 |
| Field 2 without electrification | 296 |
| Field 2 with electrification | 495 |
| Field 3 without electrification | 1468 |
| Field 3 with electrification | 1178 |
| Final implement, 6-m working width | |
| Field 4 without electrification | 600 |
| Field 4 with electrification | 360 |
| Field 5 without electrification | 140 |
| Field 5 with electrification | 137 |
| Field 6 without electrification | 379 |
| Field 6 with electrification | 360 |
| Total | 6521 |
Summary of the three t-tests of the electrified and non-electrified value groups with the final implementTabelle 4_ Zusammenfassung von drei T-Tests der elektrifizierten und nicht-elektrifizierten Wertegruppen des finale Anbaugerätes
| t | df | p | |
|---|---|---|---|
| Field 4 | 56.703 | 926.28 | <2.2e-16 |
| Field 5 | 6.0096 | 271.27 | 5.973e-09 |
| Field 6 | 24.84 | 733.34 | <2.2e-16 |
