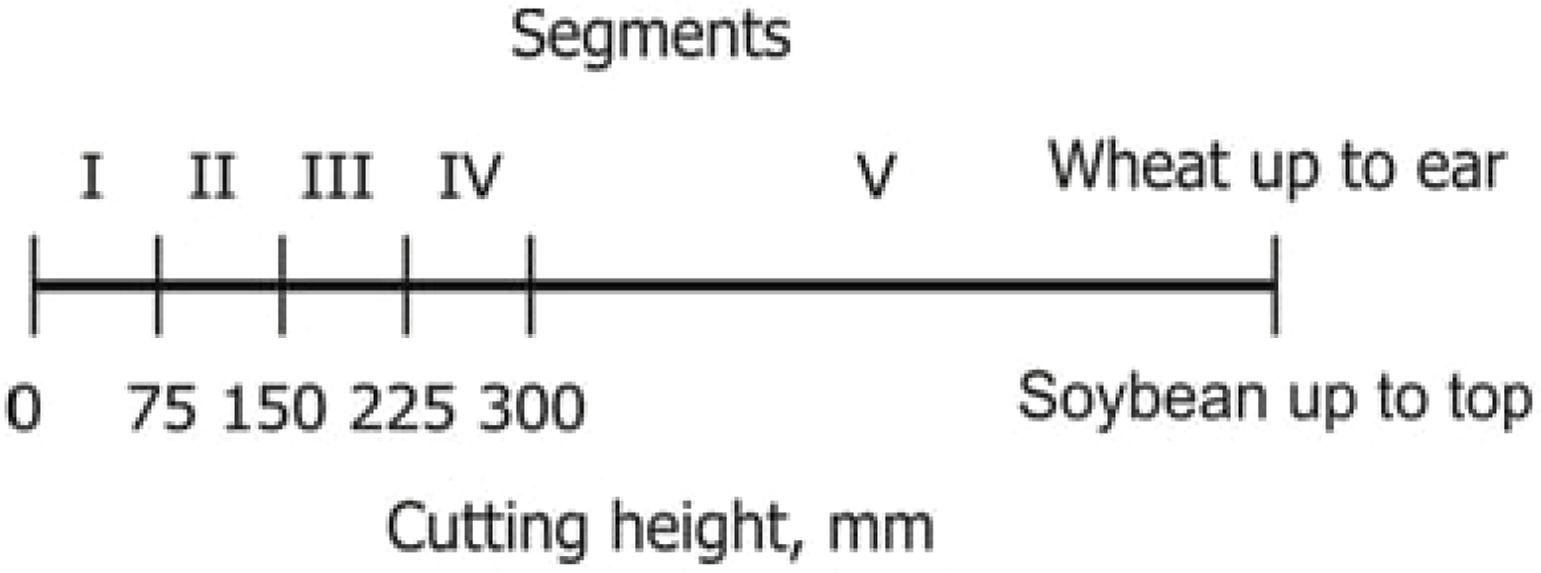

Figure 1

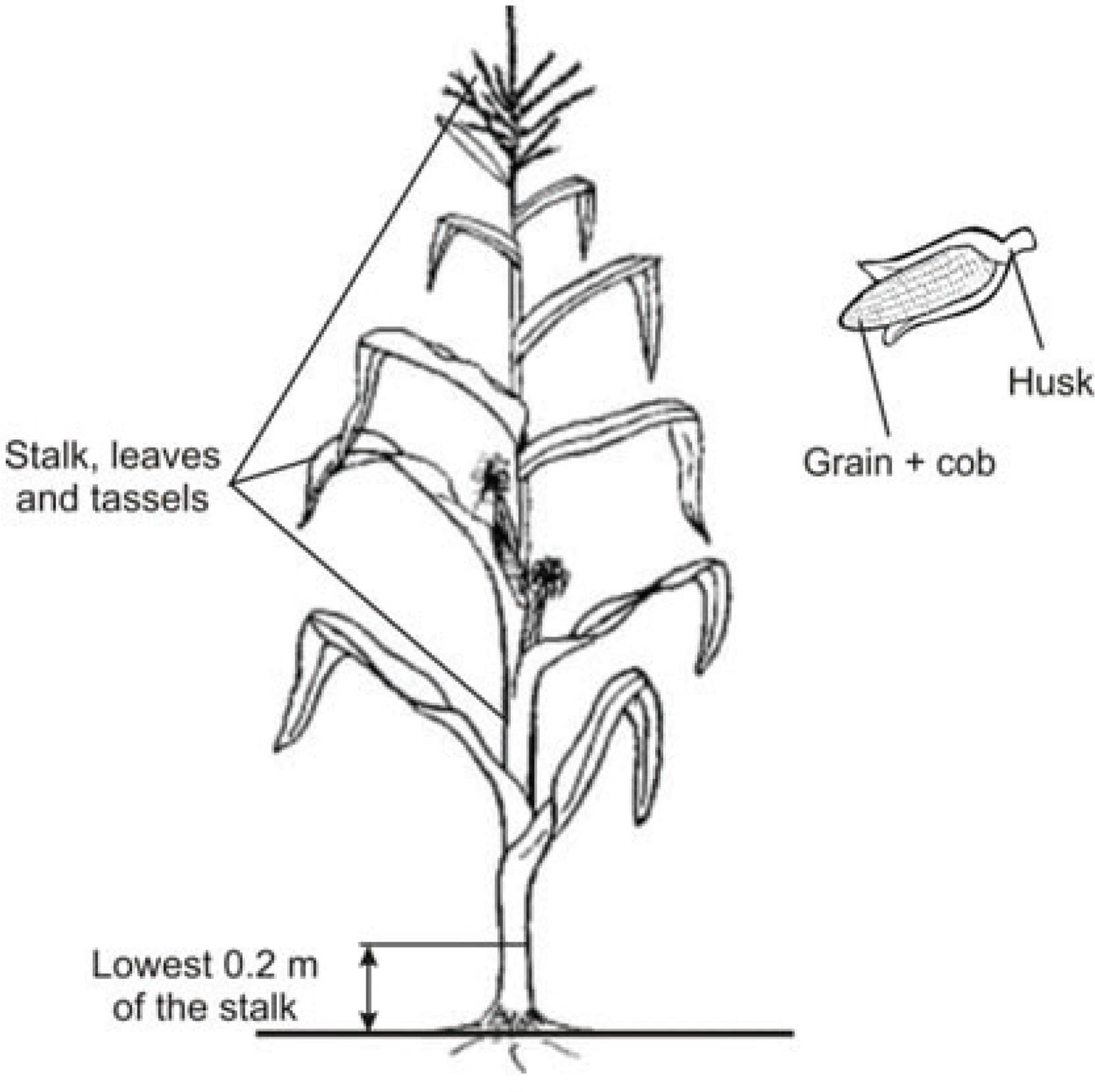

Figure 2

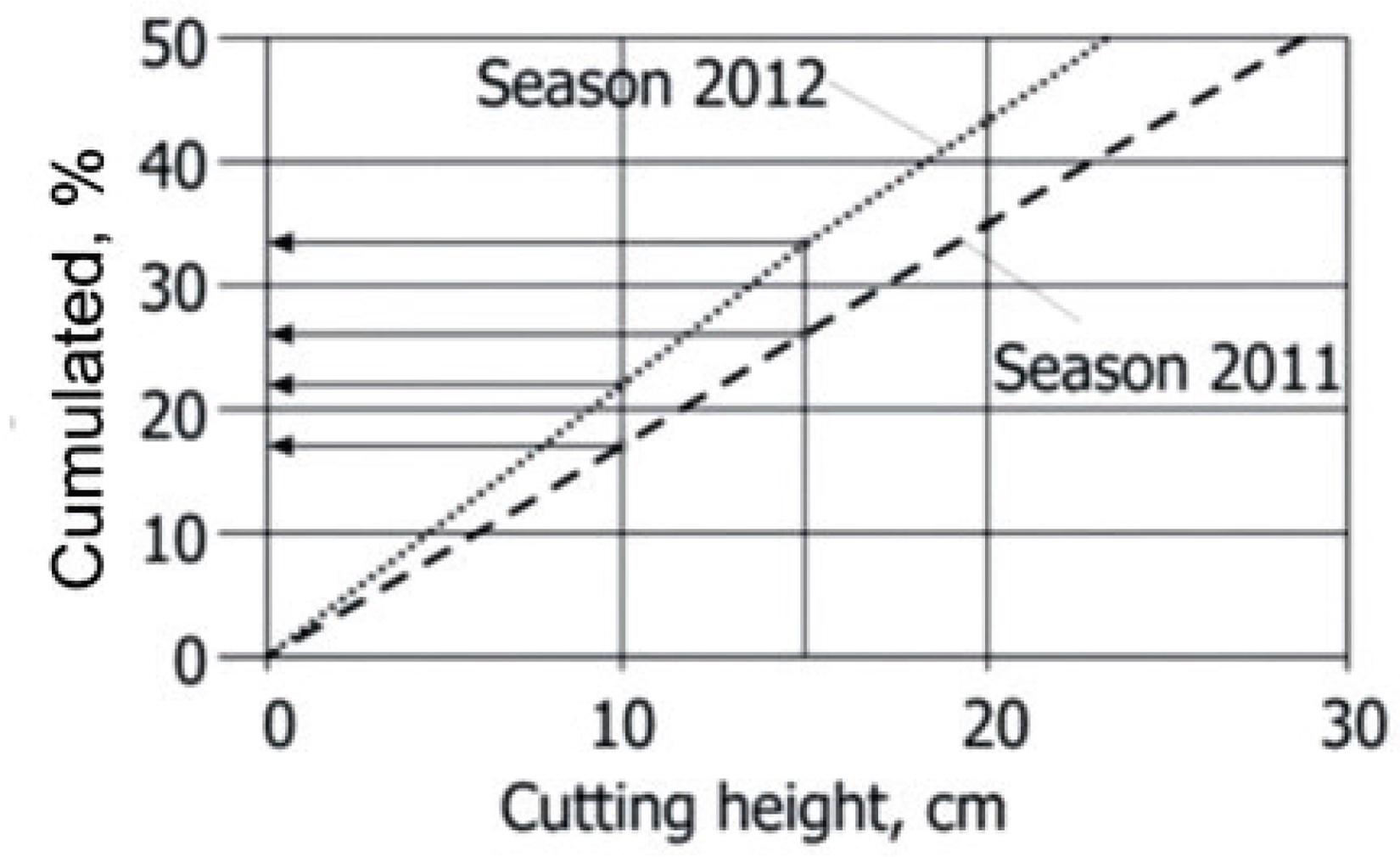

Figure 3

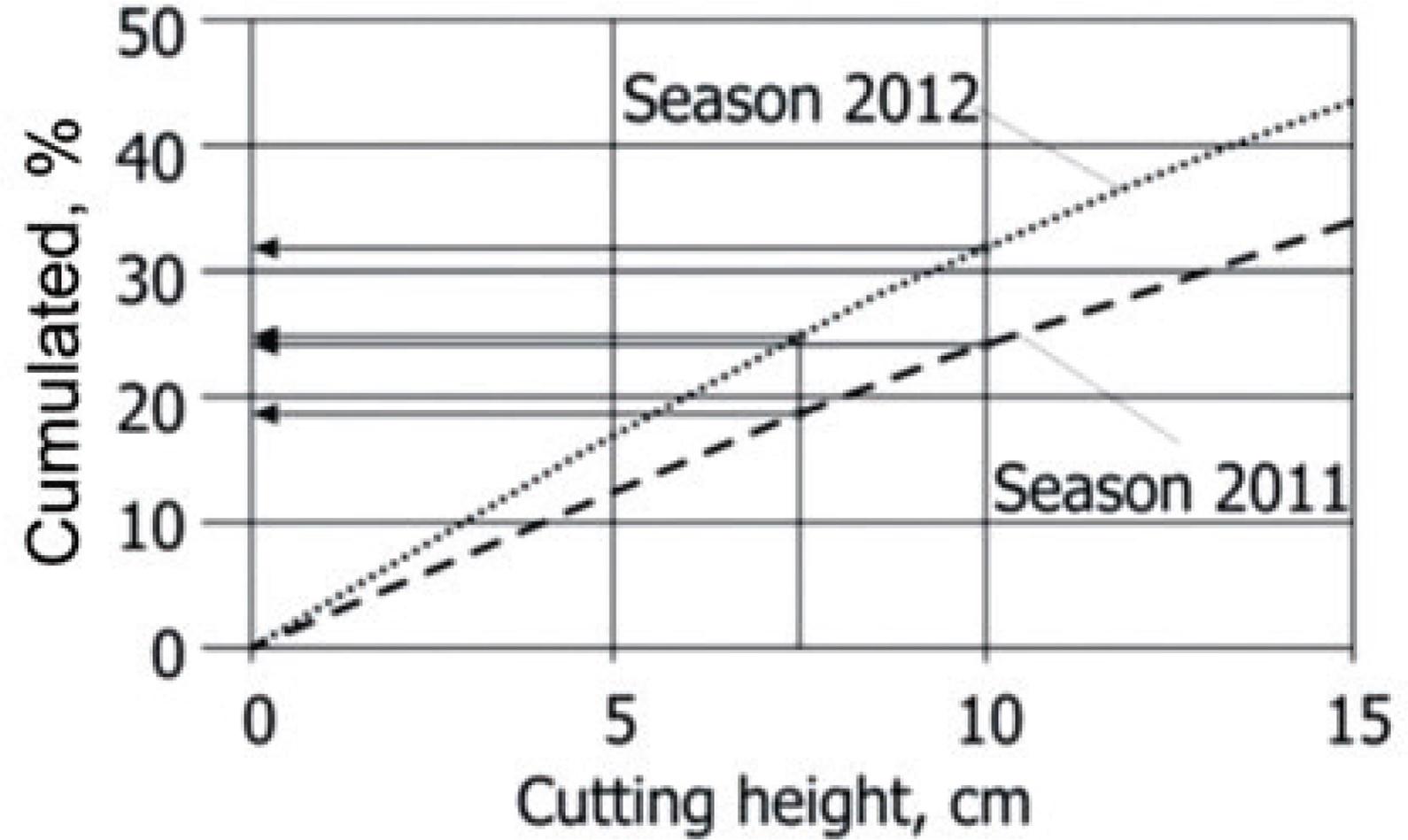

Figure 4

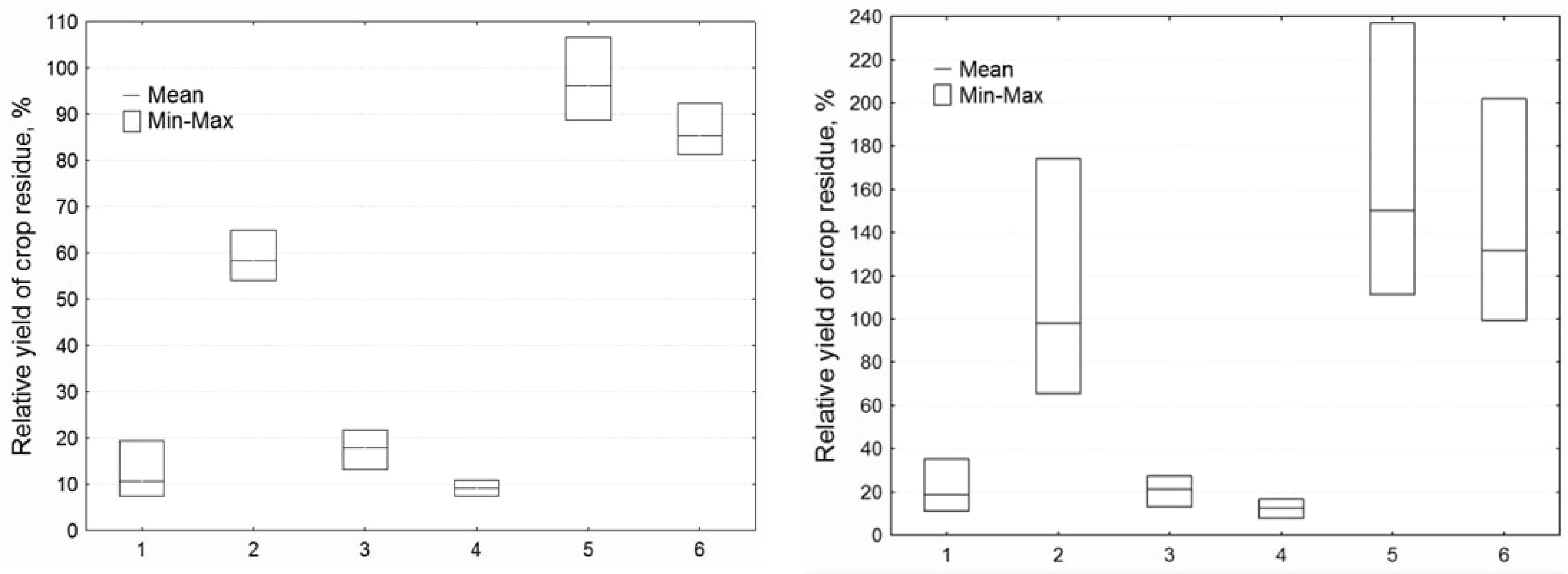

Figure 5
Soybean grain and residue yields (at a cutting bar height of 7_5 cm), averages for seasons with common or dry weatherTabelle 2_ Korn- und Ernterückstände von Sojabohne (bei einer Erntehöhe von 7,5 cm), im Durchschnitt für die Saisonen mit üblichem oder trockenem Wetter
| Parameter | Seasons | |
|---|---|---|
| Common | Dry | |
| Grain yield (Mg ha−1) | 4.7 | 2.7 |
| Harvest index | 0.47 | 0.41 |
| Mass of aboveground residues (Mg ha−1) | 5.3 | 3.8 |
| Harvestable mass of aboveground residues (Mg ha−1) | 2.1 | 1.3 |
| Percentage of harvestable mass in comparison to mass of grain (%) | 44.7 | 48.1 |
| Percentage of harvestable mass in aboveground harvest residues (%) | 39.6 | 34.2 |
| On field remained mass (Mg ha−1) | 3.2 | 2.5 |
| Percentage of on field remained mass in aboveground residues (%) | 60.4 | 65.8 |
Summarized results of the investigation expressed as relative harvestable, technical, potentials and on field remained biomassTabelle 4_ Zusammengefasste Ergebnisse der Untersuchung angegeben als Relativwerte des erntbaren und des technischen Potenzials sowie auf dem Feld verbliebene Biomasse
| Crop Common | Harvestable relative to grain (%) | Remained relative to grain (%) | |||||
|---|---|---|---|---|---|---|---|
| Dry | Red. D to C | Common | Dry | Red. D to C | |||
| Wheat | 55 | 40 | 45 | 50 | 60 | 18 | |
| Soybean | 45 | 48 | 38 | 60 | 66 | 22 | |
| Corn | 1 | 51 | 72 | 31 | 47 | 47 | 28 |
| 2 | 41 | 59 | 31 | 43 | 43 | 29 | |
Obtained data for wheat (all data for dry matter, cutting bar height 15 cm), average for common and dry seasonsTabelle 1_ Ergebnisdaten für Weizen (angegeben wird die Trockensubstanz, Schnitthöhe 15 cm), Durchschnitt für übliche und trockene Saisonen
| Parameter | Seasons | |
|---|---|---|
| Common | Dry | |
| Grain yield (Mg ha−1) | 6.9 | 5.1 |
| Harvest index | 0.48 | 0.49 |
| Mass of aboveground residues (Mg ha−1) | 7.6 | 5.2 |
| Mass of harvestable aboveground residues (Mg ha−1) | 3.8 | 2.1 |
| Percentage of harvestable mass in comparison with mass of grain (%) | 55.5 | 40.0 |
| Percentage of harvestable mass in aboveground residues (%) | 50.0 | 39.3 |
| On field remained mass (Mg ha−1) | 3.8 | 3.1 |
| Percentage of on field remained mass in aboveground residues (%) | 50.0 | 60.7 |
Harvestable and remaining corn residues for the defined harvest procedures averaged for common and dry seasonsTabelle 3_ Erntbare und verbleibende Kornrückstände für die ausgewählten Ernteverfahren und gemittelte Ergebnisse für die üblichen und trockenen Saisonen
| Season | HI | Harvest procedure | Harvestable mass | Remained mass, Mg ha−1 | ||
|---|---|---|---|---|---|---|
| RY (%) | Mg ha−1 | PTM (%) | ||||
| Common | 0.49 | 1 | 51 | 5.5 | 53 | 4.6 |
| 2 | 41 | 4.5 | 43 | 5.6 | ||
| Dry | 0.43 | 1 | 72 | 3.8 | 53 | 3.3 |
| 2 | 59 | 3.1 | 43 | 4.0 | ||
