Analysis Of Portevin-Le Châtelier Effect Data Using Diffferent Sample Entropy Measures

Sample Entropy [22] is an algorithm focused on finding patterns in a time series. First, time series X in equal intervals is divided into m-elements and m+1-elements vectors, Yim=(xi,xi+1,…,xi+m−1)Y_i^m = \left( {{x_i},{x_{i + 1}}, \ldots ,{x_{i + m - 1}}} \right). Parameter m is called an embedded dimension and is usually equal to 2. The next step is to calculate a maximum norm of the distance between vectors and compare it with tolerance r. The tolerance is a percentage of standard deviation, usually around 20 % (in the case of this article the tolerance is set to 15 %). The events when the maximum norm is smaller than the tolerance have to be counted and stored in variable n_m. Next, the steps are repeated for m + 1 and variable n_m+1 is the result. The sample entropy is equal to natural logarithm of the fraction of n_m divided by n_m+1. Calculating the Sample Entropy is summarized in Alg. 1 in Appendix 1.

To assess the Sample Entropy measure some calculations for a white noise are provided. The first task is to check how many points are required to obtain reliable results. Files with different numbers of points are generated and the calculation of Sample Entropy is performed. For each case 100 files are generated (with the exception of 10000 points where only 10 files are generated) and four values are provided, maximum, minimum, mean and standard deviation. The results are summarized in Tab. 2. Based on the calculations of standard deviation, it can be seen that the results for 800 points are reliable for Sample Entropy calculation which is consistent with the value reported in [22].

Sample Entropy, however, has some limitations which have to be addressed. First of all the data need to be in equal intervals, which impedes using data from computations with an adaptive time step. Another issue is sensitivity to the step size, since only the values calculated for the same steps can be compared with each other. To illustrate this, let us calculate SampEn for a white noise. The white noise can be generated using normal Gauss distribution, in this case 1000 points are generated. The sample entropy value for the white noise oscillates around 2.5 and for this particular calculation it is equal to 2.59. Let us interpolate between existing values, now SampEn is equal to 0.58. Another problem is data with a trend. Now, function x² is added to the previously used white noise. Let us assume that the distance between data points is one. The Sample Entropy for the data with the trend is equal to 0.00347. In the case of different time steps the solution is interpolation and the trend can be removed by fitting a suitable function. This however means that apart from additional work some information can be lost in the process. Sample Entropy calculations are also time consuming. All of method characteristics make it impossible to formulate objective ranges for different PLC types.

To avoid some problems characteristic for the Sample Entropy another method is used. The algorithm called Sample Entropy 2d [23] is very similar to the Sample Entropy, but calculations are performed for a two-dimensional time series (X, Y), see Appendix 1 Alg. 2. The tolerance r is now set as 1r=pSx2+Sy2r = p\sqrt {S_x^2 + S_y^2} where p is usually equal to 0.3, [23] and the geometric mean of the standard deviations for the x and y values is used.

To avoid problems with one dimension dominating, which happens for the values of X, some additional steps are proposed. Only the values for local extremes are selected and the values of Y are moved to the beginning of the coordinate system (Y becomes a set of distances between extremes). Next the data are normalized using the equations: 2x=xi−xminxmax−xmin,y=yi−yminymax−yminx = {{{x_i} - {x_{min}}} \over {{x_{max}} - {x_{min}}}},\quad y = {{{y_i} - {y_{min}}} \over {{y_{max}} - {y_{min}}}}

The normalized data are used for calculating Sample Entropy 2d. All steps are presented in Appendix 1, Alg. 2.

Similarly to Sample Entropy, the calculations of Sample Entropy 2d are performed for a white noise and summarized in Tab. 3. One hundred sets of data are generated for each case (with the exception of 10000 points where 10 files are generated).

Multiscale Sample Entropy (MSE) [29] provides additional insight into different time scales for a complex time series. This modification introduces time scale factor τ. The original time series X = {x₁, x₂, …, x_N} with N values needs recalculation using a so-called coarse-grain method, see Fig. 1.

Fig. 1.

Visualization of coarse-grain method

3Yτ=1τ∑i=jj+τ−1xi,1≤j≤N−τ+1{Y^\tau } = {1 \over \tau }\sum\nolimits_{i = j}^{j + \tau - 1} {{x_i}} ,1 \le j \le N - \tau + 1

Multiscale Sample Entropy for different scale factors is calculated exactly like Sample Entropy in 2.1, but for the time series obtained from Eq. 3. When τ is equal to 1, the time series is equal to the original times series X. The coarse-grain method works as follows. Time series X = {1,2,3,4,5,6,7,8,9,10} is given. For τ = 2, the new time series is equal to Y2={ 1+22,3+42,5+62,7+82,9+102 }={ 1.5,3.5,5.5,7.5,9.5 }{Y^2} = \left\{ {{{1 + 2} \over 2},\;{{3 + 4} \over 2},\;{{5 + 6} \over 2},\;{{7 + 8} \over 2},\;{{9 + 10} \over 2}} \right\} = \left\{ {1.5,\,3.5,\;5.5,\;7.5,\;9.5} \right\}.

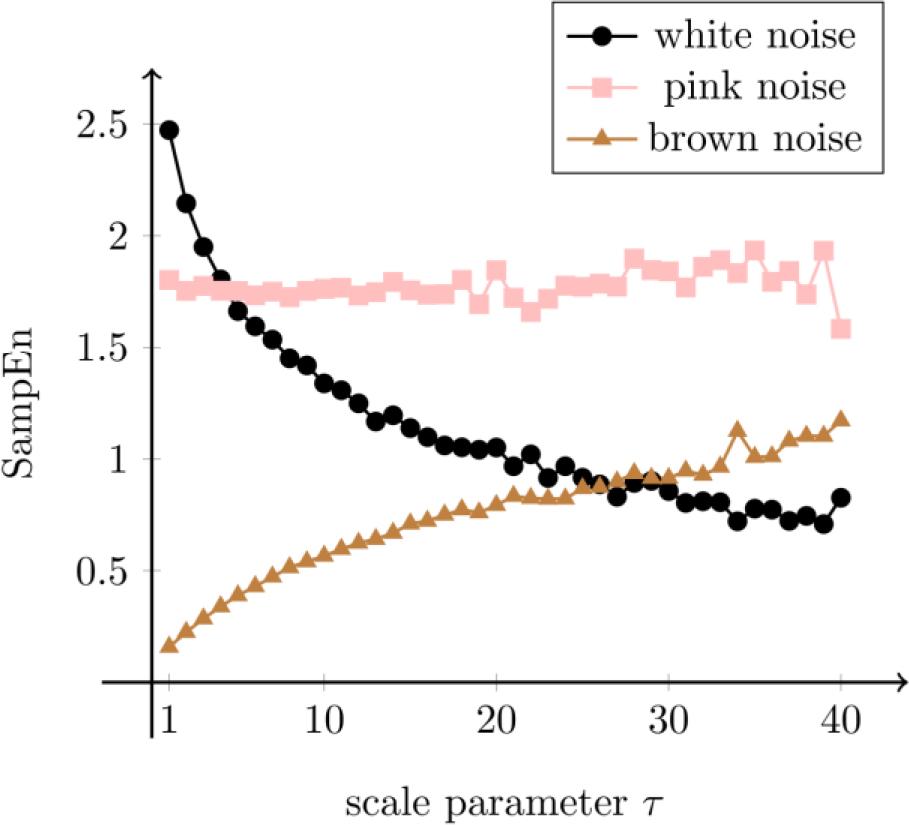

Calculations for a white noise, brown noise and pink noise are provided in Fig. 2. It can be observed that each noise has its characteristic MSE behavior. SampEn for the white noise drops when the scale parameter grows – complexity for higher time scales drops, SampEn for the pink noise is approximately constant – the same complexity for all time scales considered and SampEn for the brown noise rises – complexity also increases.

Fig. 2.

Sample Entropy for different scale parameters

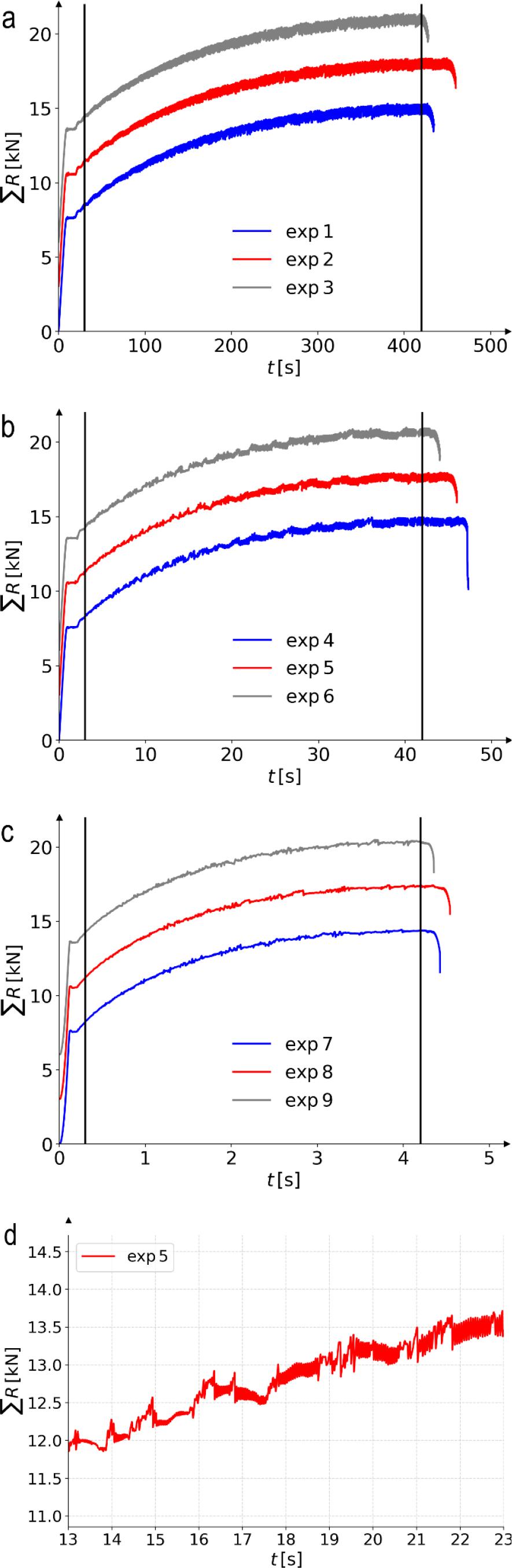

In Fig. 3 plots of the sum of reactions vs. time are shown for different strain rates and room temperature. For visibility reason the lines are shifted by 3 MPa. Experiments are performed for bone shape samples with active zone dimensions: 102 mm length, 25 mm width and 2 mm thickness. Nine samples are used, three for each strain rate. Samples number 1, 2 and 3 are stretched with strain rate equal to 4.3 × 10⁻⁴ (low strain rate), samples 4, 5 and 6 with strain rate equal to 4.3 × 10⁻³ (medium strain rate) and samples 7, 8, 9 with strain rate equal to 4.3 × 10⁻² (high strain rate).

Fig. 3.

Sum of reactions vs. time for low strain rate (a), medium strain rate (b), high strain rate (c), zoomed-in view of the selected area for medium strain rate (d)

Strain rate bands appearing during loading are characteristic for particular PLC types. For different PLC types different band movement is observed. The A type bands travel/propagate, type B bands jump/hop and C type bands nucleate randomly. Based on DIC observations PLC types are assigned to every set of experiments, see Tab. 4. For the low strain rate (experiments 1,2,3) the bands were nucleating which indicated type C, for the medium strain rate the bands were first traveling/propagating continuously which indicated the first type A and then they were hopping which indicated type B. For the high strain rate the bands were propagating, which again indicated type A. In Fig. 3 for the medium strain rate the point where the type changed from A to B is visible around time 18 s, see Fig. 3 d. The process has a transient character when serration change shape and size.

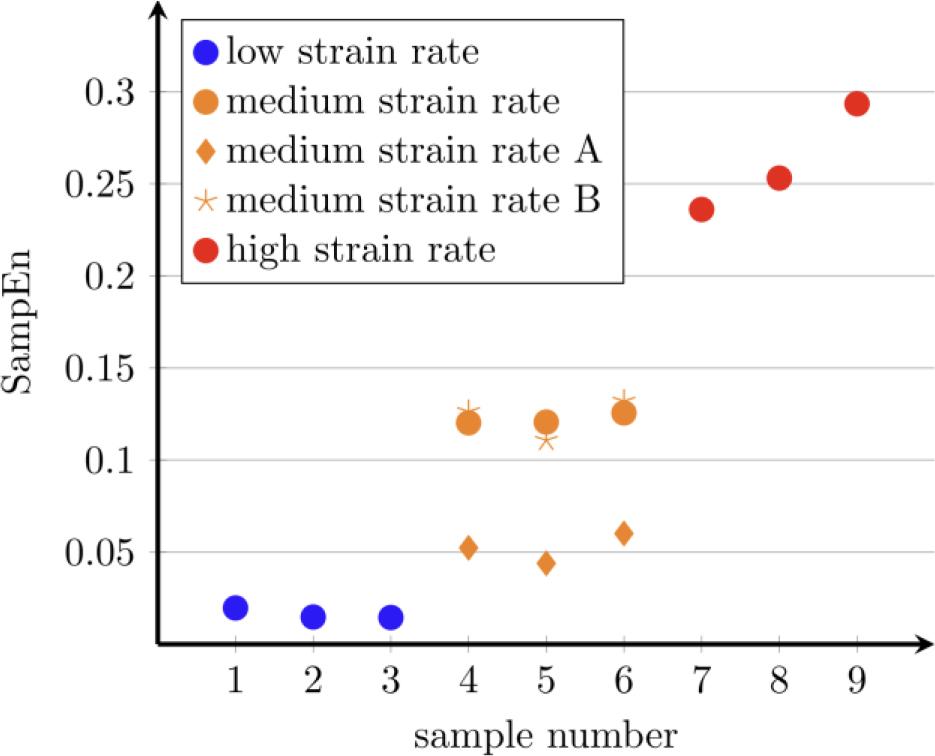

The results for Sample Entropy are summarized in two tables. In Tab. 5 the results for SampEn measure for the range marked by black lines in Fig. 3 are displayed. The samples number 1 to 3 are for the low strain rate, the samples number 4 to 6 are for the medium strain rate, and 7 to 9 for the high strain rate. In Tab. 6 the results for the medium strain rate for two sets of data ranging from 3 s to 13 s (SampEnA) and from 32 s to 42 s (SampEnB) are shown. The distinction is made to check if the values of Sample Entropy differ and are consistent with DIC observation (first type A and then B). The results are summarized in Fig. 4.

Fig. 4.

Sample Entropy for PLC effect and equal time steps (0.001s). Summary for Tabs. 5 and 6

The PLC classification is known from the DIC data (see Tab. 4). For the low strain rate (samples 1,2,3) we observe type C, for which entropy is the lowest. The low entropy value indicates that serrations are more organized than for the other samples. In the case of high strain rate (samples 7,8,9) SampEn has the highest value, serrations are more chaotic than for the other samples. For the medium strain rate (samples 5,6,7) the movement of bands changes during the process. First type A bands are visible, then type B. The values of SampEnB are similar to the values of SampEn calculated for the range 3 s to 42 s, but the values of SampEnA are closer to the values for samples 1,2,3 (where type C can be spotted) than to the values for type A. The experiments where only B type is visible are needed to verify results. The results are summarized in Fig. 4.

These results are consistent with [16], where type A bands have the highest SampEn, type C the lowest, and type B values are in between. In [17], type A bands have the lowest SampEn, type B the highest, and type C values are intermediate.

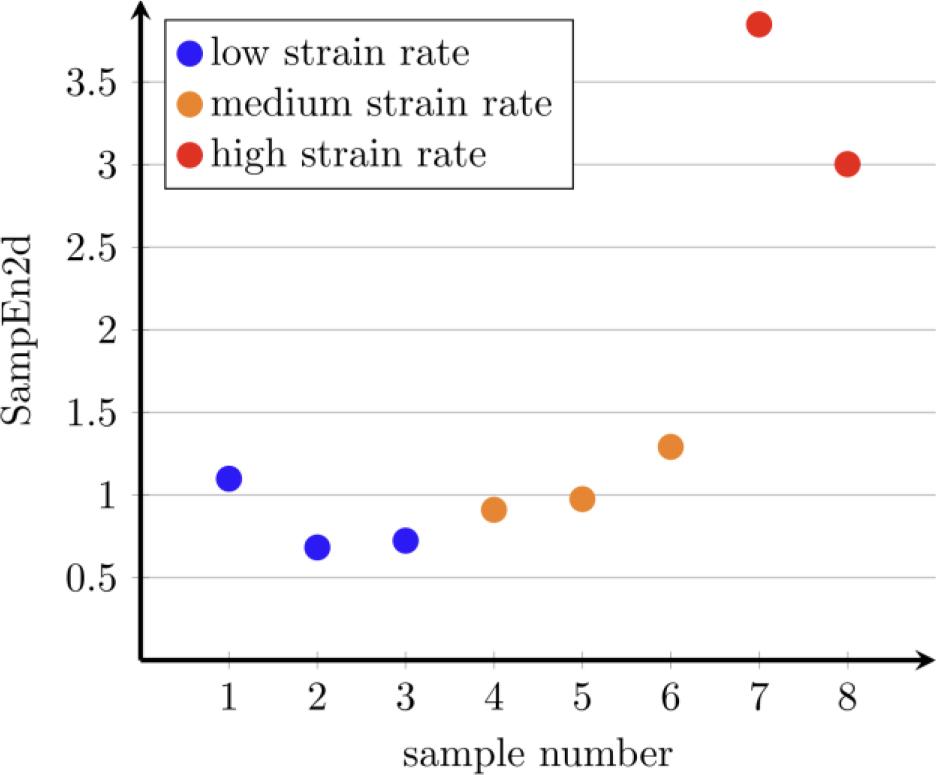

The values of Sample Entropy 2d are summarized in Tab. 7 and Fig. 5. The results for low and medium strain rates are on the same level, between 0.5 and 1.5, and for the high strain rate around 3.0-3.5. It indicates a similar tendency as for Sample Entropy. There is not enough data to calculate SampEn2d for two intervals as for SampEn.

Fig. 5.

Sample Entropy 2d for PLC effect

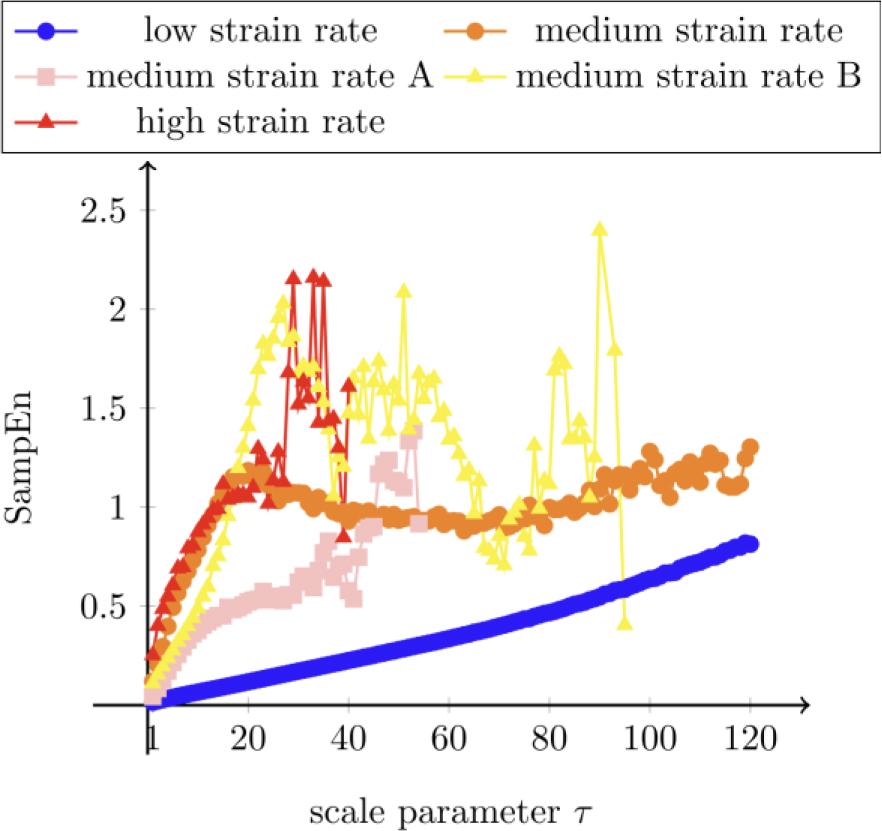

Multiscale Sample Entropy reflects the complexity of a signal at higher time scales. In Fig. 6 the results for MSE and different strain rates are drawn. In the case of low strain rate SampEn rises linearly in a steady manner when the scale parameter grows. The complexity of the signal is higher for higher time scales. For the medium strain rate SampEn first rises linearly and the diagram is steeper than the low strain rate line. When parameter τ is close to 20 the diagram starts to drop slightly and then slowly rises again when the scaling parameter is close to 60. The signal complexity changes, for smaller scales it is more complex and then it is almost stable. For the high strain rate SampEn rises with almost the same tangent as for the medium strain rate but the diagram is strongly non-linear. After τ reaches 20 the SampEn values start to jump, it can be caused by too little data since when τ grows the number of data decreases. This is also the reason why not all values are available for a high scaling parameter. Additional computations are carried out for partial data for the medium strain rate, namely from 3 s to 13 s (called A) and from 32 s to 42 s (called B). This shows different serration types, see Tab. 4. In case A the Sample Entropy values rise similarly to case B and full data. Around τ equal to 10 the inclination of the diagram starts to decrease and around 30 the values of SampEn start to jump. In case B the SampEn values rise with a similar tangent as for full data, then around τ equal to 25 the diagram starts to drop and around 40 the values start to jump. All strain rates show similar trends, the complexity of the time series rises at the beginning.

Fig. 6.

Sample Entropy for different scale parameters

In the case of [16] MSE for C type bands behaves in a similar way to low strain rate (also identified as C type bands) when the complexity slightly rises (note that the authors of [16] calculated MSE for a scale factor below 21). In [16] for B type bands MSE first rises then drops and for A type bands MSE first drops then rises with some fluctuations. The B type behavior is similar to medium strain rate from this article without fluctuations. Different behavior for A type bands (in this article line is rising) can be caused by different frequency with which the signal is saved.

In [17] MSE for A type bands behaves in a similar way as for the low strain rate (here C type bands) – the complexity of time series steadily rises, although much slower than for other PLC types. In [17] for B and C type bands MSE first rises then drops and saturates. In this article a similar behavior is observed for medium strain rate with a mix of A and B type bands and “medium strain rate B” without fluctuations. However, in [17] the drop is more significant comparing to the medium strain rate from this article.

Based on the MSE analysis we can clearly distinguish between type C (as suggested by DIC images) for the low strain rate and types A and B for the high and medium strain rates. It is more difficult to separate types A and B. The band C serrations are less chaotic then B and A for all scales. More tests with bands of those types are needed.
