Tab. 1.
Post-manufacture heat treatment and shot peening conditions
| Sample | Material | Heat treatment parameters | Shot Peening parameters | |||||
|---|---|---|---|---|---|---|---|---|
| Solution treatment | Ageing | |||||||
| Temperature [°C] | Time [min] | Temperature [°C] | Time [min] | Working pressure [MPa] | Time [min] | Medium | ||
| RP | Conventional | - | - | - | - | - | - | - |
| RD | DMLS | - | - | - | - | - | - | - |
| STP | Conventional | 1040 | 40 | - | - | - | - | - |
| STD | DMLS | 1040 | 40 | - | - | - | - | - |
| PHP | Conventional | 1040 | 40 | 450 | 240 | - | - | - |
| PHD | DMLS | 1040 | 40 | 450 | 240 | - | - | - |
| PHPG | Conventional | 1040 | 40 | 450 | 240 | 0.4 | 2 | Glass |
| PHDG | DMLS | 1040 | 40 | 450 | 240 | 0.4 | 2 | Glass |
| PHPS | Conventional | 1040 | 40 | 450 | 240 | 0.4 | 2 | Steel |
| PHDS | DMLS | 1040 | 40 | 450 | 240 | 0.4 | 2 | Steel |
| PHPC | Conventional | 1040 | 40 | 450 | 240 | 0.4 | 2 | Ceramic |
| PHDC | DMLS | 1040 | 40 | 450 | 240 | 0.4 | 2 | Ceramic |
Tab. 2.
Chemical composition of reference 17-4PH after DMLS fabrication
| Element | C | Cr | Ni | Cu | Mn | Si | Mo | Nb | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| RD as-manufactrued | Wt. [%] | 0.04 | 15.95 | 4.72 | 4.6 | 0.69 | 0.71 | 0.12 | 0.26 | Bal. |
| GP1 powder (EOS declaration) | <0.07 | 15-17.5 | 3-5 | 3-5 | <1 | <1 | <0.5 | 0.15-0.45 | Bal. | |
| ASTM A564 | <0.07 | 15-17.5 | 3-5 | 3-5 | <1 | 1 | <0.5 | 0.15-0.45 | Bal. | |
| EN10088-1 | <0.07 | 15-17 | 3-5 | 3-5 | <1.5 | <0.7 | <0.6 | 5*C-0.45 | Bal. | |
Fig. 1.
a) RP topographic mode, b) RD c) PHPG, d) PHDG, e) PHPS, f) PHDS topographic mode - SEM micrographs
Fig. 2.
g) PHPC, h) PHPC - SEM micrographs

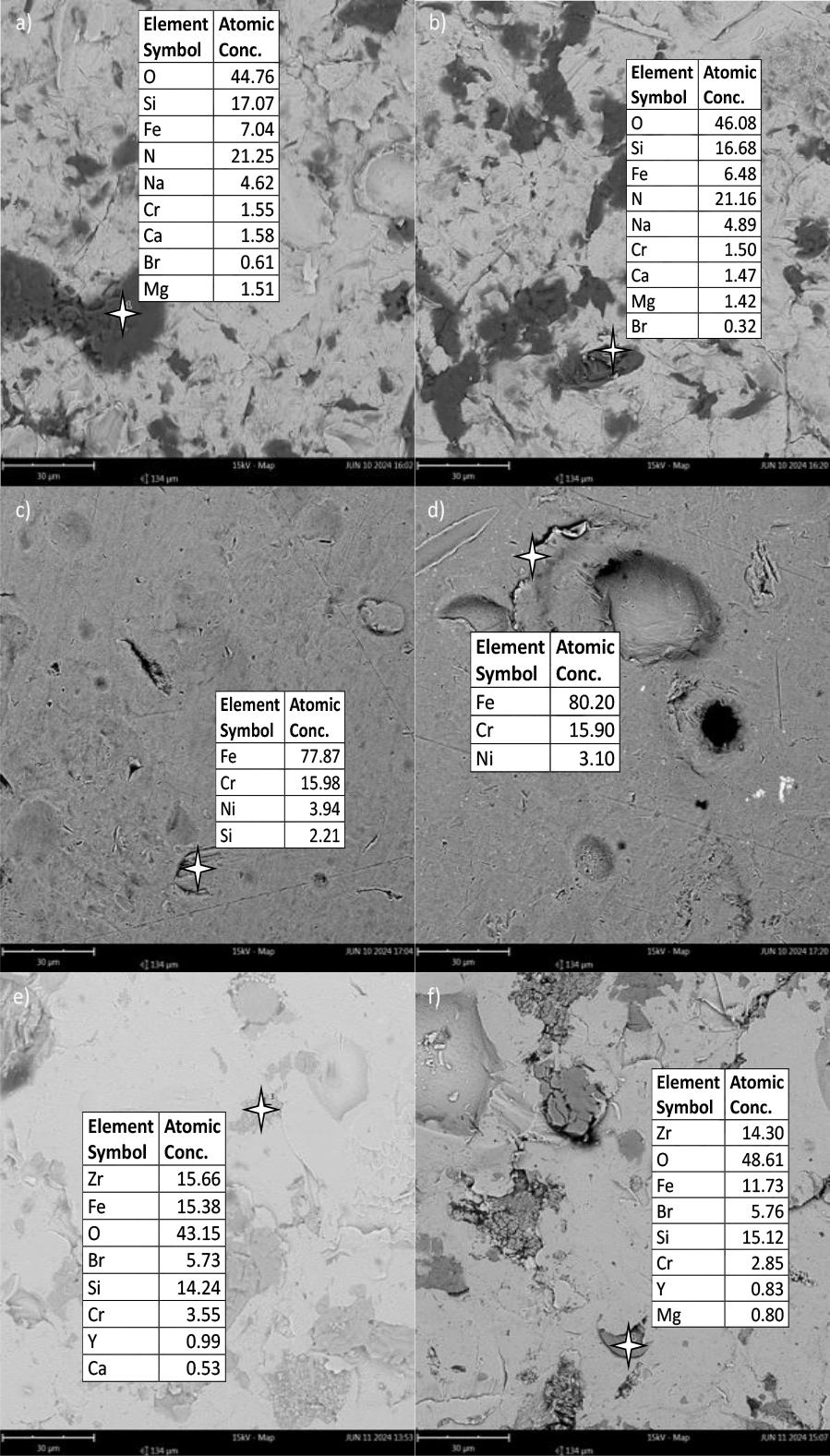

Fig. 3.
SEM-EDS spot analysis after SP process a) PHPG, b) PHDG c) PHPS, d) PHDS, e) PHPC, f) PHDC

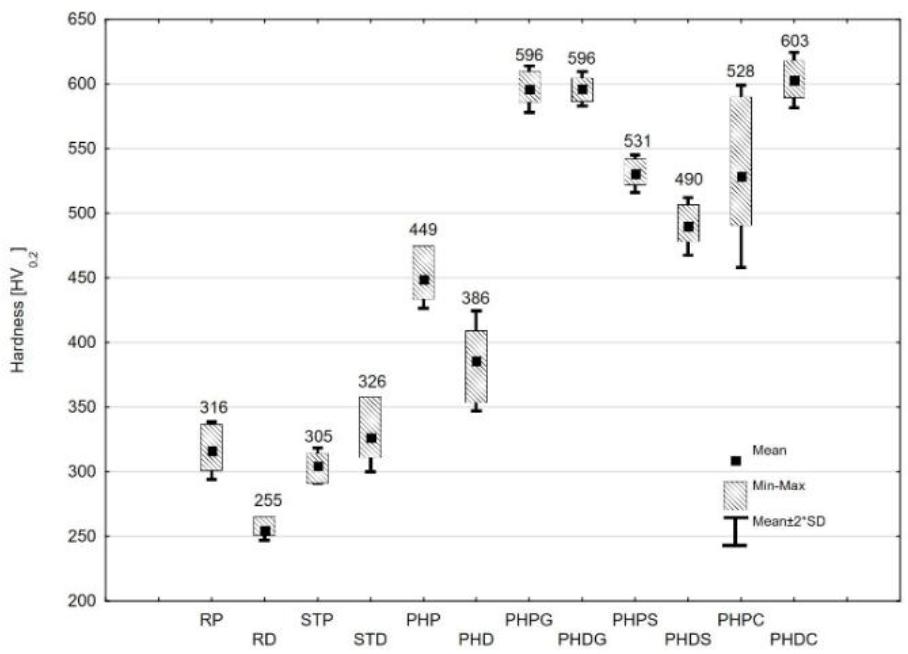

Fig. 4.
Vickers hardness (HV0.2) of specimen’s top surfaces

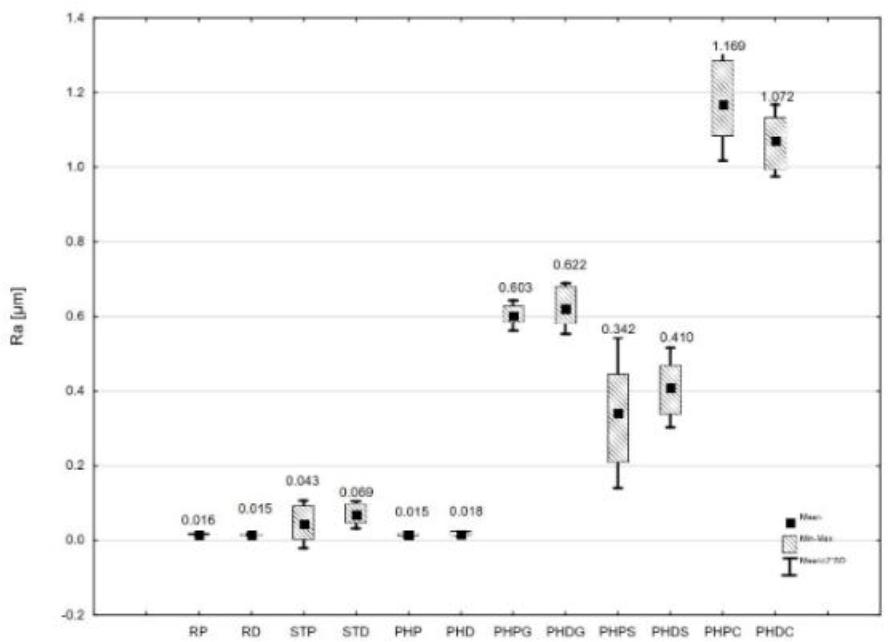

Fig. 5.
Comparison of Ra roughness parameters of 17-4PH steel

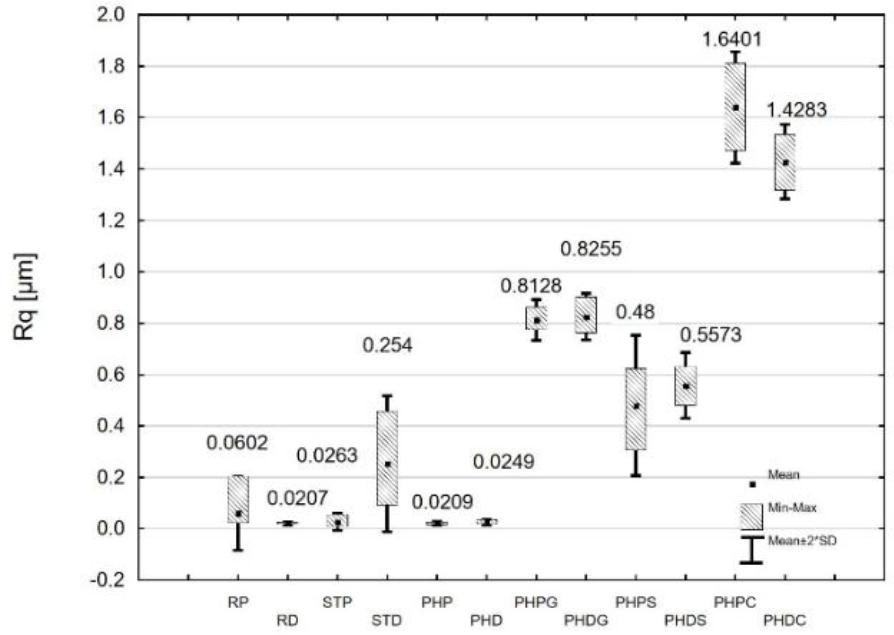

Fig. 6.
Comparison of Rq roughness parameters of 17-4PH steel

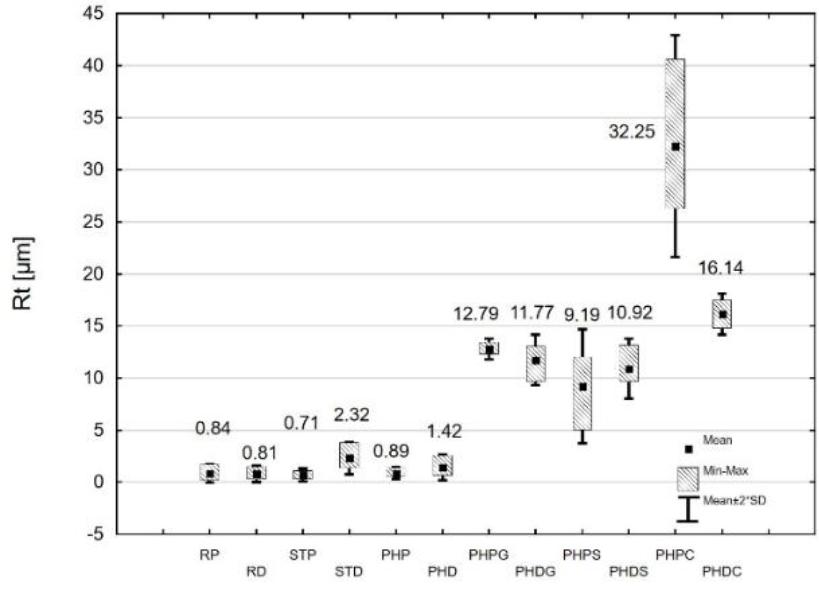

Fig. 7.
Comparison of Rt roughness parameters of 17-4PH steel

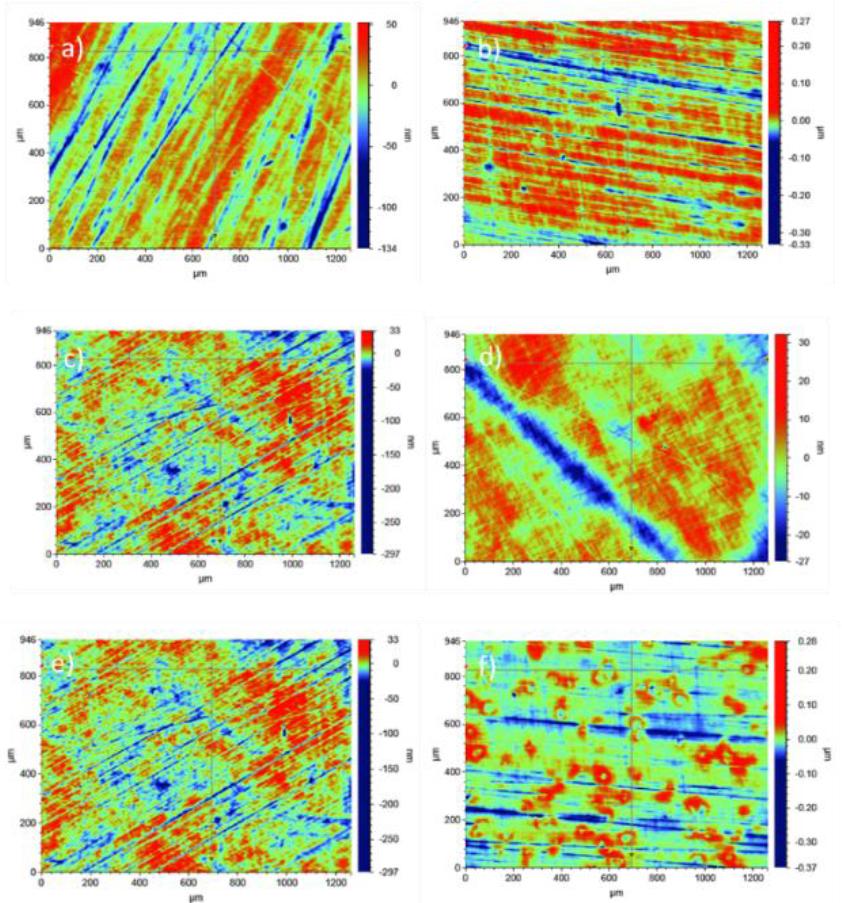

Fig. 8.
Characteristic of the surface- 2D map of the surface of the investigated materials and surface features: a) RP, b) RD, c) STP, d) STD, e) PHP, f) PHD, g) PHPG, h) PHDG, i) PHPS, j) PHDS, k) PHPC, l) PHDC

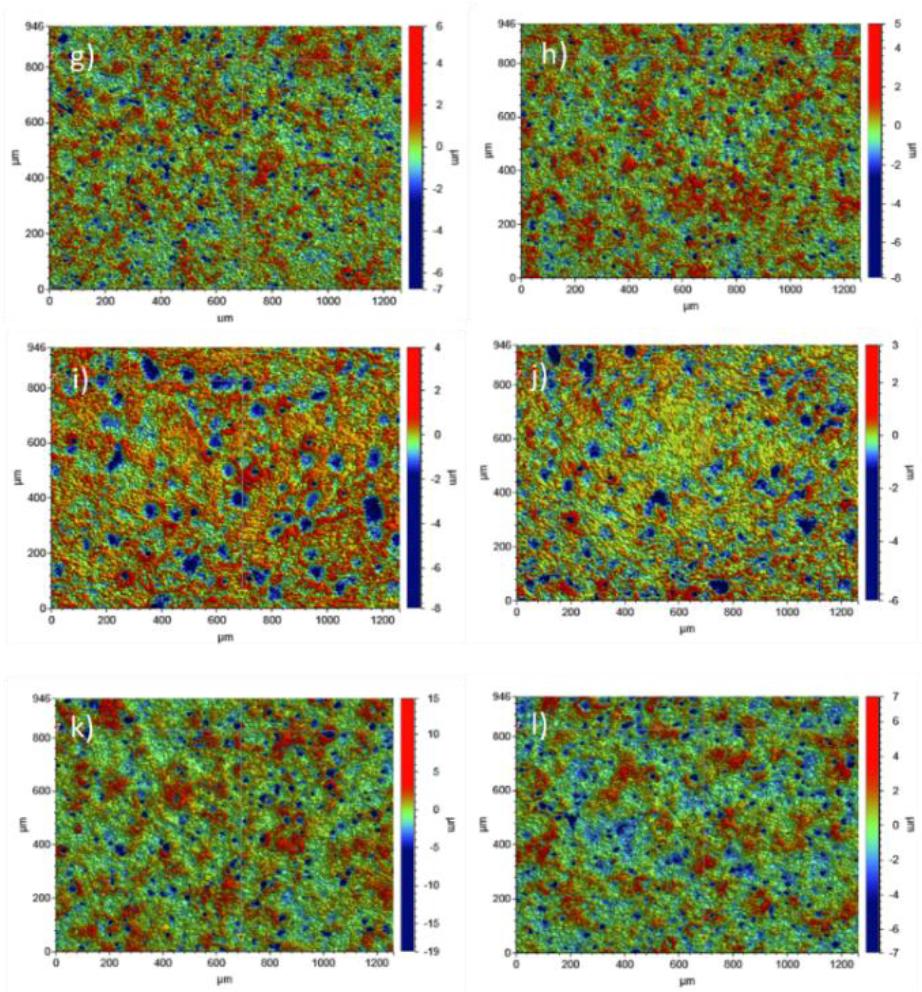

Fig. 9.
Characteristic of the surface- 2D map of the surface of the investi-gated materials and surface features: g) PHPG, h) PHDG, i) PHPS, j) PHDS, k) PHPC, l) PHDC

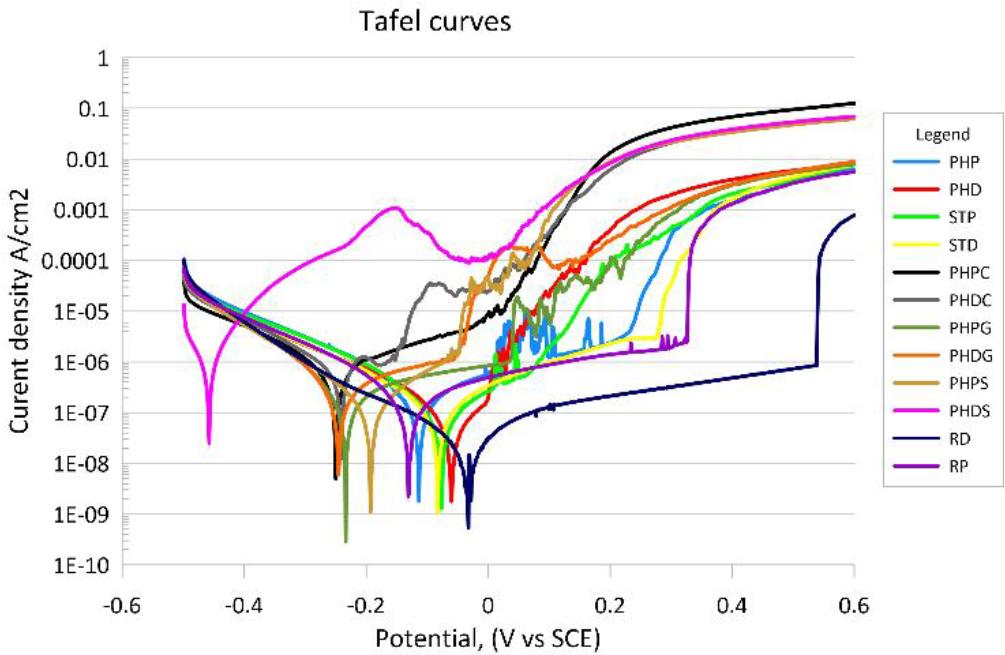

Fig. 10.
Potentiodynamic polarization curves in 3.5% NaCl solution – Tafel plot

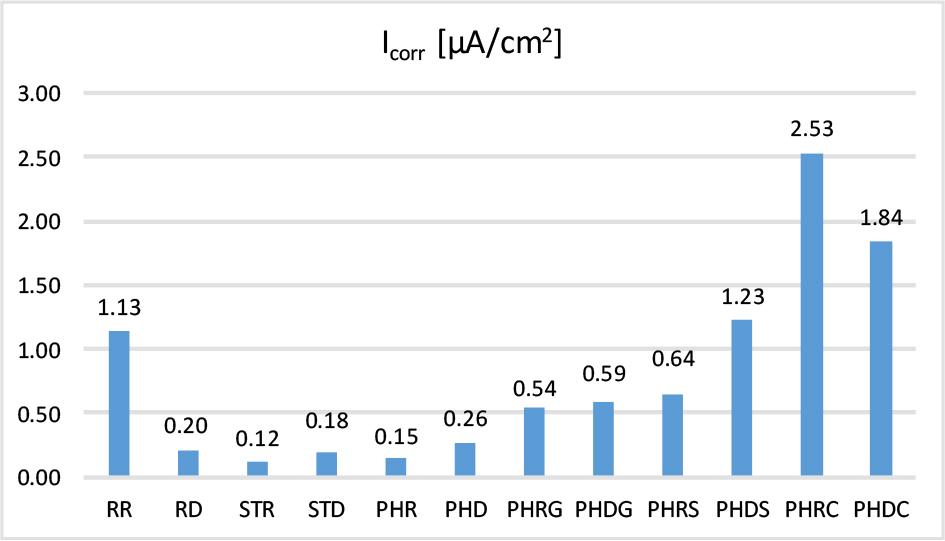

Fig. 11.
Corrosion resistance parameters Icorr - Corrosion current density

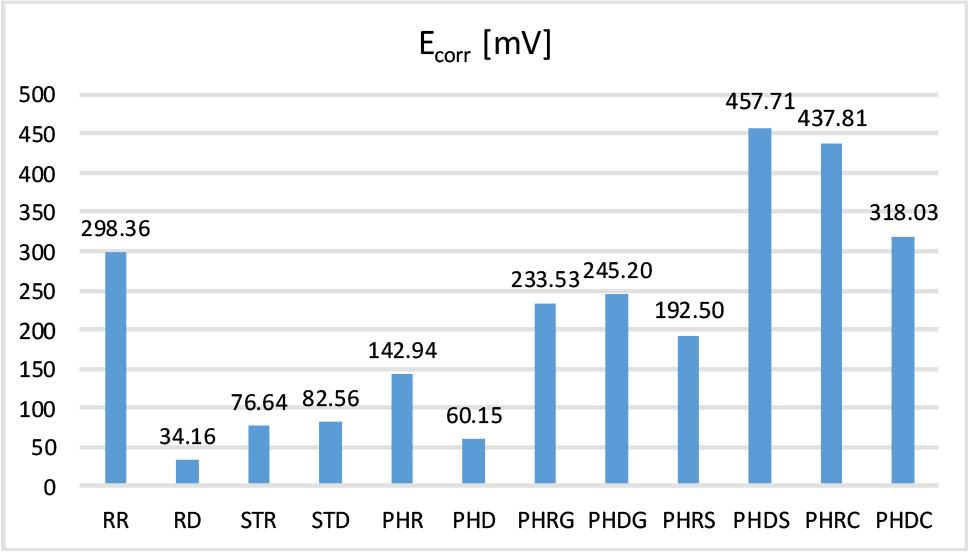

Fig. 12.
Corrosion resistance parameters Ecorr - Corrosion potential

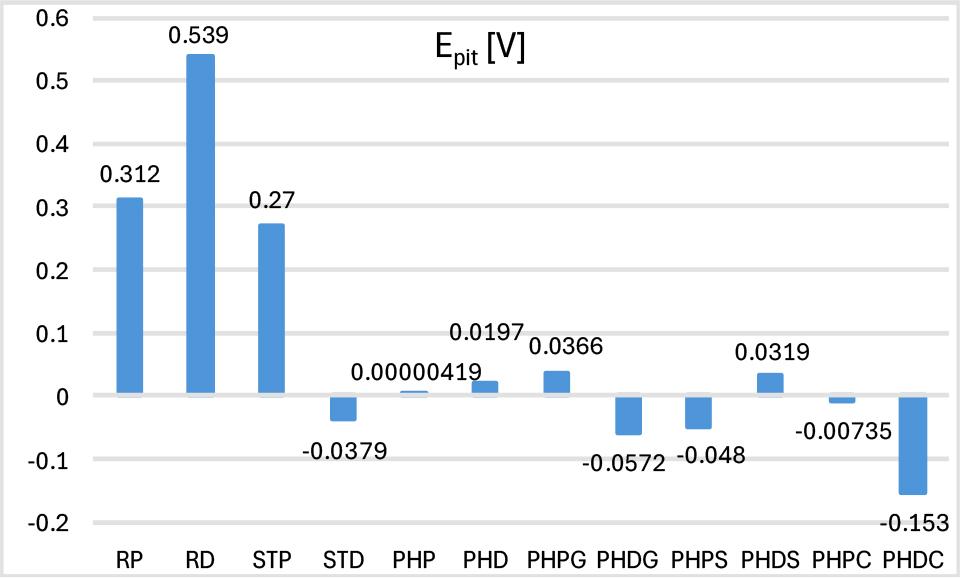

Fig. 13.
Corrosion resistance parameters Epit - Critical Pitting Potential

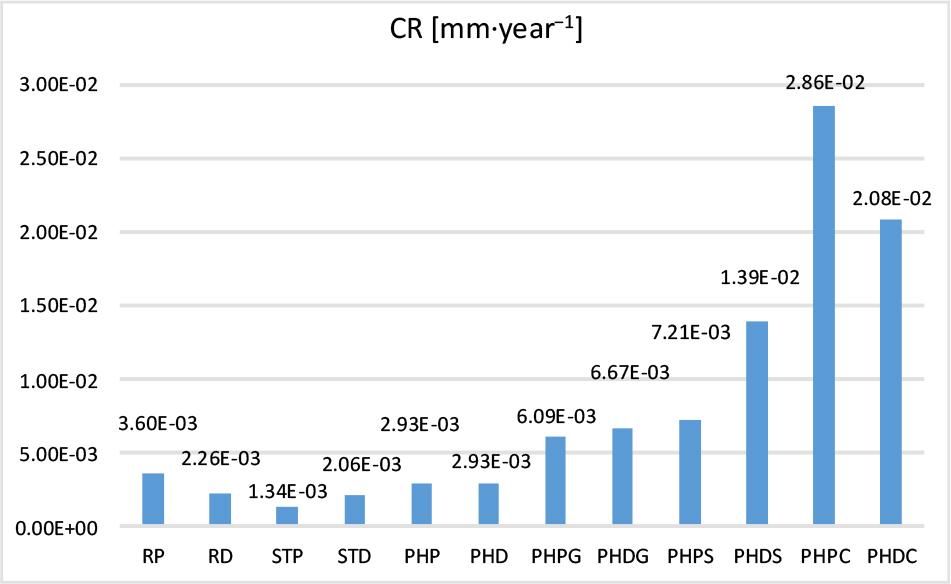

Fig. 14.
Corrosion resistance parameters-Corrosion rate
