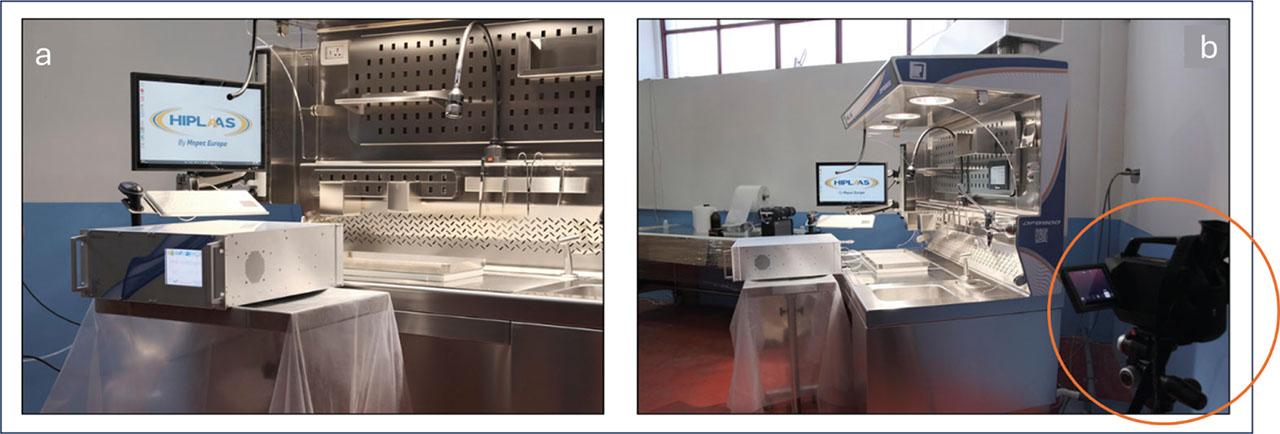

Figure 1
Test to assess formaldehyde gas containment on the worktop of the DFB900 grossing station: a) pre-calibrated laser infrared spectrometer; b) optical gas detection thermal camera
Table 1
Potassium iodide (KI-Discus) test results for the HIPLASS DFB900 grossing station
| Test | Apf | Results | Note |
|---|---|---|---|
| 1 | >105 | 1.19×105 | Passed |
| 2 | 1.15×105 | Passed | |
| 3 | 1.15×105 | Passed | |
| 4 | 1.15×105 | Passed | |
| 5 | 1.17×105 | Passed |

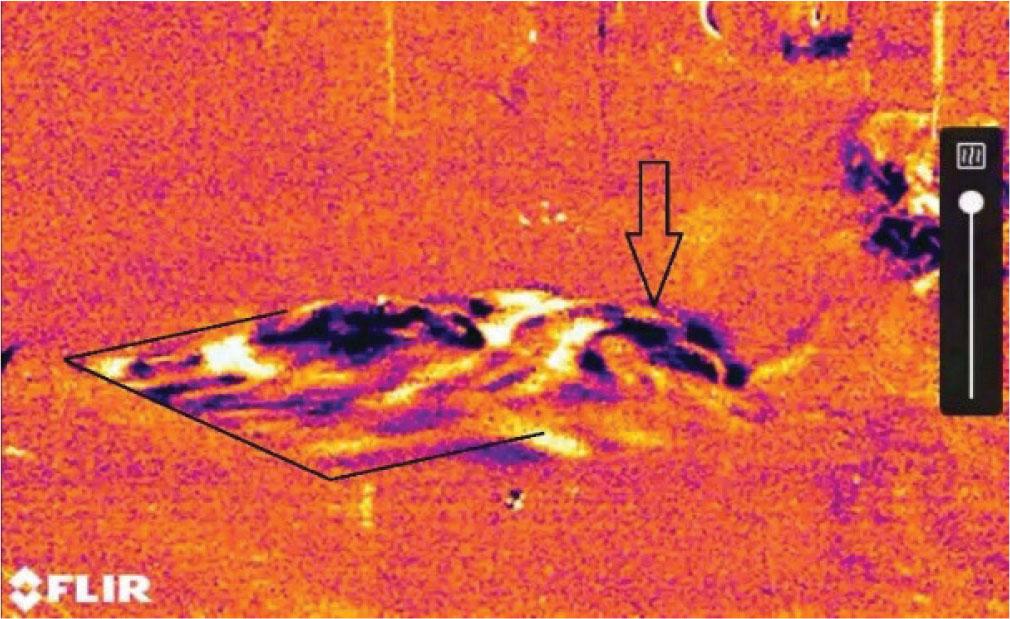

Figure 2
Movement of formalin vapour (black arrows) by the grossing station ventilation system recorded with the optical gas imaging camera
