Application of Sludge-Based Adsorbent for Acid Red 18 Adsorption

Dye Acid Red 18 (C.I. 16255), further referred to as AR18, was used in the study [49]. It is a dye belonging to the single-azo group. Thus, it contains in its chemical structure one N = N azo bond (Fig. 1). The Molecular formula of this dye is C₂₀H₁₁N₂Na₃O₁₀S₃, and its weight is 604.48 g/mol. This dye is well soluble in water. In an aqueous solution, it gives an intense red color. It is mainly used for the production and dyeing of wool, silk, and polyamide fiber, as well as in the industry for dyeing leather, paper, plastic, and wood, in the medical, cosmetic, and food industries.

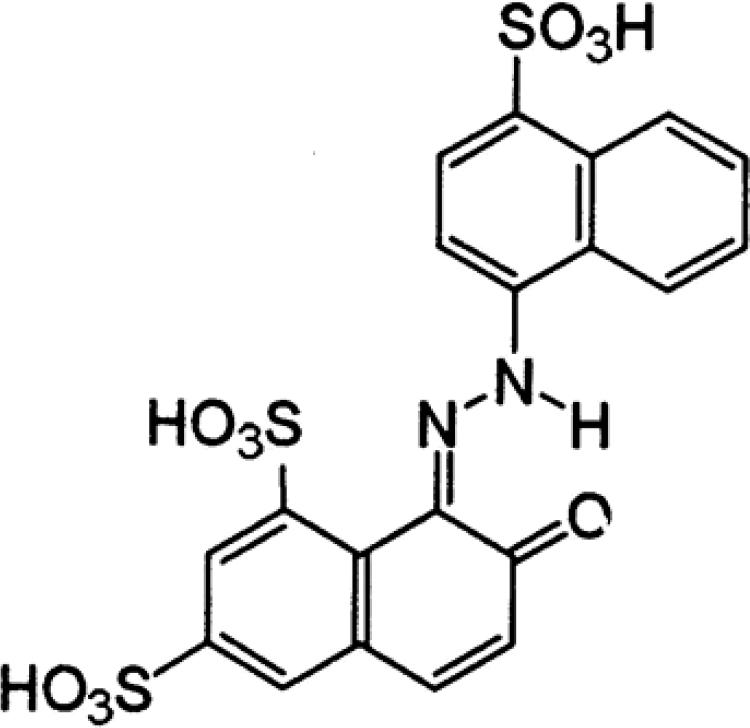

Figure 1.

Chemical structure of Acid Red 18 [49]

Excessive activated sludge from a sewage treatment plant located in southern Poland was used in the experiments. It is a treatment plant with a treatment system adapted to the removal of C, N, and P compounds by the method of aerobic activated sludge.

The excess activated sludge was collected from the secondary settling tank, then dried at 105°C, ground to a grain size < 0.49 mm, and then treated in a water bath with 700 W microwave power and a rated microwave frequency of 2450 MHz for 60 seconds for thermal activation the surface of the sludge grains. The sludge prepared in this way as a sludge-based adsorbent was used in the studies of the batch adsorption process.

The adsorption experiments were carried out in three stages: 1) selection of the most favorable pH value for adsorption; 2) determination of the influence of contact time and determination of the adsorption kinetics; 3) determination of the adsorption isotherm and calculation of the parameters of selected models of adsorption isotherms.

To determine the most favorable pH value, the process was conducted with the use of five different pH values: 2, 4, 6, 8, and 10 while the constant values of other process conditions were used. Into the conical flask, 50 mL of the Acid Red 18 dye solution with an initial concentration of 100 mg/L was introduced, and the appropriate pH value was adjusted (by using 10% H₂SO₄ or 5% NaOH). Next 0.1 g of the sludge/sorbent was added, and the whole was mixed on a laboratory shaker for 60 minutes. After that contact time, the adsorbent and the solution were separated, and then the final dye concentration was measured by a colorimetric method based on a standard curve at a wavelength of λ = 506 nm.

In the second stage of the studies, aimed at determining the most favorable contact time of the adsorbent and the dye, increasing contact times from 5 minutes to 180 minutes were used. During this phase of experiments, the initial concentration of the AR 18 dye was 100 mg/L and 700 mg/L, the amount of adsorbent was 0.1 g per 50 mL of the solution, and the pH of the solution was determined based on the results of the first stage of the research.

Based on the results of the influence of the contact time on the effectiveness of the adsorption process, two types of adsorption kinetics were analyzed: the pseudo-first-order (eq. 1) [50, 51] and pseudo-second-order (eq. 2) [52]. To determine the parameters of each kinetics model, non-linear estimation was used – by minimizing the RMSE error (eq. 3). The Microsoft Office 365 Solver add-in was used in these calculations.

Equation of pseudo-first-order kinetics: 1qt=qe(1−exp(−k1·t))[ mgg ]

Equation of pseudo-second-order kinetics: 2qt=qe2·k2·t1+qe·k2·t[ mgg ]

The equation for RMSE calculation: 3RMSE=1n−2·∑ (qe,exp−qe,calc)2

Where:

q_t – the amount of the dye adsorbed in a given contact time [mg/g]

q_e – the amount of the dye adsorbed at equilibrium state [mg/g]

k₁ – constant rate of a pseudo-first-order model of kinetics [/min]

k₂ – constant rate of a pseudo-second-order model of kinetics [g/(mg·min)]

t – contact time [min]

q_e,exp – the amount of dye adsorbed obtained in the experiments [mg/g];

q_e,calc – the amount of dye adsorbed calculated from the isotherm model or the kinetics model [mg/g].

The last, and third phases of the studies included experiments to determine the adsorption isotherm.

For this purpose, for the adjusted pH value and the contact time resulting from the second stage, increasing initial concentrations of the AR 18 dye (in the range from 100 mg/L to 1200 mg/L) were used while maintaining a constant amount of adsorbent (0.1 g per 50 mL of the dye solution).

Based on the results obtained from the third phase of the experiments, the parameters of the selected two parameter (Langmuir [53], Freundlich [54], Jovanovic [55], Dubinin-Radushkevich [56]) and three-parameter (Sips [57] and Toth [58]) isotherm models were determined (eq. 5–12). The parameters of all examined isotherm models were determined by non-linear estimation, using the Microsoft Office 365 Solver add-in, based on the minimization of the RMSE error (eq. 3).

The amount of dye adsorbed per unit mass of adsorbent was calculated based on formula 4 (eq. 4). 4qe=(C0−Ce)m

Where:

q_e – the amount of dye adsorbed at equilibrium state [mg/g],

C_e – concentration of the dye at equilibrium state [mg/L],

C₀ – initial dye concentration [mg/L],

m – the amount of the adsorbent [g/L].

The two-parameter isotherm models equations:

• a)

  Freundlich model: 5qe=KF·Ce1/n

• b)

  Langmuir model: 6qe=qm·KL·Ce1+KL·Ce

• c)

  Dubinin-Radushkevich model: 7qe=Qs·exp(−KDR·ε2) 8ε=RT·ln(1+1Ce) 9E=12·KDR

• d)

  Jovanovic model: 10qe=qmax·[ 1−exp(−KJ·Ce) ]

The three-parameter isotherm models equations:

• a)

  Sips model: 11qe=qmS·KS·CeSP1+KS·CeSP

• b)

  Toth model: 12qe=qmT·KT·Ce(1+(KT·Ce)t)1/t

where:

q_e – the amount of dye adsorbed at equilibrium [mg/g],

C_e – the dye concentration at equilibrium [mg/L],

msl – the amount of the adsorbent [g/L],

K_L – Langmuir constant related to the free energy of adsorption [L/mg],

q_m – maximum adsorption capacity in Langmuir model [mg/g],

n – Freundlich equation exponents related with and adsorption intensity and heterogeneity [-],

K_F – Freundlich constant indicative of the relative adsorption capacity of the adsorbent

[mg^(1–1/n)L^(1/n)/g],

Q_s – theoretical monolayer saturation capacity in Dubinin-Radushkevich model [mg/g],

K_DR – Dubinin-Radushkevich model constant [mol²/kJ²],

E – mean adsorption energy [kJ/mol],

ε – Polanyi potential [-],

R – gas constant [8.314 J/mol·K],

T - temperature [K],

K_J – constant related to the energy of sorption in the Jovanovic model [L/g],

q_max –maximum adsorption capacity in the Jovanovic model [mg/g],

q_ms – monolayer sorption capacity in SIPS isotherm model [mg/g],

K_S – constant in SIPS model related to the free energy of adsorption [L/mg],

SP – SIPS model exponent [-],

q_mT – monolayer sorption capacity in Toth isotherm model [mg/g],

K_T – constant in the Toth model related to the free energy of adsorption [L/mg],

t – Toth model exponent [-].

The tests carried out in the first stage indicate that the initial pH value is extremely important for the effectiveness of the process. The tests showed that the most favorable pH value was 2.0. The use of only this reaction pH value contributed to the adsorption process and the value of the adsorbed amount of dye was 37.9 mg/g. In the case of the other higher pH values used in the tests, the adsorption process did not occur at all and the adsorbed amount of the dye was equaled 0 mg/g. Thus, no dye molecules were adsorbed on the adsorbent surface in such process conditions. The results of these tests may indicate that the surface charge of the tested adsorbent is strongly negative. On the other hand, the dye used in the tests in the hydrolysis process also acquires a negative charge. Therefore, it is necessary to use a strongly acidic condition of the adsorption process (very low pH value) and to introduce a significant excess of H⁺ ions into the reaction medium. In this case, this excess of H⁺ ions causes the phenomenon of protonation of the adsorbent surface and then the adsorbent surface acquires a positive charge, thanks to which it is possible to adsorb negatively charged AR 18 dye molecules on the surface.

Acid Red 18 dye adsorption studies conducted by dos Reis et al. [59] using biochar derived from birch trees wastes also showed that the adsorption efficiency decreased with increasing value of pH. A similar effect of the initial pH value of the solution on the adsorption efficiency was obtained in tests using activated carbons prepared from walnut and polar woods [60]. Also in this case, an increase in the pH value resulted in a decrease in the effectiveness of the amount of adsorbed Acid Red 18 dye on the surface of the adsorbents. Studies conducted by Pieczykolan and Płonka [61] using dried post-coagulation sludge as an adsorbent also showed that strongly acidic conditions were required for the effective adsorption of AR18 dye, and an increase in the pH value caused a drastic decrease in the efficiency of the process. The same effect of pH value was also obtained in a study of Pieczykolan and Płonka when dried and crushed excess activated sludge from a municipal wastewater treatment plant was used as an adsorbent to remove AR18 [62].

The tests to determine the effect of the contact time of the adsorbent with the dye solution were carried out at a pH of 2.0 (based on the results obtained in the first stage), the amount of adsorbent was 2 g/L and two different initial dye concentrations were used: 100 mg/L and 700 mg/L. The obtained results show that in the case of both initial concentrations, the process was the fastest during the first 20 minutes (the greatest increase in the value of the adsorbed amount of the dye q_t was observed). In the next 70 minutes, the adsorption process proceeded at a smaller speed. On the other hand, from the 90^th minute, the stabilization of the q_t value was observed, which meant that the adsorption equilibrium probably has been reached. Thus, further extending the contact time of the adsorbent with the dye did not result in increasing the value of the adsorbed amount of the dye (Fig. 2).

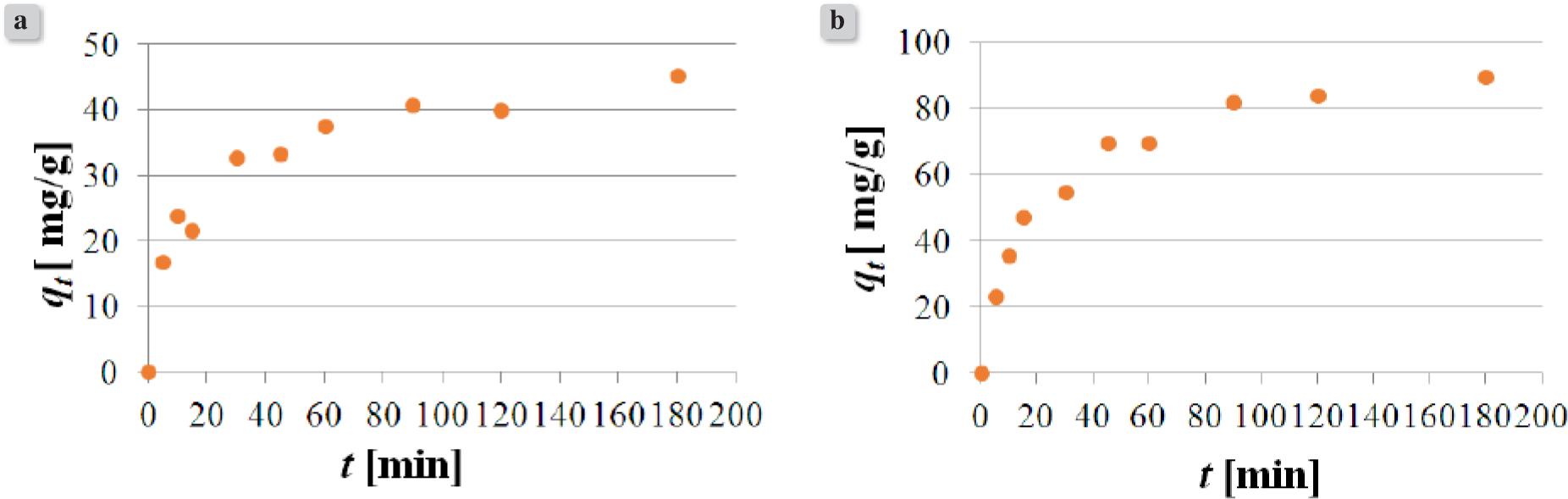

Figure 2.

The effect of contact time on adsorption efficiency: a) C₀ = 100 mg/L, b) C₀ = 700 mg/L

Based on the results of the influence of the contact time of the adsorbent and the dye on the adsorption efficiency, the parameters of pseudo-first-order and pseudo-second-order kinetics were determined using non-linear estimation.

The conducted calculations indicate that for both tested initial concentrations of the dye, a higher degree of fit of the pseudo-second-order kinetics model to the experimental results was obtained. This is evidenced by the calculated RMSE error as well as the R² value. In the case of pseudo-second-order kinetics, the R² value was in the range of 0.973–0.986. However, for pseudo-first-order kinetics, it was from 0.851–0.911. Also, the calculated q_e values based on the pseudo-second-order model were more similar to the values obtained as a result of the experiments – Table 1. Better matching of the pseudo-second-order kinetics model to the experiments’ results proves that in the case of the tested adsorbent-dye system, the process of chemical adsorption took place [63, 64].

Similar results of the analysis of the AR18 adsorption kinetics process were obtained in studies conducted by Shabandokht et al. when a polyaniline-modified rice husk composite was used [65].

At that time, the pseudo-second-order kinetics model also proved to be the best match to the studies’ results.

However, in the case of the use of activated carbons prepared from walnut and poplar woods as adsorbents for the adsorption of AR18 by Heibati et al. [60], a better fit of the pseudo-first-order kinetics model was obtained, which indicates that physical rather than chemical adsorption occurs.

The determination of the adsorption isotherm was carried out with the use of the following process parameters: initial pH of 2.0, contact time of 90 minutes, adsorbent concentration of 2 g/L, and variable initial concentration of dye in the range of 100–1200 mg/L. Based on the obtained results of these experiments, the dependence expressed by equation q_e = f(C_e) was plotted (graph of the adsorption isotherm). The shape of the adsorption isotherm indicates the presence of type I adsorption by the IUPAC classification (Fig. 3). This type of adsorption curve indicates adsorption occurring in the case of microporous adsorbents with a relatively small specific surface. This type of isotherm curve is also referred to as the Langmuir isotherm which characterizes single-layer adsorption.

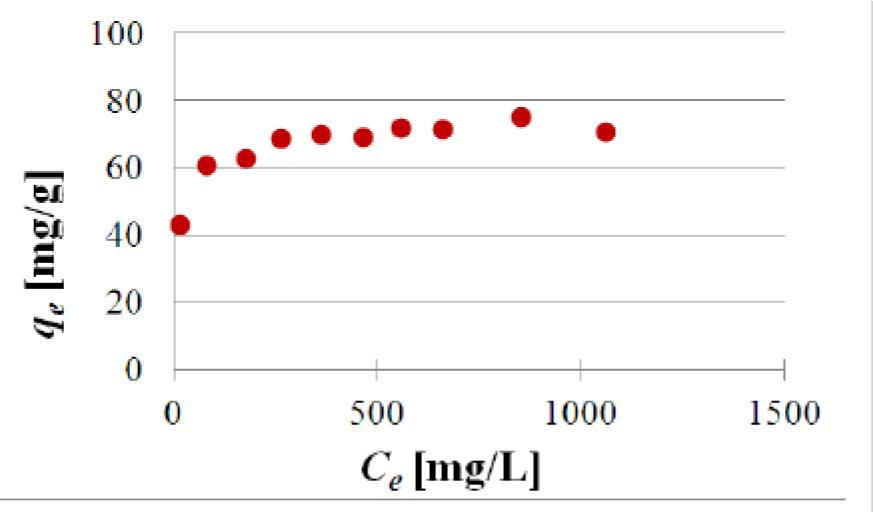

Figure 3.

Adsorption isotherm

The results of the estimation showed that in the case of two-parameter models, the greatest fit to the experimental results was obtained for the Langmuir isotherm – the determined value of the correlation coefficient R² was 0.928. The smallest degree of fit of the model to the study results was noted in the case of the Jovanovic model (R²= 0.796). However, in the case of three-parameter isotherm models, the best fit was obtained for the Sips and Toth isotherms – the value of R² was 0.967.

The calculated values of the q_m parameters of the isotherm models made it possible to determine the sorption capacity of the adsorbent for the dye AR18, the adsorption energy, and the degree of heterogeneity of the adsorbent surface.

The calculated values of the qm parameter based on the Langmuir model indicate that the sorption capacity of the monolayer is 71.6 mg/g. A similar value of the sorption capacity (in the range of 69.0–69.1 mg/g) was calculated based on the Dubinin-Radushkevich and Jovanovic isotherm models.

In the case of adsorption capacity calculated based on the SIPS model and Toth model, the value of this parameter was slightly higher – 78.1 mg/g and 79.0 mg/g for the Sips model and Toth models, respectively (Table 2).

The value of the adsorption energy calculated based on the KDR parameter of the Dubinin-Radushkevich isotherm model is 0.17 kJ/mol and indicates that physical adsorption took place in the process.

In this case, the main forces that bind the dye molecules to the adsorbent surface are the van der Waals forces.

In Langmuir, Jovanovic, Sips, and Toth isotherms models, the K_L, K_J, K_s, and K_t constants are related to the energy of the adsorption process [66–68] and the degree of affinity of adsorbate molecules to the adsorbent surface [69]. The greater the value of these parameters, the greater the adsorption energy and the stronger the degree of affinity. On the other hand, the higher the degree of affinity, the stronger the adsorbate molecules are bound to the adsorbent surface. In the case of the conducted experiments in the case of the Sips model and Toth model, relatively high values of K_S and K_t were obtained, which may indicate a fairly strong bond between the dye molecules and the adsorbent surface. This fact may also be indicated by a greater adjustment of the pseudo-second-order adsorption kinetics.

The values of the SP parameter (exponent in Sips isotherm model), t parameter (exponent in Toth isotherm model), and 1/n parameter (constant in Freundlich isotherm model) indicate the heterogeneity, i.e. the energetic differentiation of the adsorbent surface [70]. In general, the lower the value of these parameters, the greater the surface heterogeneity. However, if the values of SP and t reach the value of 1, then the adsorbent is characterized by a homogeneous surface. When analyzing the parameters SP and t obtained as a result of the estimation, it can be noticed that their values are close to 0.5.

Thus, the surface of the tested adsorbent is characterized by a heterogeneous surface. This is also evidenced by the Freundlich model constant 1/n, the value of which is much lower than 1 and was rather close to 0 (Tab. 2).

The adsorption capacity results obtained in the described studies are at a comparable level to the adsorption capacity values obtained in the studies conducted by Shabandokht et al. [65] where polyani-line-modified rice husk composite was used as an adsorbent. Then the q_m value ranged from 76.92 to 100.00 mg/g depending on the type of linear estimation. However, in the research conducted by Heibati et al. [60] using activated carbon derived from poplar and activated carbon derived from walnut woods, the adsorption capacity values were lower than in the experiments described in this article. In Heibati’s research, q_m values of 30.3 mg/g and 3.91 mg/g were obtained for activated carbon prepared from poplar and activated carbon prepared from walnut woods, respectively. In the case of Pieczykolan and Płonka’s studies [61] using dried and crushed post-coagulation sludge to remove AR18, the adsorption capacity value was 82.2 mg/g. In contrast, when dried excess activated sludge was used (Pieczykolan and Płonka [62]) the adsorption capacity was 109.9 mg/g.
