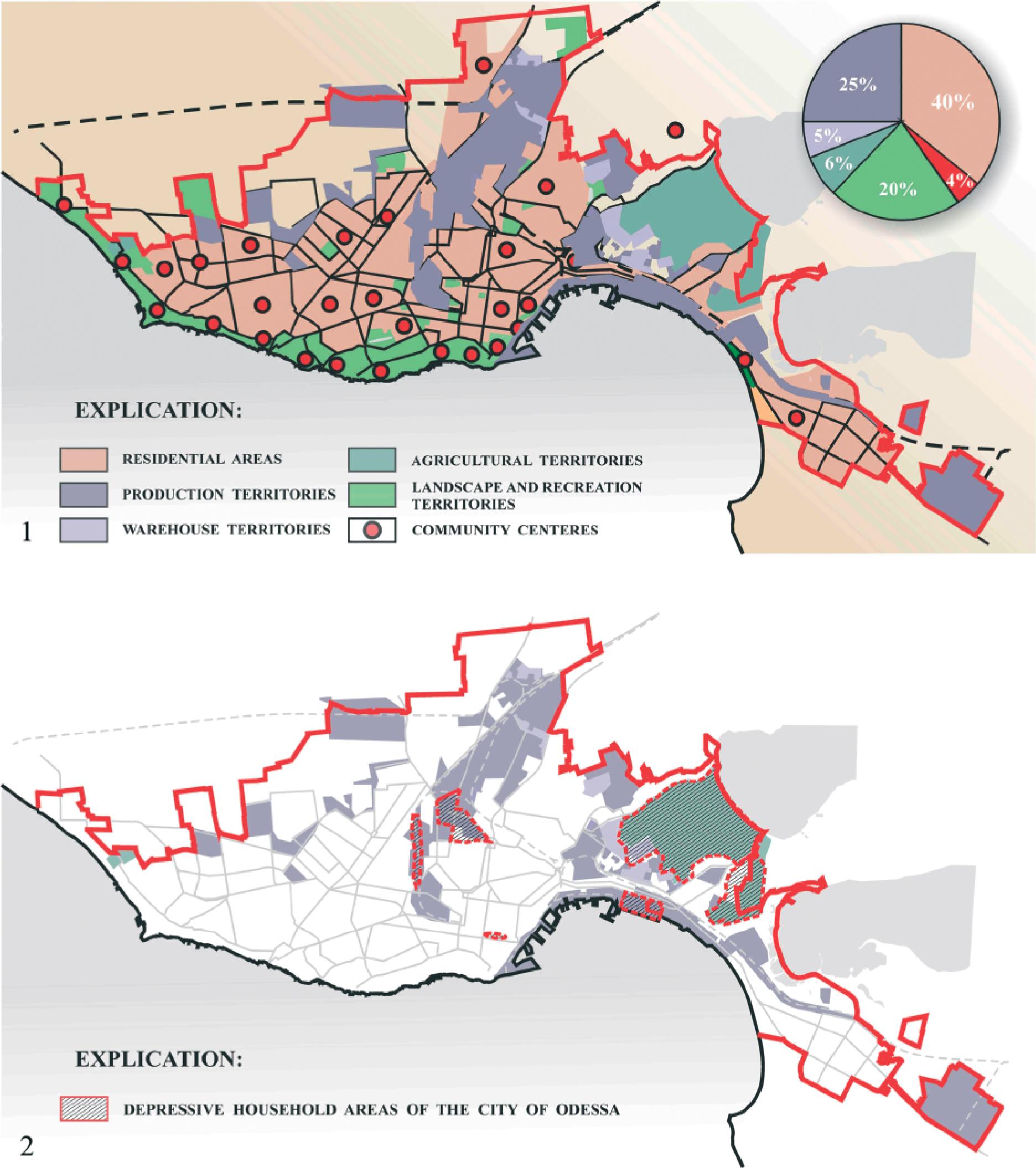

Figure 1.
The functional-planning organization of Odessa city: 1) the functional-planning scheme; 2) the arrangement of household areas. Developed by S. Storozhuk

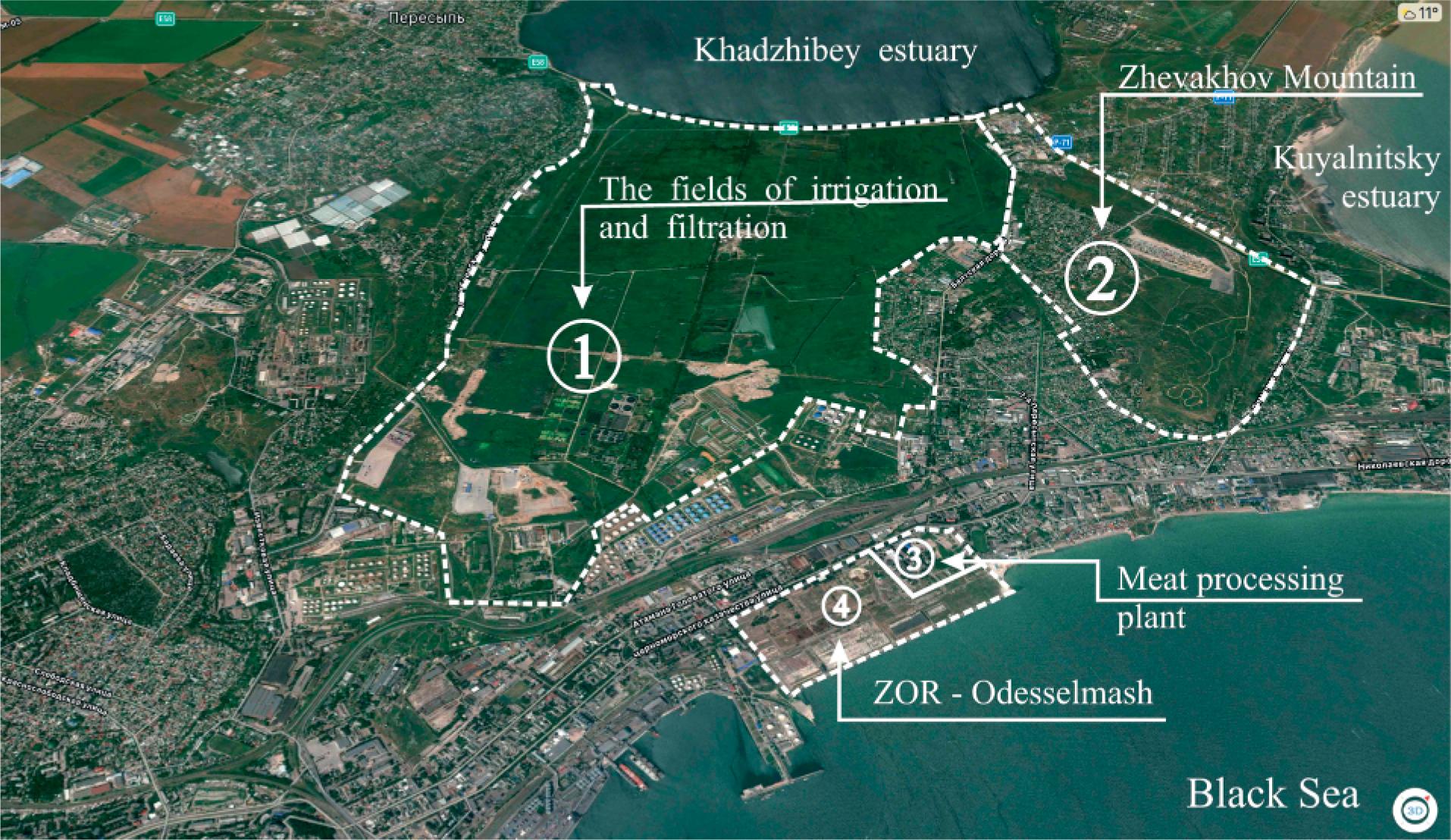

Figure 2.
The map’s fragment of Odessa city on the satellite image (2018): 1) The fields of irrigation and filtration; 2) Zhevakhov mountain; 3) Meat processing plant; 4) ZOR – Odesselmash. Developed by S. Storozhuk
Table 1.
Differentiated indicators of the need for coastal territories for town-planning development and nature protection [33]
| Functional zones and their elements | Estimated indicators for balanced development of coastal territories | |||
|---|---|---|---|---|
| based on an industrial and production, posts complex | based on a resort and recreational, tourist complex | |||
| ha per 1000 persons | % | ha per 1000 persons | % | |
| Town-planning territories: | ||||
| - settlement (incl. public) | 30.0 | 40.0 | 40.0 | 40.0 |
| - production (incl. communal) | 20.0 | 27.0 | 15.0 | 15.0 |
| - resort and recreational | 10.0 | 13.0 | 20.0 | 20.0 |
| - planted (general use) | 15.0 | 20.0 | 25.0 | 25.0 |
| Subtotal | 75.0 | 100.0 | 100.0 | 100.0 |
| Nature protection territories: | ||||
| - forests, forest-parks, sanitary protection areas | 140 | 70.0 | 150 | 75.0 |
| - out-of-city resting areas | 50 | 25.0 | 30 | 15.0 |
| - nature reserve objects | 10 | 5.0 | 20 | 10.0 |
| Subtotal | 200 | 100.0 | 200 | 100.0 |
| Total | 275 | 300 | ||

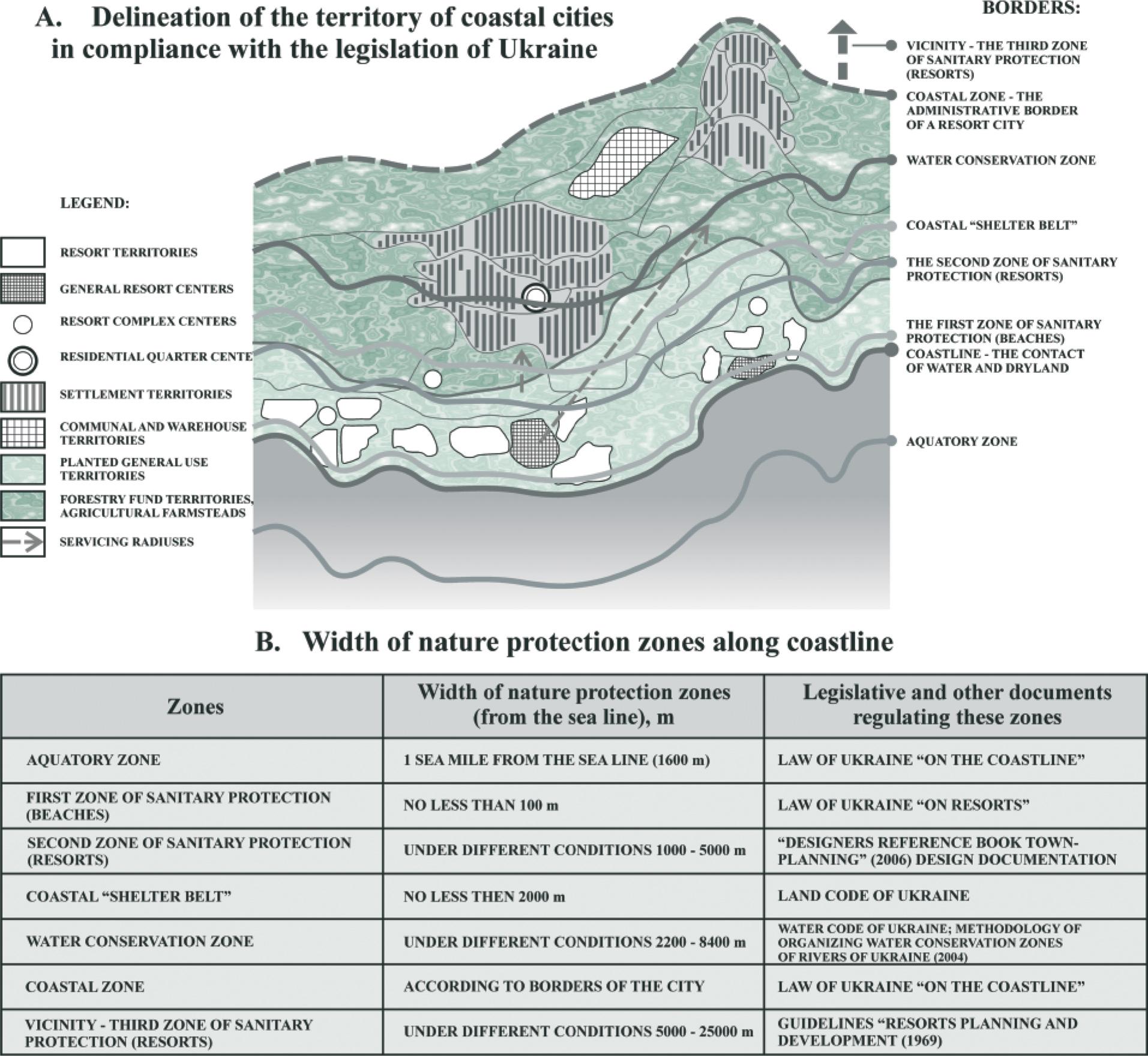

Figure 3.
Delineation of the territory of coastal cities in compliance with the legislation of Ukraine. Developed by T. Panchenko
Table 2.
Nomenclature of objects and functional zoning of the adjacent, beach and basin areas [33]
| Objects | Sectors | Space of the sector, % of the total area space |
|---|---|---|
| Adjacent area: | ||
| Green planting of general use (boulevards, public gardens, equipped embankments, etc.). Enterprises of seasonal mobile retail trade servicing a limited assortment (soft drinks, fruit, ice cream, etc.). Boatels, boat camps, climate treatment pavilions. Sports and children’s playgrounds. Buildings:
| Administrative and economic | 3-5 |
| Rescue and medical | 1-2 | |
| Servicing | 20-25 | |
| Sports 7-15 | ||
| Rest | 50-70 | |
| Beach area: | ||
| Equipment for sun-protection and sunbathing procedures (sunshades, deck chairs, light dismountable constructions for tents, etc.). Waters attractions, swimming pools. Moorages for water transport means (hydro-cycles and water skies, rowing boats). | Solarium, aeraria | 40-60 |
| Servicing | 8-10 | |
| Children | 5-7 | |
| Sports | 8-10 | |
| Rest | 20-25 | |
| Basin area: | ||
Constructions:
| Bathing | 75-90 |
| Children | 3-5 | |
| Sports | 5-10 | |
| Fishing | 3-5 | |
Table 3.
The capacity of seaside rest zones on the sea coast of Odessa city
| City | F, m2 | L, m | N1, (5-8 m2) | N2, (0.2-0.25 m) | k, (0.5-1.0) | W1 | W2 |
|---|---|---|---|---|---|---|---|
| Odessa | 426500 | 20000 | 8 | 0,25 | 1,0 | 53 312,5 | 80 000 |
Table 4.
The indexes of touristic high season in Odessa
| Year | The number of tourists, (season) | The number of tourists, (day: May–September) | |
|---|---|---|---|
| 1 | 2014 | 1 000 000 | 5 229 |
| 2 | 2015 | 1 700 000 | 8 889 |
| 3 | 2016 | 2 100 000 | 10 980 |
| 4 | 2017 | 2 500 000 | 13 071 |
| 5 | 2018 | 3 200 000 | 16 732 |
| 6 | 2019 | 3 300 000 | 17 255 |
| 7 | 2020 | 5 000 000 | 26 144 |

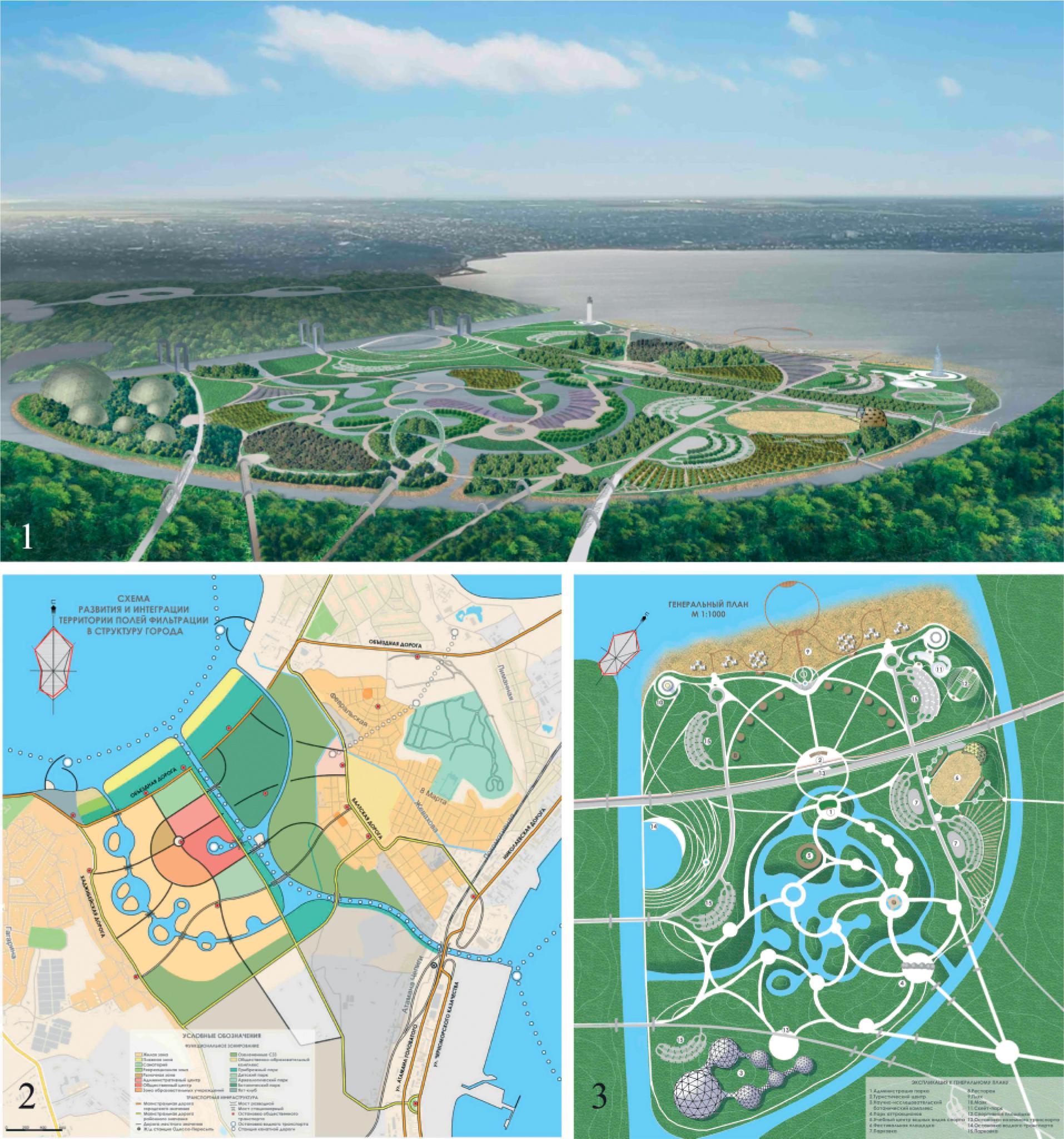

Figure 4.
The variant of the organization of the landscape-recreational formations on the territory of irrigation and filtration fields. Developed by М. Vedernikova, diploma leaders О. Savytska, S. Storozhuk: 1) The general view of the object’s territory; 2) The scheme of development and integration of the territory of Filtration Fields in the city’s structure; 3) The general plan of the territory

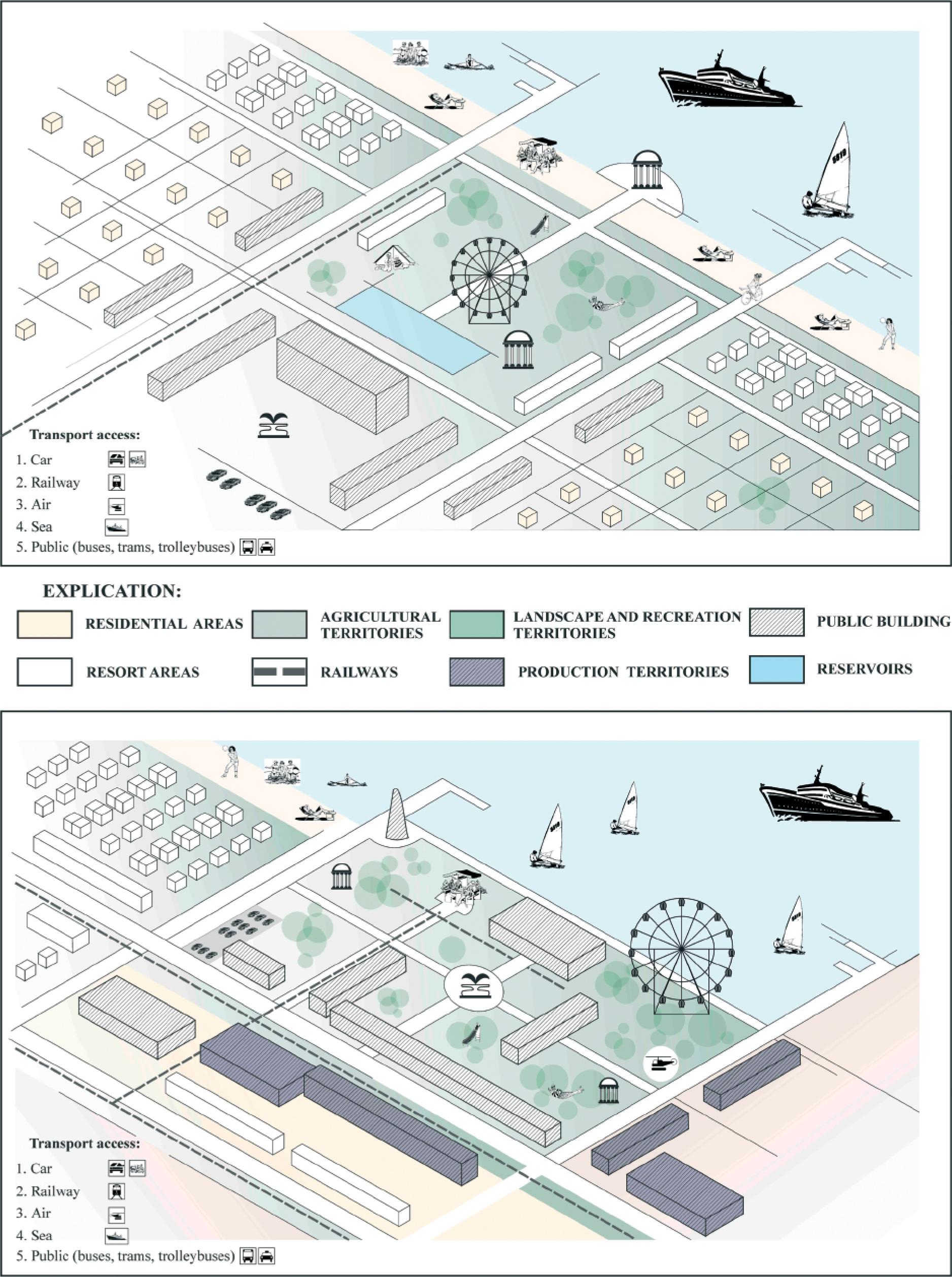

Figure 5.
Volumetric-spacious model of the organization of the landscape-recreational formations on the seaside agricultural and port areas. Developed by S. Storozhuk

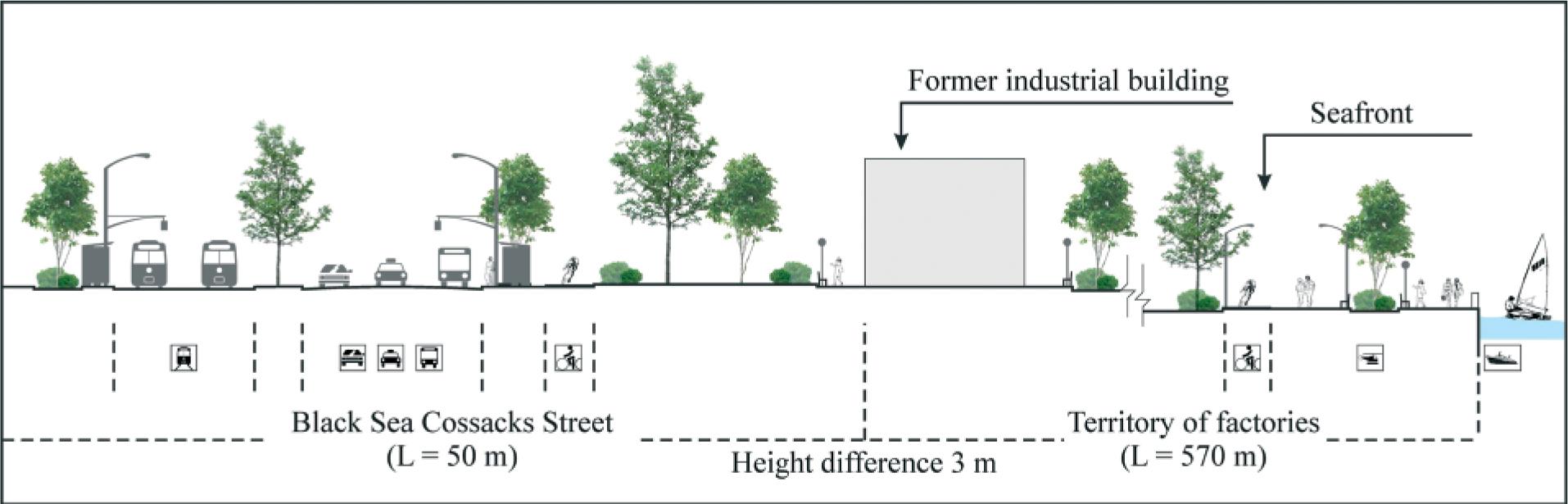

Figure 6.
An example of the formation of a transport network and pedestrian boulevards on the territory of “Meat processing plant” and “ZOR – Odesselmash”. Developed by S. Storozhuk

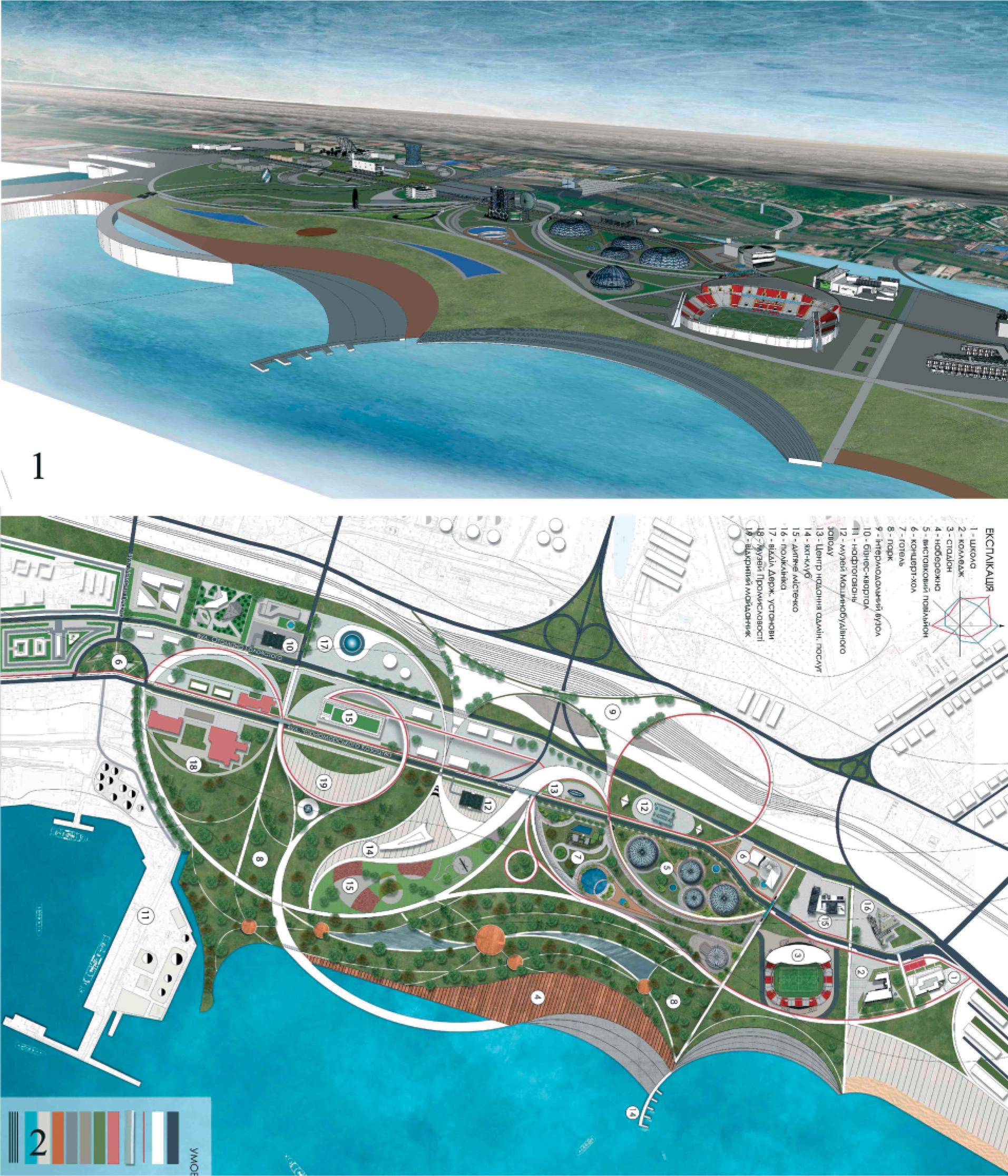

Figure 7.
Renovation of the territories of the ZOR-Odessilmash and Meat processing plant. Developed by D. Spirova, diploma leaders О. Savytska, S. Storozhuk, I. Drozhenets: 1) The general appearance of the object’s area; 2) The general plan of the area
