By:
Weixia Yang,  He Li,  Yuan Chen and  Fei Xu
Open Access
|Oct 2019

Figures & Tables

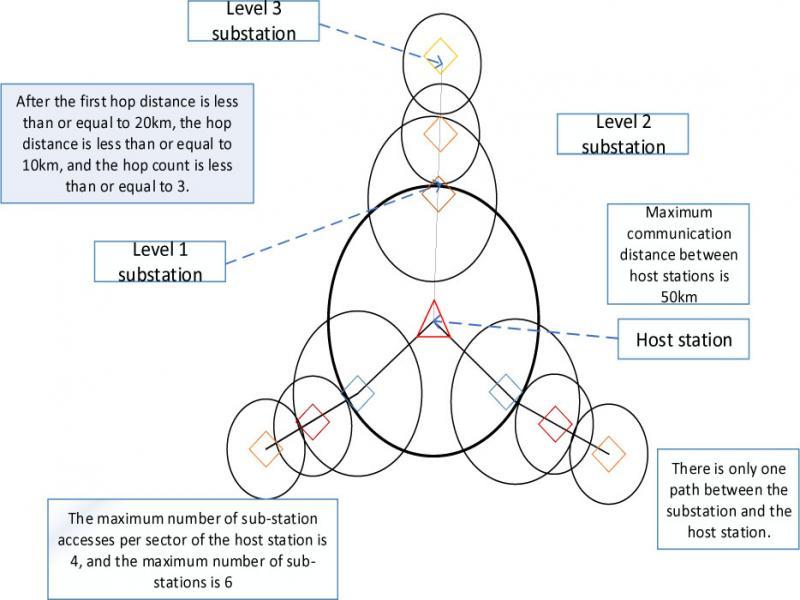

Figure 1.

Schematic diagram of connections between sites
Schematic diagram of connections between sites

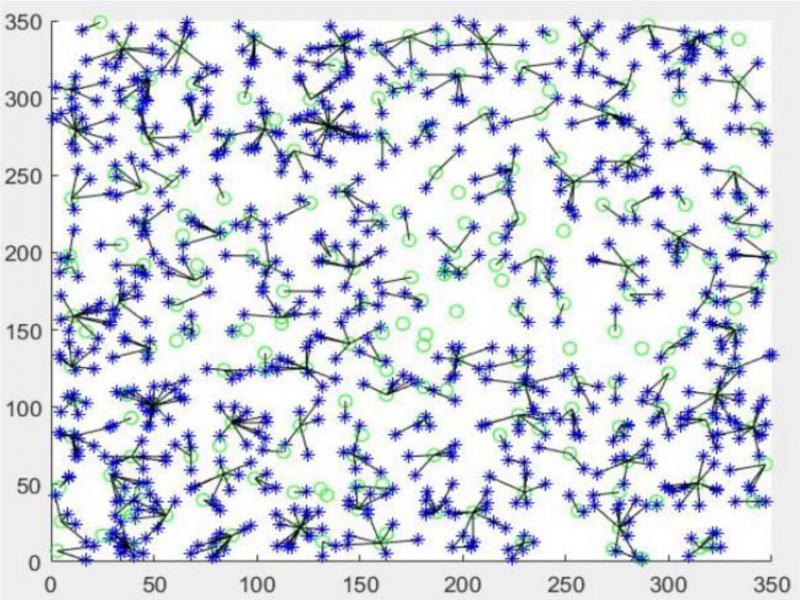

Figure 2.

Base station topology
Base station topology

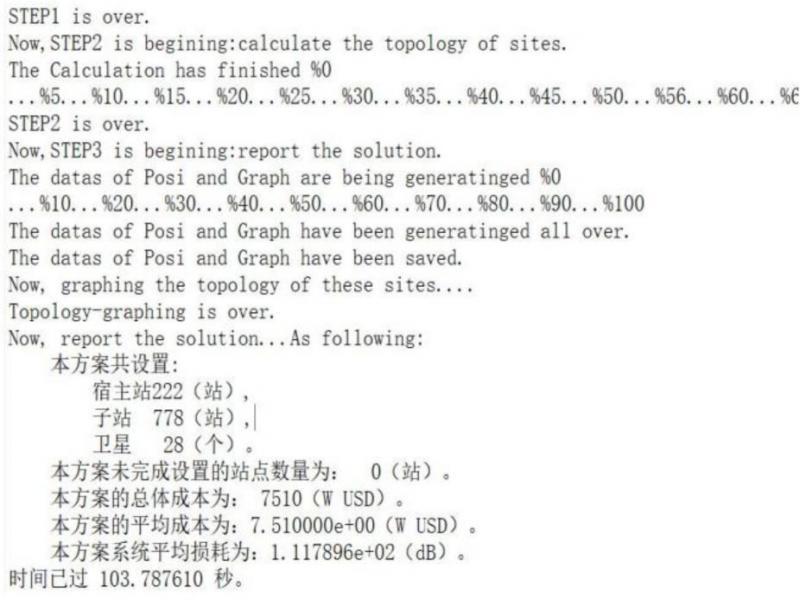

Figure 3.

Program run result
Program run result

NUMBER OF SITES AND AVERAGE WASTAGE

First jump/second jumpHost stationchild stationsatelliteAverage loss (dB)
20/1022277828111.79
15/838561049109.44
12/658841074107.30

NOTATION TABLE

symbolsMeaning
LOSLine-of-sight transmission capability
ROIReturn on investment
NLOSNon-line-of-sight transmission capability
RRNThe infinite return device of the infinite return scheme
RNRelay station
UEOrdinary mobile phone
PLPath to the consumption
APLAverage path consumption
DSite spacing
FTransmission frequency
RRadius of the earth
SThe distance between the spheres
αiI point longitude
β iI point the dimension
iBase station identification
XiThe host site
YiThe child site
ZiSatellite point
CThe overall cost
FDThe first jump distance
NDAfter each jump distance
FXiButterfly host station
RXiStar host station
WLMicrowave connections between host stations
WBLWireless return connection between host station and sub-station and between sub-stations
JSThe number of hops from a substation to a host station
CeilThe function that rounds up

SHOWS THE COSTS OF VARIOUS MODES OF TRANSMISSION IN WUSD

transportcost
host station10
child station5
satellite50

COST COMPARISON TABLE

Radius (km)Host stationchild stationsatelliteOverall cost (WUSD)
20222778287510
25136858176500
30110871146155
